NothingComes Close to a Cobra ® English For more information or to order any of our products, please visit our website: www.cobra.com A1 Making Life Easier and Safer Owner’s Manual NothingComes Close to a Cobra ® TWO-WAY RADIO MODEL PR 4200 WX Printed in China Part No. 480-407-P Version A IntroOperationCustomer Assistance Warranty N otice Main Icons Secondary Icons Introduction Staying in touch with your family and friends is convenient and easy when using your microTALK ® radio. Some of the many uses you will discover include: Communicating with others while hiking, biking and working; keeping track of family and friends at a crowded public event; checking with travel companions in another car; talking with neighbors; arranging meeting spots with others while shopping at the mall. Secure your microTALK radio while on the go. Carrying your microTALK radio with you is easy when using the belt clip. The belt clip easily attaches to your belt, purse or backpack. For Assistance in the U.S.A. In this user’s manual, you should find all the information you need to operate your microTALK radio. If you require further assistance after reading this manual, Cobra Electronics offers the following customer assistance services: Automated Help Desk English only. 24 hours a day, seven (7) days a week 773-889-3087 (phone). Customer Assistance Operators English and Spanish. 8:00 a.m. to 6:00 p.m. Central Time, Monday through Friday (except holidays) 773-889-3087 (phone). Questions English and Spanish. Faxes can be received at 773-622-2269 (fax). Technical Assistance English only. www.cobra.com (on-line: Frequently Asked Questions). English and Spanish. productinfo @cobra.com (e-mail). For Assistance Outside the U.S.A. Contact Your Local Dealer Belt Clip IntroOperationCustomer Assistance Warranty Notice Main Icons Secondary Icons Customer Assistance © 2008 Cobra Electronics Corporation™ 6500 West Cortland Street Chicago, Illinois 60707 USA www.cobra.com PR4200WX_PH3b.qxd 5/11/07 12:40 PM Page RC1 A3 Product Features A2 Product Features IntroOperationCustomer Assistance Warranty N otice Main Icons Secondary Icons Introduction IntroOperationCustomer Assistance Warranty Notice Main Icons Secondary Icons Introduction Backlit LCD Display •22 Channels Seven shared with FRS/GMRS, seven FRS only, eight GMRS only • 121 Privacy Codes (38 CTCSS codes/ 83 DCS codes) • 10 Channel NOAA All Hazards Radio •Hands-Free Operation (VOX) •10 Channel Memory •Signal Strength Meter •Scan Channel, privacy code, memory • Selectable Hi•Low Power In GMRS • Backlit LCD Display •Button Lock •Call Alert 10 selectable tones • Speaker/ Microphone/ Charge Jack •Roger Beep Selectable on/off • Battery/Power Saver •Keystroke Tones Selectable on/off • Auto Squelch •Maximum Range Extender •Belt Clip 1 2 3 8 4 5 7 6 10 11 12 9 1. Antenna 2. External Speaker/ Microphone/Charge Jack 3.On/Off VolumeKnob 4. Backlit LCD Display 5.Channel UpButton 6.Channel DownButton 7.Mode/LockButton 8. Speaker/Microphone 9. Call Button 10.Light/Max RangeButton 11.Talk Button 12.Enter/Hi-Low PowerButton 13. Wrist Strap Connector 14.Belt Clip 15. Battery Compartment 16.Battery Door Latch 1 2 3 4 6 9 10 12 14 15 16 11 13 5 8 13 14 15 16 7 IntroOperationCustomer Assistance Warranty Notice Main Icons Secondary Icons Important FCC Licensing Information This radio operates on General Mobile Radio Service (GMRS) frequencies which require a Federal Communications Commission (FCC) license. See page 22 for licensing and other related information. IntroOperationCustomer Assistance Warranty Notice Main Icons Secondary Icons Maximum range may vary and is based on unobstructed line-of-sight communication under ideal conditions. 1. Signal Strength Meter Icon 2.Lock Icon 3.Keystroke Tones Icon 4. Roger Beep Icon 5.VOX Icon 6.NOAA All Hazards Radio Icon 7. DCS Icon 8. Scan Icon 9. Memory Icon 10. Memory Location Number 11. Privacy Code Numbers 12.Hi-Low Icons 13. Receive/Transmit Icons 14. Battery Low Indicator 15.Power Saver Icon 16. Channel Numbers PR4200WX_PH3b.qxd 5/11/07 12:40 PM Page A2 IntroOperationCustomer Assistance Warranty Notice Main Icons Secondary Icons OperationCustomer AssistanceWarranty 1 IntroOperationCustomer Assistance Warranty Notice Main Icons Secondary Icons Introduction Caring for Your microTALK Radio • Your microTALK radio will give you years of trouble-free service if cared for properly. Handle the radio gently. Keep the radio away from dust. Never put the radio in water or in a damp place. Avoid exposure to extreme temperatures. Rechargeable Batteries and Desktop Charger • To install or replace batteries: 1. Remove belt clip by releasing belt clip latch and sliding clip up. 2.Pull up on the battery door latch to remove the battery compartment cover. 3.Insert batteries according to polarity markings. 4.Replace battery compartment cover and belt clip. Estimated operation time on full charge: 12 hours. These rechargeable batteries must be recycled or disposed of properly in compliance with all applicable laws. They may not be thrown in the trash. Certain states or municipalities require recycling and have established collection programs. Please contact your local waste removal authority for instructions, or return to Cobra ® for recycling. Wrap batteries carefully and mail postage prepaid to: Cobra Electronics Corporation ™, 6500 West Cortland Street, Chicago, IL 60707 USA, Attn: Battery Recycling. Do not put batteries into fire or expose to high heat. They may explode. 008b Remove Belt Clip Pull Up Lock Latch Insert Batteries PR4200WX_PH3b.qxd 5/11/07 12:40 PM Page 1 IntroOperationCustomer Assistance Warranty Notice Main Icons Secondary Icons Turning on Your microTALK Radio • Rotate the On/Off Volumeknob clockwise to turn onyour radio and adjust the volume. A series of tones will indicate the radio is on. Your microTALK radio is now in Standby mode, ready to receive transmissions. The radio is always in Standby mode, except when the Talk, Callor Mode/Lockbu…

Text truncated - open the document above for the full version.

5 July 2007 Equipment Authorization Division Office of Engineering and Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Ref: FCC ID: BBOPR4200 Request for Confidentiality Dear Sirs: With regard to the referenced application, Cobra Electronics Corporation, is requesting confidentiality of certain sections of the accompanying documents. The documents for which Cobra Electronics Corporation is requesting confidentiality are: Schematic Diagram SchematicDiagram.pdf Block Diagram BlockDiagram.pdf Operational Descriptions OperationalDesc.pdf This request is made under the provisions of Section 0.457(d) of the Commission’s Rules, and Section 552(b)(4) of the Freedom of Information Act. The material for which confidentiality is requested falls within the scope of Section 552(b)(4) as trade secrets and includes material covered by Section 0.459 of the Commission’s Rules. Sincerely, Robert Mudra Engineering Manager

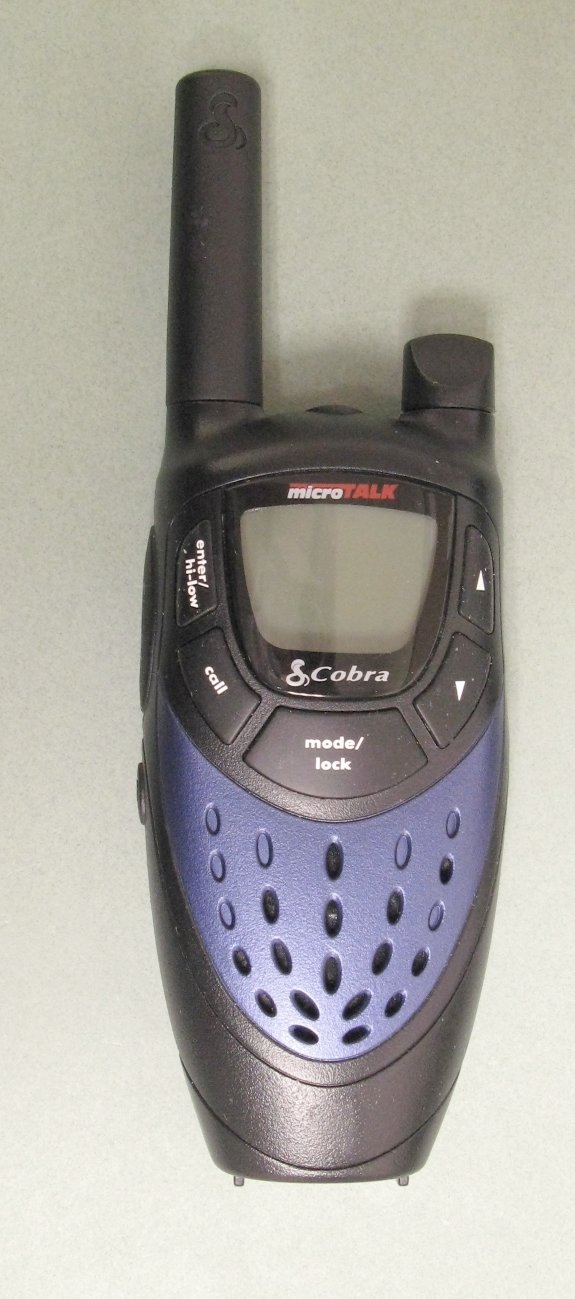

5 July 2007 Equipment Authorization Division Office of Engineering and Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Ref: FCC ID: BBOPR4200 Dear Sirs: Cobra Electronics Corporation requests acceptance of the labeling proposal described below for transceivers bearing FCC identifier BBOPR4200. The subject transceivers are compact handheld models as shown in figure 1, authorized under 47CFR Part 95 for FRS and GMRS services. Figure 1. Because the majority of the transceiver housing is composed of display, speaker, operating controls, and a battery access cover, there is extremely limited space available to attach the required label carrying the FCC identifier. Attaching the label to the battery access cover is not acceptable because the battery access cover is a removable item. For this reason, Cobra proposes placing the label carrying the FCC identifier inside the battery compartment as shown in figure 2. Figure 2. The consumer packaging for these models includes the batteries as separate items, NOT installed in the radio. As such, the FCC identifier will be readily visible to the user before the batteries are installed and whenever the batteries are removed or replaced. In this location, the label will also be protected from physical abuse and remain readable for the anticipated life of the device. The consumer packaging for these models is a transparent plastic "clamshell" but, because the battery access cover is installed on the radio, the battery compartment cannot be seen at time of purchase. In order to meet the requirements of 47CFR Part 2.925 (d), Cobra will add the FCC identifier "BBOPR4200" to the insert card within the clamshell packaging. Sincerely, Robert Mudra Engineering Manager

Item VALUE QTY REF-DES 1 21.7M 1 F202 2 BRC24C02 1 U103 3 AN29160AA 1 U102 4 1 ANT1 5 6.0V(1.5X4) NI HM 1 BAT101 6 1.5VX3 CELL 1 BAT2 7 0P5 2 C204 C300 8 100P 2 C217 C285 9 102 15 C6 C12 C52 C149 C162 C201 C211 C218 C224 C227 C258 C267 C269-270 C277 10 103 22 C25 C28 C31 C35 C43 C45 C48 C106 C108 C135 C141 C146 C154 C160 C175 C220 C252 C263 C274 C293 C301 C308 11 104 28 C22 C24 C26 C32 C34 C42 C46 C103 C116-118 C120-121 C134 C145 C164 C166 C171-172 C180-181 C187-188 C219 C251 C287 C298 C307 12 105 21 C1-3 C8 C18 C100-101 C104-105 C109 C113-114 C131 C150 C153 C168 C178 C186 C247 C282 C292 13 10P 3 C14 C205 C255 14 10U 8 C5 C44 C54 C56 C107 C167 C182 C230 15 123 1 C143 16 12P 5 C11 C208 C210 C226 C233 17 150P 2 C148 C159 18 152 2 C127 C151 19 15P 1 C275 20 1P 3 C256 C266 C272 21 1U 1 C55 22 2.2uF 1 C23 23 20P 2 C176-177 24 220P 1 C40 25 222 2 C137 C147 26 223 3 C129 C169 C174 27 270P 1 C184 28 273 1 C115 29 27P 4 C152 C273 C279-280 30 2P 4 C202-203 C216 C278 31 30P 2 C221 C229 32 332 1 C199 33 33P 5 C15 C20 C110 C133 C281 34 390P 1 C138 35 3P 3 C212 C223 C244 36 470P 12 C9 C17 C33 C41 C50 C125-126 C213 C237 C243 C250 C253 37 472 4 C53 C173 C190 C299 38 473 7 C4 C29-30 C122 C140 C183 C290 39 47P 1 C179 40 4P 2 C262 C306 41 560P 2 C124 C139 42 563 1 C130 43 5P 3 C21 C231 C257 44 682 11 C36-39 C47 C51 C59 C132 C142 C248 C276 45 683 2 C155 C185 46 6P 5 C10 C13 C16 C112 C240 47 7P 7 C206 C232 C238-239 C264-265 C271 48 8P 2 C111 C254 49 9P 3 C19 C246 C259 50 NC 13 C27 C49 C57-58 C158 C215 C222 C225 C245 C260 C284 C288 C296 51 CALL 1 SW3 52 CH DOWN1 SW8 53 CH UP 1 SW9 54 HI/LO 1 SW5 55 LAMP 1 SW7 56 MODE/LOCK 1 SW11 57 PTT 1 SW2 58 ISS364 1 D2 59 103AST 5 D5-8 D11 60 103CST 4 D1 D4 D12-13 61 KDS114 4 D201-203 D205 62 LL4150ST 1 D9 63 100U 1 C156 64 220U 1 C165 65 22U 1 C7 66 EM78P568 1 U101 67 450HTW 1 F101 68 F462 1 F201 69 ST-369-5S 1 JK500 70 EXT_SPK/MIC 1 JK101 71 100nH 1 L222 72 15nH 2 L210 L226 73 1U5 1 L211 74 1uH 2 L215 L228 75 22nH 2 L208 L225 76 2U2 1 L4 77 33nH 2 L206-207 78 3T5 7 L3 L201-202 L204 L216 L219 L224 79 47nH 3 L2 L212-213 80 56nH 2 L223 L227 81 5T5 3 L203 L217-218 82 NC 1 L6 83 LCD DISPLAY 1 LCD1 84 LDO-8141 U3 85 LCDLIGHT 4 LED301-302 LED500-501 86 WM-54BH1 MIC101 87 2SC39049 Q2 Q9 Q13-16 Q107 Q204 Q307 88 2SC41773 Q6 Q8 Q211 89 2SC42264 Q1 Q11 Q207 Q209 90 2SC50667 Q7 Q201-203 Q208 Q210 Q216 91 NC 1 Q3 92 2SA1979SF 2 Q12 Q17 93 2SA1980SF 1 Q4 94 NE5500234 1 Q10 95 000 4 R62 R199 R210 R250 96 0R 4 R58-60 R251 97 10 3 R9 R56-57 98 100 7 R101 R148 R208 R238 R242 R244-245 99 100(TR)1 R108 100 100K 14 R1 R14 R24 R51 R66 R105-107 R111 R121 R129 R166 R182 R243 101 10K 17 R21 R23 R28 R41 R43-44 R73-74 R119 R152 R187 R197 R206 R230 R234 R237 R246 102 120K 1 R145 103 120R 2 R500 R502 104 12K 1 R118 105 150K 2 R17 R124 106 15K 2 R8 R222 107 18K 2 R126 R137 108 1K 12 R22 R55 R69 R104 R131 R151 R219 R232-233 R248-249 R370 109 1K2 2 R501 R503 110 1K5 2 R65 R147 111 1M 3 R42 R52 R142 112 22 6 R6 R12 R224 R239 R253 R371 113 220 5 R213 R216 R220 R235 R241 114 220K 3 R15 R29 R192 115 22K 13 R2 R5 R18-19 R32-33 R46 R48-50 R68 R163 R259 116 270K 1 R26 117 27K 3 R112 R116 R122 118 2K2 4 R38 R133 R227-228 119 2M 2 R161 R186 120 2M(1%) 2 R184 R194 121 2M2 1 R128 122 300 3 R155-157 123 330 1 R16 124 330K 2 R180 R185 125 33K 4 R4 R138 R141 R188 126 390K 2 R25 R123 127 39K 1 R252 128 3K3 3 R34 R136 R236 129 47 3 R37 R203 R231 130 470K 2 R117 R135 131 47K 16 R30 R45 R47 R54 R64 R70-72 R75 R102 R149 R154 R159-160 R169 R260 132 4K7 9 R11 R20 R39-40 R53 R134 R202 R212 R226 133 51 1 R240 134 510K 1 R127 135 51K 3 R35-36 R191 136 560K 1 R120 137 56K 3 R140 R143 R165 138 5K6 2 R10 R225 139 680K 1 R61 140 68K 3 R171 R201 R215 141 6K8 1 R247 142 7K5 1 R7 143 820 1 R150 144 82K 2 R31 R162 145 910 1 R144 146 NC 6 R3 R13 R27 R63 R67 R214 147 SDS28361 DD101 148 8R 1 SPK101 149 1 K202 150 6 TP1-3 TP101 TP201 TP204 151 1K 2 CH- TP10 152 LM324 1 U4 153 10P 1 VC101 154 1SV270 3 VD1 VD201-202 155 1 K201 156 10K 1 VR101 157 1K 1 VR202 158 22K 1 VR103 159 47K 1 VR102 160 21.25MHz 1 X101 161 32.768K1 X102 162 450KHz 1 X103 163 5V1 1 D3 164 6V8 1 D14

Alignment instructions WARNING Any repairs or adjustments should be made under the supervision of a qualified radio technician. TRANSMITTER 1.Power Supply Voltage The Power supply voltage should be set for 6.0VDC measured at the radio during transmit. Periodically check the power supply voltage during the alignment procedure. 2.Frequency Setting A. Connect a frequency counter or Communications Service Monitor to the antenna through an RF power attenuator (10 watt minimum rating, 20 dB minimum attenuation). B. Depress the PTT switch. C. Adjust the trimmer capacitor (VC101) such that the output frequency is equal to the channel frequency with a maximum error of +/- 200 Hz. D. Release the PTT switch. 3. Output Power Alignment. A. Set the power supply voltage for 6.0VDC. B. Connect a Communications Service Monitor or a wattmeter and dummy load to the antenna connector. C. Depress the PTT switch. D. To be convinced for 0.5 Watt output power with a maximum error of +/- 0.1 Watt. E. Release the PTT switch. 4. Deviation Adjustment. A. Connect an audio generator to the microphone positive terminal. The audio frequency Should be set at 1 KHz. B. Connect an FM deviation meter or Communications Service Monitor to the antenna connector through an RF power attenuator (10 watt minimum rating, 20 dB minimum attenuation). Set the monitor to read peak deviation. C. Depress the PTT switch. D. Adjust the audio generator level 100 mV rms. E. Adjust VR101 for +/- 2.0 KHz maximum deviation. F. Release the PTT switch. RECEIVER NOTE: Insure that the proper channel has been selected before proceeding with the alignment procedure. 1. Power Supply Voltage The proper voltage for testing is 6.0 VDC. 2. Receiver Alignment A. Connect an RF signal generator or Communications Service Monitor to the antenna connector. B. Connect a SINAD meter and oscilloscope across the speaker terminals. C. Set the output level of the RF signal generator for -47 dBm. The generator should be set for +/- 1.5 KHz deviation of a 1 KHz tone. D. Set the audio output level for 0.6 Vrms. by adjusting volume. E. Reduce the output level of the RF signal generator for produce a 6-12 dB SINAD indication.

Company: Cobra Electronics Corporation FCC ID: BBOPR4200 IC ID: 906B-PR4200 Model(s): PR4200 / PR4800 DUT Type: Portable FM UHF FRS/GMRS PTT Radio Transceiver 2007 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 1 of 35 Date(s) of Evaluation July 25, 2007 Test Report Serial No. 072407BBO-T843-S95U Test Report Revision No. Revision 1.0 Test Report Issue Date August 03, 2007 Description of Test(s) Specific Absorption Rate RF Exposure Category General Population Certificate No. 2470.01 SAR TEST REPORT R R F F E E X X P P O O S S U U R R E E E E V V A A L L U U A A T T I I O O N N S S P P E E C C I I F F I I C C A A B B S S O O R R P P T T I I O O N N R R A A T T E E APPLICANT COBRA ELECTRONICS CORPORATION PRODUCT PORTABLE FRS/GMRS PTT RADIO TRANSCEIVER MODEL(S) PR4200 PR4800 IDENTIFIER(S) FCC ID: BBOPR4200 IC ID: 906B-PR4200 APPLICATION TYPE New Certification STANDARD(S) APPLIED 47 CFR §2.1093 Health Canada Safety Code 6 FCC OET Bulletin 65, Supplement C (01-01) PROCEDURE(S) APPLIED Industry Canada RSS-102 Issue 2 RF EXPOSURE CATEGORY General Population / Uncontrolled Exposure TEST REPORT SERIAL NO. 072407BBO-T843-S95U TEST REPORT REVISION NO. Revision 1.0 (Initial Release) TEST REPORT ISSUE DATE August 03, 2007 Testing and Test Report ByTest Report Reviewed By TEST REPORT SIGNATORIES Cheri Frangiadakis Celltech Labs Inc. Jonathan Hughes Celltech Labs Inc. Celltech Compliance Testing & Engineering Lab TEST LAB AND LOCATION 21-364 Lougheed Road, Kelowna, B.C. V1X 7R8 Canada Tel.: 250-765-7650 Fax: 250-765-7645 TEST LAB CONTACT INFO. [email protected] www.celltechlabs.com TEST LAB ACCREDITATION(S) Certificate No. 2470.01 Company: Cobra Electronics Corporation FCC ID: BBOPR4200 IC ID: 906B-PR4200 Model(s): PR4200 / PR4800 DUT Type: Portable FM UHF FRS/GMRS PTT Radio Transceiver 2007 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 2 of 35 Date(s) of Evaluation July 25, 2007 Test Report Serial No. 072407BBO-T843-S95U Test Report Revision No. Revision 1.0 Test Report Issue Date August 03, 2007 Description of Test(s) Specific Absorption Rate RF Exposure Category General Population Certificate No. 2470.01 Celltech Labs Inc. declares under its sole responsibility that this wireless portable device has demonstrated compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093 and Health Canada’s Safety Code 6 for the General Population / Uncontrolled Exposure environment. The device was tested in accordance with the measurement standards and procedures specified in FCC OET Bulletin 65, Supplement C (Edition 01-01) and Industry Canada RSS-102 Issue 2. All measurements were performed in accordance with the SAR system manufacturer recommendations. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. DECLARATION OF COMPLIANCE SAR RF EXPOSURE EVALUATION Test Lab and Location CELLTECH LABS INCORPORATED Testing and Engineering Services 21-364 Lougheed Road Kelowna, B.C. V1X 7R8 Canada Tel.: 250-765-7650 e-mail: [email protected] Fax: 250-765-7645 web site: www.celltechlabs.com Company Information COBRA ELECTRONICS CORPORATION 6500 West Cortland Street Chicago, IL 60707 United States FCC IDENTIFIER:BBOPR4200IC IDENTIFIER:906B-PR4200 Device Model(s):PR4200PR4800Serial No. Tested: #4Identical Prototype Standard(s) Applied: FCC 47 CFR §2.1093 Health Canada Safety Code 6 FCC OET Bulletin 65, Supplement C (Edition 01-01) Procedure(s) Applied: Industry Canada RSS-102 Issue 2 RF Exposure Category: General Population / Uncontrolled Environment Device Description: Portable FM UHF FRS/GMRS PTT Radio Transceiver 462.5500 - 462.7250 MHz (GMRS Channels 15-22) 462.5625 - 462.7125 MHz (FRS/GMRS Channels 1-7) Transmit Frequency Range(s): 467.5625 - 467.7125 MHz (FRS Channels 8-14) Max. RF Output Power Tested: 0.646 Watts 28.10 dBm ERP462.7250 MHz GMRS Ch. 22 Antenna Type(s) Tested: External Fixed Stubby Battery Type(s) Tested: NiMH AAA x4 (1.2V, 600mAh) Alkaline Duracell Procell AAA x4 (1.5V, 1150mAh) Body-worn Accessories Tested: Plastic Belt-Clip (5 mm thickness) Audio Accessories Connected: Ear-bud with Lapel-Microphone Face-held0.549 W/kg 1g50% duty cycle Max. SAR Level(s) Evaluated: Body-worn 1.23 W/kg 1g50% duty cycle Test Report Approved By: Sean Johnston Celltech Labs Inc. Company: Cobra Electronics Corporation FCC ID: BBOPR4200 IC ID: 906B-PR4200 Model(s): PR4200 / PR4800 DUT Type: Portable FM UHF FRS/GMRS PTT Radio Transceiver 2007 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 3 of 35 Date(s) of Evaluation July 25, 2007 Test Report Serial No. 072407BBO-T843-S95U Test Report Revision No. Revision 1.0 Test Report Issue Date August 03, 2007 Description of Test(s) Specific Absorption Rate RF Exposure Category General Population Certificate No. 2470.01 TABLE OF CONTENTS 1.0 INTRODUCTION ___________________________________________________________________ 4 2.0 SAR MEASUREMENT SYSTEM ______________________________________________________ 4 3.0 MEASUREMENT SUMMARY _________________________________________________________ 5 4.0 DETAILS OF SAR EVALUATION______________________________________________________ 6 5.0 EVALUATION PROCEDURES ________________________________________________________ 6 6.0 SYSTEM PERFORMANCE CHECK ___________________________…

Text truncated - open the document above for the full version.

FCC PART 95 AND IC RSS-210 FRS/GMRS TRANSCEIVER TEST REPORT APPLICANT COBRA ELECTRONICS CORPORATION 6500 WEST CORTLAND STREET CHICAGO IL 60707 FCC ID BBOPR4200 IC CERT # 906B-PR4200 MODEL NUMBERS PR4200, PR4150, PR4275, PR4800, PR4850 PRODUCT DESCRIPTION FRS/GMRS TRANSCEIVER DATE SAMPLE RECEIVED 6/18/2007 DATE TESTED 7/19/2007 TESTED BY NAM NGUYEN APPROVED BY NAM NGUYEN TIMCO REPORT NO. 2471AUT7TestReport.doc TOTAL PAGES 18 TEST RESULTS PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA PH: 888.472.2424 OR 352.472.5500 FAX: 352.472.2030 EMAIL: [email protected] HTTP: //WWW.TIMCOENGR.COM Certificate # 0955-01 Certificate # 0955-01 Applicant: COBRA ELECTRONICS CORPORATION FCC ID: BBOPR4200 IC Cert #: 906B-PR4200 Report: W:\C\COBRA\2471AUT7\2471AUT7TestReport.doc Page 2 of 18 TABLE OF CONTENTS STATEMENT OF COMPLIANCE.................................................................................. 3 GENERAL INFORMATION .......................................................................................... 4 TEST PROCEDURE ................................................................................................... 5 RF POWER OUTPUT .................................................................................................. 6 MODULATION CHARACTERISTICS............................................................................ 7 EMISSION DESIGNATOR AND FREQUENCIES ........................................................ 10 OCCUPIED BANDWIDTH ......................................................................................... 11 SPURIOUS EMISSIONS AT ANTENNA TERMINALS (CONDUCTED)........................... 13 FIELD STRENGTH OF SPURIOUS EMISSIONS - TX ................................................. 14 FIELD STRENGTH OF SPURIOUS EMISSIONS - RX ................................................. 16 FREQUENCY STABILITY.......................................................................................... 17 TEST EQUIPMENT LIST........................................................................................... 18 Certificate # 0955-01 Applicant: COBRA ELECTRONICS CORPORATION FCC ID: BBOPR4200 IC Cert #: 906B-PR4200 Report: W:\C\COBRA\2471AUT7\2471AUT7TestReport.doc Page 3 of 18 STATEMENT OF COMPLIANCE This equipment has been tested in accordance with the standards identified in the referenced test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report and demonstrate that the equipment complies with the appropriate standards. No modifications were made to the equipment during testing in order to demonstrate compliance with these standards. I attest that the necessary measurements were made by me or under my supervision, at Timco Engineering, Inc. located at 849 N.W. State Road 45, Newberry, Florida 32669 USA. Authorized by: Nam Nguyen Signature: < Nam Nguyen> Function: Engineer Tech. Date: 7/24/2007 Certificate # 0955-01 Applicant: COBRA ELECTRONICS CORPORATION FCC ID: BBOPR4200 IC Cert #: 906B-PR4200 Report: W:\C\COBRA\2471AUT7\2471AUT7TestReport.doc Page 4 of 18 GENERAL INFORMATION DUT Specification The test results relate only to the items tested. DUT Description FRS/GMRS TRANSCEIVER FCC ID BBOPR4200 IC Cert # 906B-PR4200 Model Number PR4200, PR4150, PR4275, PR4800, PR4850 Operating Frequency 462.5500-462.7250, 467.5625-467.7125 No. of Channels 22 Type of Emission 10K5F3E Modulation FM 110–120Vac/50– 60Hz DC Power DUT Power Source Battery Operated Exclusively Prototype Pre-Production Test Item Production Fixed Mobile Type of Equipment Portable Antenna Fixed Test Facility Timco Engineering Inc. located at 849 NW State Road 45 Newberry, FL 32669 USA. Modifications None Test Exercise The DUT was placed in continuous transmit mode of operation Applicable Standards TIA 603, FCC CFR 47 Part 2 and Part 95, IC RSS- 210 and RSS-GEN Certificate # 0955-01 Applicant: COBRA ELECTRONICS CORPORATION FCC ID: BBOPR4200 IC Cert #: 906B-PR4200 Report: W:\C\COBRA\2471AUT7\2471AUT7TestReport.doc Page 5 of 18 TEST PROCEDURE Bandwidth 20 dB: The measurements were made with the spectrum analyzer's resolution bandwidth (RBW) = 1 MHz and the video bandwidth (VBW) = 3 MHz and the span set as shown on plot. Power Output: RF power was conducted per TIA/EIA STANDARD 603 using the substitution method Antenna Conducted Emissions: The RBW = 100 kHz, VBW = 300 kHz and the span set to 10.0 MHz and the spectrum was scanned from 30 MHz to the 10 th Harmonic of the fundamental. Above 1 GHz the resolution bandwidth was 1 MHz and the VBW = 3 MHz and the span to 50 MHz. Radiation Interference: The test procedure used was TIA 603 using an Agilent spectrum receiver with pre-selector. The bandwidth (RBW) of the spectrum TIA 603 receiver was 100 kHz up to 1 GHz and 1 MHz above 1 GHz with an appropriate sweep speed. The VBW above 1 GHz was 3 MHz. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The ambient temperature of the DUT was 76°F with a humidity of 55%. Certificate # 0955-01 Applicant: COBRA ELECTRONICS CORPORATION FCC ID: BBOPR4200 IC Cert #: 906B-PR4200 Report: W:\C\COBRA\2471AUT7\2471AUT7TestReport.doc Page 6 of 18 RF POWER OUTPUT Rule Part No.: Part 2.1046(a), Part 95, RSS-210 Test Requirements: Method of Measurement: RF power is measured as ERP as the antenna is permanently attached. The substitution method was used. With a nominal battery voltage, and the transmitter properly adjusted the RF output measures: Test Setup Diagram: Test Data: OUTPUT POWER: GMRS - .66 Watts FRS - .24 Watts Part 2.1033 (C)(8) DC Input into the final amplifier FOR LOW POWER SETTING INPUT POWER: (6.0V)(.340A) = 2.04 Watts FOR HIGH POWER SETTING INPUT POWER: (6.0V)(.870A)= 5.22 Watts Certificate # 0955-01 Applicant: COBRA ELECTRONICS CORPORATION FCC ID: BBOPR4200 IC Cert #: 906B-PR4200 Report: W:…
