BBOPR5000FRS/GMRS TRANSCEIVER

Nothing Comes Close to a Cobra ® English The Cobra line of quality products includes: CB Radios • microTALK ® Radios • Radar/Laser Detectors • Safety Alert ® Traffic Warning Systems • Handheld GPS Receivers • Mobile GPS Navigation Systems • HighGear ® Accessories • CobraMarine™ VHF Radios • Power Inverters • Accessories For more information or to order any of our products, please visit our website: www.cobra.com A1 English Making Life Easier and Safer Owner’s Manual Nothing Comes Close to a Cobra ® English Introduction Staying in touch with your family and friends is convenient and easy when using your microTALK ® radio. Some of the many uses you will discover include: Communicating with others while hiking, biking, and working; keeping track of family and friends at a crowded public event; checking with travel companions in another car; talking with neighbors; arranging meeting spots with others while shopping at the mall. Secure your microTALK ® radio while on the go. Carrying your microTALK ® radio with you is easy when using the belt clip. The belt clip easily attaches to your belt, purse or backpack. Simply squeeze the clip and place it where you prefer. For Assistance in the U.S.A. In this user’s manual, you should find all the information you need to operate your microTALK ® radio. If you require further assistance after reading this manual, Cobra Electronics offers the following customer assistance services: Automated Help Desk English only. 24 hours a day, 7 days a week 773-889-3087 (phone). Customer Assistance Operators English and Spanish. 8:00 a.m. to 6:00 p.m. CT, Monday through Friday (except holidays) 773-889-3087 (phone). Questions English and Spanish. Faxes can be received at 773-622-2269 (fax). Technical Assistance English only. www.cobra.com (on-line: Frequently Asked Questions). English and Spanish. productinfo @cobra.com (e-mail). For Assistance Outside the U.S.A. Contact Your Local Dealer Belt Clip Customer Assistance © 2005 Cobra ® Electronics Corporation 6500 W est Cortland Street Chicago, Illinois 60707 USA www.cobra.com TWO-WAY RADIO MODEL PR 5050 WX Printed in Philippines Part No. 480-252-P Version A 29 Nothing Comes Close to a Cobra ® Battery Compartment Battery Door Latch Belt Clip Wrist Strap Connector A3 English Product Features A2 English Product Features Introduction Backlit LCD Display Speaker/ Microphone Hi•Low Power/ Enter Button Call Button On/Off Volume Knob Antenna Lock/Mode Button Channel Up Button Channel Down Button External Speaker/ Microphone/Charge Jack Light/ Max Range Button Talk Button Introduction Backlit LCD Display Important FCC Licensing Information This r adio operates on General Mobile Radio Ser vice (GMRS) frequencies which require a Federal Communications Commission (FCC) license . See page 26 f or licensing and other related information. Maximum range may vary and is based on unobstr ucted line-of-sight comm unication under ideal conditions. Features • 22 Channels Seven shared with FRS/GMRS, seven FRS only, eight GMRS only • 38 Privacy Codes •10 Channel NOAA All Hazards Radio • Hands-Free Operation (VOX) • 10 Channel Memory • Signal Strength Meter • Scan Channel, privacy codes, memory • Selectable Hi•Low Power In GMRS • Backlit LCD Display • Button Lock • Call Alert 10 selectable tones • Speaker/ Microphone/ Charge Jack • Roger Beep Selectable on/off • Battery/ Power Saver • Keystroke Tones Selectable on/off • Auto Squelch • Maximum Range Extender •Belt Clip Receive/ Transmit Icon Hi•Low Power Icon Lock Icon Keystroke Tones Icon Roger Beep Icon Vox Icon Scan Icon NOAA All Hazards Radio Icon Signal Strength Meter Icon Battery Level Indicator Power Saver Icon Privacy Code Numbers Memory Icon Memory Location Number Channel Numbers OperationCustomer Assistance Warranty 1 Nothing Comes Close to a Cobra ® Introduction Caring for Your microTALK ® Radio • Your microTALK ® radio will give you years of trouble-free service if cared for properly. Handle the radio gently. Keep the radio away from dust. Never put the radio in water or in a damp place. Avoid exposure to extreme temperatures. Desktop Charger and Rechargeable Batteries • To insert in radio: 1. Remove belt clip by releasing belt clip latch and sliding clip up. 2.Pull Down on the battery door latch to remove the battery compartment cover. 3.Insert GA-BN batteries according to polarity markings. 4.Replace battery compartment cover and belt clip. Estimated operation time on full charge: 15 hours. These rechargeable batteries must be recycled or disposed of properly in compliance with all applicable laws. They may not be thrown in the trash. Certain states or municipalities require recycling and have established collection programs. Please contact your local waste removal authority for instructions, or return to Cobra for recycling. Wrap batteries carefully and mail postage prepaid to: Cobra Electronics Corporation, 6500 West Cortland Street, Chicago, IL 60707 USA, Attn: Battery Recycling. Do not put batteries into fire or expose to high heat. They may explode. Insert Batteries Pull Down Latch Remove Belt Clip Customer Assistance WarrantyIntroduction 3 Nothing Comes Close to a Cobra ® Operation 2 English Using Your Radio For charging Cobra’s microTALK ® radio(s): 1. Insert radio(s) as shown. 2. Insert round connector of 120 volt adapter into jack on back of charger. 3. Plug 120 volt adapter into electrical outlet. If charging light is not on, check position of radio. Radio should be upright. The charge indicator light will stay on as long as the radio is in the charging well, even after the batteries are fully charged. It normally takes about 15 hours to fully recharge batteries. Batteries will not be damaged if they stay in the charging well longer than that. Not all radio models include charge contacts. Each port can charge one radio. Uses 120 Volt adapter. Use only Cobra NiMH batteries, model GA-BN with charger model GA-CD. Cobra recommends your radio is turned off while being charg…

Text truncated - open the document above for the full version.

Customer Assistance WarrantyIntroduction Operation 12 English Mode Functions Operation 13 Nothing Comes Close to a Cobra ® Voice Activated Transmit (VOX) • In VOX mode, your microTALK ® radio can be used “hands-free,” automatically transmitting when you speak. You can set the VOX sensitivity level to fit the volume of your voice and avoid transmissions triggered by background noise. To turn VOX mode on or off: 1. Press the Lock/Modebutton until the VOX icon flashes on the display. The current on or off setting is displayed. 2.Press the Channel Upor Channel Down button to turn VOX on or off. 3.Choose one of the following: a.Press the Lock/Modebutton to enter the selected on or off setting and proceed to other functions. b.Press the Hi•Low/Enterbutton to enter the selected on or off setting and return to Standby mode. To set VOX sensitivity: 1. Press the Lock/Modebutton until the VOX icon flashes and the current sensitivity level is displayed. The current sensitivity level is displayed with letters “LE” and a Number 01 through 05, with Number 05 being the most sensitive level and Number 01 being the least sensitive level. 2.Press the Channel Upor Channel Down button to change the setting. 3.Choose one of the following: a.Press the Lock/Modebutton to enter the selected setting and proceed to other functions. b.Press the Hi•Low/Enterbutton to enter the selected setting and return to Standby mode. VOX Sensitivity Level Lock/Mode Button Channel Buttons VOX Icon Lock/Mode Button Channel Buttons NOAA* All Hazards Radio Channels • You can use your microTALK ® radio to listen to NOAA All Hazards Radio channels transmitting in your area. To listen to All Hazards Radio channels: 1. Press the Lock/Modebutton until the All Hazards Radio icon, the currently selected All Hazards Radio channel, and signal strength are displayed. 2.Use the Channel Upor Channel Down button to change All Hazards Radio channels. 3.The All Hazards Radio icon will continue to be displayed when All Hazards Radio is on. Choose one of the following: a.Press the Lock/Modebutton to proceed to other functions. b.Press the Hi•Low/Enterbutton to exit All Hazards Radio channel mode and return to Standby mode. *National Oceanographic and Atmospheric Administration Hazards Radio Icon Channel Buttons Lock/Mode Button Customer Assistance WarrantyIntroduction 15 Nothing Comes Close to a Cobra ® Operation 14 English Mode Functions Operation 10 Memory Locations • Your microTALK ® radio has10 Memory Locationsfor storing your most frequently used channels and channel/privacy code combinations. These Memory Locationscan be selected individually or can be scanned. (See page 20 for memory location scan.) To program a memory location: 1. Press the Lock/Modebutton until the Memoryicon and the memory location flash on the display. 2.Press the Channel Upor Channel Down button to select the memory location (0 through 9). If a location has been programmed before, its associated channel/privacy code will be shown on the display. 3.Press the Hi•Low/Enterbutton to enter a new memory location or edit an already programmed memory location. The channel numbers will flash on the display. 4.Press the Channel Upor Channel Down button to select a channel (1 through 22). 5.Press the Hi•Low/Enterbutton. The CTCSS icon and privacy code numbers will flash on the display. 6.Press the Channel Upor Channel Down button to select a CTCSS privacy code (01 through 38) for the channel. 7.Choose one of the following: a.Press the Hi•Low/Enterbutton to enter the channel/privacy code in the selected memory location and return to Step 1 to program another memory location. b.Press the Lock/Modebutton to enter the channel/privacy code in the selected memory location and proceed to other functions on the channel/privacy code displayed before you entered mode functions. c.Press the Talkbutton to enter the channel/privacy code in the selected memory location and exit mode functions. Upon release of the Talkbutton, the radio will enter Standbymode on the channel/privacy code just entered. To recall a stored memory channel location: 1. Press the Lock/Modebutton until the Memory icon and the memory location number flash on the display. 2.Press the Channel Upor Channel Downbutton to select a memory location (0 through 9). If a location has been programmed before, its associated channel/privacy code will be shown on the display. 3.Press the Talkbutton to return to Standby modeon the selected memory location. A memory location can be reprogrammed at any time it is displayed. Press the Hi•Low/Enterbutton to begin. While recalling a stored memory location, if you do not press any buttons for 15 seconds, your radio will automatically return to Standby mode on the channel/privacy code displayed before you entered mode functions. Memory Icon Lock/Mode Button Channel Buttons Hi•Low/Enter Button Memory Icon Lock/Mode Button Channel Buttons Customer Assistance WarrantyIntroduction 17 Nothing Comes Close to a Cobra ® Operation 16 English Mode Functions Operation Channel Scan • Your microTALK ® radio can automatically scan channels. To scan channels: 1. Press the Lock/Modebutton until the Scanicon and the channel numbers flash on the display. 2.Press the Channel Upor Channel Down button to begin scanning channels. The radio ignores specific privacy codes while scanning channels. The Scanicon will continue to be displayed when scan is on. Your radio will continue to scan all channels and stop if an incoming transmission is detected. Your radio will remain on that channel for 10 seconds. While setting channel scan, if you do not press any buttons for 15 seconds, your radio will automatically return to Standby mode on the channel or channel/privacy code displayed before you entered mode functions. To de-program a memory location: 1. Press the Lock/Modebutton until the Memory icon and the memory location flash on the display. 2.Press the Channel Upor Channel Down button to select the memory location (0 t…

Text truncated - open the document above for the full version.

19 August, 2005 Equipment Authorization Division Office of Engineering and Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Ref: FCC ID: BBOPR5000 Request for Confidentiality Dear Sirs: With regard to the referenced application, Cobra Electronics Corporation, is requesting confidentiality of certain sections of the accompanying documents. The documents for which Cobra Electronics Corporation is requesting confidentiality are: Schematic Diagram Block Diagram Operational Descriptions This request is made under the provisions of Section 0.457(d) of the Commission’s Rules, and Section 552(b)(4) of the Freedom of Information Act. The material for which confidentiality is requested falls within the scope of Section 552(b)(4) as trade secrets and includes material covered by Section 0.459 of the Commission’s Rules. Sincerely, Robert Mudra Engineering Manager

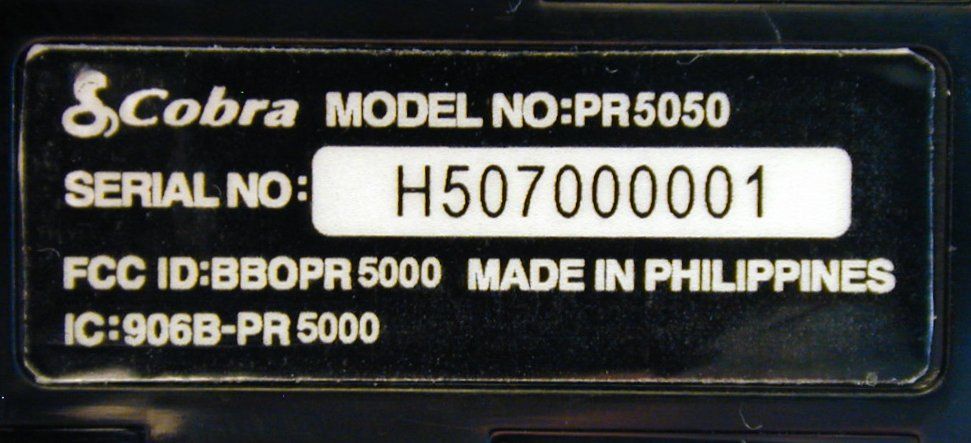

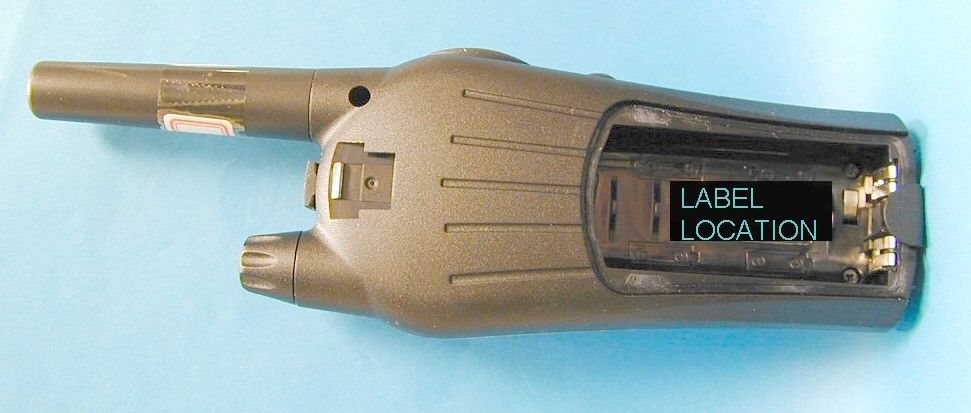

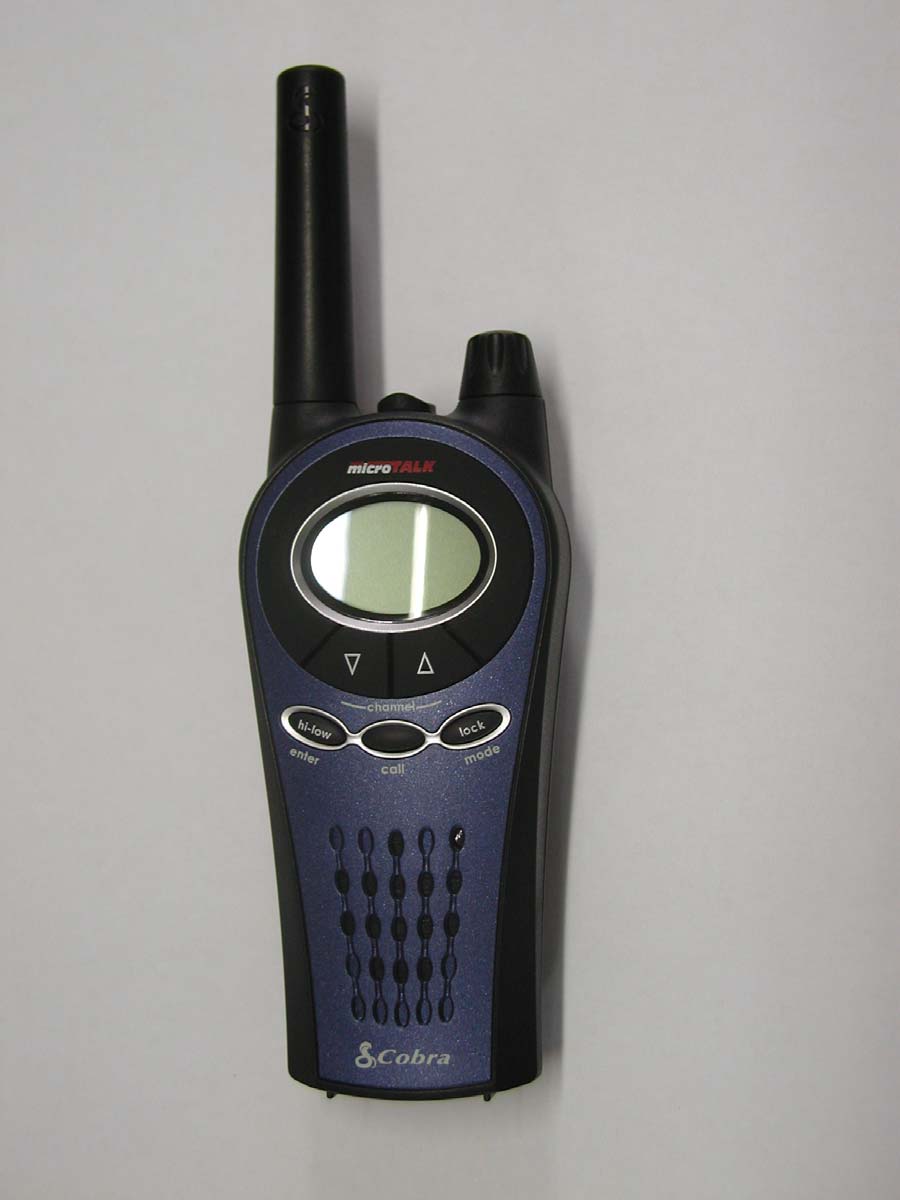

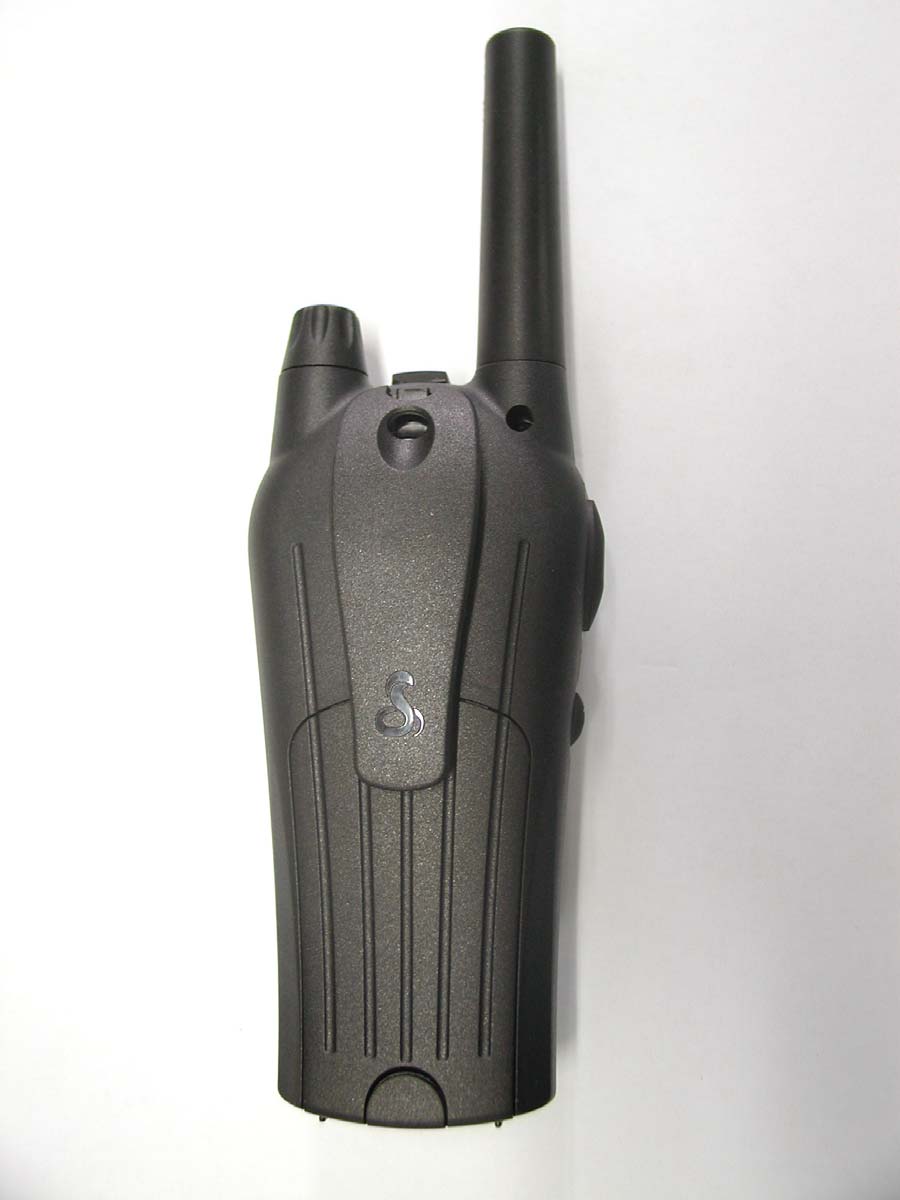

COBRA ELECTRONICS CORP. FCC ID: BBOPR5000 MODEL #: PR5050 EXTERNAL PHOTOS

COBRA ELECTRONICS CORP. FCC ID: BBOPR5000 MODEL #: PR5050 INTERNAL PHOTOS

8. Alignment instructions WARNING Any repairs or adjustments should be made under the supervision of a qualified radiotelephone technician. TRANSMITTER 1.Power Supply Voltage The Power supply voltage should be set for 6.0VDC measured at the radio during transmit. Periodically check the power supply voltage during the alignment procedure. 2.Frequency Setting A. Connect a frequency counter or Communications Service Monitor to the Antenna through an RF power attenuator (10 watt minimum rating, 20 dB minimum attenuation). B. Depress the PTT switch. C. Adjust the CTX1 trimmer capacitor such that the output frequency is equal to the channel frequency with a maximum error of +/- 200 Hz. D. Release the PTT switch. 3. Output Power Alignment. A. Set the power supply voltage for 6.0VDC. B. Connect a Communications Service Monitor or a wattmeter and dummy load to the antenna connector. C. Depress the PTT switch. D. To be convinced for 3.0(0.5) Watt output power with a maximum error of +/- 0.3(0.4-0.8) Watt. E. Release the PTT switch. 4. Deviation Adjustment. A. Connect an audio generator to the microphone jack JIG. The audio frequency Should be set at 1 KHz. B. Connect an FM deviation meter or Communications Service Monitor to the antenna connector through an RF power attenuator (10 watt minimum rating, 20 dB minimum attenuation). Set the monitor to read peak deviation. C. Depress the PTT switch. D. Adjust the audio generator level 100 mV rms. E. Adjust VR4 for +/- 2.2 KHz maximum deviation. (With CTCSS tone) F. To be convinced +/- 2.0KHz without CTCSS tone.(1.5KHz dev. 20dB up) G. Release the PTT switch. RECEIVER NOTE: Insure that the proper channel has been selected before preceding with the alignment procedure. 1. Power Supply Voltage The proper voltage for testing is 6.0 VDC. 2. Receiver Alignment A. Connect an RF signal generator or Communications Service Monitor to the antenna connector. B. Connect a SINAD meter and oscilloscope across the speaker terminals. C. Set the output level of the RF signal generator for -47 dBm. The generator should be set for +/- 1.5 KHz deviation of a 1 KHz tone. D. Set the audio output level for 0.6 Vrms. by adjusting volume. E. Reduce the output level of the RF signal generator for produce a 6-12 dB SINAD indication.

9. SEMICONDUCTORS AND FUNCTIONS １) ＴＲＡＮＳＩＳＴＥＲ ＲＥＦ ＮＯ ＴＹＰＥ ＭＡＮＵＦＡＴＵＲＥＲ ＦＵＮＣＴＩＯＮ QB1 2SC5085-Y TOSHIBA VCO BUFFER QR1 2SC5085-Y TOSHIBA RX AMP QR2 2SC5085-Y TOSHIBA RX MIXER QR5 KRC404E K.E.C CTCSS DETECTOR QS3 KRA310E K.E.C LED CONTROL QS6 KRA305E K.E.C PTT KEY SWITCHING QS7 KRA304E K.E.C MAIN POWER SWITCHING QS8 KRA305E K.E.C INTERNAL MIC B+ CONTROL QV1 2SC5085-Y TOSHIBA OSCILLATOR QV2 KRC404E K.E.C TX/RX SWITCHING QT1 2SC5085-Y TOSHIBA TX BUFFER QT2 2SC5085-Y TOSHIBA TX DRIVE AMP QT3 NE5510279A N.E.C TX MAIN AMP ２)ＩＮＴＥＲＧＲＡＴＥＤ ＣＩＲＣＵＩＴ ＲＥＦ ＮＯ ＴＹＰＥ ＭＡＮＵＦＡＴＵＲＥＲ ＦＵＮＣＴＩＯＮ IC1 TMP86FM29 TOSHIBA CPU IC2 AN29160A PANASONIC PLL,MIXER,IF PROSSING, LPF,HPF LIMITTER,APA, IC5 TK71540 TOKO REGULATOR @ N.E.C : NATIONAL SEMICONDUCTOR @ AUK : AUK CORP. @ ELM : ELM TECHNOLOGY @ K.E.C : KOREA ELECTRONICS CO.,LTD.

Applicant: Cobra Electronics Corporation FCC ID: BBOPR5000IC ID: 906B-PR5000 Model(s):PR5000, PR5020, PR5050 Portable FRS/GMRS PTT Radio Transceiver 462.5500 - 467.7125 MHz 2005 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. 1 of 43 Test Report Serial No.: 081905BBO-T663-S95F Test Dates: Sept. 01, 06, 2005 Date of Report Issue: September 13, 2005 Rev. No.: Revision 1 Description of Test: RF Exposure SARFCC 2.1093 IC RSS-102 RF EXPOSURE EVALUATION SPECIFIC ABSORPTION RATE SAR TEST REPORT FOR THE COBRA PORTABLE FM UHF FRS/GMRS PTT RADIO TRANSCEIVER MODEL(S): PR5000, PR5020, PR5050 FCC ID: BBOPR5000 IC: 906B-PR5000 Test Report Serial Number 081905BBO-T663-S95F Issue 1.1 Test Report Issue Date September 13, 2005 Test Lab Celltech Compliance Testing & Engineering Lab (Celltech Labs Inc.) 1955 Moss Court Kelowna, BC Canada V1Y 9L3 Test Report Prepared by: _______________________ Cheri Haight Test Report Writer Celltech Labs Inc. Test Report Approved By: ________________________ Jonathan Hughes General Manager Celltech Labs Inc. Applicant: Cobra Electronics Corporation FCC ID: BBOPR5000IC ID: 906B-PR5000 Model(s):PR5000, PR5020, PR5050 Portable FRS/GMRS PTT Radio Transceiver 462.5500 - 467.7125 MHz 2005 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. 2 of 43 Test Report Serial No.: 081905BBO-T663-S95F Test Dates: Sept. 01, 06, 2005 Date of Report Issue: September 13, 2005 Rev. No.: Revision 1 Description of Test: RF Exposure SARFCC 2.1093 IC RSS-102 Celltech Labs Inc. declares under its sole responsibility that this wireless portable device has demonstrated compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093 and Health Canada’s Safety Code 6. The device was tested in accordance with the measurement standards and procedures specified in FCC OET Bulletin 65, Supplement C (Edition 01-01) and Industry Canada RSS-102 Issue 1 (Provisional) for the General Population / Uncontrolled Exposure environment. All measurements were performed in accordance with the SAR system manufacturer recommendations. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. DECLARATION OF COMPLIANCE SAR RF EXPOSURE EVALUATION Test Lab CELLTECH LABS INC. Testing and Engineering Services 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250-448-7047 Fax: 250-448-7046 e-mail: [email protected] web site: www.celltechlabs.com Applicant Information COBRA ELECTRONICS CORPORATION 6500 West Cortland Street Chicago, IL 60707 United States FCC IDENTIFIER: BBOPR5000 IC IDENTIFER: 906B-PR5000 Model(s): PR5000, PR5020, PR5050 Rule Part(s): FCC 47 CFR §2.1093; IC RSS-102 Issue 1 (Provisional) Test Procedure(s): FCC OET Bulletin 65, Supplement C (Edition 01-01) Device Description: Portable UHF FRS/GMRS PTT Radio Transceiver Modulation Type: FM (UHF) Tx Frequency Range(s): 462.5500 - 462.7250 MHz (GMRS Channels 15-22) 462.5625 - 462.7125 MHz (FRS/GMRS Channels 1-7) 467.5625 - 467.7125 MHz (FRS Channels 8-14) Max. RF Output Power Tested: 1.42 Watts ERP (462.7250 MHz) Antenna Type(s) Tested: Fixed Stubby Battery Type(s) Tested: NiMH AA x4 (1.2 V, 1200 mAh) NiCd AA x4 (1.2 V, 600 mAh) Alkaline Duracell Procell AA x4 (1.5 V, 1250 mAh) Body-Worn Accessories Tested: Plastic Belt-Clip Audio Accessories Tested: Generic Earbud with Lapel-Microphone Max. SAR Level(s) Evaluated: 1.04 W/kg - Face-held (50% duty cycle) 1.45 W/kg - Body-worn (50% duty cycle) Tested By: Sean Johnston Compliance Technologist Celltech Labs Inc. Reviewed By: Spencer Watson Senior Compliance Technologist Celltech Labs Inc. Applicant: Cobra Electronics Corporation FCC ID: BBOPR5000IC ID: 906B-PR5000 Model(s):PR5000, PR5020, PR5050 Portable FRS/GMRS PTT Radio Transceiver 462.5500 - 467.7125 MHz 2005 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. 3 of 43 Test Report Serial No.: 081905BBO-T663-S95F Test Dates: Sept. 01, 06, 2005 Date of Report Issue: September 13, 2005 Rev. No.: Revision 1 Description of Test: RF Exposure SARFCC 2.1093 IC RSS-102 TABLE OF CONTENTS 1.0 INTRODUCTION __________________________________________________________ 4 2.0 DESCRIPTION OF DEVICE UNDER TEST (DUT) ________________________________ 4 3.0 SAR MEASUREMENT SYSTEM _____________________________________________ 5 4.0 MEASUREMENT SUMMARY ________________________________________________ 6 5.0 DETAILS OF SAR EVALUATION_____________________________________________ 7 6.0 EVALUATION PROCEDURES _______________________________________________ 7 7.0 SYSTEM PERFORMANCE CHECK ___________________________________________ 8 8.0 SIMULATED EQUIVALENT TISSUES _________________________________________ 9 9.0 SAR SAFETY LIMITS ______________________________________________________ 9 10.0 ROBOT SYSTEM SPECIFICATIONS ________________________________________ 10 11.0 PROBE SPECIFICATION (ET3DV6) ________________________________________ 11 12.0 PLANAR PHANTOM_____________________________________________________ 11 13.0 VALIDATION PLANAR PHANTOM _________________________________________ 11 14.0 DEVICE HOLDER _______________________________________________________ 11 15.0 TEST EQUIPMENT LIST__________________________________________________ 12 16.0 MEASUREMENT UNCERTAINTIES_________________________________________ 13 17.0 REFERENCES _____________________________…

Text truncated - open the document above for the full version.

Applicant: Cobra Electronics Corporation FCC ID: BBOPR5000 IC ID: 906B-PR5000 Model(s): PR5000, PR5020, PR5050 Portable FRS/GMRS PTT Radio Transceiver 462.5500 - 467.7125 MHz 2005 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. 43 of 43 Test Report Serial No.: 081905BBO-T663-S95F Test Dates: Sept. 01, 06, 2005 Date of Report Issue: September 13, 2005 Rev. No.: Revision 1 Description of Test: RF Exposure SAR FCC 2.1093 IC RSS-102 APPENDIX F - PROBE CALIBRATION

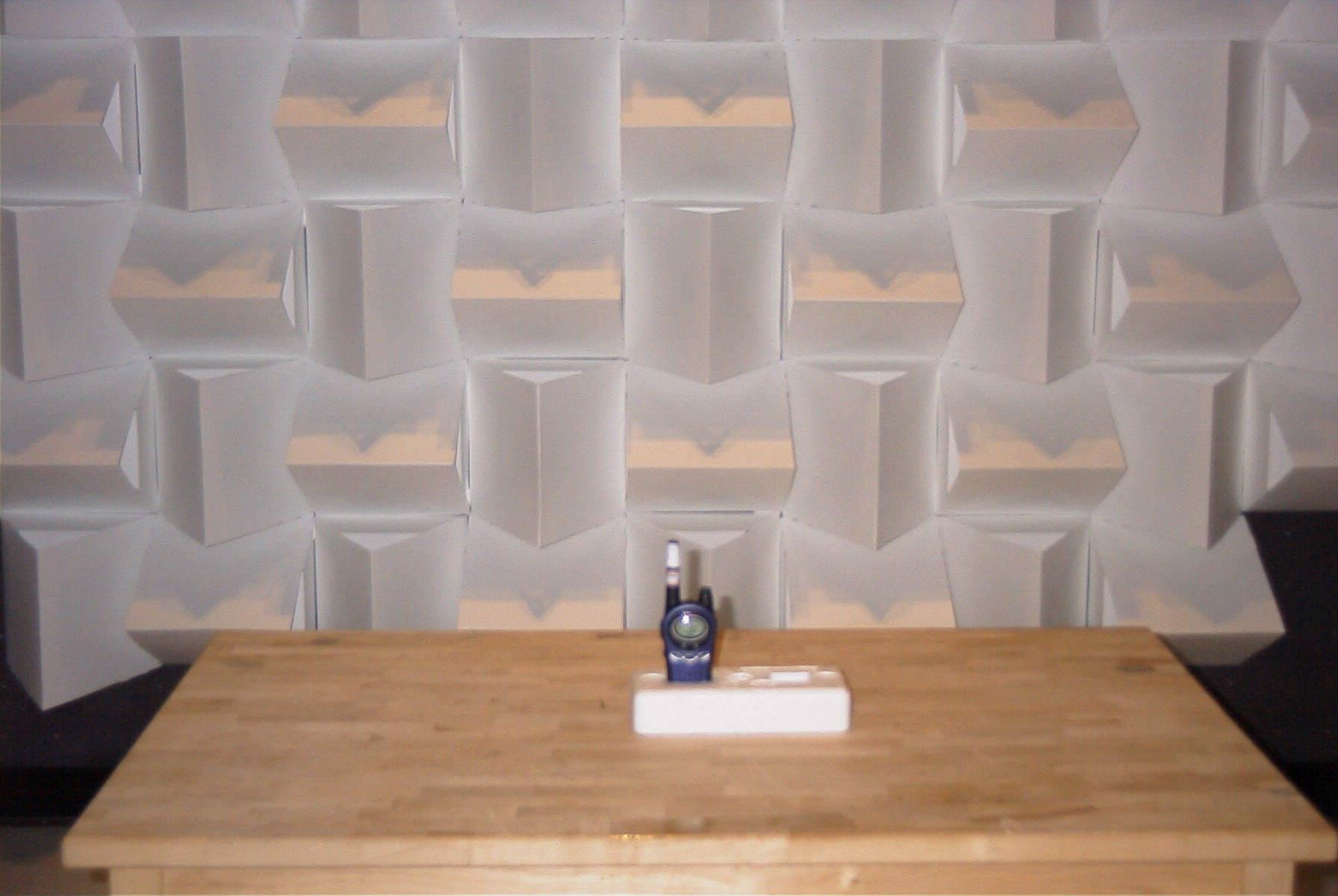

TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBOPR5000 REPORT #: C\COBRA\1766ZUT5\1766ZUT5TestReport.doc COVER SHEET Test Report Product Name: FRS/GMRS TRANSCEIVER FCC ID: BBOPR5000 Applicant: COBRA ELECTRONICS CORPORATION 6500 WEST CORTLAND STREET CHICAGO IL 60707 Date Receipt: 9/15/2005 Date Tested: 9/16/2005 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBOPR5000 REPORT #: C\COBRA\1766ZUT5\1766ZUT5TestReport.doc TABLE OF CONTENTS TABLE OF CONTENTS LIST TEST REPORT: PAGE 1........GENERAL INFORMATION & TECHNICAL DESCRIPTION PAGE 2........TECHNICAL DESCRIPTION CONTINUED RF POWER OUTPUT PAGE 3........MODULATION CHARACTERISTICS AUDIO FREQUENCY RESPONSE GRAPH PAGE 4........MODULATION LIMITING GRAPH PAGE 5........AUDIO LOW PASS FILTER GRAPH PAGE 6........OCCUPIED BANDWIDTH PAGE 7........OCCUPIED BANDWIDTH PLOT PAGE 8........SPURIOUS EMISSIONS AT ANTENNA TERMINALS PAGE 9........UNWANTED RADIATION – GMRS PAGE 10.......UNWANTED RADIATION - FRS PAGE 11.......METHOD OF MEASURING RADIATED SPURIOUS EMISSIONS PAGE 12.......FREQUENCY STABILITY PAGE 13.......LIST OF TEST EQUIPMENT EXHIBITS INCLUDED: CONFIDENTIALITY LETTER BLOCK DIAGRAM SCHEMATICS PARTS LIST USERS MANUAL LABEL SAMPLE LABEL LOCATION EXTERNAL PHOTOGRAPHS INTERNAL PHOTOGRAPHS ALIGNMENT PROCEDURE OPERATIONAL DESCRIPTION TEST SET UP PHOTOGRAPHS TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBOPR5000 REPORT #: C\COBRA\1766ZUT5\1766ZUT5TestReport.doc Page 1 of 13 GENERAL INFORMATION REQUIRED FOR CERTIFICATION 2.1033(c)(1)(2) COBRA ELECTRONICS CORPORATION will manufacture the FCCID: BBOPR5000 GMRS/FRS COMBINATION TRANSCEIVER in quantity, for use under FCC RULES PART 95. COBRA ELECTRONICS CORPORATION 6500 WEST CORTLAND STREET CHICAGO IL 60707 2.1033 (c) TECHNICAL DESCRIPTION 2.1033(c)(3) Instruction book. A draft copy of the instruction manual is included is included in the exhibits. 2.1033(c) (4) Type of Emission: 10K5F3E 95.631 Bn = 2M + 2DK M = 3000 D = 1.75K Bn = 2(3000)+2(2250) = 10.5K GMRS Authorized Bandwidth 20.0 kHz 2.1033(c)(5) GMRS Frequency Range: 1. 462.5500 13. 462.7000 95.621 2. 462.5625 14. 462.7125 3. 462.5750 15. 462.7250 4. 462.5875 16. 467.5500 5. 462.6000 17. 467.5750 6. 462.6125 18. 467.6000 7. 462.6250 19. 467.6250 8. 462.6375 20. 467.6500 9. 462.6500 21. 467.6750 10. 462.6625 22. 467.7000 11. 462.6750 23. 467.7250 12. 462.6875 FRS Authorized Bandwidth 12.5KHz 2.1033(c)(5) FRS Frequency Range: 1. 462.5625 8. 467.5625 95.627 2. 462.5875 9. 467.5875 3. 462.6125 10. 467.6125 4. 462.6375 11. 467.6375 5. 462.6625 12. 467.6625 6. 462.6875 13. 467.6875 7. 462.7125 14. 467.7125 MHz 2.1033(c)(6)(7) Power Output shall not exceed 0.50 Watts effective 95.639 radiated power. There can be no provisions for 95.649 increasing the power or varying the power. TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBOPR5000 REPORT #: C\COBRA\1766ZUT5\1766ZUT5TestReport.doc Page 2 of 13 2.1033(c)(8) DC Voltages and Current into Final Amplifier: FINAL AMPLIFIER ONLY FOR LOW POWER SETTING INPUT POWER: (6.0V)(0.47A) = 2.82 Watts FOR HIGH POWER SETTING INPUT POWER: (6.0V)(0.58A) =3.48 Watts 2.1033(c)(9) Tune-up procedure. The tune-up procedure is included in the exhibits. 2.1033(c)(10) Complete Circuit Diagrams: The circuit diagram and block diagram are included in the exhibits. 2.1033(c)(11) A photograph or a drawing of the equipment identification label is included in the exhibits. 2.1033(c)(12) Photographs(8"X10") of the equipment of sufficient clarity to reveal equipment construction and layout, including meters, labels for controls, including any view under shields. 2.1033(c)(13) Digital modulation is not allowed. 2.1033(c)(14) The data required by 2.1046 through 2.1057 is submitted below. 2.10311c)(6)(7) RF power is measured by the substitution method as 2.1046(a) outlined in TIA/EIA - 603. With a nominal battery voltage of 6.0 V, and the transmitter properly adjusted the RF output measures: GMRS - 1.4 Watts FRS - .50 Watts TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBOPR5000 REPORT #: C\COBRA\1766ZUT5\1766ZUT5TestReport.doc Page 3 of 13 2.1047(a)(b) Modulation characteristics: AUDIO FREQUENCY RESPONSE The audio frequency response was measured in ac- cordance with TIA/EIA Specification 603. The audio frequency response curve is shown on the next page. The audio signal was fed into a dummy microphone circuit and into the microphone connector. The input required to produce 30 percent modulation level was measured. See plot below. Audio Frequency Response Plot Ma xFre q .a t1 ColorLine StyleThickDataAxis CyanSolid1Anlr.Level A!Norm alizeLeft -2 +6 -0 +2 +4 d B 1003k200300400 5007001k2k Hz TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBOPR5000 REPORT #: C\COBRA\1766ZUT5\1766ZUT5TestReport.doc Page 4 of 13 2.1047(b) Audio input versus modulation The audio input level needed for a particular percentage of modulation was measured in accordance with TIA/EIA Specification 603. The audio input curves versus modulation are on the following pages. Curves are provided for audio input frequencies of 300, 1000, and 2500 Hz. See the plot below. Modulation Limiting Plots: 2.5 KHz (Gr…
