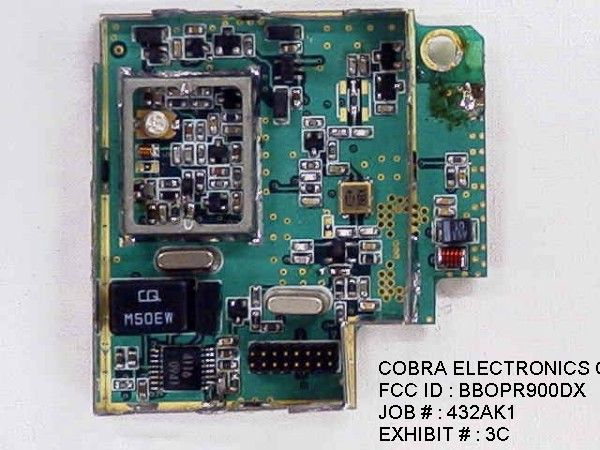

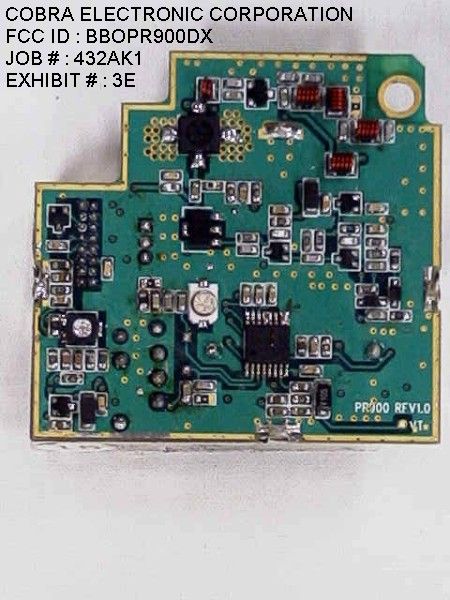

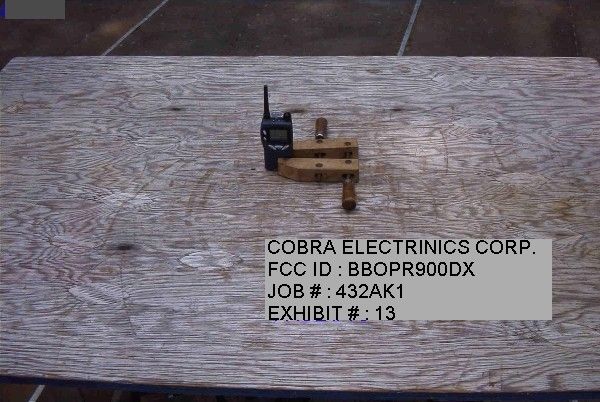

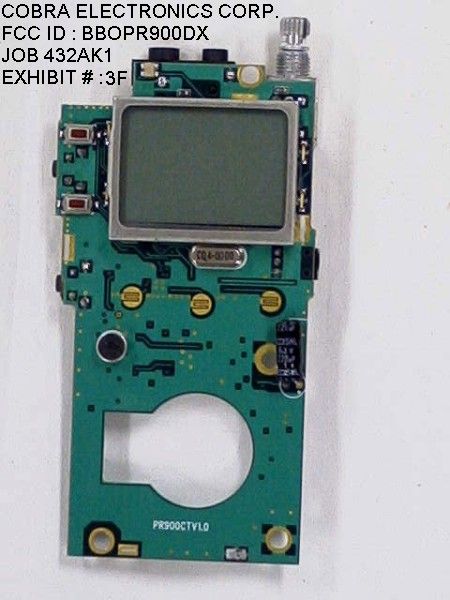

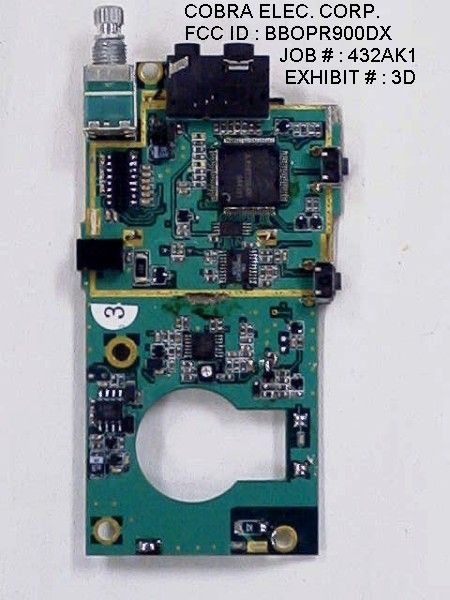

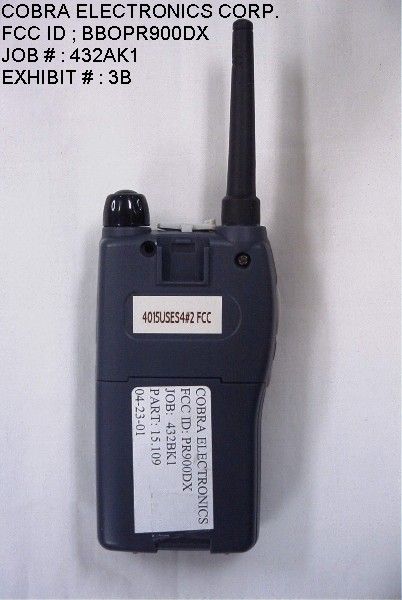

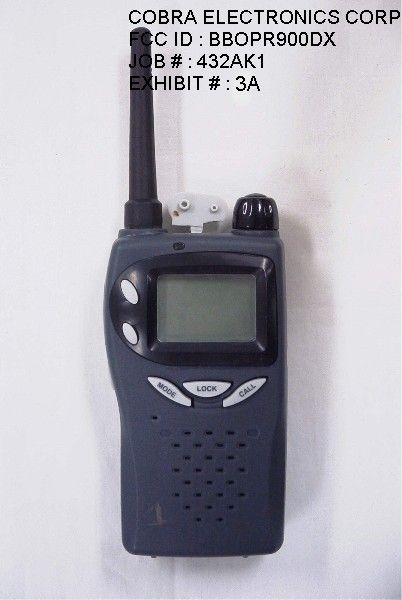

TABLE OF CONTENTS LIST APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBOPR900DX TEST REPORT: PAGE 1......COVER SHEET - GENERAL INFORMATION & TECHNICAL DESCR. PAGE 2......TECHNICAL DESCRIPTION CONTINUED & RF POWER OUTPUT PAGE 3......MODULATION CHARACTERISTICS & OCCUPIED BANDWIDTH PAGE 4......OCCUPIED BANDWIDTH PLOT – CW PAGE 5......OCCUPIED BANDWIDTH PLOT PAGE 6......SPURIOUS EMISSIONS AT ANTENNA TERMINALS PAGE 7......UNWANTED RADIATION PAGE 8......METHOD OF MEASURING SPURIOUS EMISSIONS PAGE 9......FREQUENCY STABILITY PAGE 10......LIST OF TEST EQUIPMENT EXHIBITS CONTAINING: EXHIBIT 1.........FCC ID LABEL SAMPLE EXHIBIT 2........ SKETCH OF LOCATION EXHIBIT 3A........EXTERNAL PHOTO – FRONT VIEW EXHIBIT 3B........EXTERNAL PHOTO – REAR VIEW EXHIBIT 3C........INTERNAL PHOTO – COMPONENT VIEW -1 EXHIBIT 3D........INTERNAL PHOTO – COMPONENT VIEW – 2 EXHIBIT 3E........INTERNAL PHOTO – COPPER VIEW – 1 EXHIBIT 3F........INTERNAL PHOTO – COPPER VIEW - 2 EXHIBIT 4.........BLOCK DIAGRAM EXHIBIT 5A........SCHEMATIC – LOGIC EXHIBIT 5B........SCHEMATIC - RF EXHIBIT 6A-6H.....OPERATIONAL MANUAL EXHIBIT 7A-7E.....ALIGNMENT PROCEDURE EXHIBIT 8.........AUDIO LOW PASS FILTER EXHIBIT 9A........MODULATION LIMITING 300 Hz EXHIBIT 9B........MODULATION LIMITING 1000 Hz EXHIBIT 9C........MODULATION LIMITING 3000 Hz EXHIBIT 10........AUDIO FREQUENCY RESPONSE GRAPH EXHIBIT 11A-11B...SPECIFICATION SHEET EXHIBIT 12A-12C...CIRCUIT DECSCRIPTION EXHIBIT 13........TEST SET UP PHOTO APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBOPR900DX DATE: APRIL 19, 2001 REPORT #: C\COBRA\432AK1\432AK1RPT.doc PAGE: TABLE OF CONTENTS GENERAL INFORMATION REQUIRED FOR CERTIFICATION 2.1033(c)(1)(2) COBRA ELECTRONICS CORPORATION will manufacture the FCCID: BBOPR900DX GMRS CHANNELS TRANSCEIVER in quantity, for use under FCC RULES PART 95. COBRA ELECTRONICS CORPORATION 6500 WEST CORTLAND STREET CHICAGO IL 60707 2.1033 (c) TECHNICAL DESCRIPTION 2.1033(c)(3) Instruction book. A draft copy of the instruction manual is included as EXHIBIT 6. 2.1033(c) (4) Type of Emission: 9K5F3E 95.631 Bn = 2M + 2DK M = 3000 D = 1.75K Bn = 2(3.0)+2(1.75) = 9.5K Authorized Bandwidth 20.0KHz 2.1033(c)(5) Frequency Range: 462.5625 - 462.7250 MHz 95.621 2.10311(c)(6)(7) The Maximum Output Power Rating: 2 Watts effective radiated power. 2.1033(c)(8) DC Voltages and Current into Final Amplifier: FINAL AMPLIFIER ONLY INPUT POWER: (6.0V)(.625A) =3.75 Watts 2.1033(c)(9) Tune-up procedure. The tune-up procedure is included 7a-e. APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBOPR900DX DATE: APRIL 19, 2001 REPORT #: C\COBRA\432AK1\432AK1RPT.doc PAGE #: 1 2.1033(c)(10) Complete Circuit Diagrams: The circuit diagram is included as EXHIBIT 5 of this report. The block diagram is included as exhibits 4 of this report. 2.1033(c)(11) A photograph or a drawing of the equipment identification label is included as exhibit No. 1. 2.1033(c)(12) Photographs(8"X10") of the equipment of sufficient clarity to reveal equipment construction and layout, including meters, labels for controls, including any view under shields. See exhibits 3a-3f. 2.1033(c)(13) Digital modulation is not allowed. 2.1033(c)(14) The data required by 2.1046 through 2.1057 is submitted below. 95.639 Power Output shall not exceed 50.0 Watts effective radiated power. There can be no provisions for 95.649 increasing the power or varying the power output. 2.1046(a) RF power is measured by connecting a 50 ohm, resistive watt meter to the RF output connector. With a nominal battery voltage of 8.4 V, and the transmitter properly adjusted the RF output measures: OUTPUT POWER: 2 Watts 2.1046(a) RF power output. The test procedure used was TIA/EIA-603 S2.2.1. APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBOPR900DX DATE: APRIL 19, 2001 REPORT #: C\COBRA\432AK1\432AK1RPT.doc PAGE #: 2 2.1047(a)(b) Modulation characteristics: AUDIO FREQUENCY RESPONSE The audio frequency response was measured in ac- cordance with TIA/EIA Specification 603. The audio frequency response curve is shown as Exhibit 10. The audio signal was fed into a dummy microphone circuit and into the microphone connector. The input required to produce 30 percent modulation level was measured. 2.1047(b) Audio input versus modulation The audio input level needed for a particular per- percentage of modulation was measured in accor- dance with TIA/EIA Specification 603. The audio input curves versus modulation are on the following pages. Curves are provided for audio input frequen- cies of 300, 1000, and 3000 Hz. See Exhibits 9A-9C. 95.637 Post Limiter Filter Each GMRS transmitter, except a mobile station transmitter with a power of 2.5Watts or less, must be equipped with an audio low pass filter. At any frequency between 3 & 20KHz the filter must have an attenuation of 60log (f/3) greater than the attenuation at 1KHz. See Exhibit 8. 2.1049 Occupied bandwidth: 95.635(b)(1)(3)(7) At least 25dB on any frequency removed from the center of the authorized bandwidth by more than 50%up to and including 100% of the authorized bandwidth. At least 35 dB on any frequency removed from the center of the authorized BW by more than 100% up to and including 250% of the authorized BW. At least 43+log10(T) on any frequency removed from the center of the authorized bandwidth by more than 250%. The plots are shown on pages 4 and 5. REPORT #: C\COBRA\432AK1\432AK1RPT.doc PAGE #: 3 2.1051 Spurious emissions at antenna terminals(conducted): The following data shows the level of conducted spurious responses at the antenna terminal. The test procedure used was TIA/EIA 603 S2.2.13 with the exception that the emissions were recorded in dBc. The spectrum was scanned from 0.4 to at least the 10th harmonic of the fundamental. Method of Measuring Conducted Spurious Emissions 2.1051 Spurious emissions at the Antenna Terminals NAME OF TEST: SPURIOUS EMISSIONS AT ANTENNA TERMINALS REQUIREMENTS: Emissions must be 43 +10log(Po) dB below the mean power output of the transmitter. HIGH POWER 43…

Text truncated - open the document above for the full version.

Modulation Limiting Cobra Electronics PR900DX 0 500 1000 1500 2000 2500 3000 3500 0 10203040 5060 rms mVolts Deviation 300 Hz COBRA ELECTRONICS CORP. FCC ID : BBOPR900DX JOB # : 432AK1 EXHIBIT # : 9A

Modulation Limiting Cobra Electronics PR900DX 0 1000 2000 3000 4000 010203040 rms mVolts Deviatio n 1000 Hz COBRA ELEC. CORP. FCC ID : BBOPR900DX JOB # : 432AK1 EXHIBIT # : 9B

Modulation Limiting Cobra Electronics PR900DX 0 500 1000 1500 2000 2500 0 20406080 rms mVolts Deviatio n 3000 Hz COBRA ELEC. CORP. FCC ID : BBOPR900DX JOB # : 432AK1 EXHIBIT # : 9C

Cobra Electronics PR900DX -20 -10 0 10 20 30 40 100100010000 Freque ncy rms mVolts audio response COBRA ELEC.CORP. FCC ID : BBOPR900DX EXHIBIT # : 10
