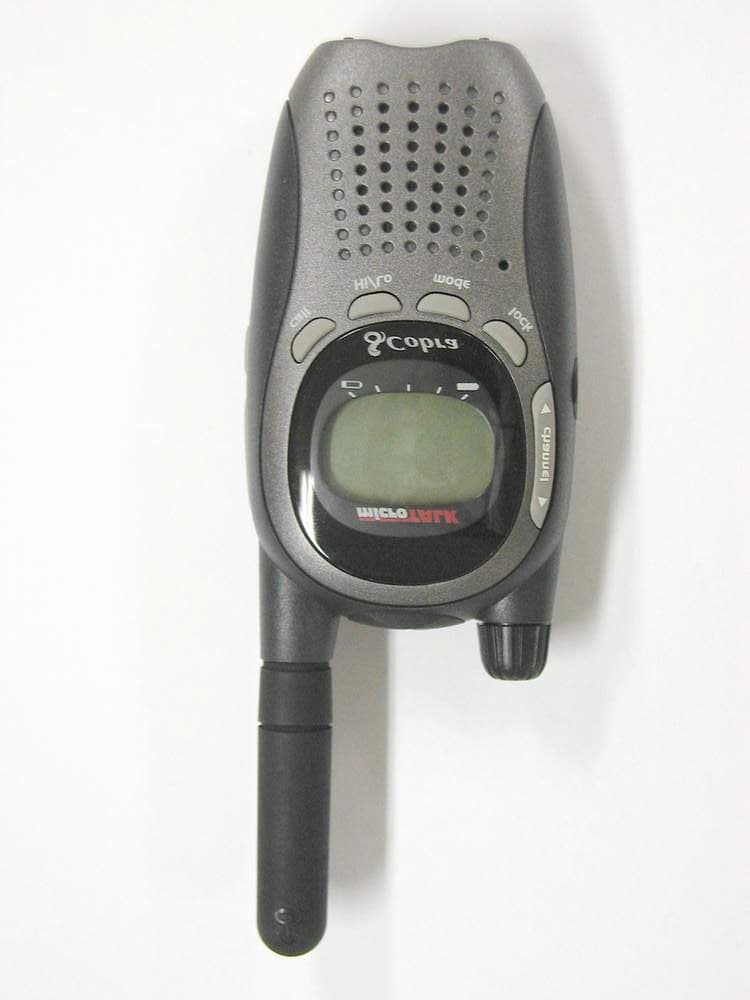

BBOPR94522 Channel FRS/ GMRS Transceiver

FPO Operating Instructions for Your Cobra ® microTALK ® 2-WAY RADIO MODEL PR 945 DX Instrucciones operativas del RADIO BIDIRECCIONAL MODELO PR 945 DX Cobra ® microTALK ® Nothingcomes close to a Cobra ™ Nadase compara a Cobra ™ English, pages 1-16 Español, páginas 17-34 PRODUCT FEATURES ENGLISH 1 PRODUCT FEATURES ENGLISH 2 OFF ON Backlit LCD Display LOCK Button MODE Button ON/OFF VOLUME Switch CHANNEL SELECT Button Charger Jack Speaker/ Microphone Belt Clip CALL Button HI/LOW (Power) Button TALK Button LIGHT/MAX RANGE Button Antenna Battery Compartment LOCK Tab External Speaker/ Microphone Jack LIGHT/MAX RANGE Button TALK Button Product Features • TWO-WAY RADIO with up to a six (6) mile (10 km) range • 22 CHANNELS (seven (7) shared with FRS/GMRS, seven (7) FRS only, eight (8) GMRS only) • 38 CTCSS PRIVACY CODES • Selectable HI/LOW POWER Output (on all GMRS channels) • UHF FM Frequencies • BACKLIT LCD Display • EXTERNAL SPEAKER/MICROPHONE Jack • 10 MEMORY LOCATIONS • FULL CHANNEL/CTCSS SCAN • MEMORY SCAN • SIGNAL STRENGTH Meter • MAXIMUM RANGE Extender • 10 CALL SIGNAL Selections • “ROGER BEEP” Confirmation Tone (selectable On/Off) • KEYSTROKE TONES (selectable On/Off) • AUTO SQUELCH • CALL Button • BATTERY SAVER Circuitry • LOCK Button • BELT CLIP • WATER RESISTANT Receive/Transmit Tower Icon CTCSS Privacy Code Numbers Memory Location Low Power Icon Key Lock Icon Keystroke Tones Icon Roger Beep Icon Memory Icon Power Saver Icon Battery Level Meter Main Channel Numbers Signal Strength Meter Icon BACKLIT LCD DISPLAY Scan Icon Important FCC Licensing Information This radio operates on General Mobile Radio Service (GMRS) frequencies which require a Federal Communications Commission (FCC) license. See page 14 for licensing and additional information. Selecting a Channel Channels 1-7 are shared with FRS/GMRS. Channels 8-14 are FRS only. Channels15-22 are GMRS only. (IMPORTANT:See page 16 for FRS/GMRS frequency allocations and compatibility chart.) 1.With the radio On, select any of the 22 channels by pushing the CHANNEL SELECT button up or down. (NOTE:Both radios must be tuned to the same channel to communicate.) Selecting a CTCSS Privacy Code CTCSS (Continuous Tone Coded Squelch System) is an advanced tone coding system allowing you to select one of 38 privacy codes to reduce interference from other users on the channel. (NOTE:If you are using a privacy code, both radios must be tuned to the same channel and privacy code to communicate. Each channel will remember the last privacy code you selected.) To select a privacy code: 1. After selecting a main channel, press and release the MODE button. A small number will flash next to the channel in the LCD. 2.Push the CHANNEL SELECT button up or down to select a privacy code. You can hold the button up or down for fast advance. 3.When your desired privacy code is displayed, press and release the LOCK button. Calling Another Person To alert another person that you are calling: 1.Press and release the CALL button. The other person will hear a two (2) second ringing tone. (See page 12 on how to select between ten (10) call tone settings.) You cannot send or receive transmissions during the two (2) second call tone. CALL Button LOCK Button MODE Button CHANNEL SELECT Button OPERATIONOPERATION ENGLISH 4 Batteries To install or replace batteries: 1.Remove belt clip by releasing belt clip latch and sliding clip down. 2.Pull down on the Battery Latch to remove the battery compartment cover. 3.Insert four (4) AAA batteries. (Always use high quality alkaline batteries.) Position batteries according to polarity markings. 4.Replace Battery Compartment cover and belt clip. (NOTE:Contact your local Cobra ® dealer or Cobra ® directly for optional charger accessories.) Turning On Your microTALK ® Radio 1.Rotate the ON- OFF/VOLUME switch clockwise to turn On the radio (and to adjust the volume). An audible tone will indicate the radio is On. Your microTALK ® is now in Standby mode, ready to receive transmissions. The radio is always in Standby mode except when the TALK, CALL, or MODE buttons are pressed. Battery Low Battery power is indicated by the segments appearing at the bottom of the LCD. As battery power decreases, fewer segments will be visible. When bA Lo begins to flash, the batteries should be replaced. If you are using rechargeable batteries, they should be recharged. Auto Battery Save Your microTALK ® radio has a unique circuit designed to extend battery life. If there are no transmissions within ten (10) seconds, the radio will automatically switch to Battery Save mode and POWER SAVER will appear in the display. This will not affect the radio’s ability to receive incoming transmissions. ENGLISH 3 ON-OFF/VOLUME Switch Lock Tab Belt Clip OPERATION To turn Maximum Range Extender On: 1.Press and hold the LIGHT/MAX RANGE button for at least five (5) seconds until you hear two (2) beeps which indicates the Maximum Range Extender is On. To turn Maximum Range Extender Off: 1. Press and release the LIGHT/MAX RANGE button or change channels. Using the Lock Function The Lock function locks the CHANNEL, MODE and HI/LOW POWER buttons to prevent accidental operation. To use the Lock function: 1. While in Standby mode, press and hold the LOCK button for one (1) second. The Lock icon will blink when the radio is locked. Buttons that are NOT locked are the CALL, LOCK, LIGHT/MAX RANGE, TALK buttons, and ON- OFF/VOLUME switch which are all fully functional while the radio is locked. 2.To “unlock” buttons, press and release the LOCK button again. The Lock icon disappears and all buttons will be unlocked. External Speaker/ Microphone Jack Your microTALK ® radio can be fitted with an external speaker/microphone, freeing your hands for other tasks. (See page 16 for optional accessories.) To attach an external speaker/microphone: 1.Open the SPKR/MIC tab on top of the radio. 2. Insert the plug into the SPKR/MIC jack. (CAUTION:Do not use an external speaker/microphone with common …

Text truncated - open the document above for the full version.

7.THEORY OF OPERATION Circuit Compositions and Operation Theory The basic explanation for the circuit composition the two board controlling the analog circuit parts and the digital circuit parts. Receiver Transmission parts are composed in the double conversion system, which has the 1st IF Frequency of 21.7 MHz and 2nd IF Frequency of 450 kHz. With the saw filter, which has an excellent band characteristic and sharp characteristic, the 2 poles MCF used in the 1st IF, and the sensitivity repression is reduced for the more stable reception. RF Frontend The signal received by the antenna will be transmitted to the band pass filter through the antenna switching circuit consisted of LT1,LR1, CT1, CT2 and CT3. The front RF amplifier transistor QR1 consists of the saw filter and input/output band pass filter. Saw filter has the bandwidth of approximately 4 MHz, primarily diminishes the other signal rather then the 1st IF image and other signal within the reception band and amplifies only the necessary signal within the RF. 1st Mixer The receiver signal which has been amplified in the RF fronted is provided to the base of the 1st mixer QR2. The 1st L/O signal provide from the VCO is supplied to the emitter of QR2 and converted to the 1st IF 21.7 MHz. 1st IF Filter and 1st IF Amplifier The signal coverted by QR2 to 21.7 MHz, the 1st frequency, change its impedance through CR8, LR6 and then is infused to the fundamental MCF which has the center frequency of 21.7 MHz and the width of +/-3.75 kHz. Here, the signal reduces the image and other unwanted signal for the 2nd IF. Then the signal is infused to the IC3. The IC3 which functions as the 2nd mixer, the 2nd IF amplifier, and the FM detector,RSSI,PREMIC,compander,PLL circuit. 2nd Mixer, and IF, FM Detector The receiver IF signal of 21.7 MHz, which has been infused to IC3 is mixed with the 2nd L/O signal of 21.250MHz, and converted to 450 kHz, the 2nd IF frequency. The receiver signal converted to the 2nd IF frequency passed through the F3, the ceramic filter of 450 kHz again. After the limiting inside the IC11 and the FM demodulating by the quadrature detector inside the IC3, the signal offers the output through the 21th pin of IC3. The 2nd L/O signal of 21.250MHz, which infused to the IC3 filters and uses directly the crystal of 21.250 MHz. The squelch circuit is composed to detect the noised from the received signal demodulate in the 31th pin of the IC3. For this purpose, the noise filter is using the OP amplifier inside the IC3. Transmitter The transmission parts of the PR-945 are designed to amplify the RF signal oscillated and modulated by the synthesizer to approximately 2(0.5) W by the power transistor of QT3. TX Power (QT3) The transmitted signal of approximately 2(0.5)W, combined at the driver TR is supplied to the base of the QT3 amplifier. The transmitted signal amplified to 2W here passes the TX LPF of the 2nd characteristic of the LT2 and the LT3, and RX/TX switching takes place by the DT1. After this, the signal is provided to the antenna the TX LPF of the 1st characteristics, consisted of the LT1. Frequency Synthesizer Voltage Control Oscillator (VCO) The VCO of oscillates 462.5625 MHz to 462.7250 MHz under the transmission condition and 440.8620 MHz to 441.025 MHz under the reception condition. The VCO consists of the clap oscillator of the QV1, and contains the oscillator frequency of approximately 21.7MHz during the transmission/reception conversion. That is since the VCO should oscillate relatively low frequency during reception compared to transmission, the DV2 is directly biased by the QV2. Therefore as a result, the CV8 is added in parallel to the resonance circuit of the VCO to oscillate a low frequency. During transmission, a relatively high frequency should be oscillating compared to reception. Therefore, the DV2 is adversely biased by the QV2, and as a result, the CV8, which is added unparallel to the circuit of the VCO is removed to oscillate the desired transmission frequency. PLL Part of the IC3 controls the VCO in order to oscillate the accurate frequency. The output frequency of the VCO is supplied to the 44 th pin of IC3. At the IC3, TCXO(21.250MHz) by the TCXO-1 is compared to the output frequency of the VCO. The VCO is controlled the loop filter consisted of the RM32,RM33,RM34, and the CM14, in order to oscillate the stable frequency wanted for the radio. The VCO controlled voltage which has passed the loop filter is supplies to the DV1 varactor diode, and the VCO an oscillate the PLL programmed frequency by the capacity variation in the DV1. In addition, the LV2 on the VCO circuit function as frequency for the VCO to be properly controlled. RX/TX Buffer Amplifier (QB1) The RF signal oscillate at the VCO is provide to the QR2 RX 1st mixer through the QB1 during the reception, and is provide to the QT2 power driver amplifier through the QT1 during the transmission. PLL Frequency Synthesizer (AN 6311) The PLL synthesizer of the signal loop PLL circuit with the reference of 6.25 kHz. The IC3 includes all the function such as the reference oscillator, the driver, the phase detector, the lock detector, and the programmable divider. At the reference oscillator, the 21.250 MHz TCXO of the TCXO is connected to the pin 52,53 of the IC3 to oscillate the frequency of 21.250MHz. The TCXO (21.250MHz) is the temperature compensation circuit to maintain the frequency within the allowable error range even under a low temperature of -20. The phase detector sends out the output power to the loop filter through 44 pin of the IC3. IF the oscillation frequency of the VCO is low compared to the referenced frequency, the phase detector sends out the output power in positive pulse. If the oscillation frequency of the VCO is high, phase detector send out can maintain the frequency set. The programmable divider maintains the desired frequency with control from the CPU. The dividing ratio, "N" to oscillate the desired frequency is as below…

Text truncated - open the document above for the full version.

18 English Licensing,Assistance&Warranty IMPORTANT NOTICE: FCC LICENSE REQUIRED This two-way radio operates on GMRS (General Mobile Radio Service) frequencies which require an FCC (Federal Communications Commission)license. A user must be licensed prior to operating on channels 1 through 7 or 15 through 22, which comprise the GMRS channels of this radio. Serious penalties could result for unlicensed use of GMRS channels, in violation of FCC rules, as stipulated in the Communications Act’s Sections 501 and 502 (amended). Licensed users will be issued a call sign by the FCC, which should be used for station identification when operating this radio. GMRS users should also cooperate by engaging in permissible transmissions only, avoiding channel interference with other GMRS users, and being prudent with the length of their transmission time. For licensing information and application forms, please call the FCC Hotline at 800-418-FORM. Request form #159 and form #605. Questions regarding the license application should be directed to the FCC at 888-CALL-FCC. Additional information is available on the FCC’s website at www.fcc.gov. Safety Information for microTALK ® Radios Your wireless handheld portable transceiver contains a low power transmitter. When the Talk button is pushed, it sends out radio frequency (RF) signals. The device is authorized to operate at a duty factor not to exceed 50%. In August 1996, the Federal Communications Commissions (FCC) adopted RF exposure guidelines with safety levels for handheld wireless devices. Important: FCC RF Exposure Requirements: For body-worn operation, this radio has been tested and meets the FCC RF exposure guidelines when used with Cobra ® accessories supplied or designated for this product. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. Use only the supplied antenna. Unauthorized antennas, modifications, or attachments could damage the transmitter and may violate FCC regulations. Normal Position: Hold the transmitter approximately 2 inches from your face and speak in a normal voice, with the antenna pointed up and away. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Warnings: Replacement or substitution of transistors, regular diodes or other parts of a unique nature, with parts other than those recommended by Cobra ® may cause a violation of the technical regulations of part 95 of the FCC Rules, or violation of type acceptance requirements of part 2 of the Rules. Customer Assistance

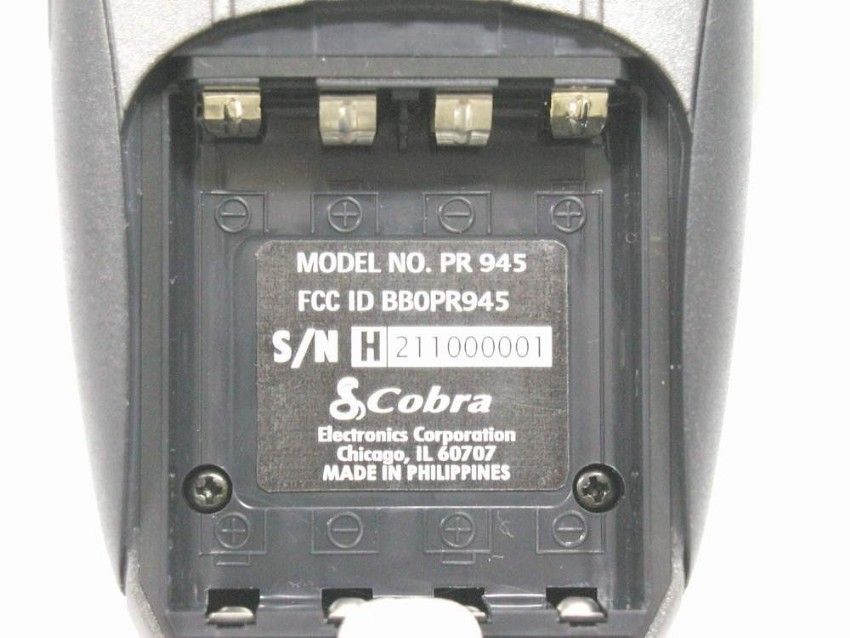

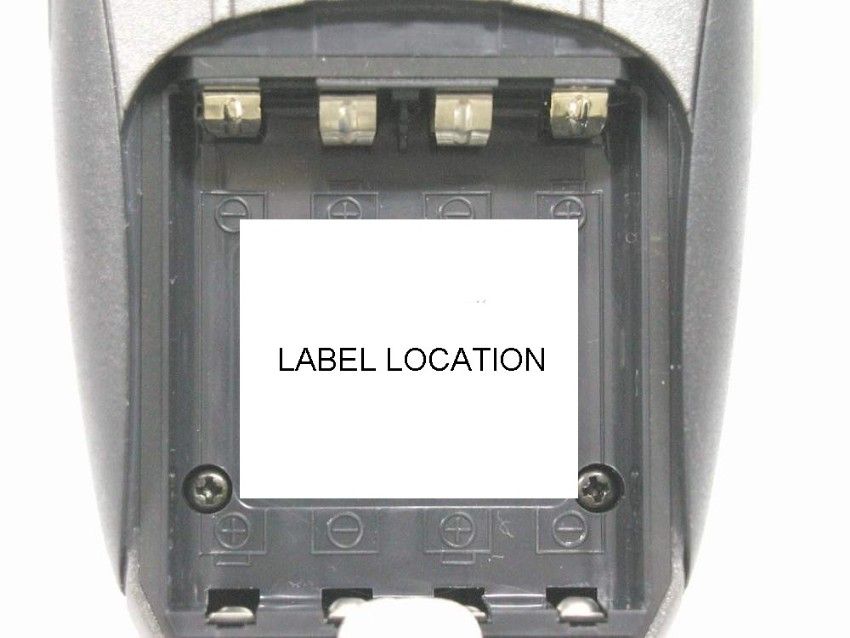

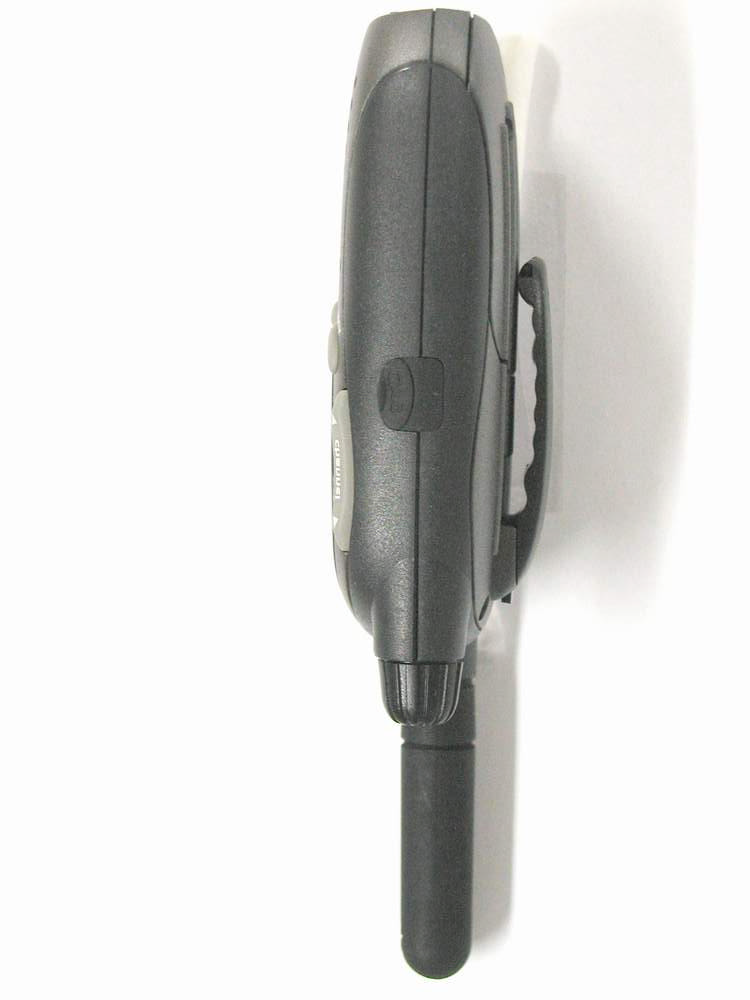

APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBOPR945 REPORT #: C\COBRA\1173AUT2\1173AUT2TestReport.doc TABLE OF CONTENTS TABLE OF CONTENTS LIST APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBOPR945 TEST REPORT: PAGE 1......COVER SHEET - GENERAL INFORMATION & TECHNICAL DESCR. PAGE 2......TECHNICAL DESCRIPTION CONTINUED PAGE 3......RF POWER OUTPUT PAGE 4......MODULATION CHARACTERISTICS PAGE 5......AUDIO FREQUENCY RESPONSE GRAPH PAGE 6......MODULATION LIMITING GRAPH – 300Hz PAGE 7......MODULATION LIMITING GRAPH – 1000Hz PAGE 8......MODULATION LIMITING GRAPH – 3000Hz PAGE 9......AUDIO LOW PASS FILTER GRAPH PAGE 10.....OCCUPIED BANDWIDTH PAGE 11.....OCCUPIED BANDWIDTH PLOT PAGE 12.....OCCUPIED BANDWIDTH PLOT - CW PAGE 13.....SPURIOUS EMISSIONS AT ANTENNA TERMINALS PAGE 14.....UNWANTED RADIATION - GMRS PAGE 15.....UNWANTED RADIATION - FRS PAGE 16.....METHOD OF MEASURING RADIATED SPURIOUS EMISSIONS PAGE 17.....FREQUENCY STABILITY PAGE 18-20..LIST OF TEST EQUIPMENT EXHIBITS CONTAINING: EXHIBIT 1.........FCC ID LABEL SAMPLE EXHIBIT 2.........SKETCH OF LABEL LOCATION EXHIBIT 3.........EXTERNAL PHOTOGRAPHS EXHIBIT 4.........INTERNAL PHOTOGRAPHS EXHIBIT 5.........BLOCK DIAGRAM EXHIBIT 6.........SCHEMATICS EXHIBIT 7.........USER'S MANUAL EXHIBIT 8.........CIRCUIT DESCRIPTION EXHIBIT 9.........TUNING PROCEDURE EXHIBIT 10........TEST SET UP PHOTO APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBOPR945 REPORT #: C\COBRA\1173AUT2\1173AUT2TestReport.doc Page 1 of 20 GENERAL INFORMATION REQUIRED FOR CERTIFICATION 2.1033(c)(1)(2) COBRA ELECTRONICS CORPORATION will manufacture the FCCID: BBOPR945 GMRS/FRS COMBINATION TRANSCEIVER in quantity, for use under FCC RULES PART 95. COBRA ELECTRONICS CORPORATION 6500 WEST CORTLAND STREET CHICAGO, IL 60707 2.1033 (c) TECHNICAL DESCRIPTION 2.1033(c)(3) Instruction book. A draft copy of the instruction manual is included as EXHIBIT 7. 2.1033(c) (4) Type of Emission: 8K5F3E 95.631 Bn = 2M + 2DK M = 2000 D = 2250 Bn = 2(2000)+2(2250) = 8.5K GMRS Authorized Bandwidth 20.0 kHz 2.1033(c)(5) GMRS Frequency Range: 1. 462.5500 13. 462.7000 95.621 2. 462.5625 14. 462.7125 3. 462.5750 15. 462.7250 4. 462.5875 16. 467.5500 5. 462.6000 17. 467.5750 6. 462.6125 18. 467.6000 7. 462.6250 19. 467.6250 8. 462.6375 20. 467.6500 9. 462.6500 21. 467.6750 10. 462.6625 22. 467.7000 11. 462.6750 23. 467.7250 12. 462.6875 2.10311c)(6)(7) The Maximum Output Power Rating: FRS - .15 Watts ERP GMRS - 1.3 Watts ERP FRS Authorized Bandwidth 12.5 kHz 2.1033(c)(5) FRS Frequency Range: 1. 462.5625 8. 467.5625 95.627 2. 462.5875 9. 467.5875 3. 462.6125 10. 467.6125 4. 462.6375 11. 467.6375 5. 462.6625 12. 467.6625 6. 462.6875 13. 467.6875 7. 462.7125 14. 467.7125 MHz APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBOPR945 REPORT #: C\COBRA\1173AUT2\1173AUT2TestReport.doc Page 2 of 20 2.1033(c)(6)(7) Power Output shall not exceed 0.50 Watts effective 95.639 radiated power. There can be no provisions for 95.649 increasing the power or varying the power. 2.1033(c)(8) DC Voltages and Current into Final Amplifier: FINAL AMPLIFIER ONLY FOR LOW POWER SETTING INPUT POWER: (6.0V)(.256A) = 1.536 Watts FOR HIGH POWER SETTING INPUT POWER: (6.0V)(1.12A) = 6.72 Watts 2.1033(c)(9) Tune-up procedure. The tune-up procedure is included as EXHIBIT # 9. 2.1033(c)(10) Complete Circuit Diagrams: The circuit diagram is included as EXHIBIT 6 of this report. The block diagrams are included as EXHIBIT 5 of this report. 2.1033(c)(11) A photograph or a drawing of the equipment identification label is included as exhibit No. 1. 2.1033(c)(12) Photographs(8"X10") of the equipment of sufficient clarity to reveal equipment construction and layout, including meters, labels for controls, including any view under shields. See exhibits 3-4. 2.1033(c)(13) Digital modulation is not allowed. 2.1033(c)(14) The data required by 2.1046 through 2.1057 is submitted below. APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBOPR945 REPORT #: C\COBRA\1173AUT2\1173AUT2TestReport.doc Page 3 of 20 95.639 Power Output shall not exceed 50.0 Watts effective radiated power. There can be no provisions for 95.649 increasing the power or varying the power. 2.1046(a) RF power is measured by the substitution method as outlined in TIA/EIA - 603. With a nominal battery voltage of 6.0 V, and the transmitter properly adjusted the RF output measures: OUTPUT POWER: FRS: .15 Watts ERP GMRS: 1.3 Watts ERP 2.1046(a) RF power output. The test procedure used was TIA/EIA-603 S2 APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBOPR945 REPORT #: C\COBRA\1173AUT2\1173AUT2TestReport.doc Page 4 of 20 2.1047(a)(b) Modulation characteristics: AUDIO FREQUENCY RESPONSE The audio frequency response was measured in ac- cordance with TIA/EIA Specification 603. The audio frequency response curve is shown on the next page. The audio signal was fed into a dummy microphone circuit and into the microphone connector. The input required to produce 30 percent modulation level was measured. See Page 5 of report. 2.1047(b) Audio input versus modulation The audio input level needed for a particular per- percentage of modulation was measured in accor- dance with TIA/EIA Specification 603. The audio input curves versus modulation are on the following pages. Curves are provided for audio input frequen- cies of 300, 1000, and 2500 Hz. See Pages 6,7 & 8 of report. 95.637 Post Limiter Filter Each GMRS transmitter, except a mobile station transmitter with a power of 2.5Watts or less, must be equipped with an audio low pass filter. At any frequency between 3 & 20 kHz the filter must have an attenuation of 60log (f/3) greater than the attenuation at 1 kHz. See Page 9 of report. APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBOPR945 REPORT #: C\COBRA\1173AUT2\1173AUT2TestReport.doc Page 5 of 20 AUDIO FREQUENCY RESPONSE GRAPH Cobra Electronics Corp. PR-945 -60 -55 -50 -45 -40 -35 -30 -25 -20 100100010000 Frequency dBmV audio response APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBOPR945 …

Text truncated - open the document above for the full version.

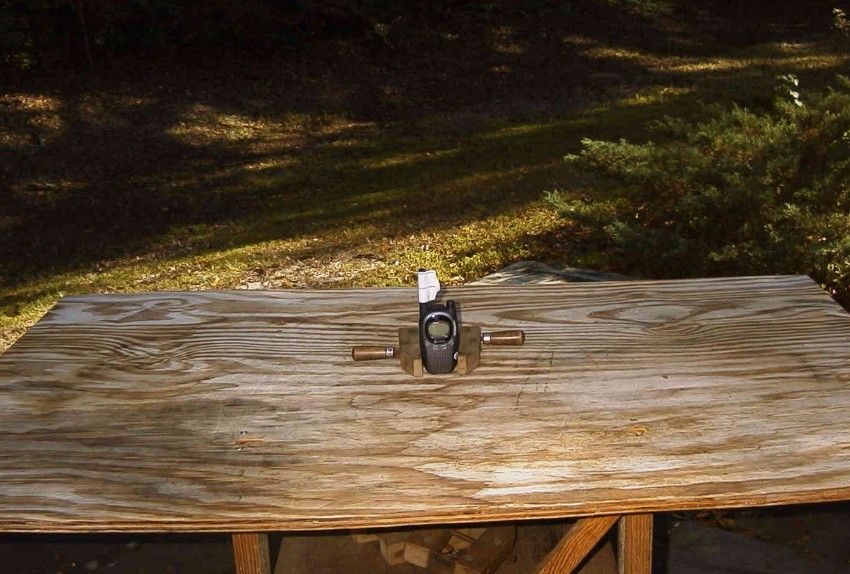

Test Report S/N: 111502-316BBO Test Date(s): December 20, 2002 FCC SAR Evaluation © 2002 Celltech Research Inc.1 of 21 Celltech Research Inc. declares under its sole responsibility that this device was found to be in compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093. The device was tested in accordance with the measurement standards and procedures specified in FCC OET Bulletin 65, Supplement C, Edition 01-01 (General Population / Uncontrolled Exposure). I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Research Inc. The results and statements contained in this report pertain only to the device(s) evaluated. Russell W. Pipe Senior Compliance Technologist Celltech Research Inc. DECLARATION OF COMPLIANCE SAR EVALUATION Test Lab CELLTECH RESEARCH INC. Testing and Engineering Lab 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250-448-7047 Fax: 250-448-7046 e-mail: [email protected] web site: www.celltechlabs.com Applicant Information COBRA ELECTRONICS CORPORATION 6500 West Cortland Street Chicago, IL 60707 Rule Part(s):FCC 47 CFR §2.1093 Test Procedure(s):FCC OET Bulletin 65, Supplement C (01-01) Device Type:Portable UHF GMRS/FRS PTT Radio Transceiver FCC ID:BBOPR945 Model(s):PR-945 Modulation:FM (UHF) Tx Frequency Range(s):462.5500 - 462.7250 MHz (GMRS Channels 15-22) 462.5625 - 462.7125 MHz (FRS/GMRS Channels 1-7) 467.5625 - 467.7125 MHz (FRS Channels 8-14) RF Output Power Tested:1.3 Watts ERP (GMRS) No. of Channels:22 Antenna Type(s):Fixed Battery Type(s):1.5V AAA Alkaline (x4) Body-Worn Accessories:Belt-Clip (0.7 cm) Lapel Ear-Microphone (MA-EBM) Boom-Microphone Headset (MA-VOX) Max. SAR Measured:0.895 W/kg - Face-held (50% duty cycle) 1.09 W/kg - Body-worn (50% duty cycle) Test Report S/N: 111502-316BBO Test Date(s): December 20, 2002 FCC SAR Evaluation © 2002 Celltech Research Inc.2 of 21 TABLE OF CONTENTS 1.0INTRODUCTION..................................................................... 3 2.0DESCRIPTION OF DUT............................................................ 3 3.0SAR MEASUREMENT SYSTEM ............................................... 4 4.0MEASUREMENT SUMMARY..................................................... 5 5.0DETAILS OF SAR EVALUATION............................................... 6 6.0EVALUATION PROCEDURES................................................... 6-7 7.0SYSTEM PERFORMANCE CHECK............................................ 8 8.0SIMULATED TISSUES............................................................. 9 9.0SAR LIMITS........................................................................... 9 10.0SYSTEM SPECIFICATIONS...................................................... 10 11.0PROBE SPECIFICATION......................................................... 11 12.0SAM PHANTOM...................................................................... 11 13.0LARGE PLANAR PHANTOM..................................................... 11 14.0DEVICE HOLDER.................................................................... 11 15.0TEST EQUIPMENT LIST........................................................... 12 16.0MEASUREMENT UNCERTAINTIES............................................ 13 17.0REFERENCES.......................................................................14 APPENDIX A - SAR MEASUREMENT DATA.............................................15 APPENDIX B - SYSTEM CHECK DATA....................................................16 APPENDIX C - SYSTEM VALIDATION.....................................................17 APPENDIX D - PROBE CALIBRATION....................................................18 APPENDIX E - MEASURED FLUID DIELECTRIC PARAMETERS................19 APPENDIX F - SAM PHANTOM CERTIFICATE OF CONFORMITY..............20 APPENDIX G - SAR TEST SETUP & DUT PHOTOGRAPHS........................21 Test Report S/N: 111502-316BBO Test Date(s): December 20, 2002 FCC SAR Evaluation © 2002 Celltech Research Inc.Cobra Electronics Corporation FCC ID: BBOPR945 (Model: PR-945)3 of 21 Portable UHF GMRS/FRS PTT Radio Transceiver (462.5500-467.7125MHz) 1.0 INTRODUCTION This measurement report demonstrates compliance of the Cobra Electronics Corporation Model: PR-945 Portable UHF GMRS/FRS PTT Radio Transceiver FCC ID: BBOPR945 with the rules and requirements of FCC 47 CFR §2.1093 (see reference [1]) for the General Population / Uncontrolled Exposure environment. The test procedures described in FCC OET Bulletin 65, Supplement C, Edition 01-01 (see reference [2]) were employed. A description of the product and operating configuration, detailed summary of the test results, methodology and procedures used in the evaluation, equipment used, and the various provisions of the rules are included within this test report. 2.0 DESCRIPTION of Device Under Test (DUT) Rule Part(s)FCC 47 CFR §2.1093 Test ProcedureFCC OET Bulletin 65, Supplement C (01-01) Device TypePortable UHF GMRS/FRS PTT Radio Transceiver FCC IDBBOPR945 Model(s)PR-945 Serial No.Pre-production ModulationFM (UHF) Tx Frequency Range 462.5500 - 462.7250 MHz (GMRS Channels 15-22) 462.5625 - 462.7125 MHz (FRS/GMRS Channels 1-7) 467.5625 - 467.7125 MHz (FRS Channels 8-14) RF Output Power Tested1.3 Watts ERP(GMRS) Battery Type(s)1.5V AAA Alkaline (x4) Antenna Type(s)Fixed Body-Worn Accessories Tested Belt-Clip (0.7 cm) Lapel Ear-Microphone (MA-EBM) Boom-Microphone Headset (MA-VOX) Test Report S/N: 111502-316BBO Test Date(s): December 20, 2002 FCC SAR Evaluation © 2002 Celltech Research Inc.Cobra Electronics Corporation FCC ID: BBOPR945 (Model: PR-945)4 of 21 Portable UHF GMRS/FRS PTT Radio Transceiver (462.5500-4…
