BBOPR950DXDFRS/GMRS Transceiver

FPO Operating Instructions for Your Cobra ® microTALK ® 2-WAY RADIO MODEL PR 950 DX Operating Instructions for Your Cobra ® microTALK ® 2-WAY RADIO MODEL PR 950 DX Operating Instructions for Your Cobra ® microTALK ® 2-WAY RADIO MODEL PR 950 DX Nothingcomes close to a Cobra ™ Nothingcomes close to a Cobra ™ Nothingcomes close to a Cobra ™ English, pages 1-16 French, pages 17-32 Spanish, pages 33-46 (ENGLISH) (FRENCH) (SPANISH) (ENG) (FR) (SPAN) FPO Product Features •TWO-WAY RADIO with up to a 5 mile (8 km) range •22 CHANNELS (7 FRS/GMRS, 7 FRS, 8 GMRS) •38 CTCSS PRIVACY CODES •Selectable HI/LOW POWER Output (on all GMRS channels) • UHF FM frequencies •BACKLIT LCD display •EXTERNAL SPEAKER/MICROPHONE jack •10 MEMORY LOCATIONS •FULL CHANNEL/CTCSS SCAN •MEMORY SCAN •SIGNAL STRENGTH Meter •MAXIMUM RANGE Extender •10 CALL SIGNAL selections • VibrAlert™ •VOX MODE for hands-free transmissions •Selectable “ROGER BEEP” confirmation tone •Selectable KEYSTROKE TONES •AUTO SQUELCH •CALL button •BATTERY SAVER circuitry •LOCK button •BELT CLIP • WATER RESISTANT •4 AAA rechargeable NiMH batteries •CHARGER ADAPTER FCC Licensing Information The PR 950 DX radio operates on General Mobile Radio Service (GMRS) frequencies which require a Federal Communications Commission (FCC) license. For licensing information and application forms, please call the FCC Hotline at: 1-800-418-FORM (Request form #159 and form #605) If you have any questions regarding the license application, you can contact the FCC directly at: 1-888-CALL-FCC or at www.fcc.gov. O P E R AT I O NENGLISH 1 O P E R AT I O NENGLISH 2 This device complies with part 15 of the FCC rules. Operation is subject to the condition that this device does not cause harmful interference. FCC Warnings:Replacement or substitution of transistors, regular diodes or other parts of a unique nature, with parts other than those recommended by Cobra, ® may cause a violation of the technical regulations of part 95 of the FCCRules, or violation of Type Acceptance requirements of Part 2 of the Rules. backlit LCD display ENTER button MODE button ON/OFF VOLUME switch CHANNEL SELECT button charger jack speaker/ microphone belt clip CALL button HI/LO (power) LOCK button TALK button LIGHT/MAX RANGE button Detachable UHF Antenna battery compartment LOCK tab external speaker/ microphone jack LIGHT/MAX RANGEbutton TALK button O P E R AT I O N Selecting a Channel Channels 1-7 are shared with FRS/GMRS. Channels 8-14 are FRS only. Channels15-22 are GMRS only. 1. With the radio on, select any of the 22 channels by pushing the CHANNEL SELECT button up or down. (N O T E :Both radios must be tuned to the same channel to communicate.) Selecting a CTCSS Privacy Code CTCSS (Continuous Tone Coded Squelch System) is an advanced tone coding system allowing you to select one of 38 privacy codes to reduce interference from other users on the channel. (NOTE:If you are using a privacy code, both radios must be tuned to the same channel and privacy code to communicate. Each channel will remember the last privacy code you selected.) To select a privacy code: 1. After selecting a main channel, press and release the MODE button. A small number will flash next to the channel in the LCD. 2. Push the CHANNEL SELECT button up or down to select a privacy code. You can hold the button up or down for fast advance. 3. When your desired privacy code is displayed, press and release the ENTER button. 4. To return to Standby mode without selecting a privacy code, do not push any buttons for 15 seconds. Calling Another Person To alert another person that you are calling: 1. Press and release the CALL button. The other person will hear a 2-second ringing tone. (See page 12 on how to select between 10 call tone settings.) You cannot send or receive transmissions during the 2-second call tone. O P E R AT I O NENGLISH 4 Installing or Replacing Batteries 1.Pull down the LOCK tab to remove the battery compartment cover. 2.Insert your NiMH batteries or four AAA batteries. Position batteries according to polarity markings. (NOTE:NiMH batteries are included with your microTALK ® radio. When not using your NiMH’s, always use high quality alkaline batteries. See page 16 for optional accessories.) Turning On Your microTALK ® Radio 1. Rotate the ON-OFF/VOLUME switch clockwise to turn on the unit (and to adjust the volume). An audible tone will indicate the radio is on. 2. Your microTALK ® is now in Standby mode, ready to receive transmissions. The radio is always in Standby mode except when the TALK, CALL, or MODE buttons are pressed. Battery Low Battery power is indicated by the segments appearing at the bottom of the LCD. As battery power decreases, fewer segments will be visible. When the last segment begins to flash, the batteries included with your radio should be recharged or alkaline batteries should be replaced. Auto Battery Save Your microTALK ® radio has a unique circuit designed to extend battery life. If there are no transmissions within 10 seconds, the unit will automatically switch to Battery Save mode and POWER SAVER will appear in the display. This will not affect the unit’s ability to receive incoming transmissions. ENGLISH 3 ON-OFF/VOLUME s w i t c h CALL button ENTER b u t t o n M O D E b u t t o n CHANNEL SELECT b u t t o n Lock tab O P E R AT I O N Maximum Range Extender You can temporarily turn off Auto Squelch, allowing all signals to be received and extending the maximum range of your radio: 1. Press and hold the LIGHT/MAX RANGE button for 5 seconds. You will hear 2 beeps indicating that Maximum Range Extender is on. 2. To turn Maximum Range Extender off, press and hold the LIGHT/MAX RANGE button for 1 second, or change channels. Using the Lock Function The Lock function locks the CHANNEL, MODE and ENTER buttons to prevent accidental operation. To use the Lock function: 1. While in Standby mode, press and hold the LOCK button for one second. The Lock icon will blink when the unit is locked. Buttons that…

Text truncated - open the document above for the full version.

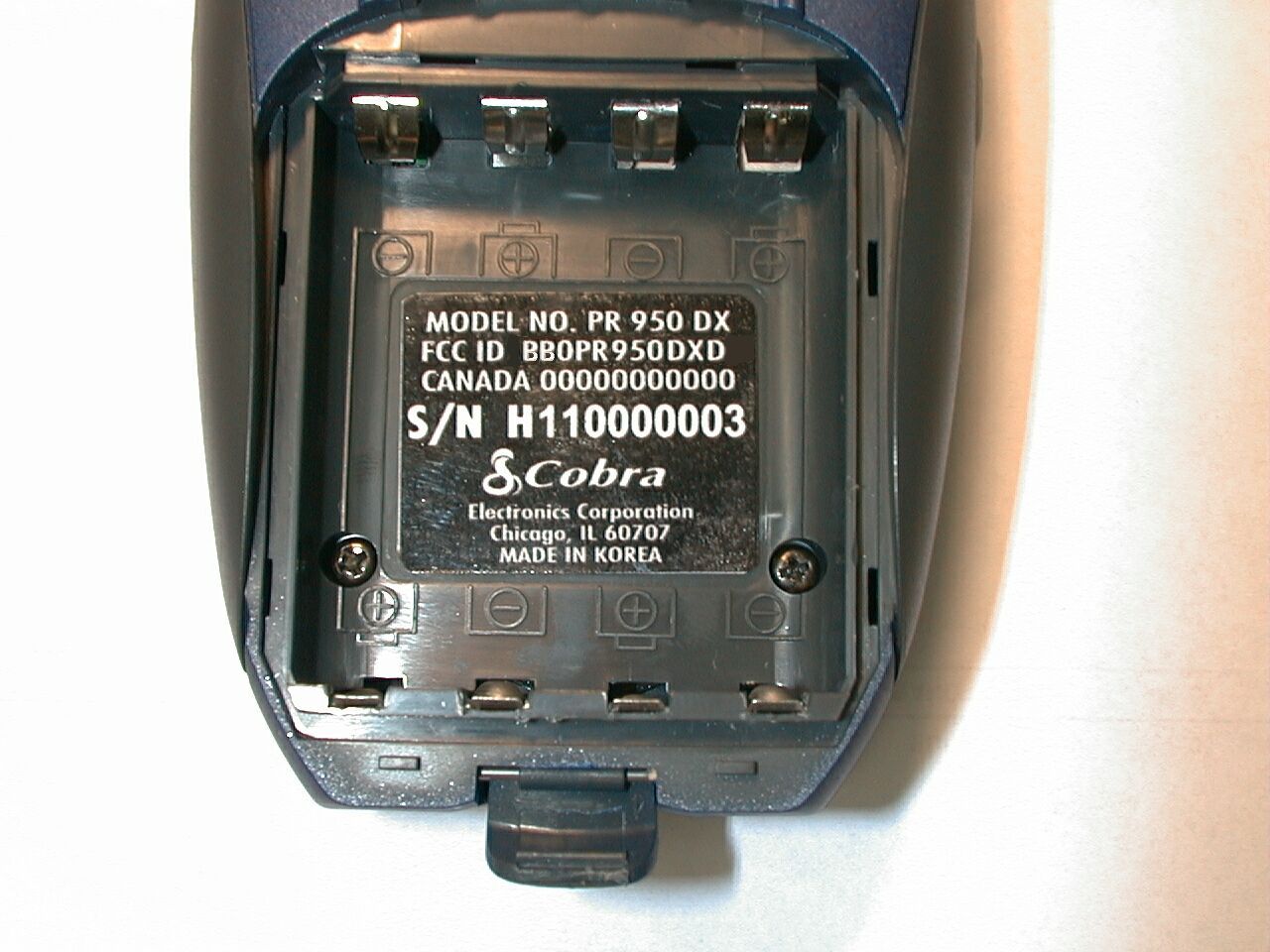

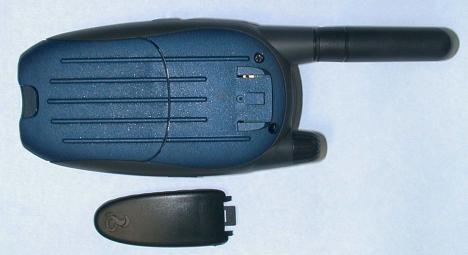

Front View Back View Right Side View Left Side View Top View Botto m View

PCB Bottom PCB Bottom w/o Shield PCB Top

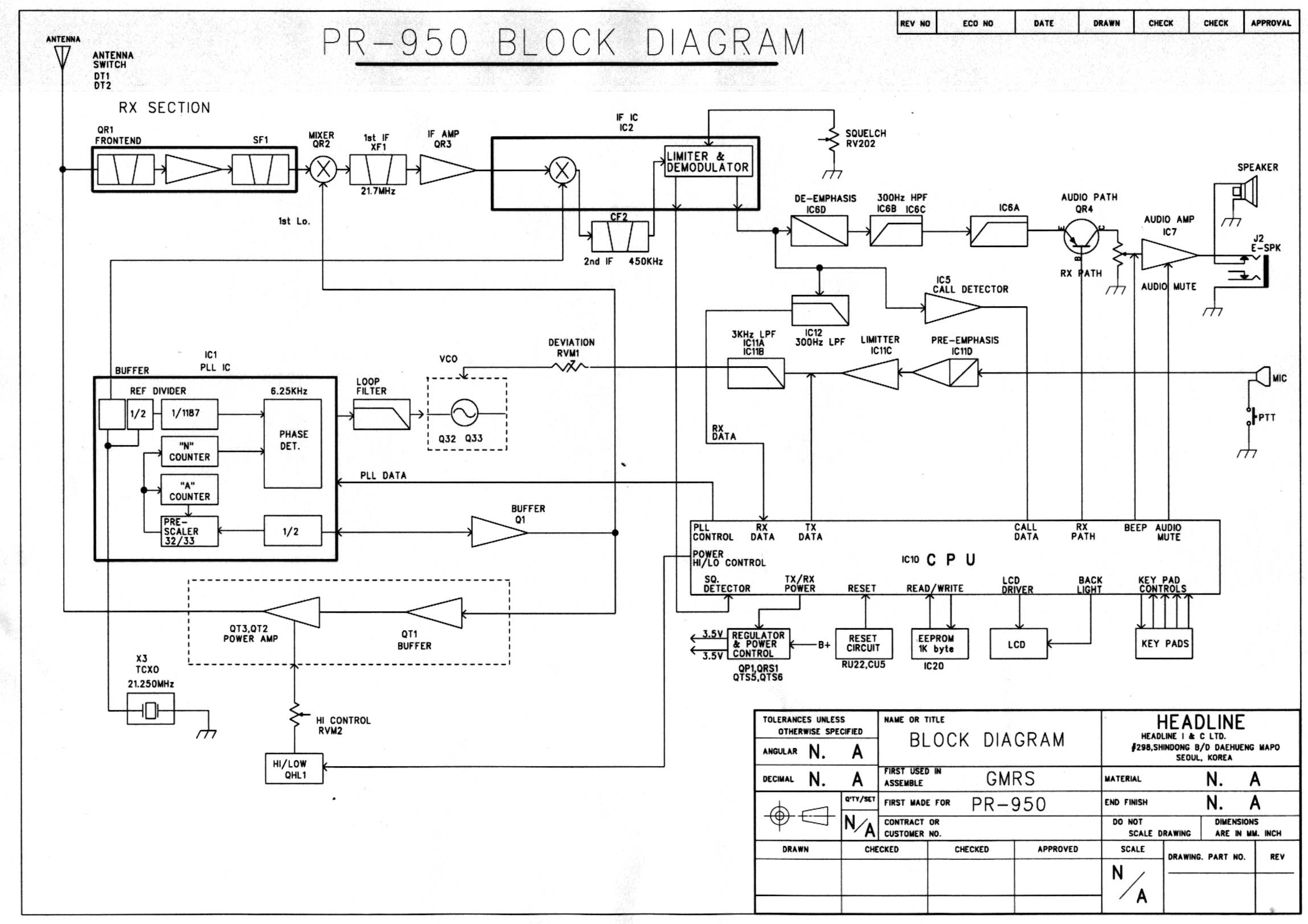

Ref: BBOPR950DXD; EA278847 Cobra Electronics Corporation OPERATIONAL DESCRIPTION: The PR950DXD transceiver operates on both the General Mobile Service (GMRS) and Family Radio Service (FRS) frequencies. The radio will provide 0.831 watt ERP(d) when transmitting on GMRS frequencies (462.5500- 462.7250 MHz) and 0.478 watt ERP(d) on FRS specific frequencies (467.5625-467.7125 MHz). The RF power output of the PR950DXD is controlled by the internal microprocessor. When operating on a GMRS channel, the RF PA operating conditions are set by the microprocessor to provide 0.831 watt ERP(d). To extend battery life, a user power output control option is available to reduce the output power to 0.478W ERP. This option is only available when operating on a GMRS channel. When operating on an FRS channel, the microprocessor sets the RF PA operating conditions to those necessary to produce 0.478W ERP. There is no user power output control option w hen operating on an FRS channel. The power output is fixed at 0.478W ERP whenever an FRS channel is selected. It is required that the user obtain an FCC license to operate on the GMRS frequencies. This is specified in the users manual along with information on where to obtain the necessary application forms.

BBOPR950DXD Transmitter Alignment Instructions WARNING Any repairs or adjustments should be made under the supervision of a qualified radiotelephone technician. 1.Power Supply Voltage The Power supply voltage should be set for 6.0VDC measured at the radio during transmit. Periodically check the power supply voltage during the alignment procedure. 2.Frequency Setting A. Couple a frequency counter or Communications Service Monitor to the antenna through an RF power attenuator (10 watt minimum rating, 20 dB minimum attenuation). B. Depress the PTT switch. C. Adjust the CTX1 trimmer capacitor such that the output frequency is equal to the channel frequency with a maximum error of +/- 200 Hz. D. Release the PTT switch. 3. Deviation Adjustment. A. Connect an audio generator to the microphone jack JIG. The audio frequency Should be set at 1 KHz. B.Couple a Communications Service Monitor to the antenna through an RF power attenuator (10 watt mi ni mu m rating, 20 dB minimum attenuation).Set the monitor to read peak deviation. C. Depress the PTT switch. D. Adjust the audio generator level 100 mV rms. E. Adjust RVM1 for +/- 2.2 KHz maximum deviation. (With CTCSS tone) F. Confirm +/- 2.0KHz without CTCSS tone.(1.5KHz dev. 20dB up) G. Release the PTT switch.

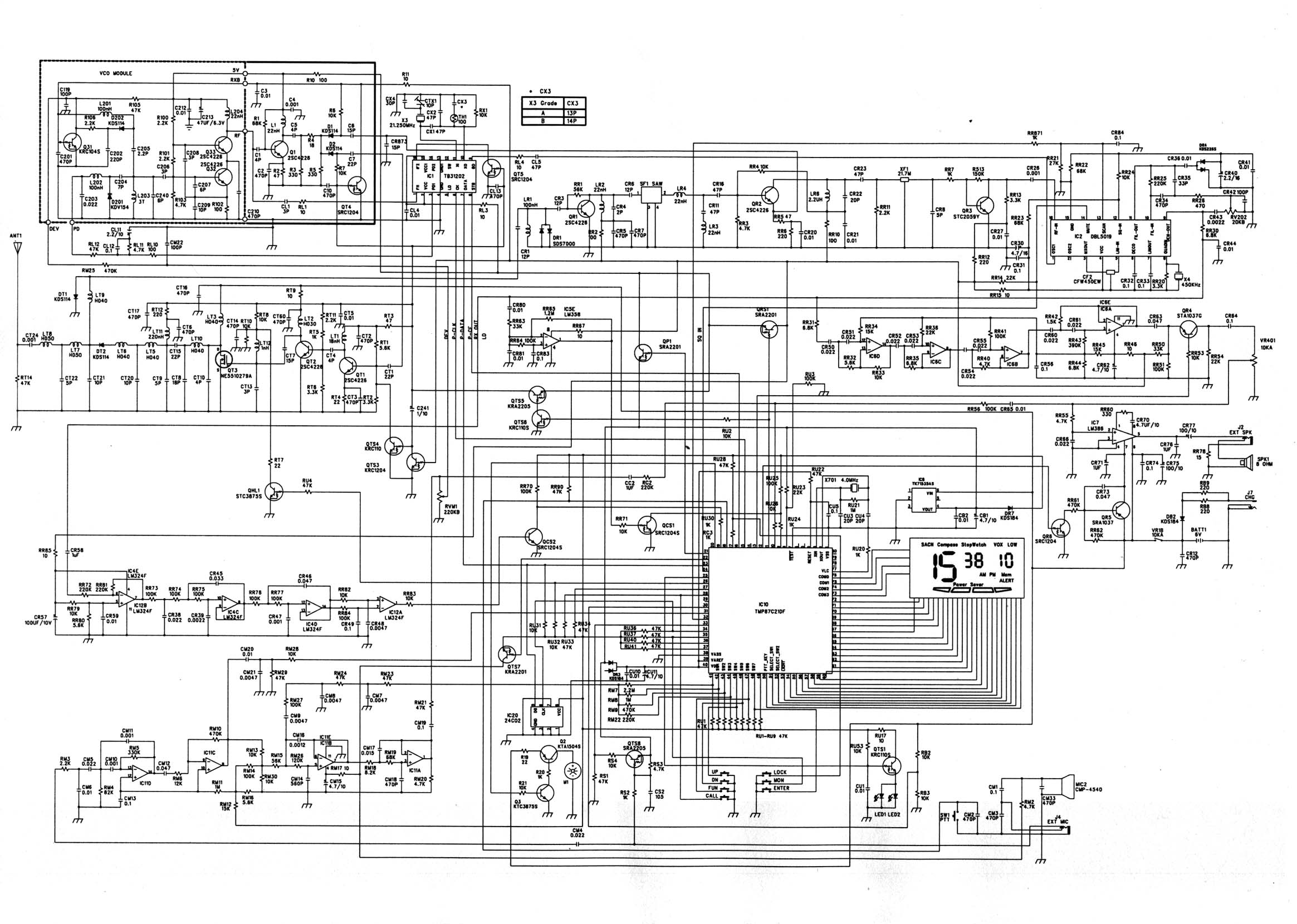

BBOPR950DXD SEMICONDUCTORS AND FUNCTIONS Schematic Vendor Reference Part Number Vendor Function Q2 KTA1504 K.E.C MOTOR CONTROL Q3 KTC3875 K.E.C MOTOR CONTROL QR1 2SC4226 N.E.C RX RF AMP QR2 2SC4226 N.E.C RX 1 St mi xe r QR3 STC2059Y AUK RX IF AMP QR4 STA1037G AUK AUDIO PATH QR5 STA1037G AUK AUDIO MUTE QR6 SRC1204 AUK AUDIO MUTE QP1 SRA2201 AUK P.SAVE SWITCHING QRS1 SRA2201 AUK RX B+ SWITCHING QCS1 SRC1204 AUK RX CALL DECT QCS2 SRC1204 AUK RX CTCSS DET QCS3 SRC1204 AUK CALL MUTE QHL1 KRC114S K.E.C HI/LOW CONTROL QTS3 SRC1204 AUK TX SWITCHING QTS4 KRC110S KEC TX SWITCHING QTS5 SRA2205 AUK TX B+ SWITCHING QTS6 KRC110S K.E.C TX B+ SWITCHING QTS7 SRA2201 AUK MIC AMP B+ SWITCHING QTS8 SRA2205 AUK PTT SWITCHING QT1 2SC4226 N.E.C TX BUTTER QT2 2SC4226 N.E.C TX DRIVER QT3 NE5510279A N.E.C TX AMP QT4 SRC1204 AUK RX B+ SW AT TX MODE QB1 KRA110S KEC LAMP SWITCHING Q1 2SC4226 NEC R/TX BUTTER Q31 KRC104S KEC VCO Q32 2SC4226 NEC VCO Q33 2SC4226 NEC VCO IC1 TB31202FN TOSHIBA PLL IC IC2 DBL 5019 DAE WOO FM IF IC IC4 IL 324F INTERGRAL CTCSS TONE DET.(300Hz LPF) IC5 IL 358F INTERGRAL CALL DET IC6 IL 324F INTERGRAL DE-EMPHASIS AND 300Hz HPF IC7 IL 386 INTERGRAL AUDIO POWER AMP IC8 ELM9836 E.L.M REGULATOR IC10 TMP87C21DF K.E.C CPU IC11 IL 324F INTERGRAL TX PRE-EMPHASIS AND 300Hz HPF IC20 24C02 HOLTEK EE-PROM @ N.E.C : NATIONAL SEMICONDUCTOR @ AUK : AUK CORP. @ ELM : ELM TECHNOLOGY @ K.E.C : KOREA ELECTRONICS CO.,LTD.

Safety Information For FRS/GMRS UNIT Your wireless handheld portable transceiver contains a low power transmitter. When the PTT button is pushed it sends out radio frequency (RF) signals. The device is authorized to operate at a duty factor not to exceed 50%. In August 1996, the Federal Communications Commissions (FCC) adopted RF exposure guidelines with safety levels for hand-held wireless devices. Important: To maintain compliance with the FCC s RF exposure guidelines hold the transmitter at least 2 inches (5 centimeters) from your face and speak in a normal voice, with the antenna pointed up and away. If you wear the handset on your body while using the headset accessory, use only the Cobra supplied belt clip for this product and ensure that the antenna is at least 1 inch (2.5 centimeters) from your body when transmitting. If the distance between the antenna and the body is LESS THAN 1.0”(2.5cm) DO NOT USE THIS DEVICE IN THE BODY WORN CONFIGURATION. Use only the supplied antenna. Unauthorized antennas, modifications, or attachments could damage the transmitter and may violate FCC regulations. Normal Position: Hold the transmitter approximately 2” from your face and speak in a normal voice, with the antenna pointed up and away.

ENGINEERING STATEMENT For Certification of COBRA ELECTRONICS CORPORATION Model No. PR950DX FCC ID: BBOPR950DXD I am an Electronics Engineer, a principal in the firm of Hyak Laboratories, Inc., Springfield, Virginia. My education and experience are a matter of record with the Federal Communications Commission. Hyak Laboratories, Inc. has been authorized by Cobra Electronics Corporation to make certification measurements on the PR950DX transceiver. These tests were made by me or under my supervision in our Springfield laboratory. Test data and documentation required by the FCC for certification are included in this report. The data verifies that the above mentioned transceiver meets FCC requirements and certification is requested. _________________________ Rowland S. Johnson Dated: November 20, 2001 A. INTRODUCTION The following data are submitted in connection with this request for type certification of the PR950DX transceiver in accordance with Part 2, Subpart J of the FCC Rules. The PR950DX is a hand-held, battery operated, UHF, frequency modulated, transceiver intended for voice communications applications under Part 95 GMRS (channels 1-7 or 15-22)* or Part 95 FRS (channels 8-14)*. *See Appendix A for frequency assignment. 1. The unit’s antenna meets 95.647, (i.e. is integral to the transmitter. 2. Except for power, the technical parameters for operating on all the channels (both FRS and GMRS) are the same as those for FRS, (i.e. 12.5 kHz bandwidth, 2.5 ppm frequency tolerance, maximum 2.5 kHz deviation, etc). 3. An informational insert is included inside the box (product package) that clearly informs the consumer (buyer/owner) when the radio is transmitting on GMRS frequencies, that operation on GMRS frequencies requires an FCC license and such operation is subject to additional rules specified in 47 CFR Part 95. (See Appendix B) B. GENERAL INFORMATION REQUIRED FOR TYPE CERTIFICATION (Paragraph 2.983 of the Rules) 1. Name of applicant: Cobra Electronics Corporation 2. Identification of equipment: FCC ID: BBOPR950DXD a. The equipment identification label is submitted as a separate exhibit. b. Photographs of the equipment are submitted as separate exhibits. 3. Quantity production is planned. 4. Technical description: a. 11k0F3E emission (FRS and GMRS) b. Frequency range: 462.5500-467.7125 MHz. c. Operating power ERP(d): FRS .478 W GMRS .831 W 2 B. GENERAL INFORMATION (Cont.) d. Maximum power permitted under FCC Part 95 (interstitial) is 5 watts ERP. The PR950DX fully complied with that power limitation. e. The dc voltage and dc currents at final amplifier: GMRS FRS Collector voltage: 5.9 5.9 Vdc Collector current: 0.51 0.37 A f. Function of each active semiconductor device: See Appendix 1. g. Complete circuit diagram is submitted as a separate exhibit. h. A draft instruction book is submitted as a separate exhibit. i. The transmitter tune-up procedure is submitted as a separate exhibit. j. A description of circuits for stabilizing frequency is included in Appendix 2. k. A description of circuits and devices employed for suppression of spurious radiation and for limiting modulation is included in Appendix 3. l. Not applicable. 5. Data for 2.985 through 2.997 follow this section. C. RF POWER OUTPUT (Paragraph 2.985(a) of the Rules) ERP(d) by substitution: FRS 0.478 W GMRS 0.831 W D. MODULATION CHARACTERISTICS 1. A curve showing frequency response of the transmitter is shown in Figure 1. Reference level was audio signal output from a Boonton 8220 modulation meter with one kHz deviation. Audio output was measured with an Audio Precision System One TRMS voltmeter and tracking generator. 2. Modulation limiting curves are shown in Figure 2, using a Boonton 8220 modulation meter. Signal level was established with an Audio Precision System One. The curves show compliance with paragraphs 2.987(b) and 95.633(b). 3 D. MODULATION CHARACTERISTICS (Cont.) 3. Figure 3 is a graph of the post-limiter low pass filter which meets the requirements of paragraph 95.633(b) in providing a roll-off of 60Logf/3 dB where f is audio frequency in kHz. Measurements were made following EIA RS-152B with an Audio Precision System One on the Boonton 8220 modulation meter audio output. 4. Occupied_Bandwidth (Paragraphs 2.989(c), 90.209(b)(4), and 95.629(a) of the Rules) Figure 4a is a plot of the sideband envelope of the transmitter output taken with a Tektronix 494P spectrum analyzer on GMRS Channel 1. Modulation corresponded to conditions of 2.989(c)(1) and consisted of 2500 Hz tone at an input level 16 dB greater than that necessary to produce 50% modulation at 2659 Hz, the frequency of maximum response. Figure 4b is a plot under the same conditions for FRS Channel 8. The plots are within the limits imposed by Part 95 for frequency modulation. The horizontal scale (frequency) is 10 kHz per division and the vertical scale (amplitude) is a logarithmic presentation equal to 10 dB per division. 5. Emission Designator Calculation: (2D + 2F) 2x2.5 + 2x3.0 = 11k0F3E 4 FIGURE 1 MODULATION FREQUENCY RESPONSE MODULATION FREQUENCY RESPONSE FCC ID: BBOPR950DXD FIGURE 1 5 FIGURE 2 AUDIO LIMITER CHARACTERISTICS AUDIO LIMITER CHARACTERISTICS FCC ID: BBOPR950DXD FIGURE 2 6 FIGURE 3 AUDIO LOW PASS FILTER RESPONSE AUDIO LOW PASS FILTER RESPONSE FCC ID: BBOPR950DXD FIGURE 3 7 FIGURE 4a OCCUPIED BANDWIDTH ATTENUATION IN dB BELOW MEAN OUTPUT POWER Required On any frequency more than 50% up to and including 100% of the 25 authorized bandwidth, 20 kHz (10-20 kHz) On any frequency more than 100%, up to and including 250% of the 35 authorized bandwidth (20-50 kHz) On any frequency removed from the assigned frequency by more 43+10LogP = 42 than 250% of the authorized (P = 0.831 W) bandwidth (over 50 kHz) OCCUPIED BANDWIDTH FCC ID: BBOPR950DXD FIGURE 4a, (GMRS) 8 FIGURE 4b OCCUPIED BANDWIDTH ATTENUATION IN dB BELOW MEAN OUTPUT POWER Required On any frequency more than 50% up to and including 100% of the 25 authorized bandwidth, 20 kHz (10-20 kHz…

Text truncated - open the document above for the full version.
