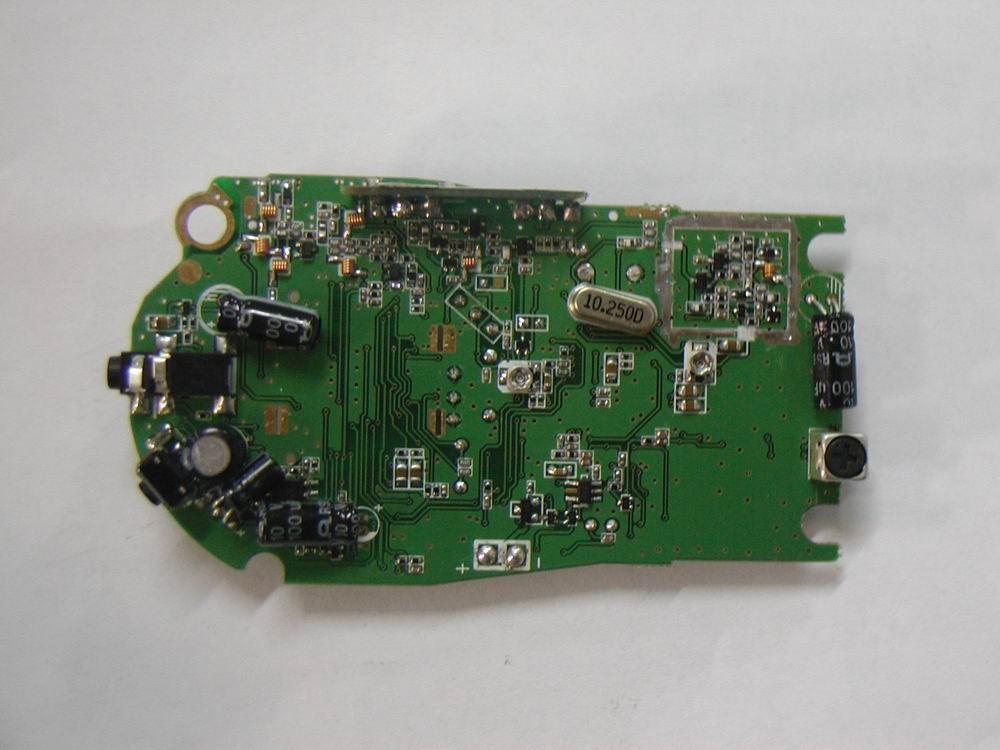

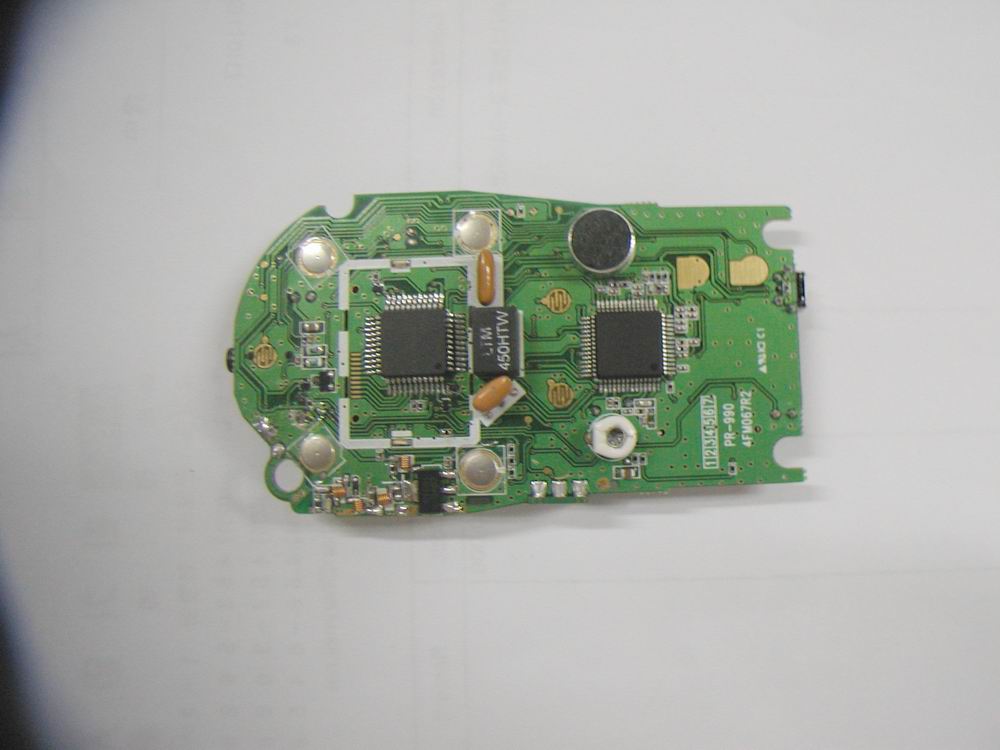

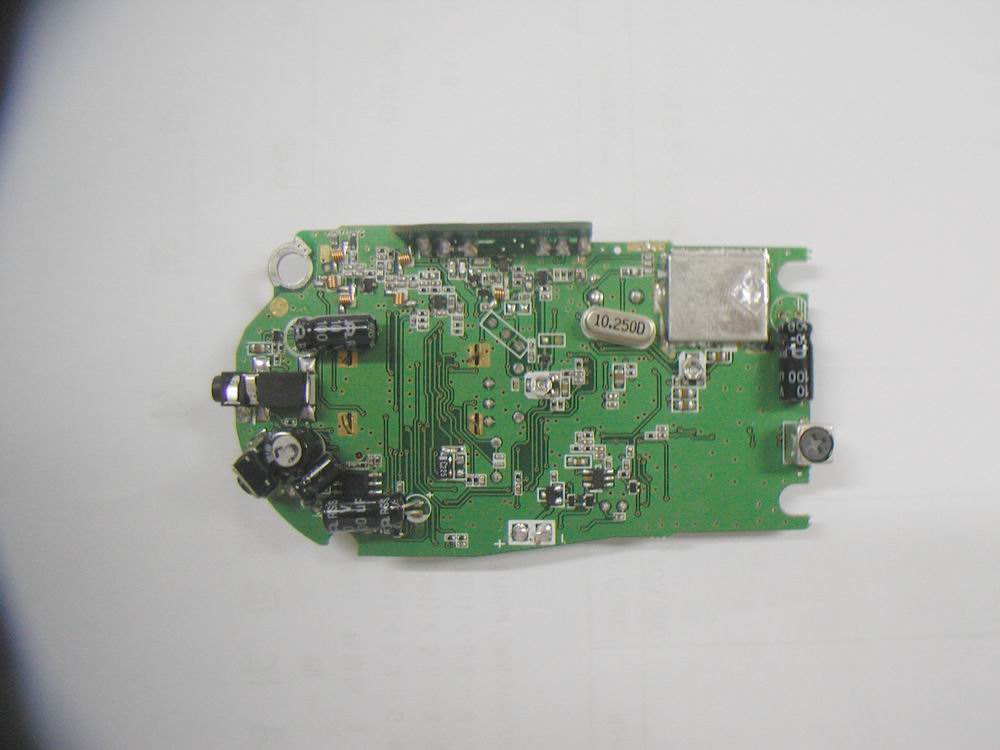

BBOPR990FRS / GMRS TRANSCEIVER

User’ s Guide 2-WAY RADIO MODEL PR990 VP Batteries and Charger To Install or Replace Batteries: 1. Remove belt clip by releasing belt clip latch and sliding clip up. 2. Pull down on the battery door latch to remove the battery compartment cover. 3. Insert the supplied four (4) AAA rechargeable batteries (also works with alkaline batteries). Position batteries according to polarity markings. 4. Replace battery compartment cover and belt clip. Lock Button Locks buttons to prevent accidental channel or settings changes. Char ger Jack Charger Jack (also works with external speaker/microphones). Printed in the Philippines Part No. 480-159-P Battery Compar tment Cover Battery Door Latc h Wrist Strap Connector Belt Clip Antenna Speaker/ Microphone Backlit LCD Display Talk Button Press and hold to communicate with others. With the microphone about two (2) inches [five (5) cm] from your mouth, speak in a normal voice. Release the T alk button when you are finished talking and listen for a response. You cannot receive incoming calls while pressing the Talkbutton. NOTEBoth radios must be tuned to the same channel to communicate. For Pr oducts Used in the U.S.A. FCC Licensing Required This 2-way radio operates on GMRS (General Mobile Radio Service) frequencies which require an FCC (Federal Communications Commission) license. A user must be licensed prior to operating on channels 1 through 7 or 15 through 22, which comprise the GMRS channels of this radio. Serious penalties could result for unlicensed use of GMRS channels, in violation of FCC rules, as stipulated in the Communication Act’s Sections 501 and 502 (amended). Licensed users will be issued a call sign by the FCC, which should be used for station identification when operating this radio. GMRS users should also cooperate by engaging in permissible transmissions only , avoiding channel inter ference with other GMRS users, and being prudent with the length of their transmission time. For licensing information and application forms, please call the FCC Hotline at 800-418-FORM. Request form #159 and form #605. Questions regarding the license application should be directed to the FCC at 888-CALL-FCC. Additional information is available on the FCC’s website at www.fcc.gov. Safety Information for microTALK ® Radios Y our wireless handheld portable transceiver contains a low power transmitter . When the T alk button is pushed, it sends out radio frequency (RF) signals. The device is authorized to operate at a duty factor not to exceed 50%. In August 1996, the Federal Communications Commission (FCC) adopted RF exposure guidelines with safety levels for handheld wireless devices. Important: FCC RF Exposure Requirements: For body-worn operation, this radio has been tested and meets the FCC RF exposure guidelines when used with Cobra ® accessories supplied or designated for this product. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. Use only the supplied antenna. Unauthorized antennas, modifications, or attachments could damage the transmitter and may violate FCC regulations. Normal Position: Hold the transmitter approximately two (2) inches from your face and speak in a normal voice, with the antenna pointed up and away . For Products Used in Canada Industry Canada Notice Operation is subject to the following two (2) conditions: 1) this device may not cause interference, and 2) this device must accept any inter ference, including inter ference that may cause undesired operation of the device. «IC» before the equipment certification number signifies that the Industry Canada technical specifications were met. It does not guarantee that the certified product will operate to the user’s satisfaction. Pr oduct Ser vice Questions If you have any questions about operation or installing your new Cobra ® product, or if you are missing parts... Please call Cobra ® first! DO NOT RETURN THIS PRODUCT TO THE STORE! See customer assistance above. For Products Purchased in Canada For out of warranty service, ship prepaid this product to: AVS Technologies Inc., 2100 Trans Canada Hwy S., Montreal, Quebec, H9P 2N4. W e reser ve the right to repair or replace the radio or charger with equivalent products. Please include the following information: Date of Pur chase, Model Number , Dealer Pur chased From, Dealer Address, Dealer Phone Number . For Products Purchased In The U.S.A. If your product should require factory service, please call Cobra ® first before sending your radio, charger or batteries. This will ensure the fastest turn-around time on your repair. You may be asked to send your products to the Cobra ® factory. It will be necessary to furnish the following to have the product serviced and returned. 1) For warranty repair include some form of proof-of-purchase, such as a mechanical reproduction or carbon of a sales receipt. If you send the original receipt, it cannot be returned. 2) Send the entire product. 3) Enclose a description of what is happening with the product. Include a typed or clearly printed name and address of where the product is to be returned. 4) Pack product securely to prevent damage in transit. If possible, use the original packing material. 5) Ship prepaid and insured by way of a traceable carrier such as United Parcel Service (UPS) or First Class Mail to avoid loss in transit to: Cobra ® Factory Service, Cobra ® Electronics Corporation, 6500 West Cortland Street, Chicago, Illinois 60707 U.S.A. 6) If the product is in warranty, upon receipt of your product it will either be repaired or exchanged depending on the model. Please allow approximately three (3) to four (4) weeks before contacting Cobra ® for status. If the product is out of warranty , a letter will automatically be sent informing you of the repair charge or replacement charge. If you have any questions, please call 773-889-3087 for assistance. For Products Purchased Outside The U.S.A. or Canada Please contact your local dealer for product ser vic…

Text truncated - open the document above for the full version.

08 July, 2004 Equipment Authorization Division Office of Engineering and Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Ref: FCC ID: BBOPR990 Request for Confidentiality Dear Sirs: With regard to the referenced application, Cobra Electronics Corporation, is requesting confidentiality of certain sections of the accompanying documents. The documents for which Cobra Electronics Corporation is requesting confidentiality are: Schematic Diagram Block Diagram Operational Descriptions This request is made under the provisions of Section 0.457(d) of the Commission’s Rules, and Section 552(b)(4) of the Freedom of Information Act. The material for which confidentiality is requested falls within the scope of Section 552(b)(4) as trade secrets and includes material covered by Section 0.459 of the Commission’s Rules. Sincerely, Robert Mudra Engineering Manager

© 2004 Celltech Labs Inc. 1 of 20 Test Report S/N: 070904-531BBO Test Date(s): July 12, 2004 Test Type: FCC/IC SAR Evaluation Celltech Labs Inc. declares under its sole responsibility that this wireless portable device has demonstrated compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093 and Health Canada’s Safety Code 6. The device was tested in accordance with the measurement standards and procedures specified in FCC OET Bulletin 65, Supplement C (Edition 01-01) and Industry Canada RSS-102 Issue 1 (Provisional) for the General Population / Uncontrolled Exposure environment. All measurements were performed in accordance with the SAR system manufacturer recommendations. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. Russell W. Pipe Senior Compliance Technologist Celltech Labs Inc. DECLARATION OF COMPLIANCE SAR RF EXPOSURE EVALUATION Test Lab CELLTECH LABS INC. Testing and Engineering Services 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250-448-7047 Fax: 250-448-7046 e-mail: [email protected] web site: www.celltechlabs.com Applicant Information COBRA ELECTRONICS CORPORATION 6500 West Cortland Street Chicago, IL 60707 USA Rule Part(s): FCC 47 CFR §2.1093; IC RSS-102 Issue 1 (Provisional) Test Procedure(s): FCC OET Bulletin 65, Supplement C (Edition 01-01) Device Type: Portable UHF FRS/GMRS PTT Radio Transceiver FCC IDENTIFIER: BBOPR990 Model(s): PR990 Modulation: FM (UHF) Tx Frequency Range(s): 462.5500 - 462.7250 MHz (GMRS Channels 15-22) 462.5625 - 462.7125 MHz (FRS/GMRS Channels 1-7) 467.5625 - 467.7125 MHz (FRS Channels 8-14) Max. RF Output Power Tested: 0.279 Watts ERP (GMRS 462.7125 MHz) Antenna Type(s) Tested: Fixed Helical Battery Type(s) Tested: NiCd x4 (1.2 V AAA), Alkaline x4 (1.5 V AAA) Alkaline Type 1: Duracell Procell (1150 mAh) Alkaline Type 2: Energizer E-Squared (1375 mAh) Body-Worn Accessories Tested: Plastic Belt-Clip Earbud with Lapel-Microphone (P/N: GA-EBM2) Max. SAR Level(s) Evaluated: 0.481 W/kg - Face-held (50% duty cycle) 0.628 W/kg - Body-worn (50% duty cycle) © 2004 Celltech Labs Inc. 2 of 20 Test Report S/N: 070904-531BBO Test Date(s): July 12, 2004 Test Type: FCC/IC SAR Evaluation TABLE OF CONTENTS 1.0INTRODUCTION......................................................................3 2.0DESCRIPTION OF DUT............................................................. 3 3.0SAR MEASUREMENT SYSTEM................................................. 4 4.0MEASUREMENT SUMMARY...................................................... 5 5.0DETAILS OF SAR EVALUATION................................................ 6 6.0EVALUATION PROCEDURES.................................................... 6 7.0SYSTEM PERFORMANCE CHECK............................................. 7 8.0SIMULATED EQUIVALENT TISSUES.......................................... 8 9.0SAR SAFETY LIMITS............................................................... 8 10.0ROBOT SYSTEM SPECIFICATIONS............................................ 9 11.0PROBE SPECIFICATION.......................................................... 10 12.0PLANAR PHANTOM................................................................. 10 13.0VALIDATION PHANTOM........................................................... 10 14.0DEVICE HOLDER.................................................................... 10 15.0TEST EQUIPMENT LIST........................................................... 11 16.0MEASUREMENT UNCERTAINTIES............................................ 12-13 17.0REFERENCES........................................................................14 APPENDIX A - SAR MEASUREMENT DATA............................................... 15 APPENDIX B - SYSTEM PERFORMANCE CHECK DATA............................ 16 APPENDIX C - SYSTEM VALIDATION PROCEDURES................................. 17 APPENDIX D - PROBE CALIBRATION...................................................... 18 APPENDIX E - MEASURED FLUID DIELECTRIC PARAMETERS................... 19 APPENDIX F - SAR TEST SETUP & DUT PHOTOGRAPHS.......................... 20 © 2004 Celltech Labs Inc. Cobra Electronics Corporation FCC ID: BBOPR990 (Model: PR990) 3 of 20 Portable FRS/GMRS PTT Radio Transceiver (462.5500-467.7125 MHz) Test Report S/N: 070904-531BBO Test Date(s): July 12, 2004 Test Type: FCC/IC SAR Evaluation This measurement report demonstrates compliance of the Cobra Electronics Corporation Model: PR990 Portable UHF FRS/GMRS PTT Radio Transceiver FCC ID: BBOPR990 with the SAR (Specific Absorption Rate) RF exposure requirements specified in FCC 47 CFR §2.1093 (see reference [1]), and Health Canada’s Safety Code 6 (see reference [2]) for the General Population / Uncontrolled Exposure environment. The test procedures described in FCC OET Bulletin 65, Supplement C (Edition 01-01) (see reference [3]) and IC RSS-102 Issue 1 (Provisional) (see reference [4]), were employed. A description of the product and operating configuration, detailed summary of the test results, methodology and procedures used in the evaluation, equipment used, and the provisions of the rules are included within this test report. FCC 47 CFR §2.1093 Rule Part(s) IC RSS-102 Issue 1 (Provisional) Test Procedure FCC OET Bulletin 65, Supplement C (01-01) Device Type Portable UHF FRS/GMRS PTT Radio Transceiver FCC IDENTIFIER BBOPR990 Model(s) PR990 Serial No. H406000279 Identical Prototype Modulation FM (UHF) 462.5500 - 462.7250 MHz GMRS Channels 15-22 462.5625 - 462.7125 MHz FRS/GMRS Channels 1-7 Tx Freque…

Text truncated - open the document above for the full version.

TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: CCOBRA ELECTRONIC CORPORATION FCC ID: Test Report Product Name: FRS/GMRS TRANSCEIVER FCC ID: BBOPR990 Applicant: COBRA ELECTRONICS CORPORATION 6500 WEST CORTLAND STREET CHICAGO, IL 60707 Date Receipt: JULY 12, 2004 Date Tested: JULY 23, 2004 BBPR990 REPORT #: C\COBRA\1072AUT4\1072AUT4TestReport COVER SHEET TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: CCOBRA ELECTRONIC CORPORATION FCC ID: TABLE OF CONTENTS LIST TEST REPORT: PAGE 1........GENERAL INFORMATION & TECHNICAL DESCRIPTION PAGE 2........TECHNICAL DESCRIPTION CONTINUED RF POWER OUTPUT PAGE 3........MODULATION CHARACTERISTICS AUDIO FREQUENCY RESPONSE GRAPH PAGE 4........MODULATION LIMITING GRAPH PAGE 5........AUDIO LOW PASS FILTER GRAPH PAGE 6........OCCUPIED BANDWIDTH PAGE 7........OCCUPIED BANDWIDTH PLOT PAGE 8........SPURIOUS EMISSIONS AT ANTENNA TERMINALS PAGE 9........UNWANTED RADIATION – GMRS PAGE 10.......METHOD OF MEASURING RADIATED SPURIOUS EMISSIONS PAGE 11.......FREQUENCY STABILITY PAGE 12.......LIST OF TEST EQUIPMENT EXHIBITS INCLUDED: CONFIDENTIALITY LETTER BLOCK DIAGRAM SCHEMATICS PARTS LIST USERS MANUAL LABEL SAMPLE LABEL LOCATION EXTERNAL PHOTOGRAPHS INTERNAL PHOTOGRAPHS ALIGNMENT PROCEDURE OPERATIONAL DESCRIPTION TEST SET UP PHOTOGRAPHS BBPR990 REPORT #: C\COBRA\1072AUT4\1072AUT4TestReport TABLE OF CONTENTS TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: CCOBRA ELECTRONIC CORPORATION FCC ID: GENERAL INFORMATION REQUIRED FOR CERTIFICATION 2.1033(c)(1)(2) COBRA ELECTRONICS CORPORATION will manufacture the FCCID: BBOPR990 GMRS/FRS COMBINATION TRANSCEIVER in quantity, for use under FCC RULES PART 95. COBRA ELECTRONICS CORPORATION 6500 WEST CORTLAND STREET CHICAGO, IL 60707 2.1033 (c) TECHNICAL DESCRIPTION 2.1033(c)(3) Instruction book. A draft copy of the instruction manual is included is included in the exhibits. 2.1033(c) (4) Type of Emission: 11K0F3E 95.631 Bn = 2M + 2DK M = 3000 D = 2500 Bn = 2(3000) + 2(2500) = 11.0K GMRS Authorized Bandwidth 20.0 kHz 2.1033(c)(5) GMRS Frequency Range: 1. 462.5500 13. 462.7000 95.621 2. 462.5625 14. 462.7125 3. 462.5750 15. 462.7250 4. 462.5875 16. 467.5500 5. 462.6000 17. 467.5750 6. 462.6125 18. 467.6000 7. 462.6250 19. 467.6250 8. 462.6375 20. 467.6500 9. 462.6500 21. 467.6750 10. 462.6625 22. 467.7000 11. 462.6750 23. 467.7250 12. 462.6875 FRS Authorized Bandwidth 12.5KHz 2.1033(c)(5) FRS Frequency Range: 1. 462.5625 8. 467.5625 95.627 2. 462.5875 9. 467.5875 3. 462.6125 10. 467.6125 4. 462.6375 11. 467.6375 5. 462.6625 12. 467.6625 6. 462.6875 13. 467.6875 7. 462.7125 14. 467.7125 MHz 2.1033(c)(6)(7) Power Output shall not exceed 0.50 Watts effective 95.639 radiated power. There can be no provisions for 95.649 increasing the power or varying the power. BBPR990 REPORT #: C\COBRA\1072AUT4\1072AUT4TestReport Page 1 of 12 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: CCOBRA ELECTRONIC CORPORATION FCC ID: 2.1033(c)(8) DC Voltages and Current into Final Amplifier: POWER INPUT FINAL AMPLIFIER ONLY High Low Vce = 6 VDC Vce = 6 VDC Ice = 0.710 A. Ice = 0.590 A. Pin = 4.26 Watts Pin = 3.54 Watts 2.1033(c)(9) Tune-up procedure. The tune-up procedure is included in the exhibits. 2.1033(c)(10) Complete Circuit Diagrams: The circuit diagram and block diagram are included in the exhibits. 2.1033(c)(11) A photograph or a drawing of the equipment identification label is included in the exhibits. 2.1033(c)(12) Photographs(8"X10") of the equipment of sufficient clarity to reveal equipment construction and layout, including meters, labels for controls, including any view under shields. 2.1033(c)(13) Digital modulation is not allowed. 2.1033(c)(14) The data required by 2.1046 through 2.1057 is submitted below. 2.10311c)(6)(7) RF power is measured by the substitution method as 2.1046(a) outlined in TIA/EIA - 603. With a nominal battery voltage of 6.0 V, and the transmitter properly adjusted the RF output measures: GMRS - .286 Watts FRS - .233 Watts BBPR990 REPORT #: C\COBRA\1072AUT4\1072AUT4TestReport Page 2 of 12 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: CCOBRA ELECTRONIC CORPORATION FCC ID: 2.1047(a)(b) Modulation characteristics: AUDIO FREQUENCY RESPONSE The audio frequency response was measured in ac- cordance with TIA/EIA Specification 603. The audio frequency response curve is shown on the next page. The audio signal was fed into a dummy microphone circuit and into the microphone connector. The input required to produce 30 percent modulation level was measured. See plot below. 1072AUT4 Audio Frequency Response -10 +5 -5 +0 d B 100 10k 200 500 1k 2k 5k 100 2.93764k Hz BBPR990 REPORT #: C\COBRA\1072AUT4\1072AUT4TestReport Page 3 of 12 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: CCOBRA ELECTRONIC CORPORATION FCC ID: 2.1047(b) Audio input versus modulation The audio input level needed for a particular percentage of modulation was measured in accordance with TIA/EIA Specification 603. The audio input curves versus modulation are on the following pages. Curves are provided for audio input frequencies of 300, 1000, and 2500 Hz. See the plot below. 1072AUT4 Modulation Limiting 2.5k blue, 1k green, 300Hz yellow 2.5 k H z -40 +20-30 -20-10+0+10 dBu BBPR990 REPORT #: C\COBRA\1072AUT4\1072AUT4TestReport Page 4 of 12 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoen…
