BBORBTM100BLUETOOTH TRANSMITTER

Quick Start Guide Printed in China Part No. 480-667-P Version B Thank you for purchasing Cobra iRadar ™ , the world’s first connected radar/laser/red light camera detector. Cobra iRadar uses Bluetooth ® wireless technology to connect your iPhone ® /iPod touch ® to display radar alerts and change settings. Follow these simple steps to get your Cobra iRadar up and running. Cobra iRadar is made for: iPod touch (3rd Generation) iPhone 3GS iPhone 3G. NOTE: *Location-based alerts and GPS settings available only with iPhone. Only radar/laser alerts and settings will work with iPod touch 3rd generation or higher. Connecting with Cobra iRadar Plug in your Cobra iRadar detector unit using the included cigarette lighter adapter. Turn unit on. A red LED will light. On your iPhone/iPod touch, enter the Settings menu. Press General, then Bluetooth. Make sure Bluetooth is switched to ON. NOTE: This device complies with part 15 of FCC rules: Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received including interference that may cause undesired operation. CAUTION: Modifications or parts not approved by Cobra Electronics Corporation may violate FCC Rules and void authority to operate this equipment. iRadar 100 should appear under Devices. Note: Your iPhone/iPod touch may take 30 seconds to one minute to recognize the device. It will initially appear as “Headset” and will then turn into iRADAR 100. If you cannot see the device, try restarting both iRadar and your iPhone/iPod touch and re-do steps 1 through 5. Press iRADAR 100, then press Pair. The LED on the detector unit will flash blue. When pairing has been completed, it will turn solid blue. Press Yes to install Cobra iRadar application from the App Store. If you already have the Cobra iRadar App, you can press NO. Now open the App and enjoy using iRadar! Cobra iRadar App Dashboard Display speedometer, compass and car battery voltage. View Map* View user-marked locations, red light camera locations in your area and GPS-based speed & direction of travel. Settings Configure your Cobra iRadar settings. Note: All radar/laser/red light camera detector settings will be inactive if you are not paired with Cobra iRadar or are out of range. To download the App manually, enter the App Store on your iPhone/iPod touch and search for “Cobra iRadar” and follow the onscreen instructions. For more information about AURA ™ , please visit: www.cobra.com/AURA. For more information on iRadar accessories, go to: www.cobrairadar.com.

To Whom It May Concern: We, the Cobra Electronics Corporation, hereby request a Limited Module Approval as provided in Section 15.212 of the FCC Rules. The requirements of this section have been fulfilled as follows: 15.212(a)(1)(i); Requirement of RF Shielding: The module meets the radiated emissions limits of sections 15.209 and 15.249 of the FCC Rules with out shielding. 15.212(a)(1)(ii); Requirement of Buffered Input: The module does not provide a direct data input to the modulator. 15.212(a)(1)(iii); Requirement of Power Supply Regulation: The module incorporates its own regulators, which are denoted as U2303 in the documentation. 15.212(a)(1)(iv); Antenna Requirement: The module incorporates a permanently attached antenna. 15.212(a)(1)(v); Stand-Alone Test Configuration: The module was tested in a standalone test configuration as described in the test report. 15.212(a)(1)(vi)(A); Labeling Requirement: The module will be labeled with its own FCC identification number, and the device into which the module is installed will display a label referring to the enclosed module. A picture of the external label is included with the documentation. 15.212(a)(1)(vii); Operating Requirements: The module meets the specific rules for this type of transceiver, and the User’s Manual contains instructions for maintaining compliance. Further Cobra expects to only use the module in it’s own products. 15.212(a)(1)(vii); RF Exposure: The module complies with RF exposure requirements as demonstrated in the test report. Sincerely, Ron Kabler Director, Engineering Cobra Electronics Corporation

August 12, 2010 Equipment Authorization Division Office of Engineering and Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Ref: FCC IDs - BBOIRAD100 and BBORBTM100, Request for Confidentiality To Whom It May Concern: With regard to the referenced application, Cobra Electronics Corp. is requesting confidentiality of certain sections of the accompanying documents. The documents for which Cobra Electronics Corp. is requesting confidentiality are: IRAD100 Block Diagrams IRAD100 Circuits (Schematics) IRAD100 Theory of operation This request is made under the provisions of Section 0.457(d) of the Commission’s Rules, and Section 552(b)(4) of the Freedom of Information Act. The material for which confidentiality is requested falls within the scope of Section 552(b)(4) as trade secrets and includes material covered by Section 0.459 of the Commission’s Rules. Pursuant to DA 04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below until the end of September 2010 (expected ship date): IRAD100 External Photos IRAD100 Test Setup Photos IRAD100 Quick Start Guide ( Manual) IRAD100 Internal Photos Sincerely, Ron Kabler Director, Engineering Cobra Electronics Corporation

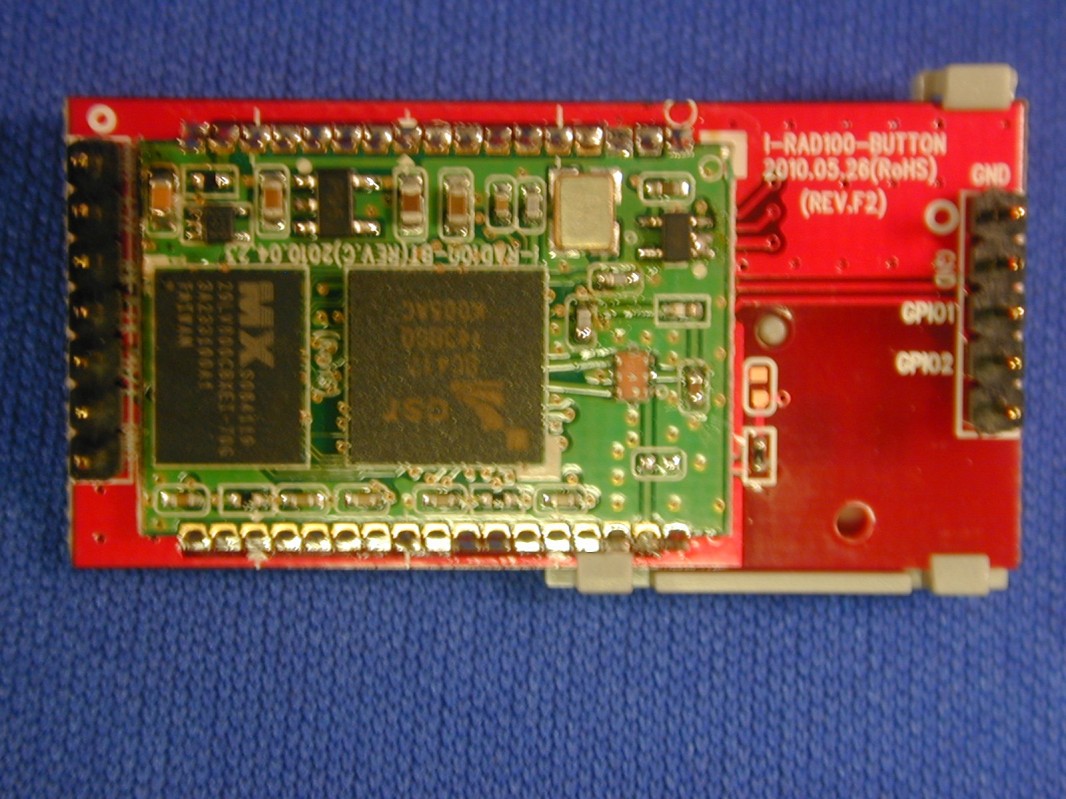

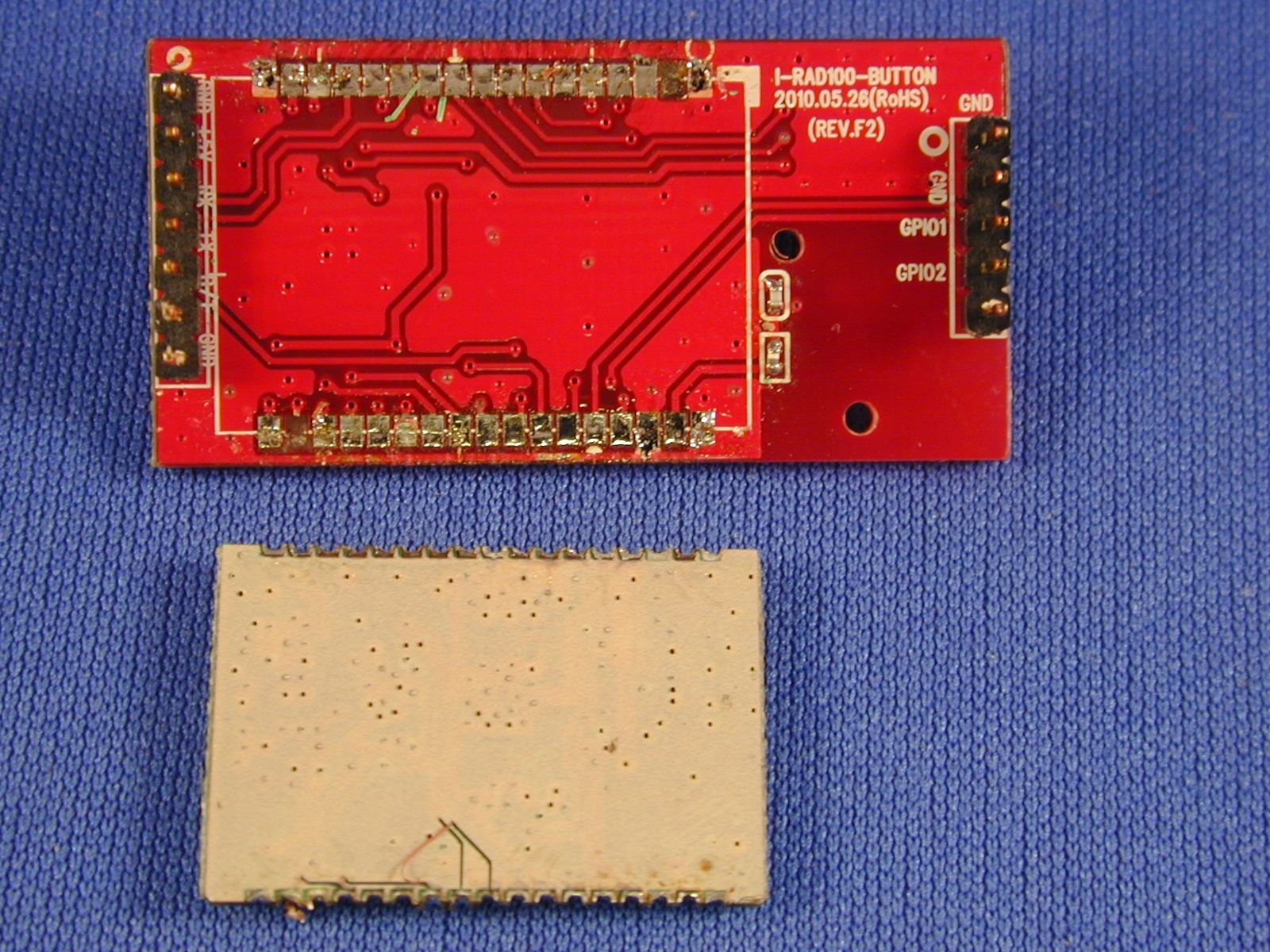

APPLICANT: COBRA ELECTRONICS CORP. FCC ID: BBORBTM100 PHOTOS

COBRA ELECTRONICS CORP. FCC ID: BBORBTM100 LABEL SAMPLE AND LOCATION

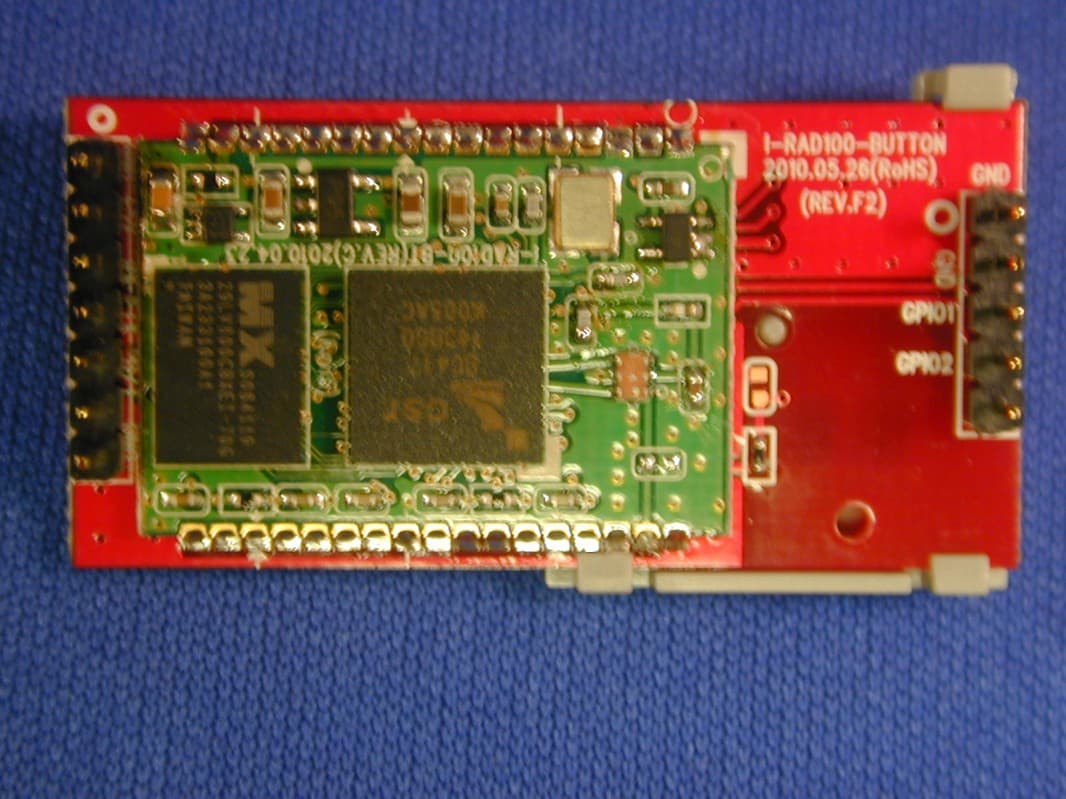

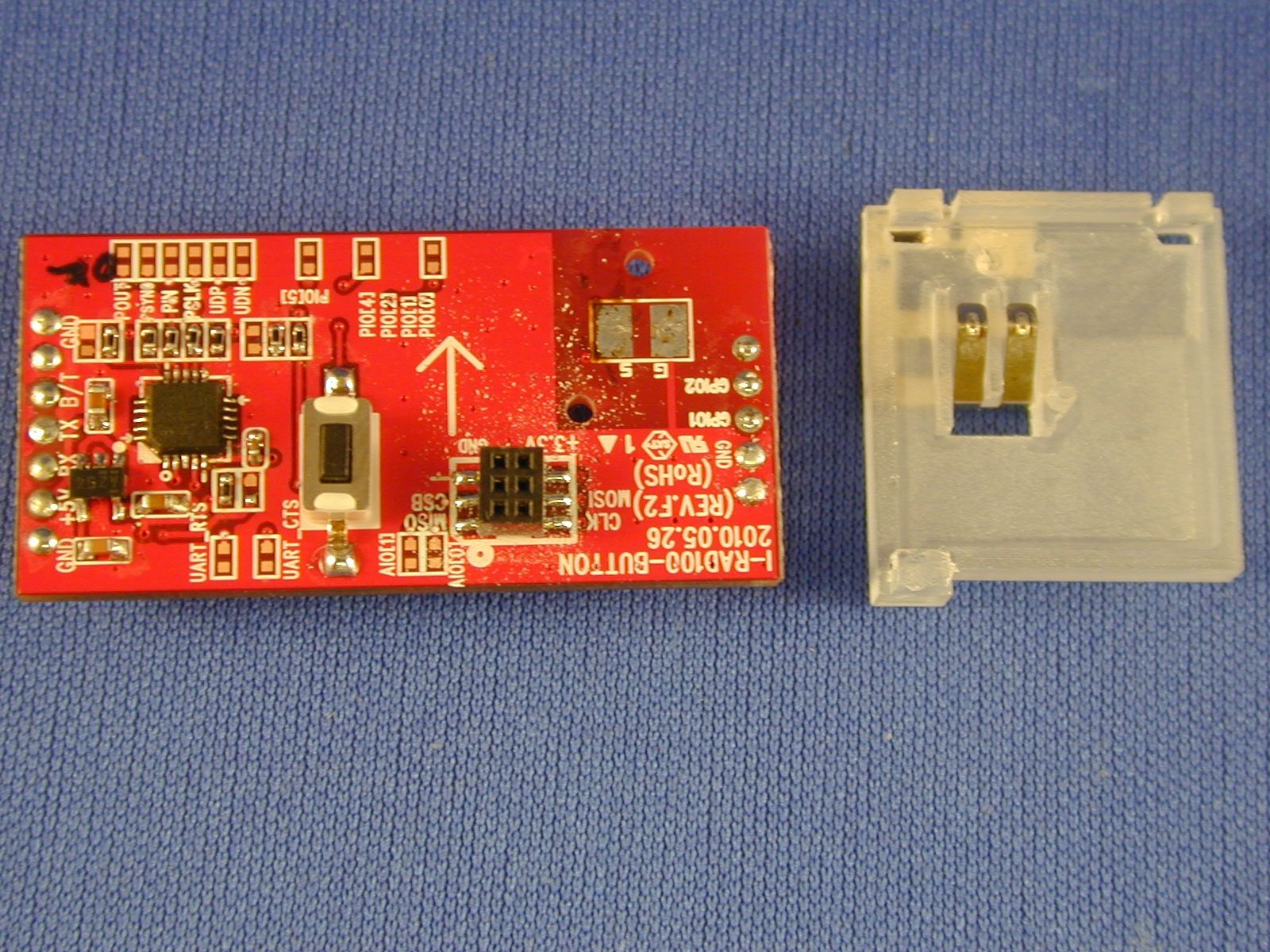

APPLICANT: COBRA ELECTRONICS CORP. FCC ID: BBORBTM100 PHOTOS

FCC PART 15.249 TEST REPORT UNLICENSED INTENTIONAL RADIATOR Applicant COBRA ELECTRONICS CORPORATION Address 6500 WEST CORTLAND STREET CHICAGO IL 60707 USA FCC ID BBORBTM100 Model Number RBTM100 Product Description BLUETOOTH TRANSMITTER Date Sample Received 7/8/2010 Date Tested 8/2/2010 Tested By Nam Nguyen Approved By Mario de Aranzeta Report Number 1643AT10TestReport.doc Test Results PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW State Road 45 Newberry, FL 32669 USA Ph: 888.472.2424 or 352.472.5500 Fax: 352.472.2030 Email: [email protected] Website: www.timcoengr.com Certificate # 0955-01 APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBORBTM100 REPORT #: C\COBRA\1643AT10\1643AT10TestReport.doc Page 2 of 14 Mdea 9.20.2007 TABLE OF CONTENT GENERAL REMARKS ........................................................................................................................... 3 GENERAL INFORMATION.................................................................................................................... 4 EMC EQUIPMENT LIST ....................................................................................................................... 5 TEST PROCEDURES ........................................................................................................................... 6 RADIATION INTERFERENCE ............................................................................................................... 7 OCCUPIED BANDWIDTH..................................................................................................................... 9 BAND EDGE COMPLIANCE ............................................................................................................... 10 POWER LINE CONDUCTED INTERFERENCE ................................................................................... 14 APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBORBTM100 REPORT #: C\COBRA\1643AT10\1643AT10TestReport.doc Page 3 of 14 Mdea 9.20.2007 GENERAL REMARKS The attached report shall not be reproduced except in full without the written permission of Timco Engineering Inc. Summary The device under test does: fulfill the general approval requirements as identified in this test report not fulfill the general approval requirements as identified in this test report Attestations This equipment has been tested in accordance with the standards identified in this test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report. All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025 requirements. Certificate # 0955-01 I attest that the necessary measurements were made, under my supervision, at: Timco Engineering Inc. 849 NW State Road 45 Newberry, Fl 32669 Authorized Signatory Name: Mario de Aranzeta C.E.T. Compliance Engineer/ Lab. Supervisor Date: 8/2/2010 APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBORBTM100 REPORT #: C\COBRA\1643AT10\1643AT10TestReport.doc Page 4 of 14 Mdea 9.20.2007 GENERAL INFORMATION DUT Specification The test results relate only to the items tested. Applicable Standard Part 15.249 DUT Description BLUETOOTH TRANSMITTER FCC ID BBORBTM100 Model Number RBTM100 Operating Frequency TX: (2402.00 – 2480.00) MHz RX: Same DUT Power Source 110–120Vac/50– 60Hz DC Power Battery Operated Exclusively Test Item Prototype Pre-Production Production Type of Equipment Fixed Mobile Portable Antenna Connector None, integrated antenna Test Facility Timco Engineering Inc. located at 849 NW State Road 45 Newberry, FL 32669 USA. Test Conditions Temperature: 26ºC Relative humidity: 50% Test Exercise The DUT was placed in continuous transmit mode of operation. Modifications none Test Supporting Equipment Supporting Device Manufacturer Model / FCC ID Serial Number iPod touch Apple Inc. A1288 8M0127P975J APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBORBTM100 REPORT #: C\COBRA\1643AT10\1643AT10TestReport.doc Page 5 of 14 Mdea 9.20.2007 EMC EQUIPMENT LIST Device Manufacturer Model Serial Number Cal/Char Date Due Date 3-Meter Semi- Anechoic Chamber Panashield N/A N/A Listed 3/10/10 3/10/12 AC Voltmeter HP 400FL 2213A14499 CAL 3/23/09 3/23/11 Antenna: Dipole Kit Electro- Metrics TDA-30/1-4 153 CHAR 6/10/09 6/10/11 Frequency Counter HP 5385A 3242A07460 CAL 5/26/09 5/26/11 Hygro- Thermometer Extech 445703 0602 CAL 1/30/09 1/30/11 Modulation Analyzer HP 8901A 3435A06868 CAL 5/26/09 5/26/11 Digital Multimeter Fluke FLUKE-77-3 79510405 CAL 5/18/09 5/18/11 Analyzer Tan Tower Preamplifier HP 8449B-H02 3008A00372 CAL 11/21/09 11/21/11 Analyzer Tan Tower Quasi- Peak Adapter HP 85650A 3303A01690 CAL 11/22/09 11/22/11 Analyzer Tan Tower RF Preselector HP 85685A 3221A01400 CAL 11/21/09 11/21/11 Analyzer Tan Tower Spectrum Analyzer HP 8566B Opt 462 3138A07786 3144A20661 CAL 11/24/09 11/24/11 Temperature Chamber Tenney Engineering TTRC 11717-7 CHAR 4/25/10 4/25/12 APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBORBTM100 REPORT: C\COBRA\1643AT10\1643AT10TestReport.doc Page 6 of 14 Mdea 9.20.2007 TEST PROCEDURES Radiation Interference: ANSI C63.4-2003 using a spectrum analyzer, a preselector, a quasi- peak adapter, and an appropriate antenna. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100 kHz with an appropriate sweep speed and the video bandwidth was 300 kHz up to 1 GHz and 1 MHz with a video BW of 3 MHz above 1 GHz. When an emission was found, the table was rotated to produce the maximum signal strength. The antenna was placed in both the horizontal and vertical planes and the worse case emissions were reported. The spectrum was searched to at least the tenth (10) harmonic of the fundamental. Formula Of Conversion Factors: The field strength at 3m was established by adding the m…

Text truncated - open the document above for the full version.

COBRA ELECTTRONICS CORP. FCC ID: BBORBTM100 TEST SET UP PHOTO
