BBOSLR600RADAR DETECTOR

2. Standby Screen Compass Heading (SLR 600 Only): See reverse side of this manual for information on how to calibrate your compass. City/Highway Indicator: Shows curent fi ltering mode. See reverse side of this manual for more information. Vehicle Battery Voltage: Displays your car battery voltage and automatically warns you if this drops below 11.9V. IntelliMute Indicator: See reverse of this manual. Operating Instructions b. Dash Mounting For dash mounting, use the enclosed hook & loop fastener with double-sided tape. Simply attach it to the bottom of the unit with display in fl ip-up position. Touch-Point Controls Appropriate touch-point icons will light up automatically to show you available options. Touch the touch-point icons to activate corresponding function. Touching Volume touch-point while receiving an alert will mute the audible alert. Touching Display Brightness touch-point will turn off the display. Models SLR 500/600 Supercharged Long-Range Radar/Laser Detectors Printed in China Part No. 480-767-P Version A NOTE: These devices complies with part 15 of FCC rules: Operation is subject to the following two conditions: (1) These devices may not cause harmful interference, and (2) These devices must accept any interference received including interference that may cause undesired operation. CAUTION: Modifi cations or parts not approved by Cobra Electronics Corporation may violate FCC Rules and void authority to operate this equipment. Types of Screens 1. Menu/Settings Screen User Settings: For customizing settings for IntelliMute, Auto Mute, Voice/Tone Alerts, Color Themes (SLR 600), Smart Power, Compass (SLR 600) and Reset to Factory Default. Alert Settings: For customizing settings to turn on/off certain individual radar bands and Low Car Battery Warning. Navigate through Settings using the scroll touch-point. Press Select to confi rm and Menu to save and exit. 3. Radar/Laser Alert Screen Radar bands consist of X-band, K-band, Ka-band, and Ku-band. With Radar signals, the signal strength meter shows signal strength of the radar gun as well as relative proximity to the source. With Ka-band, you will also be notifi ed of the actual Ka-band radar gun frequency being used. With Laser signals, you will always receive full alert and pulse rate (PPS) of the corresponding laser gun being used. Laser PPS cur- rently in use are: 100, 125, 130, 200, 238 and 340. Ka Band Alert Signal Strength Frequency Laser Pulse Rate User Settings Alert Settings Volume Display Brightness Right Scroll Left Scroll City/Highway Mode Menu/Save & Exit Select Thank you for purchasing Cobra ® Vedetta ™ Series, Model SLR 500/ SLR 600 Radar/Laser Detector. Please familiarize yourself with the capabilities your new detector can provide by reading this manual. Also, please be careful when using your new detector while driving. Powering Unit On/Off & Mounting Unit Plug in the detector using the included cigarette lighter power cord. Press the Power button momentarily to turn the unit On (or Off). Note: To change display orientation, press and hold the Power button for 2 seconds. a. Windshield Mount Lift lever on suction cup base before attaching to the windshield. Once attached, push against windshield and lock the lever down. Use the ball-joint adjustment and make sure the detector unit is aligned level and pointing straight ahead. The display can be in fl ip-up or fl ip-down position to suit preferred mounting location, and rotated to face directly toward you. Renew suction cup with a damp cloth or by rinsing under tap water. Insert bracket here Attach to windshield Power Jack Power Button SLR 600 SLR 500 SLR 500 standby screen shown City/Highway Indicator Vehicle Battery Voltage IntelliMute Indicator Compass Heading SLR 600 standby screen shown SLR500_600_QSG.indd 13/2/12 1:44 PM Quad-level IntelliShield ™ False Signal Rejection Highway Mode provides full immediate response to all signals detected. Use this mode when you are driving on interstate highways. Automatic door openers operate in X and K-band frequencies. To minimize unwanted false alerts in an urban environment where these sources exist, use one of the City Filtering Modes below: • City X: automatically mutes X-band audible alert until signal strength reaches level 3 or above. • City X+K: combined with City X, automatically mutes K-band audible alert until signal strength reaches level 2 or above. • City Plus X+K+Ka: combined with City X+K, automatically mutes Ka-band audible alert until signal strength reaches level 2 or above. • City MAX: Maximum filtering against urban false signal sources. To choose between different City Filtering Modes vs Highway Mode, touch City/Highway Touch-point Icon next to the display and follow on-screen instructions. IntelliMute ™ IntelliMute allows you to avoid audible alerts you don’t need to hear because you are stopped or moving slowly. By sensing the RPMs of your engine, IntelliMute knows when you are at low speed and automatically mutes alerts. You can set your preferred engine RPM activation point and/or turn on/off IntelliMute by following simple steps that appear on your unit screen, under User Settings and then IntelliMute. • IntelliMute Engine RPM Activation Point Not Set. • IntelliMute On/Above Set Engine RPM Activation Point. • IntelliMute On/Below Set Engine RPM Activation Point. Note: IntelliMute may not work with some vehicles, especially hybrids or EVs because the detector cannot sense the engine RPMs. In such case, Quad-level IntelliShield City Filtering or Auto Mute can help reduce unwanted audible alerts. How to Calibrate Your Compass (SLR 600 Only) Until you calibrate the internal magnetic compass, will be shown. The compass detects the weak magnetic field of the Earth. It also detects magnetic fields produced by your vehicle, audio speakers, and other electronics. Calibration al- lows the compass electronics to measure and store informa- tion about all magnetic fields in your vehicle so it can ignor…

Text truncated - open the document above for the full version.

Equipment Authorization Division Office of Engineering and Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Ref: FCC ID: BBOSLR600 Request for Confidentiality Dear Sirs: With regard to the referenced application, Cobra Electronics Corp. is requesting confidentiality of certain sections of the accompanying documents. The documents for which Cobra Electronics Corp. is requesting confidentiality are: SLR500/600/650 Block Diagram SLR500/600/650 (Schematics) SLR500/600/650 Theory of operation This request is made under the provisions of Section 0.457(d) of the Commission’s Rules, and Section 552(b)(4) of the Freedom of Information Act. The material for which confidentiality is requested falls within the scope of Section 552(b)(4) as trade secrets and includes material covered by Section 0.459 of the Commission’s Rules. Pursuant to DA 04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below until the end of May, 2012 (expected ship date): SLR600 External Photos SLR600 Test Setup Photos SLR600 Manual SLR600 Internal Photos Sincerely, Jeff Sterling Director, Microwave Engineering

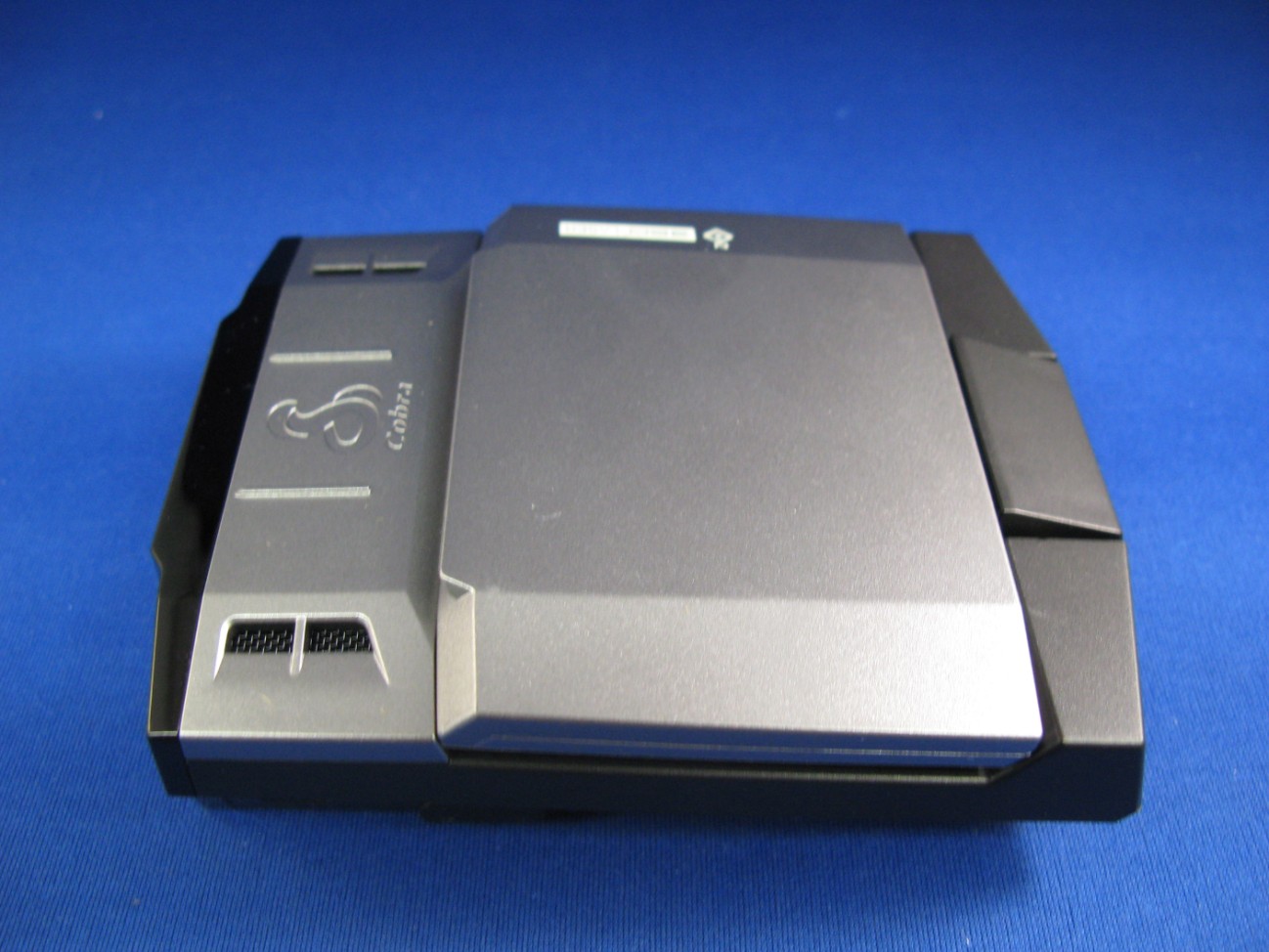

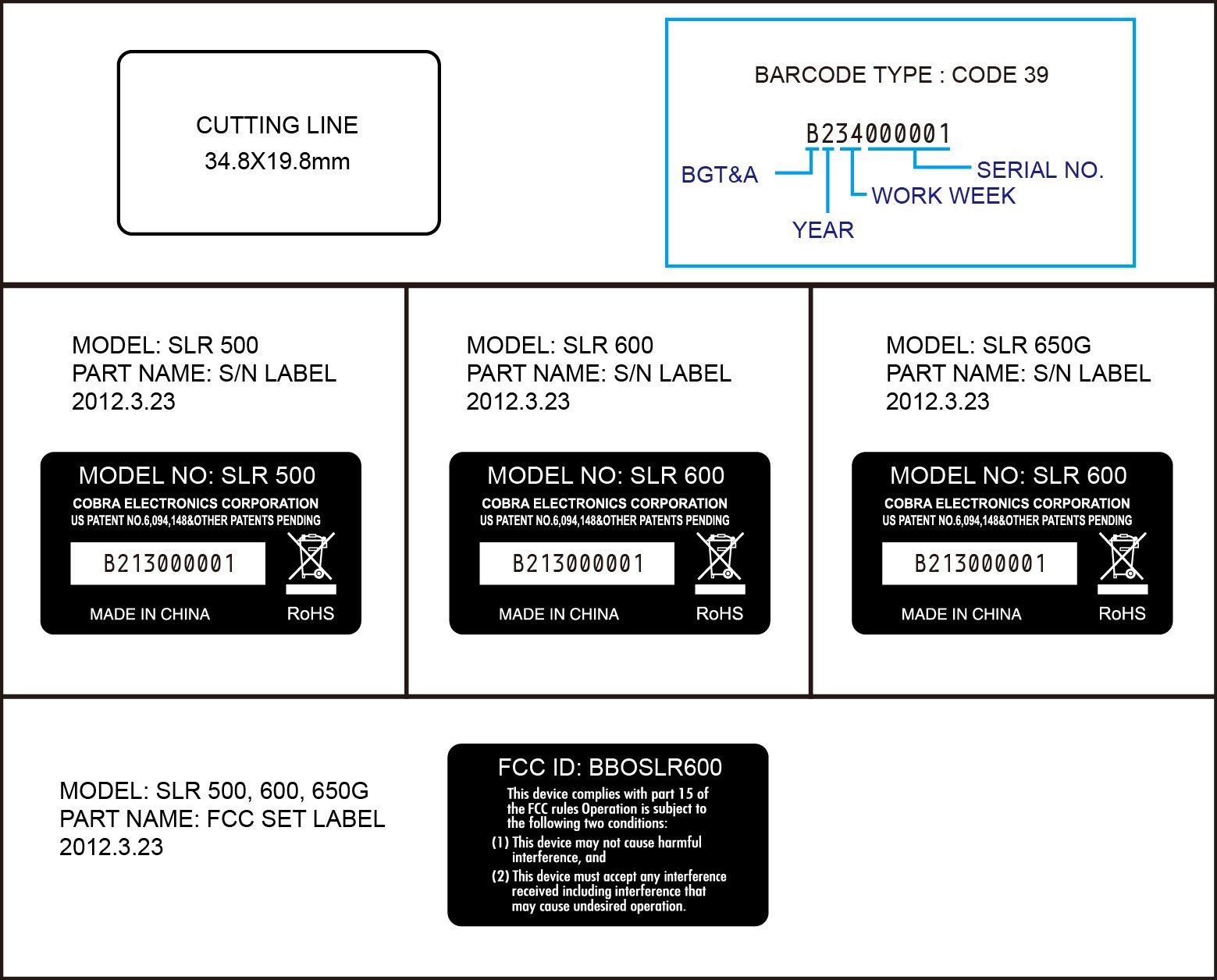

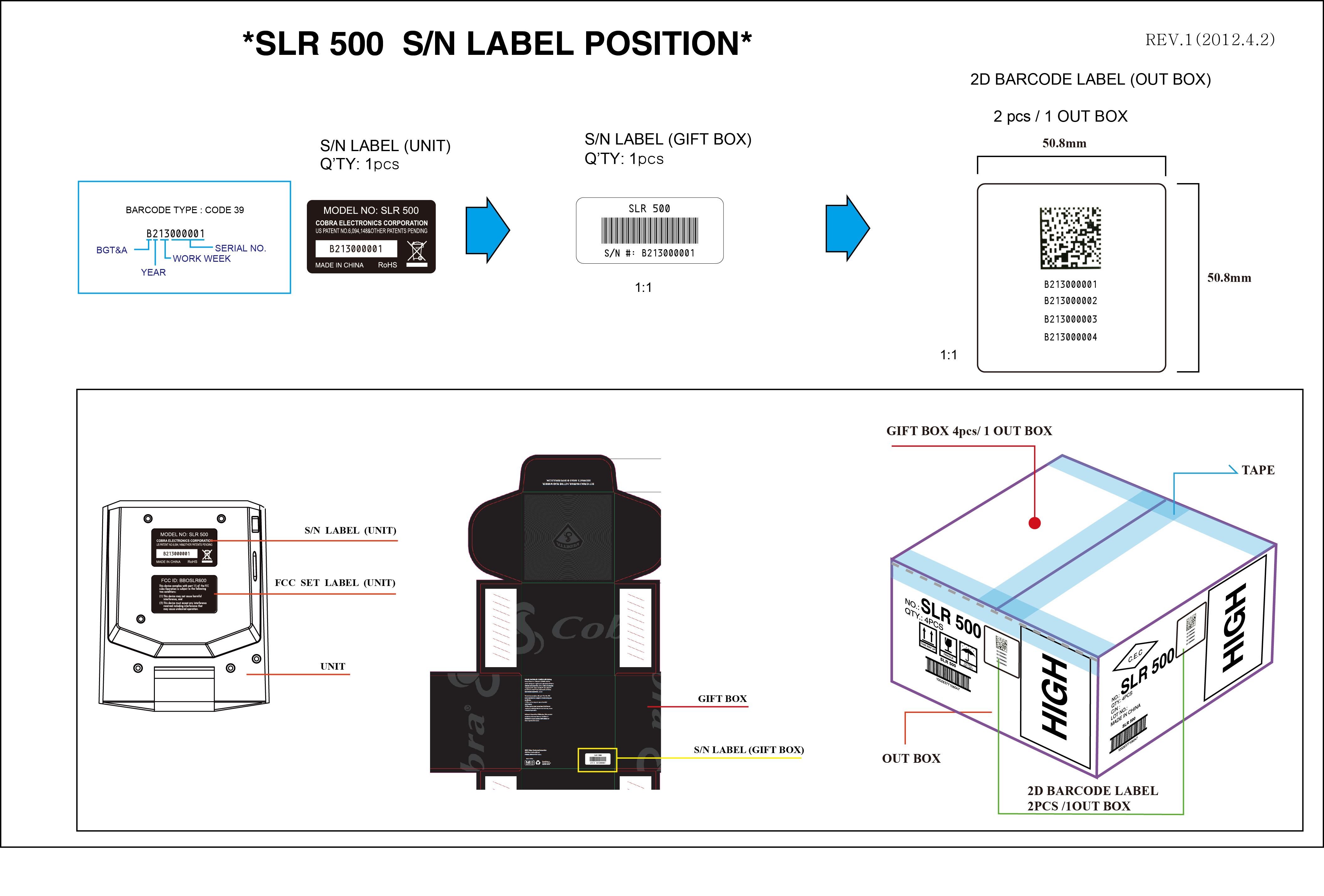

COBRA ELECTRONICS CORP. FCC ID: BOSLR600 EXTERNAL PHOTOS

COBRA ELECTRONICS CORP. INTERNAL PHOTOS

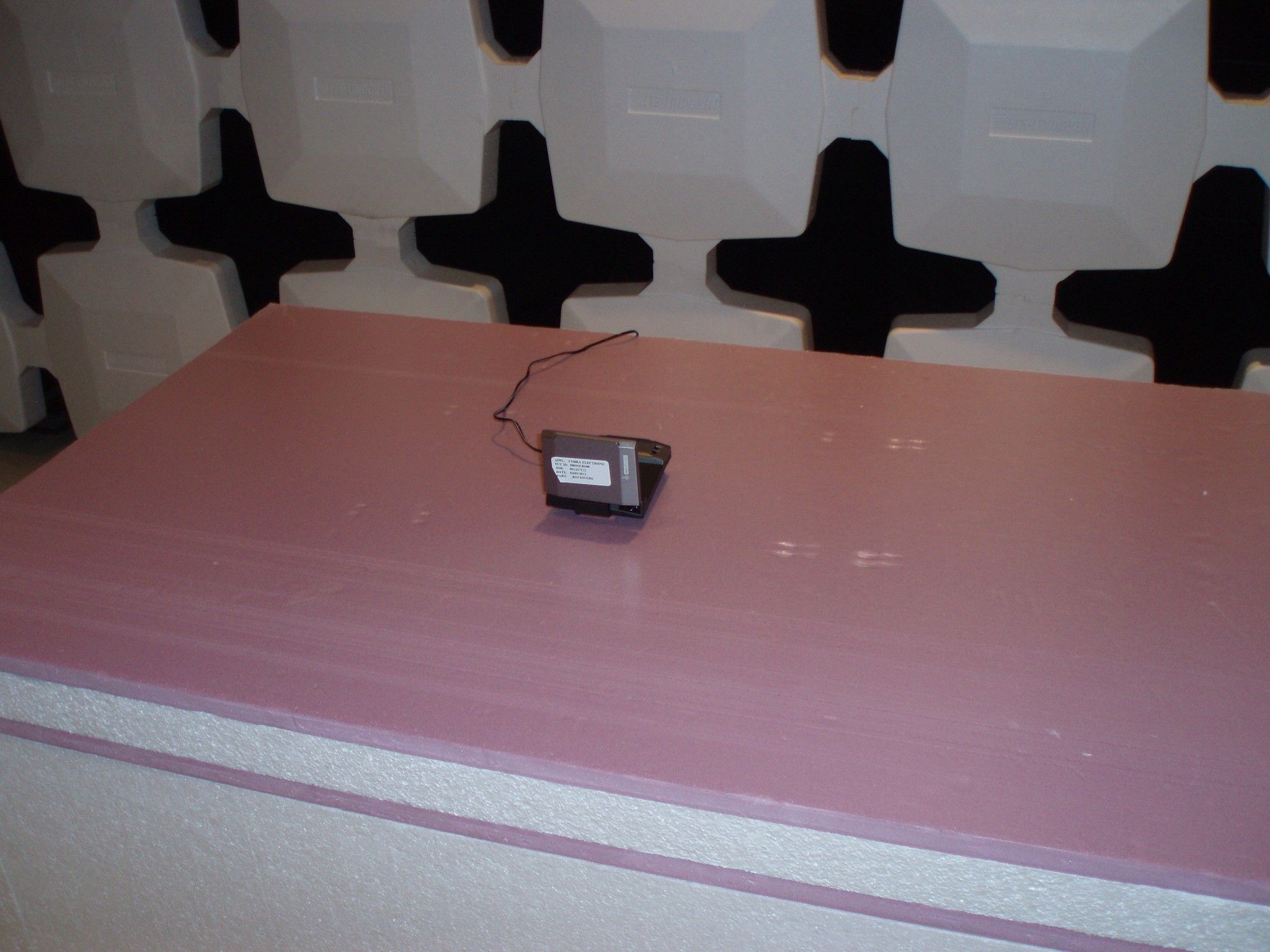

FCC PART 15 RADAR DETECTOR REPORT Applicant COBRA ELECTRONICS CORPORATION Address 6500 WEST CORTLAND STREET CHICAGO IL USA FCC ID: BBOSLR600 Model: SLR 500, SLR 600, SLR 650G Product Description RADAR DETECTOR Date Sample Received 4/5/2012 Date Tested 4/6/2012 Tested By Joe Scoglio Approved By Mario R. de Aranzeta Report Number 881AUT12TestReport.doc Test Results PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW State Road 45 Newberry, Fl 32669 USA Phone: 888.472.2424 or 352.472.5500 Fax: 352.472.2030 Email: [email protected] Website: www.timcoengr.com Certificate # 0955-01 APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID:: BBOSLR600 REPORT: C\COBRA\881AUT12\881AUT12TestReport.doc Page 2 of 12 TABLE OF CONTENTS GENERAL REMARKS ............................................................................................................... 3 GENERAL INFORMATION ........................................................................................................ 4 TEST EQUIPMENT LIST ........................................................................................................... 5 TEST PROCEDURES ................................................................................................................ 6 RADIATED SPURIOUS EMISSIONS .......................................................................................... 8 VERTICAL PLOT .................................................................................................................... 10 HORIZONTAL PLOT ............................................................................................................... 11 RADIATED EMISSIONS TEST SETUP PHOTO ........................................................................ 12 APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID:: BBOSLR600 REPORT: C\COBRA\881AUT12\881AUT12TestReport.doc Page 3 of 12 GENERAL REMARKS The attached report shall not be reproduced except in full without the written permission of Timco Engineering Inc. The test results relate only to the items tested. Summary The device under test does: fulfill the general approval requirements as identified in this test report not fulfill the general approval requirements as identified in this test report Attestations This equipment has been tested in accordance with the standards identified in this test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report. All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025 requirements. Certificate # 0955-01 I attest that the necessary measurements were made, under my supervision, at: Timco Engineering Inc. 849 NW State Road 45 Newberry, Fl 32669 Authorized Signatory Name: Mario de Aranzeta C.E.T. Compliance Engineer/ Lab. Supervisor Date: 4/16/2012 APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID:: BBOSLR600 REPORT: C\COBRA\881AUT12\881AUT12TestReport.doc Page 4 of 12 GENERAL INFORMATION The test results relate only to the items tested. DUT Description RADAR DETECTOR FCC ID BBOSLR600 DUT Power Source 110–120Vac/50– 60Hz DC Power Battery Operated Exclusively Test Item Prototype Pre-Production Production Modifications to DUT None Test Standards FCC Part 15, Subpart B, ANSI C63.4-2003 APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID:: BBOSLR600 REPORT: C\COBRA\881AUT12\881AUT12TestReport.doc Page 5 of 12 TEST EQUIPMENT LIST Device Manufacturer Model Serial Number Cal/Char Date Due Date 3/10-Meter OATS TEI N/A N/A 12/20/10 12/20/12 3-Meter OATS TEI N/A N/A 02/05/09 02/05/12 3-Meter Semi- Anechoic Chamber Panashield N/A N/A 05/10/12 Analyzer Silver Tower Quasi-Peak Adapter HP 85650A 3303A01844 11/23/10 11/23/12 Analyzer Silver Tower RF Preselector HP 85685A 2926A00983 11/10/10 11/10/12 Analyzer Silver Tower Spectrum Analyzer HP 8566B Opt 462 3552A22064 3638A08608 11/10/10 11/10/12 Antenna: BiconiLog EMCO 3143 9409-1043 12/12/99 12/12/99 Antenna: Biconnical Eaton 94455-1 1057 05/31/11 05/31/13 Antenna: Biconnical Eaton 94455-1 1096 05/04/11 05/04/13 Antenna: Biconnical Electro- Metrics BIA-25 1171 01/15/10 01/15/12 Antenna: Log-Periodic Eaton 96005 1243 05/31/11 05/31/13 Antenna: Log-Periodic Electro- Metrics LPA-25 1122 05/04/11 05/04/13 Antenna: Log-Periodic Electro- Metrics LPA-30 409 06/17/11 06/17/11 LISN Electro- Metrics ANS-25/2 2604 10/28/11 10/28/13 LISN Electro- Metrics EM-7820 2682 02/01/11 02/01/13 Signal Generator HP 8640B 2308A21464 02/23/12 02/23/14 APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID:: BBOSLR600 REPORT: C\COBRA\881AUT12\881AUT12TestReport.doc Page 6 of 12 TEST PROCEDURES General: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. RADIATION INTERFERENCE: Testing was done in accordance with ANSI C63.4-2003. Section 15.35(b) specifies the use of an average detector in this band. In addition, the peak level of an emission shall not exceed the average limit by more than 20 dB using a minimum Resolution Bandwidth (RBW) of 1 MHz and minimum Video Bandwidth (VBW) OF 1 MHz. The following procedure is designed to determine if there are any spurious emissions from the local oscillator within the band of interest along with any additional spurious emissions caused by other circuitry within the device. 1) Determine the frequency of the peak emission: Start Frequency 11.7 GHz Stop Frequency 12.2 GHz RBW equal to or greater than 1 MHz VBW equal to or greater than 1 MHz Detector Function Peak Maximize the emissions with regards to device orientation, antenna polarization, and antenna height. Sweep the band using Max Hold for a minimum of 2 minutes. Record this frequency for measuring the peak emission. In addition record the frequency of other spurious emissions noted. 2) Determine the peak level of the emission: Center Frequency Set to the frequ…
