BBOSPX955RADAR DETECTOR

Important Information Introduction English Important Information • Federal Laws Governing the Use of Radar Detectors It is not against federal law to receive radar transmissions with your Cobra radar/ laser detector. The Communications Act of 1924 guarantees your right to receive radio transmissions on any frequency. Local laws that contravene this Act, while illegal, may be enforced by your local law enforcement officials until and unless they are prohibited from doing so by federal court action. Safety Alert Use of this product is not intended to, and does not, ensure that motorists or passengers will not be involved in traffic accidents. It is only intended to alert the motorist that an emergency vehicle equipped with a Cobra Safety Alert transmitter is within range as defined by that product. Please call local fire and police departments to learn if coverage exists in your area. Safe Driving Motorists, as well as operators of emergency or service vehicles, are expected to exercise all due caution while using this product, and to obey all applicable traffic laws. Security of Your Vehicle Before leaving your vehicle, always remember to conceal your radar detector in order to reduce the possibility of break-in and theft. ©2015 Cobra Electronics Corporation 6500 West Cortland Street Chicago, Illinois 60707 USA www.cobra.com SPX955 14 BAND ™ ULTRA-HIGH PERFORMANCE DIGITAL RADAR/LASER DETECTOR Nothing Comes Close to a Cobra ® English Operating Instructions Printed in the Philippines Part No. 480-1028-P Version A Nothing Comes Close to a Cobra ® English For more information or to order any of our products, please visit our website: www.cobra.com The Cobra line of quality products includes: A1 CB Radios microTALK ® 2-Way Radios Radar Detectors Marine VHF Radios Power Inverters Accessories SPX955_MANL.indd 1-14/10/15 2:05 PM This booklet describes the simple steps for mounting and setting up your detector. It also provides helpful information about how radar and laser guns are used and how you can interpret the alerts you receive. Trademark Acknowledgement Nothing Comes Close to a Cobra ® 25 Customer Assistance Display and Product Features Introduction Nothing Comes Close to a Cobra ® A3 Display • X K Ka V S c X K Ka V S c X K Ka V S c Controls, Indicators and Connections Introduction A2 English Controls, Indicators and Connections • On-Off/Volume Control Allows you to adjust the volume of the tone alerts. Dim Button Allows you to adjust the UltraBright Data Display brightness for easy reading. (Also turns VG-2 and Spectre I & IV+ alerts On and Off.*) LaserEye For 360° detection of laser signals. Windshield Bracket Release Button IntelliMute Button Engine RPM sensing mute function which reduces false alerts. Button turns IntelliMute On and Off. (Also enters IntelliMute setting mode.*) Mute Button For manual mute or auto mute of audio alerts. (Also turns Voice Alert On and Off.*) * Press and hold for four seconds to access these functions. WARNING Modifications or parts substitutions not approved by Cobra Electronics Corporation may violate FCC Rules and void your authority to operate this equipment. Speaker NOTE: In This Manual When steady, the display will be shown: When blinking, the display will be shown: X & K will light simultaneously when indicating Ku detection: City Button For City or Highway modes to reduce false alerts. (Also turns Ku alerts On and Off.*) Xtreme Range Superheterodyne ® Technology With super-fast sweep circuitry, provides extra detection range and the best possible advance warning to even the fastest radar guns Detection and Separate Alerts For: Radar signals (X, K, Ka and Ku bands, with signal strength indicated), Laser signals, Safety Alert signals, VG-2 signals, Spectre I & IV+ signals LaserEye ® For 360° detection of laser signals Instant-On Ready Detects radar guns with “instant-on” (very fast) speed monitoring capabilities Pop Detection Detects the latest super-fast instant-on single pulse radar guns Tone Alert or Voice Alert ® With adjustable volume UltraBright™ Data Display Easy-to-read with adjustable brightness City or Highway Modes to reduce false alerts Alert Programming Easy setting of radar bands to be monitored Safety Alert ® Traffic warning system distinguishes important safety alerts from other K band signals Manual Mute or Auto Mute A mute function of audio alerts IntelliMute ® A mute function reduces false audio alerts by sensing engine RPMs IntelliMute ® Pro Prevents detection by radar detector detectors (RDDs) when traveling at slower speeds Mounting Mounts easily on windshield or dashboard Product Features Congratulations! You’ve made a smart choice by purchasing a high performance radar/laser detector from Cobra. Just look at some of the sophisticated features and capabilities your new unit includes: IntelliMute Indicator Radar, VG-2, Spectre I & IV+ and Safety Indicators X K Ka V S L Signal Strength, Pop, Laser, City/Highway and IntelliMute Pro Mode Indicators Signal Strength 1 (weakest) to 5 (strongest) Windshield Bracket Mount 12V DC Power Jack Audio Jack Trademark Acknowledgement • Cobra ® , DigiView ® , EasySet ® , Extra Sensory Detection ® , IntelliMute ® , IntelliMute ® Pro, IntelliShield ® , LaserEye ® , Nothing Comes Close to a Cobra ® , Safety Alert ® Traffic Warning System, Strobe Alert ® , VG-2 Alert ® , Xtreme Range Superheterodyne ® and the snake design are registered trademarks of Cobra Electronics Corporation, USA. Cobra Electronics Corporation™, 14 Band™, 15 Band™, AURA™, Extreme Bright DataGrafix™, IntelliLink™, IntelliScope™, IntelliView™, Revolution™ Series, SmartPower™, Super-Xtreme Range Superheterodyne™, S-XRS™, UltraBright™, and Voice Alert™ are trademarks of Cobra Electronics Corporation, USA. Opticom™ is a trademark of 3M Corporation. Instaclear ® for Ford is a registered trademark of Ford Motor Company, Inc. Electriclear ® for GM is a registered trademark of General Motors Corporation. LTI Laser™ and LTI 20-20™ are tr…

Text truncated - open the document above for the full version.

Equipment Authorization Division Office of Engineering and Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Ref: FCC ID: BBOSPX955 Request for Confidentiality Dear Sirs: With regard to the referenced application, Cobra Electronics Corp. is requesting confidentiality of certain sections of the accompanying documents. The documents for which Cobra Electronics Corp. is requesting confidentiality are: SPX955 Block Diagram SPX955 Circuits (Schematics) SPX955 Theory of operation This request is made under the provisions of Section 0.457(d) of the Commission’s Rules, and Section 552(b)(4) of the Freedom of Information Act. The material for which confidentiality is requested falls within the scope of Section 552(b)(4) as trade secrets and includes material covered by Section 0.459 of the Commission’s Rules. Pursuant to DA 04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below until the end of August, 2015 (expected ship date): SPX955 External Photos SPX955 Test Setup Photos SPX955 Manual SPX955 Internal Photos Sincerely, Chris deWaal Sr. Project Engineer

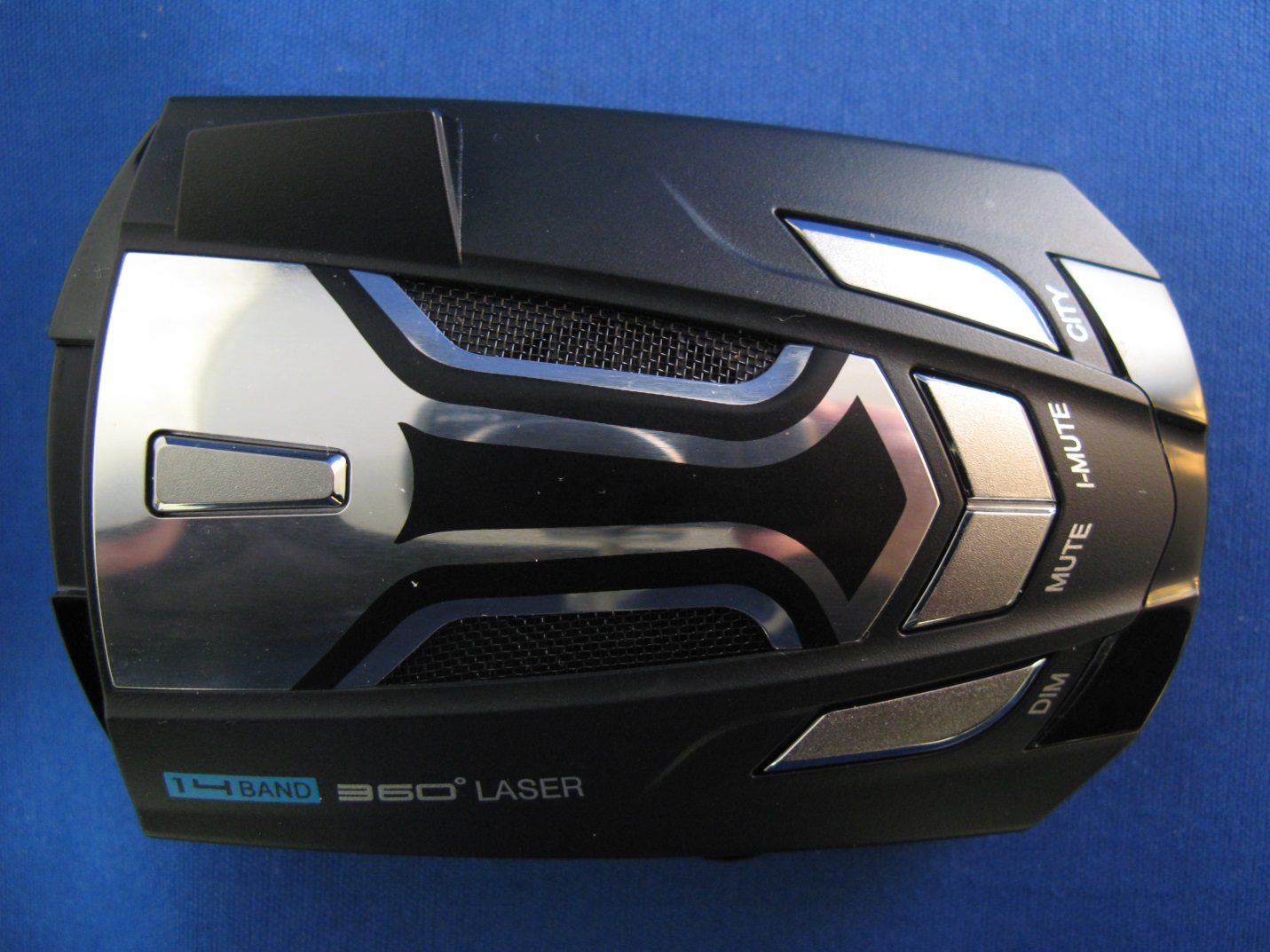

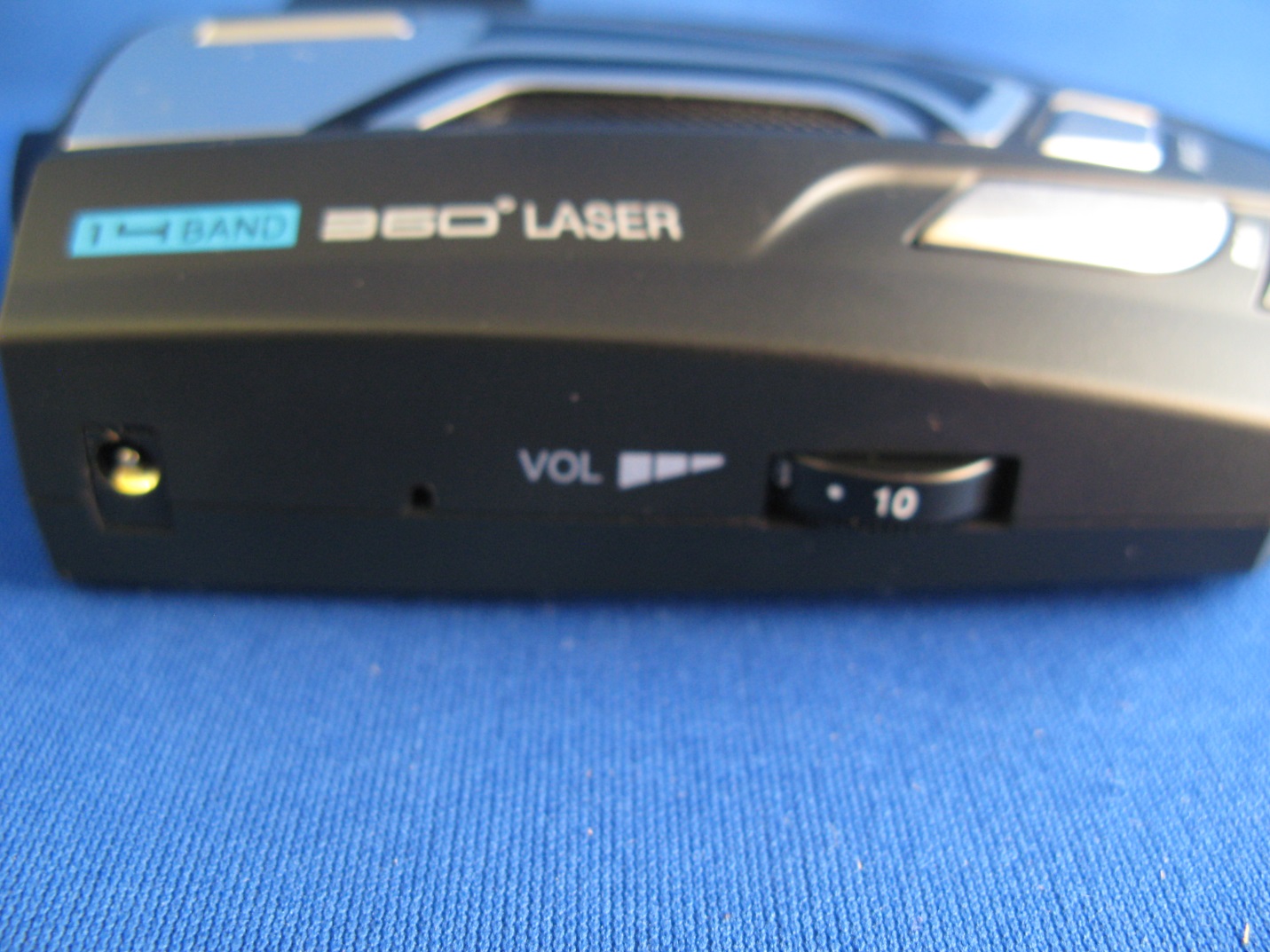

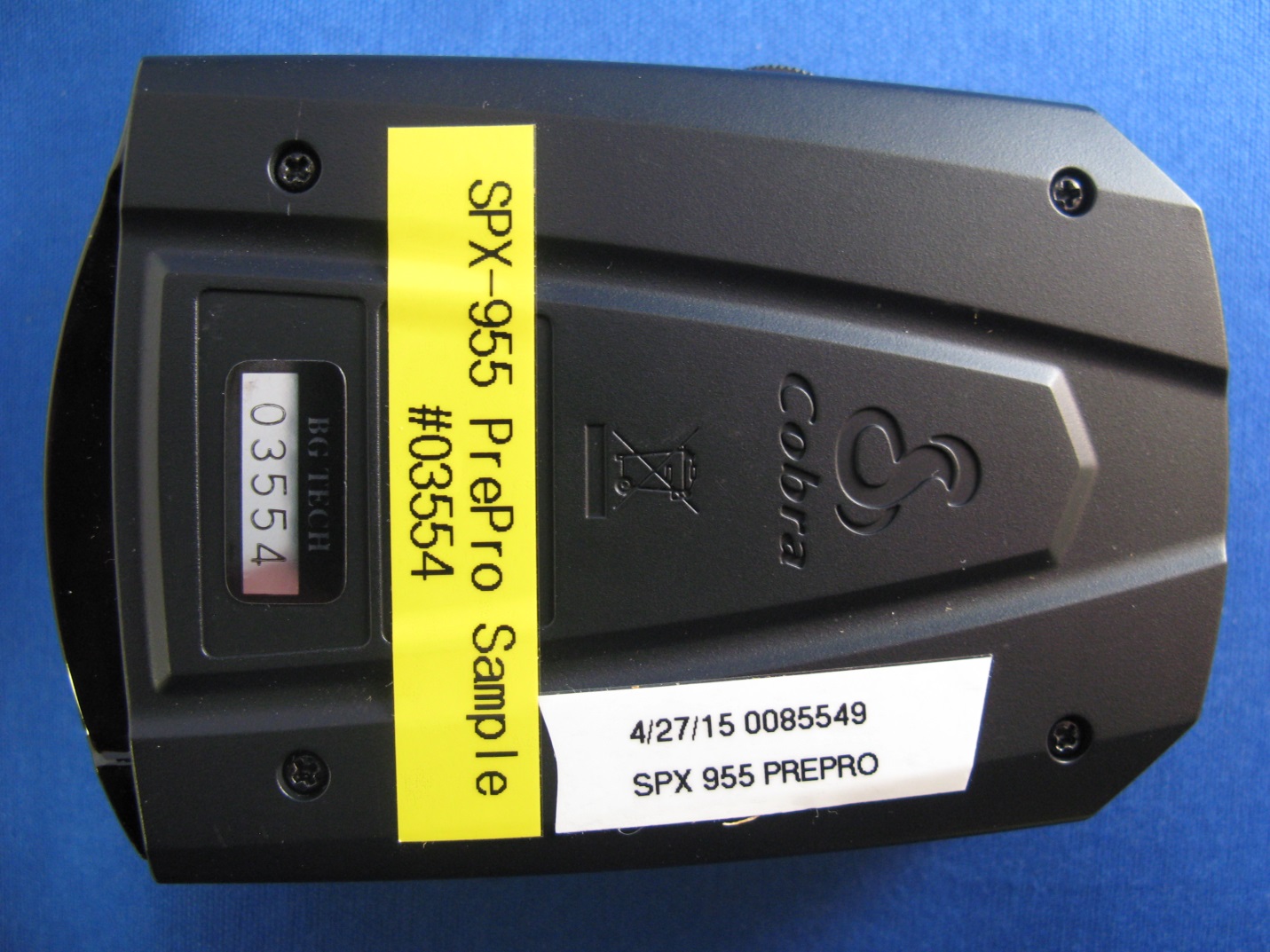

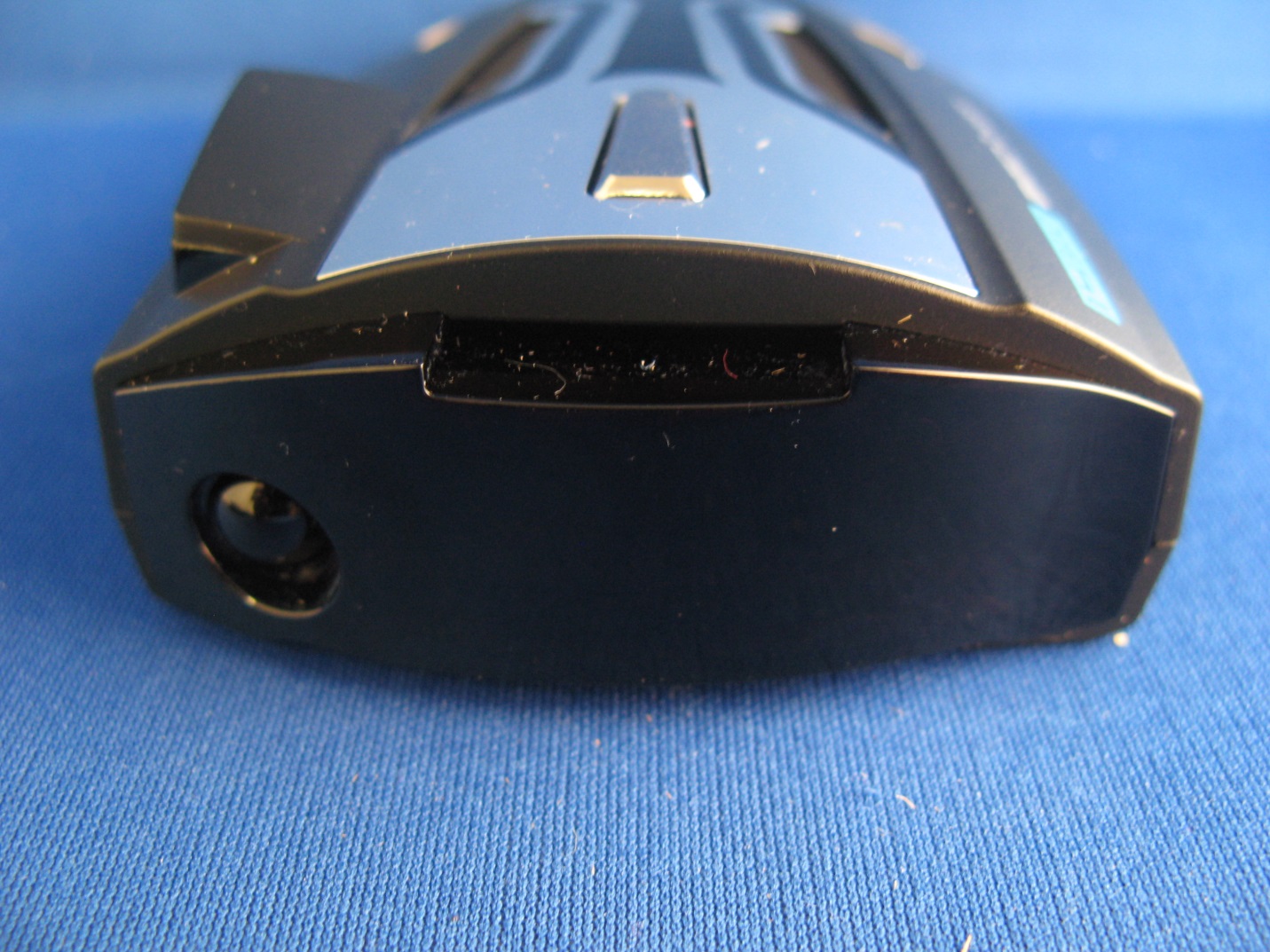

COBRA ELECTRONICS CORPORATION FCC ID: BBOSPX955 EXTERNAL PHOTOS

COBRA ELECTRONICS CORPORATION FCC ID: BBOSPX955 INTERNAL PHOTOS

FCC PART 15.109 RADAR DETECTOR REPORT Applicant COBRA ELECTRONICS CORPORATION Address 6500 WEST CORTLAND STREET CHICAGO IL 60707 USA Product Model Number SPX955 Product Description RADAR DETECTOR FCC ID: BBOSPX955 Date Sample Received 5/5/2015 Date Tested 5/6/2015 Tested By Sid Sanders Approved By Cory Leverett Test Results PASS FAIL Report Number Version Number Description Issue Date 842UT15TestReport.docx Rev.1 Initial Issue 5/6/2015 THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW State Road 45 Newberry, Fl 32669 USA Phone: 888.472.2424 or 352.472.5500 Fax: 352.472.2030 Email: [email protected] Website: www timcoengr com TABLE OF CONTENTS GENERAL REMARKS.................................................................................................. 3 GENERAL INFORMATION ........................................................................................... 4 TEST RESULTS SUMMARY ......................................................................................... 4 RADIATED SPURIOUS EMISSIONS .............................................................................. 5 RADIATED SPURIOUS EMISSIONS .............................................................................. 6 RADIATED SPURIOUS EMISSIONS .............................................................................. 7 TEST EQUIPMENT LIST ............................................................................................. 9 APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBOSPX955 REPORT: C\COBRA\842UT15\842UT15TestReport.docx Page 2 of 9 GENERAL REMARKS The attached report shall not be reproduced except in full without the written permission of Timco Engineering Inc. The test results relate only to the items tested. Summary The device under test does: fulfill the general approval requirements as identified in this test report not fulfill the general approval requirements as identified in this test report Attestations This equipment has been tested in accordance with the standards identified in this test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report. All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025 requirements. I attest that the necessary measurements were made, under my supervision, at: Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Authorized Signatory Name: Sid Sanders Engineering Project Manager Date: 5/6/2015 TABLE OF CONTENTS APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBOSPX955 REPORT: C\COBRA\842UT15\842UT15TestReport.docx Page 3 of 9 GENERAL INFORMATION EUT Specification EUT Description RADAR DETECTOR FCC ID BBOSPX955 Model Number SPX955 Operating Frequency 10.525GHz(X-Band), 24.150 GHz (K-Band), 33.4- 36.0G Hz (Ka Band) EUT Power Source 110–120Vac/50– 60Hz DC Power 12V Battery Operated Exclusively Test Item Prototype Pre-Production Production Type of Equipment Fixed Mobile Portable Test Conditions Temperature: 24-26ºC Relative humidity: 50-65% Barometric Pressure: 30.08 in. Modification to the EUT None Test Exercise The EUT was operated in a normal mode. Applicable Standards FCC Pt 15.109, Pt 15.107, Test Procedure ANSI C63.4: 2009 Test Facility Timco Engineering Inc. at 849 NW State Road 45 Newberry, FL 32669 USA. TEST RESULTS SUMMARY The test results relate only to the items tested. FCC Rules Part No. RESULTS Pass/Fail/NA 15.109 Radiated Emissions PASS 15.109 Radiated Emissions in 11.2 to 12.2GHz band PASS 15.207 Power Line Emissions NA TABLE OF CONTENTS APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBOSPX955 REPORT: C\COBRA\842UT15\842UT15TestReport.docx Page 4 of 9 RADIATED SPURIOUS EMISSIONS Rules Part No.: 15.109 Requirements: Frequency Limits 30 – 88 40.0 dBμV/m measured @ 3 meters 80 – 216 43.5 dBμV/m measured @ 3 meters 216 – 960 46.0 dBμV/m measured @ 3 meters Above 960 54.0 dBμV/m measured @ 3 meters 11.7 to 12.2GHz 54.0 dBμV/m measured @ 3 meters Test Procedure: A search was made of the spectrum from 30 to 1000MHz and from 11.7 to 12.2GHz. Measurements in the 11.7 to 12.2GHz band were made with a Standard Gain Horn. The measurements in the 11.7 to 12.2GHz band represent the ambient noise levels. The attached plots were made with peak detector with the analyzer in a maximum hold for 2 minutes. Testing was done in accordance with ANSI C63.4 & 15.35(b) specifies the use of an average detector in this band. In addition, the peak level of an emission shall not exceed the average limit by more than 20 dB using a minimum Resolution Bandwidth (RBW) of 1 MHz and minimum Video Bandwidth (VBW) OF 1 MHz. The following procedure is designed to determine if there are any spurious emissions from the local oscillator within the band of interest along with any additional spurious emissions caused by other circuitry within the device. 1) Determine the frequency of the peak emission: Start Frequency 11.7 GHz Stop Frequency 12.2 GHz RBW equal to or greater than 1 MHz VBW equal to or greater than 1 MHz Detector Function Peak Maximize the emissions with regards to device orientation, antenna polarization, and antenna height. Sweep the band using Max Hold for a minimum of 2 minutes. Record this frequency for measuring the peak emission. In addition record the frequency of other spurious emissions noted. TABLE OF CONTENTS APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBOSPX955 REPORT: C\COBRA\842UT15\842UT15TestReport.docx Page 5 of 9 RADIATED SPURIOUS EMISSIONS Test Procedure (Cont.): 2) Determine the peak level of the emission: Center Frequency Set to the frequency determined in Step 1 RBW Equal to or greater than 1 MHz VBW Equal to or greater than 1 MHz Detector Function Peak Measure the value of the peak emission using Max Hold for a minimum of 2 minutes. This can be done at zero spans or a frequency span wh…
