BBOXRS9530RADAR DETECTOR

Important Information and Customer Assistance Introduction A1 English Important Information • Federal Laws Governing the Use of Radar Detectors It is not against federal law to receive radar transmissions with your Cobra radar/ laser detector. The Communications Act of 1924 guarantees your right to receive radio transmissions on any frequency. Local laws that contravene this Act, while illegal, may be enforced by your local law enforcement officials until and unless they are prohibited from doing so by federal court action. Safety Alert Use of this product is not intended to, and does not, ensure that motorists or passengers will not be involved in traffic accidents. It is only intended to alert the motorist that an emergency vehicle equipped with a Cobra Safety Alert transmitter is within range as defined by that product. Please call local fire and police departments to learn if coverage exists in your area. Safe Driving Motorists, as well as operators of emergency or service vehicles, are expected to exercise all due caution while using this product, and to obey all applicable traffic laws. Security of Your Vehicle Before leaving your vehicle, always remember to conceal your radar detector in order to reduce the possibility of break-in and theft. Customer Assistance • Should you encounter any problems with this product, or not understand its many features, please refer to this owner’s manual. If you require further assistance after reading this manual, Cobra Electronics offers the following customer assistance services: For Assistance in the U.S.A. Automated Help Desk English only. 24 hours a day, 7 days a week 773-889-3087 (phone). Customer Assistance Operators English and Spanish. 8:00 a.m. to 6:00 p.m. CT Mon. through Fri. (except holidays) 773-889-3087 (phone). Questions English and Spanish. Faxes can be received at 773-622-2269 (fax). Technical AssistanceEnglish only.www.cobra.com (on-line: Frequently Asked Questions). English and Spanish. [email protected] (e-mail). For Assistance Outside the U.S.A. Contact Your Local Dealer © 2005 Cobr a Electronics Cor poration 6500 W est Cor tland Street Chicago, Illinois 60707 USA www .cobr a.com Customer Assistance XRS9530 12 BAND ™ HIGH-PERFORMANCE DIGITAL RADAR/LASER DETECTOR WITHXTREME RANGE SUPERHETERODYNE ® TECHNOLOGY NothingComes Close to a Cobra ® English Operating Instructions Printed in China Part No. 480-232-P Version A NothingComes Close to a Cobra ® English For more information or to order any of our products, please visit our website: www.cobra.com CB Radios microTALK ® Radios Radar/Laser Detectors Safety Alert ® Traffic Warning Systems Handheld GPS Receivers Mobile GPS Navigation Systems HighGear ® Accessories CobraMarine TM VHF Marine Radios Power Inverters Accessories The Cobra line of quality products includes: Important Information and Customer Assistance Introduction Order Form Nothing Comes Close to a Cobra ® 25 Customer Assistance Display and Product Features Introduction Nothing Comes Close to a Cobra ® A3 Xtreme Range Superheterodyne Technology With super-fast sweep circuitry, XRS provides extra detection range and the best possible advance warning to even the fastest radar guns Detection and Separate Alerts For: Radar signals (X, K,Ka and Ku bands, with signal strength indicated), laser signals, Safety Alert signals, Strobe Alert signals, Spectre 1 signals, VG-2 signals LaserEye For 360° detection of laser and strobe signals Instant-On Ready Detects radar guns with “instant-on” (very fast) speed monitoring capabilities Tone Alert or Voice Alert With adjustable volume DigiView Data Display With easy-to-read alpha/numeric dot matrix text readout City or Highway Modes to reduce false alerts Safety Alert Traffic warning system distinguishes important safety alerts from other K band signals Strobe Alert Emergency vehicle warning system Manual Mute or Auto Mute A mute function of audio alerts IntelliMute A mute function which automatically reduces false alerts by sensing engine RPMs Mounting Mounts easily on windshield or dashboard Product Features • Congratulations! You’ve made a smart choice by purchasing a high performance radar/laser detector from Cobra. Just look at some of the sophisticated features and capabilities your new unit includes: Display • This booklet describes the simple steps for mounting and setting up your detector. It also provides helpful information about how radar and laser guns are used and how you can interpret the alerts you receive. Alpha/Numeric Dot Matrix Text Display See pages 6 – 16 for more information about display features. h Controls, Indicators and Connections Introduction A2 English Controls, Indicators and Connections • 12V DC Power Jack On-Off/ Volume Control Allows you to adjust the volume of the tone alerts. IntelliMute Button Engine RPM sensing mute function which reduces false alerts. Button turns IntelliMute on and off. (Also enters IntelliMute setting mode.*) LaserEye For 360° detection of laser and strobe signals. Windshield Bracket Release Button Mute Button For manual mute or auto mute of audio alerts. (Also turns Voice Alert onand off.*) * Press and hold for two seconds to access these functions. Windshield Bracket Mount W ARNING Modifications or parts substitutions not approved by Cobra Electronics Corporation may violate FCC Rules and v oid y our author ity to oper ate this equipment. Dim Button Allows you to adjust the DigiView Data Display brightness for easy reading. (Also turns Spectre 1 and VG-2 alerts on and off.*) Order Form • Name Address (No P.O. Boxes) CityState/ProvinceZipCountry Telephone Credit Card Number Type:rVisa rMasterCard rDiscoverExp. Date Customer Signature Item #DescriptionU.S. Cost EachQtyAmount 420-030-N-001Straight 12V Power Cord 420-026-N-001Coiled 12V Power Cord 545-139-N-001Windshield Mounting Bracket CLP-2BDual Port Power Adapter U.S. Subtotal (Tax if Applicable) Shipping/Handling Total Ordering From U.S.A. Call 773-889-3087 for pricing o…

Text truncated - open the document above for the full version.

Equipment Authorization Division Office of Engineering and Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Ref: FCC ID: BBOXRS9530 Request for Confidentiality Dear Sirs: With regard to the referenced application, Cobra Electronics Corp., is requesting confidentiality of certain sections of the accompanying documents. The documents for which Cobra Electronics Corp. is requesting confidentiality are: XRS 9530 Block Diagram XRS 9530 Main Schematic XRS 9530 Theory of operation GLS06 REV. A Schematic This request is made under the provisions of Section 0.457(d) of the Commission’s Rules, and Section 552(b)(4) of the Freedom of Information Act. The material for which confidentiality is requested falls within the scope of Section 552(b)(4) as trade secrets and includes material covered by Section 0.459 of the Commission’s Rules. Sincerely, Jeff Sterling, Director of Microwave Engineering

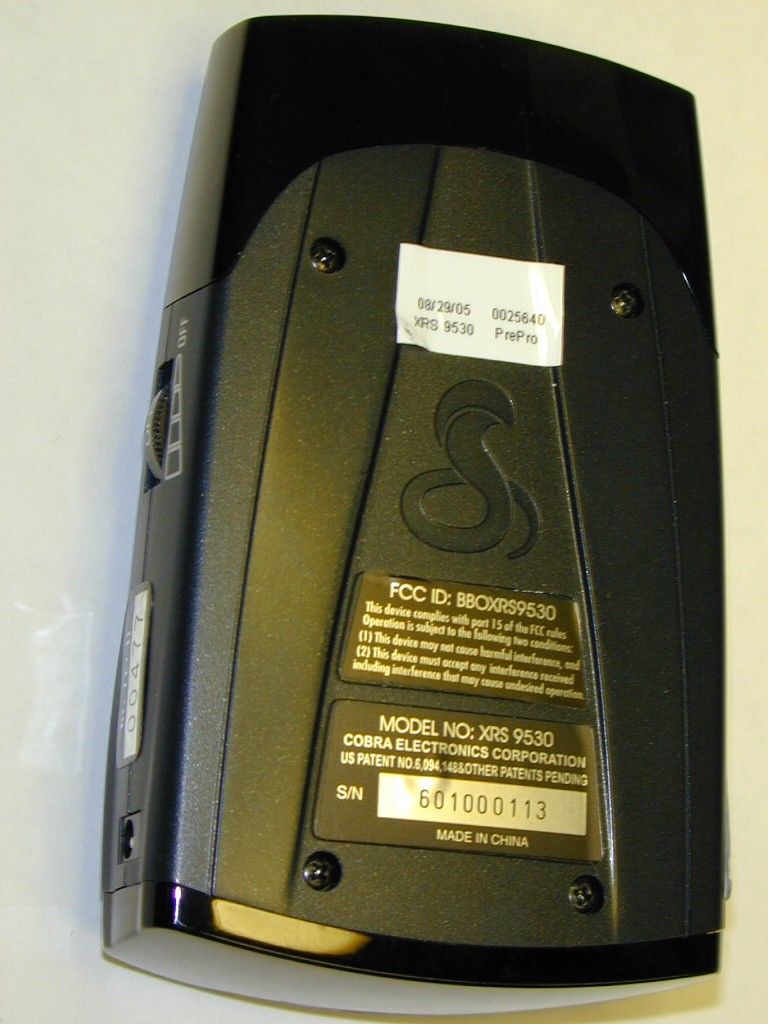

Cobra Electronics Corp FCC ID: BBOXRS9530 External Photos

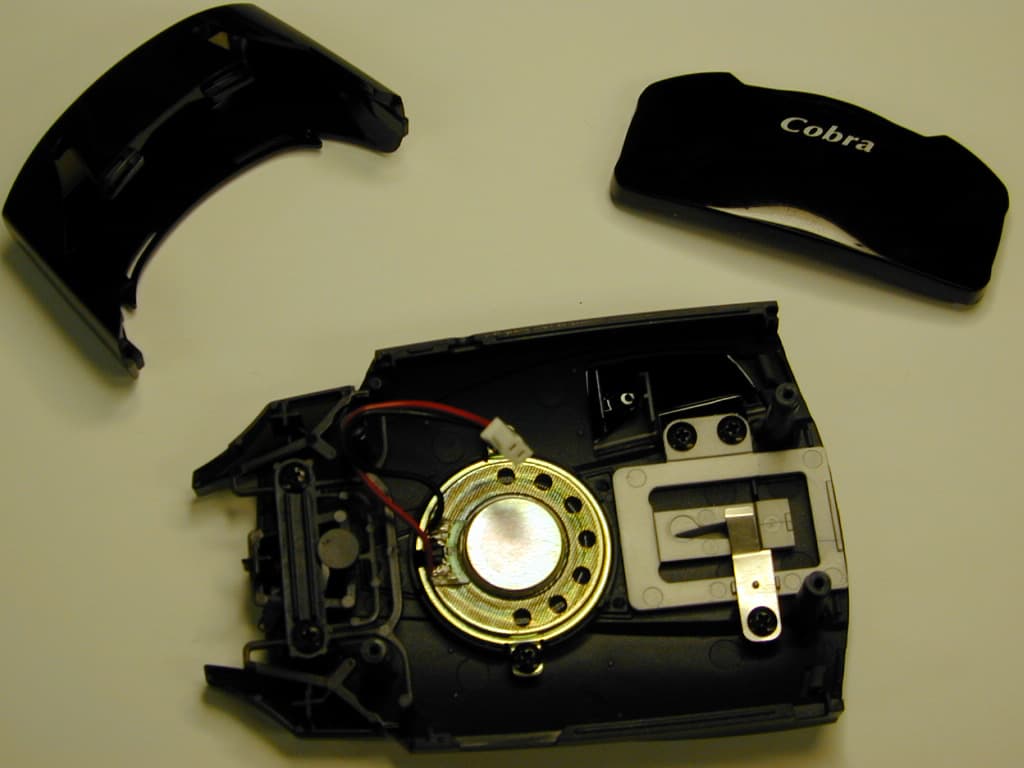

Cobra Electronics Corp FCC ID: BBOXRS9530 Internal Photos

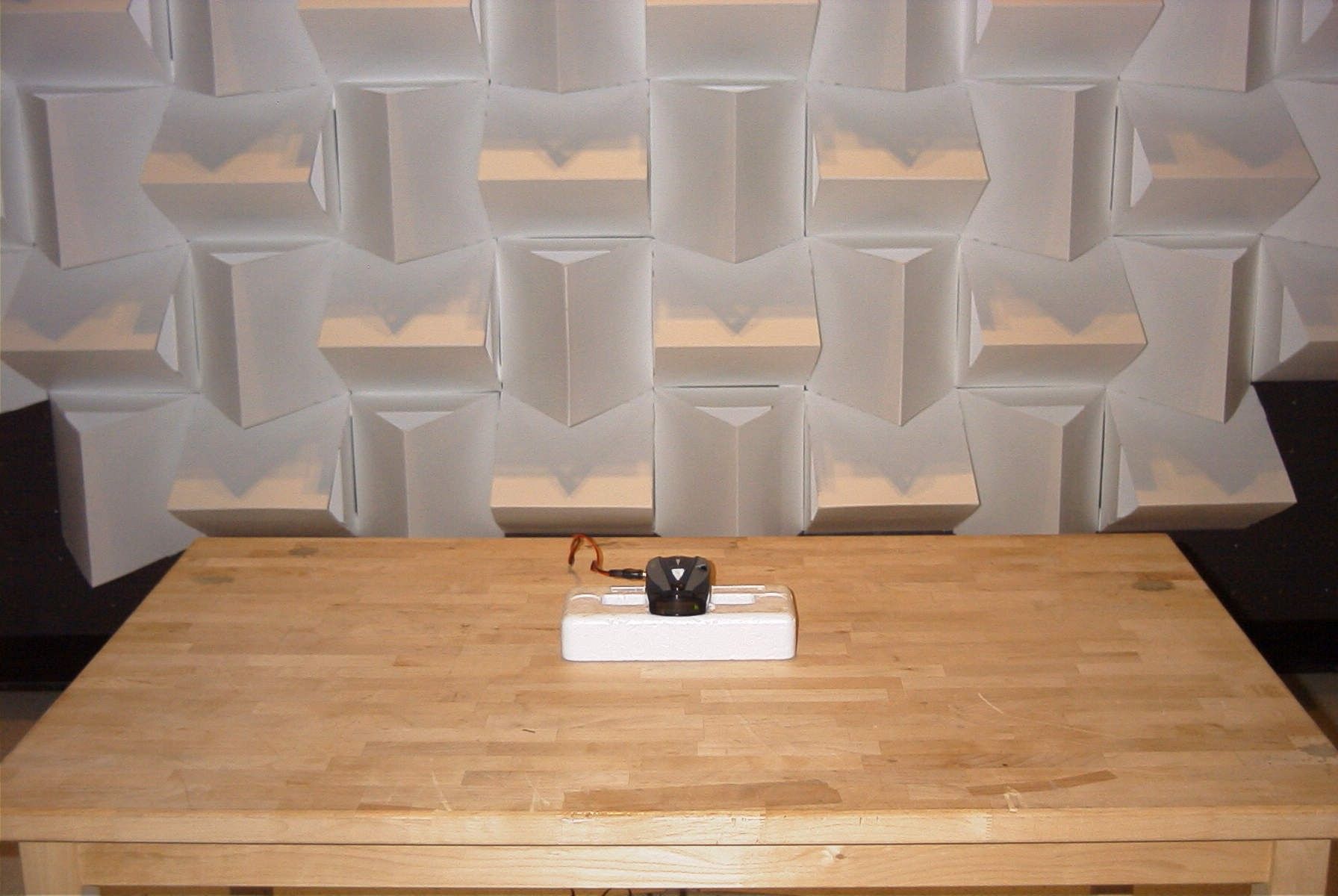

APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID BBOXRS9530 REPORT #: U:\C\COBRA\1917UT5\1917UT5TestReport.doc TABLE OF CONTENTS TABLE OF CONTENTS LIST APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBOXRS9530 TEST REPORT CONTAINING: PAGE 1......TEST EQUIPMENT LIST PAGE 2-3....TEST PROCEDURES PAGE 4......RADIATION INTERFERENCE TEST DATA PAGE 5......VERTICAL MEASUREMENT PLOT PAGE 6......HORIZONTAL MEASURMENT PLOT EXHIBITS CONTAINING: FCC ID LABEL SAMPLE SKETCH OF LABEL LOCATION BLOCK DIAGRAM SCHEMATIC USERS MANUAL EXTERNAL PHOTOS INTERNAL PHOTOS CIRCUIT DESCRIPTION TEST SET UP PHOTO APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID BBOXRS9530 REPORT #: U:\C\COBRA\1917UT5\1917UT5TestReport.doc Page 1 of 6 Equipment List Device Manufacturer Model Serial Number Cal/Char Date Due Date 3/10-Meter OATS TEI N/A N/A Listed 3/27/04 3/26/07 3-Meter OATS TEI N/A N/A Listed 1/13/03 1/12/06 Biconnical Antenna Eaton 94455-1 1057 CAL 3/18/03 3/18/05 Biconnical Antenna Eaton 94455-1 1096 CAL 8/17/04 8/17/06 Biconnical Antenna Electro- Metrics BIA-25 1171 CAL 4/29/05 4/29/07 Blue Tower Quasi-Peak Adapter HP 85650A 2811A01279 CAL 4/13/05 4/13/07 Blue Tower RF Preselector HP 85685A 2926A00983 CAL 8/3/05 8/3/07 Blue Tower Spectrum Analyzer HP 8568B 2928A04729 2848A18049 CAL 4/13/05 4/13/07 LISN Electro- Metrics ANS-25/2 2604 CAL 8/27/04 8/27/06 LISN Electro- Metrics EM-7820 2682 CAL 4/28/05 4/28/07 Log- Periodic Antenna Eaton 96005 1243 CAL 5/8/03 5/8/05 ] APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID BBOXRS9530 REPORT #: U:\C\COBRA\1917UT5\1917UT5TestReport.doc Page 2 of 6 TEST PROCEDURES GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. RADIATION INTERFERENCE: Testing was done in accordance with ANSI C63.4-2003. Section 15.35(b) specifies the use of an average detector in this band. In addition, the peak level of an emission shall not exceed the average limit by more than 20 dB using a minimum Resolution Bandwidth (RBW) of 1 MHz and minimum Video Bandwidth (VBW) OF 1 MHz. The following procedure is designed to determine if there are any spurious emissions from the local oscillator within the band of interest along with any additional spurious emissions caused by other circuitry within the device. 1) Determine the frequency of the peak emission: Start Frequency 11.7 GHz Stop Frequency 12.2 GHz RBW equal to or greater than 1 MHz VBW equal to or greater than 1 MHz Detector Function Peak Maximize the emissions with regards to device orientation, antenna polarization, and antenna height. Sweep the band using Max Hold for a minimum of 2 minutes. Record this frequency for measuring the peak emission. In addition record the frequency of other spurious emissions noted. 2) Determine the peak level of the emission: Center Frequency Set to the frequency determined in Step 1 RBW Equal to or greater than 1 MHz VBW Equal to or greater than 1 MHz Detector Function Peak Measure the value of the peak emission using Max Hold for a minimum of 2 minutes. This can be done at zero span or a frequency span where the analyzer does not show a “Measurement Uncalibrated” message. Record the peak value. If the peak measurement is compliant with the average limit an average measurement is not necessary. If the peak value exceeds the average limit by less than 20 dB proceed to Step 3. 3) Determine the average level of the emission: Center Frequency Set to the frequency determined in Step 1 Span Zero RBW Equal to or greater than 1 MHz VBW Equal to or greater than 10 Hz Detector Function Peak This measurement uses video averaging and must be done in Linear mode. The analyzer Reference Level is adjusted so that a signal is clearly visible on the screen. Measure the value of the emission using Max Hold for a minimum of 2 minutes. Record this as the average value. Step 2 and Step 3 should be repeated for other spurious emissions. The ambient temperature of the UUT was 80ºF with a humidity of 70%. APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID BBOXRS9530 REPORT #: U:\C\COBRA\1917UT5\1917UT5TestReport.doc Page 3 of 6 TEST PROCEDURES CONTINUED FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was established by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor supplied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Preselector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m ANSI STANDARD C63.4-2003 10.1.7 MEASUREMENT PROCEDURES: The unit under test was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The table used for radiated measurements is capable of continuous rotation. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID BBOXRS9530 REPORT #: U:\C\COBRA\1917UT5\1917UT5TestReport.doc Page 4 of 6 APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBOXRS9530 NAME OF TEST: RADIATION INTERFERENCE RULES PART NUMBER: 15.109 REQUIREMENTS: 30 to 88 MHz: 40.0 dBuV/M @ 3 METERS 88 to 216 MHz: 43.5 dBuV/M 216 to 960 MHz: 46.0 dBuV/M ABOVE 960 MHz: 54.0 dBuV/M 11.7 to 12.2GHz: 54.0dBuV/m TEST RESULTS: A search was made of the spectrum from 30 to 1000MHz and from 11.7 to 12.2GHz the measurements indicate that the unit DOES meet the FCC requirements. Measurements in the 11.7 to 12.2GHz band were made with a Standard Gain Horn. The measurements in the 11.7 to 12.2GHz band represent the ambient noise levels. The attached plots were made with peak detector with the analyzer in a maximum hold for 2 minutes. TEST DATA: Emission Frequency MHz Meter Reading dBuV Ant. Polarity Coax Loss dB Correction Factor dB Field Strength dBuV/m Margin dB …
