BBOXRS9950RADAR DETECTOR

XRS 9940 12 BAND ™ MAXIMUM PERFORMANCE DIGITAL RADAR/LASER DETECTOR WITH SUPER-XTREME RANGE SUPERHETERODYNE ™ TECHNOLOGY NothingComes Close to a Cobra ® English Operating Instructions Printed in China Part No. 480-422-P Version A 12 12 NothingComes Close to a Cobra ® English For more information or to order any of our products, please visit our website: www.cobra.com CB Radios microTALK ® Radios Radar/Laser Detectors Safety Alert ® Traffic Warning Systems Mobile GPS Navigation Systems HighGear ® Accessories CobraMarine ® VHF Radios Marine Chartplotters Power Inverters Accessories The Cobra line of quality products includes: Important Information and Customer Assistance Introduction Nothing Comes Close to a Cobra ® A1 Important Information • Federal Laws Governing the Use of Radar Detectors It is not against federal law to receive radar transmissions with your Cobra radar/ laser detector. The Communications Act of 1924 guarantees your right to receive radio transmissions on any frequency. Local laws that contravene this Act, while illegal, may be enforced by your local law enforcement officials until and unless they are prohibited from doing so by federal court action. Safety Alert Use of this product is not intended to, and does not, ensure that motorists or passengers will not be involved in traffic accidents. It is only intended to alert the motorist that an emergency vehicle equipped with a Cobra Safety Alert transmitter is within range as defined by that product. Please call local fire and police departments to learn if coverage exists in your area. Safe Driving Motorists, as well as operators of emergency or service vehicles, are expected to exercise all due caution while using this product, and to obey all applicable traffic laws. Security of Your Vehicle Before leaving your vehicle, always remember to conceal your radar detector in order to reduce the possibility of break-in and theft. Customer Assistance • Should you encounter any problems with this product, or not understand its many features, please refer to this owner’s manual. If you require further assistance after reading this manual, Cobra Electronics offers the following customer assistance services: For Assistance in the U.S.A. Automated Help Desk English only. 24 hours a day, 7 days a week 773-889-3087 (phone). Customer Assistance Operators English and Spanish. 8:00 a.m. to 6:00 p.m. Central Time Mon. through Fri. (except holidays) 773-889-3087 (phone). Questions English and Spanish.Faxes can be received at 773-622-2269 (fax). Technical AssistanceEnglish only. www.cobra.com (on-line: Frequently Asked Questions). English and Spanish. product [email protected] (e-mail). For Assistance Outside the U.S.A. Contact Your Local Dealer ©2008 Cobra Electronics Corporation 6500 West Cortland Street Chicago, Illinois 60707 USA www.cobra.com Customer Assistance XRS9940_MANL_PH3.qxd 11/9/07 10:33 AM Page BC1 Introduction A2 English Controls, Indicators, Connections and Display Introduction Controls, Indicators, Connections and Display • 12V DC Power Jack On-Off/Volume Control Allows user to adjust the volume of the tone and voice alerts. Dim
Button Adjusts the display brightness and scrolls through options while programming. Menu/Save Button Press once to enter Program mode. Press again to save settings. LaserEye For 360° detection of laser and strobe signals. Windshield Bracket Release Button Speaker Auxiliary Audio Jack MuteButton For manual mute of audio alerts and to select/adjust options while programming. CityButton Changes between Highway and City modes and scrolls through options while programming. Windshield Bracket Mounting Slot ExtremeBright DataGrafix TM Display Full color and sunlight-readable, the extremely bright display provides intuitive graphical interaction and alert screens. Nothing Comes Close to a Cobra ® 37 Product Features Introduction Nothing Comes Close to a Cobra ® A3 Introduction Super-Xtreme Range Superheterodyne Technology With super-fast sweep circuitry, S-XRS provides maximum detection range and the best possible advance warning to even the fastest radar guns Maximum Performance Provides advanced warning with maximum detection range for total protection Detection and Separate Alerts For radar signals (X, K, Ka and Ku bands, with signal strength indicated), laser signals, Safety Alert signals, Strobe Alert signals, VG-2 signals, Spectre 1 signals 8-Point Compass Displays direction of travel LaserEye For 360° detection of laser and strobe signals Instant-On Ready Detects radar guns with “instant-on” (very fast) speed monitoring capabilities Pop Detection Detects the latest super-fast radar guns of the instant-on or single-pulse type Voice or Tone Alert With adjustable volume ExtremeBright DataGrafix TM Display With easy-to-read graphical user interface IntelliShield False Signal Rejection Reduces falsing in urban areas with Highway mode and three levels of City mode settings Safety Alert Traffic warning system distinguishes important safety alerts from other K band signals Strobe Alert Emergency vehicle warning system Manual Mute or Auto Mute A mute function of audio alerts IntelliMute A mute function which automatically reduces false alerts by sensing engine RPMs SmartPower A timed power saving function that saves your car’s battery EasySet Programming User-friendly mode selection and setting with visual guidance Car Battery Voltage Display Car battery voltage can be shown continuously on the display Car Battery Low Voltage Warning Provides an alert when the car battery voltage drops below 11.9 volts Customizable Display Colors Customize the display colors to match your dash illumination Auxiliary Audio Jack For external speaker connection Mounting Mounts easily on windshield or dashboard Product Features • Congratulations! You’ve made a smart choice by purchasing an ultra high performance digital radar/laser detector from Cobra. Just look at some of the sophisticated features and capabilities your new u…

Text truncated - open the document above for the full version.

Equipment Authorization Division Office of Engineering and Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Ref: FCC ID: BBOXRS9950 Request for Confidentiality Dear Sirs: With regard to the referenced application, Cobra Electronics Corp. is requesting confidentiality of certain sections of the accompanying documents. The documents for which Cobra Electronics Corp. is requesting confidentiality are: 3590UT7 Block Diagrams 3590UT7 Schematic Diagrams 3590UT7 Theory of operation This request is made under the provisions of Section 0.457(d) of the Commission’s Rules, and Section 552(b)(4) of the Freedom of Information Act. The material for which confidentiality is requested falls within the scope of Section 552(b)(4) as trade secrets and includes material covered by Section 0.459 of the Commission’s Rules. Pursuant to DA 04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below until the end of January 2008 (expected ship date): 3590UT7 External Photos 3590UT7 Internal Photos 3590UT7 Test Setup Photo 3590UT7 Users Manual Sincerely, Jeff Sterling, Director of Microwave Engineering

DDr DRA 18 December 2007 Timco Engineering, Inc. 849 NW State Road 45 P.O. Box 370 Newberry, Florida 32669 Reference Cobra Model Numbers: XRS 9940, XRS 9950 FCC Identifier: BBOXRS9950 To Whom It May Concern: On behalf of the applicant, I appoint Sharon Hoffman of Timco Engineering, 849 NW State Road 45, Newberry Florida 32669, to act as agent in the preparation of this application for a Grant of Equipment Authorization. I certify that the exhibits properly describe the device for which Grant of Equipment Authorization is sought and that neither the applicant nor any party to the application is subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862. In accepting a Grant of Equipment Authorization issued by the TCB, under the authority of the FCC, as a result of the representations made in this application, the applicant accepts responsibility for (1) labeling the equipment with the exact FCC ID specified in this application, (2) compliance statement labeling pursuant to the applicable rules, and (3) compliance of the equipment with the applicable technical rules. Sincerely, Engineering Manager Cobra Electronics Corporation

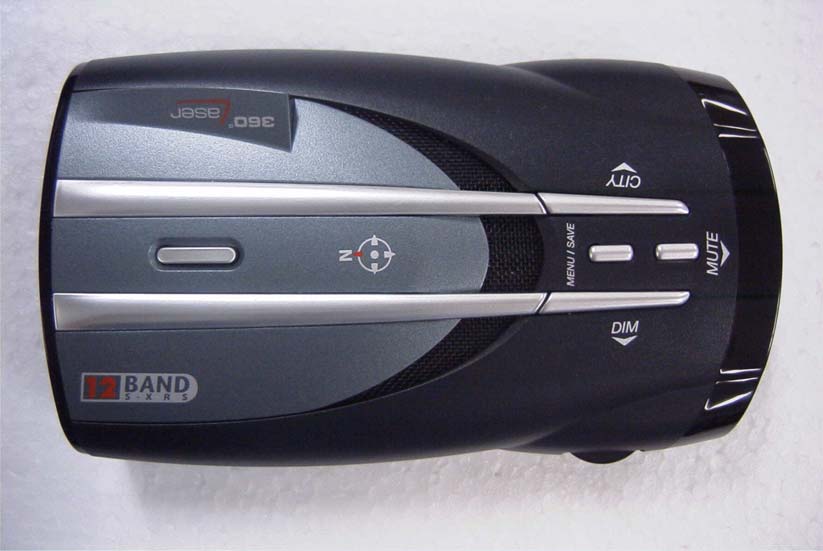

COBRA ELECTRONICS CORPORATION FCC ID: BBOXRS9950 EXTERNAL PHOTOS MODEL #: XRS 9940 TOP VIEW FRONT VIEW MODEL #: XRS 9950 TOP VIEW FRONT VIEW

849 NW State Road 45 Newberry, Fl 32669 USA Phone: 888.472.2424 or 352.472.5500 Fax: 352.472.2030 Email: [email protected] Website: www.timcoengr.com FCC PART 15 RADAR DETECTOR REPORT Applicant COBRA ELECTRONICS CORPORATION Address 6500 WEST CORTLAND STREET CHICAGO IL USA FCC ID: BBOXRS9950 Model Numbers: XRS 9940 and XRS 9950 Product Description RADAR DETECTOR Date Sample Received 11/29/2007 Date Tested 11/29/07 Tested By Richard Block Approved By S. S. Sanders Report Number C\COBRA\3590UT7\3590UT7TestReport.doc Total Pages 11 Test Results PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. Certificate # 0955-01 Certificate # 0955-01 APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBOXRS9950 TABLE OF CONTENTS GENERAL REMARKS............................................................................................................ 3 GENERAL INFORMATION.................................................................................................... 4 TEST EQUIPMENT LIST....................................................................................................... 5 TEST PROCEDURES............................................................................................................. 6 VERTICAL PLOT.................................................................................................................... 9 HORIZONTAL PLOT............................................................................................................ 10 REPORT: C\COBRA\3590UT7\3590UT7TestReport.doc Page 2 of 10 Certificate # 0955-01 APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBOXRS9950 GENERAL REMARKS The attached report shall not be reproduced except in full without the written permission of Timco Engineering Inc. The test results relate only to the items tested. Summary The device under test does: fulfill the general approval requirements as identified in this test report not fulfill the general approval requirements as identified in this test report Attestations This equipment has been tested in accordance with the standards identified in this test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report. All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025 requirements. Testing Certificate # 0955-01 I attest that the necessary measurements were made, under my supervision, at: Timco Engineering Inc. 849 NW State Road 45 Newberry, Fl 32669 Authorized Signatory Name: S. S. Sanders Mario de Aranzeta C.E.T. Compliance Engineer/ Lab. Supervisor Date: 12/17/2007 REPORT: C\COBRA\3590UT7\3590UT7TestReport.doc Page 3 of 10 Certificate # 0955-01 APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBOXRS9950 GENERAL INFORMATION The test results relate only to the items tested. DUT Description RADAR DETECTOR FCC ID BBOXRS9950 Models XRS 9940 and XRS 9950 110–120Vac/50– 60Hz DC Power DUT Power Source Battery Operated Exclusively Prototype Pre-Production Test Item Production Modifications to DUT None Test Standards FCC Part 15, Subpart B, ANSI C63.4-2003 REPORT: C\COBRA\3590UT7\3590UT7TestReport.doc Page 4 of 10 Certificate # 0955-01 APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBOXRS9950 TEST EQUIPMENT LIST Device Manufacturer Model Serial Number Cal/Char Date Due Date 3/10-Meter OATS TEI N/A N/A Listed 3/20/07 3/19/10 3-Meter OATS TEI N/A N/A Listed 1/11/06 1/10/09 Antenna: Biconnical Eaton 94455-1 1057 CAL 12/12/05 12/12/07 Antenna: Biconnical Eaton 94455-1 1096 CAL 10/11/06 10/11/08 Antenna: Biconnical Electro- Metrics BIA-25 1171 CAL 7/18/07 7/18/09 Analyzer Blue Tower Quasi-Peak Adapter HP 85650A 2811A01279 CAL 5/17/07 5/17/09 Analyzer Blue Tower RF Preselector HP 85685A 2926A00983 CAL 5/17/07 5/17/09 Analyzer Blue Tower Spectrum Analyzer HP 8568B 2928A04729 2848A18049 CAL 5/17/07 5/17/09 LISN Electro- Metrics ANS-25/2 2604 CAL 10/5/06 10/5/08 LISN Electro- Metrics EM-7820 2682 CAL 7/23/07 7/23/09 Antenna: Log- Periodic Eaton 96005 1243 CAL 12/14/05 12/14/07 REPORT: C\COBRA\3590UT7\3590UT7TestReport.doc Page 5 of 10 Certificate # 0955-01 APPLICANT: COBRA ELECTRONICS CORPORATION FCC ID: BBOXRS9950 TEST PROCEDURES General: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. RADIATION INTERFERENCE: Testing was done in accordance with ANSI C63.4-2003. Section 15.35(b) specifies the use of an average detector in this band. In addition, the peak level of an emission shall not exceed the average limit by more than 20 dB using a minimum Resolution Bandwidth (RBW) of 1 MHz and minimum Video Bandwidth (VBW) OF 1 MHz. The following procedure is designed to determine if there are any spurious emissions from the local oscillator within the band of interest along with any additional spurious emissions caused by other circuitry within the device. 1) Determine the frequency of the peak emission: Start Frequency 11.7 GHz Stop Frequency 12.2 GHz RBW equal to or greater than 1 MHz VBW equal to or greater than 1 MHz Detector Function Peak Maximize the emissions with regards to device orientation, antenna polarization, and antenna height. Sweep the band using Max Hold for a minimum of 2 minutes. Record this frequency for measuring the peak emission. In addition record the frequency of other spurious emissions noted. 2) Determine the peak level of the emission: Center Frequency Set to the frequency determined in Step 1 RBW Equal to or greater than 1 MHz VBW Equal to or greater than 1 MHz Detector Function Peak Measure the value of the peak emission using Max Hold for a minimum of 2 minutes. This can be done at zero span or a frequency span where the analyzer does not show a “Measurement Uncalibrated” message. Record the peak value. If the peak measurement is compliant with the average limit an average mea…

Text truncated - open the document above for the full version.
