XRS_R7_R9G_1-5-07.qxd:Layout 1 1/9/07 5:14 PM Page FC1 FOURTH DRAFT Important Information and Customer Assistance Introduction Important Information • Federal Laws Governing the Use of Radar Detectors It is not against federal law to receive radar transmissions with your Cobra ® radar/laser detector. The Communications Act of 1924 guarantees your right to receive radio transmissions on any frequency. Local laws that contravene this Act, while illegal, may be enforced by your local law enforcement officials until and unless they are prohibited from doing so by federal court action. Safety/Strobe Alert Use of this product is not intended to, and does not, ensure that motorists or passengers will not be involved in traffic accidents. It is only intended to alert the motorist that an emergency vehicle equipped with a Cobra Safety Alert, 3M or Tomar strobe transmitter is within range as defined by that product. Please call local fire and police departments to learn if coverage exists in your area. Some states and municipalities prohibit mounting any object on your windshield. If you drive in these states or areas; you can mount the MDU on the dash. Safe Driving Motorists are expected to exercise all due caution while using this product, and to obey all applicable traffic laws. Security of Your Vehicle Before leaving your vehicle, always remember to conceal your Remote Display Unit (RDU) in order to reduce the possibility of break-in and theft. Your Main Detector Unit (MDU) has a two-position bracket that, when in the up position, presents a very discreet profile from outside the vehicle. Customer Assistance • Use your owner’s manual to learn about product features. Cobra Electronics offers the following customer assistance services: For Assistance in the U.S.A. Automated Help Desk, English only. 24 hours a day, 7 days a week 773-889-3087. Customer Assistance Operators, English and Spanish, 8:00 am to 6:00 p.m. Central Time Mon. through Fri. (except holidays) 773-889-3087. Questions, English and Spanish, Fax: 773-622-2269. Technical Assistance,English only, www.cobra.com. English and Spanish e-mail, Product [email protected]. For Assistance Outside the U.S.A. Contact Your Local Dealer ©2007 Cobra Electronics Corporation ™ 6500 West Cortland Street Chicago, Illinois 60707 USA www.cobra.com Customer Assistance A1 English XRS_R7_R9G_1-5-07.qxd:Layout 1 1/9/07 5:14 PM Page A1 FOURTH DRAFT THI S SURF ACE TOW ARDS SKY Controls, Indicators and Connections Introduction A2 English IntelliLink ™ Remote Display Unit (RDU) Full-Color Extreme Bright DataGrafix ™ Display Global Positioning System Locator (GPSL) USB Connector 12-Volt Power Connector MDU Connector Power & Pairing Button Two-Piece, Self-Adhesive Fasteners Main Detector Unit (MDU) Speaker Optional GPSL for Model XRS R7 and Standard on Model XRS R9G GPSL Cable The XRS R7 provides detection capabilities for radar, laser and strobe signals. The XRS R9G has all the features of the XRS R7 plus a GPSL module with alerts when approaching photo-enforced intersections and roads with fixed red light/speed cameras. The XRS R9G can store up to 1,000 additional user programmable Location Alerts. GPSL Connector XRS_R7_R9G_1-5-07.qxd:Layout 1 1/9/07 5:14 PM Page A2 FOURTH DRAFT Introduction Nothing Comes Close to a Cobra ® A3 In This Package 12-Foot Power Cord - Fuse Box 12-Foot Power Cord - Accessory Plug In This Package • USB/USB Mini Retractable Cable RDU Holster and Vent/Visor Clips GPSL Cable (R9G Only) 12V-5V USB Power Adapter MDU Power Cord Clips 20 clips and 20 adhesive squares Two Hoop Loop Strips for Mounting Holster XRS_R7_R9G_1-5-07.qxd:Layout 1 1/9/07 5:14 PM Page A3 FOURTH DRAFT Contents Introduction Nothing Comes Close to a Cobra ® 1 Introduction Important Information . . . . . . . . . .A1 Customer Assistance . . . . . . . . . . .A1 Controls, Indicators and Connections . . . . . . . . . . . . . . . .A2 In This Package . . . . . . . . . . . . . . .A3 Product Overview . . . . . . . . . . . . . . .2 Installation Overview . . . . . . . . . . . .4 Your Detector Installation . . . . . . . . . . . . . . . . . . . .6 Controls and Display . . . . . . . . . . .15 Getting Started . . . . . . . . . . . . . . . .17 EasySet Programming . . . . . . . . . .21 Program Navigation . . . . . . . . . . . .22 Settings . . . . . . . . . . . . . . . . . . . . .24 Detection Alerts . . . . . . . . . . . . . . .29 Radar and Laser . . . . . . . . . . . . . . .32 Maintenance . . . . . . . . . . . . . . . . . .35 Specifications . . . . . . . . . . . . . . . . .36 Warranty Warranty . . . . . . . . . . . . . . . . . . . . .37 User License User License . . . . . . . . . . . . . . . . . .39 Customer Assistance Product Service . . . . . . . . . . . . . . .41 Trademark Acknowledgement . . . .42 Optional Accessories . . . . . . . . . . .43 Accessories Order Info . . . . . . . . . .44 XRS_R7_R9G_1-5-07.qxd:Layout 1 1/9/07 5:14 PM Page 1 FOURTH DRAFT Introduction 2 English Product Overview WARNING Modifications or parts not approved by Cobra Electronics Corporation may violate FCC Rules and void authority to operate this equipment. Cobra XRS R7 and XRS R9G • Read and understand the information in the Installation Overviewand Installationsections of this manual for best operation. The XRS R7 consists of a Main Detector Unit (MDU) and a wireless Remote Display Unit (RDU). The XRS R9G adds a Global Positioning System Locator (GPSL) module, providing fixed red light/speed camera location-based alerts. The XRS R7 can be upgraded with a Cobra GPSL and updated GPSL databases and features purchased later. Main Detector Unit (MDU) The MDU is equipped with an adjustable, two-position bracket for detection operation in the down (horizontal) position or in the up position for a less visible profile from the outside. The MDU issues audible messages during power-on and self-testing. The MDU is also equipped with an alternate power button used to power the unit or as a pairing switch, if the RDU is l…

Text truncated - open the document above for the full version.

Equipment Authorization Division Office of Engineering and Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Extension of Confidentiality Request regarding application for certification of FCC ID: FCC ID: BBOXRSR7-MDU FCC ID: BBOXRSR7-RDU Dear Sirs: We would like to extend the confidentiality period for above mentioned FCC IDs. Pursuant to DA 04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below until the third quarter 2007 (expected sale date). The applicant understands that the exhibits were available since May 5, and May 18, 2007 respectively. The units have not been marketed to date. : XRS –R7 & R9G External Photos XRS –R7 & R9G Internal Photos XRS –R7 & R9G Test Setup Photos XRS –R7 & R9G Users Manual Sincerely, Jeff Sterling, Director of Microwave Engineering

RDU External Photos Top View Back View

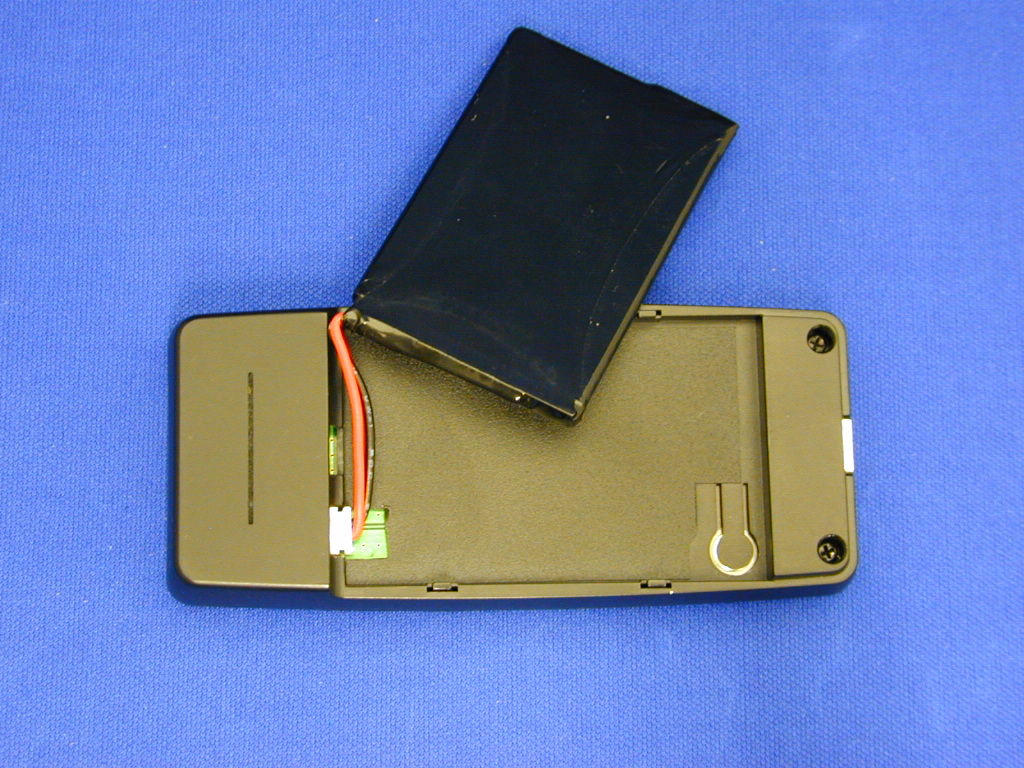

The label will be applied to the RDU behind the battery in the battery compartment. The RDU is a handheld unit no bigger than a cell phone. The space is limited for containing all the label information when there are many contoured surfaces. The label will be readily visible at the time or purchase because the device will marketed with the battery installed. In addition, the batteries are designed for readily removal and whenever the batteries are removed for recharging or replacement the label will be visible.

RDU Internal Photos PCB Top PCB Back

LOW POWER LICENSED-EXEMPT DEVICE PER PART 15.249 TEST REPORT APPLICANT COBRA ELECTRONICS CORPORATION ADDRESS 6500 WEST CORTLAND STREET CHICAGO, IL 60707 USA PROPOSED FCC ID BBOXRSR7-RDU MODEL NUMBER XRSR7-RDU PRODUCT DESCRIPTION RF Link DATE SAMPLE RECEIVED March 1, 2007 DATE TESTED March 2, 2007 TESTED BY Richard Block APPROVED BY Mario de Aranzeta C.E.T. TIMCO REPORT NO 309BUT7TestReport.PDF TEST RESULTS PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA PH: 888.472.2424 OR 352.472.5500 FAX: 352.472.2030 EMAIL: [email protected] HTTP://WWW.TIMCOENGR.COM Certificate # 0955-01 TABLE OF CONTENTS STATEMENT OF COMPLIANCE.................................................................................. 3 REPORT SUMMARY................................................................................................... 4 TEST ENVIRONMENT................................................................................................ 4 TEST SETUP............................................................................................................. 4 DUT DESCRIPTION................................................................................................... 5 EMC EQUIPMENT LIST............................................................................................. 6 TEST PROCEDURES................................................................................................. 7 POWER LINE CONDUCTED INTERFERENCE............................................................. 8 OCCUPIED BANDWIDTH........................................................................................... 9 FIELD STRENGTH OF SPURIOUS EMISSIONS......................................................... 10 APPLICANT: Cobra Electronics Corporation FCC ID: BBOXRSR7-RDU REPORT: W:\C\COBRA\309BUT7\309BUT7TestReport.doc Page 2 of 13 STATEMENT OF COMPLIANCE This equipment has been tested in accordance with the standards identified in the referenced test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report and demonstrate that the equipment complies with the appropriate standards. All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025 requirements. I attest that the necessary measurements were made by me or under my supervision, at Timco Engineering, Inc. located at 849 N.W. State Road 45, Newberry, Florida 32669 USA. Certificate #0955-01 Authorized by: Mario de Aranzeta Signature: On File Function: Engineer Date: March 7, 2007 Tested By: Richard Block Date: March 5, 2007 APPLICANT: Cobra Electronics Corporation mdea 09.07.2006 FCC ID: BBOXRSR7-RDU REPORT: W:\C\COBRA\309BUT7\309BUT7TestReport.doc Page 3 of 13 REPORT SUMMARY Disclaimer: The test results relate only to the items tested. Purpose of Test: To show the DUT in compliant with FCC Part 15.249 requirements for a 2.4 GHz low power radio. Applicable Standards: ANSI C63.4: 2003, Pt 15.249 Related Report/Approvals: Digital interface portion per Pt 15 Subpart B is verified. TEST ENVIRONMENT Test Facilities: All measurements were made at one or more of the test sites of TIMCO ENGINEERING INC. located at 849 N.W. State Road 45, Newberry, FL 32669. Laboratory Test Conditions: Temperature: 26°C, Humidity: 55% TEST SETUP Test Exercise (software, etc.): The DUT was set in continuous transmit mode of operation. Deviation to the Standards: No deviation. Modification to the DUT: No modification Supporting Equipment: Not applicable APPLICANT: Cobra Electronics Corporation mdea 09.07.2006 FCC ID: BBOXRSR7-RDU REPORT: W:\C\COBRA\309BUT7\309BUT7TestReport.doc Page 4 of 13 DUT DESCRIPTION Description of Certified System: The system is a handheld transceiver. Product Description: RF Link FCC ID: BBOXRSR7-RDU Model Number: XRSR7-RDU Brand Name: Cobra Operating Frequency: 2.4 GHz Number of Channels: 16 Occupied Bandwidth: 900 kHz Max. Output Pwr: Low Power Licensed-Exempt Device Type of Modulation: FHSS EUT Power Source: Battery Operated Exclusively Test Item: Pre-production Type of Equipment: Portable Antennas: Permanently attached per Pt 15.203 Antenna Connector: None APPLICANT: Cobra Electronics Corporation mdea 09.07.2006 FCC ID: BBOXRSR7-RDU REPORT: W:\C\COBRA\309BUT7\309BUT7TestReport.doc Page 5 of 13 EMC EQUIPMENT LIST Device Manufacturer Model Serial Number Cal/Char Date Due Date 3/10-Meter OATS TEI N/A N/A Listed 3/27/04 3/26/07 3-Meter OATS TEI N/A N/A Listed 1/11/06 1/10/09 Biconnical Antenna Eaton 94455-1 1057 CAL 12/12/05 12/12/07 Biconnical Antenna Electro- Metrics BIA-25 1171 CAL 4/29/05 4/29/07 Analyzer Tan Tower Quasi- Peak Adapter HP 85650A 3303a01690 CAL 12/8/05 12/8/07 Analyzer Tan Tower RF Preselector HP 85685A 3221A01400 CAL 12/7/05 12/7/07 Analyzer Tan Tower Spectrum Analyzer HP 8566B OPT 462 3188A07786 3144A20661 CAL 12/7/05 12/7/07 Analyzer Tan Tower Preamplifier HP 8449B-H02 3008A00372 CAL 12/8/05 12/8/07 LISN Electro- Metrics EM-7820 2682 CAL 4/28/05 4/28/07 Log-Periodic Antenna Eaton 96005 1243 CAL 12/14/05 12/14/07 APPLICANT: Cobra Electronics Corporation mdea 09.07.2006 FCC ID: BBOXRSR7-RDU REPORT: W:\C\COBRA\309BUT7\309BUT7TestReport.doc Page 6 of 13 APPLICANT: Cobra Electronics Corporation mdea 09.07.2006 FCC ID: BBOXRSR7-RDU REPORT: W:\C\COBRA\309BUT7\309BUT7TestReport.doc Page 7 of 13 TEST PROCEDURES Power Line Conducted Interference: The procedure used was ANSI C63.4-2003 using a 50uH LISN. The resolution bandwidth of the spectrum analyzer was 10 kHz with an appropriate sweep speed. Occupied Bandwidth: A small sample of the transmitter output was fed into the spectrum analyzer and the attached plot was printed. The vertical scale is set to -10 dBm per division. Radiation Interference: The test procedure used was ANSI C63.4-2003 using an Agilent spectrum…
