BBP-G800SEWireless LAN module

User Manual Since this module is not sold to general end users directly, there is no user manual of module. For the details about this module, please refer to the specification sheet of module. This module should be installed in the host device according to the interface specification (installation procedure). The following information must be indicated on the host device of this module; [for FCC] Contains Transmitter Module FCC ID: BBP-G800SE or Contains FCC ID: BBP-G800SE This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. *If it is difficult to describe this statement on the host product due to the size, please describe in the User's manual. [for IC] Contains Transmitter Module IC: 144D-G800SE or Contains IC: 144D-G800SE The following statements must be described on the user manual of the host device of this module; [for FCC] FCC CAUTION Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. The available scientific evidence does not show that any health problems are associated with using low power wireless devices. There is no proof, however, that these low power wireless devices are absolutely safe. Low power Wireless devices emit low levels of radio frequency energy (RF) in the microwave range while being used. Whereas high levels of RF can produce health effects (by heating tissue), exposure of low-level RF that does not produce heating effects causes no known adverse health effects. Many studies of low-level RF exposures have not found any biological effects. Some studies have suggested that some biological effects might occur, but such findings have not been confirmed by additional research. Wireless LAN Module (R-W092) has been tested and found to comply with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines. [for IC] This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment and meets RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that are deemed to comply without testing of specific absorption ratio (SAR). Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées pour un environnement non contrôlé et respecte les règles d’exposition aux fréquences radioélectriques (RF) CNR-102 de l’IC. Cet équipement émet une énergie RF très faible qui est considérée conforme sans évaluation du débit d’absorption spécifique (DAS).

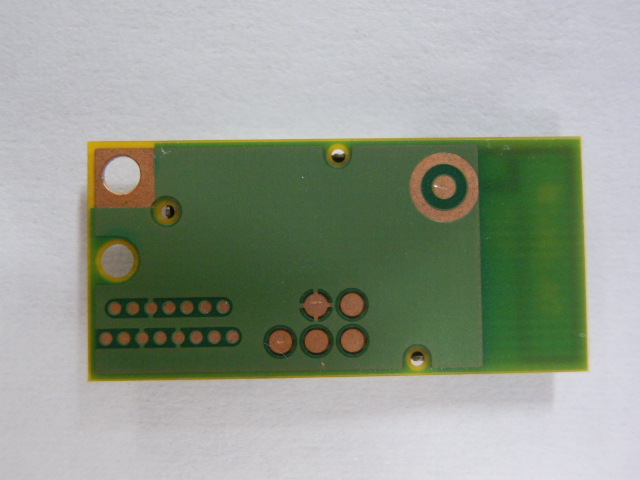

External Photo Top with Shield Bottom

㻌 㻸㼍㼎㼑㼘㻌㻸㼛㼏㼍㼠㼕㼛㼚㻌 㻌 㻌 㻌 㻌 㻌㼀㼛㼜㻌 㻌 㻌 㻌 㻌 㻌㻮㼛㼠㼠㼛㼙㻌 㻌 㻌 㻌 㻌 㻌 㻌 㻌 㻌

R-W092 内観写真 R-W092 Interior View

Test report No. : 10391030H-C Page : 2 of 54 FCC ID : BBP-G800SE Issued date : August 20, 2014 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8999 Facsimile: +81 596 24 8124 REVISION HISTORY Original Test Report No.: 10391030H-C Revision Test report No. Date Page revisedContents - (Original) 10391030H-C August 20, 2014 - - Test report No. : 10391030H-C Page : 3 of 54 FCC ID : BBP-G800SE Issued date : August 20, 2014 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8999 Facsimile: +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information .................................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ...................................................................................... 4 2.1 Identification of E.U.T. ....................................................................................................................................... 4 2.2 Product description ............................................................................................................................................. 5 SECTION 3 : Test standard information ............................................................................................ 6 3.1 Test Specification ............................................................................................................................................... 6 3.2 Procedure ............................................................................................................................................................ 6 3.3 Exposure limit .................................................................................................................................................... 7 3.4 Test Location ...................................................................................................................................................... 7 SECTION 4 : Test result ....................................................................................................................... 8 4.1 Stand-alone SAR result....................................................................................................................................... 8 SECTION 5 : Description of the operating mode ............................................................................... 9 5.1 Output power operating modes ........................................................................................................................... 9 5.2 Output power measurement results ..................................................................................................................... 10 5.3 SAR testing operating modes ............................................................................................................................. 12 5.4 Confirmation after SAR testing .......................................................................................................................... 14 SECTION 6 SAR test exclusion considerations .................................................................................. 15 6.1 Standalone SAR test exclusion considerations ................................................................................................... 15 SECTION 7: Description of the Body setup ........................................................................................ 17 7.1 Test position for Body setup ............................................................................................................................... 17 SECTION 8 : Test surrounding ........................................................................................................... 18 8.1 Measurement uncertainty ................................................................................................................................... 18 SECTION 9 : Measurement results ..................................................................................................... 19 9.1 WLAN Body SAR (2.4G) .................................................................................................................................. 19 SECTION 10 Test instruments ............................................................................................................. 21 APPENDIX 1 : SAR Measurement data ............................................................................................. 22 1. Evaluation procedure ................................................................................................................................. 22 2. Measurement data ...................................................................................................................................... 23 i) WLAN Body 2.4GHz Band ....................................................................................................... 23 APPENDIX2 : System Check ............................................................................................................... 24 1. System check result Body 2450MHz ......................................................................................................... 24 2. System Check Dipole (D2450V2,S/N:713) ............................................................................................... 27 3. System check uncertainty .......................................................................................................................... 35 APPENDIX 3 : System specifications .................................................................................................. 36 1. Configuration and peripherals .................................................................................................................... 36 2. Specifications ....................................................................................................…

Text truncated - open the document above for the full version.

Test report No. : 10391030H-C Page : 52 of 54 FCC ID : BBP-G800SE Issued date : August 20, 2014 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8999 Facsimile: +81 596 24 8124 APPENDIX 4: Photographs of test setup 1. Photographs of host device Front Rear Left Right Top Bottom Test report No. : 10391030H-C Page : 53 of 54 FCC ID : BBP-G800SE Issued date : August 20, 2014 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8999 Facsimile: +81 596 24 8124 2. Antenna position WLAN antenna WLAN antenna 4.45mm (Shortest distance) Front tilt position Test report No. : 10391030H-C Page : 54 of 54 FCC ID : BBP-G800SE Issued date : August 20, 2014 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8999 Facsimile: +81 596 24 8124 3. Photographs of setup Front tilt End of Report

Test report No. : 10391030H-A-R1 Page : 2 of 56 Issued date : July 31, 2014 Revised date : September 2, 2014 FCC ID : BBP-G800SE UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 REVISION HISTORY Original Test Report No.: 10391030H-A Revision Test report No. Date Page revised Contents - (Original) 10391030H-A July 31, 2014 - - 1 10391030H-A-R1 September 2, 2014 P. 12 Correction of remarks *4). Test report No. : 10391030H-A-R1 Page : 3 of 56 Issued date : July 31, 2014 Revised date : September 2, 2014 FCC ID : BBP-G800SE UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ......................................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ........................................................................................... 4 SECTION 3: Test specification, procedures & results ............................................................................ 5 SECTION 4: Operation of E.U.T. during testing .................................................................................... 8 SECTION 5: Conducted Emission .......................................................................................................... 10 SECTION 6: Radiated Spurious Emission ............................................................................................ 11 SECTION 7: Antenna Terminal Conducted Tests ................................................................................ 12 APPENDIX 1: Data of EMI test .............................................................................................................. 13 Conducted Emission ......................................................................................................................... 13 6dB Bandwidth ................................................................................................................................. 14 Maximum Peak Output Power .......................................................................................................... 17 Average Output Power ...................................................................................................................... 20 Radiated Spurious Emission ............................................................................................................. 21 Conducted Spurious Emission .......................................................................................................... 28 Conducted Emission Band Edge compliance ................................................................................... 46 Power Density ................................................................................................................................... 47 99% Occupied Bandwidth ................................................................................................................ 51 APPENDIX 2: Test instruments ............................................................................................................. 53 APPENDIX 3: Photographs of test setup ............................................................................................... 54 Conducted Emission ......................................................................................................................... 54 Radiated Spurious Emission ............................................................................................................. 55 Worst Case Position (Horizontal: X-axis/ Vertical:Y-axis) .............................................................. 56 Test report No. : 10391030H-A-R1 Page : 4 of 56 Issued date : July 31, 2014 Revised date : September 2, 2014 FCC ID : BBP-G800SE UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : Ricoh Company, Ltd. Address : 3-2-3, Shin-yokohama, Kohoku-ku, Yokohama-shi, 222-8530, Japan Telephone Number : +81-45-474-7517 Facsimile Number : +81-45-477-2799 Contact Person : Koji Oka *Remarks: Ricoh Company Ltd. designates MITSUMI ELECTRIC CO., LTD as manufacturer of the product (Wireless LAN module). SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Wireless LAN module Model No. : R-W092 Serial No. : Refer to Section 4, Clause 4.2 Rating : DC 3.3V Receipt Date of Sample : September 17, 2012 Country of Mass-production : Philippines Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description General Specification Clock frequency(ies) in the system : 26MHz Radio Specification of WLAN (IEEE802.11b/g/n) Radio Type : Transceiver Frequency of Operation : 2412-2462MHz Modulation : DSSS and OFDM Power Supply (radio part input) : DC3.3V (Digital part), DC1.6V (RF Core), DC1.2V (Digital part) Antenna type : 2.4GHz Pattern Antenna Antenna Gain : 0.41dBi Test report No. : 10391030H-A-R1 Page : 5 of 56 Issued date : July 31, 2014 Revised date : September 2, 2014 FCC ID : BBP-G800SE UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C: 2014, final revised on May 1, 2014 and effective June 2, 2014 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.247 Operation within the bands 902-928MHz, 2400-2483.5MHz, and 5725-5850MHz * The revision on May 1, 2014 does not affect the test specification applied to the EUT. 3.2 Procedures and results Item…

Text truncated - open the document above for the full version.

Test report No. : 10391030H-A-R1 Page : 54 of 56 Issued date : July 31, 2014 Revised date : September 2, 2014 FCC ID : BBP-G800SE UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Conducted Emission Photo 1 Photo 2 Test report No. : 10391030H-A-R1 Page : 55 of 56 Issued date : July 31, 2014 Revised date : September 2, 2014 FCC ID : BBP-G800SE UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Radiated Spurious Emission Photo 1 Photo 2 Test report No. : 10391030H-A-R1 Page : 56 of 56 Issued date : July 31, 2014 Revised date : September 2, 2014 FCC ID : BBP-G800SE UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Worst Case Position (Horizontal: X-axis/ Vertical:Y-axis) X-axis Y-axis Z-axis End of Report
