BBP-MFMP301SPF1Multifunction Digital Product

Notes to USA Users of FCC Requirements Part 15 of the FCC Rules Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio /TV technician for help. Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Caution: When using the optional Gigabit Ethernet board, properly shield twisted pair cable (STP cable) must be used for connections to a host computer (and/or peripheral) in order to meet FCC emission limits. Caution: An Modular cable with ferrite core must be used for RF interference suppression. Part 68 of the FCC Rules regarding Facsimile Unit 1. This equipment complies with Part 68 of the FCC rules and requirements adopted by the ACTA. On the cover of this equipment is a label that contains, among other information, a product identifier in the format US:AAAEQ##TXXXXX. If requested, this number must be provided to the telephone company. 2. This equipment uses the RJ11C USOC jack. Notes to USA Users of FCC Requirements 31

TABLE OF CONTENTS Introduction.........................................................................................................................................................3 How to Read the Manuals.................................................................................................................................4 Symbols Used in the Manuals.......................................................................................................................4 Disclaimer........................................................................................................................................................4 Notes...............................................................................................................................................................4 Machine Types...............................................................................................................................................5 1. Manuals Provided with This Machine Manuals for This Machine.................................................................................................................................7 Manuals List......................................................................................................................................................10 On-screen Operating Instructions...................................................................................................................11 Formats of the Operating Instructions.........................................................................................................11 Reading the HTML Manuals on the CD-ROM..........................................................................................11 Installing and Opening the HTML Manuals..............................................................................................12 Reading the PDF Manuals on the CD-ROM..............................................................................................13 2. Safety Information Safety During Operation.................................................................................................................................15 Safety Precautions to Be Followed.................................................................................................................16 Environments where the machine can be used..........................................................................................16 Handling power cords and power cord plugs..........................................................................................17 Handling the main machine........................................................................................................................19 Handling the machine's interior..................................................................................................................21 Handling the machine's supplies................................................................................................................22 Safety Labels of This Machine.........................................................................................................................24 Positions of WARNING and CAUTION labels.........................................................................................24 Power Switch Symbols.................................................................................................................................27 3. Information for This Machine Duplication and Printing Prohibited................................................................................................................29 Laser Safety.......................................................................................................................................................30 Notes to USA Users of FCC Requirements.....................................................................................................31 Part 15 of the FCC Rules.............................................................................................................................31 Part 68 of the FCC Rules regarding Facsimile Unit...................................................................................31 Important Safety Instructions for Facsimile Unit.............................................................................................34 IMPORTANTES MESURES DE SÉCURITÉ de l'unité Fax..........................................................................34 1 Notes to Canadian Users of Facsimile Unit...................................................................................................35 Remarques à l'attention des utilisateurs canadiens de l'unité Fax............................................................35 ENERGY STAR Program..................................................................................................................................36 Energy Saving Functions..................................................................................................................................37 Notes to users in the state of California (Notes to Users in USA)................................................................38 4. Appendix Trademarks.......................................................................................................................................................39 2 Introduction Read this manual carefully before you use this machine and keep it handy for future reference. For safe and correct use, be sure to read the Safety Information in this manual before using the machine. 3 How to Read the Manuals Symbols Used in the Manuals This manual uses the following symbols: Indicates points to pay attention to when using the machine, and explanations of likely causes of paper misfeeds, damage to originals, or loss of data. Be sure to read these explanations. Indicates supplementary explanations of the machine's functions, an…

Text truncated - open the document above for the full version.

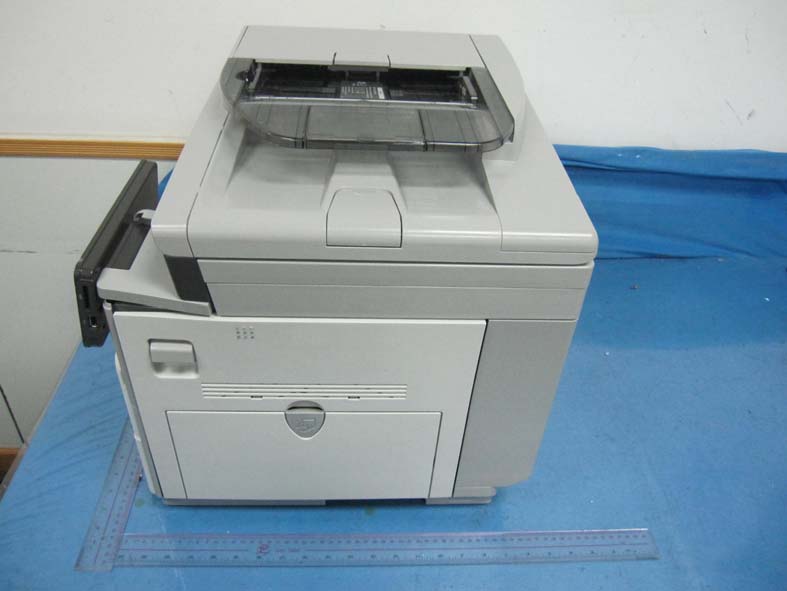

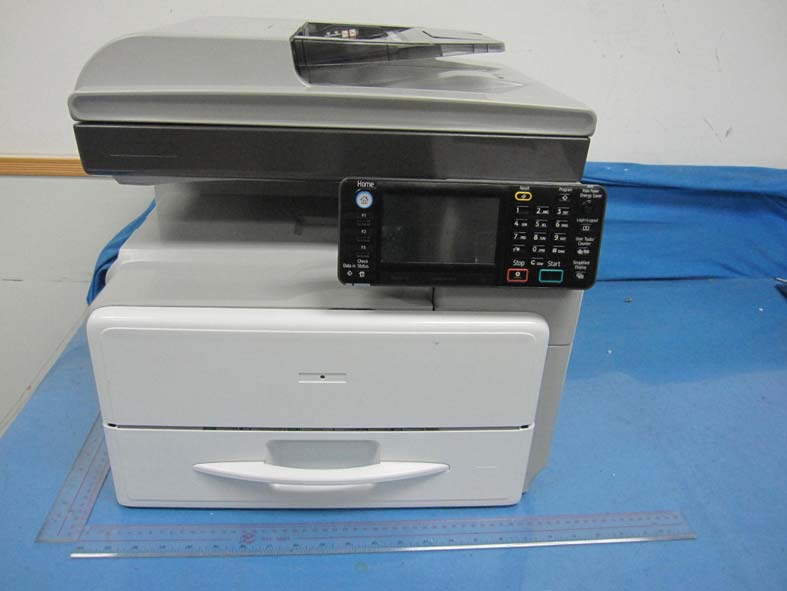

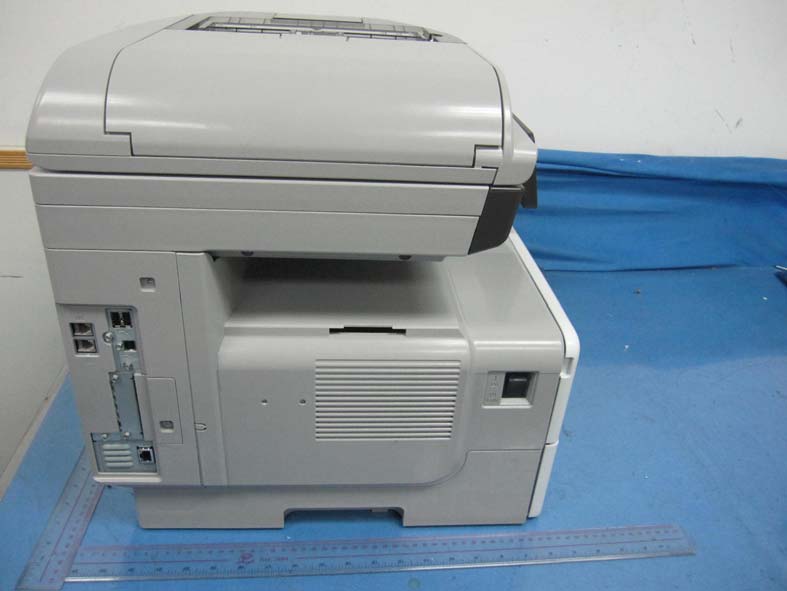

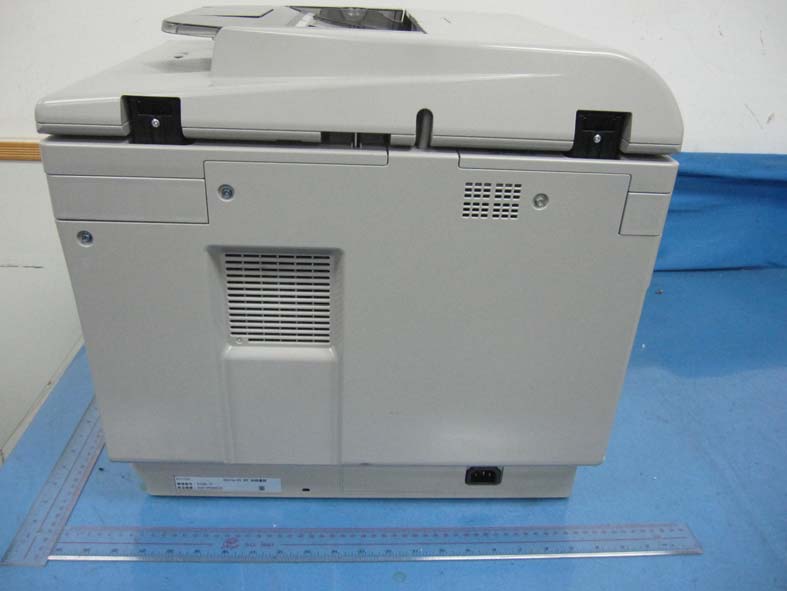

External photos of the EUT

MP 301SPF/Aficio MP 301SPF MP 301SP/Aficio MP 301SP

Internal photos of the EUT

TEST REPORT 47 CFR FCC Part 15 Subpart B (Class B) Radio Frequency Devices – Unintentional Radiators – Limits and methods of measurement ANSI C63.4: 2009 American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz Report Reference No......................: TRE11110005 FCC ID..............................................: BBP-MFMP301SPF1 Compiled by ( position+printed name+signature)..: File administrators Tim Zhang Supervised by ( position+printed name+signature)..: Test Engineer Eric Zhang Approved by ( position+printed name+signature)..: Manager Wenliang Li Date of issue.....................................: Nov 11, 2011 Testing Laboratory Name..............: Shenzhen Huatongwei International Inspection Co., Ltd Address ............................................: Keji Nan No.12 Road, Hi-tech Park, Shenzhen, China Testing location/ procedure ..............: Full application of Harmonised standards Partial application of Harmonised standards Other standard testing methods Applicant’s name............................: Ricoh Company Ltd Address ............................................: 810, Shimoimaizum, Ebina-Shi, Kanagawa-ken, 243-0460 Japan Test specification: Standard ...........................................: 47 CFR FCC Part 15 Subpart B (Class B) ANSI C63.4: 2009 Non-standard test method..............: / Test Report Form No......................: HTWEMCFCC_1A TRF Originator..................................: Shenzhen Huatongwei International Inspection Co., Ltd Master TRF.......................................: Dated 2006-06 Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: Multifunction Digital Product(Copier/Printer/Scanner/Fax) Trade Mark .......................................: / Manufacturer ....................................: Shanghai Ricoh Digital Equipment Co., Ltd． Model/Type reference.......................: MP 301SP/Aficio MP 301SP, MP 301SPF/Aficio MP 301SPF Listed Model..... ...............................: / Ratings .............................................: 120V 60Hz 9A 1100W Result................................................: Positive V1.0 Page 2 of 89 Report No.: TRE11110005 FCC ID: BBP-MFMP301SPF1 Shenzhen Huatongwei International Inspection Co., Ltd EMC -- T E S T R E P O R T Test Report No. : TRE11110005 Nov 11, 2011 ______________________________________________________________________________________________ Date of issue Equipment under Test : Multifunction Digital Product(Copier/Printer/Scanner/Fax) Model / Type : MP 301SP/Aficio MP 301SP, MP 301SPF/Aficio MP 301SPF Listed Model : / Applicant : Ricoh Company Ltd Address : 810, Shimoimaizum, Ebina-Shi, Kanagawa-ken, 243-0460 Japan Manufacturer : Shanghai Ricoh Digital Equipment Co., Ltd． Address : No. 887 Jingang Road, Pudong New Area, 201206 Shanghai, PEOPLE'S REPUBLIC OF CHINA Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 89 Report No.: TRE11110005 FCC ID: BBP-MFMP301SPF1 Shenzhen Huatongwei International Inspection Co., Ltd Contents 1. TEST STANDARDS .................................................................... 4 2. SUMMARY............................................................................... 4 2.1. General Remarks: 4 2.2. Equipment under Test 4 2.3. Short description of the Equipment under Test (EUT) 4 2.4. EUT operation mode 4 2.5. EUT configuration 5 3. TEST ENVIRONMENT ................................................................ 12 3.1. Address of the test laboratory 12 3.2. Test Facility 12 3.3. Environmental conditions 13 3.4. Test Description 13 3.5. Statement of the measurement uncertainty 13 3.6. Equipments Used during the Test 14 4. TEST CONDITIONS AND RESULTS .............................................. 15 4.1. Radiated Emission 15 4.2. Conducted Disturbance 50 5. EXTERNAL AND INTERNAL PHOTOS OF THE EUT ......................... 70 5.1. External photos of the EUT 70 5.2. Internal photos of the EUT 73 V1.0 Page 4 of 89 Report No.: TRE11110005 FCC ID: BBP-MFMP301SPF1 Shenzhen Huatongwei International Inspection Co., Ltd 1. TEST STANDARDS The tests were performed according to following standards: 47 CFR FCC Part 15 Subpart B (Class B) Radio Frequency Devices – Unintentional Radiators – Limits and methods of measurement. ANSI C63.4: 2009 American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. 2. SUMMARY 2.1. General Remarks: Date of receipt of test sample : Nov 06, 2011 Testing commenced on : Nov 06, 2011 Testing concluded on : Nov 11, 2011 2.2. Equipment under Test Power supply system utilised Power supply voltage : o 230V / 50 Hz o 115V / 60Hz o 12 V DC o 24 V DC „ Other (specified in blank below) AC 120V/60Hz 2.3. Short description of the Equipment under Test (EUT) The EUT is a Multifunction Digital Product (Copier/Printer/Scanner/Fax) Model Difference: Unless otherwise indicated, all tests were conducted on Model TypeA. Tests performed on Model TypeA were considered to be representative of Model TypeB. The differences between the models are as follows. RICOH’s Models Note TypeB: MP 301SP/Aficio MP 301SP Copy + Print , Scan TypeA: MP 301SPF/Aficio MP 301…

Text truncated - open the document above for the full version.

Test Setup Photos of the EUT
