BBP-MFSP3510SF1Multifunction Digital Product

1 Model No. Information Introduction This manual contains detailed instructions and notes on the operation and use of this machine. For your safety and benefit, read this manual carefully before using the machine. Keep this manual in a handy place for quick reference. Important Contents of this manual are subject to change without prior notice. In no event will the company be liable for direct, indirect, special, incidental, or consequen- tial damages as a result of handling or operating the machine. -Note Some illustrations in this manual might be slightly different from the machine. Certain options might not be available in some countries. For details, please contact your local dealer. Depending on which country you are in, certain units may be optional. For details, please contact your local dealer. Caution Use of controls or adjustments or performance of procedures other than those specified in this manual might result in hazardous radiation exposure. For good print quality, the manufacturer recommends that you use genuine toner from the manufacturer. The manufacturer shall not be responsible for any damage or expense that might result from the use of parts other than genuine parts from the manufac- turer with your office products. 2 Notes The model names of the machines do not appear in the following pages. Check the type of your machine before reading this manual. (For details, see "Model- Specific Information", User Guide in the manuals CD-ROM.) Model typeModel nameType of ADF Type 1SP 3500SFADF Type 2SP 3510SFARDF Certain types might not be available in some countries. Two kinds of size notation are employed in this manual. With this machine refer to the inch version. Power Source 120 V, 10 A, 60 Hz Please be sure to connect the power cable to a power source as above. 3 Laws and Regulations Legal Prohibition Do not copy or print any item for which reproduction is prohibited by law. Copying or printing the following items is generally prohibited by local law: bank notes, revenue stamps, bonds, stock certificates, bank drafts, checks, pass- ports, driver's licenses. The preceding list is meant as a guide only and is not inclusive. We assume no responsibility for its completeness or accuracy. If you have any questions concerning the legality of copying or printing certain items, consult with your legal advisor. This machine is equipped with a function that prevents making counterfeit bank bills. Due to this function the original images similar to bank bills may not be copied properly. Laser Safety CDRH Regulations This equipment complies with requirements of 21 CFR subchapter J for class I laser products. This equipment contains four AlGaAs laser diodes, 6.2-mil- liwatts, 770-795 nanometer wavelength for each emitter. The beam divergence angle is 25 degrees (minimum) and 38 degrees (maximum) in the vertical direc- tion, and 8 degrees (minimum) and 14 degrees (maximum) in the horizontal direction, and laser beams are generated in Continuous Wave (CW) mode. Caution: Use of controls or adjustments or performance of procedures other than those specified in this manual might result in hazardous radiation exposure. 4 Safety During Operation In this manual, the following important symbols are used: WARNING: R Indicates a potentially hazardous situation which, if instructions are not followed, could result in death or serious injury. CAUTION: R Indicates a potentially hazardous situation which, if instructions are not followed, may result in minor or moderate injury or damage to property. Environments Where the Machine Can be Used WARNING: R Do not use flammable sprays or solvents in the vicinity of this ma-• chine. Doing so could result in fire or electric shock. Do not place vases, plant pots, cups, toiletries, medicines, small metal • objects, or containers holding water or any other liquids, on or close to this machine. Fire or electric shock could result from spillage or if such objects or substances fall inside this machine. CAUTION: R Keep the machine away from humidity and dust. Otherwise a fire or an • electric shock might occur. Do not place the machine on an unstable or tilted surface. If it topples over, • an injury might occur. Do not place heavy objects on the machine. Doing so can cause the ma-• chine to topple over, possibly resulting in injury. Keep the machine in an area that is within optimum environmental condi-• tions. Operating the machine in an environment that is outside the recom- mended ranges of humidity and temperature can cause an electrical fire hazard. Keep the area around the socket free of dust. Accumulated dust can become an electrical fire hazard. Make sure the room where you are using the machine is well ventilated • and spacious. Good ventilation is especially important when the machine is used heavily. 5 Do not obstruct the machine's vents. Doing so risks fire caused by over-• heated internal components. Machine sound levels exceeding [Sound Power Level (Black and White)] > • 63 dB(A) are not suitable for desk work environments, so place the ma- chine in another room. Keep the machine away from salt-bearing air and corrosive gases. Also, do • not install the machine in places where chemical reactions are likely (labo- ratories, etc.), as doing so will cause the machine to malfunction. Handling Power Cords and Power Plugs WARNING: R Do not use any power sources other than those that match the speci-• fications shown in this manual. Doing so could result in fire or electric shock. Do not use any frequencies other than those that match the specifica-• tions shown. Doing so could result in fire or electric shock. Do not use multi-socket adaptors. Doing so could result in fire or • electric shock. Do not use extension cords. Doing so could result in fire or electric • shock. Do not use power cords that are damaged, broken, or modified. Also, • do not use power cords that have been trapped under heavy objects, pulled hard, or bent severely. Doing so could res…

Text truncated - open the document above for the full version.

Operating Instructions User Guide For safe and correct use, be sure to read "Safety Information" before using the machine. TABLE OF CONTENTS 1. Guide to the Machine Introduction.......................................................................................................................................................11 Manuals for This Machine...............................................................................................................................12 Notice................................................................................................................................................................13 Important......................................................................................................................................................13 How to Read This Manual...............................................................................................................................14 Symbols........................................................................................................................................................14 Names of Major Items.................................................................................................................................14 Notes............................................................................................................................................................14 About IP Address.........................................................................................................................................15 Laws and Regulations......................................................................................................................................16 Legal Prohibition..........................................................................................................................................16 Model-Specific Information.............................................................................................................................17 List of Option.....................................................................................................................................................19 Using Manuals.................................................................................................................................................20 Installing Manuals on Your Computer.......................................................................................................20 Opening Manuals.......................................................................................................................................21 Removing Manuals from Your Computer..................................................................................................22 Feature Highlights............................................................................................................................................23 Using the Machine as a Printer...................................................................................................................23 Using the Machine as a Copier..................................................................................................................25 Using the Machine as a Scanner...............................................................................................................28 Using the Machine as a Fax Machine.......................................................................................................32 Guide to Components......................................................................................................................................35 Exterior: Front View (Type 2 model)...........................................................................................................35 Exterior: Front View (Type 1 model)...........................................................................................................36 Exterior: Rear View......................................................................................................................................37 Interior...........................................................................................................................................................38 Control Panel................................................................................................................................................38 2. Getting Started Installing the Machine......................................................................................................................................43 Where to Put the Machine..........................................................................................................................43 Unpacking....................................................................................................................................................46 1 Turning the Power on...................................................................................................................................55 Initial Setup...................................................................................................................................................58 Changing Operation Modes......................................................................................................................59 Saving Energy..............................................................................................................................................60 Multi-access.................................................................................................................................................61 Connecting the Machine.................................................................................................................................66 Connecting with a Computer Using a USB Cable.....................................…

Text truncated - open the document above for the full version.

3. Click the [Specify Destination] tab, and then click [Edit Cover Sheet]. 4. Configure settings as necessary, and then click [OK]. • For details about settings, see p.237 "Settings you can configure for the fax cover sheets". Settings you can configure for the fax cover sheets This section describes the settings you can configure for the fax cover sheets. CES253 3 8 7 6 12 4 5 1. Attach a Cover Sheet Check this to send a fax with a cover sheet. 2. From Enter the sender information. Items left blank will not appear on the cover sheet. • Company: Enter your company name. Can contain up to 64 characters. • Department: Enter your department name. Can contain up to 64 characters. • Name: Enter your name. Can contain up to 64 characters. • Phone: Enter your telephone number. Can contain up to 64 characters. Using the Fax Function from a Computer (LAN-Fax) rinmei-mf2_com_user_guide_gb_00059769_eng.xml237 6 • FAX: Enter your fax number. Can contain up to 64 characters. 3. Import Bitmap Specify a bitmap image you want to show on the cover sheet. The image will be shown in the position as follows: Left=180, Right=800, Top=50, Bottom=180 (pixel). If the image is larger than this area, excess part is trimmed. 4. User Template Select the template for the cover sheet. There are three templates. 5. Buttons • Preview... Click to preview the cover sheet before sending the fax. • Clear All Click to clear all information you entered. • OK Click to finish editing the fax cover sheet. • Cancel Click to discard the fax cover sheet. 6. Comment Enter a comment for the fax. Can contain up to 256 characters. 7. Subject Enter the subject of the fax. Can contain up to 64 characters. 8. To Enter the destination information. Items left blank will not appear on the cover sheet. • Company: Enter the destination company name. Can contain up to 64 characters. • Department: Enter the destination department name. Can contain up to 64 characters. • Name: Enter the destination name. Can contain up to 64 characters. Configuring Transmission Settings This section describes how to configure transmission settings in the LAN-Fax driver's properties. Properties are set separately for each application. 1. On the [File] menu, click [Print...]. 6. Using the Fax Function 238rinmei-mf2_com_user_guide_gb_00059769_eng.xml 6 2. Select the LAN-Fax driver as the printer, and then click a button such as [Preferences] or [Properties] to open the driver's properties. LAN-Fax driver properties dialog box appears. 3. Click the [Setup] tab. 4. Configure settings as necessary, and then click [OK]. • For details about settings, see p.239 "Settings you can configure in the LAN-Fax driver's properties". Settings you can configure in the LAN-Fax driver's properties This section describes the settings you can configure in the LAN-Fax driver's properties. CES193 1 2 3 4 56 1. Paper Size Specifies the paper size. • Document Size Specifies the paper size of the document you are sending. If a paper size is specified in the application, that paper size will be used. Otherwise, the paper size specified here will be used. • Sending Size: Displays the actual paper size of the fax that is sent. The actual size of the fax will be A4, if the size of the document being faxed is A3, B4, or smaller than A4. A3/B4 documents will be reduced to sending size automatically. Using the Fax Function from a Computer (LAN-Fax) rinmei-mf2_com_user_guide_gb_00059769_eng.xml239 6 2. Orientation Specifies the page orientation. 3. Resolution Specifies the resolution. • Standard Select this for a document with normal-sized characters. • Fine Select this for a document with small print. • Photo Select this for a document with images such as photographs or shaded drawings. 4. User Code If sending faxes via LAN-Fax is restricted, select this check box and enter a user code before sending a fax. 5. About... Displays the version of the LAN-Fax driver. 6. Restore Defaults Restores the settings to their factory defaults. • The settings configured here are applicable for the current application only. 6. Using the Fax Function 240rinmei-mf2_com_user_guide_gb_00059769_eng.xml 6 Receiving a Fax This section describes fax reception functions. • When receiving an important fax, we recommend you confirm the contents of the received fax with the sender. • The machine may not be able to receive faxes when the amount of free memory space is low. • An external telephone is required to use this machine as a telephone. • Only A4, Letter, or Legal size paper can be used for printing faxes. • For details about connecting an external telephone with this machine, see p.68 "Connecting to a Telephone Line". Selecting Reception Mode This section describes how to select the reception mode. The reception modes are as follows: When using the machine only as a fax machine Select the following mode when no external telephone or telephone answering device is connected: • Fax Only mode (auto reception) In this mode, the machine is used only as a fax machine and receives faxes automatically. When using the machine with an external device Select one of the following modes when an external telephone or telephone answering device is connected: • FAX/TEL Manual mode (manual reception) In this mode, you must answer calls with an external telephone. If a call is a fax call, you have to start the fax reception manually. • Fax Only mode (auto reception) In this mode, the machine automatically answers all incoming calls in fax reception mode. • FAX/TEL Automatic mode (auto reception) In this mode, you can answer phone calls with an external telephone and receive faxes automatically. • FAX/TAD mode (auto reception) Receiving a Fax rinmei-mf2_com_user_guide_gb_00059784_eng.xml241 6 In this mode, you can use the machine with an external telephone answering device. 1. Press the [User Tools] key. CES184 2. Press the [][] keys to select [Fax Features], and then press the [OK] key. 3. Press the [][] keys to select [Reception Setti…

Text truncated - open the document above for the full version.

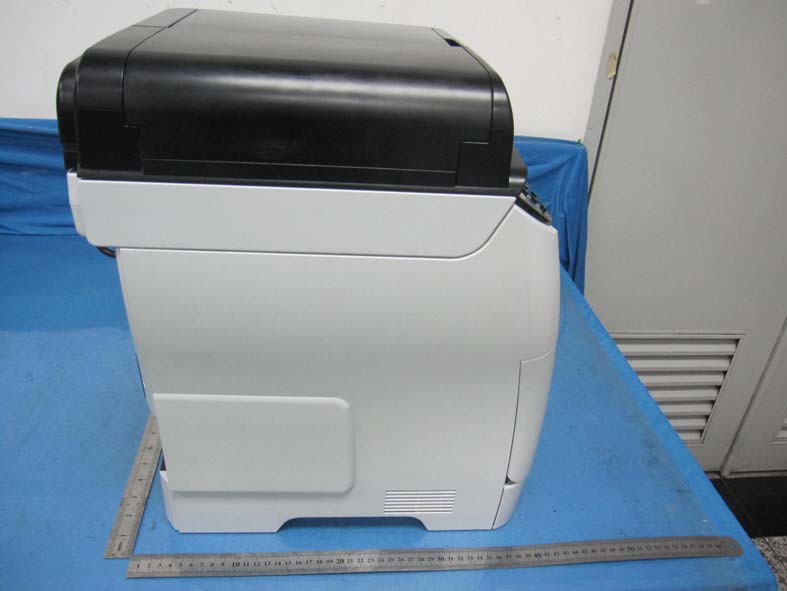

External photos of the EUT

Internal photos of the EUT \

TEST REPORT 47 CFR FCC Part 15 Subpart B (Class B) Radio Frequency Devices – Unintentional Radiators – Limits and methods of measurement ANSI C63.4: 2009 American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz Report Reference No......................: TRE11100068 FCC ID..............................................: BBP-MFSP3510SF1 Compiled by ( position+printed name+signature)..: File administrators Eric Zhang Supervised by ( position+printed name+signature)..: Test Engineer Tim Zhang Approved by ( position+printed name+signature)..: Manager Wenliang Li Date of issue.....................................: Nov 18, 2011 Testing Laboratory Name..............: Shenzhen Huatongwei International Inspection Co., Ltd Address ............................................: Keji Nan No.12 Road, Hi-tech Park, Shenzhen, China Testing location/ procedure ..............: Full application of Harmonised standards Partial application of Harmonised standards Other standard testing methods Applicant’s name............................: Ricoh Company Ltd. Address ............................................: 810, Shimoimaizum, Ebina-Shi, Kanagawa-ken, 243-0460 Japan Test specification: Standard ...........................................: 47 CFR FCC Part 15 Subpart B (Class B) ANSI C63.4: 2009 Non-standard test method..............: / Test Report Form No......................: HTWEMCFCC_1A TRF Originator..................................: Shenzhen Huatongwei International Inspection Co., Ltd Master TRF.......................................: Dated 2006-06 Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: Multifunction Digital Product(Copier/ Printer/Scanner/Fax) Trade Mark .......................................: / Manufacturer ....................................: Ricoh Components＆Products(Shenzhen)Ltd． Model/Type reference.......................: Aficio SP 3500SF, SP 3500SF/Aficio SP 3500SF, Aficio SP 3510SF, SP 3510SF/Aficio SP 3510SF Ratings .............................................: 120V 60Hz 10A 850W Result................................................: Positive V1.0 Page 2 of 82 Report No.: TRE11100068 FCC ID: BBP-MFSP3510SF1 Shenzhen Huatongwei International Inspection Co., Ltd EMC -- T E S T R E P O R T Test Report No. : TRE11100068 Nov 18, 2011 ______________________________________________________________________________________________ Date of issue Equipment under Test : Multifunction Digital Product(Copier/ Printer/Scanner/Fax) Model / Type : Aficio SP 3500SF, SP 3500SF/Aficio SP 3500SF, Aficio SP 3510SF, SP 3510SF/Aficio SP 3510SF Listed Model : / Applicant : Ricoh Company Ltd. Address : 810, Shimoimaizum, Ebina-Shi, Kanagawa-ken, 243-0460 Japan Manufacturer : Ricoh Components＆Products(Shenzhen)Ltd． Address : RICOH industry group,Hao Ye Road,Heping Community,Fuyong Town,Baoan Distrist,Shenzhen,Guangdong,China Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 82 Report No.: TRE11100068 FCC ID: BBP-MFSP3510SF1 Shenzhen Huatongwei International Inspection Co., Ltd Contents 1. TEST STANDARDS .................................................................... 4 2. SUMMARY............................................................................... 5 2.1. General Remarks: 5 2.2. Equipment under Test 5 2.3. EUT operation mode: 5 2.4. EUT configuration 5 3. TEST ENVIRONMENT ................................................................. 8 3.1. Address of the test laboratory 8 3.2. Test Facility 8 3.3. Environmental conditions 9 3.4. Test Description 9 3.5. Statement of the measurement uncertainty 9 3.6. Equipments Used during the Test 10 4. TEST CONDITIONS AND RESULTS .............................................. 11 4.1. Radiated Emission 11 4.2. Conducted Disturbance 50 5. EXTERNAL AND INTERNAL PHOTOS OF THE EUT ......................... 70 V1.0 Page 4 of 82 Report No.: TRE11100068 FCC ID: BBP-MFSP3510SF1 Shenzhen Huatongwei International Inspection Co., Ltd 1. TEST STANDARDS The tests were performed according to following standards: 47 CFR FCC Part 15 Subpart B (Class B) Radio Frequency Devices – Unintentional Radiators – Limits and methods of measurement. ANSI C63.4: 2009 American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. V1.0 Page 5 of 82 Report No.: TRE11100068 FCC ID: BBP-MFSP3510SF1 Shenzhen Huatongwei International Inspection Co., Ltd 2. SUMMARY 2.1. General Remarks: Date of receipt of test sample : Oct 17, 2011 Testing commenced on : Oct 17, 2011 Testing concluded on : Nov 18, 2011 2.2. Equipment under Test Power supply system utilised Power supply voltage : o 230V / 50 Hz o 115V / 60Hz o 12 V DC o 24 V DC „ Other (specified in blank below) AC 120V/60Hz 2.3. EUT operation mode: The equipment under test was operated during the measurement under the following conditions: Test program (customer specific) Emissions tests.............: 47 CFR FCC Part 15 Subpart B (Class B) and ANSI C63.4 2009, searching for the highest disturbance. 2.4. EUT configuration The following peripheral devices and interface cables were connected during the measurement: ● - supplied by the manufactur…

Text truncated - open the document above for the full version.

V1.0 Page 70 of 82 Report No.: TRE11100068 FCC ID: BBP-MFSP3510SF1 Shenzhen Huatongwei International Inspection Co., Ltd 5. External and Internal Photos of the EUT External Photos V1.0 Page 71 of 82 Report No.: TRE11100068 FCC ID: BBP-MFSP3510SF1 Shenzhen Huatongwei International Inspection Co., Ltd V1.0 Page 72 of 82 Report No.: TRE11100068 FCC ID: BBP-MFSP3510SF1 Shenzhen Huatongwei International Inspection Co., Ltd Internal Photos V1.0 Page 73 of 82 Report No.: TRE11100068 FCC ID: BBP-MFSP3510SF1 Shenzhen Huatongwei International Inspection Co., Ltd V1.0 Page 74 of 82 Report No.: TRE11100068 FCC ID: BBP-MFSP3510SF1 Shenzhen Huatongwei International Inspection Co., Ltd V1.0 Page 75 of 82 Report No.: TRE11100068 FCC ID: BBP-MFSP3510SF1 Shenzhen Huatongwei International Inspection Co., Ltd V1.0 Page 76 of 82 Report No.: TRE11100068 FCC ID: BBP-MFSP3510SF1 Shenzhen Huatongwei International Inspection Co., Ltd V1.0 Page 77 of 82 Report No.: TRE11100068 FCC ID: BBP-MFSP3510SF1 Shenzhen Huatongwei International Inspection Co., Ltd V1.0 Page 78 of 82 Report No.: TRE11100068 FCC ID: BBP-MFSP3510SF1 Shenzhen Huatongwei International Inspection Co., Ltd V1.0 Page 79 of 82 Report No.: TRE11100068 FCC ID: BBP-MFSP3510SF1 Shenzhen Huatongwei International Inspection Co., Ltd V1.0 Page 80 of 82 Report No.: TRE11100068 FCC ID: BBP-MFSP3510SF1 Shenzhen Huatongwei International Inspection Co., Ltd V1.0 Page 81 of 82 Report No.: TRE11100068 FCC ID: BBP-MFSP3510SF1 Shenzhen Huatongwei International Inspection Co., Ltd V1.0 Page 82 of 82 Report No.: TRE11100068 FCC ID: BBP-MFSP3510SF1 Shenzhen Huatongwei International Inspection Co., Ltd .......................End of Report.........................

Test Setup Photos of the EUT
