BBP-PRSP1001Laser Printer

1 English Information Introduction This manual contains detailed instructions and notes on the operation and use of this machine. For your safety and benefit, read this manual carefully before using the machine. Keep this manual in a handy place for quick reference. Important Contents of this manual are subject to change without prior notice. In no event will the company be liable for direct, indirect, special, incidental, or consequen- tial damages as a result of handling or operating the machine. -Note Some illustrations in this manual might be slightly different from the machine. Caution For good output quality, the manufacturer recommends that you use genuine toner from the manufacturer. The manufacturer shall not be responsible for any damage or expense that might result from the use of parts other than genuine parts from the manufac- turer with your office products. Power Source 120 V, 8 A, 60 Hz Be sure to connect the power cord to a power source as above. 2 Laws and Regulations Legal Prohibition Do not copy or print any item for which reproduction is prohibited by law. Copying or printing the following items is generally prohibited by local law: bank notes, revenue stamps, bonds, stock certificates, bank drafts, checks, pass- ports, driver's licenses. The preceding list is meant as a guide only and is not inclusive. We assume no responsibility for its completeness or accuracy. If you have any questions concerning the legality of copying or printing certain items, consult with your legal advisor. Laser Safety CDRH Regulations This equipment complies with requirements of 21 CFR subchapter J for class I laser products. This equipment contains multiple AlGalnP laser diode, 11-milli- watt, 775-790.7 nanometer wavelength for each emitter. The divergence of laser beams is θ⊥ 28 deg(Ave.), θ// 9 deg(Ave.) and laser beams are generated by CW (Continuous Wave) mode. Caution: Use of controls or adjustments or performance of procedures other than those specified in this manual might result in hazardous radiation exposure. 3 English Notes to USA Users of FCC Requirements Part 15 of the FCC Rules Declaration of Conformity This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Responsible party: Ricoh Americas Corporation Address: 5 Dedrick Place, West Caldwell, NJ 07006 Telephone number: 973-882-2000 Properly shielded and grounded cables and connectors must be used for connections to a host computer (and/or peripheral) in order to meet FCC emission limits. Product Name: Laser Printer Model Number: SP 100 / Aficio SP100, SP 100SU / Aficio SP 100SU, SP 100SF / Aficio SP 100SF Note This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruc- tions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television recep- tion, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio /TV technician for help. Caution Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. ❖ • ❖ • • • • ❖ 4 Part 68 of the FCC Rules FCC Requirements 1) This equipment complies with Part 68 of the FCC rules and requirements adopted by the ACTA. On the cover of this equipment is a label that contains, among other information, a product identifi er in the format US:AAAEQ##TXXXXX. If requested, this number must be provided to the telephone company. 2) This equipment uses the RJ11C USOC jack. 3) A plug and jack used to connect this equipment to the premises wiring and tele- phone network must comply with the applicable FCC Part 68 rules and require- ments adopted by the ACTA. A compliant telephone cord and modular plug is provided with this product. It is designed to be connected to a compatible modular jack that is also compliant. See installation instructions for detail. 4) The REN is used to determine the number of devices that may be connected to a telephone line. Excessive RENs on a telephone line may result in the devices not ringing in response to an incoming call. In most but not all areas, the sum of RENs should not exceed fi ve (5.0). To be certain of the number of devices that may be connected to a line, as determined by the total RENs, contact the local telephone company. The REN for this product is part of the product identifi er that has the format US:AAAEQ##TXXXXX. The digits represented by ## are the REN without a decimal point (e.g., 03 is a REN of 0.3). 5) If this equipment causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required. But if advance notice is not practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to fi le a complaint with the FCC if you believe it is necessary. 6) The telephone company may make changes in its facilities, equipment, operations or procedures that could affect the operation of the equipment. If this ha…

Text truncated - open the document above for the full version.

Operating Instructions User Guide For safe and correct use, be sure to read "Safety Information" before using the machine. TABLE OF CONTENTS 1. Guide to the Machine How to Read This Manual.................................................................................................................................3 Introduction.....................................................................................................................................................3 Legal Prohibition.............................................................................................................................................3 Disclaimer........................................................................................................................................................3 Model-Specific Information...............................................................................................................................4 Guide to Components........................................................................................................................................5 Exterior............................................................................................................................................................5 Interior.............................................................................................................................................................6 Installing the Driver and Software.....................................................................................................................7 Installing the Printer Driver.............................................................................................................................7 Upgrading or Deleting the Printer Driver......................................................................................................7 Installing the Smart Organizing Monitor......................................................................................................8 What is Smart Organizing Monitor?.................................................................................................................9 2. Loading Paper Supported Paper..............................................................................................................................................11 Non-Recommended Paper Types...................................................................................................................12 Print Area..........................................................................................................................................................13 Loading Paper..................................................................................................................................................14 Specifying Paper Type and Paper Size Using Smart Organizing Monitor.............................................16 3. Printing Documents Basic Operation...............................................................................................................................................17 Printing on Both Sides of Sheets..................................................................................................................18 Canceling a Print Job...................................................................................................................................19 If a Paper Mismatch Occurs............................................................................................................................20 Continuing Printing Using Mismatched Paper...........................................................................................20 Resetting the Print Job..................................................................................................................................20 4. Configuring the Machine Using Smart Organizing Monitor Checking the System Information....................................................................................................................21 Checking the Status Information.................................................................................................................21 Printing the Configuration Page..................................................................................................................22 Configuring the Machine Settings...................................................................................................................23 Tab Settings..................................................................................................................................................23 1 Updating the Firmware....................................................................................................................................24 5. Maintaining the Machine Replacing the Print Cartridge..........................................................................................................................25 Cautions When Cleaning................................................................................................................................27 Cleaning the Inside of the Machine................................................................................................................28 6. Troubleshooting Common Problems...........................................................................................................................................29 Paper Feed Problems.......................................................................................................................................30 Removing Printing Jams...............................................................................................................................31 Print Quality Problems......................................................................................................................................34 Checking…

Text truncated - open the document above for the full version.

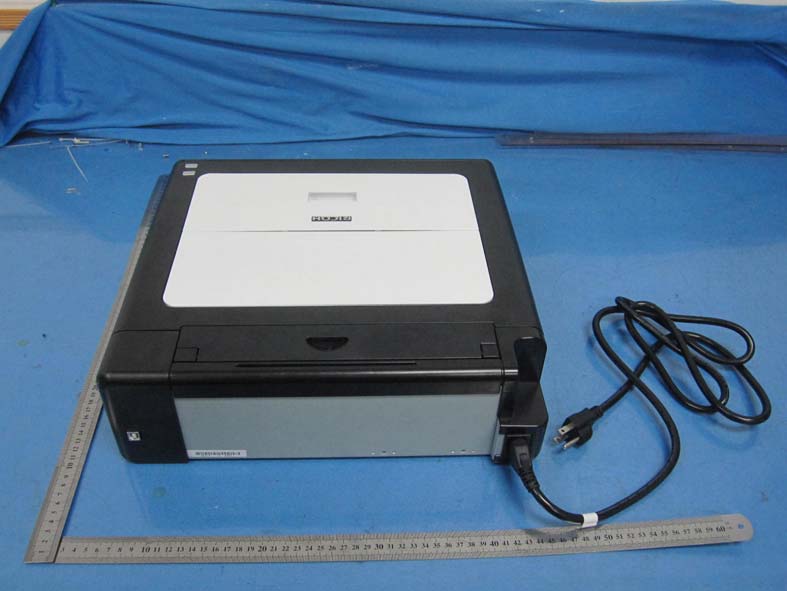

External photos of the EUT

SP 100/Aficio SP 100

Internal photos of the EUT

TEST REPORT 47 CFR FCC Part 15 Subpart B (Class B) Radio Frequency Devices – Unintentional Radiators – Limits and methods of measurement ANSI C63.4: 2009 American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz Report Reference No......................: TRE11100073 FCC ID..............................................: BBP-PRSP1001 Compiled by ( position+printed name+signature)..: File administrators Tim Zhang Supervised by ( position+printed name+signature)..: Test Engineer Eric Zhang Approved by ( position+printed name+signature)..: Manager Wenliang Li Date of issue.....................................: Nov 11, 2011 Testing Laboratory Name..............: Shenzhen Huatongwei International Inspection Co., Ltd Address ............................................: Keji Nan No.12 Road, Hi-tech Park, Shenzhen, China Testing location/ procedure ..............: Full application of Harmonised standards Partial application of Harmonised standards Other standard testing methods Applicant’s name............................: Ricoh Company Ltd Address ............................................: 810, Shimoimaizum, Ebina-Shi, Kanagawa-ken, 243-0460 Japan Test specification: Standard ...........................................: 47 CFR FCC Part 15 Subpart B (Class B) ANSI C63.4: 2009 Non-standard test method..............: / Test Report Form No......................: HTWEMCFCC_1A TRF Originator..................................: Shenzhen Huatongwei International Inspection Co., Ltd Master TRF.......................................: Dated 2006-06 Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: Laser Printer Trade Mark .......................................: / Manufacturer ....................................: Ricoh Asia Industry (Shenzhen) Ltd. Model/Type reference.......................: SP 100/Aficio SP 100 Listed Model..... ...............................: / Ratings .............................................: 120V 60Hz 6A 600W Result................................................: Positive V1.0 Page 2 of 29 Report No.: TRE11100073 FCC ID: BBP- PRSP1001 Shenzhen Huatongwei International Inspection Co., Ltd EMC -- T E S T R E P O R T Test Report No. : TRE11100073 Nov 11, 2011 ______________________________________________________________________________________________ Date of issue Equipment under Test : Laser Printer Model / Type : SP 100/Aficio SP 100 Listed Model : / Applicant : Ricoh Company Ltd Address : 810, Shimoimaizum, Ebina-Shi, Kanagawa-ken, 243-0460 Japan Manufacturer : Ricoh Asia Industry (Shenzhen) Ltd. Address : North Huang Gang Road, Shenzhen, P.R.China Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 29 Report No.: TRE11100073 FCC ID: BBP- PRSP1001 Shenzhen Huatongwei International Inspection Co., Ltd Contents 1. TEST STANDARDS .................................................................... 4 2. SUMMARY............................................................................... 4 2.1. General Remarks: 4 2.2. Equipment under Test 4 2.3. Short description of the Equipment under Test (EUT) 4 2.4. EUT operation mode: 4 2.5. EUT configuration 4 3. TEST ENVIRONMENT ................................................................. 6 3.1. Address of the test laboratory 6 3.2. Test Facility 6 3.3. Environmental conditions 7 3.4. Test Description 7 3.5. Statement of the measurement uncertainty 7 3.6. Equipments Used during the Test 8 4. TEST CONDITIONS AND RESULTS ............................................... 9 4.1. Radiated Emission 9 4.2. Conducted Disturbance 15 5. EXTERNAL AND INTERNAL PHOTOS OF THE EUT ......................... 21 5.1. External photos of the EUT 21 5.2. Internal photos of the EUT 23 V1.0 Page 4 of 29 Report No.: TRE11100073 FCC ID: BBP- PRSP1001 Shenzhen Huatongwei International Inspection Co., Ltd 1. TEST STANDARDS The tests were performed according to following standards: 47 CFR FCC Part 15 Subpart B (Class B) Radio Frequency Devices – Unintentional Radiators – Limits and methods of measurement. ANSI C63.4: 2009 American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. 2. SUMMARY 2.1. General Remarks: Date of receipt of test sample : Nov 06, 2011 Testing commenced on : Nov 06, 2011 Testing concluded on : Nov 11, 2011 2.2. Equipment under Test Power supply system utilised Power supply voltage : o 230V / 50 Hz o 115V / 60Hz o 12 V DC o 24 V DC „ Other (specified in blank below) AC 120V/60Hz 2.3. Short description of the Equipment under Test (EUT) The EUT is a Laser Printer 2.4. EUT operation mode: The equipment under test was operated during the measurement under the following conditions: Test program (customer specific) Emissions tests.............: 47 CFR FCC Part 15 Subpart B (Class B) and ANSI C63.4 2009, searching for the highest disturbance. 2.5. EUT configuration 1) Equipment under test Kind of equipment Manufacturer Model name Serial number Remarks Print Machine RICOH SP 100/Aficio SP 100M1011700020 V1.0 Page 5 of 29 Report No.: TRE11100073 FCC ID: BBP- PRSP1001 Shenzhen Huatongwei International Inspection Co., Ltd 2)Highest Frequency Generated …

Text truncated - open the document above for the full version.

Test Setup Photos of the EUT
