BBP-PRSP201NW1Printer

1 English Information Introduction This manual contains detailed instructions and notes on the operation and use of this machine. For your safety and benefit, read this manual carefully before using the machine. Keep this manual in a handy place for quick reference. Power Source 120 V, 8 A, 50/60 Hz Be sure to connect the power cord to a power source as above. 2 Laws and Regulations Legal Prohibition Do not copy or print any item for which reproduction is prohibited by law. Copying or printing the following items is generally prohibited by local law: bank notes, revenue stamps, bonds, stock certificates, bank drafts, checks, pass- ports, driver's licenses. The preceding list is meant as a guide only and is not inclusive. We assume no responsibility for its completeness or accuracy. If you have any questions concerning the legality of copying or printing certain items, consult with your legal advisor. Laser Safety CDRH Regulations This machine complies with the requirements of 21 CFR Subchapter J for class I laser product. This machine contains AlGaAs laser diode, 11-milliwatt, 775- 790.7 nanometer wavelength for each emitter. The beam divergence angle is 25 degrees (minimum) and 36 degrees (maximum) in the vertical direction, and 7 degrees (minimum) and 12.5 degrees (maximum) in the horizontal direction, and laser beams are generated in Continuous Wave (CW) mode. Caution: Use of controls or adjustments or performance of procedures other than those specified in this manual might result in hazardous radiation exposure. 3 English Notes to USA Users of FCC Requirements Part 15 of the FCC Rules Note This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruc- tions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television recep- tion, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio /TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Caution Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Country Code Statement For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. CAUTION: Any changes or modifications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment. This transmit- ter must not be co-located or operating in conjunction with any other antenna or transmitter. ❖ • • • • ❖ ❖ ❖ 4 Federal Communication Commission (FCC) Radiation Exposure Statement This EUT is compliance with RF exposure for general population/uncontrolled exposure limits in ANSI/IEEE C95.1-1999 and had been tested in accordance with the measurement methods and procedures specified in OET Bulletin 65 Supplement C. This equipment should be installed and operated with mini- mum distance 20cm between the radiator and your body. Part 68 of the FCC Rules FCC Requirements 1) This equipment complies with Part 68 of the FCC rules and requirements adopted by the ACTA. On the cover of this equipment is a label that contains, among other information, a product identifi er in the format US:AAAEQ##TXXXXX. If requested, this number must be provided to the telephone company. 2) This equipment uses the RJ11C USOC jack. 3) A plug and jack used to connect this equipment to the premises wiring and tele- phone network must comply with the applicable FCC Part 68 rules and require- ments adopted by the ACTA. A compliant telephone cord and modular plug is provided with this product. It is designed to be connected to a compatible modular jack that is also compliant. See installation instructions for detail. 4) The REN is used to determine the number of devices that may be connected to a telephone line. Excessive RENs on a telephone line may result in the devices not ringing in response to an incoming call. In most but not all areas, the sum of RENs should not exceed fi ve (5.0). To be certain of the number of devices that may be connected to a line, as determined by the total RENs, contact the local telephone company. The REN for this product is part of the product identifi er that has the format US:AAAEQ##TXXXXX. The digits represented by ## are the REN without a decimal point (e.g., 03 is a REN of 0.3). 5) If this equipment causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required. But if advance notice is not practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to fi le a complaint with the FCC if you believe it is necessary. 6) The telephone company may make changes in its facilities, equipment, operations or procedures that could affect the operatio…

Text truncated - open the document above for the full version.

TABLE OF CONTENTS How to Read This Manual.................................................................................................................................7 Introduction.....................................................................................................................................................7 Legal Prohibition.............................................................................................................................................7 Disclaimer........................................................................................................................................................7 About IP Address............................................................................................................................................8 Differences in Performance/Functions between Different Models.............................................................8 Differences in Performance/Functions between Different Models.............................................................8 Model-Specific Information.............................................................................................................................10 Important Safety Instructions (alt="Region A icon" title="")......................................................11 User Information on Electrical & Electronic Equipment.............................................................................11 Environmental Advice for Users..................................................................................................................12 Note for the Battery and/or Accumulator Symbol (For EU countries only)............................................13 Notes to Users of Facsimile Unit.................................................................................................................13 NOTICE TO USERS (NEW ZEALAND).....................................................................................................13 Important Safety Instructions (alt="Region B icon" title="")......................................................15 Notes to Users in the State of California....................................................................................................15 ENERGY STAR Program..................................................................................................................................16 1. Guide to the Machine Guide to Components......................................................................................................................................19 Exterior..........................................................................................................................................................19 Exterior..........................................................................................................................................................21 Exterior..........................................................................................................................................................22 Interior...........................................................................................................................................................23 Control Panel................................................................................................................................................24 Control Panel................................................................................................................................................25 Initial Setup.......................................................................................................................................................28 What is Smart Organizing Monitor?..............................................................................................................29 Configuring Network Settings.........................................................................................................................30 Switch the LAN Type...................................................................................................................................30 Configuring the IP Address Settings Using the Control Panel...................................................................30 Configuring the Wireless LAN Settings Using the Control Panel.............................................................33 Configuring Network Settings.........................................................................................................................39 Switch the LAN Type...................................................................................................................................39 1 Configuring the IP Address Settings Using the Web Image Monitor.......................................................39 Configuring the Wireless LAN Settings......................................................................................................40 2. Loading Paper Supported Paper..............................................................................................................................................45 Non-Recommended Paper Types...................................................................................................................47 Print Area..........................................................................................................................................................48 Loading Paper..................................................................................................................................................51 Loading Paper into Tray 1...........................................................................................................................51 Loading Paper into Bypass Tray.................................................................................................................55 Specifying Paper Type …

Text truncated - open the document above for the full version.

810 Shimoimaizumi,Ebina-city, Kanagawa 243-0460 Japan Ricoh Company Ltd FCC ID: BBP-PRSP201NW1 DATE: Sep 27, 2013 We , Ricoh Company Ltd doesn’t provide any controls or software to allow the operation outside of the USA frequency band when we sell this product in USA. Sincerely, Print Name: Seiji Nakamura Title: Group Leader Company Name: Ricoh Company Ltd

810 Shimoimaizumi, Ebina-city, Kanagawa 243-0460 Japan Ricoh Co., Ltd. FCC ID: BBP-PRSP201NW1 Model: SP 200Nw/ SP 201Nw To whom it may concern: We the undersigned, hereby authorize Shenzhen Huatongwei International Inspection Co., Ltd to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Shenzhen Huatongwei International Inspection Co., Ltd on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Ricoh Co.,Ltd. Sincerely, Print Name: Seiji Nakamura Title: Group Leader Company Name: Ricoh Co.,Ltd.

810 Shimoimaizumi, Ebina-city, Kanagawa 243-0460 Japan Ricoh Co., Ltd. Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Sections 0.457 and 0.459 pertaining to confidential material. Ricoh Co.,Ltd.would like the following documents regarding this submission for FCC ID: BBP-PRSP201NW1 to be kept confidential. Theory of Operation Block Diagram The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Print Name: Taku Matsuyama Title: Group Leader Company Name: Ricoh Co.,Ltd. Schematic

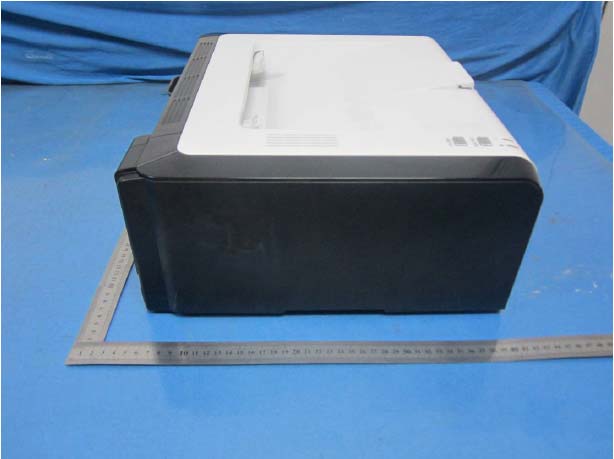

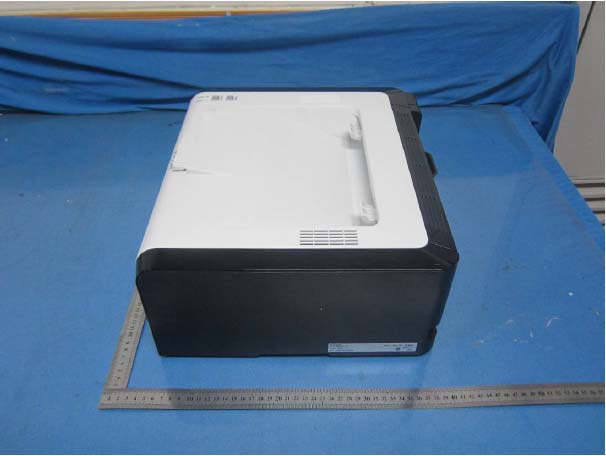

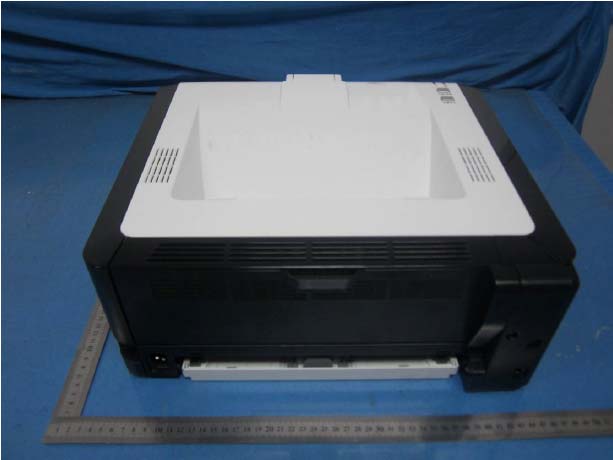

External photos of the EUT

Internal photos of the EUT

MPE TEST REPORT FCC Per 47 CFR 2.1091(b) Report Reference No. .................... : FCC ID. ............................................ : TRE1307004503 R/C:89404 BBP-PRSP201NW1 Compiled by ( position+printed name+signature) .. : File administrators Jerome Luo Supervised by ( position+printed name+signature) .. : Test Engineer Yuchao Wang Approved by ( position+printed name+signature) .. : Manager Wenliang Li Date of issue ..................................... : Sep 27, 2013 Testing Laboratory Name .............. : Shenzhen Huatongwei International Inspection Co., Ltd Address ............................................. : Keji Nan No.12 Road, Hi-tech Park, Shenzhen, China Applicant’s name ............................ : RICOH Co., LTD. Address ............................................. : 810 Shimoimaizumi,Ebina City, Kanagawa-Pref., 243-0460 Japan Test specification: Standard ........................................... : FCC Per 47 CFR 2.1091(b) KDB447498 v05r01 TRF Originator .................................. : Shenzhen Huatongwei International Inspection CO., Ltd Master TRF ....................................... : Dated 2006-06 Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Printer Trade Mark ....................................... : RICOH Model/Type reference ....................... : SP 201Nw Listed Models .................................. : / Modulation Type ............................... : OFDM,CCK Operation Frequency ........................ : From 2412MHz to 2462MHz Manufacturer ................................... : RICOH Co., LTD. Rating ............................................... : AC 120V/60Hz 8A 900W Result ................................................ : Positive Report No.: TRE1307004503 Page 2 of 7 Issued:2013-09-27 MPE T E S T R E P O R T Test Report No. : TRE1307004503 Sep 27, 2013 ______________________________________________________________________________________________ Date of issue Equipment under Test : Printer Model /Type : SP 201Nw Listed Models : / Applicant : RICOH Co., LTD. Address : 810 Shimoimaizumi,Ebina City, Kanagawa-Pref., 243- 0460 Japan Manufacturer RICOH Co., LTD. Address : 3-6，Naka-magome 1-Chome Ohta-ku,Tokyo 143-8555 Japan The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: TRE1307004503 Page 3 of 7 Issued:2013-09-27 Contents 1. SUMMARY ............................................................................. 4 1.1. EUT configuration 4 1.2. NOTE 4 2. TEST ENVIRONMENT ............................................................... 5 2.1. Address of the test laboratory 5 2.2. Environmental conditions 5 2.3. Statement of the measurement uncertainty 5 3. METHOD OF MEASUREMENT .................................................... 5 3.1. Applicable Standard 5 3.2. Limit 6 3.3. MPE Calculation Method 6 4. CONCLUSION ........................................................................ 7 Report No.: TRE1307004503 Page 4 of 7 Issued:2013-09-27 1. SUMMARY 1.1. EUT configuration The following peripheral devices and interface cables were connected during the measurement: ● - supplied by the manufacturer ○ - supplied by the lab ○ Power Cable Length (m) : / Shield : / Detachable : / ○ Multimeter Manufacturer : / Model No. : / 1.2. NOTE 1. The EUT is a Printer with WLAN fuction,The functions of the EUT listed as below: Test Standards Reference Report FCC Part 15 Subpart B TRE1307004501 WLAN 802.11b/g/n FCC Part 15 Subpart C TRE1307004502 MPE REPORT FCC Per 47 CFR 2.1091(b) TRE1307004503 2. The frequency bands used in this EUT are listed as follows: Frequency Band(MHz) 2400-2483.5 5150-5350 5470-5725 5725-5850 802.11b √ － － － 802.11g √ － － － 802.11n(20MHz) √ － － － 802.11n(40MHz) √ － － － 3. The EUT incorporates a SISO function,Physically,the EUT provides one completed transmitter and one completed receiver. Modulation Mode TX Function 802.11b 1TX 802.11g 1TX 802.11n (20MHz) 1TX 802.11n (40MHz) 1TX . Report No.: TRE1307004503 Page 5 of 7 Issued:2013-09-27 2. TEST ENVIRONMENT 2.1. Address of the test laboratory Shenzhen Huatongwei International Inspection Co., Ltd Keji Nan No.12 Road, Hi-tech Park, Shenzhen, China Phone: 86-755-26715686 Fax: 86-755-26748089 The sites are constructed in conformance with the requirements of ANSI C63.7, ANSI C63.4 (2009) and CISPR Publication 22. 2.2. Environmental conditions During the measurement the environmental conditions were within the listed ranges: Temperature: 15-35 ° C Humidity: 30-60 % Atmospheric pressure: 950-1050mbar 2.3. Statement of the measurement uncertainty The data and results referenced in this document are true and accurate. The reader is cautioned that there may be errors within the calibration limits of the equipment and facilities. The measurement uncertainty was calculated for all measurements listed in this test report acc. to TR-100028-01” Electromagnetic compatibility and Radio spectrum Matters (ERM);Uncertainties in the measurement of mobile radio equipment characteristics; Part 1” and TR-100028-02 “Electromagnetic compatibility and Radio spectrum Matters (ERM);Uncertainties in the measurement of mobile radio equipment characteristics; Part 2 “ and is documented in the Shenzhen Huatongwei International Inspection Co., Ltd quality system acc. to DIN EN ISO/IEC 17025. Furthermore, component and process variability of devices similar to that tested may re…
