BBP-RFAEG01Color Laser Printer (Color Copier)

Getting Started Entering Text Operating Instructions Appendix 1 2 3 4 Read this manual carefully before you use this machine and keep it handy for future reference. For safe and correct use, be sure to read the Safety Information before using the machine. Pro C900 Operating Instructions About This Machine Introduction This manual contains detailed instructions and notes on the operation and use of this machine. For your safety and benefit, read this manual carefully before using the machine. Keep this manual in a handy place for quick reference. Important Contents of this manual are subject to change without prior notice. In no event will the company be liable for direct, indirect, special, incidental, or consequential damages as a result of handling or operating the machine. Note: Some illustrations in this manual might be slightly different from the machine. Certain options might not be available in some countries. For details, please contact your local dealer. Depending on which country you are in, certain units may be optional. For details, please contact your local dealer. Laser Safety: CDRH Regulations This equipment complies with requirements of IEC60825-1:2001 for class 1 laser product. This equipment contains multiple AlGaAs laser diodes, max. 111(rating 38) - milliwatt, 770 - 810 nanometer wavelength for each emitter. The power intensity from the laser unit is 1.33 - milliwatt. This equipment does not emit hazardous light, since the beam is totally enclosed during all customer modes of operation and maintenance. Caution: Use of controls or adjustments or performance of procedures other than those specified in this manual might result in hazardous radiation exposure. Note: Two kinds of size notation are employed in this manual. With this machine refer to the inch version. For good copy quality, the supplier recommends that you use genuine toner from the supplier. The supplier shall not be responsible for any damage or expense that might result from the use of parts other than genuine parts from the supplier with your office products. Power Source 208-240V, 50/60Hz, 24A or more Please be sure to connect the power cord to a power source as above. For details about power source, see Troubleshooting. Manuals for This Machine Refer to the manuals that are relevant to what you want to do with the machine. • Media differ according to manual. • The printed and electronic versions of a manual have the same contents. • Adobe Acrobat Reader/Adobe Reader must be installed in order to view the manuals as PDF files. • A Web browser must be installed in order to view the html manuals. • When using the machine's printer function, be sure to read the manual provided with the EFI Fiery controller, in addition to the manuals for this machine. About This Machine Be sure to read the Safety Information in this manual before using the machine. This manual provides an introduction to the functions of the machine. It also explains the control panel, preparation procedures for using the machine, how to enter text, and how to install the CD-ROMs provided. Troubleshooting Provides a guide to solving common problems, and explains how to replace paper, toner, staples, and other consumables. Network Guide Explains how to use the Ethernet interface to connect the machine to a network. This manual also contains explanations about configuring the machine for network use and operating it as a network device. General Settings Guide Explains User Tools settings, and Address Book procedures such as registering e-mail addresses, and user codes. Also refer to this manual for explanations on how to connect the machine. Security Reference This manual is for administrators of the machine. It explains security functions that you can use to prevent unauthorized use of the machine, data tampering, or information leakage. For enhanced security, we recommend that you first make the following settings: • Install the Device Certificate. • Enable SSL (Secure Sockets Layer) Encryption. • Change the user name and password of the administrator using Web Image Monitor. For details, see “Setting Up the Machine”, Security Reference. Be sure to read this manual when setting the enhanced security functions, or user and administrator authentication. Information Contains general notes on the machine, and information about the trademarks of product names used in the manuals. 1 Manuals List Manual Name Printed Manuals Provided HTML Manuals Provided PDF Manuals Provided About This MachineYesYesYes TroubleshootingYesYesYes Network GuideNoYesYes General Settings GuideNoYesYes Security ReferenceNoYesYes InformationNoYesNo 2 What You Can Do with This Machine This section introduces the features of this machine. • For details about options, see “Options”. •"Options" Administrating the Machine/Protecting Documents (Security Functions) You can prevent information leakage by managing the machine and protecting documents. BKA001S • You can protect documents from unauthorized access and stop them from being copied without permission. • You can control the use of the machine, as well as prevent machine settings from being changed without authorization. • By setting passwords, you can prevent unauthorized access via the network. • You can erase the data on the hard disk to prevent the information from leaking out. • See the manual for the DataOverWriteSecurity Unit (optional), and Security Reference. Monitoring the Machine Via Computer You can change the machine's settings and monitor its status from a connected computer. BKA002S 1 • Web Image Monitor lets you configure and operate the machine using a Web browser on a computer. • Using Web Image Monitor, you can register information in the address book, specify the machine's settings, and check the machine's status with ease. • Using Web Image Monitor, you can check and specify the initial settings (system settings, printer features, network settings, security settings/certificate management, and E-mail…

Text truncated - open the document above for the full version.

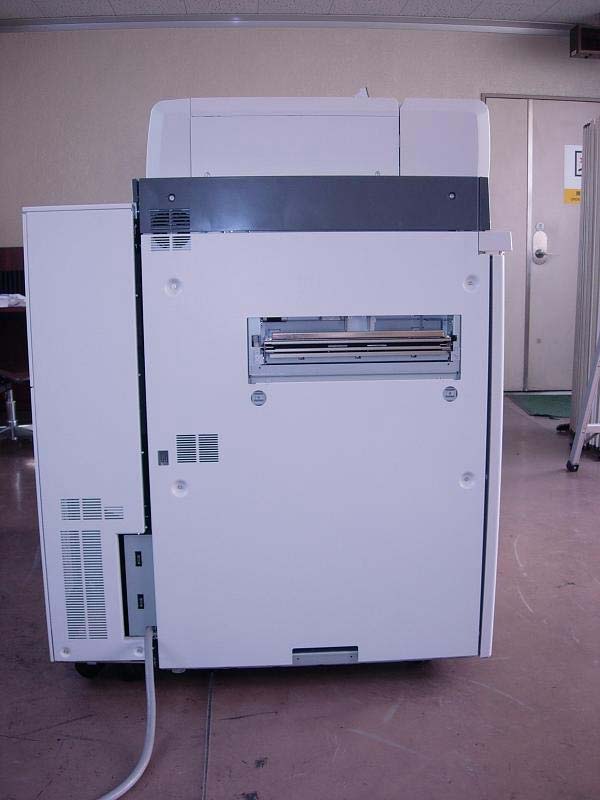

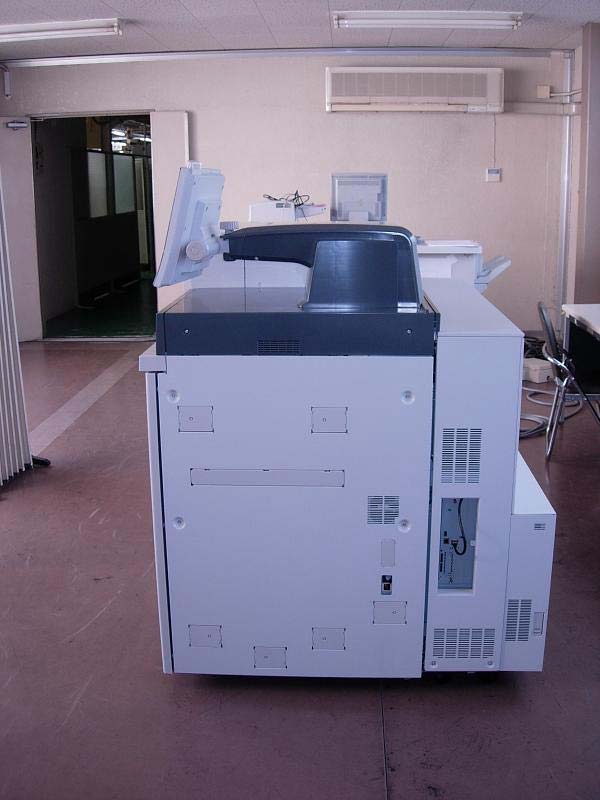

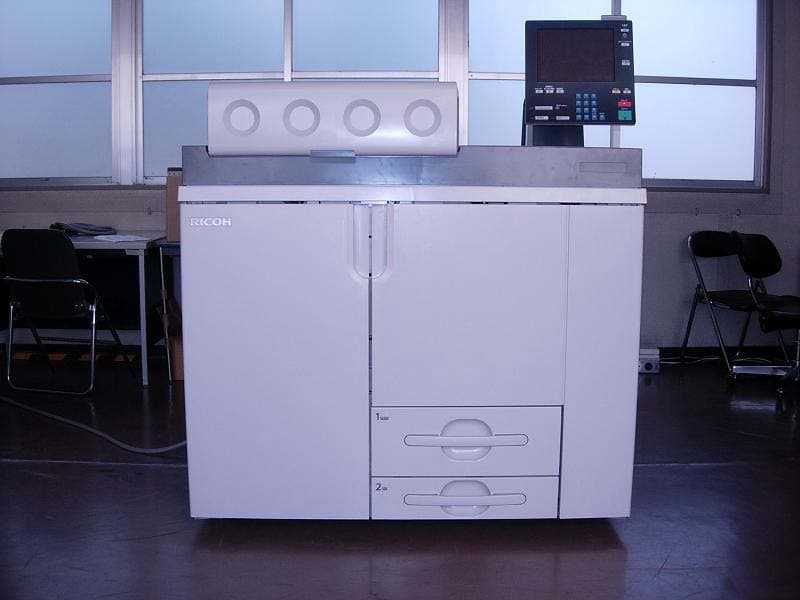

Ricoh Company, Ltd. Color Laser Printer [Model: Pro C900] Color Copier [Model: Pro C900S] FCC ID: BBP-RFAEG01 IC Number: 144D- RFAEG01 Toner bottle unit Left front cover Right front cover Fig.1 Front view of the main body of the product Operation panel Fig.2 Backside view Fig.3 Right side view Fig.4 Left side view Left side cover

rear left frame

Internal Photo Ricoh Company, Ltd. Color Laser Printer [Model: Pro C900] Color Copier [Model: Pro C900S] FCC ID: BBP-RFAEG01 IC Number: 144D- RFAEG01 Install Install (detail) Internal Photo Ricoh Company, Ltd. Color Laser Printer [Model: Pro C900] Color Copier [Model: Pro C900S] FCC ID: BBP-RFAEG01 IC Number: 144D- RFAEG01 module(front) module(rear)

FCC ID : BBP-RFAEG01 Test report No. : 28FE0088-YK-A Page : 2 of 44 Issued date : February 15, 2008 UL Japan, Inc. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b (09.01.08) Table of Contents Page 1 Applicant Information 3 2 Equipment under test (E.U.T.) 3 3 Test Specification, Procedures and Results 4 4 System Test Configuration 6 5 Conducted emission 7 6 Radiated Emissions (Fundamental, Spurious and Outside the Allocated bands) 8 7 20dB Bandwidth & Occupied Bandwidth (99%) 9 8 Frequency Tolerance 9 Contents of Appendixes 10 APPENDIX 1: Photographs of test setup 11 APPENDIX 2: Test Data 13 APPENDIX 3: Test instruments 44 FCC ID : BBP-RFAEG01 Test report No. : 28FE0088-YK-A Page : 3 of 44 Issued date : February 15, 2008 UL Japan, Inc. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b (09.01.08) 1 Applicant Information Company Name : RICOH COMPANY, LTD. Address : 810 Shimoimaizumi, Ebina-shi, Kanagawa-ken, 243-0460 Japan Telephone Number : +81-46-292-6870 Facsimile Number : +81-46-231-9183 Contact Person : Shinji Okada 2 Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Color Laser Printer Model No. : Pro C900 Serial No. : 48BE-010012 Rating : AC208-240V, 50/60Hz Country of Manufacture : Japan Receipt Date of Sample : January 21, 2008 Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No modification by the test lab. 2.2 Product Description Model: Pro C900 (referred to as the EUT in this report) is a Color Laser Printer. Model: Pro C900S, Color Copier is an equivalent model of the EUT. The only difference is scanning function. Pro C900S has scanner, but Pro C900 has no scanner. Equipment type : Transceiver Frequency of operation : 13.56MHz Clock frequency : 13.56MHz Bandwidth & channel spacing : 3.71kHz Type of modulation : ASK Antenna type : Print pattern antenna Antenna connector type : None ITU code : A1D Operation temperature range : +10 ~ +32 deg.C. *FCC Part15.31 (e) Host device provides the RFID Module with stable power supply, and the power is not changed when voltage of the printer is varied. Therefore, the equipment complies power supply regulation. *FCC Part15.203 It is impossible for end users to replace the antenna, because the antenna is mounted on the board integrally. Therefore, the equipment complies with the antenna requirement of Section 15.203. FCC ID : BBP-RFAEG01 Test report No. : 28FE0088-YK-A Page : 4 of 44 Issued date : February 15, 2008 UL Japan, Inc. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b (09.01.08) 3 Test Specification, Procedures and Results 3.1 Test specification Test specification : FCC Part15 Subpart C: 2008, final revised on January 30, 2008 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207: Conducted limits Section 15.209: Radiated emission limits, general requirements Section 15.215: Additional provisions to the general radiated emission limitations Section 15.225: Operation within the band 13.110-14.010MHz *The revision on January 30, 2008 does not influence the test specification applied to the EUT. 3.2 Procedures & Results Item Test Procedure Specification RemarksDeviationWorst Margin Results Conducted Emission ANSI C63.4:2003 7. AC powerline conducted emission measurements FCC 15.207 - N/A 4.5dB (2.5859MHz, AV, Tx Module C) Complied Electric Field Strength of Fundamental Emission ANSI C63.4:2003 13. Measurement of intentional radiators FCC 15.225 (a) Radiated N/A 80.5dB (Horizontal, Tx Module Y) Complied Electric Field Strength of Outside the Allocated bands ANSI C63.4:2003 13. Measurement of intentional radiators FCC 15.225 (b) (c) Radiated N/A 36.7dB (13.110MHz, Horizontal, Tx Module C) Complied Electric Field Strength of Spurious Emission ANSI C63.4:2003 13. Measurement of intentional radiators FCC15.209, FCC 15.225 (d) Radiated N/A 5.9dB (373.61MHz, Vertical, Tx Module Y) Complied 20dB Bandwidth ANSI C63.4:2003 13. Measurement of intentional radiators FCC15.215(c) Radiated N/A - Complied Frequency Tolerance ANSI C63.4:2003 13. Measurement of intentional radiators FCC15.225 (e) Radiated N/A - Complied Note: UL Japan’s EMI Work Procedures No.QPM05 and QPM15. 3.3 Addition to standard Item Test Procedure Specification Remarks Worst Margin Results Occupied Bandwidth (99%) ANSI C63.4:2003 13. Measurement of intentional radiators RSS-Gen 4.6.1 RSS-Gen 4.6.1 Conducted- Complied * Other than above, no addition, exclusion nor deviation has been made from the standard. FCC ID : BBP-RFAEG01 Test report No. : 28FE0088-YK-A Page : 5 of 44 Issued date : February 15, 2008 UL Japan, Inc. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b (09.01.08) 3.4 Uncertainty The following uncertainties have been calculated to provide a confidence level of 95% using a coverage factor k=2. No.1 open site (±) No.2 open site (±) No.1 anechoic chamber (±) Conducted emission 150kHz-30MHz 2.8 dB 2.8 dB 2.8 dB Radiated emission (3m) <30MHz 2.3 dB 2.3 dB 2.2 dB 30-300MHz 4.5 dB 4.4 dB 4.5 dB 300-1000MHz 4.3 dB 4.3 dB 4.3 dB Frequency tolerance ( ± ) 0.000014MHz Conducted Emission Test The data listed in this test report has enough margin, more than site margin. Radiated Emission Test The data listed in this test report has enough margin, more than site margin. 3.5 Test Location UL Japan, Inc. Yamakita EMC Lab. 907, Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken 258-0124 JAPAN Telephone number : +81 465 77 1011 Facsimile number : +81 465 77 2112 NVLAP Lab. code : 200441-0 No. 1 test site has b…

Text truncated - open the document above for the full version.

DATA OF CONDUCTION TEST UL Japan, Inc. YAMAKITA No.1 ANECHOIC CHAMBER Report No.: 28FE0088-YK Applicant : RICOH COMPANY LTD. Kind of Equipment: Color Laser printer Model No. : Pro-C900 Serial No. : 48BE-010012 Power : AC240V/60Hz Mode : Tx (Module: Y) Remarks : - Date : 1/24/2008 Phase : Single Phase Temperature : 23 °C Engineer : Fumiaki Matsuo Humidity : 35 ％ Regulation : FCC Part15C §15.207.(CISPR Pub.22 ) No. FREQ. READING(N) READING(L1) LISN CABLE ATTEN. RESULT LIMITS MARGIN QP AV QP AV FACTOR LOSS QP AV QP AV QP AV [MHz] [dBμV] [dBμV] [dB] [dB] [dB] [dB] [dBμV] [dBμV] [dB] ------------------------------------------------------------------------------------------- 1. 0.1972 49.1 44.0 48.9 43.6 0.0 0.0 0.0 49.1 44.0 63.7 53.7 14.6 9.7 2. 0.2982 40.2 - 39.5 - 0.0 0.0 0.0 40.2 - 60.3 50.3 20.1 - 3. 0.5957 39.4 38.6 39.3 38.5 0.0 0.1 0.0 39.5 38.7 56.0 46.0 16.5 7.3 4. 0.6947 40.3 39.7 40.3 39.6 0.0 0.1 0.0 40.4 39.8 56.0 46.0 15.6 6.2 5. 0.7942 38.6 38.2 38.8 37.6 0.0 0.1 0.0 38.9 38.3 56.0 46.0 17.1 7.7 6. 1.1915 39.9 39.3 40.0 39.5 0.1 0.1 0.0 40.2 39.7 56.0 46.0 15.8 6.3 7. 1.5890 41.6 40.3 41.3 40.2 0.1 0.1 0.0 41.8 40.5 56.0 46.0 14.2 5.5 8. 1.6884 40.9 39.8 41.0 40.0 0.1 0.1 0.0 41.2 40.2 56.0 46.0 14.8 5.8 9. 2.4836 40.3 39.1 40.4 39.5 0.1 0.1 0.0 40.6 39.7 56.0 46.0 15.4 6.3 10. 2.5835 41.6 40.9 41.8 41.1 0.1 0.1 0.0 42.0 41.3 56.0 46.0 14.0 4.7 11. 2.8816 39.7 37.6 40.0 37.4 0.1 0.1 0.0 40.2 37.8 56.0 46.0 15.8 8.2 12. 6.4597 41.4 39.9 41.5 40.2 0.2 0.2 0.0 41.9 40.6 60.0 50.0 18.1 9.4 ------------------------------------------------------------------------------------------- CALCULATION: READING + LISN FACTOR + CABLE LOSS + ATTEN. ■ISN :KLS-03(NNLK8129)■COAXIAL CABLE:KCC-A1/A3 ■EMI RECEIVER:KTR-03(ESHS10) Page: DATA OF CONDUCTION TEST UL Japan, Inc. YAMAKITA No.1 ANECHOIC CHAMBER Report No.: 28FE0088-YK Applicant : RICOH COMPANY LTD. Kind of Equipment: Color Laser printer Model No. : Pro-C900 Serial No. : 48BE-010012 Power : AC240V/60Hz Mode : Tx (Module: Y) Remarks : - Date : 1/24/2008 Phase : Single Phase Temperature : 23 °C Engineer : Fumiaki Matsuo Humidity : 35 ％ Regulation : FCC Part15C §15.207.(CISPR Pub.22 ) [dBμV] Frequency [MHz] □Quasi-Peak×Average 0 10 20 30 40 50 60 70 1 10 30 Page: DATA OF CONDUCTION TEST CHART UL Japan, Inc. YAMAKITA No.1 ANECHOIC CHAMBER Report No.: 28FE0088-YK Applicant : RICOH COMPANY LTD. Kind of Equipment: Color Laser printer Model No. : Pro-C900 Serial No. : 48BE-010012 Power : AC240V/60Hz Mode : Tx (Module: Y) Remarks : - Date : 1/24/2008 Phase : Single Phase Temperature : 23 °C Engineer : Fumiaki Matsuo Humidity : 35 ％ Regulation 1 : FCC Part15C §15.207.(CISPR Pub.22 ) Regulation 2 : None Emission Level [dBμV] PHASE:N Frequency [MHz] 0 10 20 30 40 50 60 70 80 0.15 1 10 30 Emission Level [dBμV] PHASE:L1 Frequency [MHz] 0 10 20 30 40 50 60 70 80 0.15 1 10 30 Page: DATA OF CONDUCTION TEST UL Japan, Inc. YAMAKITA No.1 ANECHOIC CHAMBER Report No.: 28FE0088-YK Applicant : RICOH COMPANY LTD. Kind of Equipment: Color Laser printer Model No. : Pro-C900 Serial No. : 48BE-010012 Power : AC240V/60Hz Mode : Tx (Module: M) Remarks : - Date : 1/24/2008 Phase : Single Phase Temperature : 23 °C Engineer : Fumiaki Matsuo Humidity : 35 ％ Regulation : FCC Part15C §15.207.(CISPR Pub.22 ) No. FREQ. READING(N) READING(L1) LISN CABLE ATTEN. RESULT LIMITS MARGIN QP AV QP AV FACTOR LOSS QP AV QP AV QP AV [MHz] [dBμV] [dBμV] [dB] [dB] [dB] [dB] [dBμV] [dBμV] [dB] ------------------------------------------------------------------------------------------- 1. 0.1976 49.1 44.0 48.9 43.6 0.0 0.0 0.0 49.1 44.0 63.7 53.7 14.6 9.7 2. 0.2974 40.3 - 39.8 - 0.0 0.0 0.0 40.3 - 60.3 50.3 20.0 - 3. 0.5967 39.4 38.7 39.2 38.5 0.0 0.1 0.0 39.5 38.8 56.0 46.0 16.5 7.2 4. 0.6955 40.5 39.8 40.4 39.8 0.0 0.1 0.0 40.6 39.9 56.0 46.0 15.4 6.1 5. 0.7951 38.9 38.3 38.8 38.2 0.0 0.1 0.0 39.0 38.4 56.0 46.0 17.0 7.6 6. 1.1936 39.8 39.4 39.9 39.3 0.1 0.1 0.0 40.1 39.6 56.0 46.0 15.9 6.4 7. 1.5906 41.9 40.6 41.8 40.5 0.1 0.1 0.0 42.1 40.8 56.0 46.0 13.9 5.2 8. 1.6891 40.8 39.7 40.9 39.5 0.1 0.1 0.0 41.1 39.9 56.0 46.0 14.9 6.1 9. 2.4855 40.3 39.4 40.5 39.6 0.1 0.1 0.0 40.7 39.8 56.0 46.0 15.3 6.2 10. 2.5839 41.2 40.6 41.5 40.9 0.1 0.1 0.0 41.7 41.1 56.0 46.0 14.3 4.9 11. 2.8840 40.8 38.3 40.0 38.2 0.1 0.1 0.0 41.0 38.5 56.0 46.0 15.0 7.5 12. 6.4641 41.3 40.2 41.4 40.4 0.2 0.2 0.0 41.8 40.8 60.0 50.0 18.2 9.2 ------------------------------------------------------------------------------------------- CALCULATION: READING + LISN FACTOR + CABLE LOSS + ATTEN. ■ISN :KLS-03(NNLK8129)■COAXIAL CABLE:KCC-A1/A3 ■EMI RECEIVER:KTR-03(ESHS10) Page: DATA OF CONDUCTION TEST UL Japan, Inc. YAMAKITA No.1 ANECHOIC CHAMBER Report No.: 28FE0088-YK Applicant : RICOH COMPANY LTD. Kind of Equipment: Color Laser printer Model No. : Pro-C900 Serial No. : 48BE-010012 Power : AC240V/60Hz Mode : Tx (Module: M) Remarks : - Date : 1/24/2008 Phase : Single Phase Temperature : 23 °C Engineer : Fumiaki Matsuo Humidity : 35 ％ Regulation : FCC Part15C §15.207.(CISPR Pub.22 ) [dBμV] Frequency [MHz] □Quasi-Peak×Average 0 10 20 30 40 50 60 70 1 10 30 Page: DATA OF CONDUCTION TEST CHART UL Japan, Inc. YAMAKITA No.1 ANECHOIC CHAMBER Report No.: 28FE0088-YK Applicant : RICOH COMPANY LTD. Kind of Equipment: Color Laser printer Model No. : Pro-C900 Serial No. : 48BE-010012 Power : AC240V/60Hz Mode : Tx (Module: M) Remarks : - Date : 1/24/2008 Phase : Single Phase Temperature : 23 °C Engineer : Fumiaki Matsuo Humidity : 35 ％ Regulation 1 : FCC Part15C §15.207.(CISPR Pub.22 ) Regulation 2 : None Emission Level [dBμV] PHASE:N Frequency [MHz] 0 10 20 30 40 50 60 70 80 0.15 1 10 30 Emission Level [dBμV] PHASE:L1 Frequency [MHz] 0 10 20 30 40 50 60 70 80 0.15 1 10 30 Page: DATA OF CONDUCTION TEST UL Japan, Inc. YAMAKITA No.1 ANECHOIC CHAMBER Report No.: 28FE0088-YK Applicant : RICOH COMPANY LTD. Kind of Equipment: Color Laser printer Model No. : Pro-C900 Serial No. : 48BE-010012 Power : AC240V/60Hz Mode : Tx (Module: C) Remarks : - Date : 1…

Text truncated - open the document above for the full version.

FCC ID : BBP-RFAEG01 Test report No. : 28FE0088-YK-A Page : 11 of 44 Issued date : February 15, 2008 UL Japan, Inc. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b (09.01.08) Conducted emission FCC ID : BBP-RFAEG01 Test report No. : 28FE0088-YK-A Page : 12 of 44 Issued date : February 15, 2008 UL Japan, Inc. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b (09.01.08) Radiated emission 9kHz-30MHz 30-1000MHz
