BBP-RFAPL01RFID Transmitter

Operating Instructions About This Machine Read this manual carefully before you use this machine and keep it handy for future reference. For safe and correct use, be sure to read the Safety Information in this manual before using the machine. Getting Started Entering Text Appendix 1 2 3 Draft 2006/03/07 Operating Instructions About This Machine Type for C3535/DSc535/LD435c/Aficio MP C3500 Type for C4540/DSc545/LD445c/Aficio MP C4500 Printed in ChinaEN USA B222-7737 Draft 2006/03/07 Introduction This manual contains detailed instructions and notes on the operation and use of this machine. For your safety and benefit, read this manual carefully before using the machine. Keep this manual in a handy place for quick reference. Important Contents of this manual are subject to change without prior notice. In no event will the company be li- able for direct, indirect, special, incidental, or consequential damages as a result of handling or oper- ating the machine. Notes: Some illustrations in this manual might be slightly different from the machine. Certain options might not be available in some countries. For details, please contact your local dealer. Depending on which country you are in, certain units may be optional. For details, please contact your local dealer. Laser Safety: This equipment complies with requirements of 21 CFR subchapter J for class 1 laser products. This equipment contains four AlGalnP laser diodes, 7-milliwatt, 645-660 nanometer wavelength for each emitter. This equipment does not emit hazardous light, since the beam is totally enclosed during all cus- tomer modes of operation and maintenance. Caution: Use of controls or adjustments or performance of procedures other than those specified in this manual might result in hazardous radiation exposure. Notes: The model names of the machines do not appear in the following pages. Check the type of your ma- chine before reading this manual. (For details, see p.14 “Machine Types”.) •Type 1: C3535/DSc535/LD435c/Aficio MP C3500 •Type 2: C4540/DSc545/LD445c/Aficio MP C4500 Certain types might not be available in some countries. For details, please contact your local dealer. Two kinds of size notation are employed in this manual. With this machine refer to the inch version. For good copy quality, the supplier recommends that you use genuine toner from the supplier. The supplier shall not be responsible for any damage or expense that might result from the use of parts other than genuine parts from the supplier with your office products. Power Source 120V, 60Hz, 12A or more Please be sure to connect the power cord to a power source as above. For details about power source, see Troubleshooting. Draft 2006/03/07 In accordance with IEC 60417, this machine uses the following symbols for the main power switch: a means POWER ON. b means POWER OFF. c means STAND BY. Trademarks Microsoft ® , Windows ® and Windows NT ® are registered trademarks of Microsoft Corporation in the United States and/or other countries. Adobe ® , PostScript ® , and Acrobat ® are registered trademarks of Adobe Systems Incorporated. The Bluetooth ® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Ricoh Company, Ltd. is under license. NetWare is a registered trademark of Novell, Inc. PCL ® is a registered trademark of Hewlett-Packard Company. AppleTalk, Macintosh, and Mac OS are trademarks of Apple Computer, Inc., registered in the U.S. and other countries. PowerPC ® is a trademark of International Business Machines Corporation in the United States, other countries, or both. PictBridge is a trademark. Other product names used herein are for identification purposes only and might be trademarks of their respective companies. We disclaim any and all rights to those marks. The proper names of the Windows operating systems are as follows: The product name of Windows ® 95 is Microsoft ® Windows ® 95 The product name of Windows ® 98 is Microsoft ® Windows ® 98 The product name of Windows ® Me is Microsoft ® Windows ® Millennium Edition (Windows Me) The product names of Windows ® 2000 are as follows: Microsoft ® Windows ® 2000 Advanced Server Microsoft ® Windows ® 2000 Server Microsoft ® Windows ® 2000 Professional The product names of Windows ® XP are as follows: Microsoft ® Windows ® XP Professional Microsoft ® Windows ® XP Home Edition The product names of Windows Server TM 2003 are as follows: Microsoft ® Windows Server TM 2003 Standard Edition Microsoft ® Windows Server TM 2003 Enterprise Edition Microsoft ® Windows Server TM 2003 Web Edition The product names of Windows NT ® are as follows: Microsoft ® Windows NT ® Server 4.0 Microsoft ® Windows NT ® Workstation 4.0 Copyright © 2006 Draft 2006/03/07 i Manuals for This Machine Refer to the manuals that are relevant to what you want to do with the machine. ❖About This Machine Be sure to read the Safety Information in this manual before using the ma- chine. This manual provides an introduction to the functions of the machine. It also explains the control panel, preparation procedures for using the machine, how to enter text, and how to install the CD-ROMs provided. ❖General Settings Guide Explains User Tools settings, and Address Book procedures such as register- ing fax numbers, e-mail addresses, and user codes. Also refer to this manual for explanations on how to connect the machine. ❖Troubleshooting Provides a guide to solving common problems, and explains how to replace paper, toner, staples, and other consumables. ❖Security Reference This manual is for administrators of the machine. It explains security func- tions that the administrators can use to protect data from being tampered, or prevent the machine from unauthorized use. Also refer to this manual for the procedures for registering administrators, as well as setting user and administrator authentication. ❖Copy/ Document Server Reference Explains Copier and Document Server functions and operations. Also refer to this manual for ex…

Text truncated - open the document above for the full version.

Operating Instructions Copy/Document Server Refer- ence Read this manual carefully before you use this machine and keep it handy for future reference. For safe and correct use, be sure to read the Safety Information in "About This Machine" before using the machine. Placing Originals Copying Document Server Appendix 1 2 3 4 Copy/Document Server Reference Draft 2006/03/07 Operating Instructions Copy/Document Server Reference Type for C3535/DSc535/LD435c/Aficio MP C3500 Type for C4540/DSc545/LD445c/Aficio MP C4500 EN USA B222-7657 Draft 2006/03/07 Introduction This manual contains detailed instructions and notes on the operation and use of this machine. For your safety and benefit, read this manual carefully before using the machine. Keep this manual in a handy place for quick reference. Important Contents of this manual are subject to change without prior notice. In no event will the company be li- able for direct, indirect, special, incidental, or consequential damages as a result of handling or oper- ating the machine. Notes: Some illustrations in this manual might be slightly different from the machine. Certain options might not be available in some countries. For details, please contact your local dealer. Caution: Use of controls or adjustments or performance of procedures other than those specified in this manual might result in hazardous radiation exposure. Notes: The model names of the machines do not appear in the following pages. Check the type of your ma- chine before reading this manual. (For details, see “Machine Types”, About This Machine.) •Type 1: C3535/DSc535/LD435c/Aficio MP C3500 •Type 2: C4540/DSc545/LD445c/Aficio MP C4500 Certain types might not be available in some countries. For details, please contact your local dealer. Depending on which country you are in, certain units may be optional. For details, please contact your local dealer. Two kinds of size notation are employed in this manual. With this machine refer to the inch version. For good copy quality, the supplier recommends that you use genuine toner from the supplier. The supplier shall not be responsible for any damage or expense that might result from the use of parts other than genuine parts from the supplier with your office products. Draft 2006/03/07 In accordance with IEC 60417, this machine uses the following symbols for the main power switch: a means POWER ON. b means POWER OFF. c means STAND BY. Acrobat ® is a registered trademark of Adobe Systems Incorporated. Other product names used herein are for identification purposes only and might be trademarks of their respective companies. We disclaim any and all rights to those marks. Copyright © 2006 Draft 2006/03/07 i Manuals for This Machine Refer to the manuals that are relevant to what you want to do with the machine. ❖About This Machine Be sure to read the Safety Information in this manual before using the ma- chine. This manual provides an introduction to the functions of the machine. It also explains the control panel, preparation procedures for using the machine, how to enter text, and how to install the CD-ROMs provided. ❖General Settings Guide Explains User Tools settings, and Address Book procedures such as register- ing fax numbers, e-mail addresses, and user codes. Also refer to this manual for explanations on how to connect the machine. ❖Troubleshooting Provides a guide to solving common problems, and explains how to replace paper, toner, staples, and other consumables. ❖Security Reference This manual is for administrators of the machine. It explains security func- tions that the administrators can use to protect data from being tampered, or prevent the machine from unauthorized use. Also refer to this manual for the procedures for registering administrators, as well as setting user and admin- istrator authentication. ❖Copy/ Document Server Reference Explains Copier and Document Server functions and operations. Also refer to this manual for explanations on how to place originals. ❖Facsimile Reference Explains Facsimile functions and operations. ❖Printer Reference Explains Printer functions and operations. ❖Scanner Reference Explains Scanner functions and operations. ❖Network Guide Explains how to configure and operate the machine in a network environ- ment, and use the software provided. This manual covers all models, and includes descriptions of functions and settings that might not be available on this machine. Images, illustrations, and information about operating systems that are supported might also differ slightly from those of this machine. ❖Other manuals • PostScript3 Supplement •UNIX Supplement Draft 2006/03/07 ii • Manuals for DeskTopBinder Lite • DeskTopBinder Lite Setup Guide • DeskTopBinder Introduction Guide •Auto Document Link Guide Note ❒Manuals provided are specific to machine types. ❒Adobe Acrobat Reader/Adobe Reader must be installed in order to view the manuals as PDF files. ❒For “UNIX Supplement”, please visit our Web site or consult an authorized dealer. ❒“PostScript3 Supplement” and “UNIX Supplement” include descriptions of functions and settings that might not be available on this machine. Draft 2006/03/07 iii What You Can Do with This Machine <Color Functions/Color Adjustments> Color Copying You can switch the color copy mode depending on the type of originals used and the desired finish. See p.41 “Selecting a Color Mode”. ❖Full Color Copy Copies using four colors: yellow, magenta, cyan and black. ❖Black/White Copy Copies in black and white even if the original is colored. ❖Convert Colors See p.42 “Convert Colors”. Copies by changing a specific color in the original to another color. AMF033S AMF034S AMF038S Draft 2006/03/07 iv ❖Erase Specified Color See p.43 “Erase Color”. Copies by deleting a specific color in the original. ❖Color Background See p.44 “Color Background”. Copies by adding a color to the whole page. Stamping on Copies Copies with the date, page numbers, etc. The stamp color can be yellow, red, cy- an, m…

Text truncated - open the document above for the full version.

Ricoh Company, Ltd. FCC ID: BBP-RFAPL01 IC Number: 144D-RFAPL01 External photo Front Back

FCC ID : BBP-RFAPL01 IC :144D-RFAPL01

Ricoh Company, Ltd. FCC ID: BBP-RFAPL01 IC Number: 144D-RFAPL01 Internal photo Front view Rear view Ricoh Company, Ltd. FCC ID: BBP-RFAPL01 IC Number: 144D-RFAPL01 Installation Installation (enlarged)

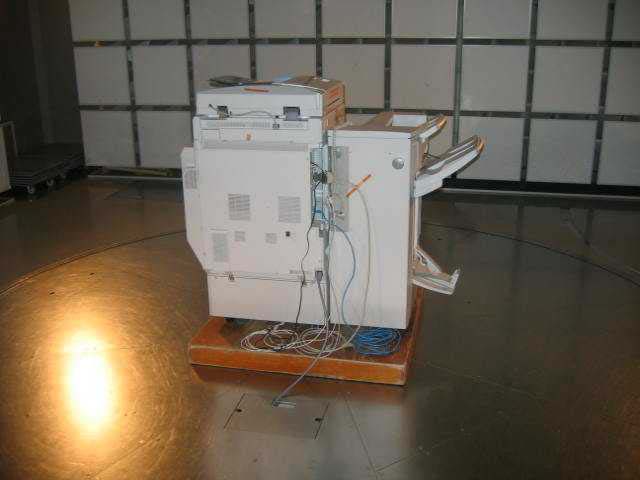

FCC ID : BBP-RFAPL01 Test report No. : 26FE0236-YK-F Page : 1 of 25 Issued date : March 1, 2006 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b (12.02.06) EMI TEST REPORT Test Report No. : 26FE0236-YK-F Applicant : RICOH CO., LTD. Type of Equipment : Full-color MFP Model No. : Aficio MP C4500 (Aficio MP C3500) FCC ID : BBP-RFAPL01 Test Standard : FCC Part15 Subpart C, Section 15.207, 15.209, 15.215, 15.225: 2006 Test Result : Complied 1. This test report shall not be reproduced except in full, without the written approval of UL Apex Co., Ltd. 2. The results in this report apply only to the sample tested. 3. This equipment is in compliance with above regulation. We hereby certify that the data contain a true representation of the EMC profile. 4. The test results in this test report are traceable to the national or international standards. Date of test: February 9 and 14, 2006 Tested by: Toyokazu Imamura Approved by: Osamu Watatani Site Manager of Yamakita EMC Lab. FCC ID : BBP-RFAPL01 Test report No. : 26FE0236-YK-F Page : 2 of 25 Issued date : March 1, 2006 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b (12.02.06) Table of Contents Page 1 Applicant Information 3 2 Product Description 3 3 Test Specification, Procedures and Results 4 4 System Test Configuration 6 5 Conducted Emissions 8 6 Radiated Emissions (Fundamental, Spurious and Outside the Allocated bands) 9 7 20dB Bandwidth 11 8 Frequency Tolerance 11 Contents of Appendixes 12 APPENDIX 1: Photographs of test setup 13 APPENDIX 2: Test Data 17 APPENDIX 3: Test instruments 25 FCC ID : BBP-RFAPL01 Test report No. : 26FE0236-YK-F Page : 3 of 25 Issued date : March 1, 2006 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b (12.02.06) 1 Applicant Information Company Name : RICOH CO., LTD. Address : 810 Shimoimaizumi, Ebina-shi, Kanagawa-ken, 243-0023 JAPAN Telephone Number : +81-46-292-6870 Facsimile Number : +81-46-231-9183 Contact Person : Shinji Okada 2 Product Description Type of Equipment : Full-color MFP Model No. : Aficio MP C4500 (Aficio MP C3500) Serial No. : 3A84-071170 Rating : AC120±10%V, 50/60Hz Country of Manufacture : China Receipt Date of Sample : February 8, 2006 Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Model: Aficio MP C4500 / Aficio MP C3500 (referred to as the EUT in this report) is a Full-color MFP. The difference between Model: Aficio MP C4500 and Model: Aficio MP C3500 is printing speed. Aficio MP C4500: 45 pages per minute Aficio MP C3500: 35 pages per minute Equipment type : Transceiver Frequency of operation : 13.56 MHz Type of modulation : ASK 100% Antenna type : Print pattern antenna Antenna connector type : None Mode of operation : Duplex Other clock frequency : 798.8MHz Emission Designation : A1D Operation temperature range: 10 ~ 32 deg. C. *FCC Part15.31 (e) Host device (Full-color MFP) provides the RFID Module with stable power supply, and the power is not changed when voltage of the Full-color MFP is varied. Therefore, the equipment complies power supply regulation. *FCC Part15.203 The EUT complies with the requirement. When it is put up for sale, one of the antennas is attached and the antenna is with a unique coupling to the intentional radiator. FCC ID : BBP-RFAPL01 Test report No. : 26FE0236-YK-F Page : 4 of 25 Issued date : March 1, 2006 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b (12.02.06) 3 Test Specification, Procedures and Results 3.1 Test specification Test specification : FCC Part15 Subpart C: 2006 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207: Conducted limits Section 15.209: Radiated emission limits, general requirements Section 15.215: Additional provisions to the general radiated emission limitations Section 15.225: Operation within the band 13.110-14.010MHz 3.2 Procedures & Results Item Test Procedure Specification Remarks DeviationWorst Margin Results Conducted Emission ANSI C63.4: 2003 7. AC powerline conducted emission measurements Section 15.207 - N/A 11.7dB (0.1995MHz, N, AV) Complied Electric Field Strength of Fundamental Emission ANSI C63.4: 2003 13. Measurement of intentional radiators Section 15.225 (a)Radiated N/A 69.2dB (Vertical) Complied Electric Field Strength of Outside the Allocated bands ANSI C63.4: 2003 13. Measurement of intentional radiators Section 15.225 (b) (c) Radiated N/A 39.80dB (13.110MHz, Vertical) Complied Electric Field Strength of Spurious Emission ANSI C63.4: 2003 13. Measurement of intentional radiators Section15.209, Section 15.225 (d) Radiated N/A 1.0dB (550.49MHz, Vertical) Complied 20dB Bandwidth ANSI C63.4: 2003 13. Measurement of intentional radiators Section15.215(c) Radiated N/A - Complied Frequency Tolerance ANSI C63.4: 2003 13. Measurement of intentional radiators Section15.225 (e) Radiated Excluded *1 - Complied Note: UL Apex’s EMI Work Procedures No.QPM05. *1) Voltage variation: Excluded It is confirmed the RFID module is provided the regulated stable power and there is no fluctuation. Because of the stable voltage, test of frequency tolerance by voltage variation was not performed. * Other than above, no addition, exclusion nor deviation has been made from the standard. FCC ID : BBP-RFAPL01 Test report No. : 26FE0236-YK-F Page : 5 of 25 Issued date : March 1, 2006 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF06…

Text truncated - open the document above for the full version.

FCC ID : BBP-RFAPL01 Test report No. : 26FE0236-YK-F Page : 13 of 25 Issued date : March 1, 2006 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b (12.02.06) Conducted emission FCC ID : BBP-RFAPL01 Test report No. : 26FE0236-YK-F Page : 14 of 25 Issued date : March 1, 2006 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b (12.02.06) Radiated emission (9kHz-30MHz) FCC ID : BBP-RFAPL01 Test report No. : 26FE0236-YK-F Page : 15 of 25 Issued date : March 1, 2006 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b (12.02.06) Radiated emission (30-1000MHz) FCC ID : BBP-RFAPL01 Test report No. : 26FE0236-YK-F Page : 16 of 25 Issued date : March 1, 2006 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b (12.02.06) RFID module ID Tag Module ch:0 Module ch:3 Module ch:2 Module ch:1
