BBP-RFAT001Copy Machine with integrated RFID transmitter

Paper type: OK Prince Eco G100(55kg), Paper Thickness=80 μ m // Pages in book=152 // Print scale=81% Gap (when printed at 81% scale) = Pages in book × Paper thickness / 2 = 6.080000 mm B1567509B Operating Instructions Copy Reference Read this manual carefully before you use this machine and keep it handy for future reference. For safe and correct use, be sur e to read the Safety Information in the "General Settings Guide" before using the machine. Placing OriginalsCopyingColor Adjustment/ProgramTroubleshootingUser Tools (Copier / Document Server Features)Specifications Type for C2410/DSc424/LD124c/Aficio 3224CType for C3210e/DSc432/LD132c/Aficio 3232CPrinted in ChinaEN USA B156-7509B Paper type: OK Prince Eco G100(55kg), Paper Thickness=80 μ m // Pages in book=152 // Print scale=81% Gap (when printed at 81% scale) = Pages in book × Paper thickness / 2 = 6.080000 mm In accordance with IEC 60417, this machine uses the following symbols for the main power switch: a a a a means POWER ON. b b b b means POWER OFF. c c c c means STAND BY. TrademarkAcrobat ® is a registered trademark of Adobe Systems Incorporated. IntroductionThis manual contains detailed instructions and notes on the operation and use of this machine. For yoursafety and benefit, read this manual carefully before using the machine. Keep this manual in a handyplace for quick reference.For safe and correct use of this machine, please be sure to read the Safety Information in the GeneralSettings Guide before you use it.ImportantContents of this manual are subject to change without prior notice. In no event will the company be li-able for direct, indirect, special, incidental, or consequential damages as a result of handling or oper-ating the machine.NotesSome illustrations in this manual might be slightly different from the machine.Certain options might not be available in some countries. For details, please contact your local dealer.Caution:Use of controls or adjustments or performance of procedures other than those specified in this manualmight result in hazardous radiation exposure.Notes:The model names of the machines do not appear in the following pages. Check the type of your ma-chine before reading this manual. (For details, see P.3 “Machine Types” .) • Type 1: C2410/DSc424/LD124c/Aficio 3224C • Type 2: C3210e/DSc432/LD132c/Aficio 3232C Certain types might not be available in some countries. For details, please contact your local dealer.Two kinds of size notation are employed in this manual. With this machine refer to the inch version.For good copy quality, the supplier recommends that you use genuine toner from the supplier.The supplier shall not be responsible for any damage or expense that might result from the use of partsother than genuine parts from the supplier with your office products. Power Source120V, 60Hz, 12A or morePlease be sure to connect the power cord to a power source as shown above. For details about powersource, see “Power Connection” in the General Settings Guide. Copyright © 2005

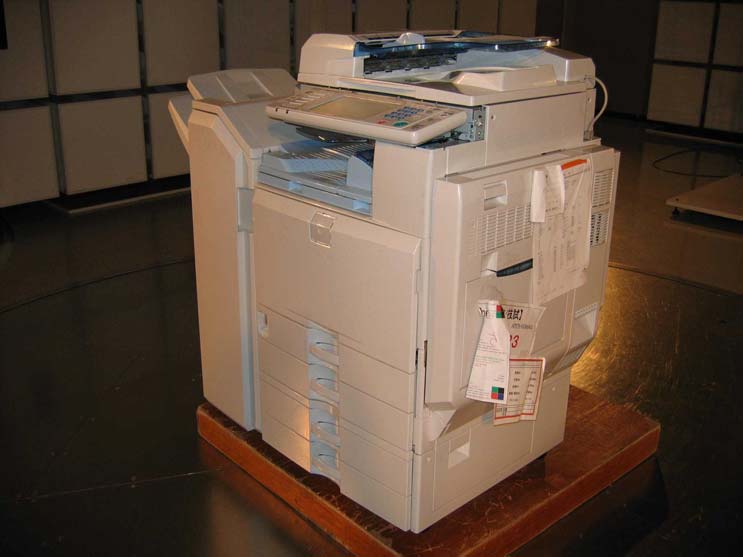

Ricoh Company, Ltd. FCC ID: BBP-RFAT001 IC Number: 144D-RFAT001 External photo

Ricoh Company, Ltd. FCC ID: BBP-RFAT001 IC Number: 144D-RFAT001 Internal photo Front view Rear view

Device inside

FCC ID : BBP-RFAT001 Test report No. : 25LE0014-YK-1 Page : 1 of 25 Issued date : September 8, 2005 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b (01.06.05) EMI TEST REPORT Test Report No. : 25LE0014-YK-1 Applicant : RICOH CO., LTD. Type of Equipment : Full Color MFP Model No. : Aficio MP C3000 (Aficio MP C2500) FCC ID : BBP-RFAT001 Test Standard : FCC Part15 Subpart C, Section 15.207, Section 15.225: 2005 Test Result : Complied 1. This test report shall not be reproduced except in full, without the written approval of UL Apex Co., Ltd. 2. The results in this report apply only to the sample tested. 3. This equipment is in compliance with above regulation. We hereby certify that the data contain a true representation of the EMC profile. 4. The test results in this test report are traceable to the national or international standards. Date of test: August 8, 9 10 and 11, 2005 Tested by: Toyokazu Imamura Approved by: Osamu Watatani Site Manager of Yamakita EMC Lab. FCC ID : BBP-RFAT001 Test report No. : 25LE0014-YK-1 Page : 2 of 25 Issued date : September 8, 2005 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b (01.06.05) Table of Contents Page 1 Applicant Information 3 2 Product Description 3 3 Test Specification, Procedures and Results 4 4 System Test Configuration 6 5 Conducted Emissions 8 6 Radiated Emissions (Fundamental, Spurious and Outside the Allocated bands) 9 7 20dB Bandwidth 11 8 Frequency Tolerance 11 Contents of Appendixes 12 APPENDIX 1: Photographs of test setup 13 APPENDIX 2: Test Data 17 APPENDIX 3: Test instruments 25 FCC ID : BBP-RFAT001 Test report No. : 25LE0014-YK-1 Page : 3 of 25 Issued date : September 8, 2005 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b (01.06.05) 1 Applicant Information Company Name : RICOH CO., LTD. Address : 3-6, Naka-magome 1-chome, Ohta-ku, Tokyo-to, 143-8555 JAPAN Telephone Number : +81-46-292-6870 Facsimile Number : +81-46-231-9183 Contact Person : Shinji Okada 2 Product Description Type of Equipment : Full Color MFP Model No. : Aficio MP C3000 (Aficio MP C2500) Serial No. : 0123 Rating : AC120±10%V, 50/60Hz Country of Manufacture : China Receipt Date of Sample : July 11, 2005 Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Model: Aficio MP C3000 / Aficio MP C2500 (referred to as the EUT in this report) is a Full Color MFP. The difference between Model: Aficio MP C3000 and Model: Aficio MP C2500 is printing speed. Aficio MP C3000: 30 pages per minute Aficio MP C2500: 25 pages per minute The clock frequency used in EUT: 13.56MHz (RFID module), 685.9MHz Equipment type : Transceiver Frequency of operation : 13.56 MHz Type of modulation : ASK 100% Antenna type : Print pattern antenna Antenna connector type : None Mode of operation : Duplex Emission Designation : A1D Operation temperature range: 10 ~ 32 deg. C. *FCC Part15.31 (e) Host device (Full Color MFP) provides the RFID Module with stable power supply, and the power is not changed when voltage of the Full Color MFP is varied. Therefore, the equipment complies power supply regulation. *FCC Part15.203 The EUT complies with the requirement. When it is put up for sale, one of the antennas is attached and the antenna is with a unique coupling to the intentional radiator. FCC ID : BBP-RFAT001 Test report No. : 25LE0014-YK-1 Page : 4 of 25 Issued date : September 8, 2005 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b (01.06.05) 3 Test Specification, Procedures and Results 3.1 Test specification Test specification : FCC Part15 Subpart C: 2005 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits: 2005 Section 15.225 : Operation within the band 13.110-14.010MHz 3.2 Procedures & Results Item Test Procedure Specification Remarks DeviationWorst Margin Results Conducted Emission ANSI C63.4: 2003 7. AC powerline conducted emission measurements Section 15.207 - N/A 14.3dB (0.2026MHz, N, AV) Complied Electric Field Strength of Fundamental Emission ANSI C63.4: 2003 13. Measurement of intentional radiators Section 15.225 (a)Radiated N/A 81.4dB (Horizontal) Complied Electric Field Strength of Outside the Allocated bands ANSI C63.4: 2003 13. Measurement of intentional radiators Section 15.225 (b) (c) Radiated N/A 38.40dB (14.010MHz, Horizontal) Complied Electric Field Strength of Spurious Emission ANSI C63.4: 2003 13. Measurement of intentional radiators Section15.209, Section 15.225 (d) Radiated N/A 4.8dB (64.04MHz, Vertical) Complied 20dB Bandwidth ANSI C63.4: 2003 13. Measurement of intentional radiators Section15.215(c) Radiated N/A - Complied Frequency Tolerance ANSI C63.4: 2003 13. Measurement of intentional radiators Section15.225 (e) Radiated Excluded *1 - Complied Note: UL Apex’s EMI Work Procedures No.QPM05. *1) Voltage variation: Excluded It is confirmed the RFID module is provided the regulated stable power and there is no fluctuation. Because of the stable voltage, test of frequency tolerance by voltage variation was not performed. * Other than above, no addition, exclusion nor deviation has been made from the standard. FCC ID : BBP-RFAT001 Test report No. : 25LE0014-YK-1 Page : 5 of 25 Issued date : September 8, 2005 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b (01.06.05) 3.3 Uncertainty Conducted emission The measurement uncertainty (with 95% confidence…

Text truncated - open the document above for the full version.

FCC ID : BBP-RFAT001 Test report No. : 25LE0014-YK-1 Page : 13 of 25 Issued date : September 8, 2005 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b (01.06.05) Conducted emission FCC ID : BBP-RFAT001 Test report No. : 25LE0014-YK-1 Page : 14 of 25 Issued date : September 8, 2005 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b (01.06.05) Radiated emission (9kHz-30MHz) FCC ID : BBP-RFAT001 Test report No. : 25LE0014-YK-1 Page : 15 of 25 Issued date : September 8, 2005 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b (01.06.05) Radiated emission (30-1000MHz)
