BBP-RFICM01IC Card Reader/Writer

Document No. :ZST150-058 2022/3/28 User Manual For IC Card Reader/Writer ICM-3405U-A Document No. : ZST150-058 2022/3/28 2 1. Introduction For the details about this product, please refer to the specification of product. This product should be installed in the host device according to the theory of operation-interface specification (Installation Procedure). * Ricoh Company Ltd designates FUJIFILM Imaging Systems Co., Ltd. as manufacturer of the product (IC Card Reader/Writer, Model:ICM-3405U-A). 2. Approvals FCC This product is conform to the FCC standards. FCC Rules (Federal Communications Commission) This product complies with Part 15 Subpart C of the FCC Rules. FCC ID : BBP-RFICM01 ISED IC : 144D-RFICM01 FCC/ISED NOTICE This device complies with part 15 of FCC Rules and Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, ncluding interference that may cause undesired operation. Le présent appareil est conforme à la partie 15 des règles de la FCC et aux normes des CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'appareil doit accepter tout brouillage subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. FCC CAUTION Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Document No. : ZST150-058 2022/3/28 3 NCC NOTICE 『取得審驗證明之低功率射頻器材，非經核准，公司、商號或使用者均不得擅自變更頻率、 加大功率或變更原設計之特性及功能。 低功率射頻器材之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用， 並改善至無干擾時方得繼續使用。 前述合法通信，指依電信管理法規定作業之無線電通信。 低功率射頻器材須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。』 KC NOTICE ANATEL NOTICE Para consultas, visite: www.anatel.gov.br (For queries, visit: www.anatel.gov.br) 3. Requirement of Labeling The host device that incorporates this module should display the following information: ＜FCC＞ Contains Transmitter Module FCC ID：BBP-RFICM01 or Contains FCC ID：BBP-RFICM01 ＜ISED＞ Contains IC：144D-RFICM01 FCC/ISED NOTICE This device complies with part 15 of FCC Rules and Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, ncluding interference that may cause undesired operation. Le présent appareil est conforme à la partie 15 des règles de la FCC et aux normes des CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'appareil doit accepter tout brouillage subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. *If it is difficult to describe this statement on the host product due to the size, please describe in the User manual. 이 제품은 실내 전용으로서 옥외에서 사용해서는 안됩니다. Este equipamento não tem direito à proteção contra interferência prejudicial e não pode causar interferência em sistemas devidamente autorizados. Document No. : ZST150-058 2022/3/28 4 ＜NCC＞ Display the NCC logo and certification number. ＜KC＞ Display the Certification Number of both the wireless module and the host device in a visible location on the host device. The Certification Number should be displayed under the conformity assessment mark (KC logo) or in a visible location on the host device. If there are two or more Certification Number, you can display them near one KC logo. ＜ANATEL＞ ＜RAMATEL＞ If the certification number cannot be confirmed when it is incorporated into the host device, display one of the following contents on the host device. The font of "CONTIENE" is Arial and should be displayed in size 5points or more. e.g. CCAB09LPXXX0TY e.g. R-R-RJP-ICM3405UA R-CS-ABC-XXXXXXXXXX Incorpora produto homologado pela Anatel sob número HHHHH-AA-FFFFF Document No. : ZST150-058 2022/3/28 5 4. Requirement of User Manual Statement When selling the host device in which this module was embedded in USA or Canada, the following statements must be described on the user manual of the host device. FCC/ISED NOTICE This device complies with part 15 of FCC Rules and Industry Canada’s licence- exempt RSSs. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme à la partie 15 des règles de la FCC et aux normes des CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'appareil doit accepter tout brouillage subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. **When it is possible to describe this statement on the host product, please describe on the host product. FCC CAUTION Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note : The modular transmitter is only FCC and ISED authorized for the specific rule parts (i.e., FCC and ISED transmitter rules) listed on the grant FCC Part 15.225 and RSS- Gen Issue5 +A1, RSS-210 Issue10+A. The host product manufacturer is responsible for compliance to any other FCC and ISED rules that apply to the host not covered by the modular transmitter grant of certification. 5. Description of manufacturer FUJIFILM Imaging Systems Co.,Ltd. 6-30, NISHIGOTANDA 3-CHOME, SHINAGAWA-KU, TOKYO 141-0031, JAPAN

Document No. :ZST150-060 2022/3/28 CONFIDENTIAL PROPRIETARY Theory of Operation-Interface Specification (Installation manual) For IC Card Reader/Writer ICM-3405U-A Document No. : ZST150-060 2022/3/28 CONFIDENTIAL PROPRIETARY 2 1. Overview The product is IC Card Reader/Writer module intended to be embedded into other devices. The product is provided with a USB interface; through control from a host controller, it can transmit and receive data to and from IC card or tag. The following diagram shows a typical setup for IC Card Reader/Writer module ICM-3405U-A. 2. Installation 2-1 Hardware Prerequisites The following section shows the hardware required for the installation. ・Host system For example PC, Multifunction printer and Manufacturing equipment etc. are connected with the IC Card Reader/Writer module. ・Regulated DC +5V power supply (USB Bus-powered) ・Host interface cable USB micro-B cable Refer to “Host Interface Specifications” about pin assigns. ・Mounting frame (Plastic frame) Please use nonconductive material for mounting frame. ・Screw (M3×1 or 2) Please use nonconductive material for screw. Host System (PC, Multifunction printer, Manufacturing equipment, etc.) IC Card Reader/Writer module ICM-3405U-A IC card or tag DC +5V Host Interface RF Communication Host Module micro-B USB micro-B cable Document No. : ZST150-060 2022/3/28 CONFIDENTIAL PROPRIETARY 3 2-2 Hardware Installation Steps 1. Turn OFF the power of a host system before starting the installation. 2. The IC Card Reader/Writer module consists of the Control PCB and the Antenna PCB. 3. Screw the Control PCB and install it on the equipment. It is possible to attach to the device using the mounting hole. 4. Attach the Antenna PCB by fixed pawl. 5. Connect the host system to the IC Card Reader/Writer module using the host interface cable. 6. Turn ON the power of a host system. 7. Supply power to The IC Card Reader/Writer module. And it should start working. 8. Application software can communicate to IC Card Reader/Writer module through USB. 2-3 RF Communication Steps 1. Turn ON the power of a host system. 2. Supply power to the IC Card Reader/Writer module. 3. Put the IC card or tag on a communication area. 4. Send the configuration command from the host system. 5. Send the read or write operation command. 6. Check the response data. Host interface cable Mounting flame Host system IC card or tag Control PCB Antenna PCB Screw fixed pawl Control PCB Antenna PCB Host system Document No. : ZST150-060 2022/3/28 CONFIDENTIAL PROPRIETARY 4 3. Host Interface Specifications 3-1 Interface Universal Serial Bus Specification Revision 2.0 3-2 Data Flow Types Controlled Transfer/Bulk Transfer 3-3 Transfer rate 12Mbps (Full Speed) 3-4 Power Supply USB Bus-powered 3-5 Connector USB micro-B 3-5 Connector Pin assigns Pin # Signal Name Remarks 1 VBUS Power(+5V+/-5%) 2 D- Data signal 3 D+ Data signal 4 Reserved Not to be connected 5 GND Ground 4. Communication Method ISO/IEC 14443 Type A ISO/IEC 14443 Type B ISO/IEC 18092 ISO/IEC 15693 1 Modulation type ASK 100% ASK 10% ASK 10% ASK 10% 2 Data speed 106kbps 106kbps 212kbps 424kbps 26.5kbps 3 Carrier frequency 13.56MHz Host Connector

Letter of Authorization Date: March 29, 2022 UL Verification Services Inc. 47173 Benicia Street, Fremont, CA 94538 Applicant: Ricoh Company Ltd FCC ID: BBP-RFICM01 To whom it may concern: We, the undersigned, hereby authorize Akiko Nishimura of Consumer, Medical & Information Technologies Division, UL Japan, Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Japan, Inc. on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. The application for the subject equipment has not been submitted to another TCB for certification. Sincerely Yours, Atsushi Yasuda Ricoh Company Ltd

Request for Modular Transmitter Approval March 30, 2022 FCC ID : BBP-RFICM01 Applicant : Ricoh Company Ltd This transmitter, model: ICM-3405U-A complies with the modular transmitters basic requirements (Item 1 to 8) in FCC Part 15 Subpart C Section 15.212 as indicated below: Modular Approval Checklist: Modular approval requirement Yes No (1) Have its own RF shielding. (2) Have buffered modulation/data inputs. (3) Have its own power supply regulation. (4) Comply with the antenna and transmission system requirements of § 15.203, 15.204(b) and 15.204(c). (5) Tested in a stand-alone configuration. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in FCC § 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module. The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available. (6) Equipped with either a permanently affixed label or must be capable of electronically displaying its FCC ID. If the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. (7) Comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. (8) Comply with any applicable RF exposure requirements in its final configuration: The modular transmitter complies with FCC radiation exposure requirement. Atsushi Yasuda Ricoh Company Ltd

Request for Confidentiality Date: March 29, 2022 UL Verification Services Inc. 47173 Benicia Street, Fremont, CA 94538 Applicant : Ricoh Company Ltd FCC ID : BBP-RFICM01 To whom it may concern: Please be advised that the following information is to be held confidential on behalf of us, referring to the FCC rules 0.457 and 0.459: Block Diagram Theory of Operation Schematics The application contains technical information which we deem to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Sincerely, Atsushi Yasuda Ricoh Company Ltd

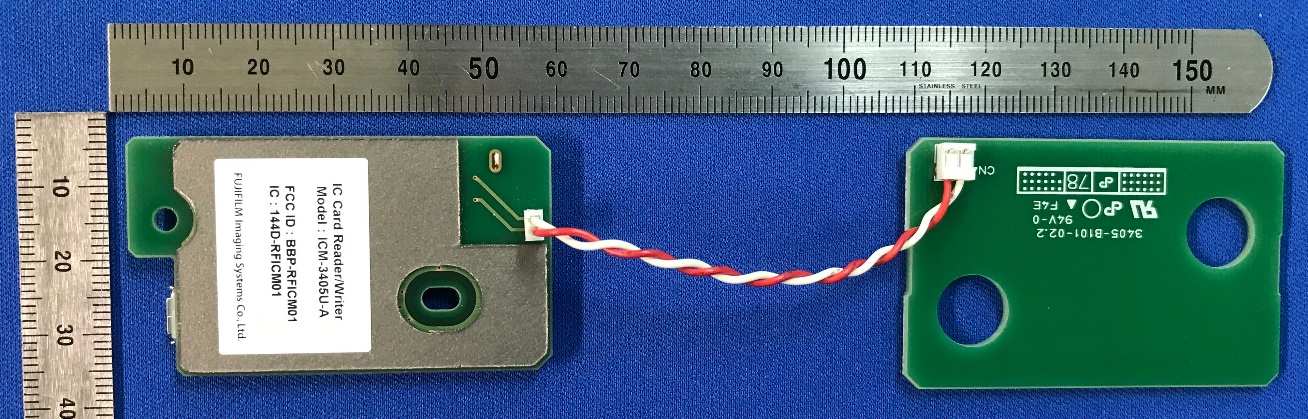

External Photos Model : ICM-3405U-A 1/1

Label Design and Location Model : ICM-3405U-A 1/1 <Product Label design> <Approval Label design> <Part Label design>

Internal Photos (shieldless) Model : ICM-3405U-A 1/1

Test report No. : 14177390H-A-R1 Page : 1 of 58 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81 596 24 8999 RADIO TEST REPORT Test Report No. 14177390H-A-R1 Customer Ricoh Company Ltd Description of EUT IC Card Reader/Writer Model Number of EUT ICM-3405U-A FCC ID BBP-RFICM01 Test Regulation FCC Part 15 Subpart C: 2021 Test Result Complied (Refer to SECTION 3) Issue Date April 4, 2022 Remarks - Representative Test Engineer Approved By Junya Okuno Engineer Shinichi Miyazono Engineer CERTIFICATE 5107.02 The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan, Inc. There is no testing item of "Non-accreditation". Report Cover Page - Form-ULID-003532 (DCS:13-EM-F0429) Issue# 20.0 Test report No. : 14177390H-A-R1 Page : 2 of 58 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81 596 24 8999 ANNOUNCEMENT REVISION HISTORY Original Test Report No.: 14177390H-A This report is a revised version of 14177390H-A. 14177390H-A is replaced with this repor t. Revision Test Report No. Date Page Revised Contents - (Ori ginal) 14177390H-A March 11, 2022 - 1 14177390H-A-R1 April 4, 2022 SECTION 3.2 Correction of “FCC part 15.31(e)” and “FCC Part 15.203/212 Antenna requirement” to the following contents; FCC Part 15.31 (e) The RF Module has its own regulator. The RF Module is constantly provided voltage through the regulator regardless of input voltage. FCC Part 15.203/212 Antenna requirement The antenna is not removable from the EUT. 1 14177390H-A-R1 April 4, 2022 SECTION 7 - Correction of the description of Span, RBW and VBW with 20 dB Bandwidth. - Addition of "* 3)" in the item name of 20 dB Bandwidth. - Correction from * 1) to * 3) of the note numbers of Span, RBW, and VBW in 20 dB Bandwidth.  This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc.  The results in this report appl y only to the sample tested.  This sample tested is in compliance with the limits of the above re gulation.  The test results in this test report are traceable to the national or international standards.  This test report must not be used by the customer to claim product certification, approval, or endorsement by the A2LA accreditation bod y.  This test report covers Radio technical requirements. It does not cover administrative issues such as Manual or non-Radio test related Requirements. (if applicable)  The all test items in this test report are conducted b y UL Japan, Inc. Ise EMC Lab.  The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan, Inc. has been accredited.  The information provided from the applicant for this report is identified in Section 1.  For test report(s) referred in this report, the latest version (includin g any revisions) is always referred. Test report No. : 14177390H-A-R1 Page : 3 of 58 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81 596 24 8999 Reference: Abbreviations (Including words undescribed in this report) A2LA The American Association for Laboratory Accreditation ICES Interference-Causing Equipment Standard AC Alternating Current IEC International Electrotechnical Commission AFH Adaptive Frequency Hopping IEEE Institute of Electrical and Electronics Engineers AM Amplitude Modulation IF Intermediate Frequency Amp, AMP Amplifier ILAC International Laboratory Accreditation Conference ANSI American National Standards Institute ISED Innovation, Science and Economic Development Canada Ant, ANT Antenna ISO International Organization for Standardization AP Access Point JAB Japan Accreditation Board ASK Amplitude Shift Keying LAN Local Area Network Atten., ATT Attenuator LIMS Laboratory Information Management System AV Average MCS Modulation and Coding Scheme BPSK Binary Phase-Shift Keying MRA Mutual Recognition Arrangement BR Bluetooth Basic Rate N/A Not Applicable BT Bluetooth NIST National Institute of Standards and Technology BT LE Bluetooth Low Energy NS No signal detect. BW BandWidth NSA Normalized Site Attenuation Cal Int Calibration Interval NVLAP National Voluntary Laboratory Accreditation Pro gram CCK Complementary Code Keying OBW Occupied Band Width Ch., CH Channel OFDM Orthogonal Frequency Division Multiplexing CISPR Comite International Special des Perturbations Radioelectri ques P/M Power meter CW Continuous Wave PCB Printed Circuit Board DBPSK Differential BPSK PER Packet Error Rate DC Direct Current PHY Physical Layer D-factor Distance factor PK Peak DFS Dynamic Frequency Selection PN Pseudo random Noise DQPSK Differential QPSK PRBS Pseudo-Random Bit Sequence DSSS Direct Sequence Spread Spectrum PSD Power Spectral Density EDR Enhanced Data Rate QAM Quadrature Amplitude Modulation EIRP, e.i.r.p. Equivalent Isotropically Radiated Power QP Quasi-Peak EMC ElectroMagnetic Compatibility QPSK Quadri-Phase Shift Keying EMI ElectroMagnetic Interference RBW Resolution Band Width EN European Norm RDS Radio Data System ERP, e.r.p. Effective Radiated Power RE Radio Equipment EU European Union RF Radio Frequency EUT Equipment Under Test RMS Root Mean Square Fac. Factor RSS Radio Standards Specifications FCC Federal Communications Commission Rx Receiving FHSS Frequency Hopping Spread Spectrum SA, S/A Spectrum Analyzer FM Frequency Modulation SG Signal Generator Freq. Frequency SVSWR Site-Voltage Standing Wave Ratio FSK Frequency Shift Keying TR Test Receiver GFSK Gaussian Frequency-Shift Keying Tx Transmitting GNSS Global Navigation Satellite System VBW Video BandWidth GPS Global Positioning System Vert. Vertical Hori. Horizontal WLAN Wireless LAN Test report No. : 14177390H-A-R1 Page : 4 of 58 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81 596 24 8999 CONTENTS PAGE SECTION 1: Customer Information ..........................................................................................…

Text truncated - open the document above for the full version.

Test report No. : 14177390H-A-R1 Page : 54 of 58 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81 596 24 8999 APPENDIX 3: Photographs of test setup Conducted Emission Photo 1 Photo 2 Test report No. : 14177390H-A-R1 Page : 55 of 58 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81 596 24 8999 Radiated Emission Photo 1 Photo 2 Test report No. : 14177390H-A-R1 Page : 56 of 58 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81 596 24 8999 Worst Case Position Below 30 MHz Y-axis Above 30 MHz Horizontal: X-axis Vertical: X-axis X-axis Y-axis Z-axis Test report No. : 14177390H-A-R1 Page : 57 of 58 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81 596 24 8999 With/Without Tag With Tag (Mode 1, 2, 3, 4) With Tag (Mode 5) Without Tag Test report No. : 14177390H-A-R1 Page : 58 of 58 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81 596 24 8999 Frequency Tolerance Photo 1 End of Report
