BBP-RFSHI01Copier (Laser Printer)

1 Information Introduction This manual contains detailed instructions and notes on the operation and use of this machine. For your safety and benefit, read this manual carefully before using the machine. Keep this manual in a handy place for quick reference. Important Contents of this manual are subject to change without prior notice. In no event will the company be liable for direct, indirect, special, incidental, or consequential damages as a result of handling or operating the machine. Notes: Some illustrations in this manual might be slightly different from the machine. Certain options might not be available in some countries. For details, please contact your local dealer. Depending on which country you are in, certain units may be optional. For details, please contact your local dealer. Caution For good print quality, the manufacturer recommends that you use genuine toner from the manufacturer. The manufacturer shall not be responsible for any damage or expense that might result from the use of parts other than genuine parts from the manufac- turer with your office products. 2 Notes The model names of the machines do not appear in the following pages. Check the type of your machine before reading this manual. (For details, see “Ma- chine Types”, Hardware Guide in the CD-ROM.) • Type 1: SP 5200DN/Aficio SP 5200DN • Type 2: SP 5210DN/Aficio SP 5210DN Certain types might not be available in some countries. For details, please contact your local dealer. Two kinds of size notation are employed in this manual. With this machine refer to the inch version. Power Source 120-127 V, 60 Hz, 11 A or less Please be sure to connect the power cord to a power source as above. 3 Laws and Regulations Legal Prohibition Do not copy or print any item for which reproduction is prohibited by law. Copying or printing the following items is generally prohibited by local law: bank notes, revenue stamps, bonds, stock certificates, bank drafts, checks, pass- ports, driver’s licenses. The preceding list is meant as a guide only and is not inclusive. We assume no responsibility for its completeness or accuracy. If you have any questions concerning the legality of copying or printing certain items, consult with your legal advisor. Laser Safety This machine complies with the requirements of 21 CFR subchapter J for class 1 laser product. This machine contains four AlGaAs laser diodes, with 6.2 milliwatt, 770 - 795 nanometer wavelength. This equipment does not emit hazardous light, since the beam is totally en- closed during all customer modes of operation and maintenance. Caution: Use of controls or adjustments or performance of procedures other than those specified in this manual might result in hazardous radiation exposure. FCC Rules and IC Rules Warning: This device complies with part 15 of the FCC Rules and RSS-Gen of IC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 4 Note to users in the United States of America FCC Rules Declaration of Conformity ❖ This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Responsible party: Ricoh Americas Corporation Address: 5 Dedrick Place, West Caldwell, NJ 07006 Telephone number: 973-882-2000 Product Name: Laser Printer Model Number: SP 5200DN/Aficio SP 5200DN SP 5210DN/Aficio SP 5210DN Note ❖ This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruc- tions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television recep- tion, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which • the receiver is connected. Consult the dealer or an experienced radio /TV technician for help.• Caution ❖ Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 5 Notes on lamp(s) inside this machine Notes to users in the state of California Perchlorate Material - special handling may apply, See www.dtsc.ca.gov/haz- ardouswaste/perchlorate Note to users in Canada Note This Class B digital apparatus complies with Canadian ICES- 003. Remarque concernant les utilisateurs au Canada Avertissement Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. 6 Safety Information When using this machine, the following safety precautions should always be followed. Safety During Operation In this manual, the following important symbols are used: WARNING: R Indicates a potentially hazardous situation which, if instructions are not followed, could result in death or serious injury. CAUTION: R Indicates a potentially hazardous situation which, if instructions are not followed, may result in minor or moderate injury or damage to property. Safety Precautions to be Followed This section explains…

Text truncated - open the document above for the full version.

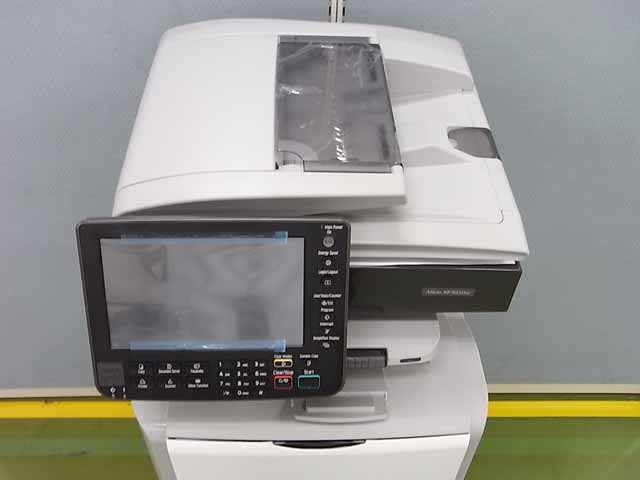

External Photo Copier Rear Ricoh Company, Ltd. FCC ID: BBP-RFSHI01 IC: 144D-RFSHI01 Front External Photo Copier Left Ricoh Company, Ltd. FCC ID: BBP-RFSHI01 IC: 144D-RFSHI01 Right External Photo Copier Top Ricoh Company, Ltd. FCC ID: BBP-RFSHI01 IC: 144D-RFSHI01 Model Name: SP 5200S/Aficio SP 5200S Model Name: SP 5210SF/Aficio SP 5210SF External Photo Copier Rear Ricoh Company, Ltd. FCC ID: BBP-RFSHI01 IC: 144D-RFSHI01 Front External Photo Copier Left Ricoh Company, Ltd. FCC ID: BBP-RFSHI01 IC: 144D-RFSHI01 Right External Photo Copier Top Ricoh Company, Ltd. FCC ID: BBP-RFSHI01 IC: 144D-RFSHI01 Model Name: SP 5210SR/Aficio SP 5210SR

External Photo Laser Printer Rear Ricoh Company, Ltd. FCC ID: BBP-RFSHI01 IC: 144D-RFSHI01 Front External Photo Laser Printer Left Ricoh Company, Ltd. FCC ID: BBP-RFSHI01 IC: 144D-RFSHI01 Right External Photo Laser Printer Top Ricoh Company, Ltd. FCC ID: BBP-RFSHI01 IC: 144D-RFSHI01 Model Name: SP 5200DN/Aficio SP 5200DN Model Name: SP 5210DN/Aficio SP 5210DN

FCC ID IC Label Position

Test report No. : 31DE0066-SH-01-A Page : 1 of 25 Issued date : February 28, 2011 Revised date : March 17, 2011 FCC ID : BBP-RFSHI01 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 RADIO TEST REPORT Test Report No. : 31DE0066-SH-01-A Applicant : RICOH COMPANY LTD. Type of Equipment : Copier Model No. : Aficio SP 5210SR FCC ID : BBP-RFSHI01 Test regulation : FCC Part15 Subpart C: 2010 Test result : Complied RTL02610 The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan. There is no testing item of "Non-accreditation". 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the limits of the above regulation. 4. The test results in this test report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by any agency of the Federal Government. 6. The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan has been accredited. Date of test: February 22 and 24, 2011 Representative test engineer: Shinichi Takano Engineer of WiSE Japan, UL Verification Service Approved by: Go Ishiwata Assistant Manager of WiSE Japan, UL Verification Service MF058d (12.01.11) Test report No. : 31DE0066-SH-01-A Page : 2 of 25 Issued date : February 28, 2011 FCC ID : BBP-RFSHI01 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Contents Page SECTION 1: Customer information 3 SECTION 2: Equipment under test (E.U.T.) 3 SECTION 3: Test specification, procedures and results 4 SECTION 4: Operation of E.U.T. during testing 6 SECTION 5: Conducted emission 8 SECTION 6: Radiated emissions (Fundamental, Spurious and Outside the Allocated bands) 9 SECTION 7: 20dB bandwidth & Occupied bandwidth (99%) 11 SECTION 8: Frequency tolerance 11 Contents of Appendixes 12 APPENDIX 1: Photographs of test setup 13 APPENDIX 2: Test data 16 APPENDIX 3: Test instruments 24 APPENDIX 4: Similar model description 25 Test report No. : 31DE0066-SH-01-A Page : 3 of 25 Issued date : February 28, 2011 FCC ID : BBP-RFSHI01 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 1: Customer information Company Name : RICOH COMPANY LTD. Address : 810 Shimoizumi,Ebina City,Kanagawa-Perf.,243-0460 Japan Telephone Number : +81-46-292-9152 Facsimile Number : +81-46-231-9183 Contact Person : Akihiro Kurosaka SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Copier Model No. : Aficio SP 5210SR Serial No. : S17A2100042 Rating : AC120-127V/60Hz, 12A Country of Mass-production : China Receipt Date of Sample : February 22, 2011 Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product description Model No: Aficio SP 5210SR, referred to as the EUT in this report, is the Copier. Refer to the Appendix for the difference between the EUT and its similar models. General Specification Clock frequency(ies) in the system : 13.56MHz Radio Specification Radio Type : Transceiver Frequency of Operation : 13.56MHz Clock frequency : 13.56MHz Modulation : ASK 100% Power Supply (inner) : DC 5.0V Antenna type : Print pattern antenna ITU code : A1D Operating Temperature : +10 deg C - +32 deg C FCC 15.31 (e) Host device (Copier) provides the radio block with stable power supply, and the power is not changed when voltage of the Copier is varied. Therefore, the equipment complies with power supply regulation. FCC Part 15.203 The antenna is not removable from the EUT. Therefore, the equipment complies with the antenna requirement of Section 15.203. Test report No. : 31DE0066-SH-01-A Page : 4 of 25 Issued date : February 28, 2011 FCC ID : BBP-RFSHI01 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 3: Test specification, procedures and results 3.1 Test specification Test specification : FCC Part 15 Subpart C: 2010, final revised on December 6, 2010 and effective January 5, 2011 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.209 Radiated emission limits, general requirements Section 15.215 Additional provisions to the general radiated emission limitations. Section 15.225 Operation within the bands 13.110-14.010MHz. The EUT complies with FCC Part 15 Subpart B: 2010. The test is performed by the customer. 3.2 Procedures & results Item Test Procedure Specification RemarksDeviationWorst Margin Results Conducted emission ANSI C63.4:2003 7. AC powerline conducted emission measurements FCC Section15.207 - N/A 7.7dB (13.56000MHz, AV, N) Complied Electric Field Strength of Fundamental Emission ANSI C63.4:2003 13. Measurement of intentional radiators FCC Section15.225 (a) Radiated N/A 81.5dB (Vertical) Complied Electric Field Strength of Outside the Allocated bands ANSI C63.4:2003 13. Measurement of intentional radiators FCC Section15.225 (b)(c) Radiated N/A 44.2dB (14.010MHz, Vertical) Complied Electric Field Strength of Spurious Emission ANSI C63.4:2003 13. Measurement of intentional radiators FCC Section15.209 FCC Section15.225 (d) Radiated N/A 14.1dB (40.68MHz, Vertical) Complied 20dB Bandwidth ANSI C63.4:2003 13. Measurement of intentional radiators FCC Section15.215 (c) Radiated N/A - - Frequency Tolerance ANSI C63.4:2003 13. Measurement of intentional radiators FCC Section15.225…

Text truncated - open the document above for the full version.

DATA OF CONDUCTED EMISSION TEST UL Japan, Inc. Shonan EMC Lab. No.3 Shielded Room Date : 2011/02/22 Company： RICOH COMPANY LTD.Mode： Transmitting(13.56MHz) Kind of E.U.T.： CopierReport No.： 31DE0066-SH-01-A Model No.： Aficio SP 5210SRPower： AC120V/60Hz Serial No.：S17A2100042 Temp./Humi.：25deg.C. / 22% Remarks: - Limit1 : FCC 15C(15.207) QP Limit2 : FCC 15C(15.207) AVEngineer：： Shinichi Takano Calculation:Result[dBuV]=Reading[dBuV]+C.Fac(LISN+Cable+Highpass Filter+ATT)[dB] Limit1(QP) Limit2(AV) N(PK) N(QP/AV) L1(PK) L1(QP/AV) Frequency [MHz] RFI Voltage [dBuV] .1530.2.3.5.7123571020 0 10 20 30 40 50 60 70 80 No. Freq. ReadingReading C.Fac ResultsResultsLimitLimitMarginMargin PhaseCommentNo. Freq. <QP><AV> C.Fac <QP><AV><QP><AV><QP><AV>PhaseCommentNo. [MHz][dBuV][dBuV][dB][dBuV][dBuV][dBuV][dBuV][dB][dB] PhaseComment 10.1500041.614.914.055.628.966.056.010.427.1N 20.1656338.410.113.752.123.865.155.113.031.3N 30.1979024.0---13.037.0---63.653.626.6---N 40.2711418.8---12.931.7---61.051.029.3---N 50.2985017.0---12.929.9---60.250.230.3---N 60.3361714.9---12.927.8---59.249.231.4---N 74.8955918.9---13.031.9---56.046.024.1---N 813.5600029.128.813.542.642.360.050.017.47.7N 924.0541115.8---14.230.0---60.050.030.0---N 1027.1200012.1---14.226.3---60.050.033.7---N 110.1500041.315.814.055.329.866.056.010.726.2L1 120.1667938.19.813.751.823.565.155.113.331.6L1 130.1971727.2---13.040.2---63.753.723.5---L1 140.271143.7---12.916.6---61.051.044.4---L1 150.2985011.9---12.924.8---60.250.235.4---L1 160.333671.3---12.914.2---59.349.345.1---L1 174.9086218.2---13.031.2---56.046.024.8---L1 1813.5600023.3---13.536.8---60.050.023.2---L1 1924.0174319.3---14.233.5---60.050.026.5---L1 2027.120008.1---14.222.3---60.050.037.7---L1 16 UL Japan, Inc. Shonan No3 Semi-Anechoic Chamber Company: RICOH COMPANY LTD.Report No.: 31DE0066-SH-01-A Equipment: CopierRegulation: FCC Part15 SupartC 15.225 Model: Aficio SP 5210SRTest Distance: 3m Sample No.: S17A2100042Date: 2011/2/22 Power: AC120V/60HzTemperature: 20deg.C Mode: Transmitting (13.56MHz)Humidity: 25% Remarks: Vertical polarization (antenna angle) of the worst case: 0deg ENGINEER : Shinichi Takano Field strength No. FREQANTLOSS AMPLIMIT FactorGAIN(3m) Ho rVerHorVerHorVer [MHz] [dBuV] [dBuV] [dB/m] [dB] [dB] [dBuV/m][dBuV/m][dBuV/m][dB][dB] 113.560 39.348.719.6 6.3 32.233.042.4123.9 90.9 81.5 Calculation:Result[dBuV/m]=Reading[dBuV]+Ant.Fac[dB/m]+Loss(Cable+ATT)[dB]-Gain(AMP)[dB] Field strength of 13.553MHz to 13.567MHz Limit(3m) = 84dBuV/m + 40log 30m/3m = 124dBuV/m (FCC15.225(a)) Outside Field strength No. FREQANT LOSS AMPLIMIT FactorGAIN(3m) HorVerHorVerHorVer [MHz][dBuV] [dBuV][dB/m] [dB] [dB][dBuV/m][dBuV/m][dBuV/m] [dB][dB] 113.110 30.8 30.7 19.6 6.3 32.224.524.469.545.0 45.1 213.410 30.6 30.7 19.6 6.3 32.224.324.480.556.2 56.1 313.553 31.73819.6 6.3 32.225.431.790.465.0 58.7 413.567 31.5 36.9 19.6 6.3 32.225.230.690.565.3 59.9 513.710 30.6 30.9 19.6 6.3 32.224.324.680.556.2 55.9 614.010 30.7 31.6 19.6 6.3 32.224.425.369.545.1 44.2 Calculation:Result[dBuV/m]=Reading[dBuV]+Ant.Fac[dB/m]+Loss(Cable+ATT)[dB]-Gain(AMP)[dB] Outside filed strength frequencies ･filed strength band Fc±7kHz:13.553MHz to 13.567MHz ･Outside filde strength Fc±150kHz:13.410MHz to 13.710MHz ･Outside filde strength Fc±450kHz:13.110MHz to 14.010MHz Fc = 13.56MHz Limits (3m) ･13.410MHz to 13.553MHz and 13.567MHz to 13.710MHz : 50.5dBuV/m + 40log30m/3m = 90.5dBuV/m (FCC15.225(b)) ･13.110MHz to 14.010MHz and 13.710MHz to 14.010MHz : 40.5dBuV/m + 40log30m/3m = 80.5dBuV/m (15.225(c)) ･Below 13.110MHz and Above 14.010MHz : 29.5dBuV/m + 40log30m/3m = 69.5dBuV/m (FCC15.225(d)and FCC15.209) Data of Field Strength and Outside Fileld Strength: FCC15.225(a)(b)(c) T/R Reading T/R Reading MARGINRESULT RESULTMARGIN 17 DATA OF MAGNETIC EMISSION TEST UL Japan, Inc. Shonan EMC Lab. No.3 Semi-Anechoic Chamber Date : 2011/02/22 10:50:29 Company： RICOH COMPANY LTD.Mode： Transmitting(13.56MHz) Kind of E.U.T.： CopierReport No.： 31DE0066-SH-01-A Model No.： Aficio SP 5210SRPower： AC120V/60Hz Serial No.： S17A2100042 Temp./Humi. ： 20deg.C. / 25% Remarks: - Limit1 : FCC15.225 3m, 9-90kHz:AV, 110-490kHz:AV, other:QP Tested by：： Shinichi Takano Calculation:Result[dBuV/m]=Reading[dBuV]+Ant.Fac[dB/m]+Loss(Cable+ATT)[dB]-Gain(AMP)[dB] Ant.Type=LOOP:Loop Antenna << QP DATA >> No. Freq. Reading Ant.FacLossGain ResultLimitMargin Antenna Table CommentNo. Freq. <QP> Ant.FacLossGain <QP><QP><QP>Antenna Table CommentNo. [MHz][dBuV][dB/m][dB][dB][dBuV/m][dBuV/m][dB] Antenna [deg] Comment 127.1200039.120.56.532.233.969.535.60deg98Vertical 227.1200032.620.56.532.227.469.542.1 -103Horizontal 18 DATA OF RADIATED EMISSION TEST UL Japan, Inc. Shonan EMC Lab. No.3 Semi-Anechoic Chamber Date : 2011/02/22 Company： RICOH COMPANY LTD.Mode： Transmitting(13.56MHz) Kind of E.U.T.： CopierReport No.： 31DE0066-SH-01-A Model No.： Aficio SP 5210SRPower： AC120V/60Hz Serial No.： S17A2100042 Temp./Humi ： 20deg.C. / 25% Remarks:- Limit1 : FCC15C_209 3m_above13GHz_1.0m_AV Engineer：： Shinichi Takano Calculation:Result[dBuV/m]=Reading[dBuV]+Ant.Fac[dB/m]+Loss(Cable+ATT)[dB]-Gain(AMP)[dB] Ant.Type=BC:Biconical Antenna, LP:Logperiodic Antenna, SHA03:Horn Antenna Limit1(QP) Hori.(QP) Vert.(QP) Frequency [MHz] Field Strength [dBuV/m] 3010005070100200300500700 0 5 10 15 20 25 30 35 40 45 50 55 60 No. Freq. Reading Ant.FacLossGain ResultLimitMargin Pola.HeightAngle Ant. Type CommentNo. Freq. <QP> Ant.FacLossGain <QP><QP><QP> Pola.HeightAngle Ant. Type CommentNo. [MHz][dBuV][dB/m][dB][dB][dBuV/m][dBuV/m][dB][H/V][cm][deg] Ant. Type Comment 140.68030.014.46.732.119.040.021.0Hori.302105BC 254.24029.99.76.832.114.340.025.7Hori.304354BC 367.80038.56.86.932.120.140.019.9Hori.31267BC 481.36039.26.47.032.120.540.019.5Hori.198124BC 594.92038.78.97.232.122.743.520.8Hori.320138BC 6108.48040.411.07.332.126.643.516.9Hori.150242BC 7122.04039.712.47.432.127.443.516.1Hori.303210BC 8135.60035.213.37.532.123.943.519.6Hori.150186BC 9750.25531.620.010.231.730.146.015.9Hori.105349LP 1040.68036.91…

Text truncated - open the document above for the full version.

Test report No. : 31DE0066-SH-01-A Page : 13 of 25 Issued date : February 28, 2011 FCC ID : BBP-RFSHI01 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 APPENDIX 1: Photographs of test setup Conducted emission Test report No. : 31DE0066-SH-01-A Page : 14 of 25 Issued date : February 28, 2011 FCC ID : BBP-RFSHI01 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Radiated emission (9kHz-30MHz) Loop antenna horizontal view Loop antenna vertical view Test report No. : 31DE0066-SH-01-A Page : 15 of 25 Issued date : February 28, 2011 FCC ID : BBP-RFSHI01 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Radiated emission (30MHz-1000MHz) Front view Rear view
