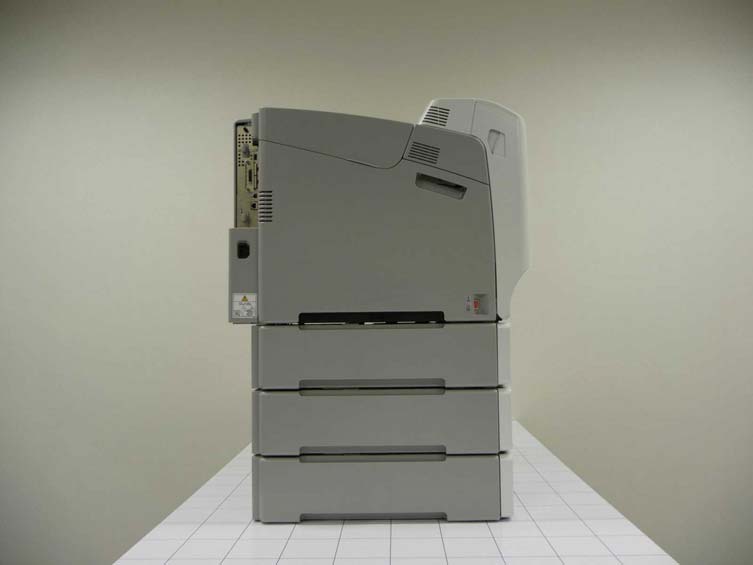

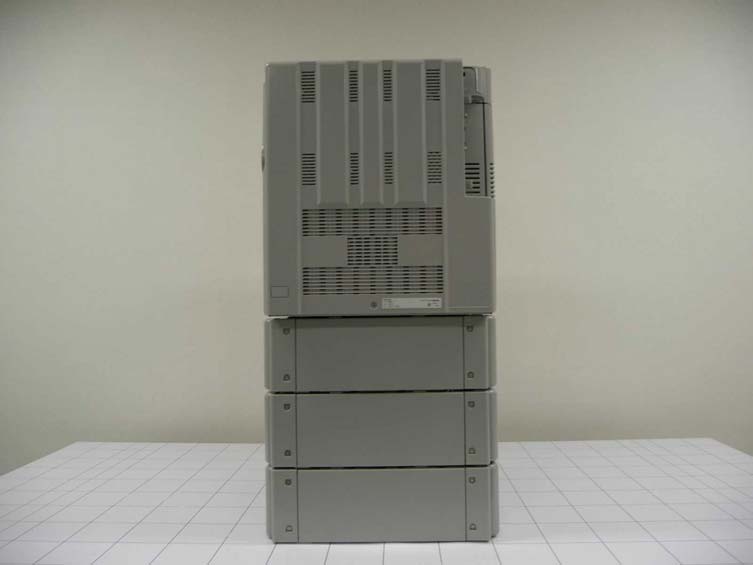

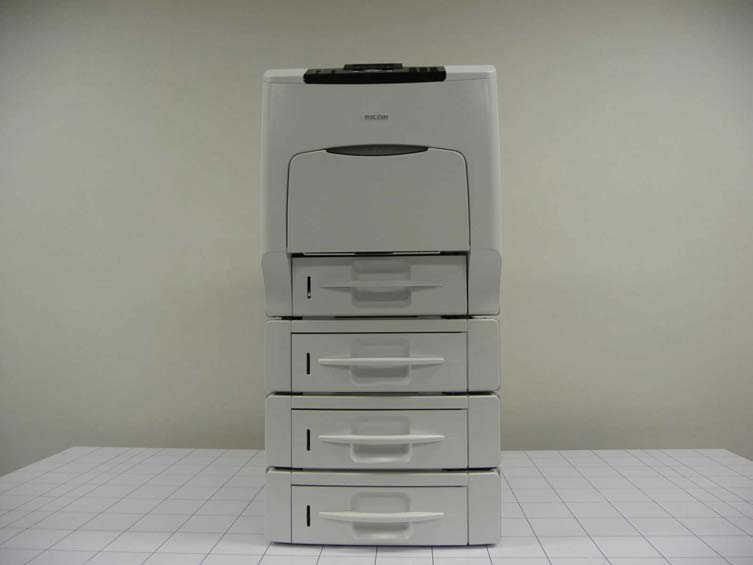

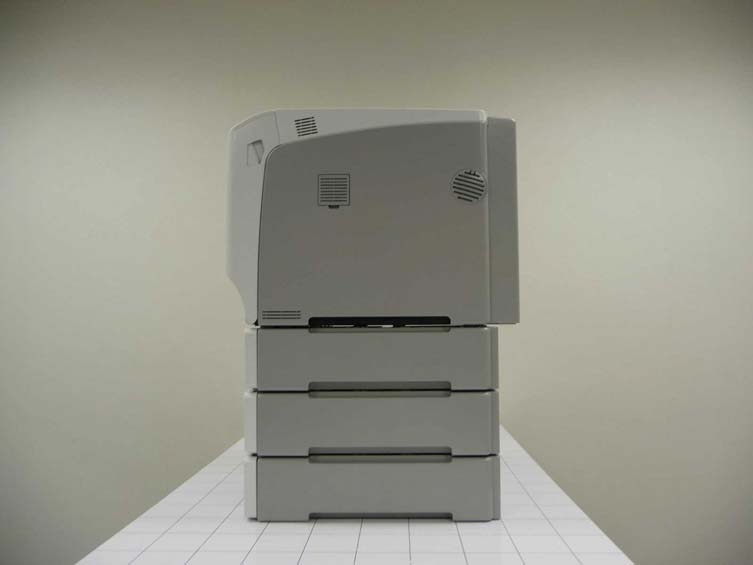

Photos Ricoh Company, Ltd. FCC ID: BBP-RFSPL01 Front Rear Photos Ricoh Company, Ltd. FCC ID: BBP-RFSPL01 Right Left Photos Ricoh Company, Ltd. FCC ID: BBP-RFSPL01 Top

FCC ID: BBP-RFSPL01 RF circuit doesn't operate if there is no RF-ID CPU board. B ecause RF circuit board is very small, FCC ID is displayed in RF-ID CPU board.

Label Position

Photos Ricoh Company, Ltd. FCC ID: BBP-RFSPL01 Top – 0ch (Black) Bottom – 0ch (Black) Photos Ricoh Company, Ltd. FCC ID: BBP-RFSPL01 Top – 1ch (Magenta) Bottom – 1ch (Magenta) Photos Ricoh Company, Ltd. FCC ID: BBP-RFSPL01 Top – 2ch (Cyan) Bottom – 2ch (Cyan) Photos Ricoh Company, Ltd. FCC ID: BBP-RFSPL01 Top – 3ch (Yellow) Bottom – 3ch (Yellow) Photos Ricoh Company, Ltd. FCC ID: BBP-RFSPL01 Top – CPU Bottom - CPU Photos Ricoh Company, Ltd. FCC ID: BBP-RFSPL01 Location from side Location from side 2 0ch(K) 2ch(C)1ch(M)3ch(Y) Photos Ricoh Company, Ltd. FCC ID: BBP-RFSPL01 Location from top Location from top 2 CPU

FCC ID : BBP-RFSPL01 Test report No. : 30IE0121-SH-01 Page : 1 of 26 Issued date : July 6, 2010 UL Japan, Inc. SHONAN EMC LAB. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 RADIO TEST REPORT Test Report No. : 30IE0121-SH-01 Applicant : RICOH COMPANY LTD. Type of Equipment : RFID module Model No. : RFID:RW:ZU-P1 FCC ID : BBP-RFSPL01 Test regulation : FCC Part15 Subpart C: 2010 Test result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the limits of the above regulation. 4. The test results in this test report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by any agency of the Federal Government. 6. The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan has been accredited. 7. Original test report number of this report is 30CE0005-SH-01-A Date of test: January 12 and 19, 2010 Tested by: Hikaru Shirasawa EMC Service Approved by: Go Ishiwata Assistant Manager of EMC Service The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan. There is no testing item of "Non-accreditation". RTL02610 MF060d (06.08.09) FCC ID : BBP-RFSPL01 Test report No. : 30IE0121-SH-01 Page : 2 of 26 Issued date : July 6, 2010 UL Japan, Inc. SHONAN EMC LAB. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 Table of Contents Page 1 Applicant information 3 2 Equipment under test (E.U.T.) 3 3 Test specification, procedures and results 4 4 System test configuration 6 5 Conducted emission 8 6 Radiated emissions (Fundamental, Spurious and Outside the Allocated bands) 9 7 20dB bandwidth & Occupied bandwidth (99%) 11 8 Frequency tolerance 11 Contents of Appendixes 12 FCC ID : BBP-RFSPL01 Test report No. : 30IE0121-SH-01 Page : 3 of 26 Issued date : July 6, 2010 UL Japan, Inc. SHONAN EMC LAB. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 1 Applicant information Company Name : RICOH COMPANY LTD. Address : 810 Shimoimaizumi, Ebina City, Kanagawa-Pref 243-0460, Japan Telephone Number : +81-46-292-9152 Facsimile Number : +81-46-231-9183 Contact Person : Akihiro Kurosaka 2 Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : RFID module Model No. : RFID:RW:ZU-P1 Serial No. : Refer to Section 4.2 Rating : DC5V Country of Mass-production : China Receipt Date of Sample : January 8, 2010 Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product description Model No: RFID:RW:ZU-P1, referred to as the EUT in this report, is the RFID module. Radio Specification Radio Type : Transceiver Frequency of Operation : 13.56MHz Clock frequency : 13.56MHz Modulation : ASK 100% Antenna type : Print pattern antenna ITU code : A1D Operating Temperature : +5 deg C - +45 deg C FCC 15.31 (e) Host device (Color Laser Printer) provides RFID module with stable power supply, and the power is not changed when voltage of the Color Laser Printer is varied. Therefore, the equipment complies power supply regulation. FCC Part 15.203 The antenna is not removable from the EUT. Therefore, the equipment complies with the antenna requirement of Section 15.203. FCC ID : BBP-RFSPL01 Test report No. : 30IE0121-SH-01 Page : 4 of 26 Issued date : July 6, 2010 UL Japan, Inc. SHONAN EMC LAB. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 3 Test specification, procedures and results 3.1 Test specification Test specification : FCC Part 15 Subpart C: 2010, final revised on January 22, 2010 and effective March 1, 2010 Title : FCC 47CFR Part15 Radio Frequency Device, Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.209 Radiated emission limits, general requirements Section 15.215 Additional provisions to the general radiated emission limitations. Section 15.225 Operation within the bands 13.110-14.010MHz. 3.2 Procedures & results ItemTest Procedure SpecificationRemarksDeviationWorst Margin Results Conducted emission ANSI C63.4:2003 7. AC powerline conducted emission measurements FCC Section15.207 -N/A 6.0dB (2.03677MHz, AV, L1) Complied Electric Field Strength of Fundamental Emission ANSI C63.4:2003 13. Measurement of intentional radiators FCC Section15.225 (a) RadiatedN/A 80.7dB (Vertical) Complied Electric Field Strength of Outside the Allocated bands ANSI C63.4:2003 13. Measurement of intentional radiators FCC Section15.225 (b)(c) RadiatedN/A 44.8dB (13.11MHz, Vertical) Complied Electric Field Strength of Spurious Emission ANSI C63.4:2003 13. Measurement of intentional radiators FCC Section15.209 FCC Section15.225 (d) RadiatedN/A 5.4dB (189.827MHz, Horizontal) Complied 20dB Bandwidth ANSI C63.4:2003 13. Measurement of intentional radiators FCC Section15.215 (c) RadiatedN/A - Complied Frequency Tolerance ANSI C63.4:2003 13. Measurement of intentional radiators FCC Section15.225 (e) RadiatedN/A - Complied Note: UL Japan’s EMI Work Procedures No.QPM05 and QPM15. 3.3 Addition to standard ItemTest Procedure SpecificationRemarksWorst Margin Results Occupied Bandwidth (99%) ANSI C63.4:2003 13. Measurement of intentional radiators RSS-Gen 4.6.1 RSS-Gen 4.6.1 Radiated- Complied * Other than above, no addition, exclusion nor deviation has been made from the standard. FCC ID : BBP-RFSPL01 Test report No. : 30IE0121-SH-01 Page : 5 of 26 Issued date : July 6, 2010 UL Japan, Inc. SHONAN EMC LAB. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken 259-1220 …
