BBP-RFTAU01Color Copier (Color Laser Printer)

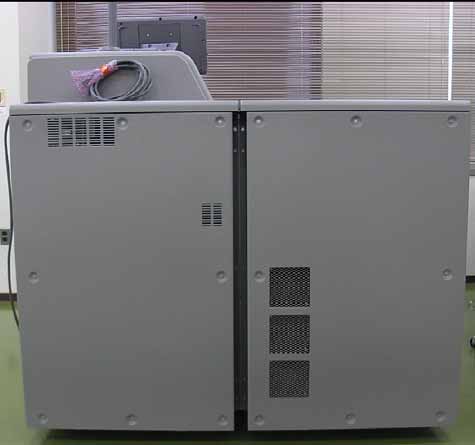

External Photo Color Copier Rear Ricoh Company, Ltd. FCC ID: BBP-RFTAU01 IC: 144D-RFTAU01 Front External Photo Color Copier Right Left Ricoh Company, Ltd. FCC ID: BBP-RFTAU01 IC: 144D-RFTAU01 External Photo Color Copier Top Ricoh Company, Ltd. FCC ID: BBP-RFTAU01 IC: 144D-RFTAU01 Model Name:Pro C751EX Model Name:Pro C651EX External Photo Color Copier

External Photo Color Laser Printer Rear Ricoh Company, Ltd. FCC ID: BBP-RFTAU01 IC: 144D-RFTAU01 Front External Photo Color Laser Printer Right Left Ricoh Company, Ltd. FCC ID: BBP-RFTAU01 IC: 144D-RFTAU01 External Photo Color Laser Printer Top Ricoh Company, Ltd. FCC ID: BBP-RFTAU01 IC: 144D-RFTAU01 Model Name:Pro C751 External Photo Color Laser Printer

FCC ID/IC Label Position

Internal Photo Ricoh Company, Ltd. Pro C751EX / Pro C651EX / Pro C751 Internal Photo Ricoh Company, Ltd. Pro C751EX / Pro C651EX / Pro C751 Internal Photo Ricoh Company, Ltd. Pro C751EX / Pro C651EX / Pro C751 Top - CPU Bottom - CPU Internal Photo Ricoh Company, Ltd. Pro C751EX / Pro C651EX / Pro C751 Top – 0ch (Black) Bottom – 0ch (Black) Internal Photo Ricoh Company, Ltd. Pro C751EX / Pro C651EX / Pro C751 Top – 1ch (Cyan) Bottom – 1ch (Cyan) Internal Photo Ricoh Company, Ltd. Pro C751EX / Pro C651EX / Pro C751 Top – 2ch (Magenta) Bottom – 2ch (Magenta) Internal Photo Ricoh Company, Ltd. Pro C751EX / Pro C651EX / Pro C751 Top – 3ch (Yellow) Bottom – 3ch (Yellow)

UL Japan, Inc. Shonan No2 Semi-Anechoic Chamber Company: RICOH COMPANY LTD.Report No.: 30BE0047-SH-E Equipment: Color Copier Regulation : FCC Part15 SupartC 15.225 Model: Pro C751EXTest Distance: 3m Serial No.: G000000020 Date : 2010/11/11 Power: AC240V/60HzTemperature: 20deg.C Mode: Transmitting (13.56MHz)Humidity: 41% Remarks: Vertical polarization (antenna angle) of the worst case: 0deg ENGINEER : Tatsuya Arai Field strength No. FREQANTLOSS AMPLIMIT FactorGAIN(3m) Hor VerHorVer HorVer [MHz] [dBuV] [dBuV] [dB/m] [dB] [dB] [dBuV/m][dBuV/m][dBuV/m] [dB][dB] 113.560 54.856.619.6 6.3 31.948.850.6124.0 75.2 73.4 Calculation:Result[dBuV/m]=Reading[dBuV]+Ant.Fac[dB/m]+Loss(Cable+ATT)[dB]-Gain(AMP)[dB] Field strength of 13.553MHz to 13.567MHz Limit(3m) = 84dBuV/m + 40log 30m/3m = 124dBuV/m (FCC15.225(a)) Outside Field strength No. FREQANT LOSS AMPLIMIT FactorGAIN(3m) Hor VerHorVerHorVer [MHz][dBuV] [dBuV][dB/m] [dB] [dB][dBuV/m][dBuV/m][dBuV/m] [dB][dB] 113.110 32.7 32.7 19.6 3.5 32.223.623.669.545.9 45.9 213.410 32.8 32.8 19.6 3.5 32.223.723.780.556.8 56.8 313.553 40.3 43.0 19.6 3.5 32.231.233.990.559.3 56.6 413.567 39.6 42.0 19.6 3.5 32.230.532.990.560.0 57.6 513.710 32.7 32.8 19.6 3.5 32.223.623.780.556.9 56.8 614.010 32.7 32.9 19.6 3.5 32.223.623.869.545.9 45.7 Calculation:Result[dBuV/m]=Reading[dBuV]+Ant.Fac[dB/m]+Loss(Cable+ATT)[dB]-Gain(AMP)[dB] Outside filed strength frequencies ･filed strength band Fc±7kHz:13.553MHz to 13.567MHz ･Outside filde strength Fc±150kHz:13.410MHz to 13.710MHz ･Outside filde strength Fc±450kHz:13.110MHz to 14.010MHz Fc = 13.56MHz Limits (3m) ･13.410MHz to 13.553MHz and 13.567MHz to 13.710MHz : 50.5dBuV/m + 40log30m/3m = 90.5dBuV/m (FCC15.225(b)) ･13.110MHz to 14.010MHz and 13.710MHz to 14.010MHz : 40.5dBuV/m + 40log30m/3m = 80.5dBuV/m (15.225(c)) ･Below 13.110MHz and Above 14.010MHz : 29.5dBuV/m + 40log30m/3m = 69.5dBuV/m (FCC15.225(d)and FCC15.209) Data of Field Strength and Outside Fileld Strength: FCC15.225(a)(b)(c) T/R Reading T/R Reading MARGINRESULT RESULTMARGIN DATA OF MAGNETIC EMISSION TEST UL Japan, Inc. Shonan EMC Lab. No.2 Semi-Anechoic Chamber Date : 2010/11/12 Company： RICOH COMPANY LTD.Mode： Transmitting(13.56MHz) Kind of E.U.T.： Color Copier Report No. :31BE0047-SH-E Model No.： Pro C751EXPower： AC240V/60Hz SinglePhase with PE Serial No.： G000000020Temp./Humi.： 20°C / 41% Remarks: RF ID Module:K Limit1 : FCC15.209(a) 3m, 9-90,110-490kHz:PK, other:QP Limit2 : FCC15.209(a) 3m, 9-90,110-490kHz:AV, other:QP Tested by：： Yasumasa Owaki Calculation:Result[dBuV/m]=Reading[dBuV]+Ant.Fac[dB/m]+Loss(Cable+ATT)[dB]-Gain(AMP)[dB] Ant.Type=LOOP:Loop Antenna << QP/PK DATA >> No. Freq. ReadingReading Ant.FacLossGain ResultResultLimitLimitMarginMargin Antenna Table CommentNo. Freq. <QP><PK> Ant.FacLossGain <QP><PK><PK><QP><PK><QP>Antenna Table CommentNo. [MHz][dBuV][dBuV][dB/m][dB][dB][dBuV/m][dBuV/m][dBuV/m][dBuV/m][dB][dB] Antenna [deg] Comment 127.1200032.6---20.53.831.925.0---69.569.5---44.5 Hor 359 227.1200036.4---20.53.831.928.8---69.569.5---40.7 直Ver 321 DATA OF RADIATED EMISSION TEST UL Japan, Inc. Shonan EMC Lab. No.2 Semi-Anechoic Chamber Date : 2010/11/12 Company： RICOH COMPANY LTD.Mode： Transmitting(13.56MHz) Kind of E.U.T.： Color Copier Report No. :31BE0047-SH-E Model No.： Pro C751EXPower： AC240V/60Hz SinglePhase with PE Serial No.： G000000020Temp./Humi.：20°C / 41% Remarks: RF ID Module :K Limit1 : FCC 15.209 (3m) Engineer：： Tatsuya Arai Calculation:Result[dBuV/m]=Reading[dBuV]+Ant.Fac[dB/m]+Loss(Cable)[dB]-Gain(AMP)[dB] Ant.Type=BC:Biconical Antenna, LP:Logperiodic Antenna, SHA02:Horn Antenna Limit1(QP) Hori.(QP) Vert.(QP) Frequency [MHz] Field Strength [dBuV/m] 3010005070100200300500700 0 5 10 15 20 25 30 35 40 45 50 55 60 No. Freq. Reading Ant.FacLossGain ResultLimitMargin Pola.HeightAngle Ant. Type CommentNo. Freq. <QP> Ant.FacLossGain <QP><QP><QP> Pola.HeightAngle Ant. Type CommentNo. [MHz][dBuV][dB/m][dB][dB][dBuV/m][dBuV/m][dB][H/V][cm][deg] Ant. Type Comment 140.68029.614.77.131.919.540.020.5Hori.353336BC 254.24029.89.97.331.915.140.024.9Hori.400138BC 367.80034.97.27.531.817.840.022.2Hori.353259BC 481.36033.06.77.631.815.540.024.5Hori.2340BC 594.92030.79.27.831.815.943.527.6Hori.339290BC 6108.48042.411.38.031.829.943.513.6Hori.300271BC 7122.04032.812.98.131.822.043.521.5Hori.263245BC 8135.60038.513.28.331.828.243.515.3Hori.259283BC 9296.99435.119.69.731.732.746.013.3Hori.123359BC 10396.32442.216.47.131.634.146.011.9Hori.126107LP 11406.79641.216.67.231.633.446.012.6Hori.10091LP 12624.99639.319.48.331.635.446.010.6Hori.10071LP 1340.68033.414.77.131.923.340.016.7Vert.100242BC 1454.24037.79.97.331.923.040.017.0Vert.100357BC 1565.32039.87.57.431.822.940.017.1Vert.10083BC 1667.80038.67.27.531.821.540.018.5Vert.100232BC 1781.36036.36.77.631.818.840.021.2Vert.122224BC 1894.92033.09.27.831.818.243.525.3Vert.100354BC 19108.48040.611.38.031.828.143.515.4Vert.100310BC 20122.04034.012.98.131.823.243.520.3Vert.100127BC 21135.60039.113.28.331.828.843.514.7Vert.100311BC 22297.00234.319.69.731.731.946.014.1Vert.123359BC 23399.66039.216.57.131.631.246.014.8Vert.143195LP 24624.99743.819.48.331.639.946.06.1Vert.100212LP 20dB bandwidth & Occupied bandwidth (99%): FCC 15.215(c) UL Japan. Inc. Shonan No5 Shield room COMPANY : RiCOH COMPANY LTD. REPORT No. : 30BE0047-SH-E Equipment : Color Copier REGULATION : FCC Part15SubpartC 215(c) MODEL NUMBER : Pro C751EX D ATE : 2010/11/ 11 SERIAL NUMBER : G000000020 TEMP./HUMI : 23°C/35% POWER : DC5V TEST MODE : Transmitting(13.56MHz) ENGINEER : Tatsuya Arai 20dB Bandwidth: 3.50kHz OBW(99%): 27.4492kHz UL Japan, Inc. Shonan No5 Shield room Company : RICOH COMPANY LTD.Report No. : 30BE0047-SH-E Equipment : Color Copier Regulation : FCC Part15 SupartC 15.225 (e) Model: Pro C751EX Sample No. : G000000020Date: 2010/11/11 Power: DC5VTemperature : 23deg.C Mode: Transmitting (13.56MHz) Humidity: 35% ENGINEER : Tatsuya Arai Temperature Variation: -30deg.C OriginalMeasureFrequency Frequency Limit Frequency FrequencyErrortorerance (MHz…

Text truncated - open the document above for the full version.

Test report No. : 31BE0047-SH-E Page : 1 of 25 Issued date : January 12, 2011 Revised date : February 21, 2011 FCC ID : BBP-RFTAU01 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 RADIO TEST REPORT Test Report No.: 31BE0047-SH-E Applicant : RICOH COMPANY LTD. Type of Equipment : Color Copier Model No. : Pro C751EX FCC ID : BBP-RFTAU01 Test regulation : FCC Part15 Subpart C: 2010 Test result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the limits of the above regulation. 4. The test results in this test report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by any agency of the Federal Government. 6. The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan has been accredited. Date of test: November 11 and 12, 2010 Representative test engineer: ______________________________ Tatsuya Arai Engineer of WiSE Japan, UL Verification Service Approved by : ______________________________ Go Ishiwata Assistant Manager of WiSE Japan, UL Verification Service RTL02610 The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan. There is no testing item of "Non-accreditation". MF058d (12.01.11) Test report No. : 31BE0047-SH-E Page : 2 of 25 Issued date : January 12, 2011 Revised date : February 21, 2011 FCC ID : BBP-RFTAU01 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Contents Page SECTION 1: Customer information ........................................................................................ 3 SECTION 2: Equipment under test (E.U.T.) .......................................................................... 3 SECTION 3: Test specification, procedures & results ........................................................... 4 SECTION 4: Operation of E.U.T. during testing .................................................................... 6 SECTION 5: Conducted emission ............................................................................................ 9 SECTION 6: Radiated emission (Fundamental, spurious and outside the allocated bands) ..................................................................................................................................................... 10 SECTION 7: 20dB bandwidth & Occupied bandwidth (99%) ............................................ 12 SECTION 8: Frequency tolerances ........................................................................................ 12 Contents of appendixes ............................................................................................................. 13 APPENDIX 1: Photographs of test setup ............................................................................... 14 APPENDIX 2: Test data .......................................................................................................... 16 APPENDIX 3: Test instruments ............................................................................................. 24 APPENDIX 4: Similar model description .............................................................................. 25 Test report No. : 31BE0047-SH-E Page : 3 of 25 Issued date : January 12, 2011 Revised date : February 21, 2011 FCC ID : BBP-RFTAU01 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 1: Customer information Company Name : RICOH COMPANY LTD. Address : 810, Shimo-imaizumi, Ebina-shi, Kanagawa, 243-0460 JAPAN Telephone Number : +81 46 292 3468 Facsimile Number : +81 3 6893 1409 Contact Person : Hiroyuki Kuroda SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Color Copier Model Number : Pro C751EX Serial Number : G000000020 Rating : AC208 - 240V~ 50/60Hz, 16A, 4kW Country of Mass-production : Japan Condition of EUT : Production prototype (Not for sale: This sample is equivalent to mass-produced items.) Receipt Date of Sample : November 4, 2010 Modification of EUT : No modification by the test lab. 2.2 Product description Model: Pro C751EX (referred to as the EUT in this report) is a Color Copier. Description of The EUT The EUT is the color digital copier machine with high speed and high endurance, which is available also for a printer and a scanner. General Features 1. The machine fits seemliness into high volume production environments with its optimum reliability, sophisticated finishing and professional software solutions. 2. The machine employs advanced 4-tandem drum system and image transfer belt technology to ensure dependability in even the most demanding environments. 3. The machine offers the choice of a number of finishing options including stapling, booklet making and online punching. 4. Scan-to-email and Scan-to-folder allow efficient distribution of scanned files and documents. <Radio part> Radio Type : Transceiver Frequency of Operation : 13.56MHz Clock frequency : 13.56MHz Modulation : ASK 100% Power Supply (inner) : DC 5.0V Antenna type : Print pattern antenna ITU code : A1D Operating Temperature : +5 deg C - +45 deg C FCC 15.31 (e) Host device (Color Copier) provides the radio block with stable power supply, and the power is not changed when voltage of the Color Laser Printer is varied. Therefore, the equipment complies power supply regulation. FCC Part 15.203 The antenna is not removable from the EUT. Therefore, the equipment complies with the antenna requirement of Section 15.203. Test report No. …

Text truncated - open the document above for the full version.

Test report No. : 31BE0047-SH-E Page : 14 of 25 Issued date : February 21, 2011 FCC ID : BBP-RFTAU01 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 APPENDIX 1: Photographs of test setup Conducted emission Test report No. : 31BE0047-SH-E Page : 15 of 25 Issued date : February 21, 2011 FCC ID : BBP-RFTAU01 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Radiated emission 9kHz-30MHz Loop antenna: Horizontal Loop antenna: Vertical 30MHz-1000MHz
