BBP-WLA1B01Wireless LAN Module

SX-PCEGN-R Users Manual June 07, 2011 SX-PCEGN-R Users Manual 1. Hardware specifications/Compliance ...................................................2 2. System Requirements (for the install) ..................................................4 3. Setup ..............................................................................4 1/4 SX-PCEGN-R Users Manual 2/4 1. Hardware specifications/Compliance FCC ID：BBP-WLA1B01 NOTICE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. FCC WARNING： Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. IC No：144D-WLA1B01 This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person’s body (excluding extremities: hands, wrists, feet and ankles). Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées pour un environnement non contrôlé et respecte les règles les radioélectriques (RF) de la FCC lignes directrices d'exposition dans le Supplément C à OET65 et d’exposition aux fréquences radioélectriques (RF) CNR-102 de l’IC. Cet équipement doit être installé et utilisé en gardant une distance de 20 cm ou plus entre le dispositif rayonnant et le corps (à l’exception des extrémités : mains, poignets, pieds et chevilles). This device complies with Part 15 of FCC Rules and Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device. Le présent appareil est conforme aux la partie 15 des règles de la FCC et CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Manual and Product Labeling information To The End User The end user manual shall include all required regulatory information/warning as show in this manual. Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante. And when this module is installed in the host product, you must include a "Contain FCC ID : BBP-WLA1B01" and a “Contain IC: 144D-WLA1B01” in the label of the host product. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. SX-PCEGN-R Users Manual Operating environment ： Temperature：+0°C to +60°C, +32F to +140F Humidity：20% to 80% Storage environment ： Temperature：-20°C to +80°C, +4F to +185F Humidity：10% to 85% supply voltage ： 3.3V ± 0.3V Host I/F ： PCI Express Half mini card I/F IEEE802.11b ： Frequency : 2412MHz~2462MHz Transmission system ： DS-SS Transmission speed： 1M/2M/5.5M/11M Automatic detection Channel：1－11ch IEEE802.11g ： Frequency : 2412MHz~2462MHz Transmission system：OFDM Transmission speed ：6M/12M/18M/36M/48M/54M Automatic detection Channel：1－11ch Antenna interface ： Diversity connector/MIMO 2X2 3/4 Frequency : 2412MHz~2462MHz Transmission speed ：MCS0^MCS15 IEEE802.11n(HT20) ： Transmission system：OFDM Automatic detection IEEE802.11n(HT20) ： Transmission system：OFDM Channel:1-11ch Frequency : 2422MHz~2452MHz Transmission speed ：MCS0^MCS15 IEEE802.11n(HT40) ： Transmission system：OFDM Automatic detection Channel：3－9ch ： Transmission system：OFDM Automatic detection ： Transmission system：OFDM Automatic detection SX-PCEGN-R Users Manual 2. System Requirements (for the install) PC containing: ・A Personal computer or the embedded architecture that have P…

Text truncated - open the document above for the full version.

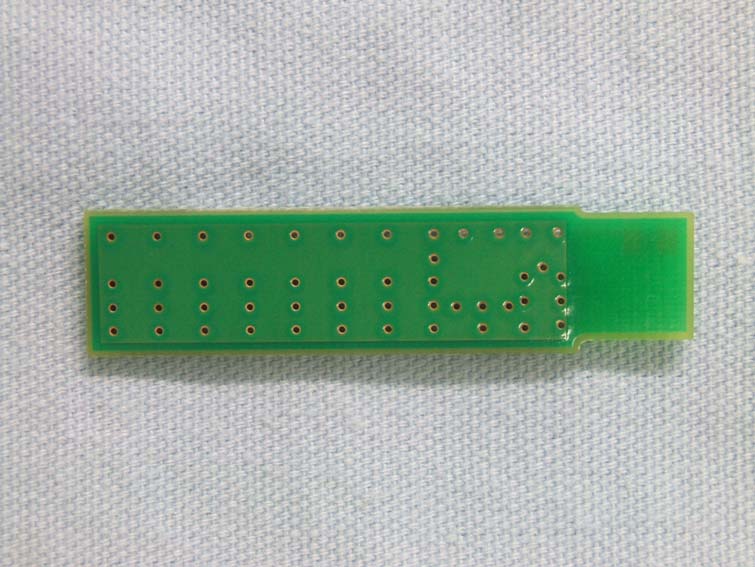

Top With Shield Top Without shield Bottom

Antenna Photo

1 F E D 23 C B A 1 234 CHANGE OF CONTENTSREVIS FIRST EDITION DATEDESIGN 㬍 㬍 㬍 㬍 㬍 1/1 SHEET MATERIAL APPROVEDCHECKED DWG No. TITLE FINISH SCALE2 : 1 F E D C B A A4 SIZE Confidential © silex technology, Inc. 㪫㪅㪤㫀㫅㫆㪹㪼㪡㫌㫅㪅㪉㪇㪃㪈㪈 㪜㪤㪠㩷㪣㪸㪹㪼㫃 㪧㫉㫀㫅㫋㫀㫅㪾㩷㪚㫆㫃㫆㫉㩷㪑㩷㪙㫃㪸㪺㫂 㪣㪥㪈㪇㪇㪈㪉㪇㪯㪯 㪧㪜㪫㩷㪝㫀㫃㫄㩷㪌㪇㱘㫄㩷㪮㪿㫀㫋㪼 㪉㪎㩷㫧㪇㪅㪉 㪏㩷㫧㪇㪅㪈 㪈㪇㩷㫧㪇㪅㪈 㪈㪋㩷㫧㪇㪅㪉 㪏㪄㪩㪈 (%%+&$$29.#$ +%&9.#$ R /CFGKP,CRCP ::::::::::::: /QFGN5:2%')04 㪈㪇㩷㫧㪇㪅㪈㪈㪅㪌㩷㫧㪇㪅㪈 ਛᛮ䈐䈱䈖䈫䇯 4+%1*%1/2#0;.6&

Drawing No : JUXX Date :Jun. 20, 2011 㩿㪋㪆㪋㪀CONFIDENTIAL © silex technology, Inc. 㪪㪯㪄㪧㪚㪜㪞㪥㪄㪩 㪇㪇㪏㪇㪐㪉 㪯㪯㪯㪯㪯㪯 䊤䊔䊦虫䉍૏⟎࿑ 㩷㪫㪿㫀㫊㩷㫀㫊㩷㫋㪿㪼㩷㪻㫉㪸㫎㫀㫅㪾㩷㫎㪿㫀㪺㪿㩷㫊㪿㫆㫎㫊㩷㫋㪿㪼㩷㫇㫆㫊㫀㫋㫀㫆㫅㩷㫆㪽㩷㫃㪸㪹㪼㫃㪅㩷㪚㫆㫅㫋㪼㫅㫋㫊㩷㫆㪽㩷㫇㫉㫀㫅㫋㫀㫅㪾㩷㫆㪽㩷㫋㪿㪼㩷㫃㪸㪹㪼㫃㩷㫄㪸㫐㩷㪹㪼㩷 㪻㫀㪽㪽㪼㫉㪼㫅㫋㩷㪽㫉㫆㫄㩷㫋㪿㪼㩷㫌㫇㫇㪼㫉㩷㪽㫀㪾㫌㫉㪼㪅 ᧄ࿑㕙䈲䊤䊔䊦䈱虫䉍૏⟎䉕␜䈜࿑㕙䈪䈜䇯䊤䊔䊦䈱ශሼౝኈ䈲਄࿑䈫⇣䈭䉎႐ว䈏䈅䉍䉁䈜䇯 ή✢䊝䉳䊠䊷䊦 䉲䊷䊦䊄᧼䈱਄䈮虫䉎䈖䈫䇯 䈢䈣䈚䋬┵䈎䉌䈲䉂಴䈘䈭䈇䈖䈫䇯 䉲䊷䊦䊄᧼䈱ⓣ䈲虫䉍૏⟎䈱ၮḰ䈫䈜䉎ὑ 㪇㪅㪌㫄㫄એౝ䈲䈎䈎䈦䈩䉅น䈫䈜䉎䇯 㪜㪤㪠㩷㪣㪸㪹㪼㫃 ㇱຠታⵝ㕙஥ ඨ↰㕙஥ 㪜㪆㪘㩷㪣㪸㪹㪼㫃 ታⵝㇱຠ䈮ᒰ䈢䉌䈭䈇䈖䈫䇯 (%%+&$$29.#$+%&9.#$ R /CFGKP,CRCP ::::::::::::: /QFGN5:2%')04 4+%1*%1/2#0;.6& Wireless LAN Module Solder side

Top With Shield Top Without shield Bottom

UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Applicant: Ricoh Company Ltd T ype of Equipment : Wireless LAN Module (11b/11g/11n-20/11n-40) Model No. : SX-PCEGN- R FCC ID: BBP-WLA1B01 IC Number:144D-WLA1B01 Ricoh Company Ltd declares that Model : SX-PCEGN-R complies with FCC radiation exposure requirement specified in the FCC Rules 2.1091 (for mobile). RF Ex posure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the “SX-PCEGN-R“ as calculated from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4* π * r 2 ) Where P = 438.11 mW (Maximum peak output power) G = 1.58 Numerical Antenna gain; equal to2.00dBi r =20.0 cm For: SX-PCEGN-RS =0.13814 mW/cm 2 No. : 31HE0169-HO-02 RF Exposure / MPE Calculation

Test report No. : 31HE0169-HO-02-A-R1 Page : 2 of 84 Issued date : June 9, 2011 Revised date : June 24, 2011 FCC ID : BBP-WLA1B01 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ......................................................................................................... 3 SECTION 2: Equipment under test (E.U.T.) ........................................................................................... 3 SECTION 3: Test specification, procedures & results ............................................................................ 4 SECTION 4: Operation of E.U.T. during testing .................................................................................... 7 SECTION 5: Conducted Emission .......................................................................................................... 10 SECTION 6: Radiated Spurious Emission ............................................................................................ 11 SECTION 7: Antenna Terminal Conducted Tests ................................................................................ 12 APPENDIX 1: Photographs of test setup ............................................................................................... 13 Conducted Emission ......................................................................................................................... 13 Radiated Spurious Emission ............................................................................................................. 14 Worst Case Position .......................................................................................................................... 15 APPENDIX 2: Data of EMI test .............................................................................................................. 16 Conducted Emission ......................................................................................................................... 16 6dB Bandwidth ................................................................................................................................. 17 Maximum Peak Output Power .......................................................................................................... 21 Radiated Spurious Emission ............................................................................................................. 27 The tested burst timing ...................................................................................................................... 39 Conducted Spurious Emission .......................................................................................................... 41 Conducted Emission Band Edge compliance ................................................................................... 71 Power Density ................................................................................................................................... 74 99%Occupied Bandwidth ................................................................................................................. 80 APPENDIX 3: Test instruments ............................................................................................................. 83 Test report No. : 31HE0169-HO-02-A-R1 Page : 3 of 84 Issued date : June 9, 2011 Revised date : June 24, 2011 FCC ID : BBP-WLA1B01 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : Ricoh Company Ltd Address : 810 Shimoimaizumi, Ebina-Shi, Kanagawa-ken, 243-0460, Japan Telephone Number : +81-46-292-6870 Facsimile Number : +81-3-6673-4430 Contact Person : Taku Matsuyama *Remarks: Ricoh Company Ltd designates silex technology, Inc. as manufacturer of the product (Wireless LAN Module). SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Wireless LAN Module Model No. : SX-PCEGN-R Serial No. : Refer to Section 4, Clause 4.2 Rating : DC3.3V Receipt Date of Sample : April 21, 2011 Country of Mass-production : Japan Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description Model No: SX-PCEGN-R (referred to as the EUT in this report) is the Wireless LAN Module. Equipment Type : Transceiver Clock frequency : 40MHz Method of Frequency Generation : Synthesizer Operating voltage(Power Supply) : DC3.3V Operating voltage (inner) : DC1.2V Maximum Antenna Gain : 2.0dBi IEEE802.11b IEEE802.11g IEEE802.11n (20HT) IEEE802.11n (40HT) Frequency of operation 2412-2462MHz 2412 - 2462MHz 2422 - 2452MHz Type of modulation DSSS (CCK, DQPSK, DBPSK) OFDM (64QAM, 16QAM, QPSK, BPSK) OFDM (64QAM, 16QAM, QPSK, BPSK) Channel spacing 5MHz 5MHz 5MHz Antenna type Helical Antenna Antenna Connector type U.FL Alternative connector Test report No. : 31HE0169-HO-02-A-R1 Page : 4 of 84 Issued date : June 9, 2011 Revised date : June 24, 2011 FCC ID : BBP-WLA1B01 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C: 2010, final revised on December 6, 2010 and effective January 5, 2011 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.247 Operation within the bands 902-928MHz, 2400-2483.5MHz, and 5725-5850MHz 3.2 Procedures and results Item Test Procedure Specification Worst margin Results Remarks Conducted Emission FCC: ANSI C63.4:2003 7. AC powerline Conducted Emission measurements FCC: Section 15.207 QP 11.6dB, 4.84187MHz, L AV 10.3dB, 4.84187MHz, L Complied - IC: RSS-Gen 7.…

Text truncated - open the document above for the full version.

Test report No. : 31HE0169-HO-02-A-R1 Page : 16 of 84 Issued date : June 9, 2011 Revised date : June 24, 2011 FCC ID : BBP-WLA1B01 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 2: Data of EMI test Conducted Emission DATA OF CONDUCTED EMISSION TEST UL Japan, Inc. Head Office EMC Lab. No.4 Semi Anechoic Chamber Date : 2011/05/22 Company : Silex Technology, Inc. Report No. : 31HE0169-HO-02 Kind of EUT : 11bgn W-LAN Module Power : DC 3.3V Model No. : SX-PCEGN Temp./Humi. : 25deg. C / 59% RH Serial No. : Engineer : Satofumi Matsuyama Mode / Remarks : Tx 11n-40 MCS8 2437MHz Ant0+1 LIMIT : FCC15.207 QP FCC15.207 AV CHART:WITH FACTOR,Peak hold data. CALCULATION:RESULT[dBuV]=READING[dBuV]+C.F[dB](LISN LOSS+CABLE LOSS) Except for the above table : adequate margin data below the limits. Frequency[Hz] [dBuV]<< QP/AV DATA >> L:QP:AV N:QP:AV .15M30M.2M.3M.5M.7M1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 Frequency Reading LevelReading LevelCorr.ResultsResultsLimitLimitMarginMargin PhaseComment Frequency QPAVFactorQPAVQPAVQPAVPhaseComment [MHz][dBuV][dBuV][dB][dBuV][dBuV][dBuV][dBuV][dB][dB] PhaseComment 0.1535214.3-1.113.127.412.065.855.838.443.8N 0.2797516.2-1.813.329.511.560.850.831.339.3N 2.5824423.815.013.437.228.456.046.018.817.6N 4.8867430.521.713.744.235.456.046.011.810.6N 5.3245231.623.213.845.437.060.050.014.613.0N 6.4393627.918.113.841.731.960.050.018.318.1N 0.1535015.1-0.713.128.212.465.855.837.643.4L 0.2781317.4-1.713.330.711.660.950.930.239.3L 2.5761322.714.813.436.128.256.046.019.917.8L 4.8418730.822.113.644.435.756.046.011.610.3L 5.3235831.623.213.845.437.060.050.014.613.0L 6.4316625.817.413.839.631.260.050.020.418.8L Antenna 0+1 Test report No. : 31HE0169-HO-02-A-R1 Page : 17 of 84 Issued date : June 9, 2011 Revised date : June 24, 2011 FCC ID : BBP-WLA1B01 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 6dB Bandwidth Test place Head Office EMC Lab. No.7 Shielded Room Report No. 31HE0169-HO-02 Date 05/20/2011 Temperature/ Humidity 24 deg.C / 40% RH Engineer Takumi Shimada Mode Tx 11b, Antenna 0 Frequency 6dB Bandwidth Limit [MHz] [MHz] [kHz] 2412 9.635 >500 2437 11.099 >500 2462 9.456 >500 11g, Antenna 0 Frequency 6dB Bandwidth Limit [MHz] [MHz] [kHz] 2412 16.377 >500 2437 16.384 >500 2462 16.384 >500 11n-20 Antenna Frequency6dB Bandwidth Limit [MHz] [MHz] [kHz] 0 2412 17.723 >500 2437 17.730 >500 2462 17.777 >500 1 2412 17.770 >500 2437 17.749 >500 2462 17.779 >500 11n-40 Antenna Frequency6dB Bandwidth Limit [MHz] [MHz] [kHz] 0 2422 36.261 >500 2437 35.924 >500 2452 36.086 >500 1 2422 36.355 >500 2437 36.407 >500 2452 36.329 >500 Test report No. : 31HE0169-HO-02-A-R1 Page : 18 of 84 Issued date : June 9, 2011 Revised date : June 24, 2011 FCC ID : BBP-WLA1B01 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 6dB Bandwidth 11b, Antenna 0, 11Mbps(Long)11g, Antenna 0, 9Mbps 2412MHz 2412MHz 2437MHz 2437MHz 2462MHz 2462MHz Test report No. : 31HE0169-HO-02-A-R1 Page : 19 of 84 Issued date : June 9, 2011 Revised date : June 24, 2011 FCC ID : BBP-WLA1B01 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 6dB Bandwidth 11n-20 Antenna 0, MCS1311n-20 Antenna 1, MCS13 2412MHz 2412MHz 2437MHz 2437MHz 2462MHz 2462MHz Test report No. : 31HE0169-HO-02-A-R1 Page : 20 of 84 Issued date : June 9, 2011 Revised date : June 24, 2011 FCC ID : BBP-WLA1B01 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 6dB Bandwidth 11n-40 Antenna 0, MCS811n-40 Antenna 1, MCS8 2422MHz 2422MHz 2437MHz 2437MHz 2452MHz 2452MHz Test report No. : 31HE0169-HO-02-A-R1 Page : 21 of 84 Issued date : June 9, 2011 Revised date : June 24, 2011 FCC ID : BBP-WLA1B01 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Maximum Peak Output Power Test place Head Office EMC Lab. No.6 and 11 Measurement Room Report No. 31HE0169-HO-02 Date 04/21/2011 05/10/2011 Temperature/ Humidity 22 deg.C / 31% RH 23 deg.C / 37% RH Engineer Yutaka Yoshida Takumi Shimada Mode 11b Tx Antenna 0, 11Mbps(Long) Freq.ReadingCableAtten.Margin Loss [MHz][dBm][dB][dB][dBm][mW][dBm][mW][dB] 24126.020.7910.0716.8848.7530.00100013.12 24376.430.8010.0717.3053.7030.00100012.70 24626.760.8010.0717.6357.9430.00100012.37 Antenna 1, 2Mbps(Short) Freq.ReadingCableAtten.Margin Loss [MHz][dBm][dB][dB][dBm][mW][dBm][mW][dB] 24125.930.7910.0716.7947.7530.00100013.21 24376.320.8010.0717.1952.3630.00100012.81 24626.370.8010.0717.2452.9730.00100012.76 Sample Calculation: Result = Reading + Cable Loss + Attenuator Antenna 0, 2437MHzAntenna 1, 2437MHz RateReading Remar kRateReading Remark [Mbps][dBm][Mbps][dBm] 1(long)6.361(long)6.00 2(Long)6.342(Long)6.31 2(Short)6.322(Short)6.32* 5.5(long)6.355.5(long)6.08 5.5(Short)6.315.5(Short)6.06 11(Long)6.43*11(Long)6.13 11(Short)6.4111(Short)6.20 *: Worst Rate All comparizon were carried out on same frequency and measurement factors. ResultLimit ResultLimit Test report No. : 31HE0169-HO-02-A-R1 Page : 22 of 84 Issued date : June 9, 2011 Revised date : June 24, 2011 FCC ID : BBP-WLA1B01 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Maximum Peak Output Power Test place Head Office EMC Lab. No.7 and 11 Measurement Room Report No. 31HE0169-HO-02 Date 04/21/2011 05/20/2011 Temperature/ Humidity 22 deg.C / 31% RH 24 deg.C / 40% RH Engineer Yutaka Yoshida Takumi Shimada Mode 11g Tx Antenna 0, 9Mbps Freq.ReadingCableAtten.Margin Loss [MHz][dBm][dB][dB][dBm][mW][dBm][mW][dB] 241210.980.7910.072…
