BBP-WLALT01Wireless LAN Module

User’s manual Product: Wireless LAN Module Model: LBWB1ZZWU6 FCC ID: BBP-WLALT01 IC: 144D-WLALT01 For OEM integration only – device cannot be sold to general public. Therefore we will not supply the Us er’s manual, the installation manu al is the official for OEM. (Note) This module was granted as FCC/IC Limited Modular Approval. Addi tional host systems must be required reassessment of Dynamic Fr equency Selection and host systems must provide regulated supply voltages to the module. Separate evaluation must be required for any portable co nfiguration. When used in mobile applications, the antennas shown in this filing must be installed to provide a separati on distance of at least 20 cm from all persons. OEM integrators and end-users must be provided with specific inform ation required to satisfy RF exposure compliance for the final h ost device. OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install the device. The antenna of this device must not be co-located or used in conjunction with any other antenna or transmitter. OEM integrators must be provided with antenna installa tion instructions. Only those antennas tested with the device or similar antennas with equal or lesser gain may be used with this transmitter. This device complies with the Dynamic Frequency Selection (DFS) requirements of Report and Order FCC 03-287 as a Client only wi thout Radar Detection. We will ask OEM to include the followi ng Notices required by FCC/ IC on th e product and in the User’s manual. ■ Requirement of Labeling (For FCC) Please describe the following item on the host device of the this module: Contains Transmitter Module FCC ID: BBP-WLALT01 or Contains FCC ID: BBP-WLALT01 This device complies with part 15 of the FCC Rules. Ope ration is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) th is device must accept any interference received, including interference that may cause undesired operation. (For IC) Please describe the following item on the host device of the this module: Contains Transmitter Module IC: 144D-WLALT01 or Contains IC: 144D-WLALT01 ■ Requirement of User’s Manual Statement (For FCC) User’s manual shall contain following sentence FCC CAUTION Changes or modifications not expressly approved by the party re sponsible for compliance could void the user’s authority to oper ate the equipment. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. This equipment complies with FCC radiation exposure limits se t forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65. This equipment should be installed and operated keeping the radiator at least 20cm or more awa y from person’s bod y ( excludin g extremities: hands, wrists, feet and ankles ) . 5.15-5.25GHz band is restricted to indoor operations only. (For IC) Indicate the following information. This device complies with Industry Canada licence-exempt RSS st andard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must acce pt any interference, including in terference that may cause unde sired operation of the device. Le présent appareil est conforme aux CNR d' Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produ ire de brouillage, et (2) l'utilisateur de l'appareil doit acce pter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. * It can be also indicated on the equipment in place of the manual - For the transmitter which can replace the antenna by end user Indicate the following information. Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) g ain approved for the transmitter by Industry Canada. To reduce potent ial radio interference to other users, the antenna type and it s gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner av ec une antenne d'un type et d 'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioéle ctrique à l'intention des autres utilisateurs, il faut choisir le type d' antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante. * It is unnecessary if the application document shows end user cannot replace and modify the antenna. Indicate the following information. This radio transmitter ( identify the device by certification number, or model number if Category II ) has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna t ype indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are st rictly prohibited for use with this device. Antenna type: Chip dielectric antenna Gain: 2.4GHz: -0.5 dBi, W52/53: -0.3 dBi, W56: -1.2dBi, W58: -1.7dBi Le présent émetteur radio ( identifier le dispositif par son numér o de certification ou son numéro de modèle s'il fait partie du matériel de catégorie I ) a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne énumérés ci-dessous et ayant un gain admissible maximal et l'impédance requise pour chaque type d'antenne. Les types d'antenne non inclus dans cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour l'exploitation de l'émetteur. Antenna…

Text truncated - open the document above for the full version.

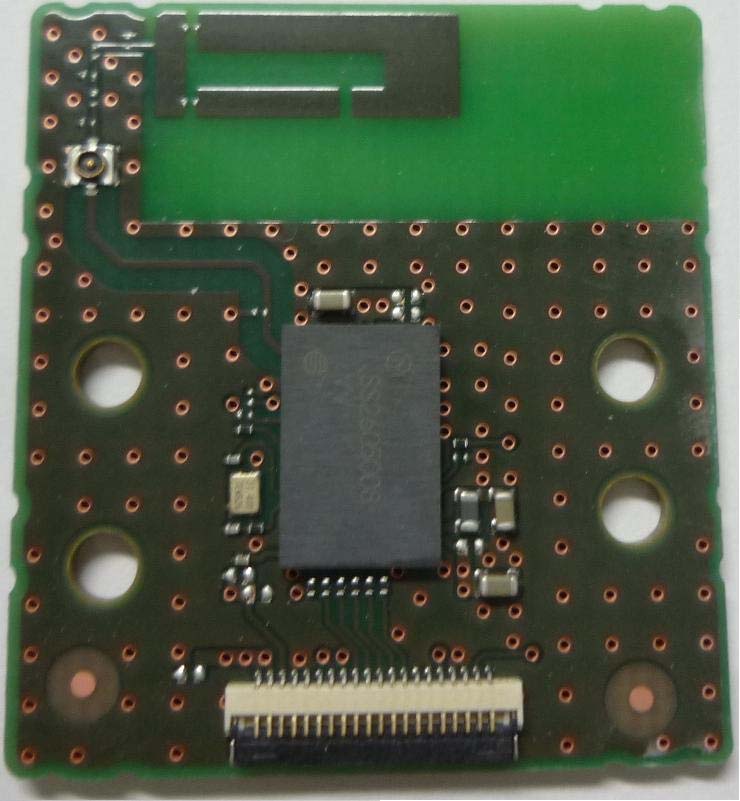

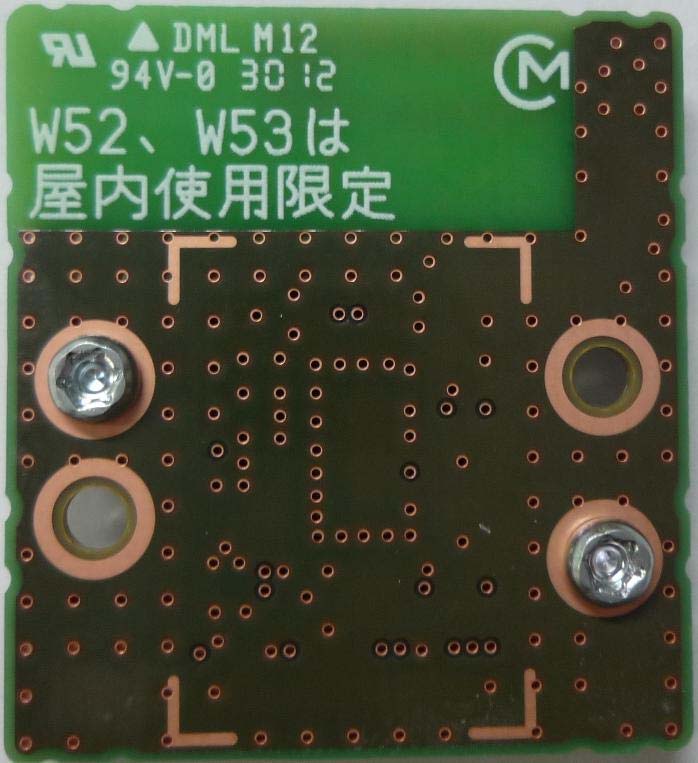

Photos Top with Sheild Photos Top without Sheild Photos Rear

Photos Top with Sheild Photos Top without Sheild Photos Rear

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Applicant: RICOH COMPANY, LTD. Type of Equipment : W ireless LAN M odule Model No. : LBWB1ZZWU6 FCC ID: BBP-WLALT01 RICOH COMPANY, LTD. declares that Model : Wireless LAN Module complies with FCC radiation exposure requirement specified in the FCC Rules 2.1091. The “LBW B1ZZW U6“ has 20.81 mW of conducted Peak Output power and 15.79 mW of EIRP. This equipment is considered as a mobile device so that SAR testing is excluded. The Following calculation is the reference data for 20cm distance. RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the “LBW B1ZZW U6“ as calculated from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW /cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G ) / (4* π * r 2 ) Where P = 20.81 mW (M aximum peak output power) G = 0.76 Numerical Antenna gain; equal -1.20 dBi r =20.0 cm For: LBW B1ZZW U6S = 0.00314 mW/cm 2 No. : 32KE0045-SH-04 RF Exposure / SAR Statement

Test report No. : 32KE0045-SH-04-B Page : 1 of 181 Issued date : September 13, 2012 FCC ID : BBP-WLALT01 Revised date : September 21, 2012 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 RADIO TEST REPORT Test Report No.: 32KE0045-SH-04-B Applicant : RICOH COMPANY, LTD. Type of Equipment : Wireless LAN Module Model No. : LBWB1ZZWU6 FCC ID : BBP-WLALT01 Test regulation : FCC Part15 Subpart E: 2012 Test result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the limits of the above regulation. 4. The test results in this test report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by any agency of the Federal Government. 6. The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan has been accredited. Date of test: July 30 to August 19, 2012 Tested by: Tatsuya Arai Engineer of WiSE Japan, UL Verification Service Approved by : Toyokazu Imamura Leader of WiSE Japan, UL Verification Service RTL02610 The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan. There is no testing item of "Non-accreditation". 13-EM-F0429 Test report No. : 32KE0045-SH-04-B Page : 2 of 181 Issued date : September 13, 2012 FCC ID : BBP-WLALT01 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Contents Page SECTION 1: Customer information ..................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ....................................................................... 4 SECTION 3: Test specification, procedures & results ......................................................... 5 SECTION 4: Operation of E.U.T. during testing ................................................................. 8 SECTION 5: Conducted emission ...................................................................................... 10 SECTION 6: Radiated emission ......................................................................................... 11 SECTION 7: Antenna terminal conducted tests ................................................................ 13 Contents of APPENDIXES ................................................................................................... 14 APPENDIX 1: Data of Radio tests ...................................................................................... 15 APPENDIX 2: Test instruments ....................................................................................... 177 APPENDIX 3: Photographs of test setup ......................................................................... 179 Test report No. : 32KE0045-SH-04-B Page : 3 of 181 Issued date : September 13, 2012 FCC ID : BBP-WLALT01 Revised date : September 21, 2012 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 REVISION HISTORY Original Test Report No.: 32KE0045-SH-04-B Revision Test report No. Date Page revised Contents - (Original) 32KE0045-SH-04-B September 13, 2012 - - 1 32KE0045-SH-04-B September 21, 2012 P11 Addition: method of average detection above1GHz P66 Correction: clerical error in the table of Outside of the restricted band P153 - 158Correction: clerical error in the table Test report No. : 32KE0045-SH-04-B Page : 4 of 181 Issued date : September 13, 2012 FCC ID : BBP-WLALT01 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 1: Customer information Company Name : RICOH COMPANY, LTD. Address : 810, Shimo-imaizumi, Ebina-shi, Kanagawa, 243-0460 Japan Telephone Number : +81-46-249-8490 Facsimile Number : +81-3-6673-4366 Contact Person : Yoshiaki Nishikawa SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Wireless LAN Module Model Number : LBWB1ZZWU6 Serial Number : 1 Rating : DC 3.6V Country of Mass-production : China Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Receipt Date of Sample : July 30, 2012 Modification of EUT : No modification by the test lab. 2.2 Product description Model: LBWB1ZZWU6 (referred to as the EUT in this report) is a Wireless LAN Module. Clock frequency(ies) in the system : 37.4MHz <Radio part> Equipment type : Transceiver Frequency of operation *1) : 2.4GHz: 2412-2462MHz (IEEE 802.11b, 11g, 11n-HT20) W52: 5180-5240MHz (IEEE 802.11a, 11n-HT20) 5190-5230MHz (IEEE 802.11n-HT40) W53: 5260-5320MHz (IEEE 802.11a, 11n-HT20) 5270-5310MHz (IEEE 802.11n-HT40) W56: 5500-5700MHz (IEEE 802.11a, 11n-HT20) 5510-5670MHz (except 5600-5650MHz) (IEEE 802.11n-HT40) W58: 5745-5825MHz (IEEE 802.11a, 11n-HT20) 5755-5795MHz (IEEE 802.11n-HT40) Bandwidth : 20MHz Channel spacing : 5MHz (2.4GHz), 20MHz (5GHz) Type of modulation : DSSS (IEEE 802.11b), OFDM (IEEE 802.11a/g/n) Antenna type : Chip dielectric Antenna connector type : JSC Antenna gain with cable loss : 2.4GHz: -0.5 dBi W52/53: -0.3dBi, W56: -1.2dBi, W58: -1.7dBi ITU code : D1D, G1D Operation temperature range : 0 to +80 deg.C *1) Refer to the test report 32KE0045-SH-04-A for FCC 15.247. FCC 15.31 (e) / 212 The host device provides stable voltage (DC3.6V) constantly to the EUT regardless of input voltage. Therefore, the EUT complies with the requirement. FCC 15.203 / 212 The EUT has a unique coupling/antenna connector. Therefore the equipment complies with the requirement. Test report No. : 3…

Text truncated - open the document above for the full version.

Test report No. : 32KE0045-SH-04-C Page : 1 of 23 Issued date : September 12, 2012 FCC ID : BBP-WLALT01 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 RADIO TEST REPORT Test Report No. : 32KE0045-SH-04-C Applicant : RICOH COMPANY, LTD. Type of Equipment : Wireless LAN Module Model No. : LBWB1ZZWU6 FCC ID : BBP-WLALT01 Test regulation : FCC Part 15 Subpart E: 2012 Section 15.407(DFS test only) Test Result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the limits of the above regulation. 4. The test results in this test report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by any agency of the Federal Government. 6. The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan has been accredited. Date of test : ____________________________________ Representative test engineer: _____________________________________ Tatsuya Arai Engineer of WiSE Japan, UL Verification Service Approved by : _____________________________________ Toyokazu Imamura Leader of WiSE Japan, UL Verification Service RTL02610 The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan. There is no testing item of "Non-accreditation". August 30, 2012 13-EM-F0429 Test report No. : 32KE0045-SH-04-C Page : 2 of 23 Issued date : September 12, 2012 FCC ID : BBP-WLALT01 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 CONTENTS PAGE SECTION 1: Customer information .................................................................................................. 3 SECTION 2: Equipment under test (E.U.T.) .................................................................................... 3 SECTION 3: Scope of Report ............................................................................................................. 4 SECTION 4: Test specification, procedures & results ..................................................................... 4 SECTION 5: Operation of E.U.T. during testing .............................................................................. 9 SECTION 6: In-Service Monitoring for Channel Move Time, Channel Closing Transmission Time ...................................................................................................................................................... 16 SECTION 7: In-Service Monitoring for Non-Occupancy Period ................................................. 19 APPENDIX 1: Data of DFS test ......................................................................................................... 21 APPENDIX 2: Test instruments ........................................................................................................ 22 APPENDIX 3: Photographs of test setup .......................................................................................... 23 Test report No. : 32KE0045-SH-04-C Page : 3 of 23 Issued date : September 12, 2012 FCC ID : BBP-WLALT01 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 SECTION 1: Customer information Company Name : RICOH COMPANY, LTD. Address : 810, Shimo-imaizumi, Ebina-shi, Kanagawa, 243-0460 Japan Telephone Number : +81-46-249-8490 Facsimile Number : +81-3-6673-4366 Contact Person : Yoshiaki Nishikawa SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Wireless LAN Module Model Number : LBWB1ZZWU6 Serial Number : 1 Rating : DC 3.6V Country of Mass-production: China Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Receipt Date of Sample : July 30, 2012 Modification of EUT : No modification by the test lab. 2.2 Product description Model: LBWB1ZZWU6 (referred to as the EUT in this report) is a Wireless LAN Module. Clock frequency(ies) in the system : 37.4MHz <Radio part> Equipment type : Transceiver Frequency of operation *1) : 2.4GHz: 2412-2462MHz (IEEE 802.11b, 11g, 11n-HT20) W52: 5180-5240MHz (IEEE 802.11a, 11n-HT20) 5190-5230MHz (IEEE 802.11n-HT40) W53: 5260-5320MHz (IEEE 802.11n-HT40) 5270-5310MHz (IEEE 802.11a, 11n-HT40) W56: 5500-5700MHz (IEEE 802.11a) 5510-5670MHz (IEEE 802.11n-HT40) W58: 5745-5825MHz (IEEE 802.11a, 11n-HT20) 5755-5795MHz (IEEE 802.11n-HT40) Bandwidth : 20MHz Channel spacing : 5MHz (2.4GHz), 20MHz (5GHz) Type of modulation : DSSS (IEEE 802.11b), OFDM (IEEE 802.11a/g/n) Antenna type : Chip dielectric Antenna connector type : JSC Antenna gain with cable loss : 2.4GHz: -0.5 dBi W52/53: -0.3dBi, W56: -1.2dBi, W58: -1.7dBi ITU code : D1D, G1D Operation temperature range : 0 to +80 deg.C *1) Refer to 32KE0045-SH-04-A is FCC part 15 subpart C report and 32KE0045-SH-04-B is FCC part 15 subpart E report. FCC 15.31 (e) / 212 The host device provides stable voltage (DC3.6V) constantly to the EUT regardless of input voltage. Therefore, the EUT complies with the requirement. FCC 15.203 / 212 The EUT has a unique coupling/antenna connector. Therefore the equipment complies with the requirement. Test report No. : 32KE0045-SH-04-C Page : 4 of 23 Issued date : September 12, 2012 FCC ID : BBP-WLALT01 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 SECTION 3: Scope of Report The EUT has the channels from 5180 to 5320MHz and 5500 to 5700MHz. This report only covers DFS requirement subject to 5250-5350MHz and 5500 to 5700MHz bands, as specif…

Text truncated - open the document above for the full version.

Test report No. : 32KE0045-SH-04-B Page : 179 of 181 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 APPENDIX 3: Photographs of test setup Conducted emission Test report No. : 32KE0045-SH-04-B Page : 180 of 181 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Radiated emission Front view Rear view (below 1GHz) Rear view (above 1GHz) Test report No. : 32KE0045-SH-04-B Page : 181 of 181 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Pre-check of the worst position Antenna Module X-axis X-axis Y-axis Y-axis Z-axis Z-axis END OF REPORT

Test report No. : 32KE0045-SH-04-C Page : 23 of 23 Issued date : September 12, 2012 FCC ID : BBP-WLALT01 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 APPENDIX 3: Photographs of test setup Photo 1 Photo 2
