BBP-WLBRG01Wireless LAN Module

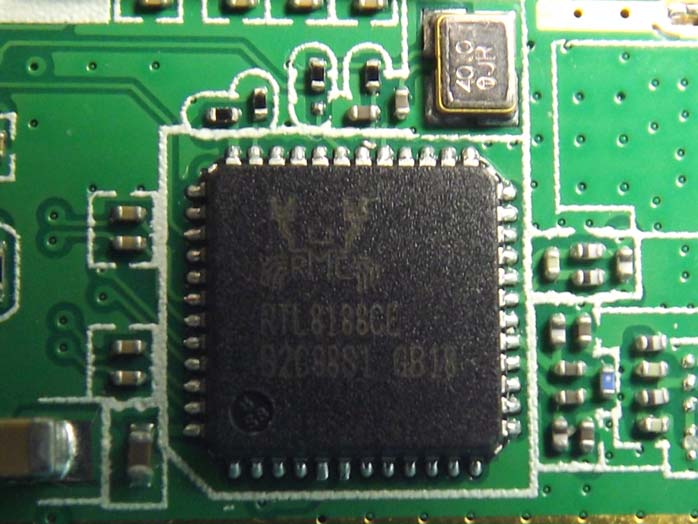

TYPE-GJ1 Users Manual November 16, 2011 TYPE-GJ1 Users Manual 1. Introduction/Overview ...................................................2 2. Block Diagram ..................................................3 3. Hardware specifications ...................................................4 1/8 4.System Requirements ...................................................6 5.setup ...................................................6 6.Compliance ...................................................7 1．Introduction 本書は組込み型 Wireless BridgeTYPE-GJ1について説明するものです。 This document describes about “embedded Wireless Bridge TYPE-GJ1. 2．Overview TYPE-GJ1はSingle Band IEEE802.11bgn準拠のインテリジェントモジュールです。本モジュールはEU RoHS 指令2009/95/EC(Lead Free)及び中国版RoHSに適合しています。本モジュールはMAC/BBPチップセットRTL8196C とRTL8188CE(Realtek社)を採用しています。また、このモジュールは1ストリームの11nシステム及び40MHz帯域幅 モードをサポートしています。 TYPE-GJ1 is Single Band IEEE802.11bgn intelligent radio module. This module complies with EU RoHS Directive 2009/95/EC(Lead Free) and China RoHS with exemptions. This module has an MAC/BBP Chipset RTL8196C and RTL8188CE (Realtek) internally. Also this module supports high speed one stream 11n technology and 40MHz band width mode. 機能 (Features): - IEEE802.11b/g/n準拠(2.4GHz) IEEE 802.11b/g/n conformity (2.4GHz) - 1ストリーム1 x 1 11nシステム及び40MHz帯域幅モード対応 (スループット理論値 150Mbps) Two stream 1 x 1 11n technology and 40MHz band width mode. (Throughput up to 150Mbps) - データレート 802.11b/g 1-54Mbps, 802.11n MCS0-15対応 Data rates of 1 - 54 Mbps for 802.11b/g and MCS0-15 for 802.11n. - “Short Gard Interval”モード対応 Support “Short Gard Interval” mode. TYPE-GJ1 Users Manual 2/8 MCS0-7対応 MCS0-7 for 802.11n 3．Block diagram DC 5V in PCIe RTL8196C Realtek SoC TRANS TRANS RJ45 LAN RJ45 WAN RTL8188CE Realtek WLAN Chip Antenna １X1 FROM 4MB DDR 32MB SW WPS/RESET LED X 4（Not Populate） DC/DC No use TYPE-GJ1 Users Manual 3/8 ItemSpecificationUnitNote 電源コネクタ Power connector Micro B ( USB) － インターフェイス Device Interfaces IEEE802.3u 10/100BASE 2port － WAN、LAN port IEEE802.11b/g/n － 重さ Weight 13.8gTyp 寸法 Dimensions 54 x 37 x 18mm W x H x D, PCB Thickness = 1.0mm * 7.項参照。See section 7. MTBF90,000hMin. ItemSpecificationUnitNote 保存温度 Storage temperature -20 to +60 °C 保存湿度 Storage humidity Max 95%%RHNon condensing 動作温度 Operating Temperature 0 to +55 °C Ambient 動作湿度 Operating humidity 10 to 90%RHNon condensing 4-2．Environmental specifications ItemSpecificationUnitNote 電源電圧 Power supply voltage Min.Typ.Max. 4.755.05.25V 動作条件 Operating Conditions TYPE-GJ1 Users Manual 4/8 4-1．General specifications ItemSpecificationUnitNote ChipsetSoC RTL8196C / WLAN RTL8188CE (Realtek) － 中心周波数 Center frequency 11b2412 – 2472MHz 11g2412 – 2472MHzCh.1～Ch.13 11ng HT202412 - 2472MHz 11ng HT402422 - 2462MHzCh.3～Ch.11 チャネル間隔 Channel spacing 11b/11g/11ng HT20/HT405MHz 通信レート Rate スキームコード Scheme code 11b1, 2, 5.5L, 5.5S, 11L, 11SMbps 11g6, 9, 12, 18, 24, 36, 48, 54Mbps 11ng 1StreamMCS0, 1, 2, 3, 4, 5, 6, 7 － 変調方式 Modulation type 11bDSSS(CCK,DQPSK,DBPS K) － 11g/11ng DSSS-OFDM (64QAM,16QAM,QPSK,BPS K) － 4-4．Radio configuration and general specifications TYPE-GJ1 Users Manual 5/8 TYPE-GJ1 Users Manual 5. System Requirements (for the install) OS: Embedded Linux or Embedded windows PC H/W:Ethernet port is required 6. Setup TYPE-GJ1 connect to the Ethernet port of the END product. The END product can use the wireless LAN by setting it using a special protocol. 6/8 The configuration of this product uses a special protocol. The exhibition of those procedures is kept by contract. H/W:Ethernet port is required EDN Product TYPE-GJI Ethernet TYPE-GJ1 Users Manual 7/8 7. Compliance FCC ID：BBP-WLBRG01 NOTICE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. IC ：144D-WLBRG01 This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person’s body (excluding extremities: hands, wrists, feet and ankles). Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées pour un environnement non contrôlé et respecte les règles les radioélectriques (RF) de la FCC lignes directrices d'exposition dans le Supplément C à OET65 et d’exposition aux fréquences radioélectriques (RF) CNR-102 de l’IC. Cet équipement doit être installé et utilisé en gardant une distance de 20 cm ou plus entre le dispositif rayonnant et le corps (à l’exception des extrémités : mains, poignets, pieds et chevilles). This device complies with Part 15 of FCC Rules and Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that …
