BBP-WLCMN01Option(s) for Radiocommunications

For Users of This Product Thank you for purchasing the extended wireless LAN board. This document describes precautions about the use of the extended wireless LAN board. Before using it, read this carefully to use it properly . Also, keep this document safe. Be sure to read this before using wireless LAN This product uses 2.4 GHz/5 GHz frequency range for communication. Communications using radio waves may be hampered by noise or interference. If you want to create a communication system using this product, pay attention to communication failures. It is prohibited by law to disassemble and modify this product. If illegal modifications are • added to this product for its use, we shall not assume any responsibility. We shall not assume any responsibility for pure economic losses such as damages incurred • due to communication failures arising from failures, malfunction, or defects of this product, or usage environments, communication failures, power outages, and other external factors. No measures to prevent or block data tampering are available for devices that use radio • waves for communications. We shall not assume any responsibility if security problems arise due to wireless LAN specifications or other conditions. The usable frequency range of this product may be used by products (industrial, scientific, or • medical devices) of other companies. Also, outdoor use of wireless devices may be restricted. Pay attention to where you use this product. To export this product, conform to the Foreign Exchange and Foreign Trade Act, the Export • Administration Regulations, and other related laws and regulations, and conduct the necessary proceedings specified by them. This product's SSID is not configured for options. If you want to use SSID, configure the SSID • setting yourself. Depending on the environment where you use this product, communications might be • interrupted due to radio wave characteristics. This product cannot be used with Bluetooth options.• Depending on the main unit, IEEE 1284 options may not be used simultaneously.• Usable frequencies vary depending on the access point you use.• Depending on the environment where you use this product or the access point you • select, restrictions may be imposed on the use of some usable channels. If wireless LAN communications are not possible, check the environment or access point. r T o service representatives (for service installation only): Give this document to the user when the installation of this product is complete. © 2012 Printed in Japan EN US E N GB EN AU D164-7111 &A'0AY⸥タࠅ޽KPFF Note to users in the United States of America Notice: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However , there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Caution: For compliance with FCC limitations on emission, make sure the wireless LAN antenna is correctly installed and the ferrite core securely attached. It is strictly forbidden to use antenna except designated.This equipment must not be co- located or operated in conjunction with any other antenna or transmitter. This equipment complies with FCC radiation exposure limits set forth for uncontrolled equipment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65. This equipment should be installed and operated with at least 20cm more between the radiator and person's body(excluding extremities:hands, wrists, feet and ankles). The model 5.15-5.25GHz band is restricted to indoor operations only. Declaration of Conformity Product Name: Option(s) for Radiocommunications Model Number: R-CMN-851 Responsible party: Ricoh Americas Corporation Address: 5 Dedrick Place, West Caldwell, NJ 07006 Telephone number: 973-882-2000 This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. ©2012 Printed in Japan EN US D164-7101A #A&#KPFF Note to users in Canada This Class B digital apparatus complies with Canadian ICES-003. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the followingtwo conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. the de…

Text truncated - open the document above for the full version.

For Users of This Product Thank you for purchasing the extended wireless LAN board. This document describes precautions about the use of the extended wireless LAN board. Before using it, read this carefully to use it properly . Also, keep this document safe. Be sure to read this before using wireless LAN This product uses 2.4 GHz/5 GHz frequency range for communication. Communications using radio waves may be hampered by noise or interference. If you want to create a communication system using this product, pay attention to communication failures. It is prohibited by law to disassemble and modify this product. If illegal modifications are • added to this product for its use, we shall not assume any responsibility. We shall not assume any responsibility for pure economic losses such as damages incurred • due to communication failures arising from failures, malfunction, or defects of this product, or usage environments, communication failures, power outages, and other external factors. No measures to prevent or block data tampering are available for devices that use radio • waves for communications. We shall not assume any responsibility if security problems arise due to wireless LAN specifications or other conditions. The usable frequency range of this product may be used by products (industrial, scientific, or • medical devices) of other companies. Also, outdoor use of wireless devices may be restricted. Pay attention to where you use this product. To export this product, conform to the Foreign Exchange and Foreign Trade Act, the Export • Administration Regulations, and other related laws and regulations, and conduct the necessary proceedings specified by them. This product's SSID is not configured for options. If you want to use SSID, configure the SSID • setting yourself. Depending on the environment where you use this product, communications might be • interrupted due to radio wave characteristics. This product cannot be used with Bluetooth options.• Depending on the main unit, IEEE 1284 options may not be used simultaneously.• Usable frequencies vary depending on the access point you use.• Depending on the environment where you use this product or the access point you • select, restrictions may be imposed on the use of some usable channels. If wireless LAN communications are not possible, check the environment or access point. r T o service representatives (for service installation only): Give this document to the user when the installation of this product is complete. © 2012 Printed in Japan EN US E N GB EN AU D164-7111 &A'0AY⸥タࠅ޽KPFF Note to users in the United States of America Notice: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However , there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Caution: It is strictly forbidden to use antenna except designated.This equipment must not be co- located or operated in conjunction with any other antenna or transmitter. This equipment complies with FCC radiation exposure limits set forth for uncontrolled equipment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65. This equipment should be installed and operated with at least 20cm more between the radiator and person's body(excluding extremities:hands, wrists, feet and ankles). The model 5.15-5.25GHz band is restricted to indoor operations only. Declaration of Conformity Product Name: Option(s) for Radiocommunications Model Number: R-CMN-851 Responsible party: Ricoh Americas Corporation Address: 5 Dedrick Place, West Caldwell, NJ 07006 Telephone number: 973-882-2000 This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. ©2012 Printed in Japan EN US M417-7101A #A/#KPFF Note to users in Canada This Class B digital apparatus complies with Canadian ICES-003. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the followingtwo conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. the device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite…

Text truncated - open the document above for the full version.

Contains label When a module is included in the end products and disappears from the outside at the time of shipment, a Contains label is stuck on the end products. A Contains label is the following contents. About User manual User manual and Installation manual will be supplied with this module. (Note) This module was granted as FCC/IC Limited Modular Approval. Host systems must provide regulated supply voltages to the module. Separate evaluation must be required for any portable configuration. When used in mobile applications, the antennas shown in this filing must be installed to provide a separation distance of at least 20 cm from all persons. OEM integrators and end-users must be provided with specific information required to satisfy RF exposure compliance for the final host device. OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install the device. The antenna of this device must not be co-located or used in conjunction with any other antenna or transmitter. OEM integrators must be provided with antenna installation instructions. Only those antennas tested with the device or similar antennas with equal or lesser gain may be used with this transmitter. This device complies with the Dynamic Frequency Selection (DFS) requirements of Report and Order FCC 03-287 as a Client only without Radar Detection. Contains FCC ID: BBP-WLCMN01 Contain IC: 144D-WLCMN01 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

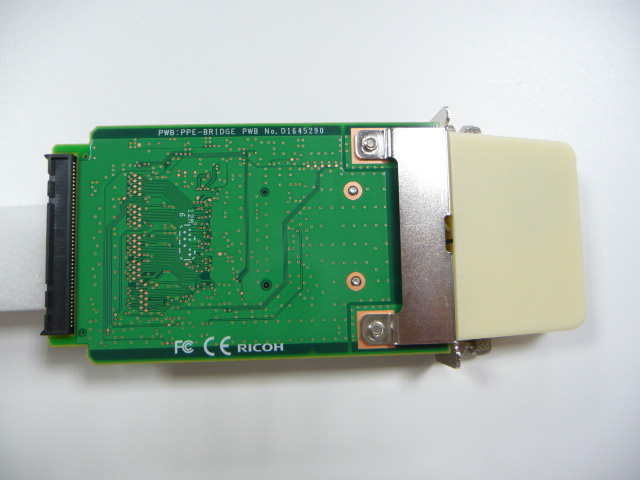

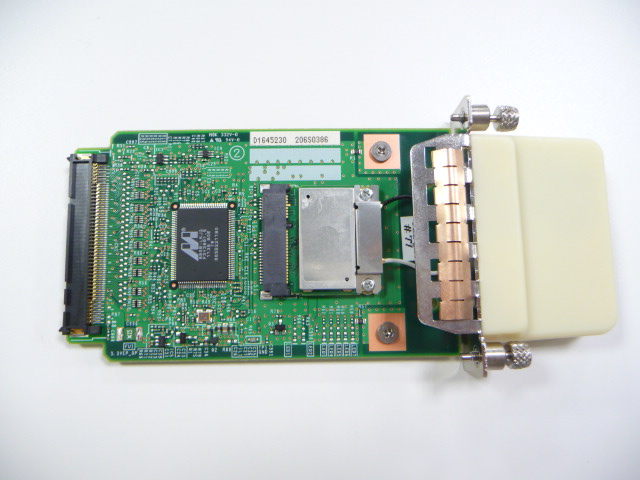

External Photo Top Bottom External Photo Module with Inverted F Antenna (Top) Module with Inverted F Antenna (Bottom) External Photo Module with Dipole Antenna (Top) Module with Dipole Antenna (Top) [Closeup] External Photo Module with Dipole Antenna (Bottom) Module with Dipole Antenna (Bottom) [Closeup]

label

Internal Photo WLAN Circuit (Top) without Shield WLAN Circuit (Bottom) without Shield

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Applicant: Ricoh Company, Ltd. T ype of Equipment : Option(s) for Radiocommunications Model No. : R-CMN-851 FCC ID: B B P-W LCM N01 Ricoh C ompany, Ltd. declares that M odel : Option(s) for Radiocommunications complies with FCC radiation exposure requirement specified in the FCC Rules 2.1091. The “R-CM N-851“ has 351.61 mW of conducted Peak O utput power and 1042.46 mW of EIRP. This equipment is considered as a mobile device so that SAR testing is excluded. The Following calculation is the reference data for 20cm distance. RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the “R-CM N-851“ as calculated from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4* π * r 2 ) Where P = 351.61 mW (M aximum peak output power) G = 2.96 Numerical Antenna gain; equal 4.72 dBi r =20.0 cm For: R-CMN-851S = 0.20739mW/cm 2 N o. : 32G E 0206-SH -01-A RF Ex posure / SAR Statement

Test report No. : 32GE0206-SH-01-A Page : 1 of 123 Issued date : September 20, 2012 Revised date : October 19, 2012 FCC ID : BBP-WLCMN01 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 RADIO TEST REPORT Test Report No.: 32GE0206-SH-01-A Applicant : Ricoh Company, Ltd. Type of Equipment : Option(s) for Radiocommunications Model No. : R-CMN-851 FCC ID : BBP-WLCMN01 Test regulation : FCC Part15 Subpart C: 2012 Test result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the limits of the above regulation. 4. The test results in this test report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by any agency of the Federal Government. 6. The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan has been accredited. Date of test: July 27 to September 17, 2012 Tested by: Hikaru Shirasawa Engineer of WiSE Japan, UL Verification Service Approved by : Go Ishiwata Manager of WiSE Japan, UL Verification Service RTL02610 The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan. There is no testing item of "Non-accreditation". 13-EM-F0429 Test report No. : 32GE0206-SH-01-A Page : 2 of 123 Issued date : September 20, 2012 FCC ID : BBP-WLCMN01 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Contents Page SECTION 1: Customer information ..................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ....................................................................... 4 SECTION 3: Test specification, procedures & results ......................................................... 6 SECTION 4: Operation of E.U.T. during testing ................................................................. 9 SECTION 5: Conducted emission ...................................................................................... 11 SECTION 6: Radiated emission ......................................................................................... 12 SECTION 7: Out of band emissions (Antenna port conducted) ....................................... 14 SECTION 8: 6dB bandwidth & Occupied bandwidth (99%) ........................................... 14 SECTION 9: Maximum peak output power ...................................................................... 14 SECTION 10: Peak power density ...................................................................................... 14 Contents of APPENDIXES ................................................................................................... 15 APPENDIX 1: Data of Radio tests ...................................................................................... 16 APPENDIX 2: Test instruments ....................................................................................... 116 APPENDIX 3: Photographs of test setup ......................................................................... 117 Test report No. : 32GE0206-SH-01-A Page : 3 of 123 Issued date : September 20, 2012 Revised date : October 19, 2012 FCC ID : BBP-WLCMN01 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 REVISION HISTORY Original Test Report No.: 32GE0206-SH-01-A Revision Test report No. Date Page revised Contents - (Original) 32GE0206-SH-01-A September 20, 2012 - - 1 32GE0206-SH-01-A October 4, 2012 1,3 6 P1,3: Update P6: Addition of the description to 3.1 2 32GE0206-SH-01-A October 19, 2012 1,3 9 P1,3: Update P9: Addition of the description to 4.1 Test report No. : 32GE0206-SH-01-A Page : 4 of 123 Issued date : September 20, 2012 FCC ID : BBP-WLCMN01 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 1: Customer information Company Name : Ricoh Company, Ltd. Address : 810, Shimoimaizumi Ebina-Shi Kanagawa 24300460 Telephone Number : +81-46-292-3871 Contact Person : Seiji Nakamura SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Option(s) for Radiocommunications Model Number : R-CMN-851 Serial Number : Refer to 4.2 in this report. Rating : DC3.3V Country of Mass-production : Japan Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Receipt Date of Sample : July 24, 2012 Modification of EUT : No modification by the test lab. Test report No. : 32GE0206-SH-01-A Page : 5 of 123 Issued date : September 20, 2012 FCC ID : BBP-WLCMN01 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 2.2 Product description Model: R-CMN-851 (referred to as the EUT in this report) is Option(s) for Radiocommunications. Clock frequency(ies) in the system : 40MHz <Radio part> Equipment type : Transceiver Frequency of operation *1) : 2.4GHz: 2412-2462MHz (IEEE 802.11b, 11g, 11n-HT20) 2422-2452MHz (IEEE 802.11n-HT40) W52: 5180-5240MHz (IEEE 802.11a, 11n-HT20) 5190-5230MHz (IEEE 802.11n-HT40) W53: 5260-5320MHz (IEEE 802.11a, 11n-HT20) 5270-5310MHz (IEEE 802.11n-HT40) W56: 5500-5700MHz (IEEE 802.11a, 11n-HT20) 5510-5670MHz (IEEE 802.11n-HT40) Bandwidth : 20MHz (IEEE 802.11a/b/g/n), 40MHz (IEEE 802.11n) Channel spacing : 5MHz (2.4GHz), 20MHz (5GHz) Type of modulation : DSSS (IEEE 802.11b), OFDM (IEEE 802.11a/g/n) ITU code : D1D, G1D Operation temperature range : 0 to …

Text truncated - open the document above for the full version.

Test report No. : 32GE0206-SH-01-A Page : 117 of 123 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 APPENDIX 3: Photographs of test setup Conducted emission Antenna: ANT1431-161C/M-AB-58 Test report No. : 32GE0206-SH-01-A Page : 118 of 123 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Antenna: ANT1468 Test report No. : 32GE0206-SH-01-A Page : 119 of 123 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Radiated emission Antenna: ANT1431-161C/M-AB-58 Front view Rear view (below 1GHz) Rear view (above 1GHz) Test report No. : 32GE0206-SH-01-A Page : 120 of 123 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Antenna: ANT1468 Front view Rear view (below 1GHz) Rear view (above 1GHz) Test report No. : 32GE0206-SH-01-A Page : 121 of 123 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Pre-check of the worst position Antenna: ANT1431-161C/M-AB-58 X-axis Y-axis Z-axis ANT 1 ANT 2 Test report No. : 32GE0206-SH-01-A Page : 122 of 123 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Antenna: ANT1468 Module X-axis Y-axis Z-axis ANT 2 ANT 1 Test report No. : 32GE0206-SH-01-A Page : 123 of 123 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Antenna Antenna: 1 Antenna: 2 X-axis X-axis Y-axis Y-axis Z-axis Z-axis END OF REPORT
