BBP7120ACD-R/RW

COMPACT DISC REWRITABLE DRIVE MP7210A SPECIFICATIONS (Preliminary) RICOH Company, Ltd. May. 16, 2000 DRC – 60x - 2xx NOTICE This equipment has been tested and found to comply with the limits for a Class B digital device , pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates , uses and can radiate radio frequency energy and , if not installed and used in accordance with the instructions , may cause harmful interference to radio communication. However , there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception , which can be determined by turning the equipment off and on , the user is encouraged to try to correct the interference by one or more of the following measures : ---Reorient or relocate the receiving antenna. ---Increase the separation between the equipment and receiver. ---Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ---Consult the dealer or an experienced radio / TV technician for help. FCC WARNING Changes or modification not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. a) Pay careful attention not to let the invisible laser beam emitted from the optical pickup enter into your eyes. b) When you find a troubled state of the component in the optical pickup containing the laser diode , change to the specified new optical pickup. Do not open the optical pickup housings. Akustischer Geräuschpegel Dieser Drucker überschreitet einen Geräuschpegel von 70 dB (A) während dem Betrieb nicht. Declaration of Conformity “The Product complies with the requirements of the EMC Directive 89/336/EEC and the Low Voltage Directive 73/23/EEC.” Revision History No.Revised DataRevisionContentsDescriptionPage May. 16, 2000Preliminary CONTENTS I. OUTLINE------------------------------------------------------------------------------------------------------ 1. Overview...........................................................................................................I - 1 2. Features............................................................................................................I - 1 II. CONSTRUCTION AND INSTALLATION---------------------------------------------------------- 1. Basic Construction and Connectors................................................................II - 1 III. SPECIFICATIONS---------------------------------------------------------------------------------------- 1. Functionality....................................................................................................III - 1 2. Basic Specification.........................................................................................III - 2 3. Audio Specification.........................................................................................III - 3 4. Performance Specification.............................................................................III - 3 5. Condition for use and Safety standard...........................................................III - 3 6. Reliability and Usable Life..............................................................................III - 6 7. Safety Standards............................................................................................III - 6 8. Appearance....................................................................................................III - 7 9. Storage Conditions.........................................................................................III - 8 10. Emergency Eject............................................................................................III - 10 11. Disc.................................................................................................................III - 11 12. Packet Command...........................................................................................III - 12 FIGURE II - 1.Front........................................................................................................II - 1 II - 2.Back.........................................................................................................II - 1 II - 3.Device Configuration Jumper..................................................................II - 2 III - 1.Installation Conditions.............................................................................III - 5 III - 2.CD-R/RW Drive Dimension.....................................................................III - 7 III - 3.Packing Arrangement..............................................................................III - 9 III - 4.Emergency Eject.....................................................................................III - 10 TABLE III - 1.Packet Command....................................................................................II - 1 I. OUTLINE 1. Overview The Multimedia Printer Series Drive (the CD-R/RW Drive) can do much more than read and write the usual CD-R discs. When you load it with a rewritable CD-RW disc, you can record, read, and edit any kind of data, because these discs allow you to rewrite information that has already been recorded. 2. Features 1) Running OPC*1 gives a flatter writing signal that improves reliability. 2) An improved anti-heat design means that no cooling fan is needed. 3) Easy-to-use tray model. 4) Uses the world standard ATAPI interface. 5) Can read not only CD-R and CD-RW discs, but also video CDs, music CDs, and photo CDs. 6) Can read data at 32x speed and write data at 12x speed on CD-R, 10x speed on CD-RW discs. 7) The recorded CD-RW media can be played in a DVD player or multimedia CD…

Text truncated - open the document above for the full version.

Ru8x22 MODEL:MP7120A Block Diagram

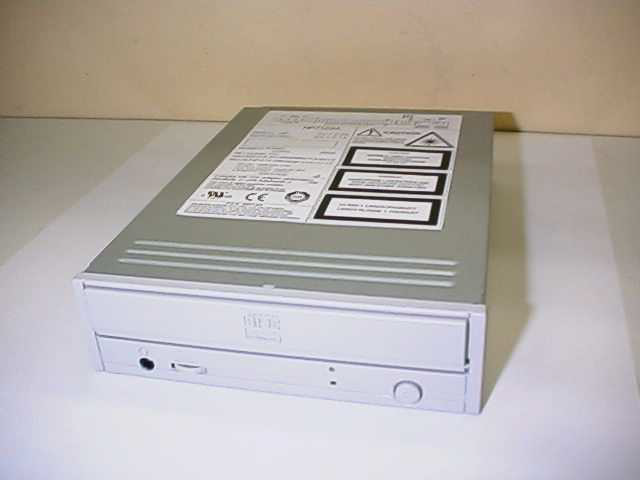

CONTENTS External Photo ExhibitPage 1.Front Side View 1 2.Rear Side View 2

CONTENTS Internal Photo ExhibitPage 1.Main PCB 1-2 2.PU PCB 3-4 3.Pick Up 5-6
