BCGA2874Desktop Computer

 One Apple Park Way Cupertino, California 95014 USA V1.0 www.apple.com Date: 26 April 2023 Federal Communications Commission Office of Engineering and Technology Laboratory Division 7435 Oakland Mills Rd. Columbia MD 21046 Subject: CFR 47 §2.911 (d)(5) Attestation Ref: FCC numbers Model(s) FCC ID A2874 BCGA2874 To whom it may concern: Apple Inc. (“Apple”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Apple certifies that, as of the date of the filing of the application, Apple is not identified on the Covered List as an entity producing “covered” equipment and is not an affiliate or a subsidiary of an entity identified on the Covered List. Sincerely, ____________________ Stuart Thomas Apple Inc. EMEIA Engineering Manager [email protected]

 One Apple Park Way Cupertino, California 95014 USA V1.0 www.apple.com Date: 26 April 2023 Federal Communications Commission Office of Engineering and Technology Laboratory Division 7435 Oakland Mills Rd. Columbia MD 21046 Subject: CFR 47 §2.911 (d)(7) Agent Designation Attestation Grantee Code: BCG To whom it may concern: Apple Inc. (“Apple”) as required by section §2.911(d)(7), will also serve as the agent for service of process for the above-referenced grantee code. Apple acknowledges that it will maintain an agent for no less than one year after Apple has terminated all marketing and importation or the conclusion of any Commission- related proceeding involving the equipment. Apple further acknowledges its responsibility under CFR 47 §2.929(c) to inform the FCC whenever the agent information changes. Contact person: Abhishek Rala Company name: Apple Inc. FCC FRN: 0005899216 Company Address: One Apple Park Way, Cupertino, CA 95014 Email: [email protected] Sincerely, ____________________ Stuart Thomas Apple Inc. EMEIA Engineering Manager [email protected]

Date: 31 May 2023  One Apple Park Way Cupertino, California 95014 USA v1.1 www.apple.com Federal Communications Commission Office of Engineering and Technology Laboratory Division 7435 Oakland Mills Rd. Columbia MD 21046 Subject: Statement of Attestation – Dual Client Ref: FCC numbers Model(s) FCC ID A2874 BCGA2874 To whom it may concern: Apple Inc., attest that these devices comply with the device protocol requirements and operational restrictions for indoor client 6CD. a. This device does not support the indoor subordinate (6PP) category and the maximum power does not exceed the authorised value. b. This device will only associate and connect with a low-power indoor access point, subordinate device or standard access point and never directly link to any other client devices. c. This device will always initiate transmission under the control of a low-power indoor access point, subordinate device, or standard-power access point except for brief communications before joining a network. These brief messages will only occur if the client has detected an indoor access point or subordinate device, or standard access point operating on a channel. These brief messages will have a time-out mechanism such that if it does not receive a response from an access point it will not continually repeat the request. d. This device, when associated and connected with a low-power indoor access point, subordinate device, or standard access point, will operate at a power lower as advertised by the indoor access point, subordinate device, or standard access point: i. lower than or equal to the power advertised by the low-power indoor access point and never above the maximum output power allowed by the FCC grant for clients associated with indoor access points. ii. lower than or 6 dB below the power advertised by the standard access point. e. Furthermore, we fully understand this device is prohibited from the control of or communicating with unmanned aircraft systems, including drones. For any questions, please feel free to contact me. Sincerely, Date: 31 May 2023  One Apple Park Way Cupertino, California 95014 USA v1.1 www.apple.com ____________________ Stuart Thomas Apple Inc. Senior Engineering Manager [email protected]

 One Apple Park Way Cupertino, California 95014 USA v1.0 www.apple.com Date: 31 May 2023 Federal Communications Commission Office of Engineering and Technology Laboratory Division 7435 Oakland Mills Rd. Columbia MD 21046 Subject: Statement of Conformity for the Client in Non-Associated mode Ref: FCC numbers Model(s) FCC ID A2874 BCGA2901 To whom it may concern: Pursuant to the provisions of KDB 905462 D03, (c). Apple Inc. declares that the above-mentioned devices client software and associated drivers will not initiate any transmission on DFS frequencies without initiation by a master. This includes restriction on transmissions for beacons and support for ad-hoc peer-to- peer modes. Sincerely, ____________________ Stuart Thomas Apple Inc. EMEIA Engineering Manager [email protected]

 One Apple Park Way Cupertino, California 95014 USA v1.0 www.apple.com Date: 31 May 2023 Federal Communications Commission Office of Engineering and Technology Laboratory Division 7435 Oakland Mills Rd. Columbia MD 21046 Subject: Request for Confidentiality FCC ID: BCGA2874, Model A2874 To whom it may concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), Apple Inc. hereby requests confidential treatment for documents filed with the Commission in connection with the application for equipment authorization referenced above. Permanent Confidentiality Apple Inc. requests that the Commission withholds the following documents from public viewing indefinitely: • Block Diagrams • Schematics • Operational Description • Software Security Description • Tune Up Procedure These documents reveal detailed technical and design information that is protected by Apple Inc. as confidential and proprietary trade secrets. This information has been disclosed to those required to maintain its confidentiality, and is not customarily disclosed to the public even after commercial release of a device. As a result, disclosure of this information by the Commission would harm Apple Inc. by giving competitors an unfair advantage even after commercial release of the device.  One Apple Park Way Cupertino, California 95014 USA v1.0 www.apple.com Short Term Confidentiality In addition to the above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, Apple Inc. requests that the Commission withholds the following documents from public viewing for one hundred eighty days after the date the grant of equipment authorization is issued: • External Photographs • Internal Photographs • Test Setup Photographs • User Manual These documents reveal technical and design information that has not been publicly disclosed in marketing materials and is protected by Apple Inc. as confidential and proprietary trade secrets. This information has been disclosed to those required to maintain its confidentiality, and is not customarily disclosed publicly prior to the commercial release of the device. As a result, disclosure of this information by the Commission prior to commercial release would harm Apple Inc. by giving competitors an unfair market advantage. Apple Inc. believes the period of confidentiality requested is necessary to protect the information until the commercial release of a device. It is our understanding that measurement test reports and FCC ID label format cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, ____________________ Stuart Thomas Apple Inc. EMEIA Engineering Manager [email protected]

Apple Park, Cupertino, CA 95014 October 27, 2020 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Re: Authorized Individual To whom it may concern: Pursuant to the provisions of KDB 852134 D01 Authorized Policy Form 731, I, grantee contact, hereby authorize Stuart Thomas to act on behalf of Apple Inc. for all matters relating to equipment authorization, including signing Form 731, attestations, and confidentiality request letters. This authorization is valid until further written notice from the applicant. Sincerely, ____________________ Abhishek Rala Apple Inc. Global Certification Manager [email protected]

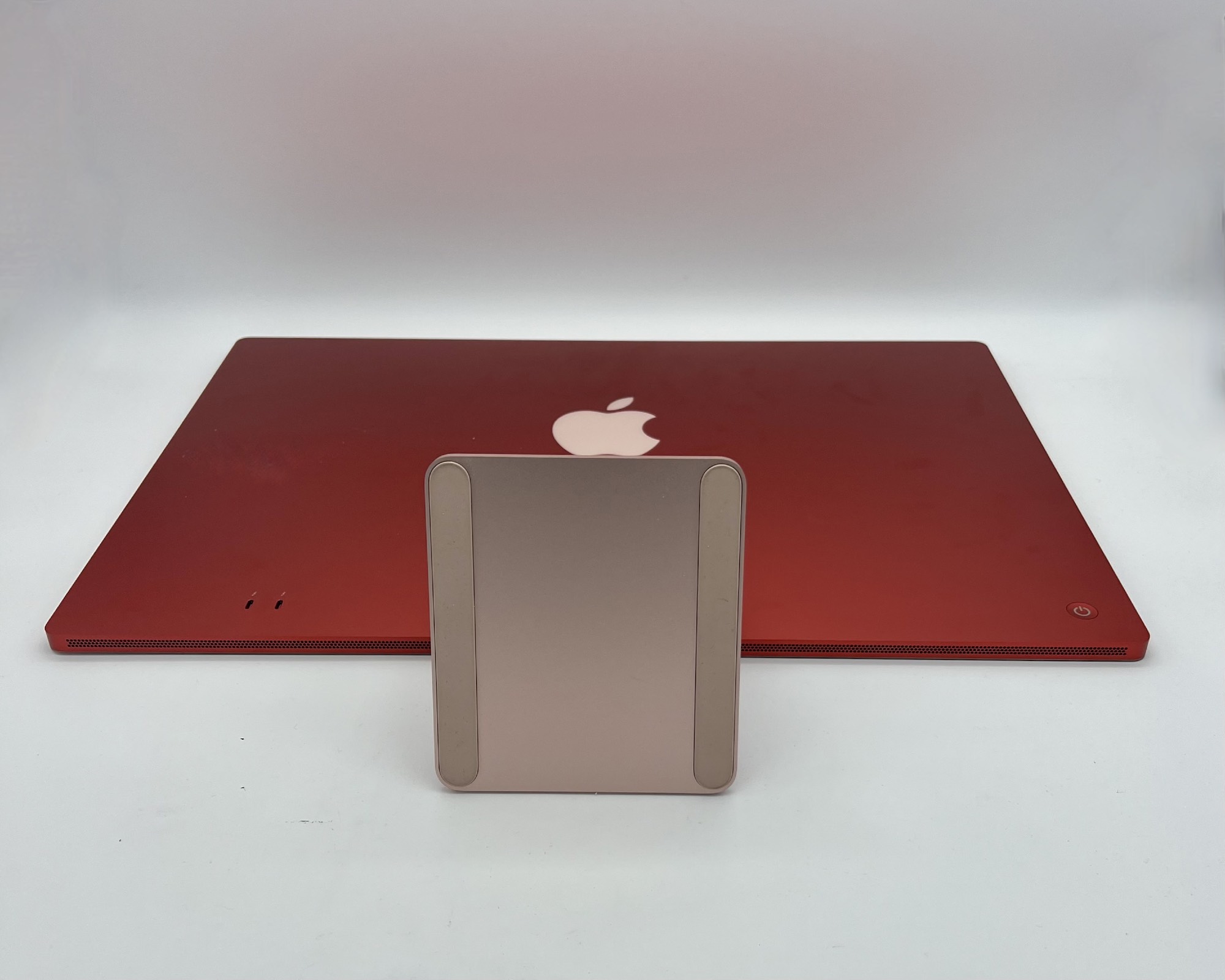

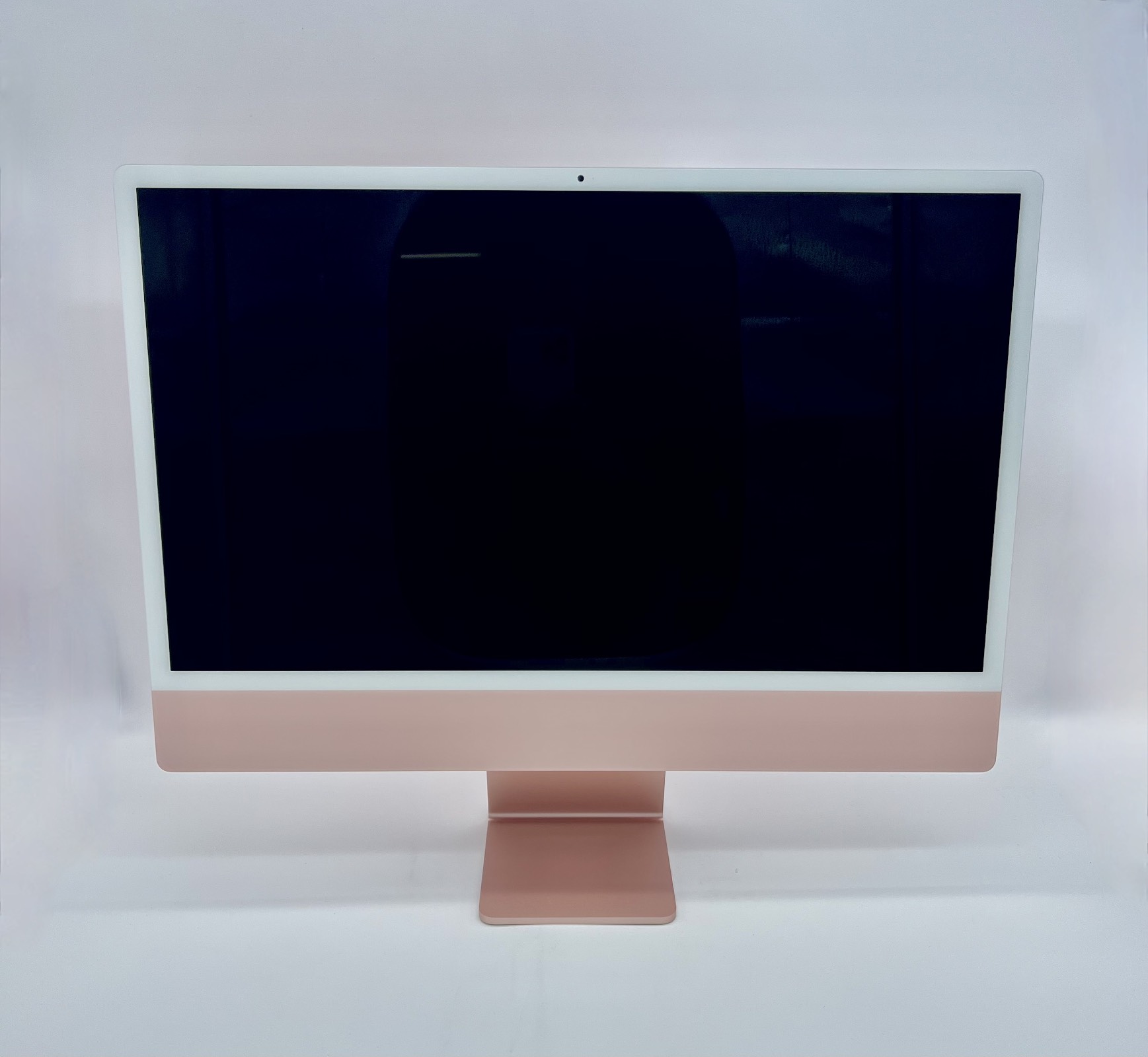

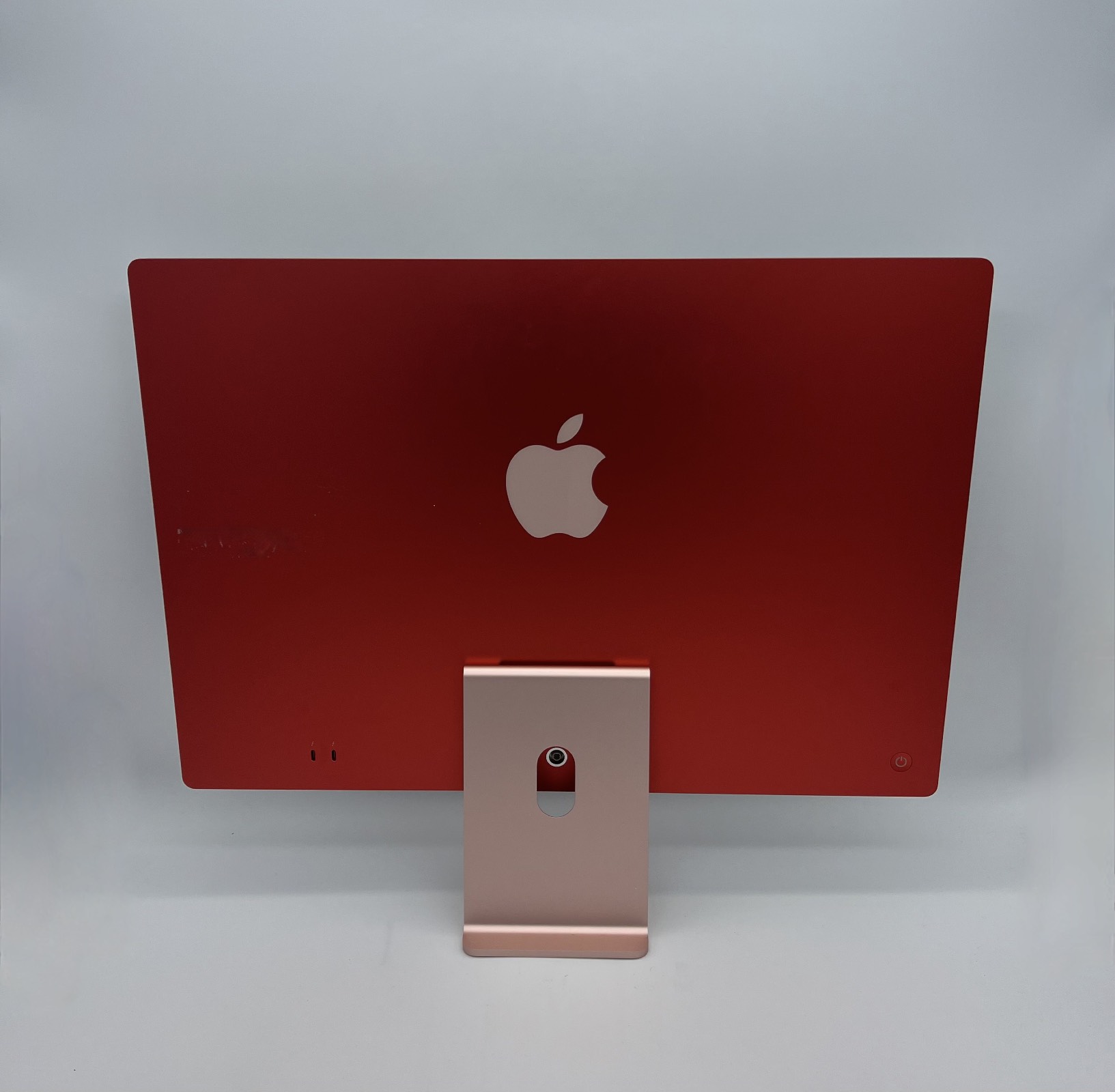

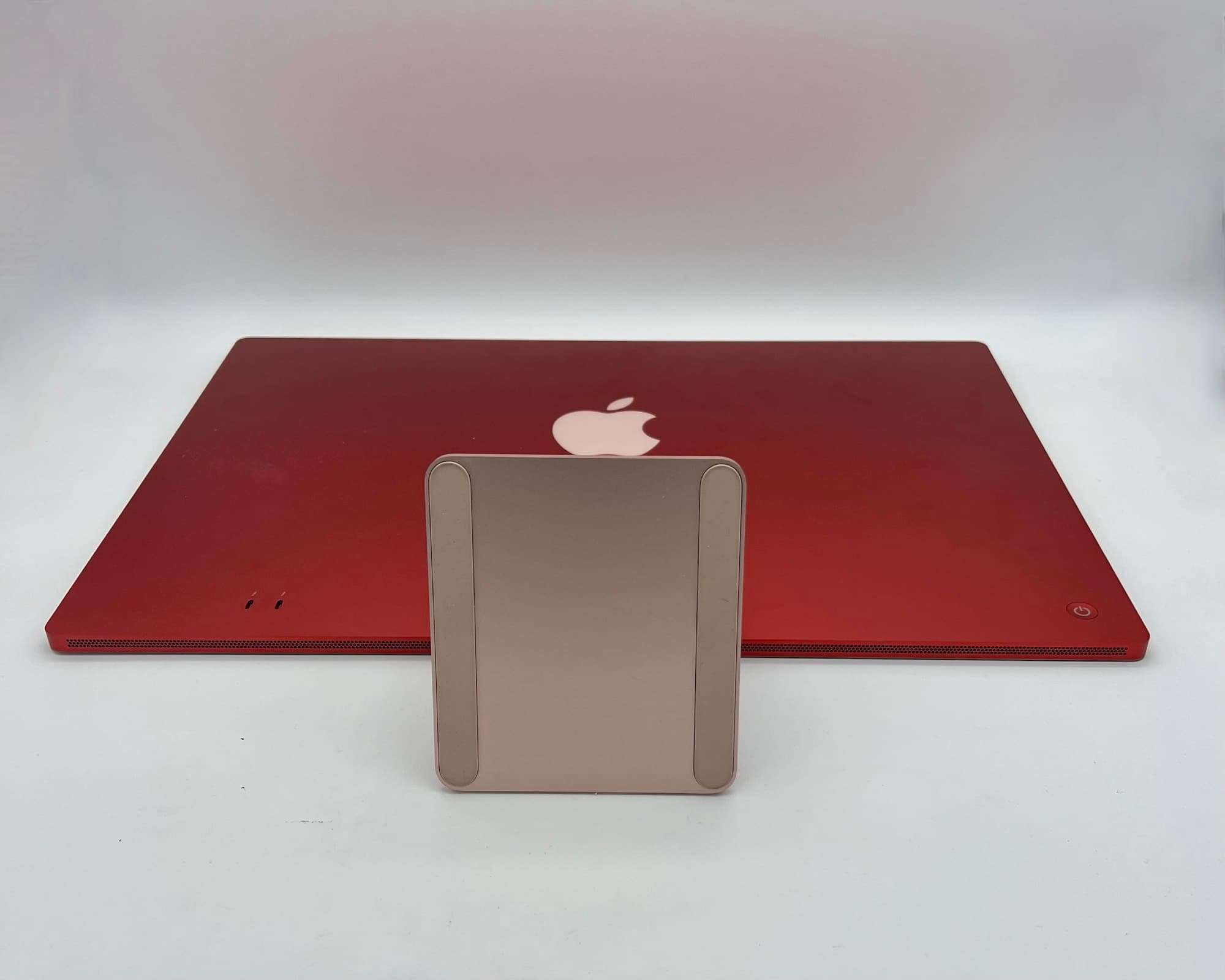

A2874 - Front A2874 - Back A2874 - Left A2874 - Right A2874 - Top A2874 - Bottom

v 1.0 Apple Proprietary and Confidential Apple Inc. One Apple Park Way Cupertino, CA Page 1 of 2 www.apple.com FCC E-Label Information: Model A2874 A. Information to be displayed 1. The information that will be displayed on the e-label and information that will remain in the user manual is shown below: Information on E-label In Manual FCC ID number Yes No DoC logo Yes No 15.19 statement (“This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.”) No Yes Class A / B Digital Device user manual statements 1 No Yes DoC declaration 1 No Yes Caution to the user that changes, or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment 1 No Yes Describe any other FCC regulatory information included in e-label 1 1 If the e-label includes information typically included in the manual then the e-label shall clearly differentiate between information required to be on the device’s surface and information required to be in the manual – refer to 784748 D02 e labelling v01 section II D 3(b) Image of the e-label screen are provided below: Model A2874: B. Access to the required information on the e-label 1. Users are able to access the information in no more than three steps in a device’s menu. The actual steps are: To access the e-label information, in the device, Choose: Apple Menu  > About This Mac > Regulatory Certification v 1.0 Apple Proprietary and Confidential Apple Inc. One Apple Park Way Cupertino, CA Page 2 of 2 www.apple.com No special access codes or permissions are required to go through the above steps beyond entering a user- defined password to protect against unauthorized access to the device. 2. The information is stored on the device, no special accessories or supplemental plug-ins (e.g., a SIM/USIM card) are required to access the information. Yes. 3. Users are provided specific instructions on how to access the information. The information to the user is provided in the MacBook Info Guide document. A copy is attached as an exhibit document Info_Guide_v1.0.pdf. C. Labeling for Importation and Purchasi ng 1. Products utilizing e-labels are required to have a physical label on the product at the time of importation, marketing and sales. For devices imported in bulk and not packaged individually, a removable adhesive label or, for devices in protective bags, a label on the bags is acceptable for this purpose. Any removabl e label shall be of a type intended to survive normal shipping and handling and must only be removed by the customer after purchase. For devices imported already in individual packages ready for sale, the information may alternatively be provided on the package. It shall contain: 1. The FCC ID and/or the DoC logo (if applicable); and 2. Any other information required by specific rule to be provided on the surface of the product unless such information is permitted to be included in the User’s manual or other packaging inserts. The FCC ID and/or DoC logo are present on the product packaging. D. Other considerations 1. The above information must be programmed by the responsible party and the information must be secured in such a manner that third-parties cannot modify it. The e -label information is pre-programmed by the grantee. The user cannot modify the e-label information. 2. All the applicable regulatory information required on the packaging or user instructions must be provi ded according to the rules even if it is displayed electronically. For example, hearing aid compatibility (HAC) ratings for the phones as specified in 47 C.F.R. § 20.19. Yes, it is provided.

A2874- Regulatory Label Location Label is located on bottom surface of the foot at the top edge. Note: PMN is found on the product packaging and within the user guide. Apple Proprietary and Confidential

A2874 Front Display Removed MLB with Shield WF2 Antenna Front Camera WF1 Antenna Left Speaker WF3 Antenna Right Speaker USB-C Connector Board A2874 Antenna WF3 - Front A2874 Antenna WF3 - Back A2874 Antenna WF1 - Front A2874 Antenna WF1 - Back A2874 Antenna WF2 - Front A2874 Antenna WF2 - Back A2874 Left and Right Speaker - Front A2874 Left and Right Speaker - Back A2874 MLB - Front A2874 MLB - Back WiFi/BT Radio Module A2874 USB-C Connectors - Front A2874 USB-C Connectors - Back

TÜV SÜD is a trading name of TUV SUD Ltd Registered in Scotland at East Kilbride, Glasgow G75 0QF, United Kingdom Registered number: SC215164 TUV SUD Ltd is a TÜV SÜD Group Company Phone: +44 (0) 1489 558100 Fax: +44 (0) 1489 558101 www.tuvsud.com/en TÜV SÜD Octagon House Concorde Way Fareham Hampshire PO15 5RL United Kingdom TÜV SÜD SIGNATURE NAME JOB TITLE RESPONSIBLE FOR ISSUE DATE Ryan Henley Business Development Manager Authorised Signatory 30 March 2023 Signatures in this approval box have checked this document in line with the requirements of TÜV SÜD document control rules. FCC Accreditation 90987 Octagon House, Fareham Test Laboratory EXECUTIVE SUMMARY The wireless devices described within this report are compliant with the exemption criteria related to human exposure to electromagnetic fields laid out in FCC CFR 47 Part 1.1307. RF Exposure Exemption Report Apple Inc Model: A2874 In accordance with FCC CFR 47 Pt 1.1307 Prepared for: Apple Inc One Apple Park Way Cupertino, California 95014, USA COMMERCIAL-IN-CONFIDENCE FCC ID: BCGA2874 Document 75957630-33 Issue: 01 DISCLAIMER AND COPYRIGHT This non-binding report has been prepared by TÜV SÜD with all reasonable skill and care. The document is confidential to the potential Client and TÜV SÜD. No part of this document may be reproduced without the prior written approval of TÜV SÜD. © 2023 TÜV SÜD. This report relates only to the actual item/items tested. ACCREDITATION Our UKAS Accreditation does not cover opinions and interpretations and any expressed are outside the scope of our UKAS Accreditation. Results of tests not covered by our UKAS Accreditation Schedule are marked NUA (Not UKAS Accredited). Document 75957630-33 Issue: 01 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 1 of 10 Contents 1 Report Summary .........................................................................................................................2 1.1 Report Modification Record ...........................................................................................................2 1.2 Introduction ....................................................................................................................................2 1.3 Brief Summary of Results .............................................................................................................3 1.4 Product Information .......................................................................................................................4 2 Assessment Details ....................................................................................................................6 2.1 Single RF Source options for determination of exemption............................................................6 2.2 Multiple RF Sources options for determination of exemption. ......................................................7 2.3 Individual Antenna Port Exposure Results ....................................................................................8 2.4 Combined Antenna Port RF Exposure Results .............................................................................9 Document 75957630-33 Issue: 01 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 2 of 10 1 Report Summary 1.1 Report Modification Record Alterations and additions to this report will be issued to the holders of each copy in the form of a complete document. Issue Description of Change Date of Issue 1 First Issue 30-March-2023 Table 1 1.2 Introduction Applicant Apple Inc Manufacturer Apple Inc Model Number(s) A2874 Hardware Version(s) REV 1.0 Software Version(s) N/A Specification/Issue/Date FCC 47 CFR Part 1.1307: 2021 Order Number 0540258892 Related Document(s) • KDB 447498 D04 v01 Document 75957630-33 Issue: 01 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 3 of 10 1.3 Brief Summary of Results The wireless device described within this report was compliant with the restrictions related to human exposure to electromagnetic fields for both general public and worker/occupational exposures for a separation distance of 20 cm. The calculations shown in this report were made in accordance with the procedures specified in the applied test specification(s). Document 75957630-33 Issue: 01 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 4 of 10 1.4 Product Information 1.4.1 Technical Description The equipment under test (EUT) was an Apple desktop computer with Bluetooth® Low Energy, Thread and IEEE 802.11 a/b/g/n/ac/ax Wi-Fi capabilities in the 2.4 GHz, 5 GHz, and 6 GHz bands. 1.4.2 Transmitter Description The following radio access technologies and frequency bands are supported by the equipment under test. Radio Access Technology Core Frequency Band (MHz) Minimum Frequency (MHz) Output Power (dBm) Duty Cycle (%) Bluetooth (SISO) 0 2400-2483.5 2402 16.50 100 Bluetooth (SISO) 1 2400-2483.5 2402 16.50 100 Bluetooth (SISO) 2 2400-2483.5 2402 12.00 100 Bluetooth (TxBF) 0 and 1 2400-2483.5 2402 14.50 100 2.4 GHz WLAN (SISO) 0 2400-2483.5 2412 22.50 100 2.4 GHz WLAN (SISO) 1 2400-2483.5 2412 22.50 100 2.4 GHz WLAN (2x2 MIMO) 0 and 1 2400-2483.5 2412 22.50 100 5 GHz WLAN (SISO) 0 5150 - 5850 5180 21.00 100 5 GHz WLAN (SISO) 1 5150 - 5850 5180 21.00 100 5 GHz WLAN (2x2 MIMO) 0 and 1 5150 - 5850 5180 21.00 100 6 GHz WLAN (SISO) 0 5925 - 7125 5935 13.50 100 6 GHz WLAN (SISO) 1 5925 - 7125 5935 13.50 100 6 GHz WLAN (2x2 MIMO) 0 and 1 5925- 7125 5935 13.50 100 NB 0 5162 - 5844 5162 14.00 100 NB 1 5162 - 5844 5162 14.00 100 Table 2 – Transmitter Description- FCC Note: Transmitter power includes upper bounds of uncertainty therefore maximum values are used. Document 75957630-33 Issue: 01 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 5 of 10 1.4.3 Antenna Description The following antennas are supported by the equipment under test. Radio Access Technology Antenna Model Gain (dBi) Antenna length (mm) Minimum Separation Distance (cm) BT Core 0 Not Specified 2.13 51.7 20 BT Core 1 Not Specified 3.60 36.3 20 BT …

Text truncated - open the document above for the full version.

TÜV SÜD is a trading name of TUV SUD Ltd Registered in Scotland at East Kilbride, Glasgow G75 0QF, United Kingdom Registered number: SC215164 TUV SUD Ltd is a TÜV SÜD Group Company Phone: +44 (0) 1489 558100 Fax: +44 (0) 1489 558101 www.tuvsud.com/en TÜV SÜD Octagon House Concorde Way Fareham Hampshire PO15 5RL United Kingdom TÜV SÜD SIGNATURE NAMEJOB TITLERESPONSIBLE FORISSUE DATE Steven WhiteKey Account ManagerAuthorised Signatory21-April-2023 Signatures in this approval box have checked this document in line with the requirements of TÜV SÜD document control rules. ENGINEERING STATEMENT The measurements shown in this report were made in accordance with the procedures described on test pages. All reported testing was carried out on a sample equipment to demonstrate limited compliance with FCC 47 CFR Part 15E, ISED RSS-247 and ISED RSS-GEN. The sample tested was found to comply with the requirements defined in the applied rules. RESPONSIBLE FORNAMEDATESIGNATURE Report GenerationLauren Walters21-April-2023 FCC Accreditation 90987 Octagon House, Fareham Test Laboratory ISED Accreditation 12669A Octagon House, Fareham Test Laboratory EXECUTIVE SUMMARY A sample of this product was tested and found to be compliant with FCC 47 CFR Part 15E: 2021, ISED RSS-247: Issue 2 (2017- 02) and ISED RSS-GEN: Issue 5 (2018-04) + A2 (2021-02) for the tests detailed in section 1.3. DISCLAIMER AND COPYRIGHT This non-binding report has been prepared by TÜV SÜD with all reasonable skill and care. The document is confidential to the potential Client and TÜV SÜD. No part of this document may be reproduced without the prior written approval of TÜV SÜD. © 2023 TÜV SÜD. This report relates only to the actual item/items tested. ACCREDITATION Our UKAS Accreditation does not cover opinions and interpretations and any expressed are outside the scope of our UKAS Accreditation. Results of tests not covered by our UKAS Accreditation Schedule are marked NUA (Not UKAS Accredited). FCC and ISED Test Report Apple Inc Model: A2874 In accordance with FCC 47 CFR Part 15E, ISED RSS-247 and ISED RSS-GEN (5 GHz WLAN) Prepared for: Apple Inc One Apple Park Way Cupertino California 95014 USA FCC ID: BCGA2874IC: 579C-A2874 COMMERCIAL-IN-CONFIDENCE Document 75957630-26 Issue 02

       Document 75957630-26 Issue 02 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 1 of 710 Contents 1Report Summary .........................................................................................................................2 1.1Report Modification Record ...........................................................................................................2 1.2Introduction ....................................................................................................................................2 1.3Brief Summary of Results .............................................................................................................3 1.4Product Information .......................................................................................................................4 1.5Deviations from the Standard ........................................................................................................5 1.6EUT Modification Record ..............................................................................................................6 1.7Test Location .................................................................................................................................6 2Test Details ..................................................................................................................................8 2.1Restricted Band Edges..................................................................................................................8 2.2Emission Bandwidth ................................................................................................................. 109 2.3Maximum Conducted Output Power ........................................................................................ 239 2.4Maximum Conducted Power Spectral Density ......................................................................... 362 2.5Authorised Band Edges ........................................................................................................... 522 2.6Spurious Radiated Emissions .................................................................................................. 662 2.7Channel Move Time, Channel Closing Transmission Time and Non-Occupancy Period ....... 699 3Measurement Uncertainty ..................................................................................................... 710 Document 75957630-26 Issue 02 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 2 of 710 1 Report Summary 1.1 Report Modification Record Alterations and additions to this report will be issued to the holders of each copy in the form of a complete document. Issue Description of Change Date of Issue 1 First Issue 18-April-2023 2 Corrections in Measurement Uncertainty section. 21-April-2023 Table 1 1.2 Introduction Applicant Apple Inc Manufacturer Apple Inc Model Number(s) A2874 Serial Number(s) PNYQPYL91C, K9XHGCT7D9, C7YYJQ40RT, YK197YJPJL Hardware Version(s) REV 1.0 Software Version(s) 22E31550w, 22E209 & 22E126 Number of Samples Tested 4 Test Specification/Issue/Date FCC 47 CFR Part 15E: 2021 ISED RSS-247: Issue 2 (2017-02) ISED RSS-GEN: Issue 5 (2018-04) + A2 (2021-02) Start of Test 13-January-2023 Finish of Test 28-March-2023 Name of Engineer(s) Colin Brain, Ian Hart, Danial Shafique, Thomas Randall, Ioan-Alexandru Bogatu, James Woods, Thomas Biddlecombe, David Hill, Morsalin Hossain, Nicolae Mihailiuc and Stefan Gilfedder Related Document(s) ANSI C63.10 (2020) KDB 662911 D01 v02r01 ANSI C63.10 (2013) KDB 905462 D02 v02 KDB 905462 D03 v01r02 KDB 789033 D02 v02r01 Document 75957630-26 Issue 02 COMMERCIAL-IN-CON…

Text truncated - open the document above for the full version.

Document 75957630-26 Issue 02 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 71 of 710 Figure 109 - 802.11ax, HE80, SU, SISO, Core 1 - 5210 MHz, Band Edge Frequency 5150 MHz Figure 110 - 802.11ax, HE80, RU 52-37, SISO, Core 1 - 5210 MHz, Band Edge Frequency 5150 MHz Document 75957630-26 Issue 02 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 72 of 710 Figure 111 - 802.11ac, VHT80, SISO, Core 1 - 5290 MHz, Band Edge Frequency 5350 MHz Figure 112 - 802.11ax, HE80, SU, SISO, Core 1 - 5290 MHz, Band Edge Frequency 5350 MHz Document 75957630-26 Issue 02 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 73 of 710 Figure 113 - 802.11ax, HE80, RU 52-37, SISO, Core 1 - 5290 MHz, Band Edge Frequency 5350 MHz Figure 114 - 802.11ac, VHT80, SISO, Core 1 - 5530 MHz, Band Edge Frequency 5460 MHz Document 75957630-26 Issue 02 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 74 of 710 Figure 115 - 802.11ax, HE80, SU, SISO, Core 1 - 5530 MHz, Band Edge Frequency 5460 MHz Figure 116 - 802.11ax, HE80, RU 106-53, SISO, Core 1 - 5530 MHz, Band Edge Frequency 5460 MHz Document 75957630-26 Issue 02 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 75 of 710 80 MHz Bandwidth - Core 0-1 (CDD) Mode Data Rate/ MCS Resource Size Resource Index TX Frequency (MHz) Band Edge Frequency (MHz) Peak Level (dBμV/m) Average Level (dBuV/m) 802.11ac VHT80 MCS2x1 - - 5210 5150 62.11 51.33 802.11ax HE80 MCS4x1 SU - 5210 5150 63.26 51.29 802.11ax HE80 MCS11x1 52 37 5210 5150 69.24 50.04 802.11ac VHT80 MCS4x1 - - 5290 5350 64.01 51.36 802.11ax HE80 MCS11x1 SU - 5290 5350 64.43 51.26 802.11ax HE80 MCS11x1 52 37 5290 5350 68.87 51.02 802.11ac VHT80 MCS8x1 - - 5530 5460 63.37 48.29 802.11ax HE80 MCS2x1 SU - 5530 5460 63.63 49.13 802.11ax HE80 MCS11x1 52 37 5530 5460 63.34 50.32 Table 19 - CDD Restricted Band Edge Results Figure 117 - 802.11ac, VHT80, CDD, Core 0-1 - 5210 MHz, Band Edge Frequency 5150 MHz Document 75957630-26 Issue 02 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 76 of 710 Figure 118 - 802.11ax, HE80, SU, CDD, Core 0-1 - 5210 MHz, Band Edge Frequency 5150 MHz Figure 119 - 802.11ax, HE80, RU 52-37, CDD, Core 0-1 - 5210 MHz, Band Edge Frequency 5150 MHz Document 75957630-26 Issue 02 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 77 of 710 Figure 120 - 802.11ac, VHT80, CDD, Core 0-1 - 5290 MHz, Band Edge Frequency 5350 MHz Figure 121 - 802.11ax, HE80, SU, CDD, Core 0-1 - 5290 MHz, Band Edge Frequency 5350 MHz Document 75957630-26 Issue 02 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 78 of 710 Figure 122 - 802.11ax, HE80, RU 52-37, CDD, Core 0-1 - 5290 MHz, Band Edge Frequency 5350 MHz Figure 123 - 802.11ac, VHT80, CDD, Core 0-1 - 5530 MHz, Band Edge Frequency 5460 MHz Document 75957630-26 Issue 02 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 79 of 710 Figure 124 - 802.11ax, HE80, SU, CDD, Core 0-1 - 5530 MHz, Band Edge Frequency 5460 MHz Figure 125 - 802.11ax, HE80, RU 52-37, CDD, Core 0-1 - 5530 MHz, Band Edge Frequency 5460 MHz Document 75957630-26 Issue 02 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 80 of 710 80 MHz Bandwidth - Core 0-1 (SDM) Mode Data Rate/ MCS Resource Size Resource Index TX Frequency (MHz) Band Edge Frequency (MHz) Peak Level (dBμV/m) Average Level (dBuV/m) 802.11ac VHT80 MCS4x2 - - 5210 5150 63.48 51.35 802.11ax HE80 MCS4x2 SU - 5210 5150 63.97 51.49 802.11ax HE80 MCS11x2 106 53 5210 5150 69.42 49.56 802.11ac VHT80 MCS4x2 - - 5290 5350 63.60 51.35 802.11ax HE80 MCS4x2 SU - 5290 5350 63.67 51.16 802.11ax HE80 MCS11x2 52 37 5290 5350 69.48 50.73 802.11ac VHT80 MCS8x2 - - 5530 5460 63.34 49.45 802.11ax HE80 MCS4x2 SU - 5530 5460 63.61 49.46 802.11ax HE80 MCS11x2 106 53 5530 5460 63.44 48.49 Table 20 - SDM Restricted Band Edge Results Figure 126 - 802.11ac, VHT80, SDM, Core 0-1 - 5210 MHz, Band Edge Frequency 5150 MHz Document 75957630-26 Issue 02 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 81 of 710 Figure 127 - 802.11ax, HE80, SU, SDM, Core 0-1 - 5210 MHz, Band Edge Frequency 5150 MHz Figure 128 - 802.11ax, HE80, RU 106-53, SDM, Core 0-1 - 5210 MHz, Band Edge Frequency 5150 MHz Document 75957630-26 Issue 02 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 82 of 710 Figure 129 - 802.11ac, VHT80, SDM, Core 0-1 - 5290 MHz, Band Edge Frequency 5350 MHz Figure 130 - 802.11ax, HE80, SU, SDM, Core 0-1 - 5290 MHz, Band Edge Frequency 5350 MHz Document 75957630-26 Issue 02 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 83 of 710 Figure 131 - 802.11ax, HE80, RU 52-37, SDM, Core 0-1 - 5290 MHz, Band Edge Frequency 5350 MHz Figure 132 - 802.11ac, VHT80, SDM, Core 0-1 - 5530 MHz, Band Edge Frequency 5460 MHz Document 75957630-26 Issue 0…
