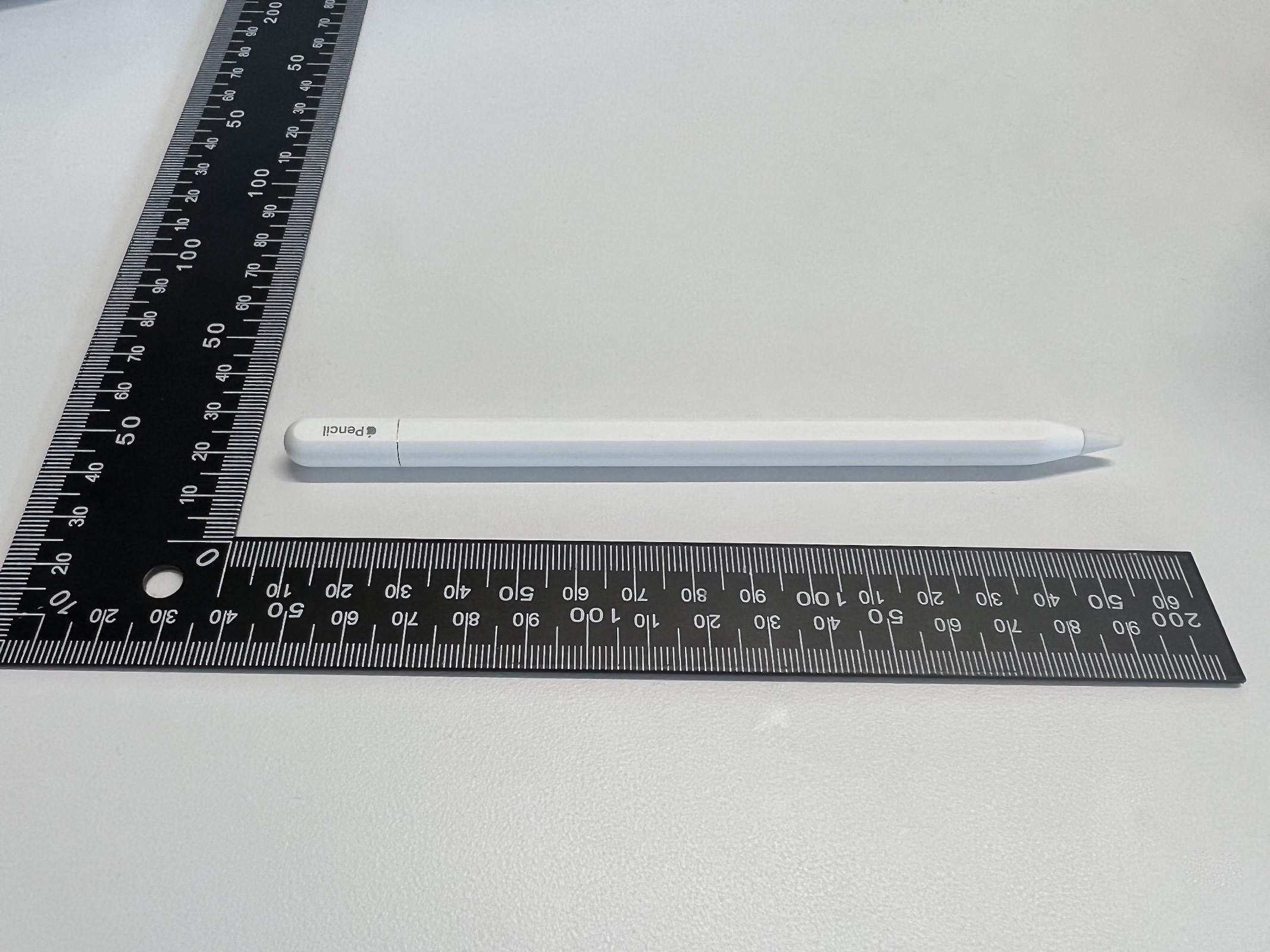

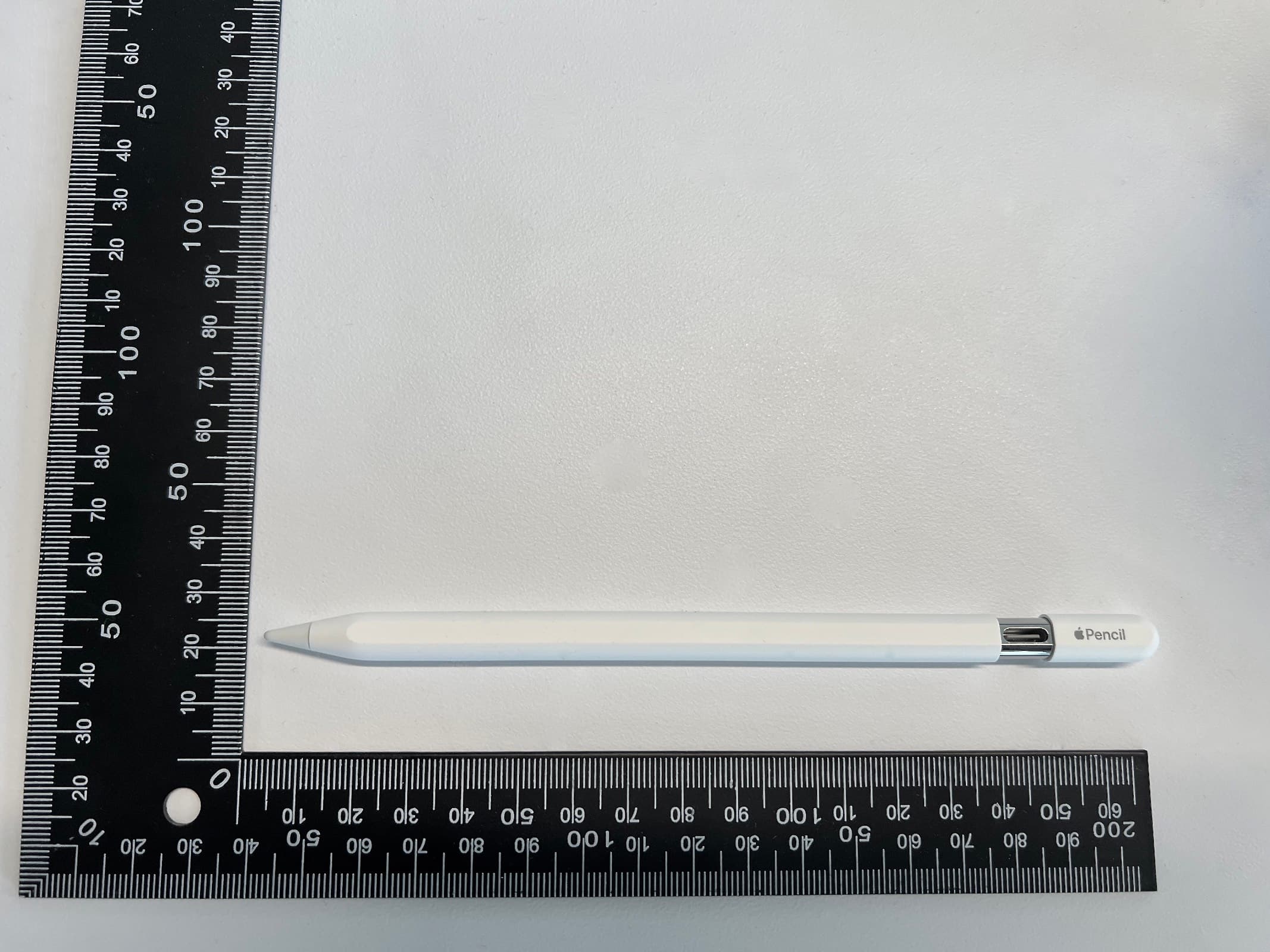

A3085 Top - Cover Closed A3085 Top - Cover Open A3085 Bottom A3085 Right Side A3085 Left Side A3085 Tip View A3085 Cap View

A3085 Label Information Label Location The device does not have an integrated display screen. Location is displayed electronically on the Apple iPad. The connection to the host device with a display is required for use. The regulatory information is programmed in a secured manner. Users or third parties cannot modify the regulatory information page on the Apple iPad. Electronic Label Instructions to UserRegulatory Regulatory information, certification, and compliance marks specific to Apple Pencil are available on iPad. Go to Settings > Apple Pencil > Regulatory. Packaging LabelThe following regulatory information is also printed on the packaging A3085 FCC ID: BCGA3085 IC: 579C-A3085 One Apple Park Way, Cupertino, CA 95014 USA

A3085 Internal Subassembly Removed A3085 MLB with Battery - Top A3085 MLB with Battery - Bottom A3085 MLB PCBA - Top Antenna A3085 MLB PCBA - Bottom BT Module A3085 Nosecone Subassembly A3085 Cap Assembly - Top A3085 Cap Assembly - Bottom A3085 Battery

FCC ID: BCGA3085 SAR EVALUATION REPORT Approved by: Technical Manager Document S/N: DUT Type: Page 1 of 21 1C2308180043-01.BCG (Rev 3) Stylus Pen Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from Element. If you have any questions or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. Applicant Name: Date of Testing: Apple Inc. One Apple Park Way Cupertino, CA 95014 USA 09/05/2023 Test Report Issue Date: 10/06/2023 Test Site/Location: Element Materials Technology Morgan Hill, CA, USA Document Serial No.: 1C2308180043-01.BCG (Rev 3) FCC ID: BCGA3085 A P P L I C A N T : APPL E, INC. DUT Type: Stylus Pen Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model: A3085 Note: This revised Test Report supersedes and replaces the previously issued test report on the same subject device for the same type of testing as indicated. Please discard or destroy the previously issued test report(s) and dispose of it accordingly. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.6 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. The SAR Tick is an initiative of the Mobile & Wireless Forum (MWF). While a product may be considered eligible, use of the SAR Tick logo requires an agreement with the MWF. Further details can be obtained by emailing: [email protected]. 1g Body (W/kg) DTS Bluetooth LE 2402 - 2480 MHz 0.16 SAR Equipment Class Band & Mode Tx Frequency ELEMENT MATERIALS TECHNOLOGY (Formerly PCTEST) 18855 Adams Court, Morgan Hill, CA 95037, USA Tel. 408.538.5600 http://www.element.com SAR EVALUATION REPORT FCC ID: BCGA3085 SAR EVALUATION REPORT Approved by: Technical Manager Document S/N: DUT Type: Page 2 of 21 1C2308180043-01.BCG (Rev 3) Stylus Pen Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from Element. If you have any questions or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. T A B L E O F C O N T E N T S 1 DEVICE UNDER TEST ........................................................................................................................... 3 2 INTRODUCTION ..................................................................................................................................... 5 3 DOSIMETRIC ASSESSMENT ................................................................................................................. 6 4 TEST CONFIGURATION POSITIONS .................................................................................................... 7 5 RF EXPOSURE LIMITS .......................................................................................................................... 8 6 FCC MEASUREMENT PROCEDURES .................................................................................................... 9 7 RF CONDUCTED POWERS ................................................................................................................. 10 8 SYSTEM VERIFICATION ...................................................................................................................... 12 9 SAR DATA SUMMARY ......................................................................................................................... 14 10 MEASUREMENT VARIABILITY ............................................................................................................ 16 11 EQUIPMENT LIST ................................................................................................................................ 17 12 MEASUREMENT UNCERTAINTIES ..................................................................................................... 18 13 CONCLUSION ...................................................................................................................................... 19 14 REFERENCES...................................................................................................................................... 20 APPENDIX A: SAR TEST PLOTS APPENDIX B: SAR DIPOLE VERIFICATION PLOTS APPENDIX C: PROBE AND DIPOLE CALIBRATION CERTIFICATES APPENDIX D: SAR TISSUE SPECIFICATIONS APPENDIX E: SAR SYSTEM VALIDATIONS APPENDIX F: DUT ANTENNA DIAGRAM & SAR TEST SETUP PHOTOGRAPHS FCC ID: BCGA3085 SAR EVALUATION REPORT Approved by: Technical Manager Document S/N: DUT Type: Page 3 of 21 1C2308180043-01.BCG (Rev 3) Stylus Pen Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from Element. If you have any questions or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. 1 D E V I C E U N D E R T E S T 1.1 Device Overview 1.2 Power Reduction for SAR There is no power reduction used for any band/mode implemented in this device for SAR purposes. 1.3 Nominal and Maximum Output Power Specifications Th…

Text truncated - open the document above for the full version.

APPENDIX A: SAR TEST DATA A1 ELEMENT DUT: BCGA3085; Type: Stylus Pen; Serial: JPMHW22DY4 Communication System: UID:10670 - AAA, Bluetooth; MAIA: Y; Frequency: 2402.0 MHz Medium: 2450 Head; Medium parameters used: f = 2402.0 MHz; cond = 1.82 S/m; perm = 40.4; density = 1000 kg/m 3 Phantom Section: Flat; Space: 0.00 mm Test Date: 09/05/2023; Ambient Temp: 20.0°C; Tissue Temp: 20.3°C Probe: EX3DV4 - SN7427; ConvF:(7.42,7.42,7.42); Calibrated: 2023-02-13 Sensor-Surface: 1.4mm (VMS + 6p) Electronics: DAE4 Sn1403; Calibrated: 2023-02-15 Phantom: Twin-SAM V8.0; Serial: 2027 Measurement SW: DASY Module SAR V16.2.0.1425 Mode: Bluetooth, Body SAR, Ch.0, 1Mbps, Top Side Area Scan (200.0 x 53.1): Measurement grid: dx=10.0 mm, dy=8.85 mm Zoom Scan (30.0 x 30.0 x 30.0): Measurement grid: dx=2.7 mm, dy=2.7 mm, dz=1.2 mm; Graded Ratio: 1.2 Reference Value = 0.10 W/kg; Power Drift = 0.00 dB Peak SAR (extrapolated) = 0.481 W/kg SAR(1 g) = 0.112 W/kg Smallest distance from peaks to all points 3 dB below is 4.4 mm Ratio of SAR at M2 to SAR at M1 = 66.1 %

APPENDIX B: S YSTEM VERIFICATION B1 ELEMENT DUT: Dipole 2450.0 MHz; Type: D2450V2 - SN921 Communication System: UID: 0, CW; Frequency: 2450.0 MHz Medium: 2450 Head; Medium parameters used: f = 2450.0 MHz; cond = 1.86 S/m; perm = 40.3; density = 1000 kg/m 3 Phantom Section: Flat; Space: 10 mm Test Date: 09/05/2023; Ambient Temp: 20.0°C; Tissue Temp: 20.3°C Probe: EX3DV4 - SN7427; ConvF:(7.42,7.42,7.42); Calibrated: 2023-02-13 Sensor-Surface: 1.4mm (VMS + 6p) Electronics: DAE4 Sn1403; Calibrated: 2023-02-15 Phantom: Twin-SAM V8.0; Serial: 2027 Measurement SW: DASY Module SAR V16.2.0.1425 2450.0 MHz System Verification at 20.0 dBm (100 mW) Area Scan (40.0 x 80.0): Measurement grid: dx=10.0 mm, dy=10.0 mm Zoom Scan (30.0 x 30.0 x 30.0): Measurement grid: dx=5.0 mm, dy=5.0 mm, dz=1.5 mm; Graded Ratio: 1.5 Peak SAR (extrapolated) = 10.8 W/kg SAR(1 g) = 5.16 W/kg Deviation (1 g) = -4.80%

APPENDIX C: PROBE AND DIPOLE CALIBRATION CERTIFICATES 12/14/2022 Object: Date Issued: Page 1 of 4 D2450V2 – SN: 921 11/09/2022 Certification of Calibration Object D2450V2 – SN: 921 Calibration procedure(s) Procedure for Calibration Extension for SAR Dipoles. Extended Calibration date: November 09, 2022 Description: SAR Validation Dipole at 2450 MHz. Calibration Equipment used: Measurement Uncertainty = ±23% (k=2) Name Function Signature Calibrated By: Arturo Oliveros Associate Compliance Engineer Approved By: Kaitlin O’Keefe Managing Director Manufacturer Model Description Cal Date Cal Interval Cal Due Serial Number Agilent 8753ES S-Parameter Vector Network Analyzer 12/17/2021 Annual 12/17/2022 MY40000670 Agilent E4438C ESG Vector Signal Generator 3/24/2022 Annual 3/24/2023 MY45093678 Amplifier Research 15S1G6 Amplifier CBT N/A CBT 343972 Anritsu ML2495A Power Meter 3/17/2022 Annual 3/17/2023 0941001 Anritsu MA2411B Pulse Power Sensor 3/2/2022 Annual 3/2/2023 1126066 Anritsu MA2411B Pulse Power Sensor 3/28/2022 Annual 3/28/2023 1339007 Traceable 4040 90080-06 Therm./ Clock/ Humidity Monitor 5/11/2022 Biennial 5/11/2024 221514974 Control Company 4353 Long Stem Thermometer 9/10/2021 Biennial 9/10/2023 210774685 Agilent 85033E 3.5mm Standard Calibration Kit 6/21/2022 Annual 6/21/2023 MY53402352 Mini-Circuits VLF-6000+ Low Pass Filter DC to 6000 MHz CBT N/A CBT N/A Narda 4772-3 Attenuator (3dB) CBT N/A CBT 9406 Mini-Circuits ZHDC-16-63-S+ 50-6000MHz Bidirectional Coupler CBT N/A CBT N/A Pasternack NC-100 Torque Wrench 3/19/2022 Annual 3/19/2023 N/A SPEAG DAK-3.5 Dielectric Assessment Kit 4/11/2022 Annual 4/11/2023 1323 SPEAG EX3DV4 SAR Probe 3/22/2022 Annual 3/22/2023 7421 SPEAG EX3DV4 SAR Probe 1/19/2022 Annual 1/19/2023 3837 SPEAG DAE4 Dasy Data Acquisition Electronics 3/22/2022 Annual 3/22/2023 604 SPEAG DAE4 Dasy Data Acquisition Electronics 1/13/2022 Annual 1/13/2023 793 Element Materials Technology Morgan Hill 18855 Adams Ct, Morgan Hill, CA 95037 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.element.com Object: Date Issued: Page 2 of 4 D2450V2 – SN: 921 11/09/2022 DIPOLE CALIBRATION EXTENSION Per KDB 865664 D01, calibration intervals of up to three years may be considered for reference dipoles when it is demonstrated that the SAR target, impedance and return loss of a dipole have remained stable according to the following requirements: 1. The measured SAR does not deviate more than 10% from the target on the calibration certificate. 2. The return-loss does not deviate more than 20% from the previous measurement and meets the required 20dB minimum return-loss requirement. 3. The measurement of real or imaginary parts of impedance does not deviate more than 5Ω from the previous measurement. The following dipole was checked to pass the above 3 requirements to have 2-year calibration period from the calibration date: Calibration Date Extension Date Certificate Electrical Delay (ns) Certificate SAR Target Head (1g) W/kg @ 20.0 dBm Measured Head SAR (1g) W/kg @ 20.0 dBm Deviation 1g (%) Certificate SAR Target Head (10g) W/kg @ 20.0 dBm Measured Head SAR (10g) W/kg @ 20.0 dBm Deviation 10g (%) Certificate Impedance Head (Ohm) Real Measured Impedance Head (Ohm) Real Difference (Ohm) Real Certificate Impedance Head (Ohm) Imaginary Measured Impedance Head (Ohm) Imaginary Difference (Ohm) Imaginary Certificate Return Loss Head (dB) Measured Return Loss Head (dB) Deviation (%) PASS/FAIL 11/9/2021 11/9/2022 1.148 5.42 5.47 0.92% 2.55 2.56 0.39% 52.7 54.1 1.4 6.6 3.3 3.3 -23.2 -24 -3.40% PASS Calibration Date Extension Date Certificate Electrical Delay (ns) Certificate SAR Target Body (1g) W/kg @ 20.0 dBm Measured Body SAR (1g) W/kg @ 20.0 dBm Deviation 1g (%) Certificate SAR Target Body (10g) W/kg @ 20.0 dBm Measured Body SAR (10g) W/kg @ 20.0 dBm Deviation 10g (%) Certificate Impedance Body (Ohm) Real Measured Impedance Body (Ohm) Real Difference (Ohm) Real Certificate Impedance Body (Ohm) Imaginary Measured Impedance Body (Ohm) Imaginary Difference (Ohm) Imaginary Certificate Return Loss Body (dB) Measured Return Loss Body (dB) Deviation (%) PASS/FAIL 11/9/2021 11/9/2022 1.148 4.97 5.03 1.21% 2.36 2.34 -0.85% 49.9 52 2.1 7.9 5 2.9 -22.1 -26.3 -19.20% PASS Object: Date Issued: Page 3 of 4 D2450V2 – SN: 921 11/09/2022 Impedance & Return-Loss Measurement Plot for Head TSL Object: Date Issued: Page 4 of 4 D2450V2 – SN: 921 11/09/2022 Impedance & Return-Loss Measurement Plot for Body TSL

FCC ID: BCGA3085 SAR EVALUATION REPORT Approved by: Technical Manager DUT Type: APPENDIX D: Page 1 of 3 Stylus Pen APPENDIX D: SAR TISSUE SPECIFICATIONS FCC ID: BCGA3085 SAR EVALUATION REPORT Approved by: Technical Manager DUT Type: APPENDIX D: Page 2 of 3 Stylus Pen Measurement Procedure for Tissue verification: 1) The network analyzer and probe system were configured and calibrated. 2) The probe was immersed in the tissue. The tissue was placed in a nonmetallic container. Trapped air bubbles beneath the flange were minimized by placing the probe at a slight angle. 3) The complex admittance with respect to the probe aperture was measured 4) The complex relative permittivity ε ’ can be calculated from the below equation (Pournaropoulos and Misra): where Y is the admittance of the probe in contact with the sample, the primed and unprimed coordinates refer to source and observation points, respectively, , ω is the angular frequency, and . Figure D-1 Note: Liquid recipes are proprietary SPEAG. Since the composition is approximate to the actual liquids utilized, the manufacturer tissue-equivalent liquid data sheets are provided below. ( ) [] [] ∫ ∫ ∫ ′′ − ′ = b a b a rr ddd r rj ab j Y π ρρφ εεμω φ εωε 0 2/1 0 ' 0 2 0 )(exp cos ln 2 φρρρρ ′′ − ′ +=cos2 222 r 1−=j FCC ID: BCGA3085 SAR EVALUATION REPORT Approved by: Technical Manager DUT Type: APPENDIX D: Page 3 of 3 Stylus Pen Figure D-2 600 – 10000 MHz Head Tissue Equivalent Matter

FCC ID: BCGA3085 SAR EVALUATION REPORT Approved by: Technical Manager DUT Type: APPENDIX E: Page 1 of 2 Stylus Pen APPENDIX E: SAR SYSTEM VALIDATION FCC ID: BCGA3085 SAR EVALUATION REPORT Approved by: Technical Manager DUT Type: APPENDIX E: Page 2 of 2 Stylus Pen Per FCC KDB Publication 865664 D02v01r02, SAR system validation status should be documented to confirm measurement accuracy. The SAR systems (including SAR probes, system components and software versions) used for this device were validated against its performance specifications prior to the SAR measurements. Reference dipoles were used with the required tissue- equivalent media for system validation, according to the procedures outlined in FCC KDB Publication 865664 D01v01r04. Since SAR probe calibrations are frequency dependent, each probe calibration point was validated at a frequency within the valid frequency range of the probe calibration point, using the system that normally operates with the probe for routine SAR measurements and according to the required tissue-equivalent media. A tabulated summary of the system validation status including the validation date(s), measurement frequencies, SAR probes and tissue dielectric parameters has been included. Table E-1 SAR System Validation Sum…
