Extension Unit ION™-M17P/26 EU (Q-cabinet) User's Manual MF0133AUA User’s Manual for ION™-M17P/26 EU Page 2 Manual MF0133AUA.doc © Copyright 2011 CommScope, Inc. All rights reserved. Andrew Solutions is a trademark of CommScope, Inc. All information contained in this manual has been revised thoroughly. Yet Andrew Solutions accepts no liability for any omissions or faults. Andrew Solutions reserves the right to change all hard- and software characteristics without notice. Names of products mentioned herein are used for identification purposes only and may be trademarks and / or registered trademarks of their respective companies. No parts of this publication may be reproduced, stored in a retrieval system, transmitted in any form or by any means, electronical, mechanical photocopying, recording or otherwise, without prior written permission of the publisher. Andrew Wireless Systems GmbH, 17-November -2011 Page 3 TABLE OF CONTENTS 1. GENERAL 5 1.1. USED ABBREVIATIONS 5 1.2. HEALTH AND SAFETY WARNINGS 6 1.3. ABOUT ANDREW SOLUTIONS 8 1.4. INTERNATIONAL CONTACT ADDRESSES FOR CUSTOMER SUPPORT 9 2. FUNCTIONAL DESCRIPTION 11 2.1. PURPOSE 11 2.2. THE ION-M17P/26 EU 11 2.3. THE ION-M26 EU (STANDALONE VERSION) - FOR WIMAX 12 3. COMMISSIONING 14 3.1. MECHANICAL INSTALLATION 14 3.1.1. General 14 3.1.2. Wall and Pole Mounting 15 3.2. ELECTRICAL INSTALLATION 16 3.2.1. General 16 3.2.2. Connections 17 3.2.3. Grounding 17 3.2.4. Connection to the Main Unit 18 3.2.5. Connection of RF Cables to Combining Unit 18 3.2.6. Power Connection 19 3.3. COMMISSIONING 20 4. ALARMS 24 4.1. BITE AND ALARMS 24 4.2. HANDLING OF ALARMS 24 4.3. ALARM STATUS 24 4.4. TROUBLESHOOTING 25 5. MAINTENANCE 26 5.1. OPENING AND CLOSING OF THE CABINET 27 5.2. REPLACEMENT OF POWER SUPPLY 28 User’s Manual for ION™-M17P/26 EU Page 4 Manual MF0133AUA.doc 5.3. REPLACEMENT OF FAN UNIT 29 5.4. SPECIFICATIONS 30 5.4.1. Electrical Specifications of ION-M17P EU 30 5.4.2. Electrical Specifications of ION-M26 EU 30 5.4.3. Mechanical Specifications of ION-M17P/26EU 30 5.4.4. Environmental and Safety Specifications of ION-M17P/26EU 31 5.5. SPARE PARTS LIST 31 6. INDEX 32 FIGURES AND TABLES figure 3-1 Wall mounting........................................................................................... 15 figure 3-2 Pole mounting .......................................................................................... 15 figure 3-3 ION-M17P/26 EU, connector flange, exemplary....................................... 17 figure 3-4 Grounding bolt .......................................................................................... 17 figure 3-5 AC mains plug .......................................................................................... 19 figure 3-6 DC mains plug .......................................................................................... 19 figure 5-1 Locker with key......................................................................................... 27 figure 5-2 Front and top cover screws ...................................................................... 27 figure 5-3 Power supply screws................................................................................ 28 figure 5-4 Fan unit screws ........................................................................................ 29 figure 5-5 Fan-connector cable................................................................................. 29 table 1-1 List of international contact addresses....................................................... 10 table 4-1 Status LED alarms..................................................................................... 25 table 5-1 Specified torques for various screw types ................................................. 26 1. GENERAL 1.1. USED ABBREVIATIONS 3GPP 3 rd Generation Partnership Project AC/DC Alternating current / Direct Current AIMOS Andrew Integrated Management and Operating System ALC Automatic Level Control BITE Built-In Test Equipment BTS Base Transceiver Station CE "Conformité Européenne" ("European Conformity") CD Compact Disk CPD Channel Power Detection DL Downlink DoC Declaration of Conformity EDGE Enhanced Data Rates for GSM Evolution EN European Norm EP Extension Port ESD Electrostatic Discharge ETS European Telecommunication Standard EU Extension Unit GSM Global System for Mobile Communication GND Ground GUI Graphical User Interface ICP3 Intercept Point 3 rd order ID No Identification Number ION Intelligent Optical Network IP Ingress Protection ISO International Organization for Standardization LED Light Emitting Diode LMT Local Maintenance Terminal LTE Long Term Evolution MIMO Multiple Input Multiple Output MS Mobile Station MU Main Unit NF Noise Figure OTRx Optical Transceiver = SRMU (Subrack Master Unit) PDU Power Distribution Unit PG Packing Gland PIM Passive Intermodulation R&TTE Radio & Telecommunications Terminal Equipment Rev Revision RF Radio Frequency RU Remote Unit RX Receiver SNMP Simple Network Management Protocol TS Technical Specification TX Transmitter UL Uplink UMTS Universal Mobile Telecommunication System UPS Uninterruptible Power Supply VSWR Voltage Standing Wave Ratio WCDMA Wideband Code Division Multiple Access WDM Wavelength Division Multiplex 1.2. HEALTH AND SAFETY WARNINGS 1. Only suitably qualified personnel is allowed to work on this unit and only after becoming familiar with all safety notices, installation, operation and maintenance procedures contained in this manual. 2. Read and obey all the warning labels attached to the unit. Make sure that the warning labels are kept in a legible condition and replace any missing or damaged labels. 3. Obey all general and regional installation and safety regulations relating to work on high voltage installations, as well as regulations covering correct use of tools and personal protective equipment. 4. Keep operating instructions within easy reach and make them available to all users. 5. It is the responsibility of the ne…

Text truncated - open the document above for the full version.

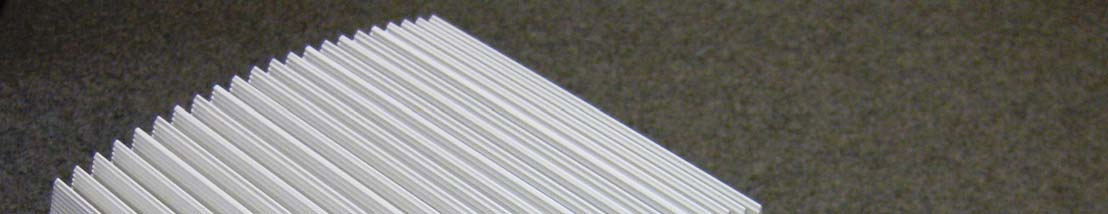

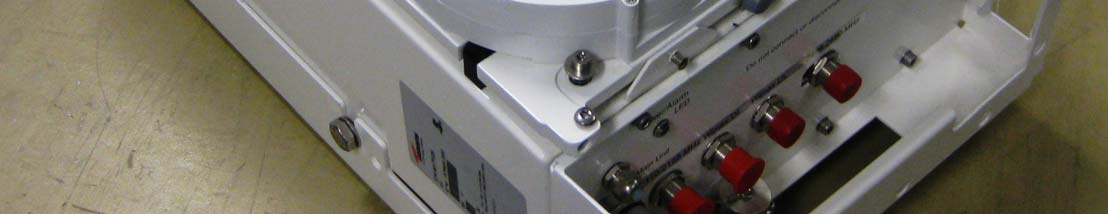

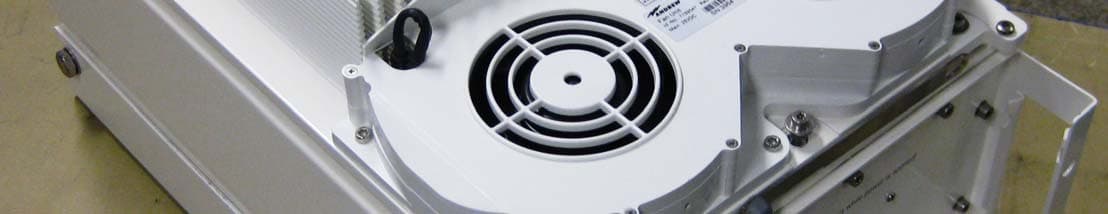

External Photos

ION-M17P/26 EU Fin.Ampl.2640.5-2673.5 40dB 7596193-00 Fin.Ampl.2110-2170 43dB 7542601-01 Leveling Unit 7598150-00 TDD-LNA 7598148-00 Control Unit RCM161 7163693-04 PCB P3046 Connecting Board 7512916 PCB P3016 7164501

RF Exposure Info / MPE Sample Calculation Model: ION‐M17P/26EU FCC‐ID: XS5‐IONM17P26EU The ION‐M17P/26 EU (Intelligent Optical Network; MMR) is a high‐power dual‐band Extension Unit (EU). It is used in conjunction with a Master Unit and a Main Unit containing the optical transceiver (OTRx) in the ION‐M optical distribution system. This system is able to transport the whole AWS 1700 MHz band wide simultaneously, providing a cost‐effective solution for distributing capacity from one or more base stations. Optionally, for 2600 MHz WiMAX in TDD * mode is available. The ION‐M17P/26 EU is connected via extension cable bridge to the Main Unit with extension port. For a frequency band extension, the additional band (for ION‐M17P EU this is AWS) has just to be combined with the signal for the (Main) Remote Unit. Then, the additional band is available on the extension port of the Main Unit. The ION‐M17P/26 EU transports signals on the RF layer in a very inexpensive manner. This means that services from various operators can be transmitted simultaneously from a cluster of base stations to a remote location over the same fibre. Any service or frequency band extension is achieved by adding an Extension Unit (EU) without any impact to the installed network. * TDD is the abbrev. of time‐division‐duplex The ION‐M17P/26 EU has been specifically tested and optimized for CDMA2000, EV‐DO, WCDMA, and UMTS. Furthermore, it is provisioned for future improvements to the modulation (e.g. HSDPA and OFDM) and frequency bands such as WiMAX. The ION is easily set ‐up and supervised via a graphical user interface (GUI). Extension Units can be commissioned through the use of built‐in test equipment with a minimum of commissioning required. The entire system may be monitored remotely via an Andrew OMC. This is a comprehensive management platform with SNMP protocol and X.733 standard implemented. Should a sophisticated interface not be required, the master unit can be directly connected to the alarm interface of a base station via relay alarming. The specific device generally will be professionally installed. Hereby the gain of the finally installed antenna(s), cable attenuation and antenna height will be defined site specific at the time of licensing with the appropriate FCC Bureau(s). The maximum permissible exposure limit is defined in 47 CFR 1.1310 (B). S = power density limit [W/m] P = power [W] R = distance [m] 2 4 n nn n R GP S   => n nn n S GP R 4  (to calculate the distance at one frequency) If we have more bands, than we have to calculated as a percentage: The additional of the terms have to be lower than 1. 1 4 .... 4 44 1.... 2 3 2 3 33 2 2 2 22 1 2 1 11 ln 3 3 2 2 1 1   n n nn n cacalcalcal S R GP S R GP S R GP S R GP S S S S S S S S   We are looking for a distance of ensures that the formula is satisfied. n RRRR... 321 1 4 ... 444 2 3 2 33 2 2 22 1 2 11  n nn SR GP SR GP SR GP SR GP  R S GP S GP S GP S GP R S GP S GP S GP S GP n nn n nn     4 ... 444 4 ... 444 3 33 2 22 1 11 2 3 33 2 22 1 11 With n nn n S GP R 4  => n nn n S GP R 4 2  RRRRR n  22 3 2 2 2 1 ... What you have to do for calculate the minimum distance were the power density limit is met: 1) If you have one path, you have to put you special values in the following formula. n nn n S GP R 4  (Distance for one carrier) Limits for General Population / Uncontrolled Exposures Frequency Range (MHz) Power Density (mW/cm 2 ) 300 – 1500 S = f/1500 1550 – 100,000 S = 1 2) If you have more than one path , you must add the individual terms quadratic. n nn n S GP R 4  (Distance for individual carrier) RRRRR n  22 3 2 2 2 1 ... (See previous page) For example: The EUT operates in the frequency range of 2110 ‐ 2155 MHz (path 1700) and 2640 – 2674 MHz (path 2600). The max measured conducted output power is 1700er path: 8.9 W (39.5dBm) and 2600er path: 5.6 W (37.5dBm). Calculation for every path with maximum possible antenna gain and without cable loss: Frequency [MHz] Max Power out [dBm] Max. possible Antenna gain, without cable loss [dBi] Max. Distance [m] 2132 39.5 22.5 3.5514 2657 37.5 27.5 5.0164 The worst case would be if all bands were active: RRRRR n  22 3 2 2 2 1 ... R all > 6.146 m (see previous page for formula) For more accurate calculation, the cable loss and actual antenna gain have to be included in the finally system. The antenna(s) used with device must be fixed‐mounted on permanent structures with a distance to any human body to comply with the RF Exposure limit.

Test Site: FCC Test Site No.: 96997 IC OATS No.: IC3475A-1 The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-11-292-V01.00 Page 1 of 36 Date of issue: 31.01.12 Signature: Issue-No.: 01 Author: Date of delivery: 19.05.2011 Checked: Test dates: 15.11.10 – 20.05.2011 ECL-EMC Test Report No.: 11-292 Equipment under test: ION-M17P/26 EU (1700MHz Path) FCC ID: BCR-IONM17P26EU Type of test: FCC 47 CFR Part 27 Subpart C: 2011 Miscellaneous Wireless Communication Services RSS-Gen:2007, RSS-131:2005 Measurement Procedures: 47 CFR Parts 2:2011 (Frequency Allocations and Radio Treaty Matters; General Rules and Regulations), Part 27:2011 (Miscellaneous Wireless Communication Services), ANSI/TIA-603-C (2004), Land Mobile FM or PM Communications Equipment Measurement and Performance Standards IC-GEN:2007 General Requirements and Information for the Certification of Radio communication Equipment Test result: Passed Test Report No.: 11-292 FCC ID: BCR-IONM17P26EU The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-ECL-TR-11-292-V01.00 Page 2 of 36 Manufacturer: ANDREW Wireless Systems GmbH Industriering 10 D-86675 Buchdorf Tel.: +49 (0)9099 69 0 Fax: +49 (0)9099 69 140 Test Location: TEMPTON Service Plus GmbH European Compliance Laboratory (ECL) Thurn-und-Taxis-Straße 18 D-90411 Nürnberg Tel.: +49 0911 59835 0 Fax: +49 0911 59835 90 General: The purpose of this report is to show compliance to the FCC regulations for licensed devices operating under section 27 of the Code of Federal Regulations title 47. This report informs about the results of the EMC tests, it only refers to the equipment under test. No part of this report may be reproduced in any form, without written permission. Test Report No.: 11-292 FCC ID: BCR-IONM17P26EU The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-ECL-TR-11-292-V01.00 Page 3 of 36 Table of contents 1 TEST RESULTS SUMMARY .................................................................................................................5 2 EQUIPMENT UNDER TEST (E.U.T.) ....................................................................................................6 2.1 DESCRIPTION....................................................................................................................................6 2.1.1 DOWNLINK.................................................................................................................................6 2.1.2 UPLINK......................................................................................................................................6 2.1.3 DESCRIPTION OF EUT ................................................................................................................6 2.1.4 SYSTEM DIAGRAMS....................................................................................................................7 2.1.5 BLOCK DIAGRAM OF MEASUREMENT REFERENCE POINTS..............................................................8 3 TEST SITE (ANDREW BUCHDORF) ....................................................................................................9 3.1 TEST ENVIRONMENT..........................................................................................................................9 3.2 TEST EQUIPMENT..............................................................................................................................9 3.3 INPUT AND OUTPUT LOSSES...............................................................................................................9 3.4 MEASUREMENT UNCERTAINTY............................................................................................................9 4 TEST SITE (TEMPTON SERVICE PLUS GMBH) ...............................................................................10 5 RF POWER OUT: §27.50, §2.1046; RSS-131, RSS-GEN ..................................................................11 5.1 LIMIT...............................................................................................................................................11 5.2 TEST METHOD.................................................................................................................................11 5.3 TEST RESULTS................................................................................................................................12 5.3.1 DOWNLINK...............................................................................................................................12 5.3.1.1 CDMA .............................................................................................................................13 5.3.1.2 W-CDMA.........................................................................................................................13 5.3.1.3 LTE .................................................................................................................................14 5.3.2 UPLINK....................................................................................................................................15 5.4 SUMMARY TEST RESULT...................................................................................................................15 6 OCCUPIED BANDWIDTH: §2.1049; RSS-GEN ..................................................................................16 6.1 LIMIT...............................................................................................................................................16 6.2 TEST METHOD.................................................................................................................................16 6.3 TEST RESULTS................................................................................................................................16 6.3.1 DOWNLINK..................…

Text truncated - open the document above for the full version.

Test Site: FCC Test Site No.: 96997 IC OATS No.: IC3475A-1 The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-11-293-V01.00 Page 1 of 28 ECL-EMC Test Report No.: 11-293 Equipment under test: ION-M17P/26 EU (2600MHz Path) FCC ID: BCR-IONM17P26EU IC ID: 2237D-IONM17P26EU Type of test: FCC 47 CFR Part 27 Subpart C: 2011 Miscellaneous Wireless Communication Services RSS-Gen:2007, RSS-131:2005 Measurement Procedures: 47 CFR Parts 2:2011 (Frequency Allocations and Radio Treaty Matters; General Rules and Regulations), Part 27:2011 (Miscellaneous Wireless Communication Services), ANSI/TIA-603-C (2004), Land Mobile FM or PM Communications Equipment Measurement and Performance Standards IC-GEN:2007 General Requirements and Information for the Certification of Radio communication Equipment Test result: Passed Date of issue: 31.01.12 Signature: Issue-No.: 01 Author: Date of delivery: 19.05.2011 Checked: Test dates: 15.11.10 – 20.05.2011 Test Report No.: 11-293 FCC ID: BCR-IONM17P26EU IC ID: 2237D-IONM17P26EU The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-ECL-TR-11-293-V01.00 Page 2 of 28 Manufacturer: ANDREW Wireless Systems GmbH Industriering 10 D-86675 Buchdorf Tel.: +49 (0)9099 69 0 Fax: +49 (0)9099 69 140 Test Location: TEMPTON Service Plus GmbH European Compliance Laboratory (ECL) Thurn-und-Taxis-Straße 18 D-90411 Nürnberg Tel.: +49 0911 59835 0 Fax: +49 0911 59835 90 General: The purpose of this report is to show compliance to the FCC regulations for licensed devices operating under section 27 of the Code of Federal Regulations title 47. This report informs about the results of the EMC tests, it only refers to the equipment under test. No part of this report may be reproduced in any form, without written permission. Test Report No.: 11-293 FCC ID: BCR-IONM17P26EU IC ID: 2237D-IONM17P26EU The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-ECL-TR-11-293-V01.00 Page 3 of 28 Table of contents 1 TEST RESULTS SUMMARY .................................................................................................................5 2 EQUIPMENT UNDER TEST (E.U.T.) ....................................................................................................6 2.1 DESCRIPTION....................................................................................................................................6 2.1.1 DOWNLINK.................................................................................................................................6 2.1.2 UPLINK......................................................................................................................................6 2.1.3 DESCRIPTION OF EUT ................................................................................................................6 2.1.4 SYSTEM DIAGRAMS....................................................................................................................7 2.1.5 BLOCK DIAGRAM OF MEASUREMENT REFERENCE POINTS..............................................................8 3 TEST SITE (ANDREW BUCHDORF) ....................................................................................................9 3.1 TEST ENVIRONMENT..........................................................................................................................9 3.2 TEST EQUIPMENT..............................................................................................................................9 3.3 INPUT AND OUTPUT LOSSES...............................................................................................................9 3.4 MEASUREMENT UNCERTAINTY............................................................................................................9 4 TEST SITE (TEMPTON SERVICE PLUS GMBH) ...............................................................................10 5 RF POWER OUT: §27.50, §2.1046; RSS-131, RSS-GEN ..................................................................11 5.1 LIMIT...............................................................................................................................................11 5.2 TEST METHOD.................................................................................................................................11 5.3 TEST RESULTS................................................................................................................................12 5.3.1 DOWNLINK...............................................................................................................................12 5.3.1.1 WiMAX............................................................................................................................13 5.3.2 UPLINK....................................................................................................................................13 5.4 SUMMARY TEST RESULT...................................................................................................................13 6 OCCUPIED BANDWIDTH: §2.1049; RSS-GEN ..................................................................................14 6.1 LIMIT...............................................................................................................................................14 6.2 TEST METHOD.................................................................................................................................14 6.3 TEST RESULTS................................................................................................................................14 6.3.1 DOWNLINK...............................................................................................................................14 6.3.1.1 WiMAX...................................................................................…

Text truncated - open the document above for the full version.

Test setup Figure 1. Whole measurement: Remote Unit, Extension Unit and Combining Unit Figure 2. EUT ION-M17P/26 EU Figure 3. Measurement Equipment
