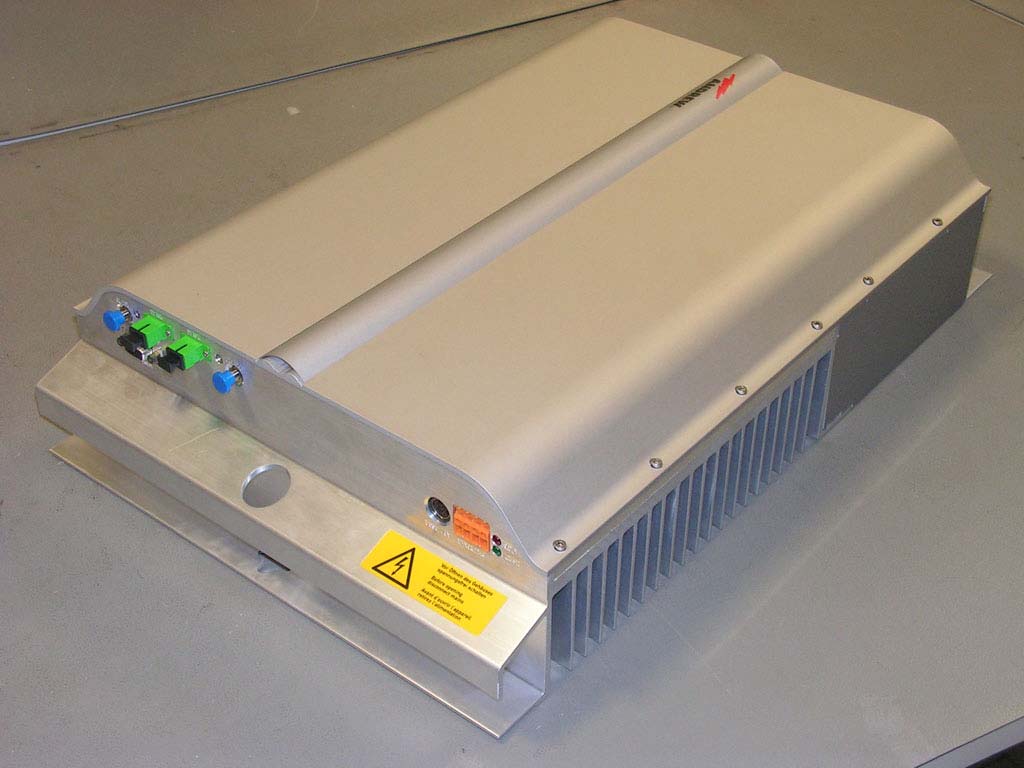

BCR-TFAHUS717 EXTERNAL PHOTO #1 BCR-TFAHUS717 EXTERNAL PHOTO #2

BCR-TFAHUS717 FCC ID LABEL

BCR-TFAHUS717 FCC ID LABEL LOCATION FCC/IC Label Location

Cell­Max™ Directional Outdoor Antenna, 698–960 MHz and 1710–2700 MHz CELLMAX-EXT-CPUSE CHARACTERISTICS General Specifications Antenna Type Directional Operating Frequency Band 1710 – 2700 MHz | 698 – 960 MHz Brand Cell­Max™ Color White Interface 7­16 DIN Female Package Quantity 1 Radome Color White Radome Material PVC, UV resistant Electrical Specifications Operating Frequency Band 698 – 800 MHz 3rd Order IMD ­150 dBc (relative to carrier) 3rd Order IMD Test Method Two +43 dBm carriers Beamwidth, Horizontal 66°–76° Beamwidth, Vertical 31°–41° Front­to­Back Ratio, minimum 20 dB Gain at Frequency Band 10.0 dBi @ 698–800 MHz Gain Tolerance ±1.5 dBi Impedance 50 ohm Input Power, maximum 100 W Lightning Protection dc Ground Polarization Vertical Return Loss 10.9 dB VSWR 1.8:1 Electrical Specifications (Band 2) Operating Frequency Band 800 – 960 MHz 3rd Order IMD ­150 dBc (relative to carrier) Product Specifications ©2011 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks, respectively, of CommScope. All specifications are subject to change. See www.commscope.com for the most current information. page 1 of 3 9/21/2011 3rd Order IMD Test Method Two +43 dBm carriers Beamwidth, Horizontal 59°–69° Beamwidth, Vertical 25°–35° Front­to­Back Ratio, minimum 20 dB Gain at Frequency Band 11.4 dBi @ 800–960 MHz Gain Tolerance ±1.5 dBi Return Loss at Frequency Band 10.9 dB VSWR 1.8:1 Electrical Specifications (Band 3) Operating Frequency Band 1710 – 2200 MHz 3rd Order IMD ­150 dBc (relative to carrier) 3rd Order IMD Test Method Two +43 dBm carriers Beamwidth, Horizontal 60°–78° Beamwidth, Vertical 25°–35° Front­to­Back Ratio, minimum 20 dB Gain at Frequency Band 11.0 dBi @ 1710–2200 MHz Gain Tolerance ±1.5 dBi Input Power, maximum 100 W Lightning Protection dc Ground Polarization Vertical Return Loss 10.9 dB VSWR 1.8:1 Electrical Specifications (Band 4) Operating Frequency Band 2200 – 2700 MHz 3rd Order IMD ­150 dBc (relative to carrier) 3rd Order IMD Test Method Two +43 dBm carriers Beamwidth, Horizontal 50°–60° Beamwidth, Vertical 25°–35° Front­to­Back Ratio, minimum 20 dB Gain at Frequency Band 11.0 dBi @ 2200–2700 MHz Gain Tolerance ±1.5 dBi Impedance 50 ohm Input Power, maximum 100 W Lightning Protection dc Ground Polarization Vertical Return Loss 10.9 dB VSWR 1.8:1 Mechanical Specifications Mounting Poles between 30–55 mm with supplied clamps Environmental Specifications Application Outdoor Product Specifications CELLMAX-EXT-CPUSE ©2011 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks, respectively, of CommScope. All specifications are subject to change. See www.commscope.com for the most current information. page 2 of 3 9/21/2011 Operating Temperature ­40 °C to +60 °C (­40 °F to +140 °F) Relative Humidity Up to 100% Water Jetting Test Method IEC 60529:2001, IP66 Dimensions Height 98.00 mm | 3.86 in Length 620.00 mm | 24.41 in Net Weight 4.50 kg | 9.92 lb Width 331.00 mm | 13.03 in Packed Dimensions Height 162.0 mm | 6.4 in Length 829.0 mm | 32.6 in Shipping Weight 6.50 kg | 14.33 lb Width 349.0 mm | 13.7 in Regulatory Compliance/Certifications AgencyClassification ISO 9001:2008Designed, manufactured and/or distributed under this quality management system Product Specifications CELLMAX-EXT-CPUSE ©2011 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks, respectively, of CommScope. All specifications are subject to change. See www.commscope.com for the most current information. page 3 of 3 9/21/2011

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal:31.00(dBm) Maximum peak output power at antenna input terminal:1259(mW) Antenna gain(maximum):11(dBi) Maximum antenna gain:12.59(numeric) Time Averaging:100(%) Prediction distance:50(cm) Prediction frequency:769(MHz) MPE limit for uncontrolled exposure at prediction frequency:0.513(mW/cm^2) Power density at prediction frequency:0.504(mW/cm^2) 2 4R PG S π = Margin of compliance:-0.1(dB) This equates to:5.0W/m^2 2 4R PG S π =

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal:31.00(dBm) Maximum peak output power at antenna input terminal:1259(mW) Antenna gain(maximum):11(dBi) Maximum antenna gain:12.59(numeric) Time Averaging:100(%) Prediction distance:50(cm) Prediction frequency:2110(MHz) MPE limit for uncontrolled exposure at prediction frequency:1.000(mW/cm^2) Power density at prediction frequency:0.504(mW/cm^2) 2 4R PG S π = Margin of compliance:-3.0(dB) This equates to:5.0W/m^2 2 4R PG S π =

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal:31.00(dBm) Maximum peak output power at antenna input terminal:1259(mW) Antenna gain(maximum):11(dBi) Maximum antenna gain:12.59(numeric) Time Averaging:100(%) Prediction distance:50(cm) Prediction frequency:740(MHz) MPE limit for uncontrolled exposure at prediction frequency:0.493(mW/cm^2) Power density at prediction frequency:0.504(mW/cm^2) Margin of compliance:0.1(dB) This equates to:5.0W/m^2 2 4R PG S  

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal:31.00(dBm) Maximum peak output power at antenna input terminal:1259(mW) Antenna gain(maximum):11(dBi) Maximum antenna gain:12.59(numeric) Time Averaging:100(%) Prediction distance:51(cm) Prediction frequency:728(MHz) MPE limit for uncontrolled exposure at prediction frequency:0.485(mW/cm^2) Power density at prediction frequency:0.485(mW/cm^2) This equates to:4.8W/m^2 Minimum separation distance:51 (cm) 2 4R PG S  

Nemko Test Report: 1028473RUS1 Applicant: Andrew Corporation 620 N. Greenfield Parkway Garner, NC 27529 USA Equipment Under Test: TFAH-US7/17 (E.U.T.) FCC Identifier: BCR-TFAHUS717 In Accordance With: CFR 47, Part 27, Subpart C Miscellaneous Wireless Communication Services Tested By: Nemko USA, Inc. 802 N. Kealy Lewisville, TX 75057-3136 TESTED BY: DATE: 01 June 2011 David Light, Senior Wireless Engineer APPROVED BY: DATE: 17 June 2011 Tom Tidwell, Reviewer Number of Pages: 50 Nemko USA, Inc. CFR 47, PART 27, SUBPART C Miscellaneous Wireless Communication Services EQUIPMENT: TFAH-US7/17 PROJECT NO.: 1028473RUS1 Page 2 of 50 Table of Contents SECTION 1. SUMMARY OF TEST RESULTS 3 SECTION 2. GENERAL EQUIPMENT SPECIFICATION 5 SECTION 3. RF POWER OUTPUT 7 SECTION 4. OCCUPIED BANDWIDTH 8 SECTION 5. SPURIOUS EMISSIONS AT ANTENNA TERMINALS 19 SECTION 6. FIELD STRENGTH OF SPURIOUS 40 SECTION 7. TEST EQUIPMENT LIST 41 ANNEX A - TEST DETAILS 42 ANNEX B - TEST DIAGRAMS 47 Nemko USA, Inc. CFR 47, PART 27, SUBPART C Miscellaneous Wireless Communication Services EQUIPMENT: TFAH-US7/17 PROJECT NO.: 1028473RUS1 Page 3 of 50 Section 1. Summary of Test Results Manufacturer: Andrew Corporation Model No.: TFAH-US7/17 Serial No.: 10 General: All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with CFR 47, Part 27, Subpart C. New Submission Production Unit Class II Permissive Change Pre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. Nemko USA, Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety, for use by the company’s employees only. This report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. Nemko USA, Inc. is a NVLAP accredited laboratory. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko USA, Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko USA, Inc. CFR 47, PART 27, SUBPART C Miscellaneous Wireless Communication Services EQUIPMENT: TFAH-US7/17 PROJECT NO.: 1028473RUS1 Page 4 of 50 Summary Of Test Data NAME OF TEST PARA. NO. RESULT RF Power Output 27.50(d) Complies Occupied Bandwidth 2.1049 Complies Spurious Emissions at Antenna Terminals 27.53(g) Complies Field Strength of Spurious Emissions 27.53(g) Complies Frequency Stability 27.54 NA Nemko USA, Inc. CFR 47, PART 27, SUBPART C Miscellaneous Wireless Communication Services EQUIPMENT: TFAH-US7/17 PROJECT NO.: 1028473RUS1 Page 5 of 50 Section 2. General Equipment Specification Supply Voltage Input: 120 Vac Frequency Bands: Downlink: 728 to 757 MHz 2110 to 2155 MHz Frequency Bands: Uplink: NA Emission Designator(s): F9W Output Impedance: 50 ohms RF Output (Rated): Downlink 1.25 W (2100 MHz band) 31.0 dBm RF Output (Rated): Uplink NA W NA dBm Frequency Translation: F1-F1 F1-F2 N/A Band Selection: Software Duplexer Fullband Nemko USA, Inc. CFR 47, PART 27, SUBPART C Miscellaneous Wireless Communication Services EQUIPMENT: TFAH-US7/17 PROJECT NO.: 1028473RUS1 Page 6 of 50 Description of EUT The TFAH-US4B is a four band high power remote unit designed to distribute Cell700, Cell850, AWS, and Extended PCS1900 band signals along the same fiber. System Diagram Nemko USA, Inc. CFR 47, PART 27, SUBPART C Miscellaneous Wireless Communication Services EQUIPMENT: TFAH-US7/17 PROJECT NO.: 1028473RUS1 Page 7 of 50 Section 3. RF Power Output NAME OF TEST: RF Power Output PARA. NO.: 27.50 TESTED BY: David Light DATE: 23 May 2011 Test Results: Complies. Measurement Data: Band Modulation Output per Channel (dBm) Composite Power (dBm) Composite Power (W) 700 Analog 28.0 31.0 1.25 700 LTE 28.0 31.0 1.25 700 GSM 28.0 31.0 1.25 2100 CDMA 28.0 31.0 1.25 2100 WCDMA 28.0 31.0 1.25 2100 LTE 28.0 31.0 1.25 Equipment Used: 1767-1082-1472-1469 Measurement Uncertainty: +/- 1.7 dB Temperature: 22 °C Relative Humidity: 45 % Nemko USA, Inc. CFR 47, PART 27, SUBPART C Miscellaneous Wireless Communication Services EQUIPMENT: TFAH-US7/17 PROJECT NO.: 1028473RUS1 Page 8 of 50 Section 4. Occupied Bandwidth NAME OF TEST: Occupied Bandwidth PARA. NO.: 2.1049 TESTED BY: David Light DATE: 23 May 2011 Test Results: Complies. Test Data: See attached plot(s). Equipment Used: 1767-1082-1472-1469 Measurement Uncertainty: 1X10 -7 ppm Temperature: 22 °C Relative Humidity: 45 % Nemko USA, Inc. CFR 47, PART 27, SUBPART C Miscellaneous Wireless Communication Services EQUIPMENT: TFAH-US7/17 PROJECT NO.: 1028473RUS1 Page 9 of 50 Test Data – Occupied Bandwidth Analog 2 kHz tone / 2.5 kHz deviation Output A UnitdBm 31.6 dB Offset Ref Lvl 40 dBm Ref Lvl 40 dBm RF Att 30 dB 5 kHz/Center740 MHzSpan50 kHz RBW 300 Hz VBW 300 Hz SWT 2.8 s IN1 1VIEW1MA -50 -40 -30 -20 -10 0 10 20 30 -60 40 1 Marker 1 [T1] 25.79 dBm 740.00015030 MHz Nemko USA, Inc. CFR 47, PART 27, SUBPART C Miscellaneous Wireless Communication Services EQUIPMENT: TFAH-US7/17 PROJECT NO.: 1028473RUS1 Page 10 of 50 Test Data – Occupied Bandwidth Analog Input A UnitdBm RF Att 30 dB RBW 300 Hz VBW 300 Hz SWT 2.8 s IN1 Ref Lvl 8.4 dBm Ref Lvl 8.4 dBm 5 kHz/Center740 MHzSpan50 kHz 1VIEW1MA -80 -70 -60 -50 -40 -30 -20 -10 0 -91.6 8.4 1 Marker 1 [T1] -7.41 dBm 740.00015030 MHz Nemko USA, Inc. CFR 47, PART 27, SUBPART C Miscellaneous Wireless Communication Services EQUIPMENT: TFAH-US7/17 PROJECT NO.: 1028473RUS1 Page 11 of 50 Test Data – Occupied Bandwidth GSM Output A Unit dBm RF Att 30 dB RBW 3 kHz VBW 3 kHz SWT 280 ms IN1 Ref Lvl 40 dBm Ref Lvl 40 dBm 100 kHz/Center740 MHzSpan1 MHz 31.6 dB Offset 1VIEW1MA -50 -40 -30 -2…
