BEJC300Celluar/PCS GSM/EDGE Phone with BT

LG-C300 User Guide - English Congratulations on your purchase of the advanced and compact LG-C300 phone by LG, designed to operate with the latest digital mobile communication technology. Some of contents in this manual may differ from your phone depending on the software of the phone or your service provider. Disposal of your old appliance 1 When this crossed-out wheeled bin symbol is attached to a product, the product is subject to European Directive 2002/96/EC. 2 All electrical and electronic products should be disposed of separately from the municipal waste stream at collection facilities designated by the government or local authorities. 3 The correct disposal of your old appliances will help prevent potential negative impacts on the environment and human health. 4 For more detailed information about disposal of your old appliances, please contact your city office, waste disposal service or the shop where you purchased the product. Part 15.21 statement " Change or Modifications that are not expressly approved by the manufacturer could void the user's authority to operate the equipment. “ Part 15.105 statement This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Part 15 Class B Compliance This device and its accessories comply with part15 of FCC rules. Operation is subject to the following two conditions: (1) This device & its accessories may not cause harmful interference. (2) This device & its accessories must accept any interference received, including interference that may cause undesired operation. Body-worn Operation This device has been tested for typical body-worn operations with the distance of 0.79inches (2.0cm) from the user’s body. To comply with FCC RF exposure requirements, a minimum separation distance of 0.79inches(2.0cm) must be maintained from the user's body. Additionally, Belt clips, holsters & other body-worn accessories may not contain metallic components. 11 Getting to know your phone Soft keys (Left soft key / Right soft key) • These keys perform the function Indicated in the bottom of the display. Confirm key / OK key • Selects menu options and confirms actions. End key • switch on/off (hold down) • End or reject a call. Navigation key • In standby mode: Briefly: Quick menu. Briefly: Contacts search. Briefly: Profiles. Briefly: Homescreen. • In menu: Scroll up & down. Earpiece Main LCD Send key • Dials a phone number and answers a call. • In standby mode: Shows the history of calls. Alpha numeric keys • In standby mode: Input numbers to dial Hold down – International calls – Connect voice mail centre to – Speed dials - Hold the key down to go Silent mode • In editing mode: Enter numbers & characters Multitasking key Go to Home screen or Menu directly. Clear / lock key • Clears a character with each press. Hold the key down to clear all input. • Hold the key down to lock when using menus. LG LG-C300 | User Guide1 Camera key Side keys • In standby mode: Controls the ring volume. • During a call: Earpiece volume adjustment • During playing MP3 music: Audio volume adjustment Micro SD memory card socket Battery pack Camera lens Battery cover SIM card holder Charger/USB cable connector TIP: Please ensure the phone is powered on, external memory card is inserted and in idle mode before connecting the USB cable for Mass Storage. Headset Getting to know your phone 13 Installing the SIM and battery 1 Remove the battery cover Press the battery cover release latch. 2 Remove the battery Lever the bottom edge of the battery and remove it carefully from the battery compartment. WARNING: Do not remove the battery when the phone is switched on, as this may damage the phone. 3 Install the SIM card Slide the SIM card into the SIM card holder. Make sure that the gold contact area on the card is facing downwards. To remove the SIM card, pull it gently in the reverse direction. WARNING: Do not replace or remove the SIM card while your phone is being used or turned on, or data may be lost or the SIM card might be damaged. LG LG-C300 | User Guide1 4 Install the battery Insert the top of the battery first into the top edge of the battery compartment. Ensure that the battery contacts align with the terminals on the phone. Press down the bottom of the battery until it clips into place. 5 Replace the battery cover 6 Charging your phone Pull out the cover of the charger socket on the top of your LG- C300. Insert the charger and plug into a mains electricity socket. Your LG-C300 will need to be charged until a message reading “Battery full” appears on screen. Installing the SIM and battery 1 Memory card Installing a memory card You can expand the memory available on your phone using a memory card. Note: A memory card is an optional accessory. Slide the memory card into the slot until it clicks into place. Make sure that the gold contact area is facing downwards. Removing a memory card Carefully remove the memory card by gently pushing it in to the phone and quickly releasing it. Formatting the me…

Text truncated - open the document above for the full version.

Date: March 22, 2010 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Lab Manager Jim. Kim and of SGS Testing Korea Co., Ltd and hereafter referred to as SGS Testing Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Lab Manager Jim. Kim of SGS Testing Korea Co., Ltd on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Testing Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Jae Cheon(J.C.) Lee General Manager LG Electronics USA

LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, NJ 07632 Date: April 29, 2010 Federal Communicatio ns Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columb ia, MD 21046 RE: Request of Confidentiality for FCC ID: BEJC300 Eq uipment Class: PCE: PCS Licensed Transmitter held to ea r To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Electronics USA hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Electronics USA temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Descriptions 3 Parts Lists and Tune-Up Procedure PERMANENT 4 Schematics 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM 8 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Jae Cheon(J.C.) Lee General Manager LG Electronics USA LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

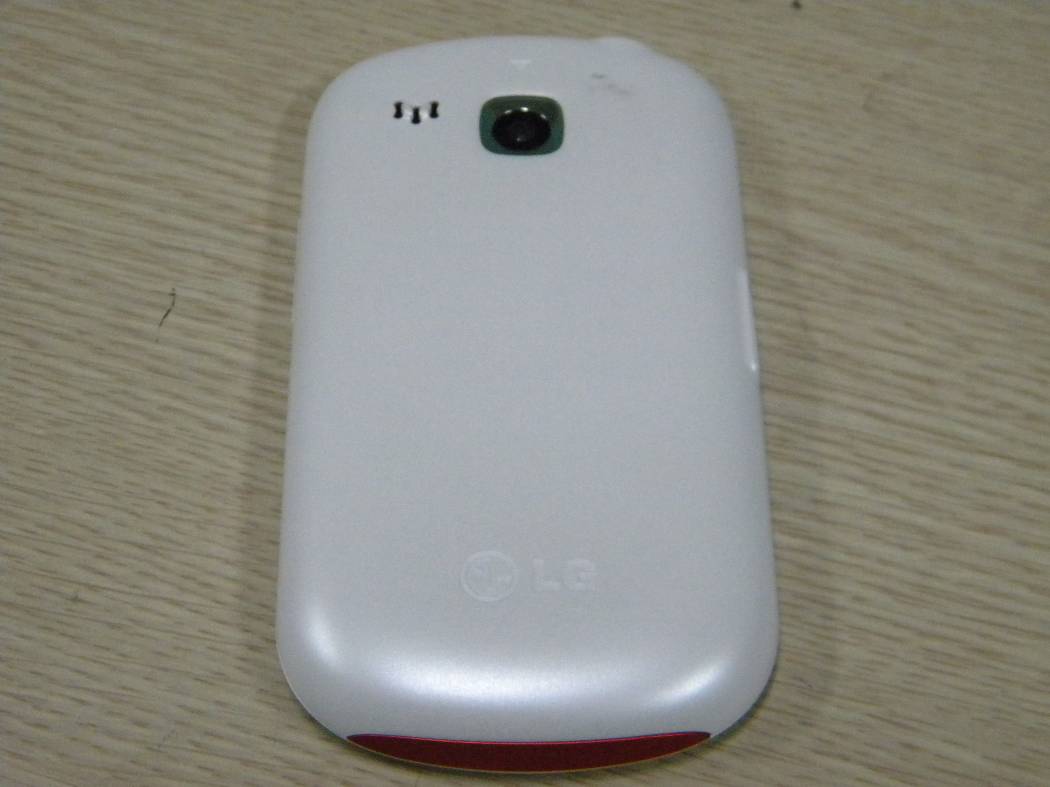

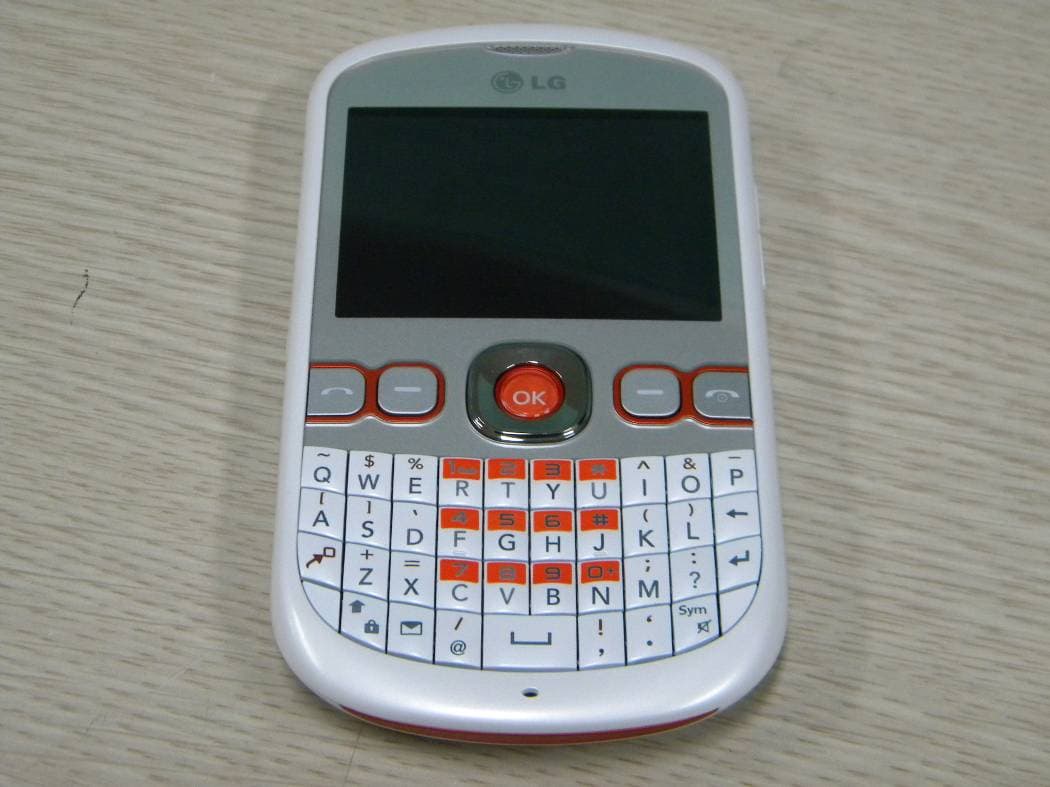

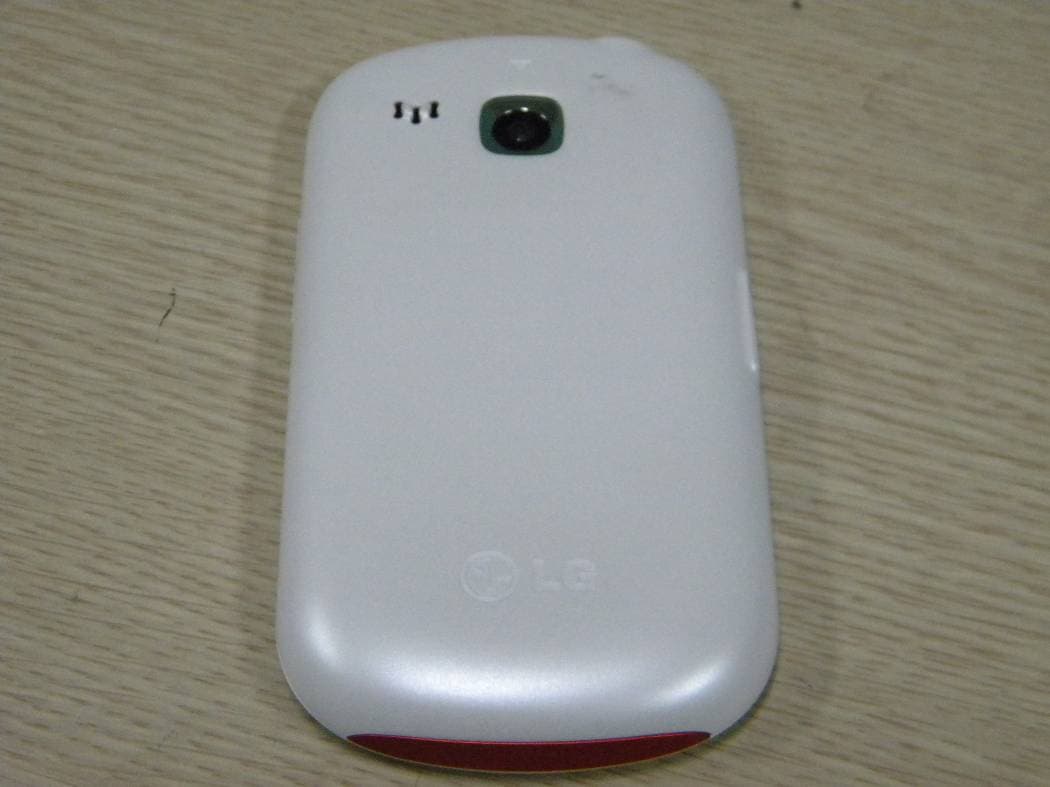

Test Report No. : F690501/RF-EMG003233 Page : 12 of 17 3. Photographs of EUT  Front View  Rear View

Model No: LG-C300 FCC ID : BEJC300 S/N : Made in Korea LG Electronics Inc. LGE

Test Report No. : F690501/RF-EMG003233 Page : 13 of 17  Top View of Main Board  Bottom View of Main Board Test Report No. : F690501/RF-EMG003233 Page : 14 of 17  Main Board Label  Top View of LCD Panel Test Report No. : F690501/RF-EMG003233 Page : 15 of 17  Bottom View of LCD Panel  Top View of Battery Test Report No. : F690501/RF-EMG003233 Page : 16 of 17  Bottom View of Battery  Inside

MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-068 Page 1 of 89 MCCL SAR TEST REPORT Specific Absorption Rate Issued under the authority of E. S. Park / Technical Manager MCCL Reviewed by J. S. Jang /Vice Technical Manager MCCL Prepared by H. S. Shim / Test Engineer MCCL This report may not be reproduced other than in full, except with the prior written approval by MCCL March 12, 2010Date of Sample Receipt : April 14, 2010 Pre-Production Sample [S/N: #1] Date of Issue : Test Device Serial No. : §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Standards : PASSTest Result : Licensed Portable Transmitter Held to Ear (PCE)Device Category : LG Electronics, Inc. Certification Applicant : Application Type : LG Electronics, Inc.Manufacturer : LG-C300Model Name(s) : Cellular / PCS GSM / EDGE Phone with BluetoothProduct : Test Report No : MCCL-3-10-068 SUMMARY This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI / IEEE C95.1(2005) and had been tested in accordance with the measurement procedures specified in FCC/OET bulletin 65 Supplement C (2001) , ANSI / IEEE 1528 – Dec. 2003 and in applicable Industry Canada Radio Standards specifications (RSS) ※ The test results in this test report apply only to sample(s) tested. MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-068 Page 2 of 89 MCCL TABLE OF CONTENTS 1. TEST RESULT SUMMARY ········································································································3 2. DESCRIPTION OF THE DEVICE UNDER TEST·························································· 4 2.1 Antenna Description·································································································· 4 2.2 Device Description···································································································· 4 3. INTRODUCTION············································································································· 5 4. SAR MEASUREMENT SYSTEM ·················································································· 6 4.1 SAR Measurement Setup·························································································6 4.2 DASY4 E-Field Probe System·················································································· 7 4.3 Phantom···················································································································· 9 4.4 Brain & Muscle Simulating Mixture Characterization ···········································10 4.5 Device Holder for Transmitters··············································································· 11 4.6 Validation Dipole ···································································································· 11 5. SAR MEASUREMENT PROCEDURE········································································· 12 6. DEFINITION OF REFERENCE POINT········································································ 13 6.1 EAR Reference Point······························································································ 13 6.2 Handset Reference Points······················································································ 14 7. TEST CONFIGURATION POSITIONS········································································ 15 7.1 Positioning for Cheek/Touch··················································································· 15 7.2 Positioning for Ear / 15 ° Tilt···················································································· 16 7.3 Body Holster /Belt Clip Configuration······························································· 17 8. MEASUREMENT UNCERTAINTY··············································································· 18 9. ANSI/IEEE C95.1–2005 RF EXPOSURE LIMITS ····················································· 19 10. SYSTEM VERIFICATION··························································································· 20 11. SAR Evaluation Considerations for Handsets with Multiple Transmitters and Antennas ························································································································································ 23 12. RF CONDUCTED POWER ·······························································································24 13. MEASUREMENT RESULTS ····················································································· 25 14. TEST EQUIPMENT····································································································· 27 15. REFERENCES············································································································ 28 APPENDIX A: Validation Test Data······································································ 29 APPENDIX B: SAR Test Data··············································································· 35 APPENDIX C: Calibration Certificates································································· 67 MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-068 Page 3 of 89 MCCL 1.TEST RESULT SUMMARY Maximum Results Found During SAR Evaluation 1. Head Configuration 2. Body Worn Configuration 3. Measurement Uncertainty 1.6 W/kg averaged over 1 gram ANSI / IEEE C95.1(2005) - SAFETY LIMIT Spatial Peak Uncontrolled Exposure/General Population 1.6 W/kg averaged over 1 gram ANSI / IEEE C95.1(2005) - SAFETY LIMIT Spatial Peak Uncontrolled Exposure/General Population Eui-Soon ParkResponsible Test Engineer : April 14, 2010 Date of Issue : GSM850: 32.5 dBm PCS1900: 29.5 dBm Transmit Output Power : 869.20 ~ 893.80 MHz (GSM850) 1930.2…

Text truncated - open the document above for the full version.

MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-068 Page 81 of 89 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-068 Page 82 of 89 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-068 Page 83 of 89 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-068 Page 84 of 89 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-068 Page 85 of 89 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-068 Page 86 of 89 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-068 Page 87 of 89 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-068 Page 88 of 89 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-068 Page 89 of 89 MCCL

Report Number: F690501/RF-RTL003733-1 Page: 2 of 34 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com INDEX TABLE OF CONTENTS Page 1. General Information ----------------------------------------------------------------------------- 3 2. RF radiated output power & spurious radiated emission -------------------------------- 14 3. Conducted Output Power ----------------------------------------------------------------------- 16 4. Occupied Bandwidth 99 % -------------- ------------------------------------------------------ 22 5. Spurious Emissions At Antenna Terminal--------------------------------------------------- 22 6. Band Edge ------------------------------------------------------------------------------------------ 27 7. Frequency Stability ------------------------------------------------------------------------------ 32 Report Number: F690501/RF-RTL003733-1 Page: 3 of 34 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 1. General information 1.1. Testing laboratory SGS Testing Korea Co., Ltd. - 705, Dongchun-Dong Sooji-Gu, Yongin-Shi, Kyungki-Do, South Korea. - Wireless Div. 2FL, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 www.electrolab.kr.sgs.com Telephone : +82 +31 428 5700 FAX : +82 +31 427 2371 1.2. Details of applicant Applicant :LG Electronics Inc. Address :60-39, Gasan-dong, Gumchon-gu, Seoul, Korea Contact Person : Han Bong hyo Phone No. : +82 2 2033 1108 1.3. Description of EUT Kind of Product Cellular/PCS GSM/EDGE Phone with BT Model Name LG-C300 Serial Number N/A Power Supply DC 3.7 V (Li-poly Battery) Rated Power GSM850 : 32.5 dBm GSM1900 : 29.5 dBm Frequency Range GSM850 : 824.2 ㎒ ~ 848.8 ㎒ GSM1900 : 1 850.2 ㎒ ~ 1 909.8 ㎒ Bluetooth : 2 402 ~ 2 480 ㎒ Number of Channels GSM850 : 125 GSM1900 : 300 Bluetooth : 79 Class of GPRS Class 12 Report Number: F690501/RF-RTL003733-1 Page: 4 of 34 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 1.4. Description of test mode GPRS Data GPRS GPRS GPRS GPRS Voice GSM 1 TX Slot 2 TX Slot 3 TX Slot 4 TX Slot Band Frequency (MHz) (dBm) (dBm) (dBm) (dBm) (dBm) 824.2 32.32 32.32 32.32 28.95 26.87 836.6 32.41 32.40 32.39 29.02 26.96 GSM 850 848.8 32.45 32.41 32.41 29.05 27.03 1 850.2 29.73 29.73 28.23 28.21 26.20 1 880.0 29.72 29.72 28.16 28.14 26.16 GSM 1 900 1 909.8 29.73 29.73 28.18 28.17 26.16 EDGE Data EDGE EDGE EDGE EDGE 1 TX Slot 2 TX Slot 3 TX Slot 4 TX Slot Band Frequency (MHz) (dBm) (dBm) (dBm) (dBm) 824.2 26.91 26.84 26.83 26.77 836.6 27.03 27.04 26.82 26.92 EDGE 850 848.8 27.12 27.05 26.95 26.85 1 850.2 26.18 26.13 26.16 26.16 1 880.0 26.16 26.10 26.14 26.13 EDGE 1 900 1 909.8 26.10 26.05 26.11 26.11 GSM (850 / 1900) We found out the test mode with the highest power level after we analyze all the data rates. So we chose GSM (850 / 1900) (worst case) as a representative. Report Number: F690501/RF-RTL003733-1 Page: 5 of 34 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 1.5. Test equipment list Equipment Manufacturer Model Cal Due. Signal Generator Agilent E4438C Mar. 31, 2011 Signal Generator Rohde & Schwarz SMR40 Sep. 25, 2010 Spectrum Analyzer Rohde & Schwarz FSP40 Sep. 25, 2010 Mobile Test Unit Agilent E5515C Mar. 31, 2011 Directional Coupler Narda 4226-20 Jan. 07, 2011 High Pass Filter Wainwright WHK3.0/18G-10SS Sep. 29, 2010 Band Reject Filter Wainwright WRCG824/849-814/85 960/10SS Apr. 01, 2011 DC power Supply Agilent U8002A Jan. 06, 2011 Preamplifier H.P. 8447F Jul. 02, 2010 Preamplifier Empower RF Systems,Inc2002-BBSC4AEL Mar. 31, 2011 Test Receiver R & S ESU26 Jun. 03, 2010 Bilog Antenna SCHWARZBECK MESSELEKTRONIK VULB9163 Jul. 22, 2010 Horn Antenna Rohde & Schwarz HF 906 Oct. 08, 2011 Horn Antenna SCHWARZBECK BBH 9120D Nov. 09, 2011 Dipole Antenna VHAP/UHAP 975/958 Oct. 10, 2011 Antenna Master EMCO 1050 N.C.R Turn Table Daeil EMC DI-1500 N.C.R Anechoic Chamber SY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) Jan. 27, 2011 Report Number: F690501/RF-RTL003733-1 Page: 6 of 34 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 1.6. Summary of test results The EUT has been tested according to the following specifications: APPLIED STANDARD : FCC Part 22, 24 Section in FCC part Test Item Result §2.1046 §22.913(a) §24.232(b) RF Radiated Output Power Complied §2.1053 §22.917(e) §24.238(a) Spurious Radiated Emission Complied §2.1046(a) Conducted Output Power Complied §2.1049(h) (i) Occupied Bandwidth Complied §2.1051 §22.917(e) §24.238(a) Spurious Emission at Antenna Terminal Complied §2.1055 §22.355 §24.23…

Text truncated - open the document above for the full version.

MCCL(Mobile Communication Certification Lab), 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1087, Fax:+82 2 2033 1222 Page 1 of 10 SAR Test Setup Photographs Figure 1 Right Head SAR Test Setup - Cheek Touch Position MCCL(Mobile Communication Certification Lab), 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1087, Fax:+82 2 2033 1222 Page 2 of 10 Figure 2 Right Head SAR Test Setup - Ear Tilt Position MCCL(Mobile Communication Certification Lab), 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1087, Fax:+82 2 2033 1222 Page 3 of 10 Figure 3 Left Head SAR Test Setup - Cheek Touch Position MCCL(Mobile Communication Certification Lab), 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1087, Fax:+82 2 2033 1222 Page 4 of 10 Figure 4 Left Head SAR Test Setup - Ear Tilt Position MCCL(Mobile Communication Certification Lab), 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1087, Fax:+82 2 2033 1222 Page 5 of 10 Figure 5 Body SAR Test Setup – w/o Holster MCCL(Mobile Communication Certification Lab), 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1087, Fax:+82 2 2033 1222 Page 6 of 10 Figure 6 Body SAR Test Setup – w/o Holster MCCL(Mobile Communication Certification Lab), 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1087, Fax:+82 2 2033 1222 Page 7 of 10 Figure 7 DUT Photo MCCL(Mobile Communication Certification Lab), 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1087, Fax:+82 2 2033 1222 Page 8 of 10 Figure 8 DUT Photo MCCL(Mobile Communication Certification Lab), 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1087, Fax:+82 2 2033 1222 Page 9 of 10 Figure 9 DUT Photo MCCL(Mobile Communication Certification Lab), 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1087, Fax:+82 2 2033 1222 Page 10 of 10 Figure 10 DUT Photo
