LG-C310 User Guide — English This guide will help you understand your new mobile phone. It will provide you with useful explanations of features on your phone. Some of the content of this manual may differ from your phone depending on the software of the phone or your service provider. Disposal of your old appliance 1 When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC. 2 All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities. 3 The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health. 4 For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product. Part 15.21 statement " Change or Modifications that are not expressly approved by the manufacturer could void the user's authority to operate the equipment. “ Part 15.105 statement This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Part 15 Class B Compliance This device and its accessories comply with part15 of FCC rules. Operation is subject to the following two conditions: (1) This device & its accessories may not cause harmful interference. (2) This device & its accessories must accept any interference received, including interference that may cause undesired operation. Body-worn Operation This device has been tested for typical body-worn operations with the distance of 0.79inches (2.0cm) from the user’s body. To comply with FCC RF exposure requirements, a minimum separation distance of 0.79inches(2.0cm) must be maintained from the user's body. Additionally, Belt clips, holsters & other body-worn accessories may not contain metallic components. 8 Getting to Know Your Phone Earpiece Send key • Dials a phone number and answers a call. • In standby mode: Shows the history of calls. Alpha numeric keys • In standby mode: Input numbers to dial Hold down - International calls - Connect voice mail centre to - Speed dials - Hold the key dow n to go Silent mode • In editing mode: Enter numbers & characters Soft keys (Left soft key / Right soft key) • These keys perform the function Indicated in the bottom of the display. Main LCD End key • Switch on/off (hold down) • End or reject a call. Confirm key / OK key • Selects menu options and confirms actions. Navigation key • In standby mode • In menu: Scroll up & down. 9 Side keys • In standby mode: Controls the ring volume. • During a call: Earpiece volume adjustment • During playing MP3 music: Audio volume adjustment Charger/USB cable connector TIP: Please ensure the phone is powered on , external memory card is inserted and in idle mode before connecting the USB cable for Mass Storage. Headset Battery pack Camera lens Battery cover SIM card holder 10 1 Remove the battery cover Press the battery cover release latch. 2 Remove the battery Lever the bottom edge of the battery and remove it carefully from the battery compartment. WARNING: Do not remove the battery when the phone is switched on, as this may damage the phone. 3 Install the SIM card Slide the SIM card into the SIM card holder. Make sure that the gold contact area on the card is facing downwards. To remove the SIM card, pull it gently in the reverse direction. WARNING: Do not replace or remove the SIM card while your phone is being used or turned on, or data may be lost or the SIM card might be damaged. 4 Install the battery Insert the top of the battery first into the top edge of the battery compartment. Ensure that the battery contacts align with the terminals on the phone. Press down the bottom of the battery until it clips into place. Installing the SIM and battery 11 5 Replace the battery cover 6 Charging your phone Pull open the cover of the charger socket on the top of your LG-C310. Insert the charger and plug into a mains electricity socket. Your LG-C310 will need to be charged until a message reading “Battery full” appears on screen. 12 Memory card Installing a memory card You can expand the memory available on your phone using a memory card. Note: A memory card is an optional accessory. Slide the memory card into the slot until it clicks into place. Make sure that the gold contact area is facing downwards. Removing a memory card Carefully remove the memory card by gently pushing it in to the phone and quickly releasing it. Formatting the memory card Your memory card may already be formatted. If your memory card isn’t formatted, you will need to format it before you can begin using it. 1 From the home screen press Menu then select Settings. 2 Choose Device and Memory info. and select External memory. 3 Press Format and enter the password, which is set to 0000 as default. Your memory card will be formatted and ready to use. 4 To view the new formatted…

Text truncated - open the document above for the full version.

Date: March 22, 2010 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Lab Manager Jim. Kim and of SGS Testing Korea Co., Ltd and hereafter referred to as SGS Testing Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Lab Manager Jim. Kim of SGS Testing Korea Co., Ltd on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Testing Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Jae Cheon(J.C.) Lee General Manager LG Electronics USA

LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, NJ 07632 Date: July 27, 2010 Fede ral Communications Commission Autho rization and Evaluation Division 7435 Oakl and Mills Road, Columb ia, MD 21046 RE: Request of Confidentiality for FCC ID: BEJC310 Equipment Class: PCE: PCS Licensed Transmitter held to ear To Whom It May Concern: Pursu an t to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Electronics USA hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Electronics USA temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Descriptions 3 Parts Lists and Tune-Up Procedure PERMANENT 4 Schematics 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM 8 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Jae Cheon(J.C.) Lee General Manager LG Electronics USA LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

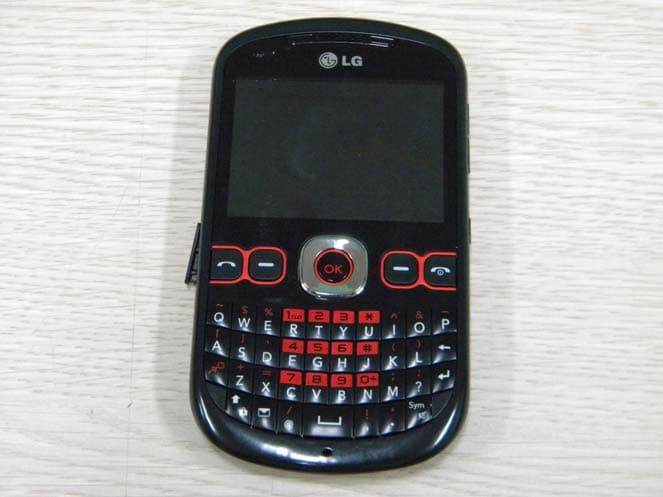

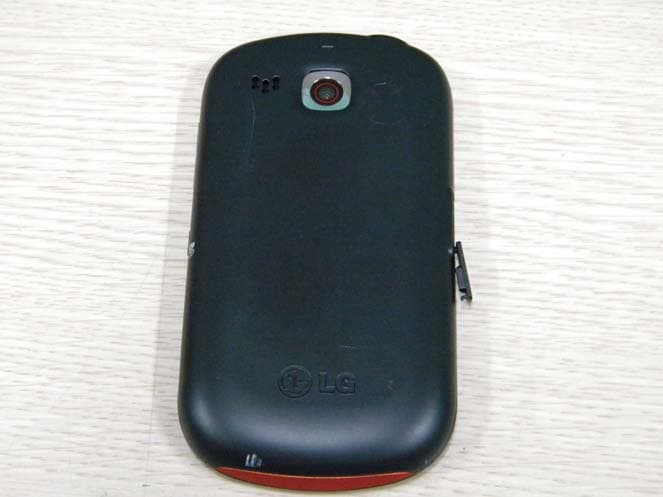

Model : LG-C310 External photos of EUT Model : LG-C310 Front view of EUT Rear view of EUT Model : LG-C310 Side view of EUT

Model No: LG-C310 FCC ID : BEJC310 S/N : Made in Korea LG Electronics Inc. LGE

Model : LG-C310 Internal photos of EUT Model : LG-C310 Top view of main board Bottom view of main board

MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-126 Page 1 of 85 MCCL SAR TEST REPORT Specific Absorption Rate Issued under the authority of E. S. Park / Technical Manager MCCL Reviewed by H. S. Shim /Vice Technical Manager MCCL Prepared by H. S. Shim / Test Engineer MCCL This report may not be reproduced other than in full, except with the prior written approval by MCCL Test Report No : MCCL-3-10-126 Product :Cellular/PCS GSM Phone with Bluetooth Model Name(s) :LG-C310, C310 Manufacturer :LG Electronics, Inc. Applicant : Application Type : LG Electronics, Inc. Certification Device Category :Licensed Portable Transmitter Held to Ear (PCE) Standards : §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Date of Sample Receipt :June 30, 2010 Date of Issue : Test Device Serial No. : July 20, 2010 Pre-Production Sample [S/N: #1] Test Result :PASS SUMMARY This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI / IEEE C95.1(2005) and had been tested in accordance with the measurement procedures specified in FCC/OET bulletin 65 Supplement C (2001) , ANSI / IEEE 1528 – Dec. 2003 and in applicable Industry Canada Radio Standards specifications (RSS) ※ The test results in this test report apply only to sample(s) tested. MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-126 Page 2 of 85 MCCL TABLE OF CONTENTS 1. TEST RESULT SUMMARY ········································································································3 2. DESCRIPTION OF THE DEVICE UNDER TEST·························································· 4 2.1 Antenna Description·································································································· 4 2.2 Device Description···································································································· 4 3. INTRODUCTION············································································································· 5 4. SAR MEASUREMENT SYSTEM ·················································································· 6 4.1 SAR Measurement Setup·························································································6 4.2 DASY4 E-Field Probe System·················································································· 7 4.3 Phantom···················································································································· 9 4.4 Brain & Muscle Simulating Mixture Characterization ···········································10 4.5 Device Holder for Transmitters··············································································· 11 4.6 Validation Dipole ···································································································· 11 5. SAR MEASUREMENT PROCEDURE········································································· 12 6. DEFINITION OF REFERENCE POINT········································································ 13 6.1 EAR Reference Point······························································································ 13 6.2 Handset Reference Points······················································································ 14 7. TEST CONFIGURATION POSITIONS········································································ 15 7.1 Positioning for Cheek/Touch··················································································· 15 7.2 Positioning for Ear / 15 ° Tilt···················································································· 16 7.3 Body Holster /Belt Clip Configuration······························································· 17 8. MEASUREMENT UNCERTAINTY··············································································· 18 9. ANSI/IEEE C95.1–2005 RF EXPOSURE LIMITS ····················································· 19 10. SYSTEM VERIFICATION··························································································· 20 11. SAR Evaluation Considerations for Handsets with Multiple Transmitters and Antennas ···································································································································· 23 12. RF CONDUCTED POWER ····················································································· 24 13. MEASUREMENT RESULTS ································································································· 25 14. TEST EQUIPMENT ············································································································ 27 15. REFERENCES············································································································ 28 APPENDIX A: Validation Test Data······································································ 29 APPENDIX B: SAR Test Data··············································································· 35 APPENDIX C: Calibration Certificates································································· 60 MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-126 Page 3 of 85 MCCL 1.TEST RESULT SUMMARY Maximum Results Found During SAR Evaluation 1. Head Configuration 2. Body Worn Configuration 3. Measurement Uncertainty ANSI / IEEE C95.1(2005) - SAFETY LIMIT Spatial Peak Uncontrolled Exposure/General Population 1.6 W/kg averaged over 1 gram ANSI / IEEE C95.1(2005) - SAFETY LIMIT Spatial Peak Uncontrolled Exposure/General Population 1.6 W/kg averaged over 1 gram Model Name(s) : LG-C310, C310 Date of Test : July 07 ~ 08, 2010 Date of Issue : July 20, 2010 Address of Test Site :60-39, Kasan-Dong, Kumchon-Gu, Seoul 153-801, Korea. Responsible…

Text truncated - open the document above for the full version.

MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-126 Page 61 of 85 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-126 Page 62 of 85 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-126 Page 63 of 85 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-126 Page 64 of 85 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-126 Page 65 of 85 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-126 Page 66 of 85 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-126 Page 67 of 85 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-126 Page 68 of 85 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-126 Page 69 of 85 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-126 Page 70 of 85 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-126 Page 71 of 85 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-126 Page 72 of 85 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-126 Page 73 of 85 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-126 Page 74 of 85 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-126 Page 75 of 85 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-126 Page 76 of 85 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-126 Page 77 of 85 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-126 Page 78 of 85 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-126 Page 79 of 85 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-126 Page 80 of 85 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-126 Page 81 of 85 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-126 Page 82 of 85 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-126 Page 83 of 85 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-126 Page 84 of 85 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-126 Page 85 of 85 MCCL

Report Number: F690501/RF-RTL004013 Page: 2 of 29 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com INDEX TABLE OF CONTENTS Page 1. General Information ----------------------------------------------------------------------------- 3 2. RF radiated output power & spurious radiated emission -------------------------------- 7 3. Conducted Output Power ----------------------------------------------------------------------- 13 4. Occupied Bandwidth 99 % --------------------------------------------------------------------- 15 5. Spurious Emissions At Antenna Terminal--------------------------------------------------- 20 6. Band Edge ------------------------------------------------------------------------------------------ 24 7. Frequency Stability ------------------------------------------------------------------------------ 27 Report Number: F690501/RF-RTL004013 Page: 3 of 29 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 1. General information 1.1. Testing laboratory SGS Testing Korea Co., Ltd. - 705, Dongchun-Dong Sooji-Gu, Yongin-Shi, Kyungki-Do, South Korea. - Wireless Div. 2FL, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 www.electrolab.kr.sgs.com Telephone : +82 +31 428 5700 FAX : +82 +31 427 2371 1.2. Details of applicant Applicant :LG Electronics Inc. Address :60-39, Gasan-dong, Gumchon-gu, Seoul, 153-023, Korea Contact Person :Kim Hyeon Kyun Phone No. :+82 +2 2033 1113 1.3. Description of EUT Kind of Product Cellular/PCS GSM Phone with Bluetooth Model Name LG-C310(Additional model name: C310) Serial Number N/A Power Supply DC 3.7 V (Li-poly Battery) Rated Power GSM850 : 33.00 ㏈m GSM1900 : 30.00㏈m Frequency Range GSM850 : 824.2 ㎒ ~ 848.8 ㎒ GSM1900 : 1 850.2 ㎒ ~ 1 909.8 ㎒ Bluetooth : 2 402 ㎒ ~ 2480 ㎒ Number of Channels GSM850 : 125 GSM1900 : 300 Bluetooth : 79 Class of GPRS Class 12 1.4 Declarations by the manufacturer - EDGE mode: RX only Report Number: F690501/RF-RTL004013 Page: 4 of 29 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 1.5. Description of test mode (SIM 1) GPRS Data GPRS GPRS GPRS GPRS Voice GSM 1 TX Slot 2 TX Slot 3 TX Slot 4 TX Slot Band Frequency (MHz) (dBm) (dBm) (dBm) (dBm) (dBm) 824.2 32.35 32.38 30.54 28.49 26.47 836.6 32.45 32.42 30.63 28.57 26.51 GSM 850 848.8 32.51 32.50 30.65 28.61 26.60 1850.2 29.30 29.28 27.73 27.71 25.72 1880.0 29.21 29.20 27.70 27.66 25.68 GSM 1900 1909.8 29.17 29.16 27.69 27.64 25.65 (SIM 2) GPRS Data GPRS GPRS GPRS GPRS Voice GSM 1 TX Slot 2 TX Slot 3 TX Slot 4 TX Slot Band Frequency (MHz) (dBm) (dBm) (dBm) (dBm) (dBm) 824.2 32.40 32.38 30.56 28.50 26.45 836.6 32.46 32.45 30.65 28.58 26.52 GSM 850 848.8 32.51 32.51 30.66 28.60 26.60 1850.2 29.29 29.28 27.71 27.70 25.70 1880.0 29.21 29.20 27.66 27.65 25.68 GSM 1900 1909.8 29.15 29.15 27.65 27.62 25.61 GSM (850 / 1900) We found out the test mode with the highest power level after we analyze all the data rates. So we chose SIM 2 GSM850 &1900 Voice (worst case) as a representative. Report Number: F690501/RF-RTL004013 Page: 5 of 29 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 1.6. Test equipment list Equipment Manufacturer Model Cal Due. Signal Generator Agilent E4438C Mar. 31, 2011 Signal Generator Rohde & Schwarz SMR40 Sep. 25, 2010 Spectrum Analyzer Rohde & Schwarz FSV30 Mar. 31, 2011 Mobile Test Unit Rohde & Schwarz CMU200 Sep. 28, 2010 Directional Coupler Narda 4226-20 Jan. 07, 2011 High Pass Filter Wainwright WHK3.0/18G-10SS Sep. 29, 2010 Band Reject Filter Wainwright WRCG824/849-814/85 960/10SS Apr. 01, 2011 DC power Supply Agilent U8002A Jan. 06, 2011 Preamplifier H.P. 8447F Jul. 05, 2011 Preamplifier Empower RF Systems,Inc2002-BBS2C4AEL Mar. 31, 2011 Test Receiver R & S ESU26 Apr. 08, 2011 Bilog Antenna SCHWARZBECK MESSELEKTRONIK VULB9163 Jul. 22, 2010 Horn Antenna Rohde & Schwarz HF 906 Oct. 08, 2011 Dipole Antenna VHAP/UHAP 975/958 Oct. 10, 2011 Antenna Master EMCO 1050 N.C.R Turn Table Daeil EMC DI-1500 N.C.R Anechoic Chamber SY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) Jan. 27, 2011 Report Number: F690501/RF-RTL004013 Page: 6 of 29 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 1.7. Summary of test results The EUT has been tested according to the following specifications: APPLIED STANDARD : FCC Part 22, 24 Section in FCC part Test Item Result §2.1046 §22.913(a) §24.232(b) RF Radiated Output Power Complied §2.1053 §22.917(e) §24.238(a) Spurious Radiated Emission Complied §2.1046(a) Conducted Output Power Complied §2.1049(h) (i) Occupied Band…

Text truncated - open the document above for the full version.

Model : LG-C310 Test setup photo of EUT Model : LG-C310 A. Photo of Radiated output power & Spurious Emission Test (FREQUENCY: 1 GHz ~ 18 GHz) (FREQUENCY: 14 GHz ~ 40 GHz) Model : LG-C310 B. Photos of conducted power line test

MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222 Page 1 of 10 MCCL FCC ID : BEJC310 SAR Test Setup Photographs Figure 1 Right Head SAR Test Setup - Cheek Touch Position MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222 Page 2 of 10 MCCL Figure 2 Right Head SAR Test Setup - Ear Tilt Position MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222 Page 3 of 10 MCCL Figure 3 Left Head SAR Test Setup - Cheek Touch Position MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222 Page 4 of 10 MCCL Figure 4 Left Head SAR Test Setup - Ear Tilt Position MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222 Page 5 of 10 MCCL Figure 5 Body SAR Test Setup – w/o Holster MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222 Page 6 of 10 MCCL Figure 6 Body SAR Test Setup – w/o Holster MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222 Page 7 of 10 MCCL Figure 8 DUT Photo MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222 Page 8 of 10 MCCL Figure 7 DUT Photo MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222 Page 9 of 10 MCCL Figure 9 DUT Photo MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222 Page 10 of 10 MCCL Figure 10 DUT Photo
