BEJCG180Cellular/PCS GSM Phone

LG Electronics USA, Inc.

Click to zoom

Application Details

Equipment Class: PCE - PCS Licensed Transmitter held to ear
Date of Grant: Jul 01, 2007
Application Purpose: Original Equipment
Date of Application: Jun 27, 2007
Equipment Note: Cellular/PCS GSM Phone
Frequency Range: 1850.20000000 - 1909.80000000
Company: LG Electronics USA, Inc.
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

CG180 User Guide CG180_Eng_0516 5/16/07 2:12 PM Page 1 Part 15.21 statement " Change or Modifications that are not expressly approved by the manufacturer could void the user's authority to operate the equipment. " Part 15.105 statement This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. if this equipment does cause harmful interference or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected - Consult the dealer or an experienced radio/TV technician for help. LIMITED WARRANTY STATEMENT 1. WHAT THIS WARRANTY COVERS: LG offers you a limited warranty that the enclosed subscriber unit and its enclosed accessories will be free from defects in material and workmanship, according to the following terms and conditions: (1) The limited warranty for the product extends for ONE (1) year beginning on the data of purchase of the product. (2) The limited warranty extends on to the original purchaser of the product and is not assignable or transferable to any subsequent purchaser/end user. (3) This warranty is good only to the original purchaser of the product during the warranty period as long as it is in the U.S., including Alaska, Hawaii, U.S. Territories and Canada. (4) The external housing and cosmetic parts shall not be covered under these limited warranty terms. (5) Upon request from LG, the consumer must provide information to reasonably prove the date of purchase. (6) The customer shall bear the cost of shipping the product to the Customer Service Department of LG. LG shall bear the cost of shipping the product back to the consumer after the completion of service under this limited warranty. 2. WHAT THIS WARRANTY DOES NOT COVER: (1) Defects or damages resulting from use of the product in other than its normal and customary manner. (2) Defects or damages from abnormal use, abnormal conditions, improper storage, exposure to moisture or dampness, unauthorized modifications, unauthorized connections, unauthorized repair, misuse, neglect, abuse, accident, alteration, improper installation, or other acts which are not the fault of LG, including damage caused by shipping blown fuses spills of food or liquid. (3) Breakage or damage to antennas unless caused directly by defects in material or workmanship. (4) That the Customer Service Department at LG was net notified by consumer of the alleged defect or malfunction of the product during the applicable limited warranty period. (5) Products which have had the serial number removed or made illegible. (6) The limited warranty is in lieu of all other warranties, express or implied either in fact or by operations law, statutory or otherwise, including, but limited to any implied warranty of marketability or fitness for a particular use. (7) Damage resulting from use of non-LG approved accessories. (8) All plastic surfaces and all other externally exposed parts that are scratched or damaged due to normal customer use. (9) Products operated outside published maximum ratings. 3 (10) Products used or obtained in a rental program. (11) Consumables (such as fuses). 3. STATE LAW RIGHTS: No other express warranty is applicable to this product. THE DURATION OF ANY IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTY OF MARKETABILITY, IS LIMITED TO THE DURATION OF THE EXPRESS WARRANTY HEREIN. LG INFOCOMM INC. SHALL NOT BE LIABLE FOR THE LOSS OF THE USE OF THE PRODUCT, INCONVENIENCE, LOSS OR ANY OTHER DAMAGES, DIRECT OR CONSEQUENTIAL, RISING OUT OF THE USE OF, OR INABILITY TO USE, THIS PRODUCT OR FOR ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING THE IMPLIED WARRANTY OF MARKETABILITY APPLICABLE TO THIS PRODUCT. Some states do not allow the exclusive of imitation of incidental or consequential damages or limitations on how long an implied warranty lasts; so these limitations or exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state. 4. HOW TO GET WARRANTY SERVICE: To obtain warranty service, please call the following web address: www.lgeservice.com 8 For Your Safety Important Information This user guide contains important information on the use and operation of this phone. Please read all the information carefully for optimal performance and to prevent any damage to or misuse of the phone. Any changes or modifications not expressly approved in this user guide could void your warranty for this equipment. Before You Start Safety Instructions WARNING!To reduce the possibility of electric shock, do not expose your phone to high humidity areas, such as the bathroom, swimming pool, etc. Always store your phone away from heat.Never store your phone in settings that may expose it to temperatures less than 32°F or greater than 104°F, such as outside during extreme weather conditions or in your car on a hot day. Exposure to excessive cold or heat will result in malfunction, damage and/or catastrophic failure. Be careful when using your phone near other electronic devices.RF emissions from your mobile phone may affect nearby in adequately shielded electronic equipment. You should consult with manufacturers of any personal medical devices such as pacemakers and hearin…

Text truncated - open the document above for the full version.

Cover Letter(s)

LG Electronics Inc. 60-39, Gasan-dong, Gumchon-gu Seoul 153-801, Korea Tel: 82-2-2033-1110, Fax: 82-2-2033-1222 Date: June 14, 2007 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: BEJCG180 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Electronics Inc. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Electronics Inc. temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagrams 2 Operational Description 3 Parts List and Tune Up Procedure CONFIDENTIAL 4 Schematics 5 External Photos 6 Internal Photos 7 Test Setup Photos SHORT-TERM CONFIDENTIAL 8 User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, E.S.Park Manager Mobile Handset R&D Center Mobile Communications Company LG Electronics Inc.

Cover Letter(s)

From: 한봉효 [[email protected]] Sent: Wednesday, June 27, 2007 7:14 PM To: PCTEST TCB Cc: PCTEST - Gregory Czumak; PCTEST - Randy Ortanez; PCTEST - Steve Liu; PCTEST - Mia Kang; PCTEST - Channy Park; 'espark'; 윤수권 Subject: Re: Question Regarding FCC ID: BEJCG180 Page 1 of 2 6/28/2007 Yes, Gregory! This EUT doesn't support GPRS class 12, just spports Class 10. Thank you! Best regards Han. ----- Original Message ----- From: PCTEST TCB To: LGE - Bong Hyo, Han Cc: PCTEST - Gregory Czumak ; PCTEST - Randy Ortanez ; PCTEST - Steve Liu ; PCTEST - Mia Kang ; PCTEST - Channy Park Sent: Thursday, June 28, 2007 6:30 AM Subject: Question Regarding FCC ID: BEJCG180 To: Mr. Bong Hyo Han / LG Electronics Inc. From: Mr. Gregory Czumak / PCTEST TCB RE: FCC ID: BEJCG180 Applicant: LG Electronics Inc. Correspondence Reference Number: BEJ7534 Confirmation Number: 706140534-35 Date of Original Email: June 27, 2007 Subject: Request for additional information In regards to your recent TCB application referenced above, we kindly request that you provide the following additional information. 1. The Operational Description lists GPRS Class 12, but only Class 10 was tested for body SAR. Please verify that Class 12 operation is not available to the EUT at its full output power level. The items indicated above must be submitted before processing can continue on the above referenced application. Sincerely, Gregory Czumak Quality Manager Senior Certification Engineer PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road Columbia, MD 21045 410-290-6652 410-290-6654 (Fax) [email protected] This communication and its attachments contain information from PCTEST Engineering Laboratory, Inc., and is intended for the exclusive use of the recipient (s) named above. It may contain information that is confidential and/or legally privileged. Any unauthorized use that may compromise that confidentiality via distribution or disclosure is prohibited. Please notif y the sender immediately if you receive this communication in error, and delete it from your computer system. Usage of PCTEST email addresses for non-business related activities is strictly prohibited. No warranty is made that the e-mail or attachment(s) are free from computer virus or other defect. Thank you. Page 2 of 2 6/28/2007

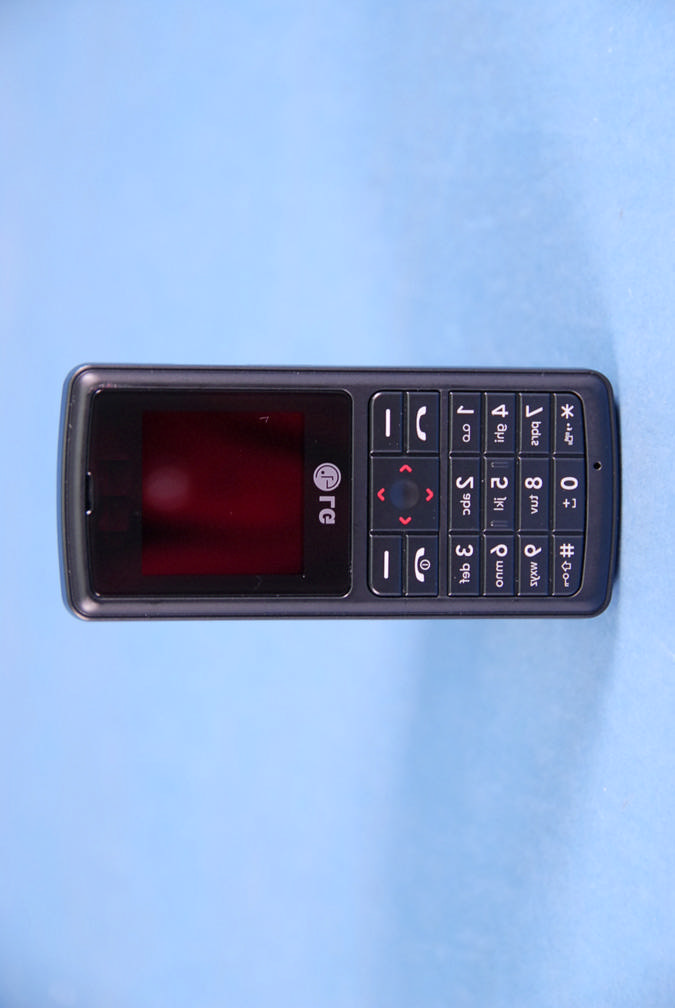

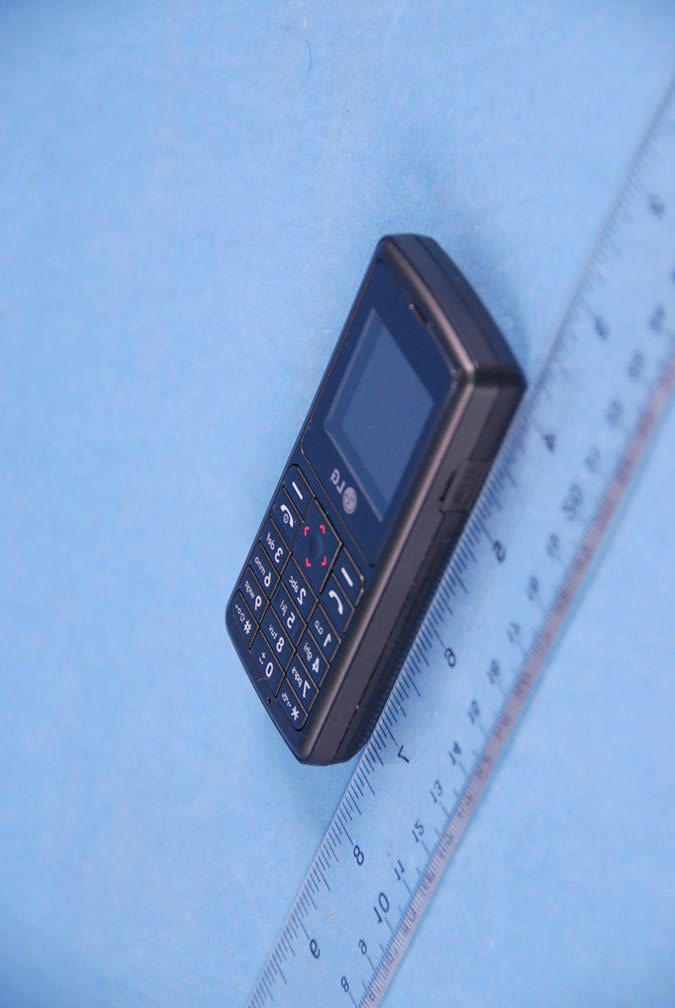

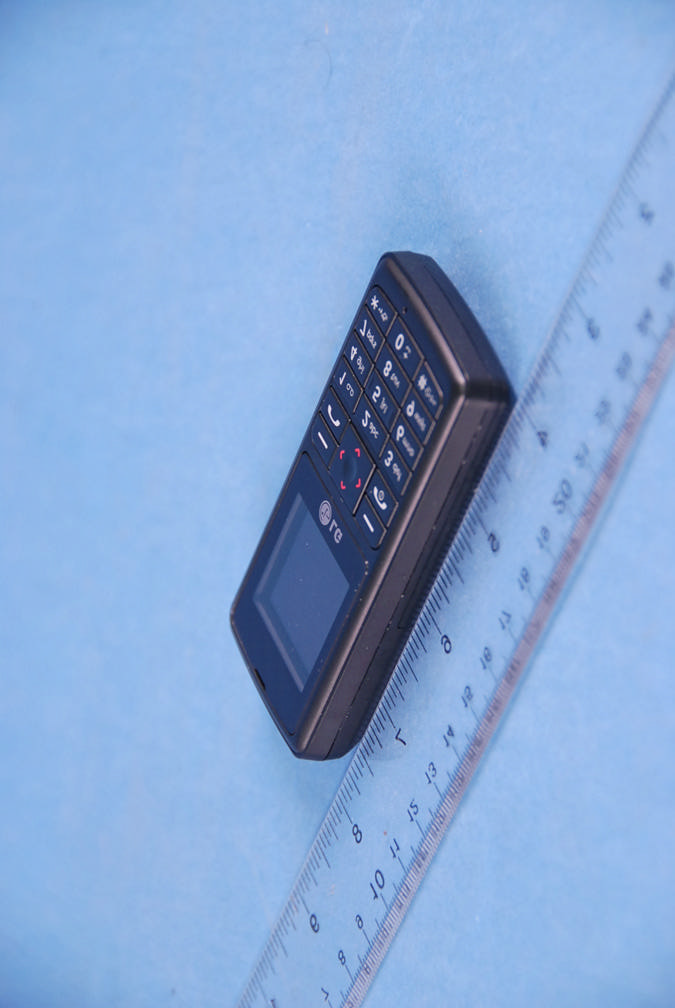

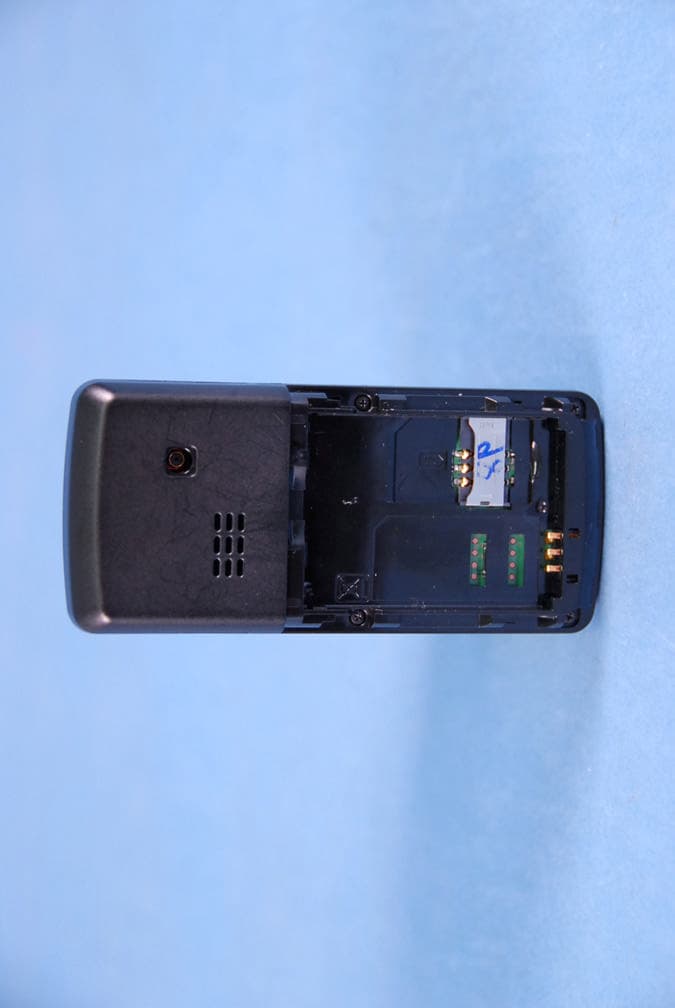

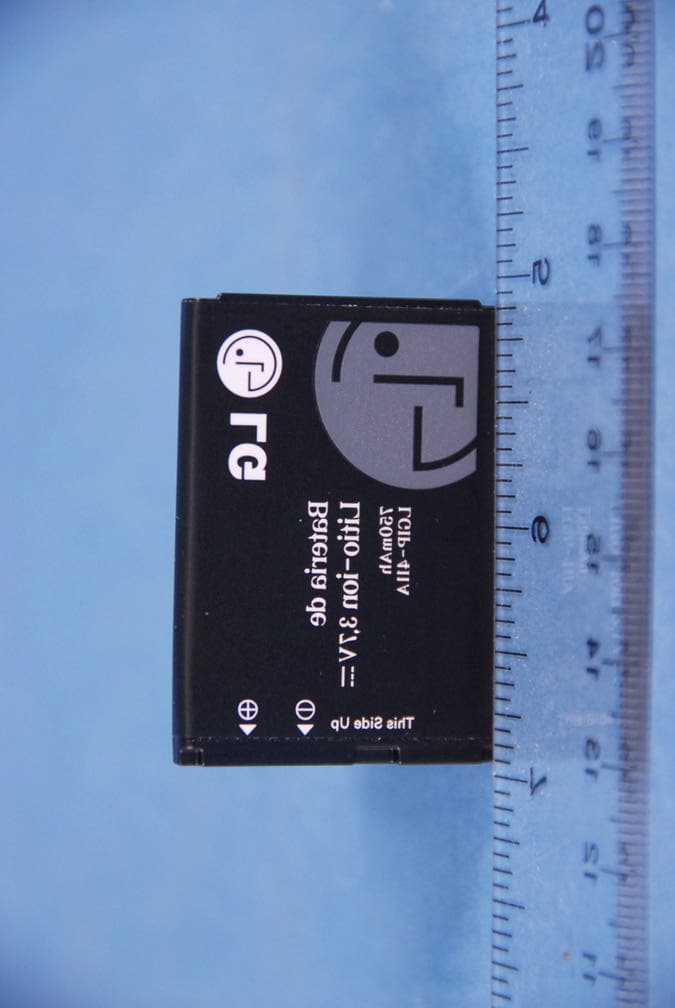

External Photos

LG FCC ID: BEJCG180 EUT Photographs © 2007 PCTEST Lab. 850/1900 GSM/GPRS Phone Model: CG180 LG FCC ID: BEJCG180 EUT Photographs © 2007 PCTEST Lab. 850/1900 GSM/GPRS Phone Model: CG180 LG FCC ID: BEJCG180 EUT Photographs © 2007 PCTEST Lab. 850/1900 GSM/GPRS Phone Model: CG180 LG FCC ID: BEJCG180 EUT Photographs © 2007 PCTEST Lab. 850/1900 GSM/GPRS Phone Model: CG180 LG FCC ID: BEJCG180 EUT Photographs © 2007 PCTEST Lab. 850/1900 GSM/GPRS Phone Model: CG180 LG FCC ID: BEJCG180 EUT Photographs © 2007 PCTEST Lab. 850/1900 GSM/GPRS Phone Model: CG180

ID Label/Location Info

LG Electronics Inc. LG Electronics Inc. LGE Model No : CG180 FCC ID : BEJCG180 S/N : Made in Korea

Internal Photos

RF Exposure Info

Reviewed by: FCC ID: BEJCG180 CERTIFICATION REPORT Quality Manager SAR Filename: Test Dates: EUT Type: 0706140601.BEJ 06/19/07 - 06/21/07 850/1900 GSM/GPRS Phone Page 1 of 23 © 2007 PCTEST Engineering Laboratory, Inc. REV 4.3G 03/22/07 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 06/19/07 - 06/21/07 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0706140601.BEJ FCC ID: BEJCG180 APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. EUT Type: 850/1900 GSM/GPRS Phone Application Type: Certification FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] FCC Classification: Licensed Transmitter Held to Ear (PCE) Model(s): CG180 Tx Frequency: 824.20 - 848.80 MHz (Cellular GSM) / 1850.20 - 1909.80 MHz (GSM PCS) Conducted Power: 32.8 dBm GSM / 29.1 dBm PCS Max. SAR Measurement: 1.17 W/kg GSM850 Head SAR / 1.03 W/kg GPRS850 Body SAR 1.13 W/kg GSM1900 Head SAR / 1.09 W/kg GPRS1900 Body SAR Test Device Serial No.: Pre-Production [S/N: SAR #1] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-2005 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-2003. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body-worn operating configuration is based on a separation distance of 2.0 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters not specified in this filing may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Reviewed by: FCC ID: BEJCG180 CERTIFICATION REPORT Quality Manager SAR Filename: Test Dates: EUT Type: 0706140601.BEJ 06/19/07 - 06/21/07 850/1900 GSM/GPRS Phone Page 2 of 23 © 2007 PCTEST Engineering Laboratory, Inc. REV 4.3G 03/22/07 TABLE OF CONTENTS 1 INTRODUCTION....................................................................................................................3 2 TEST SITE LOCATION...........................................................................................................4 3 SAR MEASUREMENT SETUP................................................................................................5 4 DASY E-FIELD PROBE SYSTEM............................................................................................7 5 PROBE CALIBRATION PROCESS..........................................................................................8 6 PHANTOM AND EQUIVALENT TISSUES................................................................................9 7 DOSIMETRIC ASSESSMENT & PHANTOM SPECS..............................................................10 8 DEFINITION OF REFERENCE POINTS................................................................................11 9 TEST CONFIGURATION POSITIONS...................................................................................12 10 ANSI/IEEE C95.1-2005 RF EXPOSURE LIMITS....................................................................14 11 MEASUREMENT UNCERTAINTIES......................................................................................15 12 SYSTEM VERIFICATION......................................................................................................16 13 SAR DATA SUMMARY.........................................................................................................17 14 EQUIPMENT LIST................................................................................................................20 15 CONCLUSION.....................................................................................................................21 16 REFERENCES.....................................................................................................................22 Reviewed by: FCC ID: BEJCG180 CERTIFICATION REPORT Quality Manager SAR Filename: Test Dates: EUT Type: 0706140601.BEJ 06/19/07 - 06/21/07 850/1900 GSM/GPRS Phone Page 3 of 23 © 2007 PCTEST Engineering Laboratory, Inc. REV 4.3G 03/22/07 1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency (RF) radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-2005 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 2005 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-2002 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used for guidance in measuring the Specific Absorption Rate (SAR) due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria for S…

Text truncated - open the document above for the full version.

RF Exposure Info

PCTEST ENGINEERING LABORATORY, INC. DUT: LGE Model: CG180; Type: 850/1900 GSM-GPRS Phone; Serial No: SAR #1 Communication System: GSM850; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium: 835 Brain (σ = 0.91 mho/m, ε r = 41.55, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 06 -19-2007; Ambient Temp: 23.5° C; Tissue Temp: 21.4 °C Probe: EX3DV4 - SN3561; ConvF(7.94, 7.94, 7.94); Calibrated: 11/23/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 1/23/2007 Phantom: SAM Main; Type: SAM 4.0; Serial: TP-1114 Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Mode: GSM850, Right Head, Touch, Mid.ch Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 28.4 V/mdB Peak SAR (extrapolated) = 1.57 W/kg SAR(1 g) = 1.17 mW/g; SAR(10 g) = 0.800 mW/g 0 dB = 1.33mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: LGE Model: CG180; Type: 850/1900 GSM-GPRS Phone; Serial No: SAR #1 Communication System: GSM850; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium: 835 Brain (σ = 0.91 mho/m, ε r = 41.55, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 06 -19-2007; Ambient Temp: 23.5° C; Tissue Temp: 21.4 °C Probe: EX3DV4 - SN3561; ConvF(7.94, 7.94, 7.94); Calibrated: 11/23/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 1/23/2007 Phantom: SAM Main; Type: SAM 4.0; Serial: TP-1114 Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Mode: GSM850, Right Head, Tilt, Mid.ch Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 21.2 V/m Peak SAR (extrapolated) = 0.644 W/kg SAR(1 g) = 0.484 mW/g; SAR(10 g) = 0.333 mW/g 0 dB = 0.550mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: LGE Model: CG180; Type: 850/1900 GSM-GPRS Phone; Serial No: SAR #1 Communication System: GSM850; Frequency: 848.8 MHz;Duty Cycle: 1:8.3 Medium: 835 Brain (σ = 0.91 mho/m, ε r = 41.55, ρ = 1000 kg/m 3 ) Phantom section: Left Section Test Date: 06-19-2007; Ambient Temp: 23.5°C; Tissue Temp: 21.4°C Probe: EX3DV4 - SN3561; ConvF(7.94, 7.94, 7.94); Calibrated: 11/23/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 1/23/2007 Phantom: SAM Main; Type: SAM 4.0; Serial: TP-1114 Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Mode: GSM850, Right Head, Touch, High.ch Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 26.8 V/m Peak SAR (extrapolated) = 1.49 W/kg SAR(1 g) = 1.11 mW/g; SAR(10 g) = 0.762 mW/g 0 dB = 1.26mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: LGE Model: CG180; Type: 850/1900 GSM-GPRS Phone; Serial No: SAR #1 Communication System: GSM850; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium: 835 Brain (σ = 0.91 mho/m, ε r = 41.55, ρ = 1000 kg/m 3 ) Phantom section: Left Section Test Date: 06-19-2007; Ambient Temp: 23.5°C; Tissue Temp: 21.4°C Probe: EX3DV4 - SN3561; ConvF(7.94, 7.94, 7.94); Calibrated: 11/23/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 1/23/2007 Phantom: SAM Main; Type: SAM 4.0; Serial: TP-1114 Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Mode: GSM850, Right Head, Tilt, Mid.ch Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 22.0 V/m Peak SAR (extrapolated) = 0.738 W/kg SAR(1 g) = 0.549 mW/g; SAR(10 g) = 0.377 mW/g 0 dB = 0.625mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: LGE Model: CG180; Type: 850/1900 GSM-GPRS Phone; Serial No: SAR #1 Communication System: GSM1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium: 1900 Brain (σ = 1.42 mho/m, ε r = 40.36, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 06 -20-2007; Ambient Temp: 23.7° C; Tissue Temp: 21.3 °C Probe: EX3DV4 - SN3561; ConvF(6.99, 6.99, 6.99); Calibrated: 11/23/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 1/23/2007 Phantom: SAM Main; Type: SAM 4.0; Serial: TP-1114 Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Mode: GSM1900, Right Head, Touch, Mid.ch Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 21.2 V/m Peak SAR (extrapolated) = 1.59 W/kg SAR(1 g) = 0.993 mW/g; SAR(10 g) = 0.568 mW/g 0 dB = 1.20mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: LGE Model: CG180; Type: 850/1900 GSM-GPRS Phone; Serial No: SAR #1 Communication System: GSM1900; Frequency: 1909.8 MHz;Duty Cycle: 1:8.3 Medium: 1900 Brain (σ = 1.42 mho/m, ε r = 40.36, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 06 -20-2007; Ambient Temp: 23.7° C; Tissue Temp: 21.3 °C Probe: EX3DV4 - SN3561; ConvF(6.99, 6.99, 6.99); Calibrated: 11/23/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 1/23/2007 Phantom: SAM Main; Type: SAM 4.0; Serial: TP-1114 Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Mode: GSM1900, Right Head, Tilt, High.ch Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 23.9 V/m Peak SAR (extrapolated) = 1.75 W/kg SAR(1 g) = 1.02 mW/g; SAR(10 g) = 0.554 mW/g 0 dB = 1.27mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: LGE Model: CG180; Type: 850/1900 GSM-GPRS Phone; Serial No: SAR #1 Communication System: GSM1900; Frequency: 1909.8 MHz;Duty Cycle: 1:8.3 Medium: 1900 Brain (σ = 1.42 mho/m, ε r = 40.36, ρ = 1000 kg/m 3 ) Phantom section: Left Section Test Date: 06 -20-2007; Ambient Temp: 23.7° C; Tissue Temp: 21.3 °C Probe: EX3DV4 - SN3561; ConvF(6.99, 6.99, 6.99); Calibrated: 11/23/2006 Sensor-Sur…

Text truncated - open the document above for the full version.

RF Exposure Info

PCTEST ENGINEERING LABORATORY, INC. DUT: D835V2; Type: 835MHz SAR Validation Dipole ; Serial: 4d047 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: 835 Brain (σ = 0.91 mho/m, ε r = 41.55, ρ = 1000 kg/m 3 ) Phantom section: Flat Section Test Date: 06-19-2007; Ambient Temp: 23.5°C; Tissue Temp: 21.4°C Probe: EX3DV4 - SN3561; ConvF(7.94, 7.94, 7.94); Calibrated: 11/23/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 1/23/2007 Phantom: SAM Main; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 835MHz Dipole Validation Area Scan (7x13x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Input Power = 24.0 dBm (250 mW) SAR(1 g) = 2.42 mW/g; SAR(10 g) = 1.6 mW/g Target SAR(1g) = 2.29 mW/g; Deviation = +5.68 % 0 dB = 2.82mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: D1900V2; Type: 1900MHz SAR Validation Dipole; Serial: 5d080 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: 1900 Brain (σ = 1.42 mho/m, ε r = 40.36, ρ = 1000 kg/m 3 ) Phantom section: Flat Section Test Date: 06-20-2007; Ambient Temp: 23.7°C; Tissue Temp: 21.3°C Probe: EX3DV4 - SN3561; ConvF(6.99, 6.99, 6.99); Calibrated: 11/23/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 1/23/2007 Phantom: SAM Sub; Type: SAM 4.0; Serial: TP:1357 Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 1900MHz Dipole Validation Area Scan (5x7x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Input Power = 20.0 dBm (100 mW) SAR(1 g) = 3.94 mW/g; SAR(10 g) = 2.18 mW/g Target SAR(1g) = 3.77 mW/g; Deviation = +4.51 % 0 dB = 4.76mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: D835V2; Type: 835MHz SAR Validation Dipole ; Serial: 4d047 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: 835 Brain (σ = 0.91 mho/m, ε r = 41.55, ρ = 1000 kg/m 3 ) Phantom section: Flat Section Test Date: 06 -21-2007; Ambient Temp: 23.8° C; Tissue Temp: 21.5 °C Probe: EX3DV4 - SN3561; ConvF(7.94, 7.94, 7.94); Calibrated: 11/23/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 1/23/2007 Phantom: SAM Main; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 835MHz Dipole Validation Area Scan (7x13x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Input Power = 24.0 dBm (250 mW) SAR(1 g) = 2.45 mW/g; SAR(10 g) = 1.61 mW/g Target SAR(1g) = 2.29 mW/g; Deviation = +6.99 % 0 dB = 2.86mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: D1900V2; Type: 1900MHz SAR Validation Dipole; Serial: 5d080 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: 1900 Brain (σ = 1.42 mho/m, ε r = 40.36, ρ = 1000 kg/m 3 ) Phantom section: Flat Section Test Date: 06 -22-2007; Ambient Temp: 23.8° C; Tissue Temp: 21.5 °C Probe: EX3DV4 - SN3561; ConvF(6.99, 6.99, 6.99); Calibrated: 11/23/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 1/23/2007 Phantom: SAM Sub; Type: SAM 4.0; Serial: TP:1357 Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 1900MHz Dipole Validation Area Scan (5x7x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Input Power = 20.0 dBm (100 mW) SAR(1 g) = 3.97 mW/g; SAR(10 g) = 2.32 mW/g Target SAR(1g) = 3.77 mW/g; Deviation = +5.31 0 dB = 4.91mW/g

RF Exposure Info

Text truncated - open the document above for the full version.

Contact Information

Applicant

David Kim(Team leader, LGEUS NA Policy & Regulatory Affairs)

[email protected]201-470-2696Fax: 201-816-2003

Technical Contact

PCTEST Engineering Lab., Inc.Randy Ortanez

[email protected]410-290-6652

6660-B Dobbin Road · Columbia, Maryland · United States

Test Firm

PCTEST Engineering Laboratory, Inc.Randy Ortanez

[email protected]410-290-6652Fax: 410-290-6654

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
2	24E	1.85 GHz - 1.91 GHz	692.00 mW	242KGXW	2.5 ppm

Confidentiality

Long Term

Grant Notes

Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body-worn operation is based on a separation distance of 2.0 cm between the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters not listed in this filing may not contain metallic components. The highest reported SAR values are: Part 22 - Head: 1.17 W/kg; Body-worn: 1.03 W/kg; Part 24 - Head: 1.13 W/kg; Body-worn: 1.09 W/kg.
