BEJDM150Dual-Mode Cellular Phone (AMPS/CDMA)

LG Electronics USA, Inc.

Click to zoom

Application Details

Equipment Class: TNE - Licensed Non-Broadcast Transmitter Held to Ear
Date of Grant: Apr 30, 2001
Application Purpose: Original Equipment
Date of Application: Mar 28, 2001
Equipment Note: Dual-Mode Cellular Phone (AMPS/CDMA)
Frequency Range: 824.70000000 - 848.31000000
Company: LG Electronics USA, Inc.
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Attestation Statements

@ LG Electronics Inc.& January 10, 2001 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory, Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to the application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, General Manager of New York Office LG Electronics Inc. March 5. 2001 Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 In re : LG Electronics Inc. FCC ID: BEJDM150 Dual -Mode Cellular Phone (CDMA & AMPS) Part 22 Certification Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, LG Electronics, Inc. hereby requests confidentiality of the Block Diagrams attachment, Schematic Diagrams & Circuit Description attachment, Operational Description attachment, and Parts List/Tune-Up Procedure attachment for the above-referenced Type Acceptance application. These documents contain detailed system and equipment description and related information about the product which LG Electronics Inc. Considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, LG Electronics Inc. considers this information to be of benefit to its competitors, such that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, E.S.Park Research Engineer CDMA Handset Lab LG Electronics Inc. Tel : 82-2-850-3861 Fax : 82-2-850-3855 http://[email protected] 459-9, Kasan-dong,Kemchun-ku Seoul 153-023, Korea LG Electronics Inc. LGE LGE LG Electronics Inc.& 459-9,Kasan-dong,Kemchun-ku Seoul 153-023,Korea Tel: 82-2-850-3861 Fax:82-2-850-3861 E-mail :[email protected] March 6, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: LG Information & Communications, Ltd. FCC ID: BEJDM150 FCC E911 Requirements Per S22.921 Gentlemen: LG Information & Communications, Ltd. hereby certifies that the analog cellular telephone (FCC ID:BEJDM150, using the Automatic A/B Roaming - Intelligent Retry method, meets the E911 requirements specified in Section 22.921 of the FCC Rules. This procedure recognizes when a "9-l-l" call is made and, at such time, will override any programming in the mobile unit that determines the handling of a non-911 call and permit the call to be handled by other analog carriers. Should you have any questions or comments concerning the above, please contact the undersigned. E.S.Park Research Engineer Communication Terminal Research Lab LG Electronics Inc. AFFIDAVIT FOR ESN PROTECTION OF CELLULAR MOBILE TELEPHONES We hereby certify that the LGE Handheld Portable Cellular Telephone (FCC ID: BEJDM150) is so designed that it complies with all the requirements for ESN protection specified in section 22.919 of the FCC Rules. A) The transmitter in service has a unique ESN. B) The ESN host component is permanently attached to a main circuit board of the mobile transmitter and the integrity of the unit operating software cannot be altered. The ESN is plated from fraudulent contact and tampering. The ESN is encoded using multiplication by a polynomial and the ESN data programmed in the memory with other information. C) The ESN is factory-set and cannot be altered, transferred, removed or otherwise able to be manipulated. Cellular mobile equipment is specifically designed such that any attempt to remove, tamper with, or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the mobile transmitter inoperative. Sincerely, E.S.Park Research Engineer CDMA Handset Lab LG Electronics Inc. Tel : 82-2-850-3861 Fax : 82-2-850-3855 http://[email protected] 459-9, Kasan-dong,Kemchun-ku Seoul 153-023, Korea LG Electronics Inc. LGE March 06, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: LG ELECTRONICS INC. FCC ID: BEJDM150 Users Manual RF Exposure Warning Statement Gentlemen: LG Electronics Inc. hereby confirms that the attached RF exposure warning page will be readily visible to the user, and will be placed at a prominent location in the front section of the users manual. If you have any further questions regarding this matter, please do not hesitate to contact me or PCTEST Lab at (410) 290-6652. Sincerely, E.S. Park Research Engineer CDMA Handset Lab. LG Electronics Inc. 459-9 Kasan-dong Kumchun-gu Seoul 153-023 Korea Tel : 82-2-850-3861 Fax : 82-2-850-3856 E_mail : [email protected] LGE LG Electronics Inc.

Cover Letter(s)

March 26, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: LG Electronics Inc. FCC ID: BEJDM150 Part 22 Certification Gentlemen: Submitted herewith, on behalf of LG Electronics Inc., is an application for Part 22 Certification of the following Dual-Mode Cellular Phone: FCC ID: BEJDM150 TRADE/MODEL(s): LGE LG-DM150 EUT TYPE: Dual-Mode Cellular Phone (AMPS/CDMA) Tx Freq. Range(s): 824.04 – 848.97 MHz (AMPS) 824.70 – 848.31 MHz (CDMA) Max. RF Output Power: 0.474 W ERP AMPS (26.754 dBm) / 0.371 W ERP CDMA (25.678 dBm) Max. SAR Measurement: 1.320 mW/g (1g) AMPS Head SAR; 1.250 mW/g (1g) CDMA Head SAR 0.673 mW/g (1g) AMPS Body SAR; 0.580 mW/g (1g) CDMA Body SAR Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, E911 compliance statement, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: Mr. Harris Ahn Principal Engineer Communication Terminal Research Lab, LGE

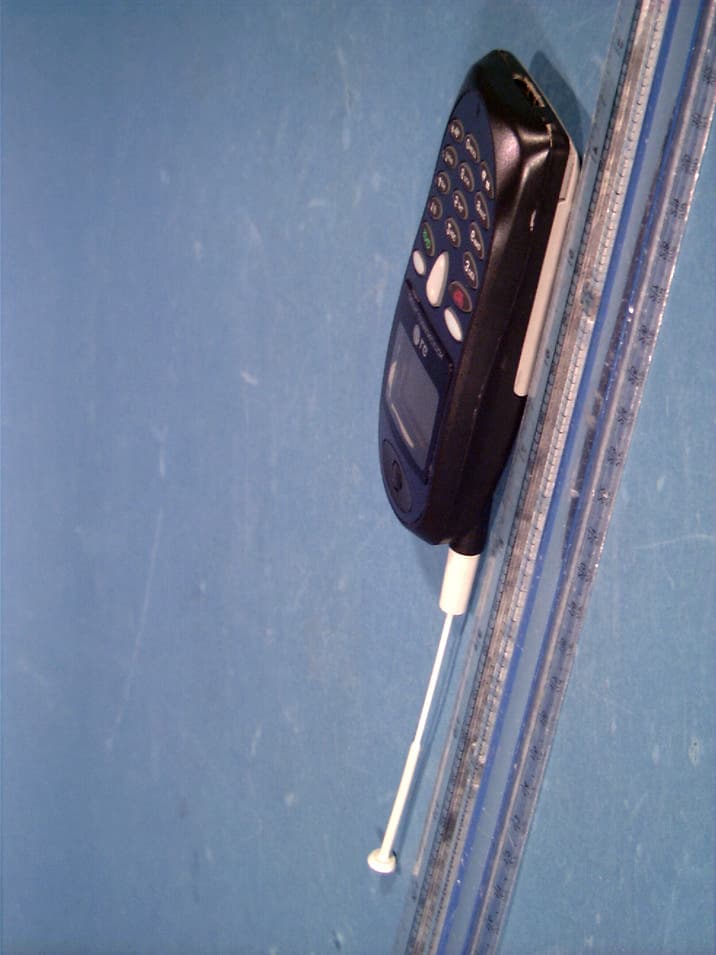

External Photos

ID Label/Location Info

© 2001 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) LGE LG Electronics Inc. Model No. : DM150 FCC ID : BEJDM150 S/N : Made in Korea

Internal Photos

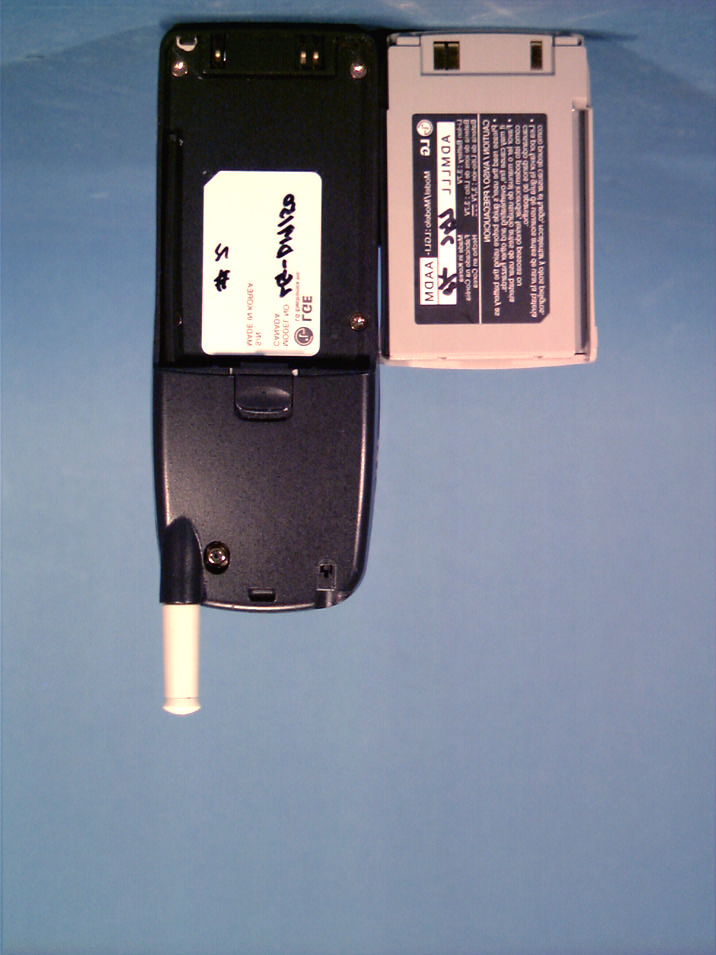

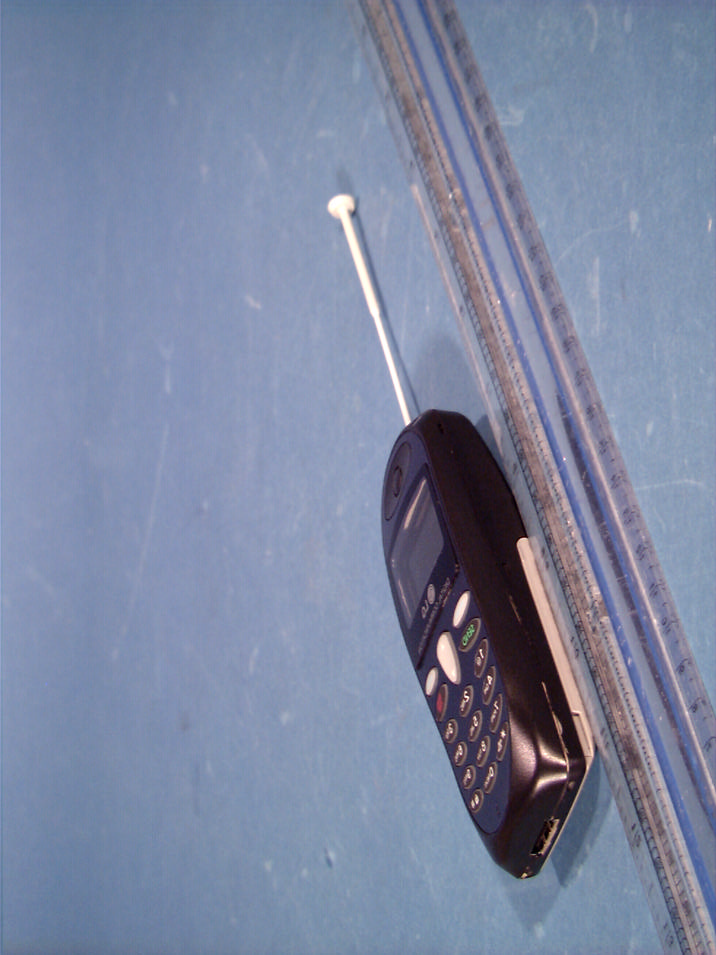

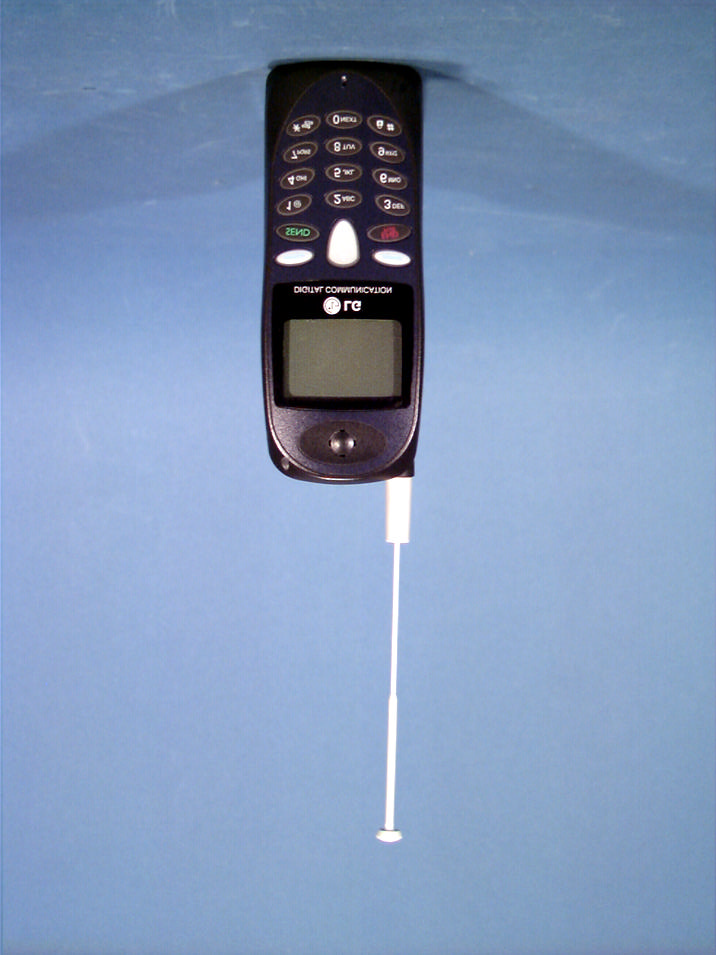

© 2001 PCTEST Lab LGE FCC ID: BEJDM150 (Model: LG-DM150) NVLAP Lab Code: 100431-0 Dual-Mode Cellular Phone (AMPS/CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJDM150 (Model: LG-DM150) NVLAP Lab Code: 100431-0 Dual-Mode Cellular Phone (AMPS/CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJDM150 (Model: LG-DM150) NVLAP Lab Code: 100431-0 Dual-Mode Cellular Phone (AMPS/CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJDM150 (Model: LG-DM150) NVLAP Lab Code: 100431-0 Dual-Mode Cellular Phone (AMPS/CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJDM150 (Model: LG-DM150) NVLAP Lab Code: 100431-0 Dual-Mode Cellular Phone (AMPS/CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJDM150 (Model: LG-DM150) NVLAP Lab Code: 100431-0 Dual-Mode Cellular Phone (AMPS/CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJDM150 (Model: LG-DM150) NVLAP Lab Code: 100431-0 Dual-Mode Cellular Phone (AMPS/CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJDM150 (Model: LG-DM150) NVLAP Lab Code: 100431-0 Dual-Mode Cellular Phone (AMPS/CDMA)

RF Exposure Info

LG ELECTRONICS FCC ID:BEJDM150 -- FM Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.576 mW/g, SAR (10g): 0.386 mW/g LGE Dual-Mode Model: LG-DM150 FM Mode, Ch.0991 (824.04MHz) Conducted Power = 26.0dBm Test Date -- 03/26/2001 SAR Tot [mW/g] 5.42E-2 1.63E-1 2.71E-1 3.79E-1 4.88E-1 PCTEST Engineering Laboratory, Inc. LG ELECTRONICS FCC ID:BEJDM150 -- FM Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.01 mW/g, SAR (10g): 0.684 mW/g LGE Dual-Mode Model: LG-DM150 FM Mode, Ch.0991 (824.04MHz) Conducted Power = 26.0dBm Test Date -- 03/26/2001 SAR Tot [mW/g] 9.93E-2 2.98E-1 4.97E-1 6.95E-1 8.94E-1 PCTEST Engineering Laboratory, Inc. LG ELECTRONICS FCC ID:BEJDM150 -- FM Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.789 mW/g, SAR (10g): 0.506 mW/g LGE Dual-Mode Model: LG-DM150 FM Mode, Ch.0383 (836.49MHz) Conducted Power = 26.0dBm Test Date -- 03/26/2001 SAR Tot [mW/g] 7.48E-2 2.24E-1 3.74E-1 5.24E-1 6.73E-1 PCTEST Engineering Laboratory, Inc. LG ELECTRONICS FCC ID:BEJDM150 -- FM Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.32 mW/g, SAR (10g): 0.873 mW/g LGE Dual-Mode Model: LG-DM150 FM Mode, Ch.0383 (836.49MHz) Conducted Power = 26.0dBm Test Date -- 03/26/2001 SAR Tot [mW/g] 1.26E-1 3.79E-1 6.32E-1 8.84E-1 1.14E+0 PCTEST Engineering Laboratory, Inc. LG ELECTRONICS FCC ID:BEJDM150 -- FM Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.785 mW/g, SAR (10g): 0.511 mW/g LGE Dual-Mode Model: LG-DM150 FM Mode, Ch.0799 (848.97MHz) Conducted Power = 26.0dBm Test Date -- 03/26/2001 SAR Tot [mW/g] 3.67E-2 1.10E-1 1.84E-1 2.57E-1 3.30E-1 PCTEST Engineering Laboratory, Inc. LG ELECTRONICS FCC ID:BEJDM150 -- FM Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.11 mW/g, SAR (10g): 0.754 mW/g LGE Dual-Mode Model: LG-DM150 FM Mode, Ch.0799 (848.97MHz) Conducted Power = 26.0dBm Test Date -- 03/26/2001 SAR Tot [mW/g] 9.85E-2 2.95E-1 4.92E-1 6.90E-1 8.87E-1 PCTEST Engineering Laboratory, Inc. LG ELECTRONICS FCC ID:BEJDM150 -- Cellular CDMA Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.693 mW/g, SAR (10g): 0.453 mW/g LGE Dual-Mode Model: LG-DM150 Cellular CDMA Mode, Ch.1013 (824.70MHz) Conducted Power = 25.0dBm Test Date -- 03/26/2001 SAR Tot [mW/g] 6.59E-2 1.98E-1 3.30E-1 4.61E-1 5.93E-1 PCTEST Engineering Laboratory, Inc. LG ELECTRONICS FCC ID:BEJDM150 -- Cellular CDMA Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.810 mW/g, SAR (10g): 0.574 mW/g LGE Dual-Mode Model: LG-DM150 Cellular CDMA Mode, Ch.1013 (824.70MHz) Conducted Power = 25.0dBm Test Date -- 03/26/2001 SAR Tot [mW/g] 4.08E-2 1.22E-1 2.04E-1 2.86E-1 3.67E-1 PCTEST Engineering Laboratory, Inc. LG ELECTRONICS FCC ID:BEJDM150 -- Cellular CDMA Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.782 mW/g, SAR (10g): 0.506 mW/g LGE Dual-Mode Model: LG-DM150 Cellular CDMA Mode, Ch.0363 (835.89MHz) Conducted Power = 25.0dBm Test Date -- 03/26/2001 SAR Tot [mW/g] 7.49E-2 2.25E-1 3.75E-1 5.24E-1 6.74E-1 PCTEST Engineering Laboratory, Inc. LG ELECTRONICS FCC ID:BEJDM150 -- Cellular CDMA Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.25 mW/g, SAR (10g): 0.832 mW/g LGE Dual-Mode Model: LG-DM150 Cellular CDMA Mode, Ch.0363 (835.89MHz) Conducted Power = 25.0dBm Test Date -- 03/26/2001 SAR Tot [mW/g] 1.20E-1 3.58E-1 5.98E-1 8.37E-1 1.08E+0 PCTEST Engineering Laboratory, Inc. LG ELECTRONICS FCC ID:BEJDM150 -- Cellular CDMA Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.713 mW/g, SAR (10g): 0.466 mW/g LGE Dual-Mode Model: LG-DM150 Cellular CDMA Mode, Ch.0777 (848.31MHz) Conducted Power = 25.0dBm Test Date -- 03/26/2001 SAR Tot [mW/g] 4.05E-2 1.22E-1 2.03E-1 2.83E-1 3.65E-1 PCTEST Engineering Laboratory, Inc. LG ELECTRONICS FCC ID:BEJDM150 -- Cellular CDMA Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.11 mW/g, SAR (10g): 0.747 mW/g LGE Dual-Mode Model: LG-DM150 Cellular CDMA Mode, Ch.0777 (848.31MHz) Conducted Power = 25.0dBm Test Date -- 03/26…

Text truncated - open the document above for the full version.

RF Exposure Info

© 2001 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 66606660--B Dobbin Road B Dobbin Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290TEL (410) 290--6652 6652 •• FAX (410) 290 FAX (410) 290--66546654 www.pctestlab.comwww.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) LG Electronics Inc. Dates of Tests: March 26-29, 2001 Communication Terminal Research Lab Test Report S/N: SAR.210326173.BEJ 459-9, Kasan-dong, Keumchun-ku Test Site: PCTEST Lab, Columbia MD U.S.A. Seoul 153-023, Korea Attn: Harris Ahn, Principal Engineer FCC ID BEJDM150 APPLICANT LG ELECTRONICS INC. EUT Type: Dual-Mode Cellular Phone (AMPS/CDMA) Tx Frequency: 824.04 – 848.97 MHz (AMPS) / 824.70 – 848.31 MHz (CDMA) Rx Frequency: 869.04 – 893.97 MHz (AMPS) / 869.70 – 893.31 MHz (CDMA) Max. RF Output Power: 0.474W ERP AMPS (26.754 dBm) / 0.371W ERP CDMA (25.678 dBm) Max. SAR Measurement: 1.320 mW/g (1g) AMPS Head SAR; 1.250 mW/g (1g) CDMA Head SAR; 0.673 mW/g (1g) AMPS Body SAR; 0.580 mW/g (1g) CDMA Body SAR; Trade Name/Model(s): LGE LG-DM150 FCC Classification: Non-Broadcast Transmitter Held to Ear (TNE) Application Type: Certification Serial Number: n/a (pre-production) FCC Rule Part(s): § 2.1093; ET Docket 96.326 This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992 (See Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 200131044.FFM SAR Measurement Report FCC Part 22 Certification © 2001 PCTEST Lab i Table of Contents 1.1 SCOPE 1 2.1 INTRODUCTION / SAR DEFINITION 2 3.1 SAR MEASUREMENT SET-UP 3 4.1 E-FIELD PROBE SYSTEM 4 5.1 E-FIELD PROBE CALIBRATION PROCESS 5 5.3 DATA EXTRAPOLATION 6 6.1 PHANTOM, HOLDER & EQUIVALENT TISSUES 7 7.1 SYSTEM SPECIFICATIONS 8 8.1 MEASUREMENT PROCESS 9 9.1 TEST POSITION OF THE PHONE 10 10.1 BODY-WORN CONFIGURATION 11 11.1 ANSI/IEEE C95.1 RF EXPOSURE LIMITS 12 12.1 MEASUREMENT UNCERTAINTIES 13 13.1 TEST DATA SUMMARY 14-17 14.1 SAR TEST EQUIPMENT LIST 18 15.1 CONCLUSION 19 16.1 REFERENCES 20 Test Report S/N: SAR.210326173.BEJ SAR Measurement Report Test Dates: March 26-29, 2001 FCC Part 22 Certification LGE FCC ID: BEJDM150 (Model: LG-DM150) © 2001 PCTEST Lab Dual-Mode Cellular Phone (AMPS/CDMA) 1 SAR MEASUREMENT REPORT 1.1 Scope Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human head and body tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Company Name: LG ELECTRONICS INC. Address: 459-9, Kasan-dong, Keumchun-ku Seoul 153-023, Korea Attention: Harris Ahn, Principal Engineer Communication Terminal Research Lab • EUT Type: Dual-Mode Cellular Phone (AMPS/CDMA) • Trade Name: LGE • FCC IDENTIFIER: BEJDM150 • Model: LG-DM150 • S/N: Pre-production • Tx Frequency: 824.04 – 848.97 MHz (AMPS) 824.70 – 848.31 MHz (CDMA) • Rx Frequency: 869.04 – 893.97 MHz (AMPS) 869.70 – 893.31 MHz (CDMA) • Application Type: Certification • FCC Classification: Non-Broadcast Transmitter Held to Ear (TNE) • FCC Rule Part(s): § 2.1093, Docket 96-326 • Max. SAR Measurement: 1.320 mW/g (1g) AMPS Head SAR; 1.250 mW/g (1g) CDMA Head SAR; 0.673 mW/g (1g) AMPS Body SAR; 0.580 mW/g (1g) CDMA Body SAR • Max. RF Output Power: 0.474W ERP AMPS (26.754 dBm) 0.371W ERP CDMA (25.678 dBm) • Modulation: AMPS / CDMA • Antenna Type: Base Helical Retractable [GALTRONICS Part No.: 02-4128-46-950] • Antenna Dimensions: 10.83 cm. (Length) • Dates of Test(s): March 26-29, 2001 • Place of Test(s): PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.: SAR.210326173.BEJ 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET Docket 93-62. Fig. 1 SAR Test Setup Test Report S/N: SAR.210326173.BEJ SAR Measurement Report Test Dates: March 26-29, 2001 FCC Part 22 Certification LGE FCC ID: BEJDM150 (Model: LG-DM150) © 2001 PCTEST Lab Dual-Mode Cellular Phone (AMPS/CDMA) 2 2.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used for guidance in measuring SAR due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria for SAR evaluation are similar to those recommended by…

Text truncated - open the document above for the full version.

RF Exposure Info

Probe ET3DV6 SN:1560 Manufactured:December 1, 2000 Calibrated:February 20, 2001 Calibrated for System DASY3 Page 1 of 8 ET3DV6 SN:1560 DASY3 - Parameters of Probe: ET3DV6 SN:1560 Sensitivity in Free SpaceDiode Compression NormX1.48 μV/(V/m) 2 DCP X98mV NormY1.51 μV/(V/m) 2 DCP Y98mV NormZ1.43 μV/(V/m) 2 DCP Z98mV Sensitivity in Tissue Simulating Liquid Head450MHz ε r =43.5 ± 5% σ = 0.87 ± 10% mho/m ConvF X7.17 extrapolatedBoundary effect: ConvF Y7.17 extrapolatedAlpha0.25 ConvF Z7.17 extrapolatedDepth3.21 Head900MHz ε r =42 ± 5% σ = 0.97 ± 10% mho/m ConvF X6.59 ± 7% (k=2)Boundary effect: ConvF Y6.59 ± 7% (k=2)Alpha0.32 ConvF Z6.59 ± 7% (k=2)Depth2.93 Head1500MHz ε r =40.4 ± 5% σ = 1.23 ± 10% mho/m ConvF X5.82 interpolatedBoundary effect: ConvF Y5.82 interpolatedAlpha0.41 ConvF Z5.82 interpolatedDepth2.55 Head1800MHz ε r =40 ± 5% σ = 1.40 ± 10% mho/m ConvF X5.43 ± 7% (k=2)Boundary effect: ConvF Y5.43 ± 7% (k=2)Alpha0.46 ConvF Z5.43 ± 7% (k=2)Depth2.36 Sensor Offset Probe Tip to Sensor Center2.7mm Optical Surface Detection2.0 ± 0.2mm Page 2 of 8 ET3DV6 SN:1560 Receiving Pattern (φ), θ = 0° f = 30 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 100 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 300 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 900 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot Page 3 of 8 ET3DV6 SN:1560 Isotropy Error (φ), θ = 0° -1.00 -0.80 -0.60 -0.40 -0.20 0.00 0.20 0.40 0.60 0.80 1.00 060120180240300360 error[dB] 30 MHz 100 MHz 300 MHz 900 MHz 1800 MHz 2500 MHz f = 1800 MHz, WG R22 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 2500 MHz, WG R26 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot Page 4 of 8 ET3DV6 SN:1560 Frequency Response of E-Field ( TEM-Cell:ifi110, Waveguide R22) 0.50 0.60 0.70 0.80 0.90 1.00 1.10 1.20 1.30 1.40 1.50 050010001500200025003000 f [MHz] frequency response TEMR22 Page 5 of 8 ET3DV6 SN:1560 Dynamic Range f(SAR brain ) ( TEM-Cell:ifi110 ) ET3DV6 SN:1560 1.E+0 1.E+1 1.E+2 1.E+3 1.E+4 1.E+5 1.E+6 1.E+7 0.00010.0010.010.11.10.100. mW/cm 3 μ V not compensatedcompensated -2.0 -1.0 0.0 1.0 0.0010.010.1110100 mW/cm 3 errror[dB] Page 6 of 8 Conversion Factor Assessment Head900MHz ε r =42 ± 5% σ = 0.97 ± 10% mho/m ConvF X6.59 ± 7% (k=2)Boundary effect: ConvF Y6.59 ± 7% (k=2)Alpha0.32 ConvF Z6.59 ± 7% (k=2)Depth2.93 Head1800MHz ε r =40 ± 5% σ = 1.40 ± 10% mho/m ConvF X5.43 ± 7% (k=2)Boundary effect: ConvF Y5.43 ± 7% (k=2)Alpha0.46 ConvF Z5.43 ± 7% (k=2)Depth2.36 ET3DV6 SN:1560 f = 900 MHz, WG R9 (head) 0.00 0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0.90 0204060 z[mm] SAR[mW/cm 3 ] / W AnalyticalMeasuremets f = 1800 MHz, WG R22 (head) 0.00 1.00 2.00 3.00 4.00 5.00 6.00 7.00 0204060 z[mm] SAR[mW/cm 3 ] / W AnalyticalMeasuremets Page 7 of 8 Deviation from Isotropy in HSL Error (θ,φ), f = 900 MHz 0 40 80 120 160 200 240 280 320 0 10 20 30 40 50 60 -1.00 -0.80 -0.60 -0.40 -0.20 0.00 0.20 0.40 0.60 0.80 1.00 Error [dB] θ φ -1.00--0.80-0.80--0.60-0.60--0.40-0.40--0.20-0.20-0.00 0.00-0.200.20-0.400.40-0.600.60-0.800.80-1.00 Page 8 of 8

RF Exposure Info

835MHz Brain Dipole Validation Generic Twin Phantom; Flat Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 2.15 mW/g, SAR (10g): 1.44 mW/g 835MHz Brain Dipole Validation (D835V2 S/N: 406) Frequency: 835 MHz; Antenna Input Power: 250 [mW] PCTEST Brain Tissue Simulating Liquid SAR Tot [mW/g] 2.56E-1 7.67E-1 1.28E+0 1.79E+0 2.30E+0 PCTEST Engineering Laboratory, Inc. 835MHz Muscle Dipole Validation Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 835 MHz Muscle: σ = 0.95 mho/m ε r = 56.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 2.17 mW/g, SAR (10g): 1.42 mW/g 835MHz Muscle Dipole Validation (D835V2 S/N: 406) Frequency: 835 MHz; Antenna Input Power: 250 [mW] PCTEST Muscle Tissue Simulating Liquid SAR Tot [mW/g] 2.29E-1 6.67E-1 1.13E+0 1.50E+0 2.10E+0 PCTEST Engineering Laboratory, Inc.

Test Report

Text truncated - open the document above for the full version.
