BEJFB790GDComputer Monitor

APPENDIX G : FCC ID : BEJFB790GD USER’S MANUAL A1 Important Precautions This unit has been engineered and manufactured to ensure your personal safety, however improper use may result in potential eletrical shock or fire hazards. In order to allow the proper operation of all safeguards incorporated in this monitor, observe the following basic rules for its installation, use, and servicing. Keep it in an accessible place for future reference. On Safety Use only the power cord supplied with the unit. In case you use another power cord, make sure that it is certified by the applicable national standards if not being provided by the supplier. If the power cable is faulty in any way, please contact the manufacturer or the nearest authorized repair service provider for a replacement. The power supply cord is used as the main disconnect device. Ensure that the socket-outlet is easily accessible after installation. Operate the monitor only from a power source indicated in the specifications of this manual or listed on the monitor. If you are not sure what type of power supply you have in your home, consult with your dealer. Overloaded AC outlets and extension cords are dangerous. So are frayed power cords and broken plugs. They may result in a shock or fire hazard. Call your service technician for replacement. Hands must be dry when holding the power plug to avoid an electric shock. Do not damage the power cord by disassembling, bending, pulling or heating up. It can cause fire or electric shock. Make sure to completely insert the power plug. Insecure connections can cause fire. Do not Open the Monitor. There are no user serviceable components inside. There are Dangerous High Voltages inside, even when the power is OFF. Contact your dealer if the monitor is not operating properly. To Avoid Personal Injury : Do not place the monitor on a sloping shelf unless properly secured. Use only a stand recommended by the manufacturer. Do not try to roll a stand with small casters across thresholds or deep pile carpets. A2 Important Precautions To Prevent Fire or Hazards: Always turn the monitor OFF if you leave the room for more than a short period of time. Never leave the monitor ON when leaving the house. Keep children from dropping or pushing objects into the monitor's cabinet openings. Some internal parts carry hazardous voltages. Do not add accessories that have not been designed for this monitor. During a lightning storm or when the monitor is to be left unattended for an extended period of time, unplug it from the wall outlet. Do not bring magnetic devices such as magnets or motors near the picture tube. On Installation Do not allow anything to rest upon or roll over the power cord, and do not place the monitor where the power cord is subject to damage. Do not use this monitor near water such as near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool. Monitors are provided with ventilation openings in the cabinet to allow the release of heat generated during operation. If these openings are blocked, built-up heat can cause failures which may result in a fire hazard. Therefore, NEVER: Block the bottom ventilation slots by placing the monitor on a bed, sofa, rug, etc. Place the monitor in a built-in enclosure unless proper ventilation is provided. Cover the openings with cloth or other material. Place the monitor near or over a radiator or heat source. Do not install the monitor in a dusty area. It can cause fire. On Cleaning Unplug the monitor before cleaning the face of the monitor screen. Use a slightly damp (not wet) cloth. Do not use an aerosol directly on the monitor screen because overspray may cause electrical shock. On Repacking Do not throw away the carton and packing materials. They make an ideal container in which to transport the unit. When shipping the unit to another location, repack it in its original material. A3A3 Connecting the Monitor Latch Before setting up the monitor, ensure that the power is turned off to the monitor, computer system, and other attached devices. Carefully set the monitor face-down with the underside facing you. Connecting the Tilt/Swivel stand 1.Align the hooks on the tilt/swivel stand with the matching slots in the base of the monitor. 2. Insert the hooks into slots. 3. Slide the tilt/swivel stand toward the front of the monitor until the latches click into the locked position. NOTE This illustration depicts the general model of connection. Your monitor may differ from the items shown in the picture. Hook Slot Hook Connecting the Monitor Using the Computer 1.Connect the signal cable. When mated, tighten the thumbscrews to secure the connection. 2.Connect the power cord into a properly power outlet that is easily accessible and close to the monitor. NOTE This is a simplified representation of the rear view. This rear view represents a general model; your monitor may differ from the view as shown. Mac adapter For Apple Macintosh use, a separate plug adapter is needed to change the 15 pin high density (3 row) D-sub VGA connector on the supplied cable to a 15 pin 2 row connector. Wall-outlet type * PC-outlet type* PC MAC Power Cord Signal Cable Digital signal - DVI * Analog signal D-sub * * Varies according to model. A4 A5 Control Panel Functions Front Panel Controls Buttons Use these buttons to choose or adjust items in the on screen display. MENU (or OSD) Button Use this button to enter or exit the on screen display. This Indicator lights up green when the monitor operates normally. If the monitor is in DPM (Energy Saving) mode, this indicator color changes to amber. Power (DPMS) Indicator Use this button to turn the monitor on or off. Power Button Use this button to change the input mode. Use this button to enter a selection in the on screen display. DIGITAL SELECT Button The Contrast and Brightness functions are also available in the On Screen Display (OSD) menu. 88 ControlDirect Access Function ControlFunction Button But…

Text truncated - open the document above for the full version.

Attn.: Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: CONFIDENTIALITY REQUEST FOR 17” Color CRT Monitor FCC ID: BEJFB790GD MODEL #: FB790G Gentlemen This letter serves as an official request for confidentiality under FCC Rule Section 0.459. We have requested that the schematic diagrams, block diagrams required to be submitted with this application be withheld from public review. These documents contain detailed system and equipment description and related information about the product which LG Electronics Inc. considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, LG Electronics Inc. feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, Kyeom Soon Kim October 25, 2002 LG Electronics Inc./General Manager LG Electronics Inc.

Attn.: Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: LETTER OF AGENT AUTHORIZATION Dear Sir: We, the undersigned, hereby authorize MET laboratories Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This agreement expires one year from the current date. Sincerely, Kyeom Soon Kim October 25, 2002 LG Electronics Inc. /General Manager LG Electronics Inc.

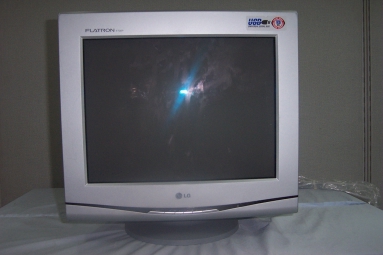

FCC ID : BEJFB790GD 1. External View [ Front ] [ Back ]

FCC ID : BEJFB790GD 2. Internal View FCC ID : BEJFB790GD 3-1. Main Board FCC ID : BEJFB790GD 3-2. Video & USB Board FCC ID : BEJFB790GD 3-3. OSD Control Board

FCC ID : BEJFB790GD APPENDIX H : Specification FCC ID : BEJFB790GD 1600 X 1200Max. Resolution8 39.7 lbsWeight10 16.30 X 16.26 X 17.00 (inches)Dimension (W X H X D)9 < 113 WPower Consumption7 AC 100-240 V, 50/60 Hz,2.0 ARating6 BEJFB790GDFCC ID5 FB790GModel Number4 LGTrade Name3 17 inch Color CRT MonitorEquipment Name2 FCC Part 15, Class BEquipment Class1

1/12 Report No.: 00431-4521-F2279 LG Electronics Inc. Q & R Center, 36, Munlae-dong, 6-ga, Youngdungpo-gu, Seoul, Korea Tel:+82-2-2630-3077~9, Fax:+82-2-2635-5543 LG Electronics Inc. Quality & Reliability Center 36, Munlae-dong, 6-ga, Youngdungpo-gu, Seoul 150-096, Korea Tel : + 82 2 2630 3077~9, Fax : +82 2 2635 5543 CERTIFICATION OF COMPLIANCE Date of Issue: October 16, 2002 Test Report No: 00431-4521-F2279 Applicant: LG Electronics Inc. Regulation: FCC Part 15 Class B / Canada Standard ICES-003 Class B Test procedure: ANSI C63.4-1992 / Canada Standard ICES-003 Equipment Class: Unintentional Radiators – Digital device EUT Type: 17
Color CRT Monitor Trade Name(s): Model No.: LG FB790G This device has been verified to comply with the applicable requirements in the FCC Part 15 / Canada Standard ICES-003 and was tested in accordance with the measurement procedures speci- fied in ANSI C63.4-1992 / Canada Standard ICES-003. I assume full responsibility for the completeness of these measurements and vouch for the qualifi- cations of all persons taking them. Kyeom-Soon Kim / General Manager Quality and Reliability Center LG Electronics Inc. 2/12 Report No.: 00431-4521-F2279 LG Electronics Inc. Q & R Center, 36, Munlae-dong, 6-ga, Youngdungpo-gu, Seoul, Korea Tel:+82-2-2630-3077~9, Fax:+82-2-2635-5543 REPORT FOR A DIGITAL DEVICE Scope - Measurement and determination of electromagnetic emissions (EME) of radio frequency devices in- cluding intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. U.S. Responsible Party: Address: LG Electronics USA Inc. 6133 North River Road,Suite 1100 (Riverway Plasza) Rosemont, IL 60018, USA Contact Person: P.H.Byun, General Manager Telephone No.: (847) 692-4630 EXT.329 Manufacturer: LG Electronics Inc. DID Division Address: 642 Jinpyoung-dong Kumi-City Kyoungsangbuk-do, 730-360, Korea FCC ID No.: BEJFB790GD EUT Class: Unintentional Radiators - Digital device EUT Type: 17
Color CRT Monitor Trade Name: LG Model No.: FB790G Rule Part: FCC Part 15 Class B / Canada Standard ICES-003 Class B Test Procedure: ANSI C63.4-1992 / Canada Standard ICES-003 Date of Test: October 14 , 2002 Date of Receipt of EUT: October 14, 2002 Date of Issue: October 16, 2002 Test Report No.: 00431-4521-F2279 Test Result: Positive Quality and Reliability Center authorizes the above-named applicant to reproduce this report provided it is reproduced in its entirety. Quality and Reliability Center reports apply only to the specific samples tested under stated test condi- tions. It is the manufacturer’s responsibility to assure that additional production unit of this model are manufactured with identical electrical and mechanical components. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written ap- proval. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. The Quality and Reliability Center was accredited by National Voluntary Laboratory Accreditation Program for the specific scope of accreditation under Lab Code: 200040-0. Tested by: Reviewed by : K. C. Paek / Research Engineer Quality and Reliability Center LG Electronics Inc. S. H. Ji / Senior Research Engineer Quality and Reliability Center LG Electronics Inc. 3/12 Report No.: 00431-4521-F2279 LG Electronics Inc. Q & R Center, 36, Munlae-dong, 6-ga, Youngdungpo-gu, Seoul, Korea Tel:+82-2-2630-3077~9, Fax:+82-2-2635-5543 CONTENTS Page 1. GENERAL INFORMATION ..................................................................................................................... 4G 1.1 D ESCRIPTIONS OF EQUIPMENT UNDER TEST (EUT)................................................................................... 4G 1.2 R EGULATIONS APPLIED TO EUT ............................................................................................................... 4G 1.3 M EASUREMENT PROCEDURE.................................................................................................................... 4G 1.4 M EASUREMENT PLACE............................................................................................................................. 4G 2. GENERAL TEST CONDITIONS .............................................................................................................. 5G 2.1 O PERATING CONDITIONS OF EUT ............................................................................................................. 5G 2.2 S TABILIZATION OF EUT OPERATING......................................................................................................... 5G 2.3 T EMPERATURE AND HUMIDITY................................................................................................................. 5G 3. TEST SITE ................................................................................................................................................... 5G 3.1 S EMI-ANECHOIC CHAMBER....................................................................................................................... 5G 3.2 A SHIELDED ENCLOSURE.......................................................................................................................... 5G 4. CALIBRATIONS OF MEASURING INSTRUMENTS .......................................................................... 5G 5. DESCRIPTION OF TEST CONDITION .................................................................................................. 6G 5.1 P OWER LINE CONDUCTED EMISSION MEASUREMENTS............................................................................... 6G 5.2 R ADIATED EMISSIONS MEASUREMENTS.................................................................................................... 7G 6. MEASURING INSTRUMENTS AND SET-UP ............................…

Text truncated - open the document above for the full version.

FCC ID : BEJFB790GD APPENDIX A : Test Graph -Analog- 1. Radiated Emissions 2. Conducted Emissions - Digital- 1. Radiated Emissions 2. Conducted Emissions FCC ID : BEJFB790GD 1. Radiated Emissions (Hor) : 30~300MHz : Analog FCC ID : BEJFB790GD 1. Radiated Emissions (Ver) : 30~300MHz : Analog FCC ID : BEJFB790GD 1. Radiated Emissions (Hor) : 300~1000MHz : Analog FCC ID : BEJFB790GD 1. Radiated Emissions (Ver) : 300~1000MHz. : Analog FCC ID : BEJFB790GD 2. Conducted Emissions : Analog FCC ID : BEJFB790GD 1. Radiated Emissions (Hor) : 30~300MHz : Digital FCC ID : BEJFB790GD 1. Radiated Emissions (Ver) : 30~300MHz : Digital FCC ID : BEJFB790GD 1. Radiated Emissions (Hor) : 300~1000MHz : Digital FCC ID : BEJFB790GD 1. Radiated Emissions (Ver) : 300~1000MHz : Digital FCC ID : BEJFB790GD 2. Conducted Emissions : Digital

1 Marianne Bosley From: Chris Harvey Sent: Monday, October 21, 2002 2:36 PM To: '???' Cc: Marianne Bosley Subject: RE: TCB Certificate Application (Class II Permissive Change) - Model No : FB790G I have reviewed the photographs and compared them to the original Certification. The PCBoard for the interface is significantly different. It appears not to meet the requirements for Class II permissive Change in accordance with FCC 2.1043. Please re-evaluate the changes and if you also agree, please submit this as a new application with new FCC ID number. Best regards, Chris Harvey Chris Harvey MET Laboratories EMC [email protected] www.metlabs.com 800-638-6057 -----Original Message----- From:[email protected] [SMTP:[email protected]] Sent:Friday, October 18, 2002 10:13 AM To:[email protected] Subject:TCB Certificate Application (Class II Permissive Change) - Model No : FB790G Importance:High TCB Certificate Application (Class II Permissive Change) - Model No : FB790G Hi Chris ! How are you? I apply for the TCB certification Class II Permissive Change about this model. This class II permissive change certification of compliance is to apply adding of Video port part, (Analog + Digital) type on the previous granted model FB790G, FCC ID: BEJFB790G, dated of Grant 05/8/2002. EUT type : 17" Color CRT Monitor Model No.: FB790G FCC ID : BEJFB790G Dated of Grant : May 8 2002 Change Parts : - Video ports : Analog + Digital ports * previous model has only analog port Please, find attached files. If any problem, contact me immediately. Have a nice day~~ Best Regards 2 << File: 0.Confidentiality Letter.doc >> << File: B.Labelling Requirements.pdf >> << File: G.User's Manual.pdf >> << File: C.Block Diagram.pdf >> << File: H.Specification.pdf >> << File: 0.Purchase_Order.doc >> << File: F.EUT Photos.pdf >> << File: D.Circuit Diagram.pdf >> << File: Test Report _FB790G.pdf >> << File: A.Test Graph.pdf >> << File: 0.Agent Authorization Letter.doc >> << File: E.Test Photos.pdf >>

1 Marianne Bosley From: Chris Harvey Sent: Monday, October 28, 2002 3:53 PM To: '[email protected]' Cc: Marianne Bosley Subject: FW: TCB Certificate Application - Model No : FB790G Importance: High MET has issued the new FCC ID per the updated request. Best regards, Chris Harvey Chris Harvey MET Laboratories EMC [email protected] www.metlabs.com 800-638-6057 x-310 TCB Grant FCID BEJFB790GD.pdf -----Original Message----- From:[email protected] [SMTP:[email protected]] Sent:Friday, October 25, 2002 6:43 AM To:[email protected] Subject:TCB Certificate Application - Model No : FB790G Importance:High Hi Chris ! How are you? I apply for the TCB certification about this model. (As your comments, I'll apply by new FCC ID BEJFB790GD.) *Adding Digital video port from Previous Certificated model(BEJFB790G),so PCB Board change EUT type : 17" Color CRT Monitor Model No.: FB790G FCC ID : BEJFB790GD Please, find attached files. If any problem, contact me immediately. Have a nice day~~ Best Regards

FCC ID : BEJFB790GD APPENDIX E : 1. Radiated Emission 2. Conducted Emission Test Set-up Photographs FCC ID : BEJFB790GD 1. Radiated Emission FCC ID : BEJFB790GD 2. Conducted Emission
