BEJG4050Dual Band Mobile Phone

G4010 User Guide Unpacking 8 For Your Safety 9 Your Phone 14 Phone Components 14 Your Phone's Feature 15 Display Information 17 Getting Started 18 Using the Battery, Charger and SIM Card 18 Installing the Battery 18 Removing the Battery 19 Charging the Battery 20 Disconnecting the Charger 21 Installing the SIM Card 22 Turning Your Phone On and Off 23 Turing Your Phone On 23 Turning Your Phone Off 23 Access Codes 24 PIN code 24 PIN2 code 24 PUK code 24 PUK2 code 24 Security code 25 Barring Password 25 General Functions 26 Making and Answering Calls 26 Making a Call 26 Making a call by Send key 26 Making International Calls 26 Ending a Call 27 Making a call from the Phonebook 27 Adjusting the Volume 27 Answering a Call 27 Signal Strength 28 Entering Text 28 Phonebook 33 In-Call Menu 34 During a Call 34 Making a Second Call 34 Swapping Between Two Calls 34 Answering an Incoming Call 35 Rejecting an Incoming Call 35 Muting the Microphone 35 Switching DTMF Tones on During a Call 36 Multiparty or Conference Calls 36 Making a Second Call 37 Setting up a Multiparty Call 37 5 4 Putting the Multiparty Call on Hold 37 Activate the Multiparty Call on Hold 37 Adding Calls to the Multiparty Call 37 Displaying Callers in a Multiparty Call 37 A Private Call in a Multiparty Call 38 Ending a Multiparty Call 38 Menu Tree 39 Message 42 Text Messages 42 Write message 42 Inbox 44 Outbox 45 Draft 45 Settings 46 Voice Messages 47 Listen to voice mail 47 Voice mailbox number 47 Info Messages 48 Receive 48 Inbox 48 Topics 48 Alert 49 Auto Display 49 Language 49 Templates 50 Name Card 50 Check memory 51 Text 51 Call Register 52 Missed Calls 52 Received Calls 53 Dialed Calls 53 Delete recent calls 54 Call durations 54 Last Call 54 Received Call 54 Dialed Calls 54 All Calls 54 Call Costs 55 Last Call’s Cost 55 All Call’s Cost 55 Cost Settings 56 Call cost’s limit 56 Set tariff 56 Auto display 56 GPRS information 57 WAP 57 External device 57 Total data 57 Table of Contents 7 6 Profiles 58 Settings 60 Alarm Clock 60 Date & Time settings 61 Date & Time 61 Auto update 61 Phone Settings 62 Display settings 62 Language 62 TTY 63 LED indicator 63 Call settings 64 Call divert 64 Answer mode 65 Send my number 65 Call waiting 65 Minute minder 66 Automatic redial 66 Select Line 66 Data transfer mode 66 Closed user group 67 Security settings 68 PIN Code Request 68 Call barring service 68 Fixed dial number 70 Change codes 70 Network settings 71 Automatic 71 Manual 71 Preferred 71 GPRS settings 72 Attach 72 External device 73 Reset settings 73 Organizer 74 Schedule 74 Memo 76 Phonebook 77 Search 77 Add New 79 Speed Dials 80 Caller Groups 81 Copy all 82 Delete all 82 Settings 83 Information 84 Fun & Tools 85 Game 85 Black Jack 85 My folder 86 Pictures 86 Animation 86 Sound 86 Unit converter 87 Calculator 87 World time 88 Internet 89 Home 91 Push message 91 Inbox 91 Receive 91 Profiles 92 Cache settings 94 Clear cache 94 Check cache 94 WAP information 94 Reset profiles 94 Q & A 95 Accessories 98 Safety Guidelines 100 Index 116 9 8 Important InformationThis user guide contains important information on the use andoperation of this phone. Please read all the informationcarefully for optimal performance and to prevent any damageto or misuse of the phone. Any changes or modifications notexpressly approved in this user guide could void yourwarranty for this equipment.Before You StartSafety InstructionsWARNING! To reduce the possibility of electric shock, do not expose your phone to high humidity areas, such as thebathroom, swimming pool, etc.Always store your phone away from heat. Never store your phone in settings that may expose it to temperatures less than32 F or greater than 104 F, such as outside during a snowstorm or in your car on a hot day. Exposure to excessive cold or heatwill result in malfunction, damage and/or catastrophic failure.Be careful when using your phone near other electronicdevices. RF emissions from your mobile phone may affect nearby inadequately shielded electronic equipment. You shouldconsult with manufacturers of any personal medical devicessuch as pacemakers and hearing aides to determine if they aresusceptible to interference from your mobile phone. Turn offyour phone in a medical facility or at a gas station. Never placeyour phone in a microwave oven as this will cause the battery toexplode.IMPORTANT! Please read the TIA SAFETY INFORMATION on page 123 before using your phone. Check to make sure that you have all the parts shown below Unpacking For Your Safety Handset Standard Battery Warranty Card User Guide Travel Adapter Neckstrap Handsfree portable 11 10 Safety InformationPlease read and observe the following information for the safeand proper use of your phone and to prevent any unanticipateddamage by accident. Also, keep the user’s manual in anaccessible place all the times after reading it. Unplug the power cord and charger during a lightning stormto avoid electric shock or fire. Do not use your phone in high explosive areas as the phonemay generate sparks. Do not put your phone in a place subject to excessive dust,and keep the minimum required distance between the powercord and heat sources. Unplug the power cord prior to cleaning your phone, andclean the power plug pin when it is dirty. Do not damage the power cord by bending, twisting, pulling,or heating. Do not use the plug if it is loose as it may causefire or electric shock. Hold the power cord plug firmly to plug and unplug thepower cord. Ensure the plug is firmly connected. If it is notfirmly connected, it may cause excessive heat or fire. Do not place any heavy item on the power cord. Do notallow the power cord to be crimped as it may cause fire orelectric shock. Be careful not to let the battery contact metal conductorssuch as a necklace or coins. When shorted, it may cause anexplosion. Do not disassemble or impact to the battery as it may causeelectric shock, short-circuit, and fire. Store the battery in aplace out of reach of children. Usi…

Text truncated - open the document above for the full version.

CONFIDENTIALITY REQUEST Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 March, 24 2003 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, LG Electronics requests confidentiality for the following products: FCC ID Number Product Title/Mod BEJG4050 G4050 For the product stated above, we request that the following information be held confidential: 1. Circuit diagrams, BOM, and PCBs submitted as Equipment Authorization Electronic Filing attachment: "schematics”. 2. Block diagram submitted as Equipment Authorization Electronic Filing attachment: “blockdiagram”. 3. Operational description submitted as Equipment Authorization Electronic Filing attachment: “operational description” The above exhibits contain LG Electronics trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our mobile handset. This material is not customarily available to the general public and we request that it be withheld from public inspection. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name: Kevin Lee Company: LG Electronics Inc. Address: LG Kangnam tower 679, Yoksam-dong, Kangnam-gu, Seoul, Korea (135-080) Phone: +82-31-389-7143 Email: [email protected]

SAR Test Report No: SAR_430_2003_FCC_800_1900 Date of Report: 04/07/2003 Appendix C Page 1 of 40 Tissue Parameters 850MHz Head liquid: Recipe: The following recipe is provided in percentage by weight. 49.46% distilled water 49.46% DGBE 1.0% salt 0.1% bactericide Di-electric constants measured on 3/25/2003. SAR measurements were made within 24 hours of the measurement of liquid parameters. Freq. Rel. Condy (MHz) Perm. (S/m) 824.2 42.12 0.892 836.6 41.83 0.889 848.8 41.42 0.909 900 41.2 0.973 Di-electric constants measured on 3/27/2003. SAR measurements were made within 24 hours of the measurement of liquid parameters. Freq. Rel. Condy (MHz) Perm. (S/m) 900 40.73 0.953 SAR Test Report No: SAR_430_2003_FCC_800_1900 Date of Report: 04/07/2003 Appendix C Page 2 of 40 850MHz Body Liquid: Recipe: The following recipe is provided in percentage by weight. 49.8% distilled water 40.6% DGBE 8.9% salt 0.6% HEC 0.1% bactericide Di-electric constants measured on 3/27/2003. SAR measurements were made within 24 hours of the measurement of liquid parameters. Freq. Rel. Condy (MHz) Perm. (S/m) 824.2 56.18 0.973 836.6 55.58 0.989 848.8 55.50 0.985 SAR Test Report No: SAR_430_2003_FCC_800_1900 Date of Report: 04/07/2003 Appendix C Page 3 of 40 1900MHz Head liquid: Recipe: The following recipe is provided in percentage by weight. 54.9% distilled water 44.92% DGBE 0.18% salt 0.1% bactericide Di-electric constants measured on 3/25/2003. SAR measurements were made within 24 hours of the measurement of liquid parameters. Freq. Rel. Condy (MHz) Perm. (S/m) 1850.2 39.62 1.403 1880 39.32 1.422 1900 39.29 1.437 1909.8 39.71 1.45 Di-electric constants measured on 3/27/2003. SAR measurements were made within 24 hours of the measurement of liquid parameters. Freq. Rel. Condy (MHz) Perm. (S/m) 1900 39.73 1.36 SAR Test Report No: SAR_430_2003_FCC_800_1900 Date of Report: 04/07/2003 Appendix C Page 4 of 40 1900MHz Body Liquid: Recipe: The following recipe is provided in percentage by weight. 69.17% distilled water 30.29% DGBE 0.44% salt 0.1% bactericide Di-electric constants measured on 3/27/2003. SAR measurements were made within 24 hours of the measurement of liquid parameters. Freq. Rel. Condy (MHz) Perm. (S/m) 1850.2 53.35 1.563 1880 53.16 1.579 1909.8 52.92 1.58 Environment 03/25/2003, 03/27/2003 & 03/28/2003: Temperature: 22.0 °C ± 2°C Humidity: 45% _ 55 % SAR Test Report No: SAR_430_2003_FCC_800_1900 Date of Report: 04/07/2003 Appendix C Page 5 of 40 Test Equipment Test Equipment Model Serial Instrument description Supplier/Manufacturer Model Serial No. Calibration (date) Bench top Robot Mitsubishi supplied by Indexsar RV-E2 Serial No. N/A SAM Phantom Upright shell phantom made by Antennessa digitized and mounted by Indexsar SAM 04/02 FT08 N/A 850MHz Head Tissue Simulant Cetecom Inc. 850 Head N/A 03/25/2003 & 03/27/2003 850MHz Body Tissue Simulant Cetecom Inc. 850 Body N/A 03/27/2003 1900MHz Head Tissue Simulant Cetecom Inc. 1900 Head N/A 03/25/2003 & 03/27/2003 1900MHz Body Tissue Simulant Cetecom Inc. 1900 Body N/A 03/27/2003 900MHz Dipole IndexSAR – IEEE 1528 design IXD-090 090-0016 07/01/02 1900MHz Dipole IndexSAR – IEEE 1528 design IXD-190 190-0016 7/30/02 Directional coupler Werlatone C6529 11249 N/A Netwok Analyzer Agilent 8753ES US39172511- 04/04/2002- RF Amplifier Vectawave N/A N/A N/A Power Meter Rohde and Schwartz NRVD 836875/020 5/2002 Power Sensor Rohde and Schwartz URV5-Z2 836029/034 5/2002- Power Sensor Rohde and Schwartz URV5-Z2 836029/035 5/2002- SAR Probe IndexSAR IXP-050 0123 10/25/2002 Probe amplifier Indexsar IXA-010 043 N/A- Thermometer Control Company 4039 20410549 11/20/2002 Dielectric Measurement Kit IndexSar Di-Line N/A N/A SAR Test Report No: SAR_430_2003_FCC_800_1900 Date of Report: 04/07/2003 Appendix C Page 6 of 40 Equipment Calibration/Performance Documents: Validation Dipoles Performance Measurements: Pages 7 to 17. Immersible SAR probe Calibration Report: Pages 18 to 40 Please Note: (The following pages of Appendix C show calibration documents. These calibration documents are inserted into this appendix. The header information with page numbering scheme is a part of this report and is included on all pages of the report and appendixes. This header is used to track all of the contents of this report.) SAR Test Report No: SAR_430_2003_FCC_800_1900 Date of Report: 04/07/2003 Appendix C Page 7 of 40 Report No. SN0016_090-180-245 July 1 st 2002 INDEXSAR Validation Dipoles Type IXD-090, IXD-180 & IXD-245 Performance measurements S/N: 090-0016 S/N: 180-0016 S/N: 245-0016 MI Manning Indexsar, Oakfield House, Cudworth Lane, Newdigate, Surrey RH5 5DR. UK. Tel: +44 (0) 1306 631233 Fax: +44 (0) 1306 631834 e-mail: [email protected] SAR Test Report No: SAR_430_2003_FCC_800_1900 Date of Report: 04/07/2003 Appendix C Page 8 of 40 1. Measurement Conditions Measurements were performed using a box-shaped phantom made of PMMA with dimensions designed to meet the accuracy criteria for reasonably-sized phantoms that do not have liquid capacities substantially in excess of the volume of liquid required to fill the Indexsar upright SAM phantoms used for SAR testing of handsets against the ear. An HP 8753B vector network analyser was used for the return loss measurements. The dipole was placed in a special holder made of low-permittivity, low-loss materials. This holder enables the dipole to be positioned accurately in the centre of the base of the Indexsar box-phantom used for flat-surface testing and validation checks. The validation dipoles are supplied with special spacers made form a low-permittivity, low-loss foam material. These spacers are fitted to the dipole arms to ensure that, when the dipole is offered up to the phantom surface, the spacing between the dipole and the liquid surface is accurately aligned according to the guidance in the relevant standards documentation. The spacers are rectangular with a central hole equal to the dipole arm diameter and dimensioned so that the longer side c…

Text truncated - open the document above for the full version.

Accredited according to ISO/IEC 17025 by: TTI-P-G 81/94-A0 CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May V.2.16M-2002-03-12 f:\emc\projects\lg\430-2003_mar30\sar\testreport\sar_430_2003_fcc_850_1900.doc © Copyright by CETECOM SAR Test Report No. SAR_430_2003_FCC_850_1900 for the LG Electronics Inc. GSM/GPRS DualBand for 1900 and 850 MHz Model Number: G4050 FCC ID: BEJ G4050 Date of Report: 04/07/2003 Date of issue: 04/07/2003 Report Copy No.: 01 SAR Test Report No. SAR_430_2003_FCC_850_1900 Date of Report: 04/07/2003 Page 2 of 29 Error! Reference source not found. This report shall not be reproduced except in full without the written approval of: CETECOM Inc. Š SAR Š 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Contents 1. ASSESSMENT ...................................................................................................................4 2. ADMINISTRATIVE DATA...................................................................................................5 2.1. Identification of the Testing Laboratory Issuing the SAR Assessment Report ...............5 2.2. Identification of the Client...........................................................................................5 2.3. Identification of the Manufacturer...............................................................................5 3. EQUIPMENT UNDER INVESTIGATION (EUI)...................................................................6 3.1. Identification of the Equipment under Investigation ...................................................6 3.2. Front View of the Equipment under Investigation ......................................................7 4. SUBJECT OF INVESTIGATION ........................................................................................8 4.1. The IEEE Standard C95.1 and the FCC Exposure Criteria .......................................8 4.2. Distinction Between Exposed Population, Duration of Exposure and Frequencies...8 4.3. Distinction between Maximum Permissible Exposure and SAR Limits......................9 4.4. SAR Limit ...................................................................................................................9 5. THE FCC MEASUREMENT PROCEDURE .....................................................................10 5.1. General Requirements.............................................................................................10 5.2. Device Operating Next to a Person’s Ear ................................................................10 5.3. Test positions of device relative to head..................................................................11 5.4. Test to be Performed ...............................................................................................14 5.5. Body-worn and Other Configurations.......................................................................14 5.6. Procedure for assessing the peak spatial-average SAR .........................................15 5.7. Determination of the largest peak spatial-average SAR ..........................................17 6. THE MEASUREMENT SYSTEM ......................................................................................18 6.1. Robot system specification ......................................................................................18 6.2. Probe and amplifier specification .............................................................................19 6.3. Phantoms.................................................................................................................19 6.4. SAR measurement procedure .................................................................................20 6.5. SARA2 Interpolation and Extrapolation schemes ....................................................20 SAR Test Report No. SAR_430_2003_FCC_850_1900 Date of Report: 04/07/2003 Page 3 of 29 Error! Reference source not found. This report shall not be reproduced except in full without the written approval of: CETECOM Inc. Š SAR Š 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. 6.6. Interpolation of 2D area scan...................................................................................21 6.7. Extrapolation of 3D scan..........................................................................................21 6.8. Interpolation of 3D scan and volume averaging.......................................................21 7. UNCERTAINTY ASSESSMENT.......................................................................................23 7.1. Measurement Uncertainty Budget ...........................................................................24 8. TEST RESULTS SUMMARY............................................................................................25 8.1. Description of EUT test positions and operation modes ..........................................25 8.2. Conducted Output Power.........................................................................................25 8.3. Head SAR results for GSM 850MHz band for G4050..............................................26 8.4. Body SAR results for GSM 850MHz band for G4050 ..............................................26 8.5. Head SAR results for GSM 1900MHz band for G4050............................................27 8.6. Body SAR results for GSM 1900MHz band for G4050 ............................................27 8.7. [Validation Check Results ........................................................................................28 9. REFERENCES..................................................................................................................29 SAR Test Report No. SAR_430_2003_FCC_850_1900 Date of Report: 04/07/2003 Page 4 of 29 E…

Text truncated - open the document above for the full version.

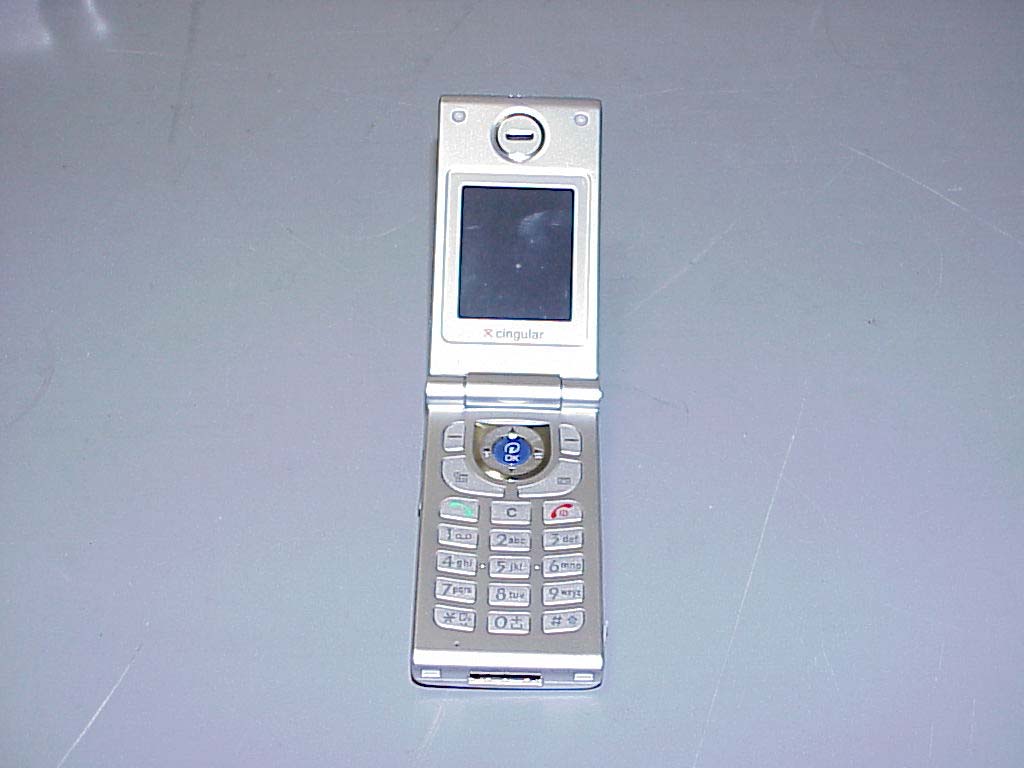

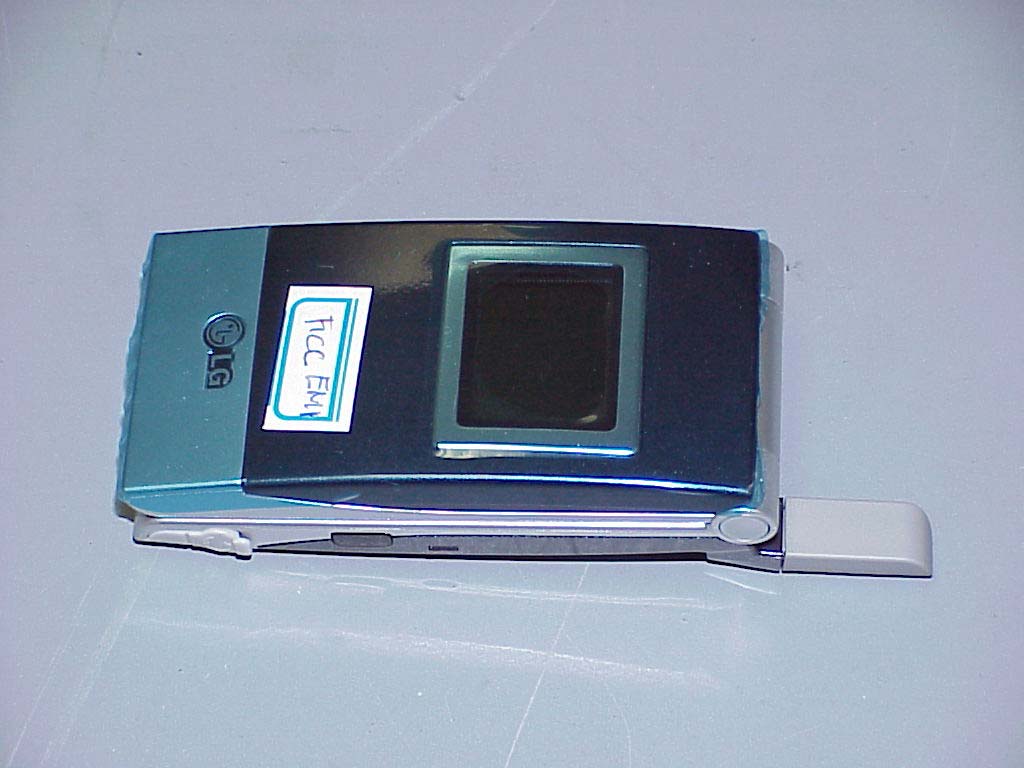

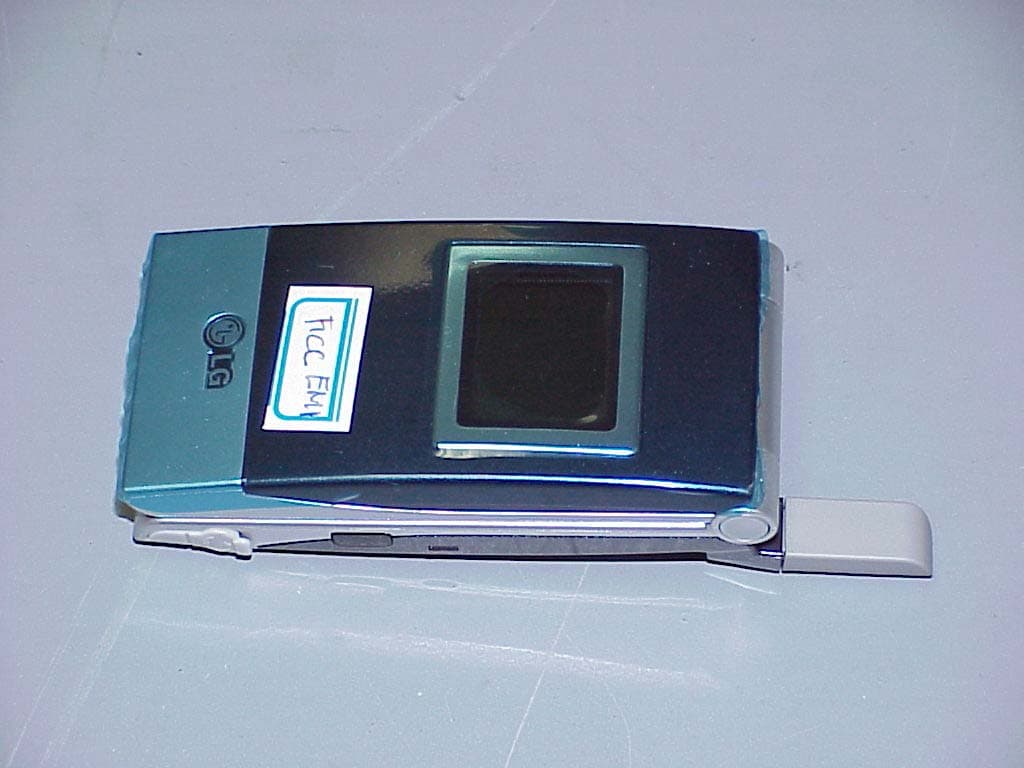

SAR Test Report No. SAR_430_2003_FCC_850_1900 Date of Report:04/07/2003 Appendix B Photographs Page 1 of 11 EUT Photos: Photo 1. EUT front closed SAR Test Report No. SAR_430_2003_FCC_850_1900 Date of Report:04/07/2003 Appendix B Photographs Page 2 of 11 Photo 2. EUT front open SAR Test Report No. SAR_430_2003_FCC_850_1900 Date of Report:04/07/2003 Appendix B Photographs Page 3 of 11 Photo 3 EUT back SAR Test Report No. SAR_430_2003_FCC_850_1900 Date of Report:04/07/2003 Appendix B Photographs Page 4 of 11 Set-up Photos: Photo 4. Left touch SAR Test Report No. SAR_430_2003_FCC_850_1900 Date of Report:04/07/2003 Appendix B Photographs Page 5 of 11 Photo 5. Left tilt SAR Test Report No. SAR_430_2003_FCC_850_1900 Date of Report:04/07/2003 Appendix B Photographs Page 6 of 11 Photo 6. Right touch SAR Test Report No. SAR_430_2003_FCC_850_1900 Date of Report:04/07/2003 Appendix B Photographs Page 7 of 11 Photo 7. Right tilt SAR Test Report No. SAR_430_2003_FCC_850_1900 Date of Report:04/07/2003 Appendix B Photographs Page 8 of 11 Photo 8. Body SAR SAR Test Report No. SAR_430_2003_FCC_850_1900 Date of Report:04/07/2003 Appendix B Photographs Page 9 of 11 Photo 9. Body SAR distance SAR Test Report No. SAR_430_2003_FCC_850_1900 Date of Report:04/07/2003 Appendix B Photographs Page 10 of 11 Photo 10. Photo to demonstrate 15 cm Z-axis head phantom SAR Test Report No. SAR_430_2003_FCC_850_1900 Date of Report:04/07/2003 Appendix B Photographs Page 11 of 11 Photo 11. Photo to demonstrate 15 cm Z-axis flat phantom

Page 5 of 14 Not applicable, “The noise level shall be determined by three different coarse scans with the RF source switched off. None of the evaluated points shall exceed 0,02 W/kg. This test shall be repeated periodically (preferably every second month). Within this constraint, the uncertainty due to noise shall be neglected.” (Reference EN 50361). Measured nominal Noise Floor is <0.005 W/Kg Maximum. ± 0% Integration Time (EN 50361 Reference 7.2.1.9): For an integration time of int t = 20 milliseconds (the SAR probes sampling rate), if 1 pulse was missed, this induces the following uncertainty: %3.2 106,4 .2 int 3 ±= = − u t x u Only 1 pulse will be missed as a GSM standard TDMA signal has an idle frame of 1 in 26 over a period of 120 milliseconds. No other integration time figure is required as this is covered by the CW/TDMA investigation and linearity The Indexsar probe amplifiers have the facility for increasing the integration time in multiples of 20mS (50 Hz) or 16.67mS (60Hz). It is recommended that the integration period is set to 6 cycles for GSM phone testing. This reduces the uncertainty above as a good match with the frame rate can be achieved. The uncertainty above is reduced to ±0.4%. Mechanical Constraints Scanning System (EN 50361 Reference 7.2.2.1): d ss - the uncertainty to the SAR measurements through the accuracy and repeatability of positioning. The Mitsibishi Movemaster RV-2E 6 Axis Robot repeatability is ±0.04mm which is d ss . From EN 50361: Error SAR [%] = 2 100 sd d ss Scanning System Error SAR [%] = 214 04.0 100x Scanning System Error SAR [%] = ± 0.57% Up to a frequency of 3 GHz. Phantom shell (EN 50361 Reference 7.2.2.2): d ph - the shape and the thickness of the phantom shell The phantom shell is made by an industrial moulding process from the CAD files of the SAM shape, with both internal and external moulds. For the upright phantoms, the external shape is subsequently digitised on a Mitutoyo CMM machine (Euro C574) to a precision of 0.001mm. Wall thickness measurements made non-destructively with an ultrasonic sensor indicate that the shell thickness away from the ear is 2.0 ± 0.1mm. This has been confirmed by mechanical measurements on available cut surfaces of the phantom shells.

Table of Measurement Uncertainty Values of SAR Evaluations abcde = f(d,k)f g = c x f / e k Uncertainty Component Sec. Tol. (
%) Prob. Dist. Div. c i (1-g) 1-g u i (
%) v i Measurement System Probe CalibrationE2.13.6N113.6
Axial IsotropyE2.24.23R 3 (1-cp) 1/2 0.00
Hemispherical IsotropyE2.210.7R 3c p 6.18
Boundary EffectE2.31.7R 3 10.98
LinearityE2.42.92R 3 11.69
System Detection LimitsE2.50.00R 3 10.00
Readout ElectronicsE2.60.00N110.00
Response TimeE2.70.00R 3 10.00
Integration TimeE2.80.4R 3 10.23
RF Ambient ConditionsE6.10.00R 3 10.00
Probe Positioner Mechanical ToleranceE6.20.57R 3 10.33
Probe Positioning with respect to Phantom Shell E6.31.43R 3 10.83
Extrapolation, interpolation and Integration Algorithms for Max. SAR Evaluation E5.23.6R 3 12.08
Test sample Related Test Sample PositioningE4.24.81N114.8129 Device Holder UncertaintyE4.10.00N110.000 Output Power Variation - SAR drift measurement 6.6.25.0R 3 12.89
Phantom and Tissue Parameters Phantom Uncertainty (shape and thickness tolerances) E3.11.43R 3 10.83
Liquid Conductivity Target - toleranceE3.25.0R 3 0.72.02
Liquid Conductivity - measurement uncertainty E3.32.0R 3 0.70.81
Liquid Permittivity Target toleranceE3.25.0R 3 0.61.73
Liquid Permittivity - measurement uncertaintyE3.31.0R 3 0.60.35
Combined Standard Uncertainty RSS
10.0% Expanded Uncertainty (95% CONFIDENCE INTERVAL) k= 2.00705
20.1% When there is more than one tolerance for an item the highest tolerance is listed in the table above.

TTI-P-G 081/94-A0 Accredited according to ISO/IEC 17025 Bluetooth Qualification Test Facility (BQTF) FCC listed # 101450 IC recognized # 3925 CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May V1.1 2003-03-01 The BLUETOOTH trademarks are owned by Bluetooth SIG, Inc., U.S.A. and licensed to CETECOM Inc. © Copyright by CETECOM FCC Test Report Test report no.: EMC_430FCC22-24_2003 FCC Part 22,24 / RSS 133 Model: (G4050) FCC ID: BEJG4050 Test report no.: EMC_430FCC22-24_2003 Issue date: 2003-05-21 Page 2 (76) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test report 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM Inc. does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM Inc. TEST REPORT PREPARED BY: EMC Engineer: Harpreet Sidhu 1.2 Testing laboratory CETECOM Inc. 411 Dixon Landing Road, Milpitas, CA-95035, USA Phone: +1 408 586 6200 Fax: +1 408 586 6299 E-mail: [email protected] Internet: www.cetecom.com Test report no.: EMC_430FCC22-24_2003 Issue date: 2003-05-21 Page 3 (76) 1.3 Details of applicant Name : LG Electronics Inc. Street : LG Kangnam Tower 679, Yoksam-dong, Kangnam-gu City / Zip Code : Seoul / 135-080 Country : Korea Contact : Kevin Lee Telephone : +82 31 389 7143 Tele-fax : +82 31 389 7101 e-mail : [email protected] 1.4 Application details Date of receipt of application : 2003-03-12 Date of receipt test item : 2003-03-26 Date of test : 2003-03-26/27/28/29, 2003-05-21 1.5 Test item Manufacturer : Applicant Marketing Name : G4050 Model No. : G4050 Description : GSM 850/1900 Mobile Phone FCC-ID : BEJG4050 Additional information Frequency : 824.2MHz – 848.8MHz for GSM 850, 1850.2MHz – 1909.8MHz for PCS 1900 Type of modulation : GMSK Number of channels : 124 for GSM-850, 299 for PCS-1900 Antenna : Fixed Power supply : 4.0 VDC Battery or charger (AC Adapter) Output power : 32.14dBm (1.64W) max. EIRP measured in GSM-850 30.51dBm (1.12W) max. EIRP measured in PCS-1900 Extreme vol. Limits : Lower:3.4Vdc Nominal:4.0Vdc Upper:4.0Vdc Extreme temp. Tolerance : Lower:-30 o C Upper: +50 o C 1.6 Test standards FCC Part 22,24 / RSS133 r1 Note: All radiated measurements were made in all three orthogonal planes. The values reported are the maximum values. Test report no.: EMC_430FCC22-24_2003 Issue date: 2003-05-21 Page 4 (76) 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course of the tests Performed Final Verdict: (only “passed” if all single measurements are “passed”) Passed Technical responsibility for area of testing: 2003-05-21 EMC & Radio Lothar Schmidt (Manager) Date Section Name Signature Responsible for test report and project leader: 2003-05-21 EMC & Radio Harpreet Sidhu (EMC Engineer) Date Section Name Signature Test report no.: EMC_430FCC22-24_2003 Issue date: 2003-05-21 Page 5 (76) 2.2 Test report TEST REPORT Test report no.: EMC_430FCC22-24_2003 (G4050) FCC ID: BEJG4050 Test report no.: EMC_430FCC22-24_2003 Issue date: 2003-05-21 Page 6 (76) TEST REPORT REFERENCE PARAMETER TO BE MEASURED PARAGRAPH PAGE POWER OUTPUT § 22.913(a) / § 24.232 (b) 7 FREQUENCY STABILITY § 2.1055 / § 24.235 11 OCCUPIED BANDWIDTH §2.1049(h)(i) 14 EMISSION BANDWIDTH §24.238(b) 21 EMISSION LIMITS TRANSMITTER §2.1051 / §24.238 28 RECEIVER RADIATED EMISSIONS § 2.1053 / RSS-133 60 CONDUCTED SPURIOUS EMISSIONS § 2.1057 / §24.238 65 CONDUCTED EMISSIONS § 15.107/207 73 TEST EQUIPMENT AND ANCILLARIES USED FOR TESTS 74 BLOCK DIAGRAMS 75 Test report no.: EMC_430FCC22-24_2003 Issue date: 2003-05-21 Page 7 (76) POWER OUTPUT § 22.913(a) / § 24.232 (b) Summary: During the process of testing, the EUT was controlled via Rhode & Schwarz Universal Radio Communication tester (CMU 200) to ensure max. Power transmission and proper modulation. This paragraph contains average output power, peak output power, EIRP & ERP measurements for the EUT. In all cases, the peak output power is within the specified limits. Method of Measurements: The EUT was set up for the max. Output power with pseudo random data modulation. The power was measured with R&S Spectrum Analyzer ESIB 40 (peak) These measurements were done at 3 frequencies, 824.2 MHz, 836.6 MHz and 848.8 MHz (bottom, middle and top of operational frequency range) for GSM-850 1850.2 MHz, 1880.0 MHz and 1909.8 MHz (bottom, middle and top of operational frequency range) for PCS-1900 Test report no.: EMC_430FCC22-24_2003 Issue date: 2003-05-21 Page 8 …
