BEJHD8280CDMA Mobile Phone

LG-HD8280 User Manual CDMA PHONE 1. Basic Functions 2. Messages Functions 3. Names 4. Records Functions 5. Camera Function 6. Schedule Functions 7. Profiles Functions 8. Settings 9. Internet function 10. Fun & Util 11. My Menu Function Appendix 1. Installation Appendix 2. RF Exposure Statement ??? ??? ? ? ? ? ?? ?? ?? ?? ??? ? ? ? ??? ?? ? ? ? ? ? ? ?? ? ? ? ?? ? ? ? ?? ? ? ? ? ? ?? ?? ? ? ?? ??? ??? ??? ??? ??? ?? ?? ? ?? ?? ?? ?? ?? ? ?? ?? ?? ?? ?? ?? ?? ?? ?? ?? ?? ?? ?? ?? ?? ?? ?? ?? ? ?? ?? ?? 1) The Battery pack is keyed so it can only fit one way. Align the groove in the battery pack with the rail on the back of the phone until the battery pack rests flush with the back of the phone. 2) Slide the battery pack forward until you hear a “click”, which locks the battery in place. 1) Plug the charger into a wall outlet. The charger can be operated from either a 110V or a 220V source. When AC power is connected to the traveler charger, both the green and red LED’s blink once. 2) Insert the jack of Traveler charger to the bottom of handset or a spare battery pack into the individual battery pack slot. Red light indicates battery is being charged.. Green light indicates battry is fully charged. WARNING! Read this information before operating the phone. In August 1996, the Federal Communications (FCC) of the United States, with its action in Report and Order FCC 96-326, adopted an updated safety standard for human exposure to radio frequency(RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. CAUTION Use only the supplied and approved antenna. Use of unauthorized antennas or modifications could impair call quality, damage the phone, void your warranty and/or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with skin, a minor burn may result. Contact your local dealer for a replacement of antenna. Body Worn Operation This device was tested for typical body-worn operations with the back of the phone kept 1.5 cm from the body. To comply with FCC RF exposure requirements, a minimum separation distance of 1.5 cm must be maintained between the user’s body and the back of the phone, including the antenna, whether extended or retracted. Third-party belt- clips, holsters, and similar accessories containing metallic components should not be used. Body-worn accessories that cannot maintain 1.5 cm separation distance between the user’s body and the back of the phone, and have not been tested for typical body- worn operations may not comply with FCC RF exposure limits and should be avoided. For Your Safety FCC Part 15 Class B Compliance

AFFIDAVIT FOR ESN PROTECTION OF CELLULAR MOBILE TELEPHONES We hereby certify that the LGE Handheld Portable Cellular Telephone(FCC ID: BEJHD8280) is so designed that it complies with all the requirements for ESN protection specified in section 22.919 of the FCC Rules. A) The transmitter in service has a unique ESN. B) The ESN host component is permanently attached to a main circuit board of the mobile transmitter and the integrity of the unit operating software cannot be altered. The ESN is plated from fraudulent contact and tampering. The ESN is encoded using multiplication by a polynomial and the ESN data programmed in the memory with other information. C) The ESN is factory-set and cannot be altered, transferred, removed or otherwise able to be manipulated. Cellular mobile equipment is specifically designed such that any attempt to remove, tamper with, or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the mobile transmitter inoperative. Sincerely, E.S.Park Research Engineer CDMA Handset Lab LG Electronics Inc. Tel : 82-2-850-3850 Fax : 82-2-850-3855 [email protected] 459-9, Kasan-dong,Kemchun-ku Seoul 153-023, Korea LG Electronics Inc. LGE

Nov 27. 2003 Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 In re : LG Electronics Inc.. FCC ID: BEJHD8280 Single -Mode Cellular Phone (CDMA) Part 22 Certification Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, LG Electronics, Inc. hereby requests confidentiality of the Block Diagram, Schematic Diagrams, Operational Description, Technical Description, Parts List, and Tune-Up Procedure for the above-referenced certification application. These documents contain detailed system and equipment description and related information about the product which LG Electronics Inc. Considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, LG Electronics Inc. considers this information to be of benefit to its competitors, such that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, E.S.Park Research Engineer CDMA Handset Lab LG Electronics Inc. Tel : 82-2-850-3850 Fax : 82-2-850-3855 [email protected] 459-9, Kasan-dong,Kemchun-ku Seoul 153-023, Korea LG Electronics Inc. LGE AFFIDAVIT FOR ESN PROTECTION OF CELLULAR MOBILE TELEPHONES We hereby certify that the LGE Handheld Portable Cellular Telephone(FCC ID: BEJSD510) is so designed that it complies with all the requirements for ESN protection specified in section 22.919 of the FCC Rules. A) The transmitter in service has a unique ESN. B) The ESN host component is permanently attached to a main circuit board of the mobile transmitter and the integrity of the unit operating software cannot be altered. The ESN is plated from fraudulent contact and tampering. The ESN is encoded using multiplication by a polynomial and the ESN data programmed in the memory with other information. C) The ESN is factory-set and cannot be altered, transferred, removed or otherwise able to be manipulated. Cellular mobile equipment is specifically designed such that any attempt to remove, tamper with, or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the mobile transmitter inoperative. Sincerely, E.S.Park Research Engineer CDMA Handset Lab LG Electronics Inc. Tel : 82-2-850-3850 Fax : 82-2-850-3861 http://[email protected] 459-9, Kasan-dong,Kemchun-ku Seoul 153-023, Korea LG Electronics Inc. LGE

1 Chris Harvey From:[email protected] Sent:Monday, December 29, 2003 4:50 AM To:[email protected]; [email protected] Cc:[email protected]; ???; ???; ???; ???; ???; ??? Subject:RE: LG Elect. Assessment No: AN03T3507 FCC ID: BEJHD8280 HD8280_FCC.zip (4 MB) Hello, Emission Designator is 1M25F9W for CDMA operation. I resend corrected confidentiality letter and SAR test report. Please find attached file. And Yong-Sub Lee will send soon corrected EMC RF test report. Best regards. --------------------------------------------------- Lee Cheol-Goo Research Engineer QE Gr. CDMA HANDSETS LABORATORY / CDMA HANDSETS DIVISION TELECOMMUNICATION EQUIPMENT & HANDSET COMPANY 459-9, Kasan-dong, Kumchon-gu, Seoul 153-023, Korea Phone : +82-2-850-3860, +82-2-818-4272,4676 FAX : +82-2-850-3855 Mobile Phone : +82-11-756-7160 E-mail : [email protected] --------------------------------------------------- Dear Mr. Park, the confidentiality letter submitted for the application for FCC ID: BEJHD8280 does not contain the FCC ID number of the product for which confidentiality is being requested. Please add the FCC ID number to the letter. Also, please change the term "Type Acceptance" to "Certification" since the FCC has changed the type of approval for these devices to Certification. The Conducted RF Power as documented in the EMC RF test report is 28.6dBm, although the RF Power Output as documented in the SAR report is only 24dBm. The RF Conducted Power for SAR test should be greater than or equal to the power in the EMC report. This will either require correction in the EMC report or re-testing in the SAR report. Please provide the Emission Designator with a justification explanation for this application (it is likely to be 1M25F9W for CDMA operation). The Liquid and Ambient temperatures are not located on the SAR plots as required by the FCC. Pleased correct this. 2 There are no z-axis scan at maximum SAR locations as required by the FCC. Please correct this. There is no photograph showing the 15cm depth of the tissue simulant liquid. Please provide this photograph. Please respond directly to [email protected]. Best regards, Chris Harvey The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. 1 Chris Harvey From:[email protected] Sent:Monday, December 29, 2003 5:26 AM To:Mike Kuo Cc:???; ???; ???; ???; ???; ???; Helen Zhao; Chris Harvey Subject:Re : LG Elect. Assessment No: AN03T3507 FCC ID: BEJHD8280 Appendix_A(Test Graph).pdf (10... Hello, Kuo Thank you for checking on documents. Difference between conducted RF Power(28.6dBm) and SAR report(24dBm) is as the following. The following: 1.Conduted RF Power(28.6dBm) is measured maximum value under Peak Mode and Max Hold of SA. 2.SAR report(24dBm) is measured maximum value under digital average power of Call simulator(E5515C) or Power Meter(E4419B). So I think that conducted RF Power(28.6dBm) and SAR(24dBm) is same value. I send re-test result you so that I prevent confusion about differenc between conducted RF Power and Power of SAR repoert, The retest result is following appendix file. Note : Retested conducted RF power is measured maximum value under average mode of SA. If you have any questions, please let me know. Thank you! Yong-Sub Lee ======================================================================================== ---------- ?? ??? ---------- ??? : Mike Kuo <[email protected]> ??? : ???? ??? ?????([email protected], 82-2-2630-3078) ? ? : 03/12/25 6:30:14 PM ? ? : LG Elect. Assessment No: AN03T3507 FCC ID: BEJHD8280 Dear Mr. Park, the confidentiality letter submitted for the application for FCC ID: BEJHD8280 does not 2 contain the FCC ID number of the product for which confidentiality is being requested. Please add the FCC ID number to the letter. Also, please change the term "Type Acceptance" to "Certification" since the FCC has changed the type of approval for these devices to Certification. The Conducted RF Power as documented in the EMC RF test report is 28.6dBm, although the RF Power Output as documented in the SAR report is only 24dBm. The RF Conducted Power for SAR test should be greater than or equal to the power in the EMC report. This will either require correction in the EMC report or re-testing in the SAR report. Please provide the Emission Designator with a justification explanation for this application (it is likely to be 1M25F9W for CDMA operation). The Liquid and Ambient temperatures are not located on the SAR plots as required by the FCC. Pleased correct this. There are no z-axis scan at maximum SAR locations as required by the FCC. Please correct this. There is no photograph showing the 15cm depth of the tissue simulant liquid. Please provide this photograph. Please respond directly to [email protected]. Best regards, Chris Harvey The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

PROPOSED FCC ID LABEL AND LOCATION LG ELECTRONICS INC. This device complies with Part 22 of the FCC Rules. FCC ID Label

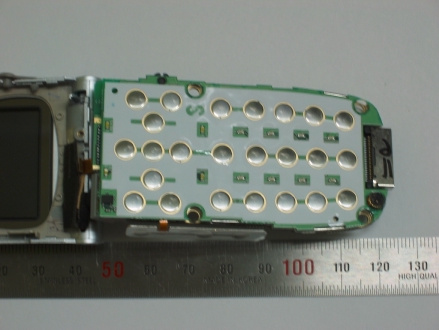

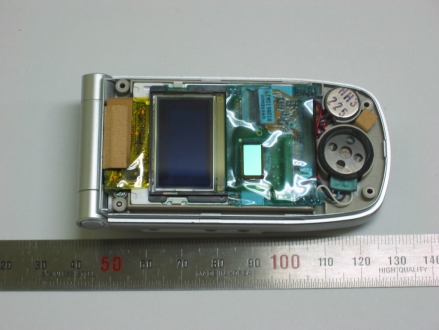

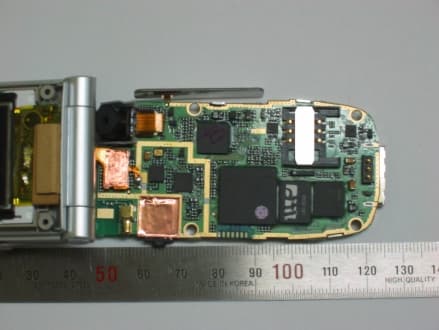

FCC ID : BEJHD8280 \VG` 2. Internal View FCC ID : BEJHD8280 ]VG` FCC ID : BEJHD8280 ^VG` FCC ID : BEJHD8280 _VG` FCC ID : BEJHD8280 `VG`

SAR Measurement Report Test Date : Nov 18~19, 2003 FCC ID : BEJHD8280 Test Report No: LGE-SAR2003007 LG ELECTRONICS INC. CDMA HANDSETS LABORATORY MOBILE HANDSETS COMPANY 459-9, Kasan-don, Keumchun-ku Seoul 153-023, Korea TEL: +82-2-850-3860 FAX: +82-2-850-3855 www.lge.com - 1 /22 - SAR Compliance Test Report APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: LG ELECTRONICS INC. Dates of tests: Nov 18~19, 2003 Communication Terminal Research Lab Test Site: LG ELECTRONICS, SEOUL Korea 459-9, Kasan-don, Keumchun-ku Seoul 153-023, Korea Attn: S.S. Kim , President Test Device Test Report No. LGE-SAR2003007 Number of Page 54 Contact Person S. S. Kim Responsible Test EngineerE. S. Park Testing has been Carried out in Accordance with IEEE P1528-200X Draft 6.4 Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate(SAR) in the Human Body Due to Wireless Communications Device : Experimental Techniques Application Type Certification FCC Classification Licensed Portable Transmitter held to ear (PCE) FCC Rule Part(s) 2.1093; FCC/OET Bulletin 65 Supplement C (July 2001) Test Results The Tested device complies with the requirements in respect of all parameters subject to the test. The test results and statements relate only to the items tested. The test report shall not be reproduced recept in full, without written approval of the laboratory. Date and Signatures Nov / 25 / 2003 Report Prepared by Eui - Soon Park Senior Research Engineer Model : LG-HD8280 FCC ID : BEJHD8280 Type : Single-Mode Single-Band Cellular Phone SAR Measurement Report Test Date : Nov 18~19, 2003 FCC ID : BEJHD8280 Test Report No: LGE-SAR2003007 LG ELECTRONICS INC. CDMA HANDSETS LABORATORY MOBILE HANDSETS COMPANY 459-9, Kasan-don, Keumchun-ku Seoul 153-023, Korea TEL: +82-2-850-3860 FAX: +82-2-850-3855 www.lge.com - 2/22 - Table of Contents APPENDIX A : Validation Test Data APPENDIX B : SAR Test Setup Photographs APPENDIX C : SAR Test Data APPENDIX D : Calibration Certificates SAR Measurement Report Test Date : Nov 18~19, 2003 FCC ID : BEJHD8280 Test Report No: LGE-SAR2003007 LG ELECTRONICS INC. CDMA HANDSETS LABORATORY MOBILE HANDSETS COMPANY 459-9, Kasan-don, Keumchun-ku Seoul 153-023, Korea TEL: +82-2-850-3860 FAX: +82-2-850-3855 www.lge.com - 3 /22 - 1. SUMMARY FOR SAR TEST REPORT FCC ID BEJHD8280 Date of Test Nov 18~19, 2003 Responsible Test Engineer Eui - Soon Park Measurement Performed by Cheol - Goo Lee EUT Type Single -mode Single-band Cellular Phone (CDMA) Tx Frequency 824.820 ~ 848.190 MHz (CDMA) Rx Frequency 869.820 ~ 893.190 MHz (CDMA) Max. RF Output Power 0.166W ERP - CDMA (22.2 dBm) Maximum Results Found During SAR Evaluation 1.1 Head Configuration Max. SAR Measurement FREQUENCY Power MHz Ch Modulation dBm Battery Device test position Antenna position SAR (W/kg) 824.70 1013 CDMA 24 Standard Right Cheek Touch Fixed 1.100 1.2 Body Worn Configuration Max. SAR Measurement FREQUENCY Power MHz Ch Modulation dBm Battery Separation Distance (cm) Antenna position SAR (W/kg) 824.70 1013 CDMA 24 Standard 1.5 [w/o Holster] Fixed 0.695 1.3 Measurement Uncertainty Combine Standard Uncertainty 10.3 (k=1) Extended Standard Uncertainty 20.6 (k=2, 95% CONFIDENCE LEVEL) SAR Measurement Report Test Date : Nov 18~19, 2003 FCC ID : BEJHD8280 Test Report No: LGE-SAR2003007 LG ELECTRONICS INC. CDMA HANDSETS LABORATORY MOBILE HANDSETS COMPANY 459-9, Kasan-don, Keumchun-ku Seoul 153-023, Korea TEL: +82-2-850-3860 FAX: +82-2-850-3855 www.lge.com - 4/22 - 2. INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable device.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) For localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for safety Levels with Respect to Human Exposure to Radio Frequency Electronic Fields, 3 kHz to 300 GHz. (c) 1992 by the institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSIC95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields – RF and Microwave[3] is used for guidance in measuring SAR due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria for SAR evaluation are similar to those recommended by the National Council on Radiation Protection and Measurements (NCRP) in Biological Effects and Exposure Criteria for Radio Frequency Electromagnetic Fields,” NCRP Report No. 86 (c) NCRP, 1986, Bethesda, MD20814.[6] SAR is a measure of the rate of energy absorption due to exposure to an RF transmitting source. SAR values have been related to threshold levels for potential biological hazards. SAR Definition Specific Absorption Rate (SAR) is defined as the time derivative (rate) of the incremental energy (dU) absorbed by (dissipated in) an incremental mass (dm) contained in a volume element (dV) of a given density (). it is also defined as the rate of rf energy absorption per unit mass at a point in an absorbing body (see Fig. 3.1.). Figure 2.1 SAR Mathematical Equation SAR is expressed in units of Watts per Kilogram (W/kg). SAR = E / Where: = conductivity of the tissue-simulant material (S/m) E = mass density of the tissue-simulant material (kg/) = Total RMS electric field strength (V/m) SAR Measurement Report Test Date : Nov 18~19, 2003 FCC ID : BEJHD8280 Test Report No: LGE-SAR2003007 LG ELECTRONICS INC. CDMA HANDSETS LABORATORY MOBILE HANDSETS COMPANY 459-9, Kasan-don, Keumchun-ku Seoul 153-023, Korea TEL: +82-2-850-3860 FAX: +82-2-850-3855 www.lge.com - 5/22 - 3. DESCRIPTION OF THE DEVICE UNDER TEST The FCC rules for evaluating portable devices for RF exposure compliance are contained in 47 CFR §2.1093. For purpos…

Text truncated - open the document above for the full version.

SAR Measurement Report Test Date : Nov 18~19, 2003 FCC ID : BEJHD8280 Test Report No: LGE-SAR2003007 LG ELECTRONICS INC. CDMA HANDSETS LABORATORY MOBILE HANDSETS COMPANY 459-9, Kasan-don, Keumchun-ku Seoul 153-023, Korea TEL: +82-2-850-3860 FAX: +82-2-850-3855 APPENDIX A : Validation Test Data SAR Measurement Report Test Date : Nov 18~19, 2003 FCC ID : BEJHD8280 Test Report No: LGE-SAR2003007 LG ELECTRONICS INC. CDMA HANDSETS LABORATORY MOBILE HANDSETS COMPANY 459-9, Kasan-don, Keumchun-ku Seoul 153-023, Korea TEL: +82-2-850-3860 FAX: +82-2-850-3855 835MHz Dipole Validation Test Laboratory: LG Electronics Inc. DUT: Dipole 835MHz;Type: D835V2;Serial: 471 Program: 835 MHz Dipole Validation Communication System: Validation;Frequency: 835 MHz;Duty Cycle: 1:1 Medium: Head 835 MHz; (s = 0.88 mho/m, e r = 40.6, r = 1000 kg/m 3 ) Phantom section: Flat Section Test Date: 11/18/2003; Ambient Temp: 22.3 C; Tissue Temp:21.2 C Probe: ET3DV6 - SN1729;ConvF(6.4, 6.4, 6.4);Calibrated: 2002-11-20 Sensor- Surface: 4mm (Mechanical And Optical Surface Detection) Electronics: DAE3 Sn534;Calibrated: 2003-10-13 Phantom: SAM 835;Type: SAM 4.0;Serial: TP-1151 Measurement SW: DASY4, V4.1 Build 47;Postprocessing SW: SEMCAD, V1.6 Build 115 Validation 835 MHz/Area Scan (61x101x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 55 V/m Power Drift = - 0.07 dB Maximum value of SAR = 2.59 mW/g Validation 835 MHz/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 3.57 W/kg SAR(1 g) = 2.43 mW/g; SAR(10 g) = 1.58 mW/g Reference Value = 55 V/m Power Drift = - 0.07 dB Maximum value of SAR = 2.6 mW/g 0 dB = 2.6mW/g SAR Measurement Report Test Date : Nov 18~19, 2003 FCC ID : BEJHD8280 Test Report No: LGE-SAR2003007 LG ELECTRONICS INC. CDMA HANDSETS LABORATORY MOBILE HANDSETS COMPANY 459-9, Kasan-don, Keumchun-ku Seoul 153-023, Korea TEL: +82-2-850-3860 FAX: +82-2-850-3855 APPENDIX B : SAR Test Setup Photographs Left Hand – Touch Position Right Hand – Touch Position SAR Measurement Report Test Date : Nov 18~19, 2003 FCC ID : BEJHD8280 Test Report No: LGE-SAR2003007 LG ELECTRONICS INC. CDMA HANDSETS LABORATORY MOBILE HANDSETS COMPANY 459-9, Kasan-don, Keumchun-ku Seoul 153-023, Korea TEL: +82-2-850-3860 FAX: +82-2-850-3855 Left Hand – Tilt Position Right Hand – Tilt Position SAR Measurement Report Test Date : Nov 18~19, 2003 FCC ID : BEJHD8280 Test Report No: LGE-SAR2003007 LG ELECTRONICS INC. CDMA HANDSETS LABORATORY MOBILE HANDSETS COMPANY 459-9, Kasan-don, Keumchun-ku Seoul 153-023, Korea TEL: +82-2-850-3860 FAX: +82-2-850-3855 Flat – Body Side Configuration Flat – Body Front Configuration SAR Measurement Report Test Date : Nov 18~19, 2003 FCC ID : BEJHD8280 Test Report No: LGE-SAR2003007 LG ELECTRONICS INC. CDMA HANDSETS LABORATORY MOBILE HANDSETS COMPANY 459-9, Kasan-don, Keumchun-ku Seoul 153-023, Korea TEL: +82-2-850-3860 FAX: +82-2-850-3855 SAR Measurement Report Test Date : Nov 18~19, 2003 FCC ID : BEJHD8280 Test Report No: LGE-SAR2003007 LG ELECTRONICS INC. CDMA HANDSETS LABORATORY MOBILE HANDSETS COMPANY 459-9, Kasan-don, Keumchun-ku Seoul 153-023, Korea TEL: +82-2-850-3860 FAX: +82-2-850-3855 APPENDIX C : SAR Test Data Test Laboratory: LG Electronics Inc. DUT: LG-HD8280;Type: Single Band/Single Mode;Serial: #1 Program: LG- HD8280;CDMA Mode Ch: 1013 Communication System: LG- HD8280;Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium: Head 835 MHz; (s = 0.88 mho/m, e r = 40.6, r = 1000 kg/m 3 ) Phantom section: Left Section Test Date: 11/18/2003; Ambient Temp: 22.6 C; Tissue Temp:21.4 C Probe: ET3DV6 - SN1729;ConvF(6.4, 6.4, 6.4);Calibrated: 2002-11-20 Sensor- Surface: 4mm (Mechanical And Optical Surface Detection) Electronics: DAE3 Sn534;Calibrated: 2003-10-13 Phantom: SAM 835;Type: SAM 4.0;Serial: TP-1151 Measurement SW: DASY4, V4.1 Build 47;Postprocessing SW: SEMCAD, V1.6 Build 115 CDMA 1013 Left Head Touch/Area Scan (71x111x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 16 V/m Power Drift = -0.1 dB Maximum value of SAR = 0.968 mW/g CDMA 1013 Left Head Touch/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 1.32 W/kg SAR(1 g) = 0.901 mW/g; SAR(10 g) = 0.593 mW/g Reference Value = 16 V/m Power Drift = -0.1 dB Maximum value of SAR = 0.963 mW/g 0 dB = 0.963mW/g Test Laboratory: LG Electronics Inc. DUT: LG-HD8280;Type: Single Band/Single Mode;Serial: #1 Program: LG- HD8280;CDMA Mode Ch: 1013 Communication System: LG- HD8280;Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium: Head 835 MHz; (s = 0.88 mho/m, e r = 40.6, r = 1000 kg/m 3 ) Phantom section: Left Section Test Date: 11/18/2003; Ambient Temp: 22.5 C; Tissue Temp:21.2 C Probe: ET3DV6 - SN1729;ConvF(6.4, 6.4, 6.4);Calibrated: 2002-11-20 Sensor- Surface: 4mm (Mechanical And Optical Surface Detection) Electronics: DAE3 Sn534;Calibrated: 2003-10-13 Phantom: SAM 835;Type: SAM 4.0;Serial: TP-1151 Measurement SW: DASY4, V4.1 Build 47;Postprocessing SW: SEMCAD, V1.6 Build 115 CDMA 1013 Left Head Tilt/Area Scan (71x111x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 15.7 V/m Power Drift = - 0.06 dB Maximum value of SAR = 0.286 mW/g CDMA 1013 Left Head Tilt/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 0.365 W/kg SAR(1 g) = 0.278 mW/g; SAR(10 g) = 0.211 mW/g Reference Value = 15.7 V/m Power Drift = - 0.06 dB Maximum value of SAR = 0.291 mW/g 0 dB = 0.291mW/g Test Laboratory: LG Electronics Inc. DUT: LG-HD8280;Type: Single Band/Single Mode;Serial: #1 Program: LG- HD8280;CDMA Mode Ch: 1013 Communication System: LG- HD8280;Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium: Head 835 MHz; (s = 0.88 mho/m, e r = 40.6, r = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 11/18/2003; Ambient Temp: 22.4 C; Tissue Temp:21.1 C Probe: ET3DV6 - SN1729;ConvF(6.4, 6.4, 6.4);Calibrated: 2002-11-20 Sensor- Surface: 4mm (Mechanical And Optical Surface Detection) Electronics: DAE3 Sn534;Calibrated: 2003-10-13 Phantom: SAM 835;Type: SAM 4.0;Serial: TP-…

Text truncated - open the document above for the full version.

1/17 Report No.: 00431-4529-C3025 LG Electronics Inc. Q & R Center, 36, Munlae-dong, 6-ga, Youngdungpo-gu, Seoul, Korea Tel:+82-2-2630-3077~9, Fax:+82-2-2635-5543 LG Electronics Inc. Quality & Reliability Center 36, Munlae-dong, 6-ga, Youngdungpo-gu, Seoul 150-096, Korea Tel: + 82 2 2630 3077~9, Fax: +82 2 2635 5543 CERTIFICATION OF COMPLIANCE Date of Issue: December 15, 2003 Test Report No: 00431-4529-C3025 Applicant: LG Electronics Inc. Regulation: FCC Part 22, Part2 Test procedure: ANSI C63.4-2001, TIA/EIA603 Equipment Class: Intentional Radiators EUT Type: Single Band, Single Mode CDMA Mobile Phone FCC ID: BEJHD8280 Trade Name(s): Model No.: LG LG-HD8280 This device has been verified to comply with the applicable requirements in the FCC Part 22 & Part2 and was tested in accordance with the measurement procedures specified in ANSI C63.4- 2001, TIA/EIA 603. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Kyeom-Soon Kim / General Manager Quality and Reliability Center LG Electronics Inc. 2/17 Report No.: 00431-4529-C3025 LG Electronics Inc. Q & R Center, 36, Munlae-dong, 6-ga, Youngdungpo-gu, Seoul, Korea Tel:+82-2-2630-3077~9, Fax:+82-2-2635-5543 REPORT FOR AN INTENTIONAL RADIATORS U.S. Responsible Party: Address: LG Electronics USA Inc. 6133 North River Road, Suite 1100 (Riverway Plasza) Rosemont, IL 60018, USA Contact Person: P. H. Byun, General Manager Telephone No.: (847) 692-4630 EXT.329 Manufacturer: LG Electronics Inc. Address: 459-9, Kasan-Dong, Kunchon-Gu, Seoul, 153-023, Korea FCC ID No.: BEJHD8280 EUT Class: Intentional Radiators EUT Type: Single Band, Single Mode CDMA Mobile Phone Trade Name: LG Model No.: LG-HD8280 Rule Part: FCC Part 22, Part2 Test Procedure: ANSI C63.4-2001, TIA/EIA603 Date of Test: December 8 ~ 12, 2003 Date of Receipt of EUT: November 24, 2003 Date of Issue: December 15, 2003 Test Report No.: 00431-4529-C3025 Test Result: Positive Quality and Reliability Center authorizes the above-named applicant to reproduce this report provided it is reproduced in its entirety. Quality and Reliability Center reports apply only to the specific samples tested under stated test conditions. It is the manufacturer’s responsibility to assure that additional production unit of this model are manufactured with identical electrical and mechanical components. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval. Tested by: Reviewed by: Y. S. Lee / Senior Research Engineer Quality and Reliability Center LG Electronics Inc. J. C. Lee / Senior Research Engineer Quality and Reliability Center LG Electronics Inc. 3/17 Report No.: 00431-4529-C3025 LG Electronics Inc. Q & R Center, 36, Munlae-dong, 6-ga, Youngdungpo-gu, Seoul, Korea Tel:+82-2-2630-3077~9, Fax:+82-2-2635-5543 CONTENTS Page 1. GENERAL INFORMATION ..................................................................................................................... 4G 1.1 D ESCRIPTIONS OF EQUIPMENT UNDER TEST (EUT)................................................................................... 4G 1.2 R EGULATIONS APPLIED TO EUT ............................................................................................................... 4G 1.3 M EASUREMENT PROCEDURE.................................................................................................................... 4G 1.4 M EASUREMENT PLACE............................................................................................................................. 4G 2. TEST SITE ................................................................................................................................................... 4G 2.1 S EMI-ANECHOIC CHAMBER....................................................................................................................... 4G 2.2 A SHIELDED ENCLOSURE.......................................................................................................................... 4G 3. CALIBRATIONS OF MEASURING INSTRUMENTS .......................................................................... 5G 4. DESCRIPTION OF TEST CONDITION .................................................................................................. 5G 4.1 RF P OWER OUTPUT.................................................................................................................................. 5G 4.2 M ODULATION CHARACTERISTICS............................................................................................................. 7G 4.3 O CCUPIED BANDWIDTH............................................................................................................................ 8G 4.4 S PURIOUS EMISSION AT ANTENNA TERMINAL.......................................................................................... 9G 4.5 F IELD STRENGTH OF SPURIOUS RADIATION.............................................................................................. 9G 4.6 F REQUENCY STABILITY.......................................................................................................................... 11G 5. TEST DATA ...........................................................................................................................…
