BEJKM555RCellular/PCS WCDMA/GSM/EDGE Phone with WLAN and Bluetooth

KM555R User Guide Some of contents in this manual may differ from your phone depending on the software of the phone or your service provider. Part 15.21 statement " Change or Modifications that are not expressly approved by the manufacturer could void the user's authority to operate the equipment. “ Part 15.105 statement This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Part 15 Class B Compliance This device and its accessories comply with part15 of FCC rules. Operation is subject to the following two conditions: (1) This device & its accessories may not cause harmful interference. (2) This device & its accessories must accept any interference received, including interference that may cause undesired operation. Body-worn Operation This device has been tested for typical body-worn operations with the distance of 0.79inches (2.0cm) from the user’s body. To comply with FCC RF exposure requirements, a minimum separation distance of 0.79inches(2.0cm) must be maintained from the user's body. Additionally, Belt clips, holsters & other body-worn accessories may not contain metallic components. LG KM555R | User Guide6 Getting to know your phone WARNING: Putting a heavy object on the phone or sitting on it can damage its LCD and touch screen functionality. Do not cover the protection fi lm on proximity sensor of LCD. It can be caused the malfunction of sensor. Power key Turns the phone on/off. End key • Rejects a call. • Press once to return to the home screen. Earpiece Proximity Sensor WARNING: Moisture on the proximity sensor may cause it to malfunction. Please wipe any moisture off the sensor surface. Call key Dials a phone number and answers incoming calls. Multitasking key 7 Charger, Data cable (USB cable) TIP: Before connecting the USB cable, wait until the phone has powered up and has registered on the network. Volume keys • When the screen is idle: key tone volume. • During a call: earpiece volume. • When playing a track: controls volume continuously. Music key Camera key • Go to the camera menu directly by pressing and holding the key. LG KM555R | User Guide8 Open view SIM card socket Camera lens Memory card socket Battery Battery cover 9 Installing the SIM and battery 1 Remove the battery cover Press and hold down the battery release button on the top of the phone and lift off the battery cover. 2 Remove the battery Hold the top edge of the battery and lift it away from the battery compartment. WARNING: Do not remove the battery when the phone is switched on, as this may damage the phone. 3 Install the SIM card Slide the SIM card into the SIM card holder. Make sure the gold contact area on the card is facing downwards. To remove the SIM card, pull it gently in the outwards. LG KM555R | User Guide10 Installing the SIM and battery 4 Install the battery First insert the top of the battery into the top edge of the battery compartment. Ensure that the battery contacts align with the phone’s terminals. Press the bottom of the battery down until it clips into place. 11 1 Ensure the battery is fully charged before using the phone for the first time. 2 With the arrow facing you as shown in the diagram push the plug on the travel adapter into the socket on the side of the phone until it clicks into place. 3 Connect the other end of the travel adapter to the main socket. Use only the charger included in the box. 4 The moving bars of battery icon will stop after charging is complete. NOTE: The battery must be fully charged initially to improve battery lifetime. Disregard the first “Battery full” message and keep the phone on charge overnight. Installing a memory card You can expand the available memory space on your phone by using a memory card. NOTE: A memory card is an optional accessory. Slide the memory card into the slot at the top, until it clicks into place. Make sure the gold contact area is facing downwards. Charging your phoneMemory card LG KM555R | User Guide12 From this screen you can access menu options, make a call, view the status of your phone and much more. Touch screen tips The home screen is also a great place to get used to using the touch screen. To select an item, touch the centre of the icon. • Do not to press too hard; the touchscreen is sensitive enough to pick up on a light, firm touch. • Use the tip of your finger to touch the option you require. Be careful not to touch any other keys. • When the screen light is off, either press the power key or hold down the Unlock/Lock key on the touch screen to return the home screen. • Whenever your KM555R is not in use, it will return to the lock screen. Your home screen 13 Customising the home screen Contact home screen 3.Widget home screen (active) Livesquare screen 1. 2. Quick keys The quick keys on your home screen provide easy, one-touch access to the functions you use the most. Touch to bring up the touch dialling pad, which lets you make a call. Enter the number using the normal key pad and touch call icon. Touch to open your contacts…

Text truncated - open the document above for the full version.

LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, NJ 07632 Date: December 14, 2009 Fe deral Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: BEJKM555R Eq uipment Class: P CE: PCS Licensed Transmitter held to ear To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Electronics USA hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Electronics USA temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Descriptions 3 Parts Lists and Tune-Up Procedure PERMANENT 4 Schematics 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM 8 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Jae Cheon(J.C.) Lee General Manager LG Electronics USA LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

From: ??? Sent: Monday, December 14, 2009 7:03 PM To: PCTEST TCB/ CB Subject: Re: Questions Regarding FCC ID: BEJKM555R Importance: High Hello PCTEST TCB, Please see below response for your comments. Without any problem, please let me get the grants asap. Thank you! Best regards Han. ----- Original Message ----- From: PCTEST TCB/CB To: LGE - Bong Hyo, Han Sent: Tuesday, December 15, 2009 6:16 AM Subject: Questions Regarding FCC ID: BEJKM555R To: Mr. Bong Hyo Han / LG Electronics Inc. From: Mr. Gregory Czumak / PCTEST TCB RE: FCC ID: BEJKM555R Applicant: LG Electronics Inc. Correspondence Reference Number: BEJ91341 Confirmation Number: 911051341-43 Date of Original Email: December 14, 2009 Subject: Request for additional information In regards to your recent TCB application referenced above, we kindly request that you provide the following additional information. 1. The operational description lists WCDMA Band IV (AWS) capability. Please confirm that this is not implemented in the EUT. → I confirm that Band IV capability is not implemented in this EUT. 2. The WLAN operational description lists 5 GHz capability. Please confirm that this is not implemented in the EUT. → I confirm that 5GHz capability for WLAN is not implemented in this EUT. The item indicated above must be submitted before processing can continue on the above referenced application. Sincerely, Gregory Czumak Senior Certification Engineer Quality Manager PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road Columbia, MD 21045 410-290-6652 410-290-6654 (Fax) [email protected] This communication and its attachments contain information from PCTEST Engineering Laboratory, Inc., and is intended for the exclusive use of the recipient (s) named above. It may contain information that is confidential and/or legally privileged. Any unauthorized use that may compromise that confidentiality via distribution or disclosure is prohibited. Please notify the sender immediately if you receive this communication in error, and delete it from your computer system. Usage of PCTEST email addresses for non-business related activities is strictly prohibited. No warranty is made that the e-mail or attachment(s) are free from computer virus or other defect. Thank you.

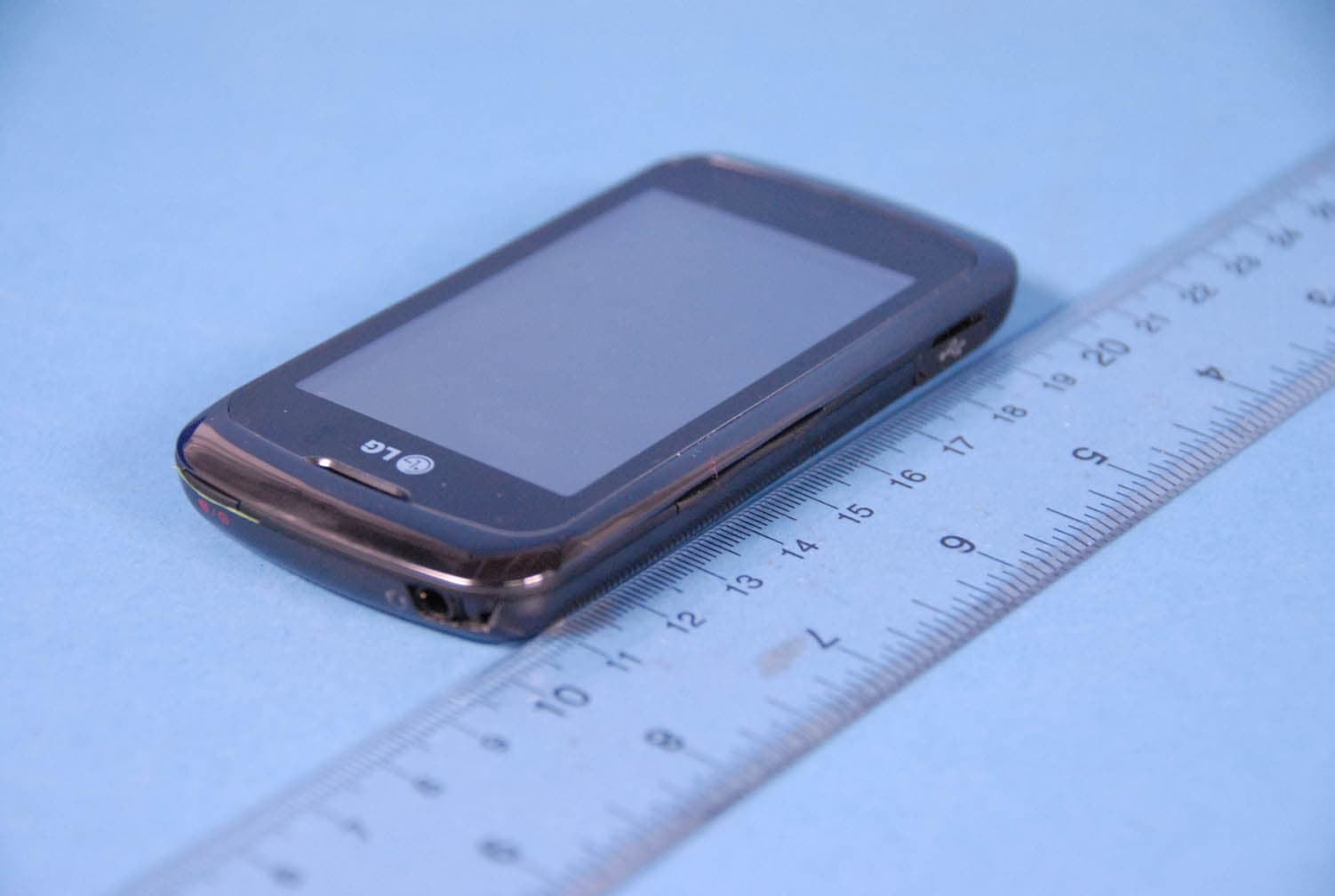

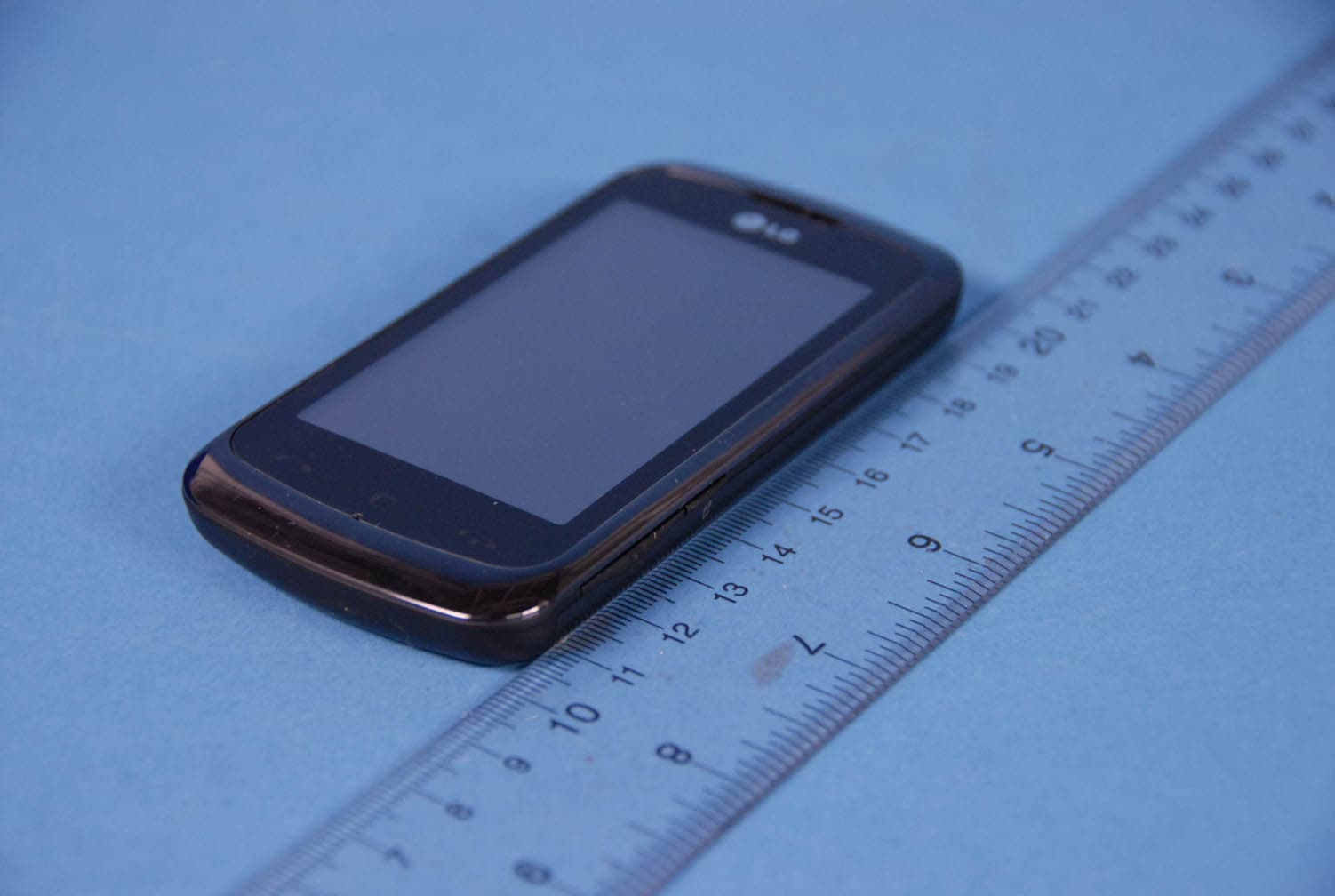

LG Electronics USA FCC ID: BEJKM555R Model: KM555r External Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with BT and WLAN Page 1 of 4 © 2009 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS LG Electronics USA FCC ID: BEJKM555R Model: KM555r External Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with BT and WLAN Page 2 of 4 © 2009 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJKM555R Model: KM555r External Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with BT and WLAN Page 3 of 4 © 2009 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJKM555R Model: KM555r External Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with BT and WLAN Page 4 of 4 © 2009 PCTEST Engineering Laboratory Inc.

Model No: KM555r FCC ID : BEJKM555R S/N : Made in Korea LG Electronics Inc. LGE

LG Electronics USA FCC ID: BEJKM555R Model: KM555r Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with BT and WLAN Page 1 of 9 © 2009 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS LG Electronics USA FCC ID: BEJKM555R Model: KM555r Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with BT and WLAN Page 2 of 9 © 2009 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJKM555R Model: KM555r Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with BT and WLAN Page 3 of 9 © 2009 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJKM555R Model: KM555r Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with BT and WLAN Page 4 of 9 © 2009 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJKM555R Model: KM555r Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with BT and WLAN Page 5 of 9 © 2009 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJKM555R Model: KM555r Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with BT and WLAN Page 6 of 9 © 2009 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJKM555R Model: KM555r Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with BT and WLAN Page 7 of 9 © 2009 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJKM555R Model: KM555r Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with BT and WLAN Page 8 of 9 © 2009 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJKM555R Model: KM555r Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with BT and WLAN Page 9 of 9 © 2009 PCTEST Engineering Laboratory Inc.

FCC ID: BEJKM555R SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 1 of 37 0911052023.BEJ 12/01/90 - 12/01/09 850/1900 GSM/GPRS/EDGE/WCDMA/HSDPA Phone with Bluetooth and WLAN © 2009 PCTEST Engineering Laboratory, Inc. REV 7.0 11/02/09 Applicant Name: Date of Testing: LG Electronics USA 12/01/90 - 12/01/09 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0911052023.BEJ FCC ID: BEJKM555R APPLICANT: LG ELECTRONICS USA EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA/HSDPA Phone with Bluetooth and WLAN Application Type: Certification FCC Rule Part(s): CFR §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] FCC Classification: Licensed Transmitter Held to Ear (PCE) Model(s): KM555r, KM555R Tx Frequency: 824.20 - 848.80 MHz (GSM 850) 1850.20 - 1909.80 MHz (GSM 1900) 826.40 - 846.60 MHz (UMTS V) 1852.4 - 1907.6 MHz (UMTS II) Conducted Power: 32.64 dBm GSM 850 / 29.78 dBm GSM 1900 23.06 dBm UMTS V / 22.68 dBm UMTS II 15.15 dBm 2.4 GHz WLAN Max. SAR Measurement: 1.12 W/kg GSM 850 Head SAR 0.61 W/kg GSM 850 Body SAR 0.77 W/kg GSM 1900 Head SAR 0.3 W/kg GSM 1900 Body SAR 1.07 W/kg UMTS V Head SAR 0.37 W/kg UMTS V Body SAR 1.24 W/kg UMTS II Head SAR 0.4 W/kg UMTS II Body SAR Test Device Serial No.: Pre-Production [S/N: 907KPCA561555, SAR 1] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001), IEEE 1528-2003 and in applicable Industry Canada Radio Standards Specifications (RSS); for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com SAR COMPLIANCE EVALUATION REPORT FCC ID: BEJKM555R SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 2 of 37 0911052023.BEJ 12/01/90 - 12/01/09 850/1900 GSM/GPRS/EDGE/WCDMA/HSDPA Phone with Bluetooth and WLAN © 2009 PCTEST Engineering Laboratory, Inc. REV 7.0 11/02/09 TABLE OF CONTENTS 1 INTRODUCTION ............................................................................................................................. 3 2 TEST SITE LOCATION ................................................................................................................... 4 3 SAR MEASUREMENT SETUP ....................................................................................................... 5 4 DASY E-FIELD PROBE SYSTEM .................................................................................................. 7 5 PROBE CALIBRATION PROCESS ................................................................................................ 8 6 PHANTOM AND EQUIVALENT TISSUES ...................................................................................... 9 7 DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................... 10 8 DEFINITION OF REFERENCE POINTS ...................................................................................... 11 9 TEST CONFIGURATION POSITIONS ......................................................................................... 12 10 RF EXPOSURE LIMITS ................................................................................................................ 15 11 MEASUREMENT UNCERTAINTIES ............................................................................................ 16 12 SYSTEM VERIFICATION .............................................................................................................. 17 13 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 19 14 FCC 3G MEASUREMENT PROCEDURES .................................................................................. 20 15 SAR DATA SUMMARY ................................................................................................................. 23 16 EQUIPMENT LIST ......................................................................................................................... 29 17 CONCLUSION ............................................................................................................................... 30 18 REFERENCES .............................................................................................................................. 31 19 SAR TEST SETUP PHOTOGRAPHS ........................................................................................... 33 FCC ID: BEJKM555R SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 3 of 37 0911052023.BEJ 12/01/90 - 12/01/09 850/1900 GSM/GPRS/EDGE/WCDMA/HSDPA Phone with Bluetooth and WLAN © 2009 PCTEST Engineering Laboratory, Inc. REV 7.0 11/02/09 1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency (RF) radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: BEJKM555R FCC Pt. 22/24 GSM/EDGE/WCDMA MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0911052024.BEJ November 16, 2009 850/1900 GSM/GPRS/EDGE/WCDMA Phone with BT and WLAN Page 1 of 57 © 2009 PCTEST Engineering Laboratory, Inc. REV 4.3GWC 05/13/2009 Applicant Name: Date of Testing: LG Electronics USA November 16, 2009 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab., Columbia, MD, USA United States Test Report Serial No.: 0911052024.BEJ FCC ID: BEJKM555R APPLICANT: LG ELECTRONICS USA Application Type: Certification FCC Classification: PCS Licensed Transmitter Held to Ear (PCE) FCC Rule Part(s): §2; §22(H), §24(E) EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with BT and WLAN Model(s): KM555r, KM555R Tx Frequency Range: 824.20 - 848.80MHz (Cell. GSM) / 1850.20 - 1909.80MHz (PCS GSM) 826.40 - 846.60MHz (Cell. WCDMA) / 1852.4 - 1907.6MHz (PCS WCDMA) Max. RF Output Power: 0.883 W ERP Cell. GSM (29.46 dBm) / 1.175 W EIRP PCS GSM (30.7 dBm) 0.41 W ERP EDGE850 (26.13 dBm) / 0.49 W EIRP EDGE1900 (26.9 dBm) 0.138 W ERP Cell. WCDMA (21.4 dBm) / 0.19 W EIRP PCS WCDMA (22.78 dBm) Emission Designator(s): 243KGXW (Cellular GSM), 241KGXW (PCS GSM) 239KG7W (EDGE850), 233KG7W (EDGE1900) 4M16F9W (Cellular WCDMA), 4M14F9W (PCS WCDMA) Test Device Serial No.: identical prototype [S/N: N/A] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 22 & 24 Certification Reviewed by: FCC ID: BEJKM555R FCC Pt. 22/24 GSM/EDGE/WCDMA MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0911052024.BEJ November 16, 2009 850/1900 GSM/GPRS/EDGE/WCDMA Phone with BT and WLAN Page 2 of 57 © 2009 PCTEST Engineering Laboratory, Inc. REV 4.3GWC 05/13/2009 TABLE OF CONTENTS FCC PART 22 & 24 MEASUREMENT REPORT............................................................................3 1.0 INTRODUCTION ..............................................................................................................................4 1.1 SCOPE ................................................................................................................................................ 4 1.2 TESTING FACILITY............................................................................................................................. 4 2.0 PRODUCT INFORMATION..............................................................................................................5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................... 5 2.3 LABELING REQUIREMENTS.............................................................................................................. 5 3.0 DESCRIPTION OF TESTS ..............................................................................................................6 3.1 MEASUREMENT PROCEDURE......................................................................................................... 6 3.2 OCCUPIED BANDWIDTH EMISSION LIMITS .................................................................................... 6 3.3 CELLULAR - BASE FREQUENCY BLOCKS....................................................................................... 6 3.4 CELLULAR - MOBILE FREQUENCY BLOCKS................................................................................... 7 3.5 PCS - BASE FREQUENCY BLOCKS .................................................................................................. 7 3.6 PCS - MOBILE FREQUENCY BLOCKS .............................................................................................. 7 3.7 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL.............................................. 7 3.8 RADIATED SPURIOUS AND HARMONIC EMISSIONS ..................................................................... 8 3.9 PEAK-AVERAGE RATIO ..................................................................................................................... 8 3.10 FREQUENCY STABILITY / TEMPERATURE VARIATION ................................................................. 8 4.0 TEST EQUIPMENT CALIBRATION DATA ......................................................................................9 5.0 SAMPLE CALCULATIONS ............................................................................................................10 6.0 TEST RESULTS .............................................................................................................................10 6.1 SUMMARY......................................................................................................................................... 11 6.2 EFFECTIVE RADIATED POWER OUTPUT DATA ........................................................................... 12 6.3 EQUIVALENT ISOTROPIC RADIATED POWER OUTPUT DATA .........................................…

Text truncated - open the document above for the full version.

FCC ID: BEJKM555R SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 33 of 37 0911052023.BEJ 12/01/90 - 12/01/09 850/1900 GSM/GPRS/EDGE/WCDMA/HSDPA Phone with Bluetooth and WLAN © 2009 PCTEST Engineering Laboratory, Inc. REV 7.0 11/02/09 19 SAR TEST SETUP PHOTOGRAPHS FCC ID: BEJKM555R SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 34 of 37 0911052023.BEJ 12/01/90 - 12/01/09 850/1900 GSM/GPRS/EDGE/WCDMA/HSDPA Phone with Bluetooth and WLAN © 2009 PCTEST Engineering Laboratory, Inc. REV 7.0 11/02/09 Figure 19-1 SAR Test Setup Photo 1 Figure 19-2 SAR Test Setup Photo 2 FCC ID: BEJKM555R SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 35 of 37 0911052023.BEJ 12/01/90 - 12/01/09 850/1900 GSM/GPRS/EDGE/WCDMA/HSDPA Phone with Bluetooth and WLAN © 2009 PCTEST Engineering Laboratory, Inc. REV 7.0 11/02/09 Figure 19-3 SAR Test Setup Photo 3 Figure 19-4 SAR Test Setup Photo 4 FCC ID: BEJKM555R SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 36 of 37 0911052023.BEJ 12/01/90 - 12/01/09 850/1900 GSM/GPRS/EDGE/WCDMA/HSDPA Phone with Bluetooth and WLAN © 2009 PCTEST Engineering Laboratory, Inc. REV 7.0 11/02/09 Figure 19-5 SAR Test Setup Photo 5 Figure 19-6 SAR Test Setup Photo 6 FCC ID: BEJKM555R SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 37 of 37 0911052023.BEJ 12/01/90 - 12/01/09 850/1900 GSM/GPRS/EDGE/WCDMA/HSDPA Phone with Bluetooth and WLAN © 2009 PCTEST Engineering Laboratory, Inc. REV 7.0 11/02/09 Figure 19-7 SAR Test Setup Photo 7 Figure 19-8 SAR Test Setup Photo 8

LG Electronics USA FCC ID: BEJKM555R Model: KM555r Test Set-Up Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with BT and WLAN Page 1 of 3 © 2009 PCTEST Engineering Laboratory Inc. TEST SETUP PHOTOGRAPHS LG Electronics USA FCC ID: BEJKM555R Model: KM555r Test Set-Up Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with BT and WLAN Page 2 of 3 © 2009 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJKM555R Model: KM555r Test Set-Up Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with BT and WLAN Page 3 of 3 © 2009 PCTEST Engineering Laboratory Inc.
