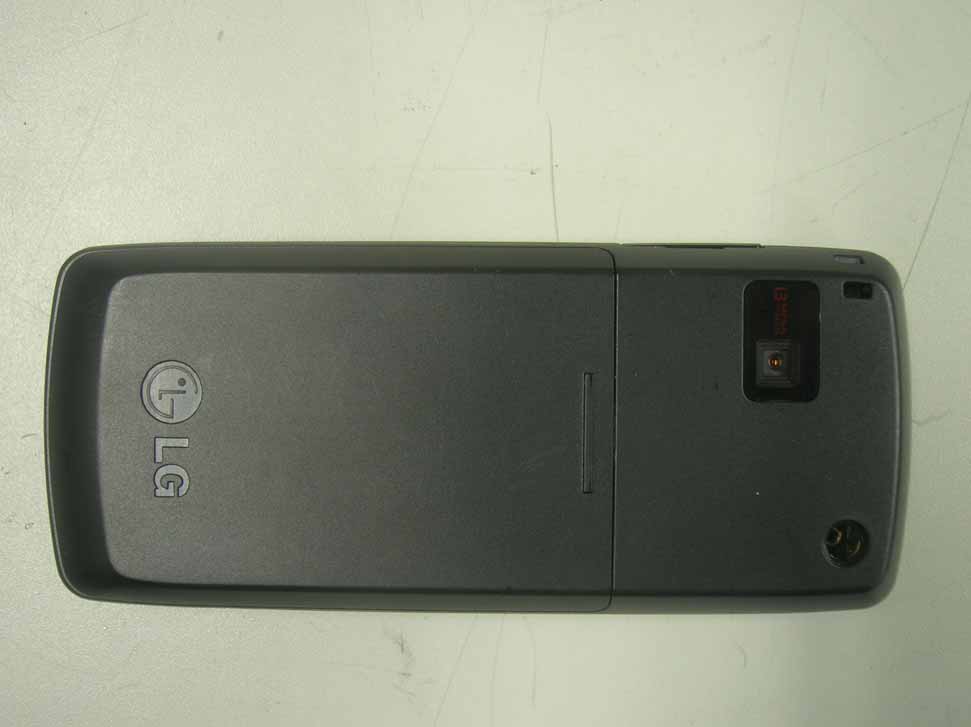

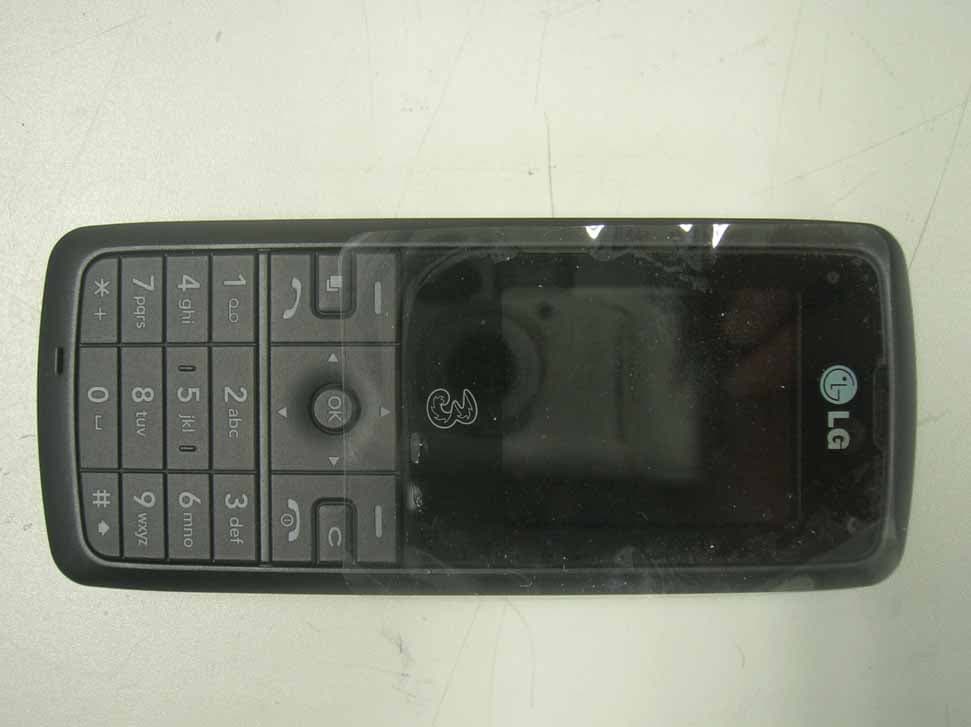

BEJKU250PCS GSM Phone with Bluetooth

Disposal of your old appliance 1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC. 2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities. 3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health. 4. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product. KU250 User Guide - English This document is the user guide for the LG KU250 3G Video Mobile Phone. All rights for this document are reserved by LG Electronics. Copying, modifying and distributing this document without the consent of LG Electronics are prohibited. Part 15.21 statement " Change or Modifications that are not expressly approved by the manufacturer could void the user's authority to operate the equipment. " Part 15.105 statement This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. if this equipment does cause harmful interference or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected - Consult the dealer or an experienced radio/TV technician for help. LIMITED WARRANTY STATEMENT 1. WHAT THIS WARRANTY COVERS: LG offers you a limited warranty that the enclosed subscriber unit and its enclosed accessories will be free from defects in material and workmanship, according to the following terms and conditions: (1) The limited warranty for the product extends for ONE (1) year beginning on the data of purchase of the product. (2) The limited warranty extends on to the original purchaser of the product and is not assignable or transferable to any subsequent purchaser/end user. (3) This warranty is good only to the original purchaser of the product during the warranty period as long as it is in the U.S., including Alaska, Hawaii, U.S. Territories and Canada. (4) The external housing and cosmetic parts shall not be covered under these limited warranty terms. (5) Upon request from LG, the consumer must provide information to reasonably prove the date of purchase. (6) The customer shall bear the cost of shipping the product to the Customer Service Department of LG. LG shall bear the cost of shipping the product back to the consumer after the completion of service under this limited warranty. 2. WHAT THIS WARRANTY DOES NOT COVER: (1) Defects or damages resulting from use of the product in other than its normal and customary manner. (2) Defects or damages from abnormal use, abnormal conditions, improper storage, exposure to moisture or dampness, unauthorized modifications, unauthorized connections, unauthorized repair, misuse, neglect, abuse, accident, alteration, improper installation, or other acts which are not the fault of LG, including damage caused by shipping blown fuses spills of food or liquid. (3) Breakage or damage to antennas unless caused directly by defects in material or workmanship. (4) That the Customer Service Department at LG was net notified by consumer of the alleged defect or malfunction of the product during the applicable limited warranty period. (5) Products which have had the serial number removed or made illegible. (6) The limited warranty is in lieu of all other warranties, express or implied either in fact or by operations law, statutory or otherwise, including, but limited to any implied warranty of marketability or fitness for a particular use. (7) Damage resulting from use of non-LG approved accessories. (8) All plastic surfaces and all other externally exposed parts that are scratched or damaged due to normal customer use. (9) Products operated outside published maximum ratings. 3 (10) Products used or obtained in a rental program. (11) Consumables (such as fuses). 3. STATE LAW RIGHTS: No other express warranty is applicable to this product. THE DURATION OF ANY IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTY OF MARKETABILITY, IS LIMITED TO THE DURATION OF THE EXPRESS WARRANTY HEREIN. LG INFOCOMM INC. SHALL NOT BE LIABLE FOR THE LOSS OF THE USE OF THE PRODUCT, INCONVENIENCE, LOSS OR ANY OTHER DAMAGES, DIRECT OR CONSEQUENTIAL, RISING OUT OF THE USE OF, OR INABILITY TO USE, THIS PRODUCT OR FOR ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING THE IMPLIED WARRANTY OF MARKETABILITY APPLICABLE TO THIS PRODUCT. Some states do not allow the exclusive of imitation of incidental or consequential damages or limitations on how long an implied warranty lasts; so these limitations or exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state. 4. HOW TO GET WARRANTY SERVICE: To obtain warranty service, please call the following web address: www.lgeservice.com 8 For Your Safety Important InformationThis user guide contains important information on the use andoperation of this phone. Please read all the informationcarefully for optimal performance and to prevent any damageto or misuse of the phone. Any …

Text truncated - open the document above for the full version.

LG Electronics Inc. 60-39, Gasan-dong, Gumchon-gu Seoul 153-801, Korea Tel: 82-2-2033-1110, Fax: 82-2-2033-1222 Date: APRIL 13, 2007 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: BEJKU250 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Electronics Inc. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Electronics Inc. temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Descriptions 3 Parts Lists and Tune-Up Procedure CONFIDENTIAL 4 Schematics 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM CONFIDENTIAL 8 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, E.S.Park Manager Mobile Handset R&D Center Mobile Communications Company LG Electronics Inc.

MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222 Test Report No:MCCL-3-07-023 Page 1 of 68 MCCL SAR TEST REPORT Specific Absorption Rate Licensed Transmitter Held to Ear (PCE)FCC Classification : PASSTest Result : Certification §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type : FCC Rule Part(s) : LG Electronics, Inc.Applicant : LG Electronics, Inc.Manufacturer : KU250Model Name(s) : Single-Band Mobile Handset (PCS1900)Equipment Under Test (EUT) : Test Report No :MCCL-3-07-023 Date of Issue : March30, 2007 Issued under the authority of E. S. Park / Technical Manager MCCL Reviewed by S. K. Yoon /Vice Technical Manager MCCL Prepared by C. H. Jeong / Test Engineer MCCL This report may not be reproduced other than in full, except with the prior written approval by MCCL SUMMARY This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in European standard EN50360 : 2001 and had been tested in accordance with the measurement procedures specified in European standard EN50361:2001, IEEE 1528 – Dec. 2003, FCC/OET bulletin 65 Supplement C(2001) , Public notice 02-1438(2002), ANSI IEEE standard C95.1(2005) and C95.3(2002) ※ The test results in this test report apply only to sample(s) tested. MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222 Test Report No:MCCL-3-07-023 Page 2 of 68 MCCL TABLE OF CONTENTS 1. TEST RESULT SUMMARY ··························································································· 3 2. DESCRIPTION OF THE DEVICE UNDER TEST·························································· 4 2.1 Antenna Description·································································································· 4 2.2 Device Description···································································································· 4 3. INTRODUCTION············································································································· 5 4. SAR MEASUREMENT SYSTEM ·················································································· 6 4.1 SAR Measurement Setup························································································· 6 4.2 DASY4 E-Field Probe System·················································································· 7 4.3 Phantom····················································································································9 4.4 Simulating Mixture Characterization·············· ······················· ·················· ·· ············10 4.5 Device Holder for Transmitters··············································································· 11 4.6 Validation Dipole ···································································································· 11 5. SAR MEASUREMENT PROCEDURE········································································· 12 6. DEFINITION OF REFERENCE POINT········································································ 13 6.1 EAR Reference Point······························································································ 13 6.2 Handset Reference Points······················································································ 14 7. TEST CONFIGURATION POSITIONS········································································ 15 7.1 Positioning for Cheek/Touch··················································································· 15 7.2 Positioning for Ear / 15 ° Tilt···················································································· 16 7.3 Body Holster /Belt Clip Configuration······························································· 17 8. MEASUREMENT UNCERTAINTY··············································································· 18 9. EN50360 RF EXPOSURE LIMITS··············································································· 19 10. SYSTEM VERIFICATION··························································································· 20 11. MEASUREMENT RESULTS ····················································································· 22 12. TEST EQUIPMENT····································································································· 24 13. REFERENCES············································································································ 25 APPENDIX A: Validation Test Data ······································································ 26 APPENDIX B: SAR Test Data ··············································································· 28 APPENDIX C: Calibration Certificates ································································· 48 MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222 Test Report No:MCCL-3-07-023 Page 3 of 68 MCCL 1.TEST RESULT SUMMARY Maximum Results Found During SAR Evaluation 1. Head Configuration 2. Body Worn Configuration 3. Measurement Uncertainty 19.2 (k=2, 95% CONFIDENCE LEVEL)Extended Standard Uncertainty 9.6 (k=1) Combine Standard Uncertainty 1.6 W/kg averaged over 1 gram ANSI / IEEE C95.1(2005) - SAFETY LIMIT Spatial Peak Uncontrolled Exposure/General Population 1.6 W/kg averaged over 1 gram ANSI / IEEE C95.1(2005) - SAFETY LIMIT Spatial Peak Uncontrolled Exposure/General Population 1.300OffFixedRight Cheek TouchStandard29.8129.75PCS5121880.0 StartCh.MHz Frequency End Mod. Device Test Position Battery SAR (W/kg) BT Antenn a Positio n Conducted Power (dBm) 0.385OffFixed 2.0 [ Rear 〕 Standard29.3429.29PCS6611880.0 StartCh.MHz Frequency End Mod. Device Test Position Battery SAR (W/kg) BT Antenna Position Conducted Power (dBm) Eui-Soon ParkResponsible Test Engineer : March 30, 2007 Date of Issue : GSM1900: 29.5dBmTransmit Output Power : 1850.20…

Text truncated - open the document above for the full version.

MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222 Test Report No:MCCL-3-07-023 Page 27 of 68 MCCL LG Electronics Inc. DUT: Dipole 1900MHz;Type: D1900V2;Serial: 5d017 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: Head 1900 MHz;(σ= 1.4 mho/m; εr =41.5; ρ= 1000 kg/m3) Phantom section: Flat Section Test Date: 03/30/2007;Ambient Temp: 22. 9°C;Tissue Temp: 21.8°C Probe: ES3DV3 – SN3066;ConvF(4.85, 4.85, 4.85);Calibrated: 2007-01-23 Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE3 Sn362; Calibrated: 2006-08-25 Phantom: SAM 1800; Type: SAM 4.0; Serial: TP-1244 Measurement SW: DASY4, V4.7 Build 44; Post processing SW: SEMCAD, V1.8 Build 171 1900 MHz Dipole Validation Area Scan (61x61x1):Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 10.6mW/g Zoom Scan (5x5x7)/Cube 0:Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 83.5V/m; Power Drift = -0.050dB Peak SAR (extrapolated) = 17.7 W/kg SAR(1 g) = 9.32mW/g; SAR(10 g) = 4.8mW/g Maximum value of SAR (measured) = 10.4mW/g 0 dB = 10.4mW/g MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222 Test Report No:MCCL-3-07-023 Page 28 of 68 MCCL APPENDIX B: SAR Test Data MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222 Test Report No:MCCL-3-07-023 Page 29 of 68 MCCL LG Electronics Inc. DUT: KU250 ;Type: Single-Band Mobile Phone; Serial:IMEI 350305260000000 Communication System: PCS 1900; Frequency: 1880.0MHz;Duty Cycle: 1:8.3 Medium: Head 1880 MHz;(σ= 1.37 mho/m; ε r =41.9; ρ= 1000 kg/m 3 ) Phantom section: Right Section Test Date: 03/30/2007;Ambient Temp: 22. 9°C;Tissue Temp: 21.8°C Probe: ES3DV3 – SN3066;ConvF(4.85, 4.85, 4.85);Calibrated: 2007-01-23 Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE3 Sn362; Calibrated: 2006-08-25 Phantom: SAM 1800; Type: SAM 4.0; Serial: TP-1244 Measurement SW: DASY4, V4.7 Build 44; Post processing SW: SEMCAD, V1.8 Build 171 Right Head Touch Ch.661BT On, Fixed Ant., Standard Battery Area Scan (61x61x1):Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.43mW/g Zoom Scan (5x5x7)/Cube 0:Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 10.4V/m; Power Drift = 0.153dB Peak SAR (extrapolated) = 2.31W/kg SAR(1 g) = 1.22mW/g; SAR(10 g) = 0.624mW/g Maximum value of SAR (measured) = 1.37mW/g 0 dB = 1.37mW/g MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222 Test Report No:MCCL-3-07-023 Page 30 of 68 MCCL LG Electronics Inc. DUT: KU250 ;Type: Single-Band Mobile Phone; Serial:IMEI 350305260000000 Communication System: PCS 1900; Frequency: 1880.0MHz;Duty Cycle: 1:8.3 Medium: Head 1880 MHz;(σ= 1.37 mho/m; ε r =41.9; ρ= 1000 kg/m 3 ) Phantom section: Right Section Test Date: 03/30/2007;Ambient Temp: 22. 9°C;Tissue Temp: 21.8°C Probe: ES3DV3 – SN3066;ConvF(4.85, 4.85, 4.85);Calibrated: 2007-01-23 Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE3 Sn362; Calibrated: 2006-08-25 Phantom: SAM 1800; Type: SAM 4.0; Serial: TP-1244 Measurement SW: DASY4, V4.7 Build 44; Post processing SW: SEMCAD, V1.8 Build 171 Right Head Touch Ch.661BT Off, Fixed Ant., Standard Battery Area Scan (61x61x1):Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.47mW/g Zoom Scan (5x5x7)/Cube 0:Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 11.7V/m; Power Drift = -0.021dB Peak SAR (extrapolated) = 2.36W/kg SAR(1 g) = 1.26mW/g; SAR(10 g) = 0.649mW/g Maximum value of SAR (measured) = 1.41mW/g 0 dB = 1.41mW/g MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222 Test Report No:MCCL-3-07-023 Page 31 of 68 MCCL LG Electronics Inc. DUT: KU250 ;Type: Single-Band Mobile Phone; Serial:IMEI 350305260000000 Communication System: PCS 1900; Frequency: 1880.0MHz;Duty Cycle: 1:8.3 Medium: Head 1880 MHz;(σ= 1.37 mho/m; ε r =41.9; ρ= 1000 kg/m 3 ) Phantom section: Right Section Test Date: 03/30/2007;Ambient Temp: 22. 9°C;Tissue Temp: 21.8°C Probe: ES3DV3 – SN3066;ConvF(4.85, 4.85, 4.85);Calibrated: 2007-01-23 Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE3 Sn362; Calibrated: 2006-08-25 Phantom: SAM 1800; Type: SAM 4.0; Serial: TP-1244 Measurement SW: DASY4, V4.7 Build 44; Post processing SW: SEMCAD, V1.8 Build 171 Right Head Tilt Ch.661BT Off, Fixed Ant., Standard Battery Area Scan (61x61x1):Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.971mW/g Zoom Scan (5x5x7)/Cube 0:Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 14.6V/m; Power Drift = -0.345dB Peak SAR (extrapolated) = 1.63W/kg SAR(1 g) = 0.877mW/g; SAR(10 g) = 0.460mW/g Maximum value of SAR (measured) = 0.965mW/g 0 dB = 0.965mW/g MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222 Test Report No:MCCL-3-07-023 Page 32 of 68 MCCL LG Electronics Inc. DUT: KU250 ;Type: Single-Band Mobile Phone; Serial:IMEI 350305260000000 Communication System: PCS 1900; Frequency: 1850.2MHz;Duty Cycle: 1:8.3 Medium: Head 1850.2 MHz;(σ= 1.34 mho/m; εr =42.2; ρ= 1000 kg/m3) Phantom section : Right Section Test Date: 03/30/2007;Ambient Temp: 22. 9°C;Tissue Temp: 21.8°C Probe: ES3DV3 – SN3066;ConvF(4.85, 4.85, 4.85);Calibrated: 2007-01-23 Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE3 Sn362; Calibrated: 2006-08-25 Phantom: SAM 1800; Type: SAM 4.0; Serial: TP-1244 Measurement SW: DASY4, V4.7 Build 44; Post processing SW: SEMCAD, V1.8 Build 171 Right Head Tilt Ch.512 BT Off, Fixed Ant., Standard Battery Area Scan (61x61x1):Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.05mW/g Zoom Scan (5x5x7)/Cube 0:Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 14.4V/m; Power Drift = -0.062dB Peak SAR (extrapolated) = 1.77W/kg SAR(1 g) = 0.951mW/g; SAR(10 g) = 0.502mW/g Maximum value of SAR (measured) = 1.02mW/g 0 dB = 1.02mW/g MCCL, 60-39, Ka…

Text truncated - open the document above for the full version.

Product Name Model Name Applicant FCC ID KU250 LG Electronics Inc. BEJKU250 ESTECH CO., LTD Rm. 1015 World Venture Center, 426-5 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea. Tel:82-2-867-3201, Fax:82-2-867-3204 ESTECH CO., LTD. http://www.estech.co.kr FCC TEST REPORT GSM Phone with Bluetooth Report Number : ESTR0704-0091 of 17 FCC ID : BEJKU250 Company Name Address Product Name Model No.Manufacturer Serial No. Country of origin Issued DateTested Date ESTECH CO., LTD. http://www.estech.co.kr Rm. 1015 World Venture Center, 426-5 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea. Tel:82-2-867-3201, Fax:82-2-867-3204 ESTECH CO., LTD FCC Test Report Applicant Product Report Number KU250 KOREA LG Electronics Inc. o This is certified that the above mentioned products have been tested for the sample provided by client. o No part of this document may not be duplicated or reproduced by any means without the express written permission of Estech Co., Ltd. Standard FCC PART 24 Subpart E Tested by Approved by S.R. Kim/ Engineer (Signature) Jay Kim/ Engineering Manager (Signature) ESTR0704-009 459-9, Kasan-dong, Keumchun-ku, Seoul 153-023, Korea GSM Phone with Bluetooth NONE LG Electronics Inc. Test Result Pass 2007-04-16 2007-03-12 ~ 2007-04-16 Other Report Number : ESTR0704-0092 of 17 FCC ID : BEJKU250 1. General Information Page 4 2. Laboratory Information Page 5 3. Summary of Test Results Page 5 4. RF Output Power Page 6 5. Occupied Bandwidth Page 8 6. Spurious and Harmonic Emission at Antenna Terminal Page 10 7. Field Strength of Spurious Radiation Page 14 8. Frequency stability Page 16 Contents ESTECH CO., LTD. http://www.estech.co.kr Report Number : ESTR0704-0093 of 17 FCC ID : BEJKU250 1. General Information 1.1 EUT Description Channel Tx :1850.20 ~ 1909.80MHz(PCS1900) PCS1900(512/661/810) GMSK Frequency Rx :1930.20 ~ 1989.80MHz(PCS1900) 3.7VDC(3.2 ~ 4.3VDC) Power Rating ESTECH CO., LTD. http://www.estech.co.kr FCC ID BEJKU250 Modulation Type Product Name Model Name GSM Phone with Bluetooth KU250 Report Number : ESTR0704-0094 of 17 FCC ID : BEJKU250 2. Laboratory Information 3. Summary of Test Results Result PASS PASS PASS PASS ESTECH CO., LTD. http://www.estech.co.kr 58-1, Osan-Ri, GaNam-Myon, YeoJoo-Gun, KyungKi-Do, Korea 97-1, Hoiuk-Ri Majang-Myon, Icheon-city, KyungKi-Do, Korea 2.4 Major Accredited Mark Test Item Accredited by KOLAS(ISO/IEC 17025) Head Office EMC Lab(Ichon) EMC Lab(Yanggi) Standard RF Output Power Occupied Bandwidth PASS 2.1 Laboratory Name 2.2 Location 2.3 Quality System Estech Co., Ltd. Rm. 1015, World Venture Center II, 426-5 Gasan-dong Geumcheon-gu, Seoul, 153-803. Korea. Part 24 Field Strength of Spurious Radiation Frequency stability Spurious and Harmonic Emission at Antenna Terminal Report Number : ESTR0704-0095 of 17 FCC ID : BEJKU250 4. RF Output Power 4.1 Test Procedure 4.2 Test Equipments The following test equipments are used during tests Cal. Due Date 2007-08-24 2007-09-07 2008-03-02 2008-02-07 2007-06-26 2008-03-31 2007-05-01 4.3. Test Results 4.3.1 PCS1900 (GSM) 5121850.20 6611880.00 8101909.80 29.34 29.30 28.03 28.74 847F BBHA 9120 D 29.7631.90 Peak Power EIRP(dBm) SCHWARZBECKBBHA 9120 D Agilent HP SCHWARZBECK Ch No.Freq (MHz)Peak Power Meter(dBm) Wireless Communications Test Set Pre Amplifier Horn Antenna Horn Antenna Model ESPI7 HP HP Manufacturer Rohde & Schwarz E5515C ESTECH CO., LTD. http://www.estech.co.kr Signal Generator Power Meter 83620B EPM-442A Equipment Receiver The EUT was placed on a wooden turn table 3 meters from the receive antenna. The receive antenna height and turn table rotation was adjusted for the highest reading on the receive spectrum analyzer. For CDMA signals, a peak detector is used, with RBW = VBW = 3MHz. For AMPS, GSM, and NADC TDMA signals, a peak detector is used, with RBW = VBW = 1MHz, A Horn antenna was substituted in place of the EUT. This Horn antenna was driven by a signal generator and the level of the signal generator was adjusted to obtain the same receive spectrum analyzer reading. This spurious level is recorded. For reading 1GHz, the above procedure is repeated using horn antennas and the difference between the gain of the horn and an isotropic or dipole antenna are taken into consideration. Report Number : ESTR0704-0096 of 17 FCC ID : BEJKU250 Antenna gain(dBi) Cable Loss (dB) 1850.20 101.1710.40 3.4124.9131.9033V 1880.00 99.3310.43 3.3320.9328.0333V 1909.80 99.0010.44 3.3321.6328.7433V POL (H/V) Limit (dBm) EIRP (dBm) SG Reading (dBm) ESTECH CO., LTD. http://www.estech.co.kr FREQ (MHz) Correction Factor (dB) Receiver Reading (dBuV) Report Number : ESTR0704-0097 of 17 FCC ID : BEJKU250 5. Occupied Bandwidth 5.1 Test Procedure 5.2 Test Equipments The following test equipments are used during tests Cal. Due Date 2008-03-02 2008-03-02 2008-02-07 5.3 Test Results 5.3.1 PCS1900 (GSM) 5121850.20 8101909.80299.50 6611880.00297.04 ESTECH CO., LTD. http://www.estech.co.kr Dual Directional Coupler EquipmentModel E4407B 778D The transmitter output is connected to the spectrum analyzer. The RBW is set to 1% of the Emission bandwidth. The VBW is set to 3 times the RBW. The sweep time is coupled. Manufacturer 295.55 Spectrum Analyzer 26dB Bandwidth(kHz) Agilent HP ChannelFrequency(MHz) Wireless Communications Test Set AgilentE5515C Report Number : ESTR0704-0098 of 17 FCC ID : BEJKU250 5.4 Test Plot PCS1900 GSM 26dB Channel Bandwidith(512) 26dB Channel Bandwidith(661) 26dB Channel Bandwidith(810) ESTECH CO., LTD. http://www.estech.co.kr Report Number : ESTR0704-0099 of 17 FCC ID : BEJKU250 6. Spurious and Harmonic Emission at Antenna Terminal 6.1 Test Procedure 6.2 Test Equipments The following test equipments are used during tests Cal. Due Date 2008-03-02 2008-03-02 2008-02-07 6.3 Test Results 6.3.1 PCS1900 GSM(Spurious Emission: Band Edge) ChannelFrequencyResultLimitMargin 5121850.20-15.98-13.002.98 8101909.80-16.23-13.003.23 GSM (Spurious Emission: Out of Band) ChannelFrequencyResultLimitMargin 5121850.20-25.74-13.0012.74 6…

Text truncated - open the document above for the full version.

MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222 Test Report No:MCCL-3-07-021 Page 1 of 19 MCCL SAR Test Setup Photographs Figure 1 Right Head SAR Test Setup - Cheek Touch Position MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222 Test Report No:MCCL-3-07-021 Page 2 of 19 MCCL Figure 2 Right Head SAR Test Setup - Cheek Touch Position MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222 Test Report No:MCCL-3-07-021 Page 3 of 19 MCCL Figure 3 Right Head SAR Test Setup - Cheek Touch Position MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222 Test Report No:MCCL-3-07-021 Page 4 of 19 MCCL Figure 4 Right Head SAR Test Setup – Ear Tilt Position MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222 Test Report No:MCCL-3-07-021 Page 5 of 19 MCCL Figure 5 Right Head SAR Test Setup – Ear Tilt Position MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222 Test Report No:MCCL-3-07-021 Page 6 of 19 MCCL Figure 6 Right Head SAR Test Setup – Ear Tilt Position MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222 Test Report No:MCCL-3-07-021 Page 7 of 19 MCCL Figure 7 Left Head SAR Test Setup - Cheek Touch Position MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222 Test Report No:MCCL-3-07-021 Page 8 of 19 MCCL Figure 8 Left Head SAR Test Setup - Cheek Touch Position MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222 Test Report No:MCCL-3-07-021 Page 9 of 19 MCCL Figure 9 Left Head SAR Test Setup - Cheek Touch Position MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222 Test Report No:MCCL-3-07-021 Page 10 of 19 MCCL Figure 10 Left Head SAR Test Setup – Ear Tilt Position MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222 Test Report No:MCCL-3-07-021 Page 11 of 19 MCCL Figure 11 Left Head SAR Test Setup – Ear Tilt Position MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222 Test Report No:MCCL-3-07-021 Page 12 of 19 MCCL Figure 12 Left Head SAR Test Setup – Ear Tilt Position MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222 Test Report No:MCCL-3-07-021 Page 13 of 19 MCCL Figure 13 Body SAR Test Setup – w/o Holster MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222 Test Report No:MCCL-3-07-021 Page 14 of 19 MCCL Figure 14 Body SAR Test Setup – w/o Holster MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222 Test Report No:MCCL-3-07-021 Page 15 of 19 MCCL Figure 15 Body SAR Test Setup – w/o Holster
