BEJL18KD18-inch LCD Monitor

LG Electronics USA, Inc.

Click to zoom

Application Details

Equipment Class: JBP - Part 15 Class B Computing Device Peripheral
Date of Grant: May 05, 2003
Application Purpose: Original Equipment
Date of Application: May 05, 2003
Equipment Note: 18-inch LCD Monitor
Company: LG Electronics USA, Inc.
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Attestation Statements

LG Electronics Inc. DID Division 642 Jinpyoung-dong, Kumi-city, Kyoungsangbuk-Do, Korea Tel. : +82-54-470-2930 Fax. : +82-54-470-2989 January 03, 2003 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. To whom it may concern: We, the undersigned, hereby authorize GUMI College EMC Center to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by GUMI College EMC Center on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to the application is subject to a denial of benefits, including FCC benefits, pursuant 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Sincerely, Yeong Hur / EMC Manager LG Electronics Inc.

Block Diagram

Bl ock Di ag r a m 12V LCD Module D-SUB DVI-D Digital Si g n al DVDD2 . 5 V AV D D 2 . 5 V G m 5120 in clu d in g (MCU/ADC / TMDS Rx ) LVDS ( L V D S823 ) Flash Memor y H-S y n c A V-S y nc A Out - C LK DE ,H /V S y n c o u t R,G,B Ev en R,G,B differ e nti a l LVDS :Lo w Voltage Differ e ntial Sig n al i n g Dat a 8 Bit o r 1 6 Bit A d d r ess R,G,B 5V H / V - S y n c LIPS 3.3V Reg. DVDD 3. 3 V AV D D 3 . 3 V A D C CLK A C Input AV D D 2 . 5 V 5V 5V 2.5V Reg. 3.3V Reg. PVDD 3 . 3V

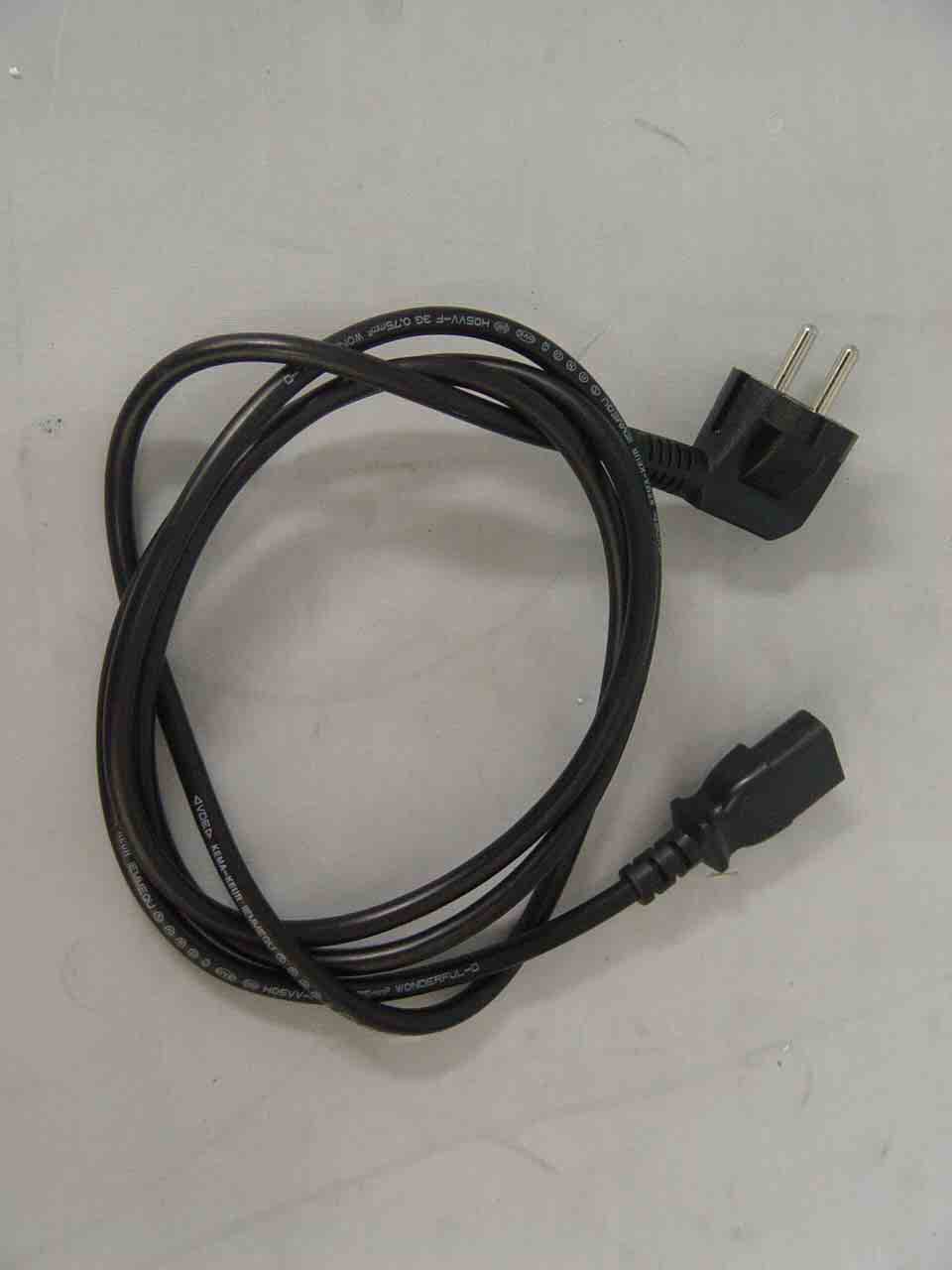

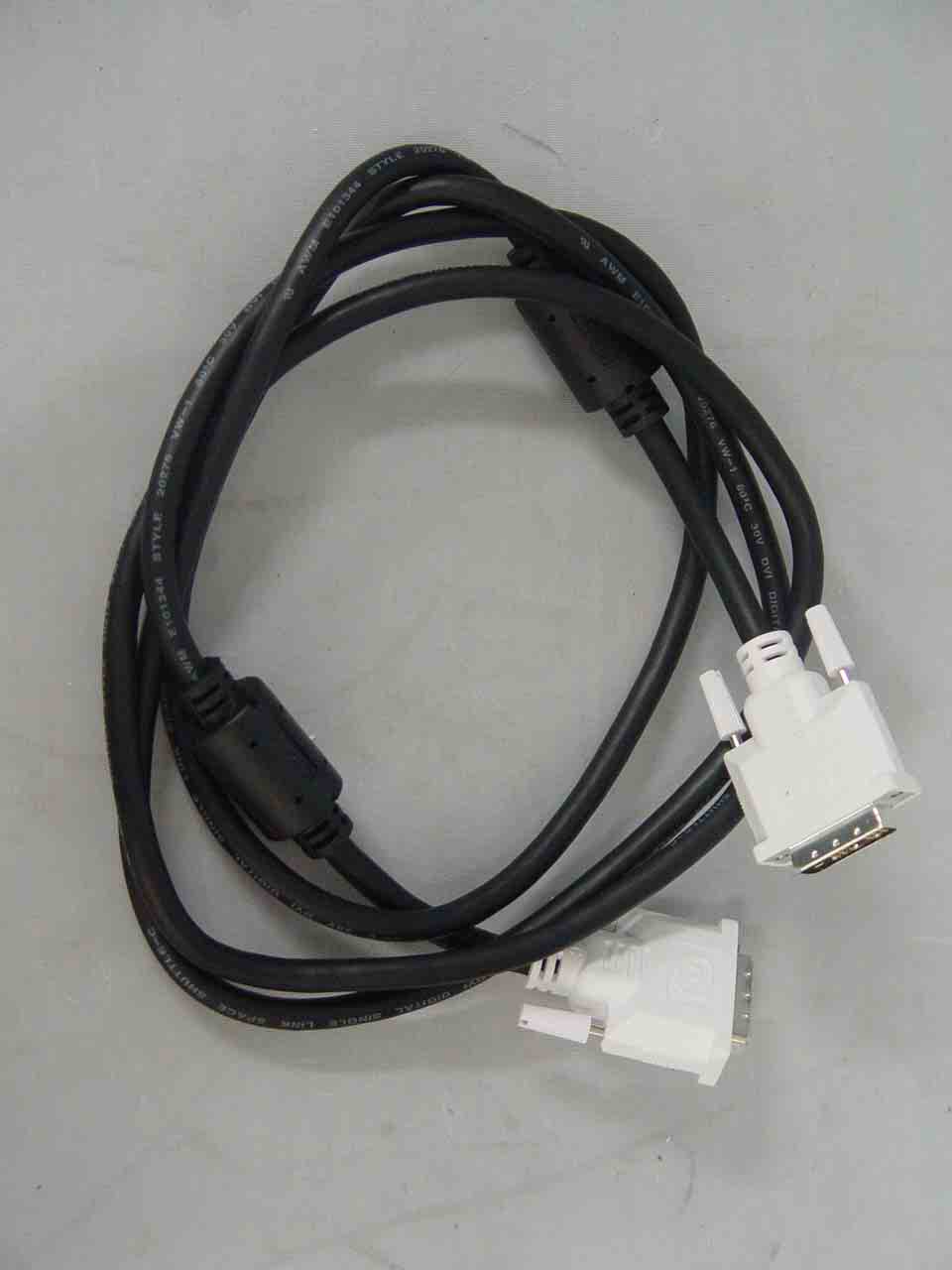

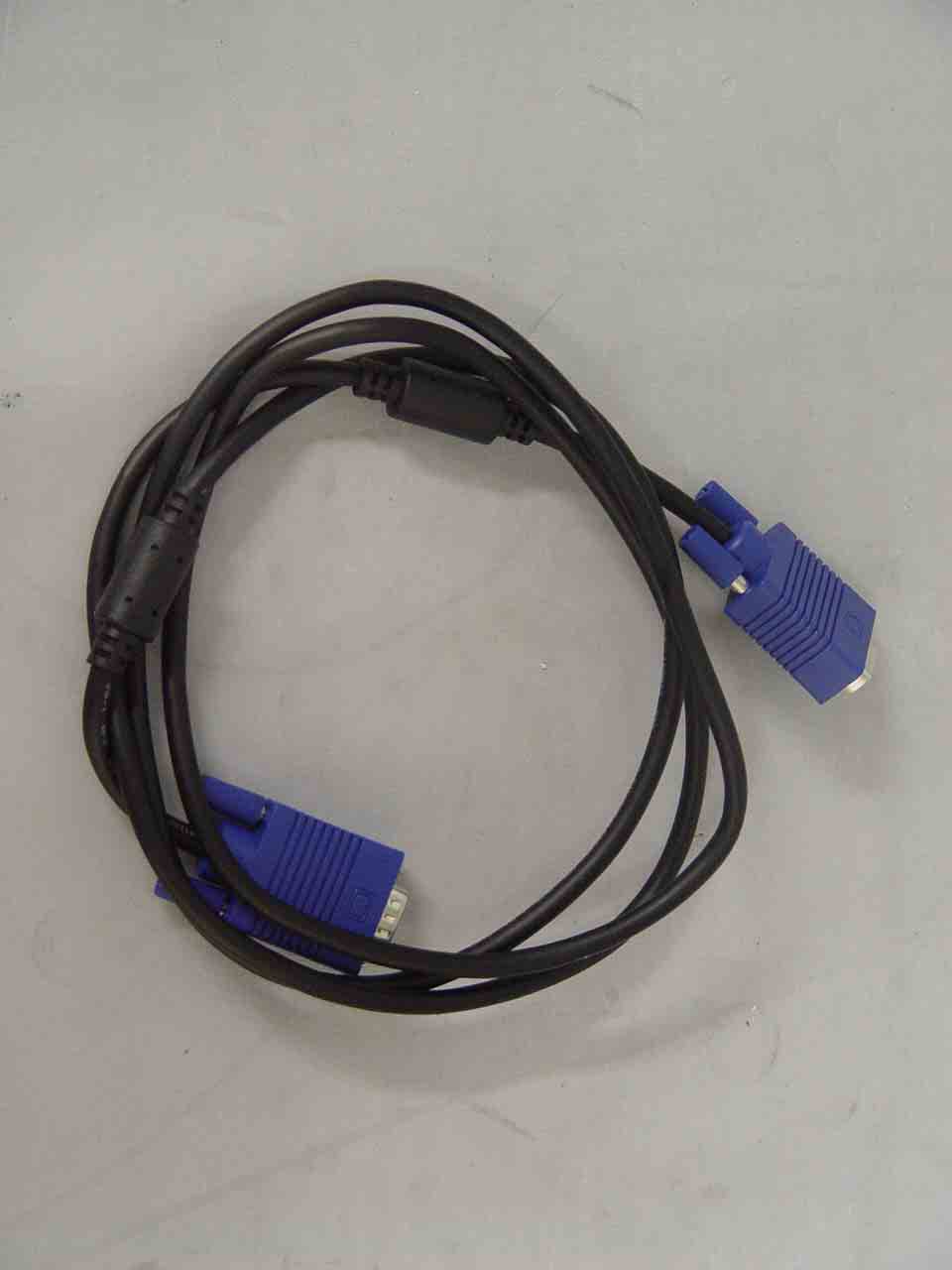

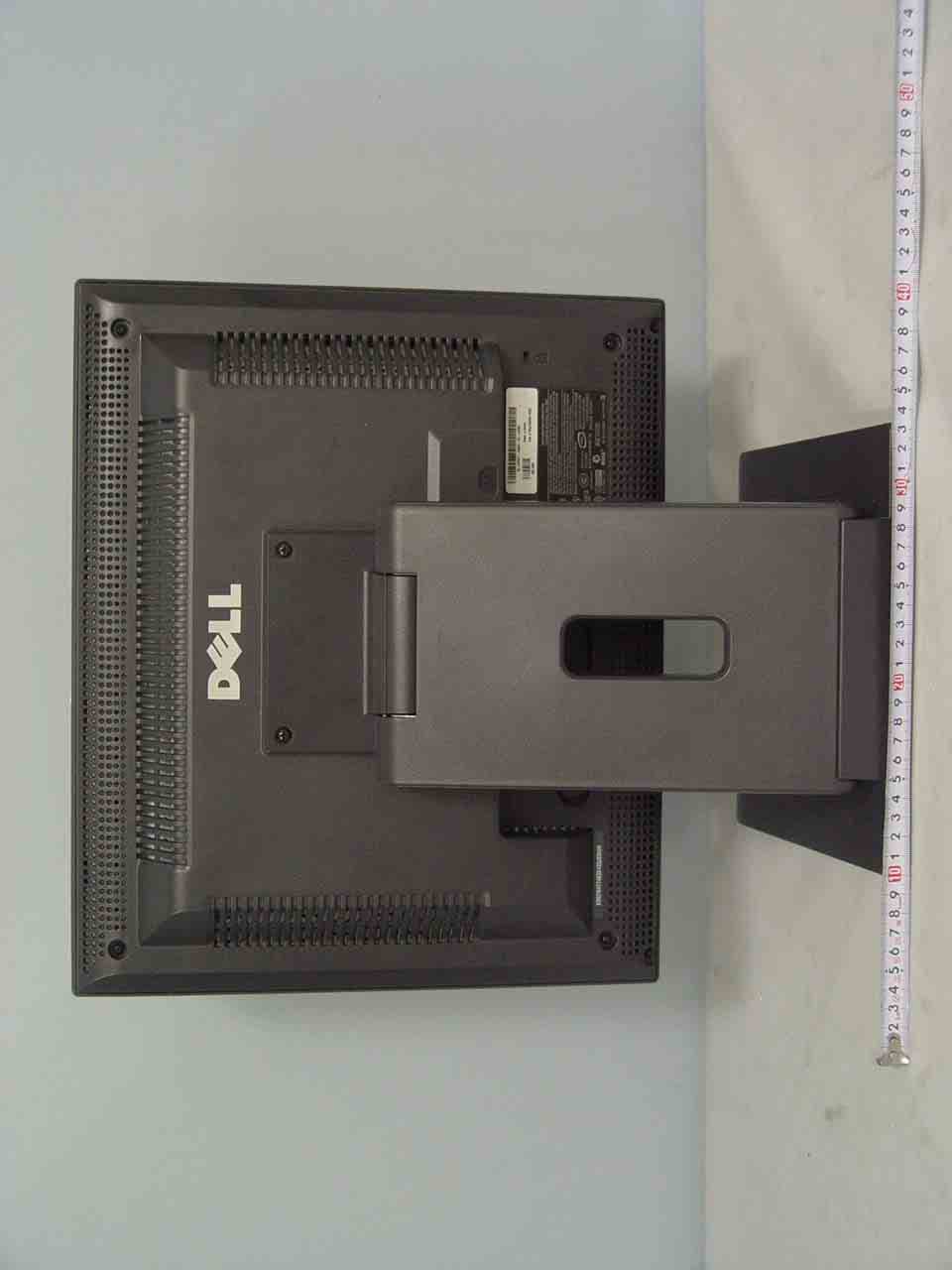

External Photos

ID Label/Location Info

Test Report No.: GETEC-E3-03-014 FCC Class B Certification LABELLING REQUIREMENTS The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. ID Label ID Label Location of EUT I.D Label EUT Type: 18” LCD Monitor FCC ID : BEJL18KD

Internal Photos

Test Report No.: GETEC-E3-03-014 FCC Class B Certification EUT Type: 18” LCD Monitor FCC ID : BEJL18KD Test Report No.: GETEC-E3-03-014 FCC Class B Certification EUT Type: 18” LCD Monitor FCC ID : BEJL18KD Test Report No.: GETEC-E3-03-014 FCC Class B Certification EUT Type: 18” LCD Monitor FCC ID : BEJL18KD Test Report No.: GETEC-E3-03-014 FCC Class B Certification EUT Type: 18” LCD Monitor FCC ID : BEJL18KD Test Report No.: GETEC-E3-03-014 FCC Class B Certification EUT Type: 18” LCD Monitor FCC ID : BEJL18KD Test Report No.: GETEC-E3-03-014 FCC Class B Certification EUT Type: 18” LCD Monitor FCC ID : BEJL18KD Test Report No.: GETEC-E3-03-014 FCC Class B Certification EUT Type: 18” LCD Monitor FCC ID : BEJL18KD Test Report No.: GETEC-E3-03-014 FCC Class B Certification EUT Type: 18” LCD Monitor FCC ID : BEJL18KD Test Report No.: GETEC-E3-03-014 FCC Class B Certification EUT Type: 18” LCD Monitor FCC ID : BEJL18KD Test Report No.: GETEC-E3-03-014 FCC Class B Certification EUT Type: 18” LCD Monitor FCC ID : BEJL18KD Test Report No.: GETEC-E3-03-014 FCC Class B Certification EUT Type: 18” LCD Monitor FCC ID : BEJL18KD Test Report No.: GETEC-E3-03-014 FCC Class B Certification EUT Type: 18” LCD Monitor FCC ID : BEJL18KD Test Report No.: GETEC-E3-03-014 FCC Class B Certification EUT Type: 18” LCD Monitor FCC ID : BEJL18KD Test Report No.: GETEC-E3-03-014 FCC Class B Certification EUT Type: 18” LCD Monitor FCC ID : BEJL18KD Test Report No.: GETEC-E3-03-014 FCC Class B Certification EUT Type: 18” LCD Monitor FCC ID : BEJL18KD Test Report No.: GETEC-E3-03-014 FCC Class B Certification EUT Type: 18” LCD Monitor FCC ID : BEJL18KD Test Report No.: GETEC-E3-03-014 FCC Class B Certification EUT Type: 18” LCD Monitor FCC ID : BEJL18KD Test Report No.: GETEC-E3-03-014 FCC Class B Certification EUT Type: 18” LCD Monitor FCC ID : BEJL18KD Test Report No.: GETEC-E3-03-014 FCC Class B Certification EUT Type: 18” LCD Monitor FCC ID : BEJL18KD Test Report No.: GETEC-E3-03-014 FCC Class B Certification EUT Type: 18” LCD Monitor FCC ID : BEJL18KD Test Report No.: GETEC-E3-03-014 FCC Class B Certification EUT Type: 18” LCD Monitor FCC ID : BEJL18KD Test Report No.: GETEC-E3-03-014 FCC Class B Certification EUT Type: 18” LCD Monitor FCC ID : BEJL18KD

Test Report

Test Report No.: GETEC-E3-03-014 FCC Class B Certification CONTENTS 1. SCOPE.........................................................................................................................................................................3 2. INTRODUCTION.....................................................................................................................................................4 3. TEST CONDITIONS & EUT INFORMATION...............................................................................................5 3.1 D ESCRIPTION OF EUT.............................................................................................................................................5 3.2 S UPPORT EQUIPMENT USED.....................................................................................................................................6 4 . DESCRIPTION OF TESTS....................................................................................................................................7 4.1 C ONDUCTED EMISSION............................................................................................................................................7 4.2 R ADIATED EMISSION................................................................................................................................................8 5. CONDUCTED EMISSION.....................................................................................................................................9 5.1 O PERATING ENVIRONMENT.....................................................................................................................................9 5.2 T EST SET-UP.............................................................................................................................................................9 5.3 M EASUREMENT UNCERTAINTY................................................................................................................................9 5.4 L IMIT......................................................................................................................................................................10 5.5 T EST EQUIPMENT USED..........................................................................................................................................10 5.6 T EST DATA FOR POWER LINE CONDUCTED EMISSION............................................................................................11 6. RADIATED EMISSION........................................................................................................................................14 6.1 O PERATING ENVIRONMENT...................................................................................................................................14 6.2 T EST SET-UP...........................................................................................................................................................14 6.3 M EASUREMENT UNCERTAINTY..............................................................................................................................14 6.4 L IMIT......................................................................................................................................................................15 6.5 T EST EQUIPMENT USED..........................................................................................................................................15 6.6 T EST DATA FOR RADIATED EMISSION.....................................................................................................................16 7. SAMPLE CALCULATIONS...............................................................................................................................18 7.1 E XAMPLE 1 :...........................................................................................................................................................18 7.2 E XAMPLE 2 :...........................................................................................................................................................18 8. RECOMMENDATION & CONCLUSION......................................................................................................19 APPENDIX A – ATTESTATION STATEMENT APPENDIX B – PLOTS OF CONDUCTED EMISSIONS APPENDIX C – ID SAMPLE LABEL & LOCATION APPENDIX D – BLOCK DIAGRAM APPENDIX E – TEST SET-UP PHOTOGRAPHS APPENDIX F – EXTERNAL PHOTOGRAPHS APPENDIX G –INTERNAL PHOTOGRAPHS APPENDIX H – USER’S MANUAL EUT Type: 18.1” LCD Monitor FCC ID : BEJL18KD Page 2 of 19 Test Report No.: GETEC-E3-03-014 FCC Class B Certification 1. Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and / or unintentional radiators for compliance with technical rules and regulations of the Federal Communications Commission . z FCC ID BEJL18KD z Rule Part(s) FCC Part 15 Subpart B z Equipment Class Class B Computing Device Peripheral z Standard(s) CISPR Pub. 22(1997) z Applicant LG Electronics Inc. z Applicant address 642, Jinpyung-Dong, Gumi-Si, Gyeongsangbuk-Do, Korea Tel No.: +82-54-440-2931 z Manufacturer LG Electronics Inc. z Manufacturer address 642, Jinpyung-Dong, Gumi-Si, Gyeongsangbuk-Do, Korea Tel No.: +82-54-440-2931 z EUT Type 18.1” LCD Monitor z Model No. 1800FP z Trade Name DELL z Test Procedure(s) ANSI C63.4 (1992) z Dates of Test April 21 ~ 24, 2003 z Place of Test Gumi College EMC Center z Test Report No. GETET-E3-03-014 EUT Type: 18.1” LCD Monitor FCC ID : BEJL18KD Page 3 of 19 Test Report No.: GETEC-E3-03-014 FCC Class B Certification 2. Introduction The measurement procedure described in American National Standard for Methods of Measurement of Radio-Nose Emissions From Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ASNI C63.4- 1992) was used in determining radiated and conducted emissions emanating from LG Electronics INC. 1…

Text truncated - open the document above for the full version.

Test Report

Test Report No.: GETEC-E3-03-014 FCC Class B Certification Test Mode: 1280*1024 / 75Hz (Analog) < Hot line > < Neutral line > EUT Type: 18” LCD Monitor FCC ID : BEJL18KD Test Report No.: GETEC-E3-03-014 FCC Class B Certification Test Mode: 1280*1024 / 60Hz (Digital) < Hot line > < Neutral line > EUT Type: 18” LCD Monitor FCC ID : BEJL18KD Test Report No.: GETEC-E3-03-014 FCC Class B Certification Test Mode: 1024*768 / 75Hz < Hot line > < Neutral line > EUT Type: 18” LCD Monitor FCC ID : BEJL18KD Test Report No.: GETEC-E3-03-014 FCC Class B Certification Test Mode: 800*600 / 75Hz < Hot line > < Neutral line > EUT Type: 18” LCD Monitor FCC ID : BEJL18KD Test Report No.: GETEC-E3-03-014 FCC Class B Certification Test Mode: 640*480 / 75Hz < Hot line > < Neutral line > EUT Type: 18” LCD Monitor FCC ID : BEJL18KD

Test Setup Photos

Test Report No.: GETEC-E3-03-014 FCC Class B Certification The Conducted Test Picture and Radiated Test Picture show the worst-case configuration and cable placement. Conducted Test Picture (Front) Conducted Test Picture (Rear) EUT Type: 18” LCD Monitor FCC ID : BEJL18KD Test Report No.: GETEC-E3-03-014 FCC Class B Certification Radiated Test Picture (Front) Radiated Test Picture (Rear) EUT Type: 18” LCD Monitor FCC ID : BEJL18KD
