BEJL203WTN20" LCD Monitor

LG Electronics USA, Inc.
20" LCD Monitor - FCC ID BEJL203WTN - LG Electronics USA, Inc.
Click to zoom

Application Details

Equipment Class
JBP - Part 15 Class B Computing Device Peripheral
Date of Grant
Dec 22, 2005
Application Purpose
Original Equipment
Date of Application
Dec 22, 2005
Equipment Note
20" LCD Monitor
Company
LG Electronics USA, Inc.
Country
United States

Documents & Files

Select a file to view

Users Manual

β†—

Attestation Statements

β†—

Block Diagram

β†—

External Photos

β†—

ID Label/Location Info

β†—

Internal Photos

β†—

Test Report

β†—
β†—

Test Setup Photos

β†—

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

EUT Type: 20” LCD Monitor FCC ID: BEJL203WTN Test Report No.: GETEC-E3-05-085 FCC Class B Certification APPENDIX H : USER’S MANUAL L203WT L203WTX User’s Guide Make sure to read the Important Precautionsbefore using the product. Keep the User's Guide(CD) in an accessible place for future reference. See the label attached on the product and quote this information to your dealer when you require service. A1 This unit has been engineered and manufactured to ensure your personal safety, however improper use may result in potential e shock or fire hazards. In order to allow the proper operation of all safeguards incorporated in this display, observe the following basic rules for its installation, use, and servicing. On Safety Use only the power cord supplied with the unit. In case you use another power cord, make sure that it is certified by the applicable national standards if not being provided by the supplier. If the power cable is faulty in any way, please contact the manufacturer or the nearest authorized repair service provider for a replacement. The power supply cord is used as the main disconnection device. Ensure that the socket-outlet is easily accessible after installation. Operate the display only from a power source indicated in the specifications of this manual or listed on the display. If you are not sure what type of power supply you have in your home, consult with your dealer. Overloaded AC outlets and extension cords are dangerous. So are frayed power cords and broken plugs. They may result in a shock or fire hazard. Call your service technician for replacement. Do not Open the Display. There are no user serviceable components inside. There are Dangerous High Voltages inside, even when the power is OFF. Contact your dealer if the display is not operating properly. To Avoid Personal Injury : Do not place the display on a sloping shelf unless properly secured. Use only a stand recommended by the manufacturer. To Prevent Fire or Hazards: Always turn the display OFF if you leave the room for more than a short period of time. Never leave the display ON when leaving the house. Keep children from dropping or pushing objects into the display's cabinet openings. Some internal parts carry hazardous voltages. Do not add accessories that have not been designed for this display. During a lightning storm or when the display is to be left unattended for an extended period of time, unplug it from the wall outlet. Important Precautions A2 Important Precautions On Installation Do not allow anything to rest upon or roll over the power cord, and do not place the display where the power cord is subject to damage. Do not use this display near water such as near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool. Displays are provided with ventilation openings in the cabinet to allow the release of heat generated during operation. If these openings are blocked, built-up heat can cause failures which may result in a fire hazard. Therefore, NEVER: Block the bottom ventilation slots by placing the display on a bed, sofa, rug, etc. Place the display in a built-in enclosure unless proper ventilation is provided. Cover the openings with cloth or other material. Place the display near or over a radiator or heat source. Do not rub or strike the Active Matrix LCD with anything hard as this may scratch, mar, or damage the Active Matrix LCD permanently. Do not press the LCD screen with your finger for a long time as this may cause some afterimages. Some dot defects may appear as Red, Green or Blue spots on the screen. However, this will have no impact or effect on the display performance. If possible, use the recommended resolution to obtain the best image quality for your LCD display. If used under any mode except the recommended resolution, some scaled or processed images may appear on the screen. However, this is characteristic of the fixed-resolution LCD panel. On Cleaning Unplug the display before cleaning the face of the display screen. Use a slightly damp (not wet) cloth. Do not use an aerosol directly on the display screen because over-spraying may cause electrical shock. On Repacking Do not throw away the carton and packing materials. They make an ideal container in which to transport the unit. When shipping the unit to another location, repack it in its original material. On Disposal The fluorescent lamp used in this product contains a small amount of mercury. Do not dispose of this product with general household waste. Disposal of this product must be carried out in accordance to the regulations of your local authority. A3 Connecting the Display Before setting up the monitor, ensure that the power to the monitor, the computer system, and other attached devices is turned off. Unfolding the stand base 1. Place the monitor with its front facing downward on a cushion or soft cloth. Important This illustration depicts the general model of connection. Your monitor may differ from the items shown in the picture. Do not carry the product upside down holding only the stand base. The product may fall and get damaged or injure your foot. 2.Hold down the release button inside the stand and strongly pull out the stand with your two hands. The stand won't move if you don't press release button. If the release button does not operate easily, fold the stand a bit more, and then press the release button button. A4 Connecting the Display Using the Computer 1.Place the monitor in a convenient, well-ventilated location near your computer. 2.Connect the signal cable. When attached, tighten the thumbscrews to secure the connection. 3.Connect the power cord into a proper power outlet that is easily accessible and close to the display. Wall-outlet type PC-outlet type PC MAC Analog signal Digital signal Varies according to model. 1 2 Mac adapter For Apple Macintosh use, a separate plug adapter is needed to change the 15 pin high density (3 row) D-sub VGA connector on the supplied cab…

Text truncated - open the document above for the full version.

Attestation Statements

EUT Type: 20” LCD Monitor FCC ID: BEJL203WTN Test Report No.: GETEC-E3-05-085 FCC Class B Certification APPENDIX A : ATTESTATION STATEMENT August 22, 2005 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 U.S.A To whom it may concern: We, the undersigned, hereby authorize GUMI College EMC Center to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relation to these matters. Any and all acts carried out by GUMI College EMC Center on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to the application is subject of a denial of benefits, including FCC benefits, pursuant 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Sincerely, Woo-Hyun Oh, Group Leader LG Electronics Inc. TV Plant

Block Diagram

EUT Type: 20” LCD Monitor FCC ID: BEJL203WTN Test Report No.: GETEC-E3-05-085 FCC Class B Certification APPENDIX D : BLOCK DIAGRAM L203WT Block d i agram LCD Module DVI D-SUB ADC TMDS Rec e iver TMDS Tra n smitter Control Assy LIPS Re gula t or Po w e r FET Bl oc k Γ† 1 . 8V /3.3 V/5 V /12V Γ… In v e rter On Di m m i ng Co n t rol 1.8V / 3.3 V 3.3V SC A L E R (U401) ( M S T 9251 H A ) DDRMemory(U402) DDRMemory(U403) U-COM (U501) ( M T V 412 ) LVDS TMDS RGB (S O G ) SCL SD A H/ V SCL SD A 16 k eep ro m 2k 2k LPL ( I P S ) = 12 V CPT(TN) = 5 V 5V LPL ( I P S ) = 62 .5 ~ 63 .5 Mh z CPT(TN) = 6 5 M h z 168 M h z ~ 1 4 6 . 2 5M hz ~ 135 M h z Great Company Great People DESCRIPTION OF BLOCK DIAGRAM 1. Video C ontroll er Part & Display Data Transmitte r Part.(MST9251HA) In case of anal og i n put, this part amplifi e s the le vel of video si g nal for the digita l conversi on an d converts from the anal og vide o signal to the di gital vid eo si gnal using a pixel clock. In case of dig i tal i n put, intern a l TMDS receiv e r d e co des d i g i tal sign al fo r scale r o pe ra tion. The pixel clock for e a ch mod e i s generated by the PLL. The range of the pixel clock is from 25MH z to 162MH z . This part consists of the All-i n -one Scal er with ADC, PLL, TMDS Receiver, Transmitter and s caler. The scal e r i nter po la tes PC inp u t res o luti o n to 1 6 8 0 Γ— 1050 resoluti on signal and outputs 8- bit R, G, B signal to transmitter. Transmitter codes digital signal from the S cale r a nd output coded data to receiver of module. 2. Micom P art This Part consists o f EEPROM IC which s t ores c ontr o l d a ta, Re set IC an d the Mic o m. The Micom disti n guishes polari ty and frequency of the H/V Sync are suppli ed from signal cable. The controll ed data of each modes is stored in EEPROM. 3. Power P a rt LIPS 's outputs ar e 15V an d 5V. 15V is sup p li e d t o M o dule chan g i n g by 12V (R egulator) and 5V(DC- DC Conver t er ) . 5V is suppli e d o n u-C OM a n d e ac h sig n al p art. Also, 5V is converted 3.3V and 1.8V by regulator . Conv er t e d power is provi d ed for IC on the mai n board.

External Photos

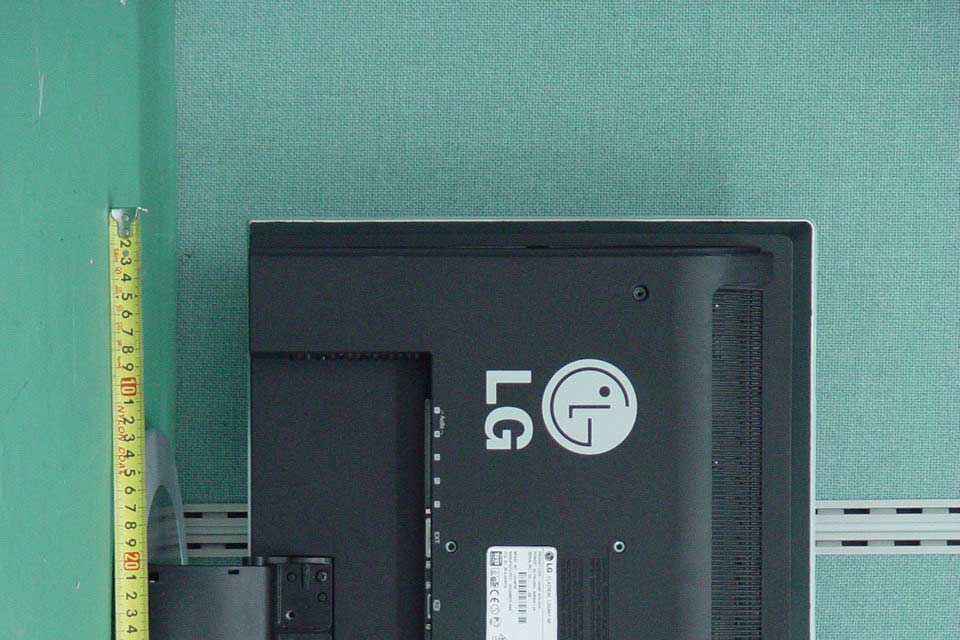

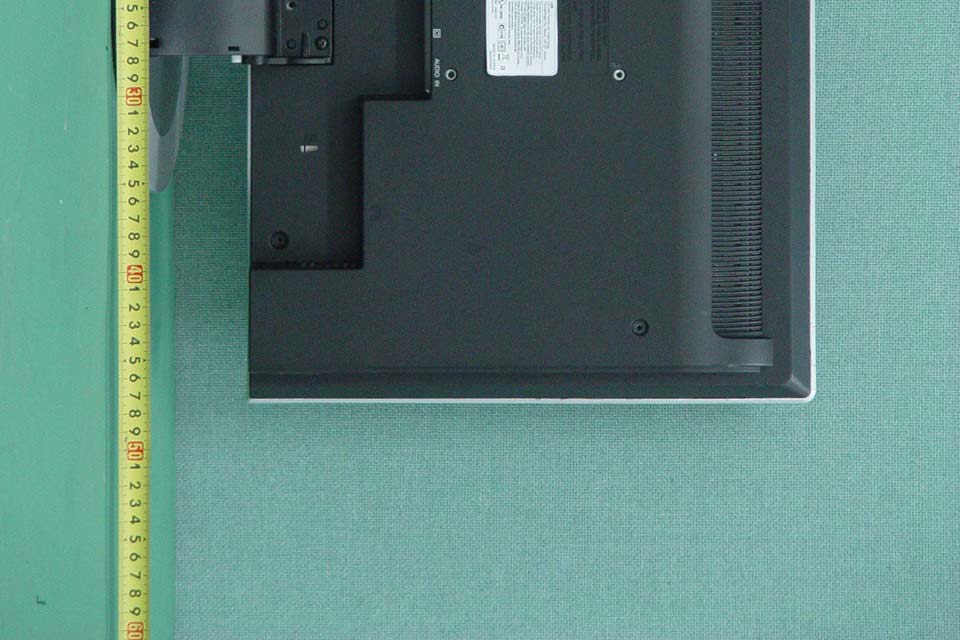

EUT Type: 20” LCD Monitor FCC ID: BEJL203WTN Test Report No.: GETEC-E3-05-085 FCC Class B Certification APPENDIX F : EXTERNAL PHOTOGRAPHS EUT Type: 20” LCD Monitor FCC ID: BEJL203WTN Test Report No.: GETEC-E3-05-085 FCC Class B Certification EUT Type: 20” LCD Monitor FCC ID: BEJL203WTN Test Report No.: GETEC-E3-05-085 FCC Class B Certification EUT Type: 20” LCD Monitor FCC ID: BEJL203WTN Test Report No.: GETEC-E3-05-085 FCC Class B Certification EUT Type: 20” LCD Monitor FCC ID: BEJL203WTN Test Report No.: GETEC-E3-05-085 FCC Class B Certification
