BEJLG200CCellular/PCS CDMA Phone

Part 15.21 statement " Change or Modifications that are not expressly approved by the manufacturer could void the user's authority to operate the equipment. " Part 15.105 statement This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. if this equipment does cause harmful interference or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected - Consult the dealer or an experienced radio/TV technician for help. IMPORTANT SAFETY PRECAUTIONS 2 IMPORTANT SAFETY PRECAUTIONS 1. Do not expose the battery charger or adapter to direct sunlight or use it in places with high humidity, such as a bathroom. 2. Do not use harsh chemicals (such as alcohol, benzene, thinners, etc.) or detergents to clean your phone. This could cause a fire. 3. Do not drop, strike, or shake your phone severely. It may harm the internal circuit boards of the phone. 4. Do not use your phone in high explosive areas as the phone may generate sparks. 5. Do not damage the power cord by bending, twisting, pulling, or heating. Do not use the plug if it is loose as it may cause a fire or electric shock. 6. Do not place any heavy items on the power cord. Do not allow the power cord to be crimped as it may cause electric shock or fire. 7. Do not handle the phone with wet hands while it is being charged. It may cause an electric shock or seriously damage your phone. 8. Do not disassemble the phone. 3 IMPORTANT SAFETY PRECAUTIONS 1. Do not place or answer calls while charging the phone as it may short-circuit the phone and/or cause electric shock or fire. 2. Do not hold or let the antenna come in contact with your body during a call. 3. Make sure that no sharp-edged items such as animal’s teeth or nails, come into contact with the battery. This could cause a fire. 4. Store the battery out of reach of children. 5. Be careful that children do not swallow any parts (such as rubber plugs, earphone, connection parts of the phone, etc.) This could cause asphyxiation or suffocation resulting in serious injury or death. 6. Unplug the power cord and charger during lightning storms to avoid electric shock or fire. 7. Only use the batteries and chargers provided by LG. The warranty will not be applied to products provided by other suppliers. 8. Only authorized personnel should service the phone and its accessories. Faulty installation or service may result in accidents and consequently invalidate the warranty. 9. An emergency call can be made only within a service area. For an emergency call, make sure that you are within a service area and that the phone is turned on. Thank you for choosing the advanced and compact LG200C cellular phone, designed to operate with the latest digital mobile communication technology, Code Division Multiple Access (CDMA). Along with the many advanced features of the CDMA system, such as significantly enhanced voice clarity, this phone offers: ● Large, easy-to-read, 7-line backlight LCD with status icons. ● Paging, messaging, voice mail, and caller ID. ● 22-key keypad. ● Speaker phone feature. ● Menu-driven interface with prompts for easy operation and configuration. ● Any key answer, auto answer, auto retry, one-touch and speed dialing with 99 memory locations. ● Bilingual (English and Spanish) capabilities. Important Information This user’s guide provides important information on the use and operation of your phone. Please read all the information carefully prior to using the phone for the best performance and to prevent any damage to or misuse of the phone. Any unapproved changes or modifications will void your warranty. Internal antenna described as antenna throughout this user guide FCC Part 15 Class B Compliance This device and its accessories comply with part 15 of FCC rules. Operation is subject to the following two conditions: (1) This device and its accessories may not cause harmful interference, and (2) this device and its accessories must accept any interference received, including interference that causes undesired operation. FCC RF Exposure Information WARNING!Read this information before operating the phone. In August 1996, the Federal Communications Commission (FCC) of the United States, with its action in Report and Order FCC 96-326, adopted an updated safety standard for human exposure to Radio Frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. WELCOME 4 WELCOME WELCOME 5 Bodily Contact During Operation This device was tested for typical use with the back of the phone kept 0.6 inches (1.5 cm) from the body. To comply with FCC RF exposure requirements, a minimum separation distance of 0.6 inches (1.5 cm) must be maintained between the user’s body and the back of the phone, including the antenna, whether extended or retracted. Third- party belt-clips, holsters, and similar accessories containing metallic components should not be used. Avoid the use of accessories that cannot maintain 0.6 inches (1.5 cm) distance between the user’s body and the back of th…

Text truncated - open the document above for the full version.

LG Electronics Inc. 60-39, Gasan-dong, Gumchon-gu Seoul 153-801, Korea Tel: 82-2-2033-1110, Fax: 82-2-2033-1222 Date: FEBRUARY 16, 2007 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: BEJLG200C To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Electronics Inc. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Electronics Inc. temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Descriptions 3 Parts Lists and Tune-Up Procedure CONFIDENTIAL 4 Schematics 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM CONFIDENTIAL 8 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, E.S.Park Manager Mobile Handset R&D Center Mobile Communications Company LG Electronics Inc.

February 16, 2007 Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 SUBJECT: LG Electronics Inc. FCC ID: BEJLG200C Gentlemen: We, LG Electronics, hereby declare the samples evaluated in this application are equivalent to production samples. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, E.S.Park Manager Mobile Handset R&D Center Mobile Communications Company LG Electronics Inc. Tel : 82-2-2033-1110 Fax : 82-2-2033-1222 [email protected] 60-39, Kasan-dong, Kemchun-ku Seoul 153-023, Korea LG Electronics Inc. LGE

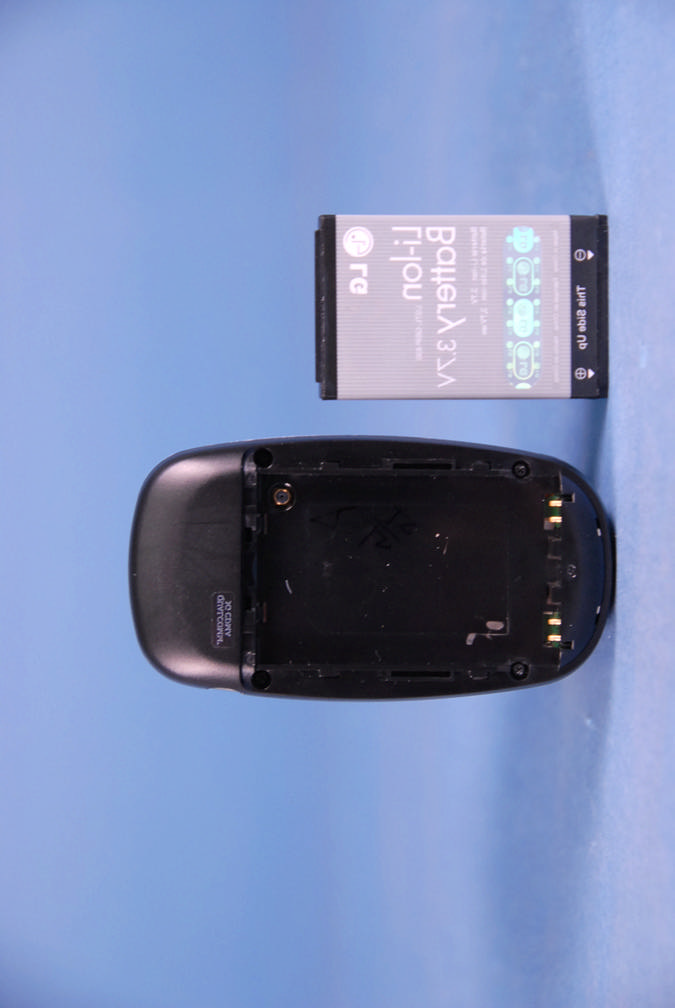

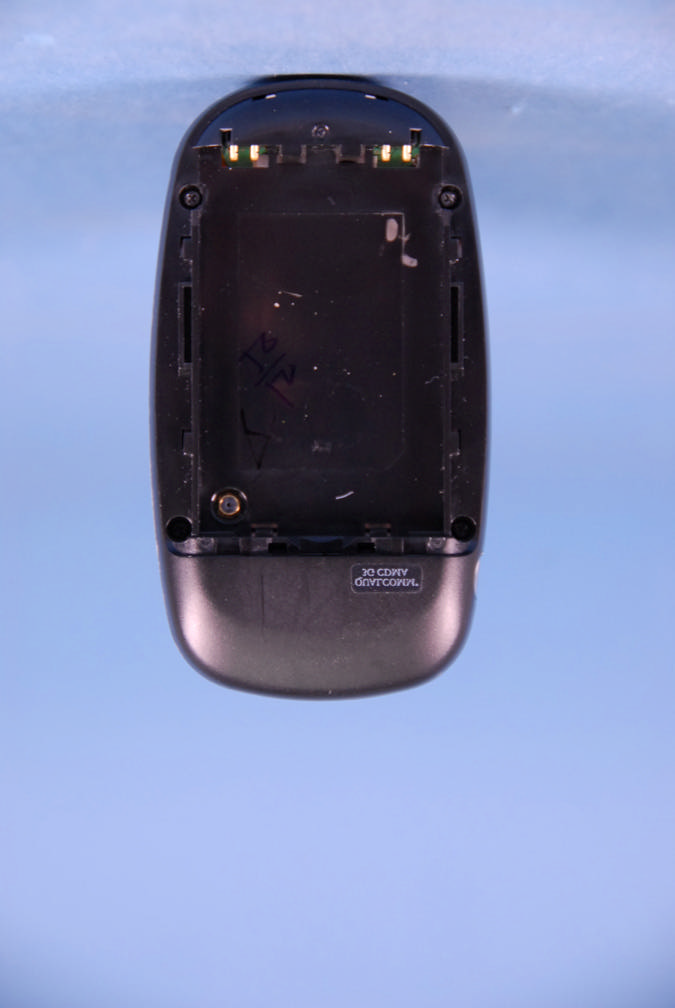

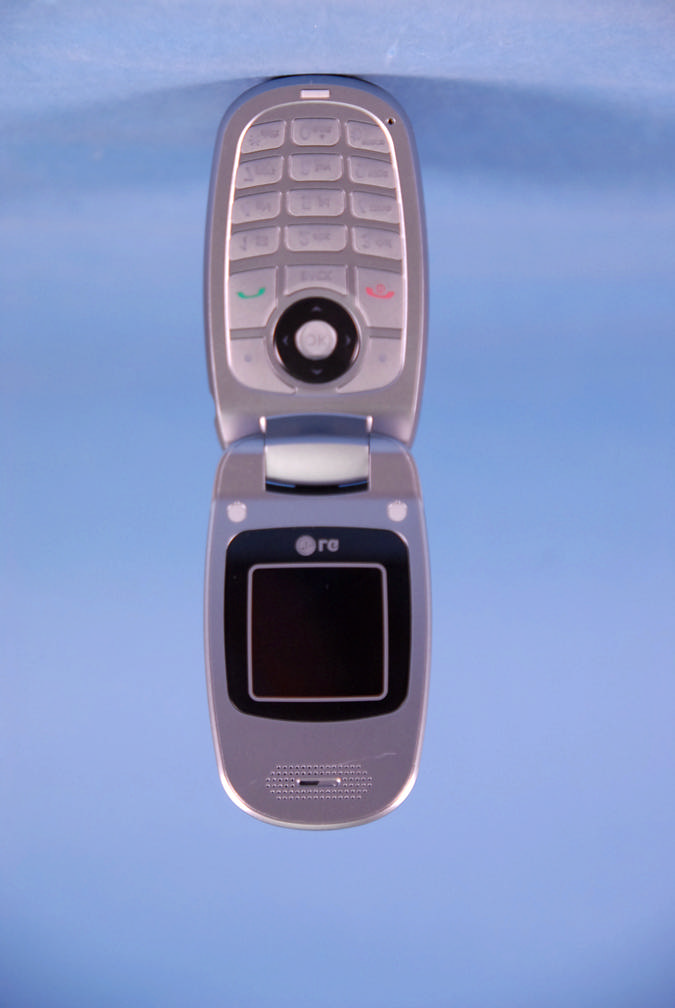

LG FCC ID: BEJLG200C EUT Photographs © 2007 PCTEST Lab. Cellular/PCS CDMA Phone Model: LG200c LG FCC ID: BEJLG200C EUT Photographs © 2007 PCTEST Lab. Cellular/PCS CDMA Phone Model: LG200c LG FCC ID: BEJLG200C EUT Photographs © 2007 PCTEST Lab. Cellular/PCS CDMA Phone Model: LG200c LG FCC ID: BEJLG200C EUT Photographs © 2007 PCTEST Lab. Cellular/PCS CDMA Phone Model: LG200c LG FCC ID: BEJLG200C EUT Photographs © 2007 PCTEST Lab. Cellular/PCS CDMA Phone Model: LG200c LG FCC ID: BEJLG200C EUT Photographs © 2007 PCTEST Lab. Cellular/PCS CDMA Phone Model: LG200c LG FCC ID: BEJLG200C EUT Photographs © 2007 PCTEST Lab. Cellular/PCS CDMA Phone Model: LG200c

LG Electronics Inc. LG Electronics Inc. LGE Model No. LG200c FCC ID : BEJLG200C S/N : Made in Korea

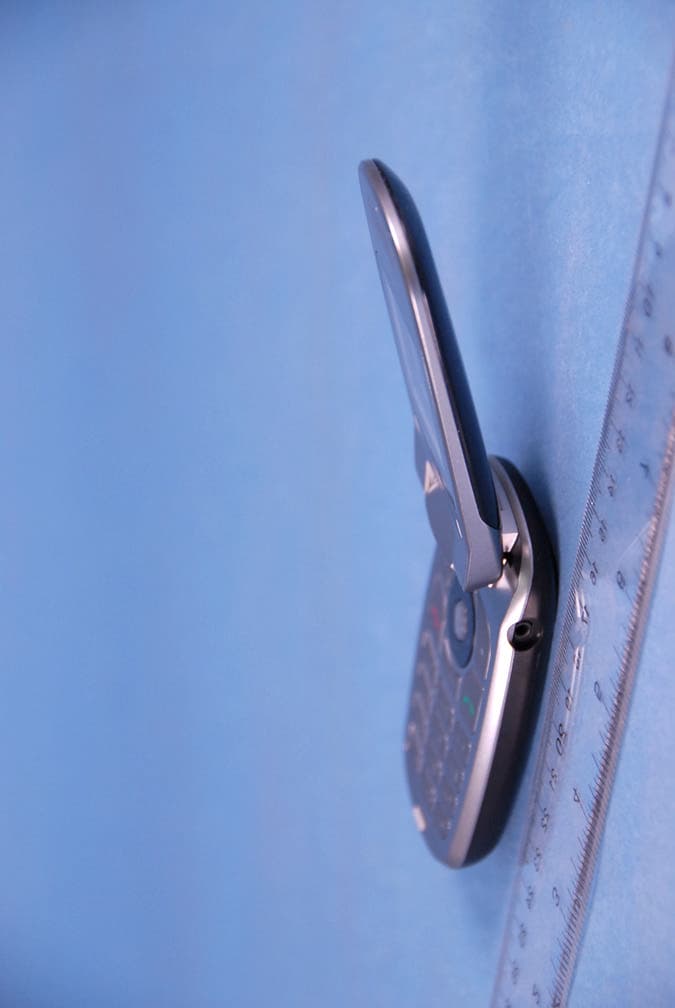

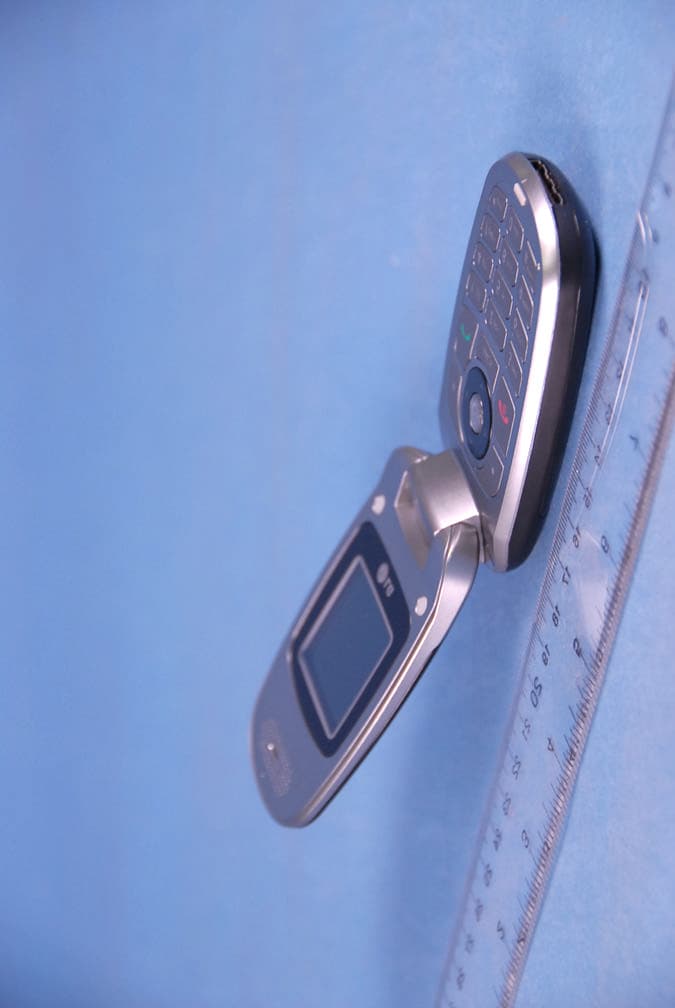

LG FCC ID: BEJLG200C EUT Photographs © 2007 PCTEST Lab. Cellular/PCS CDMA Phone Model: LG200c LG FCC ID: BEJLG200C EUT Photographs © 2007 PCTEST Lab. Cellular/PCS CDMA Phone Model: LG200c LG FCC ID: BEJLG200C EUT Photographs © 2007 PCTEST Lab. Cellular/PCS CDMA Phone Model: LG200c LG FCC ID: BEJLG200C EUT Photographs © 2007 PCTEST Lab. Cellular/PCS CDMA Phone Model: LG200c LG FCC ID: BEJLG200C EUT Photographs © 2007 PCTEST Lab. Cellular/PCS CDMA Phone Model: LG200c LG FCC ID: BEJLG200C EUT Photographs © 2007 PCTEST Lab. Cellular/PCS CDMA Phone Model: LG200c LG FCC ID: BEJLG200C EUT Photographs © 2007 PCTEST Lab. Cellular/PCS CDMA Phone Model: LG200c LG FCC ID: BEJLG200C EUT Photographs © 2007 PCTEST Lab. Cellular/PCS CDMA Phone Model: LG200c LG FCC ID: BEJLG200C EUT Photographs © 2007 PCTEST Lab. Cellular/PCS CDMA Phone Model: LG200c LG FCC ID: BEJLG200C EUT Photographs © 2007 PCTEST Lab. Cellular/PCS CDMA Phone Model: LG200c

PCTEST ENGINEERING LABORATORY, INC. DUT: Dipole 835 MHz; Type: D835V2; Serial: 4d026 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: 835 Brain (σ = 0.91 mho/m, ε r = 40.63, ρ = 1000 kg/m 3 ) Phantom section: Flat Section Test Date: 02-05-2007; Ambient Temp: 22.6°C; Tissue Temp: 20.3°C Probe: EX3DV4 - SN3561; ConvF(7.94, 7.94, 7.94); Calibrated: 11/23/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 1/23/2007 Phantom: SAM Main; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 835MHz Dipole Validation Area Scan (7x13x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Input Power = 24.0 dBm (250 mW) SAR(1 g) = 2.36 mW/g; SAR(10 g) = 1.61 mW/g Target SAR(1g) = 2.25 mW/g; Deviation = + 4.77 % 0 dB = 2.75mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 502 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: 1900 Brain (σ = 1.41 mho/m, ε r = 39.12, ρ = 1000 kg/m 3 ) Phantom section: Flat Section Test Date: 02-05-2007; Ambient Temp: 22.6°C; Tissue Temp: 20.1°C Probe: EX3DV4 - SN3561; ConvF(6.99, 6.99, 6.99); Calibrated: 11/23/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 1/23/2007 Phantom: SAM Main; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 1900MHz Dipole Validation Area Scan (5x7x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Input Power = 20.0 dBm (100 mW) SAR(1 g) = 3.89 mW/g; SAR(10 g) = 2.13 mW/g Target SAR(1g) = 3.75 mW/g; Deviation = +3.73 % 0 dB = 4.85mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: Dipole 835 MHz; Type: D835V2; Serial: 4d026 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: 835 Brain (σ = 0.91 mho/m, ε r = 40.63, ρ = 1000 kg/m 3 ) Phantom section: Flat Section Test Date: 02 -06-2007; Ambient Temp: 22.4° C; Tissue Temp: 20.2°C Probe: EX3DV4 - SN3561; ConvF(7.94, 7.94, 7.94); Calibrated: 11/23/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 1/23/2007 Phantom: SAM Main; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 835MHz Dipole Validation Area Scan (7x13x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Input Power = 24.0 dBm (250 mW) SAR(1 g) = 2.34 mW/g; SAR(10 g) = 1.53 mW/g Target SAR(1g) = 2.25 mW/g; Deviation = + 3.88 % 0 dB = 2.81mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 502 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: 1900 Brain (σ = 1.41 mho/m, ε r = 39.12, ρ = 1000 kg/m 3 ) Phantom section: Flat Section Test Date: 02 -06-2007; Ambient Temp: 22.4° C; Tissue Temp: 20.1 °C Probe: EX3DV4 - SN3561; ConvF(6.99, 6.99, 6.99); Calibrated: 11/23/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 1/23/2007 Phantom: SAM Main; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 1900MHz Dipole Validation Area Scan (5x7x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Input Power = 20.0 dBm (100 mW) SAR(1 g) = 3.91 mW/g; SAR(10 g) = 2.23 mW/g Target SAR(1g) = 3.75 mW/g; Deviation = +4.27 % 0 dB = 4.97mW/g

Reviewed by: FCC ID: BEJLG200C CERTIFICATION REPORT Quality Manager SAR Filename: Test Dates: EUT Type: 0701160022.BEJ 02/05/07 - 02/06/07 Dual-Band CDMA Phone Page 1 of 25 © 2007 PCTEST Engineering Laboratory, Inc. REV 4.1C 02/02/07 Applicant Name: Date of Testing: LG Electronics USA 02/05/07 - 02/06/07 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0701160022.BEJ FCC ID: BEJLG200C APPLICANT: LG ELECTRONICS USA EUT Type: Dual-Band CDMA Phone Application Type: Certification FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] FCC Classification: Licensed Transmitter Held to Ear (PCE) Model(s): LG200C Tx Frequency: 824.70 - 848.31 MHz (Cellular CDMA) / 1851.25 - 1908.75 MHz (PCS CDMA) Conducted Power: 24.5 dBm CDMA / 24.5 dBm PCS Max. SAR Measurement: 1.12 W/kg CDMA850 Head SAR / 0.886 W/kg CDMA850 Body SAR 1.24 W/kg CDMA1900 Head SAR / 0.829 W/kg CDMA1900 Body SAR Test Device Serial No.: Pre-Production [S/N: SAR #1] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-2005 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-2003. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body-worn operating configuration is based on a separation distance of 1.5 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters not specified in this filing may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Reviewed by: FCC ID: BEJLG200C CERTIFICATION REPORT Quality Manager SAR Filename: Test Dates: EUT Type: 0701160022.BEJ 02/05/07 - 02/06/07 Dual-Band CDMA Phone Page 2 of 25 © 2007 PCTEST Engineering Laboratory, Inc. REV 4.1C 02/02/07 TABLE OF CONTENTS 1 INTRODUCTION ..............................................................................................................................3 2 TEST SITE LOCATION ....................................................................................................................4 3 SAR MEASUREMENT SETUP ........................................................................................................5 4 DASY E-FIELD PROBE SYSTEM ...................................................................................................7 5 PROBE CALIBRATION PROCESS .................................................................................................8 6 PHANTOM AND EQUIVALENT TISSUES.......................................................................................9 7 DOSIMETRIC ASSESSMENT & PHANTOM SPECS....................................................................10 8 DEFINITION OF REFERENCE POINTS .......................................................................................11 9 TEST CONFIGURATION POSITIONS ..........................................................................................12 10 ANSI/IEEE C95.1-2005 RF EXPOSURE LIMITS..........................................................................14 11 MEASUREMENT UNCERTAINTIES .............................................................................................15 12 SYSTEM VERIFICATION...............................................................................................................16 13 FCC 3G MEASUREMENT PROCEDURES – JUNE 2006 ............................................................17 14 SAR DATA SUMMARY ..................................................................................................................19 15 EQUIPMENT LIST..........................................................................................................................22 16 CONCLUSION................................................................................................................................23 17 REFERENCES ...............................................................................................................................24 Reviewed by: FCC ID: BEJLG200C CERTIFICATION REPORT Quality Manager SAR Filename: Test Dates: EUT Type: 0701160022.BEJ 02/05/07 - 02/06/07 Dual-Band CDMA Phone Page 3 of 25 © 2007 PCTEST Engineering Laboratory, Inc. REV 4.1C 02/02/07 1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency (RF) radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-2005 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 2005 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-2002 Recommended Practice for the Measurement of P…

Text truncated - open the document above for the full version.

PCTEST ENGINEERING LABORATORY, INC. DUT: LG200C; Type: CDMA Dual Band Phone; Serial: SAR #1 Conducted Power: 24.5 dbm Communication System: Cellular CDMA; Frequency: 848.31 MHz;Duty Cycle: 1:1 Medium: 835 Brain (σ = 0.91 mho/m, ε r = 40.63, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 02-05-2007; Ambient Temp: 22.6°C; Tissue Temp: 20.3°C Probe: EX3DV4 - SN3561; ConvF(7.94, 7.94, 7.94); Calibrated: 11/23/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 1/23/2007 Phantom: SAM Main; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Right Head, Touch, High.ch, Standard Battery Area Scan (7x14x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.81 V/m Peak SAR (extrapolated) = 1.60 W/kg SAR(1 g) = 1.12 mW/g; SAR(10 g) = 0.745 mW/g 0 dB = 1.29mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: LG200C; Type: CDMA Dual Band Phone; Serial: SAR #1 Conducted Power: 24.5 dBm Communication System: Cellular CDMA; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium: 835 Brain (σ = 0.91 mho/m, ε r = 40.63, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 02-05-2007; Ambient Temp: 22.6°C; Tissue Temp: 20.3°C Probe: EX3DV4 - SN3561; ConvF(7.94, 7.94, 7.94); Calibrated: 11/23/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 1/23/2007 Phantom: SAM Main; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Right Head, Tilt, Mid.ch, Standard Battery Area Scan (7x14x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.3 V/m Peak SAR (extrapolated) = 0.239 W/kg SAR(1 g) = 0.190 mW/g; SAR(10 g) = 0.143 mW/g 0 dB = 0.209mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: LG200C; Type: CDMA Dual Band Phone; Serial: SAR #1 Conducted Power: 24.5 dBm Communication System: Cellular CDMA; Frequency: 848.31 MHz;Duty Cycle: 1:1 Medium: 835 Brain (σ = 0.91 mho/m, ε r = 40.63, ρ = 1000 kg/m 3 ) Phantom section: Left Section Test Date: 02-05-2007; Ambient Temp: 22.6°C; Tissue Temp: 20.3°C Probe: EX3DV4 - SN3561; ConvF(7.94, 7.94, 7.94); Calibrated: 11/23/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 1/23/2007 Phantom: SAM Main; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Left Head, Touch, High.ch, Standard Battery Area Scan (7x14x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 9.90 V/m Peak SAR (extrapolated) = 1.42 W/kg SAR(1 g) = 1.03 mW/g; SAR(10 g) = 0.697 mW/g 0 dB = 1.18mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: LG200C; Type: CDMA Dual Band Phone; Serial: SAR #1 Conducted Power: 24.5 dBm Communication System: Cellular CDMA; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium: 835 Brain (σ = 0.91 mho/m, ε r = 40.63, ρ = 1000 kg/m 3 ) Phantom section: Left Section Test Date: 02-05-2007; Ambient Temp: 22.6°C; Tissue Temp: 20.3°C Probe: EX3DV4 - SN3561; ConvF(7.94, 7.94, 7.94); Calibrated: 11/23/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 1/23/2007 Phantom: SAM Main; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Left Head, Tilt, Mid.ch, Standard Battery Area Scan (7x14x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 9.37 V/m Peak SAR (extrapolated) = 0.194 W/kg SAR(1 g) = 0.153 mW/g; SAR(10 g) = 0.114 mW/g 0 dB = 0.171mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: LG200C; Type: CDMA Dual Band Phone; Serial: SAR #1 Conducted Power: 24.5 dBm Communication System: PCS CDMA; Frequency: 1880 MHz;Duty Cycle: 1:1 Medium: 1900 Brain (σ = 1.41 mho/m, ε r = 39.12, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 02 -05 -2007; Ambient Temp: 22.6° C; Tissue Temp: 20.1°C Probe: EX3DV4 - SN3561; ConvF(6.99, 6.99, 6.99); Calibrated: 11/23/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 1/23/2007 Phantom: SAM Main; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Right Head, Touch, Mid.ch, Standard Battery Area Scan (7x14x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.48 V/m Peak SAR (extrapolated) = 1.94 W/kg SAR(1 g) = 1.21 mW/g; SAR(10 g) = 0.687 mW/g 0 dB = 1.43mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: LG200C; Type: CDMA Dual Band Phone; Serial: SAR #1 Conducted Power: 24.5 dBm Communication System: PCS CDMA; Frequency: 1880 MHz;Duty Cycle: 1:1 Medium: 1900 Brain (σ = 1.41 mho/m, ε r = 39.12, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 02 -05 -2007; Ambient Temp: 22.6°C ; Tissue Temp: 20.1° C Probe: EX3DV4 - SN3561; ConvF(6.99, 6.99, 6.99); Calibrated: 11/23/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 1/23/2007 Phantom: SAM Main; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Right Head, Tilt, Mid.ch, Standard Battery Area Scan (7x14x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.55 V/m Peak SAR (extrapolated) = 0.167 W/kg SAR(1 g) = 0.104 mW/g; SAR(10 g) = 0.058 mW/g 0 dB = 0.126mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: LG200C; Type: CDMA Dual Band; Serial: SAR #1 Conducted Power: 24.5 dBm Communication System: PCS CDMA; Frequency: 1880 MHz;Duty Cycle: 1:1 Medium: 1900 Brain (σ = 1.41 mho/m, ε r = 39.12, ρ = 1000 kg/m 3 ) Phantom section: Left Section Test Date: 02 -05-2007; Ambient Temp: 22.6° C; Tissue …

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: BEJLG200C FCC Pt. 22/24 CDMA MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0701160021 February 2 - 5, 2007 Cellular/PCS CDMA Phone Page 1 of 38 © 2007 PCTEST Engineering Laboratory, Inc. REV 5.2C 02/01/07 Applicant Name: Date of Testing: LG Electronics USA February 2 - 5, 2007 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab., Columbia, MD, USA United States Test Report Serial No.: 0701160021 FCC ID: BEJLG200C APPLICANT: LG ELECTRONICS USA Application Type: Certification FCC Classification: PCS Licensed Transmitter Held to Ear (PCE) FCC Rule Part(s): §2; §22(H), §24(E) EUT Type: Cellular/PCS CDMA Phone Model(s): LG200c Tx Frequency Range: 824.70 - 848.31MHz (Cell. CDMA) / 1851.25 - 1908.75MHz (PCS CDMA) Max. RF Output Power: 0.664 W ERP Cell. CDMA (28.220 dBm) 0.286 W EIRP PCS CDMA (24.560 dBm) Emission Designator(s): 1M27F9W (CDMA) / 1M29F9W (PCS) Test Device Serial No.: identical prototype [S/N: N/A] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 22 & 24 Certification Reviewed by: FCC ID: BEJLG200C FCC Pt. 22/24 CDMA MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0701160021 February 2 - 5, 2007 Cellular/PCS CDMA Phone Page 2 of 38 © 2007 PCTEST Engineering Laboratory, Inc. REV 5.2C 02/01/07 TABLE OF CONTENTS FCC PART 22 & 24 MEASUREMENT REPORT...........................................................................3 1.0 INTRODUCTION ..............................................................................................................................4 1.1 MEASUREMENT PROCEDURE .............................................................................................................................. 4 1.2 SCOPE ...................................................................................................................................................................... 4 1.3 TESTING FACILITY .................................................................................................................................................. 4 2.0 PRODUCT INFORMATION..............................................................................................................5 2.1 EQUIPMENT DESCRIPTION ................................................................................................................................... 5 2.2 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ................................................................................................ 5 3.0 DESCRIPTION OF TESTS ..............................................................................................................6 3.1 OCCUPIED BANDWIDTH EMISSION LIMITS ......................................................................................................... 6 3.2 CELLULAR - BASE FREQUENCY BLOCKS ............................................................................................................ 6 3.3 CELLULAR - MOBILE FREQUENCY BLOCKS ........................................................................................................ 6 3.4 PCS - BASE FREQUENCY BLOCKS ....................................................................................................................... 7 3.5 PCS - MOBILE FREQUENCY BLOCKS ................................................................................................................... 7 …

Text truncated - open the document above for the full version.
