BEJLS855Cellular/PCS/BC10 CDMA Phone with WLAN and Bluetooth

User Manual LS855 Body-worn Operation This device was tested for typical body-worn operations with the back of the phone kept 0.79 inches (2cm ) from the body. To comply with FCC RF exposure requirements, a minimum separation distance of 0.79 inches (2cm ) must be maintained between the user’s body and the back of the phone, including the antenna, whether extended or retracted. Third-party belt-clips, holsters and similar accessories containing metallic components should not be used. Body-worn accessories that cannot maintain 0.79 inch (2cm ) s eparation distance between the user’s body and th e back of the phone, and have not been tested for typical body-worn operations may not comply with FCC RF exposure limits and should be avoided. FCC Part 15.19 statement This device and its accessories comply with part 15 of FCC rules. Operation is subject to the following two conditions: (1) This device and its accessories may not cause harmful interference, and (2) this device and its accessories must accept any interference received, including interference that cause undesired operation. FCC Part 15.21 statement Changes or Modifications that are not expressly approved by the manufacturer could void the user's authority to operate the equipment. FCC Part 15.105 statement This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules . These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference or television reception, which can be d etermined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Getting Started View of Phone 1. PWR/Lock Switch: Lets you power the phone on or off. 2. Antenna: Retractable antenna provides optimum reception for 800 MHz & 1900 MHz frequencies. 3. Headset Jack: Provides connection for an optional headset. 4. Volume Control Keys: Adjust the Ring Volume in the Main Menu or the Voice Volume during a call. The keys also scroll through mouths in the Calendar or pages in the MiniBrowser. 5. Menu: Show menus that is associated with a current activity 6. Home: Returns to the main home screen 7. Back: Lets you clear an entry or back-up in the menu. 8. Search: Brings up the search function Installing and Removing the Battery To install the battery, insert the bottom of the battery into the opening on the back of the phone. Then, push the battery down until the latch clicks. To remove the battery, press down on the latch and remove the battery from the phone. Turning Your Phone On and Off To turn your phone on, push the PWR/Lock Switch (near the antenna) until a logo shows on the display. Your phone performs a short self-test before letting you know it is operational. If your phone does not turn on, make sure the battery is installed correctly and is adequately charged or has external power (via the AC Adapter, Cigarette Lighter Adapter or Hands-Free Car Kit). To turn your phone off, push the PWR/Lock Switch until a pop-up message shows, then choose the menu “Power Off” and “OK”. Main Menu When your phone acquires Service, the Greeting (a banner of text), the current time and date and the Main Menu are displayed. If you are in authorized digital cellular provider’s service area, you are ready to send and receive calls. Power Save Mode When the phone is in an area without service for 15 minutes, it stops searching for service and enters into the power Save Mode. When your phone activates this feature, Power Save is displayed on your screen. The phone automatically checks for service periodically or you can check manually by pressing any key. Entering Characters Using the Keypad To enter a letter, punctuation or number when creating Contacts or Scheduler entries, press the corresponding key on the screen keyboard. By default, the first letter of a word is capitalized and following letters are lowercase. Characters in the following layout: 1) Letters 2) Numbers If you make a mistake, press to erase a character. To clear the entire entry, press and hold .7 Press to switch the layout from Letters to Numbers. Press to switch the layout from Numbers to Letters. Display Icons Display icons are the symbols your phone uses to communicate important information. They are as follows: ICON DESCRIPTION Alarm Battery Antenna No service In use Voice Privacy TTY Using Your Phone Placing a Call When the phone is on, Signal strength icon on the display shows that whether you are in a Service Area or not. The area may include an authorized PCS CDMA provider’s service area. 1. At Home Screen or Menu Screen. 2. Touch Phone 3. At Phone Screen, Enter digits. 4. Touch Send key. 5. Dialing 6. If you want call end, press MENU key and Touch Call End or press Power PWR/Lock key on top of phone Roaming With Your Phone Your Phone is you can use it to make and receive calls in many places. Calling Experience When you use your phone on other PCS CDMA networks, your calling experience and call quality will be quite similar to what you experience when making calls within the Network. Although certain calling features may not be available, your phone calls are still private and secure. Correcting Dialing Mistakes To delete one digit at a time, press . To delete all digits, press and hold . Redial…

Text truncated - open the document above for the full version.

Date: April 20, 2011 Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 SUBJECT: LG Electronics Inc. FCC ID: BEJLS855 Part 20.19 Certification Gentlemen: We, LG Electronics USA, hereby declare the samples evaluated in this application are equivalent to production samples. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Christopher Johnson Senior Manager LG Electronics USA LG Electronics Inc. LGE LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

LG Electronics Inc. LGE LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, NJ 07632 Date: April 20, 2011 PCTEST TCB/CB Div. of PCTEST En gineering Lab., Inc.gg, 6660-B Dobbin Road, Columbia, MD 21045 SUBJECT: LG Electronics USA FCC ID: BEJLS855FCC ID: BEJLS855 To whom it may concern: We LG Electronics USA confirm that the purpose of the power reduction for Mobile hotspotWe, LG Electronics USA, confirm that the purpose of the power reduction for Mobile hotspot is for SAR compliance. When Mobile hotspot mode is activated, power reduction is applied until Mobile hotspot is deactivated by the user with no exception. Additionally, this model doesn’t support SVDO mode. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Christopher Johnson Senior Manager LG Electronics USA

LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, NJ 07632 Date: April 20, 2011 Federa l Communica tions Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: BEJLS855 Equipment Class: PCE: PCS Licensed Transmitter held to ear To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Electronics USA hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Electronics USA temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Descriptions 3 Parts Lists and Tune-Up Procedure PERMANENT 4 Schematics 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM 8 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Christopher Johnson Senior Manager LG Electro nics USA LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

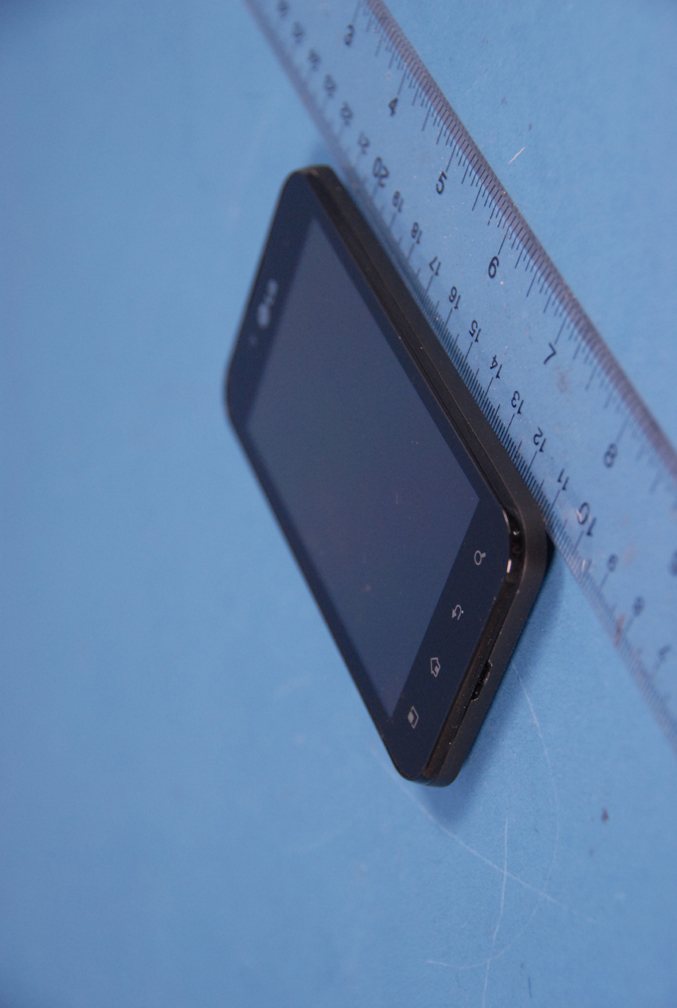

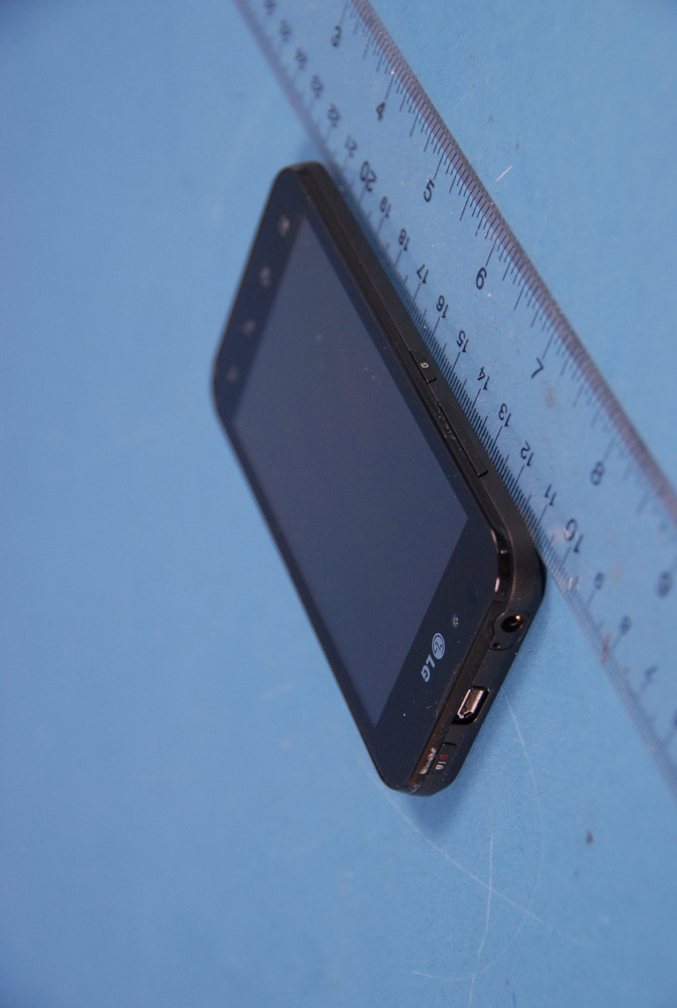

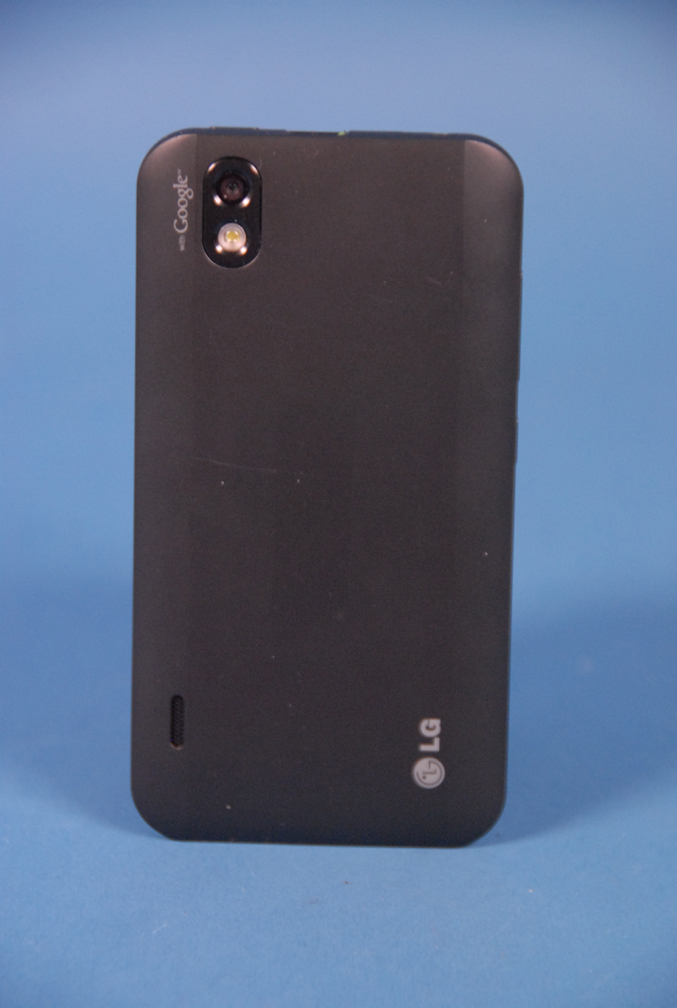

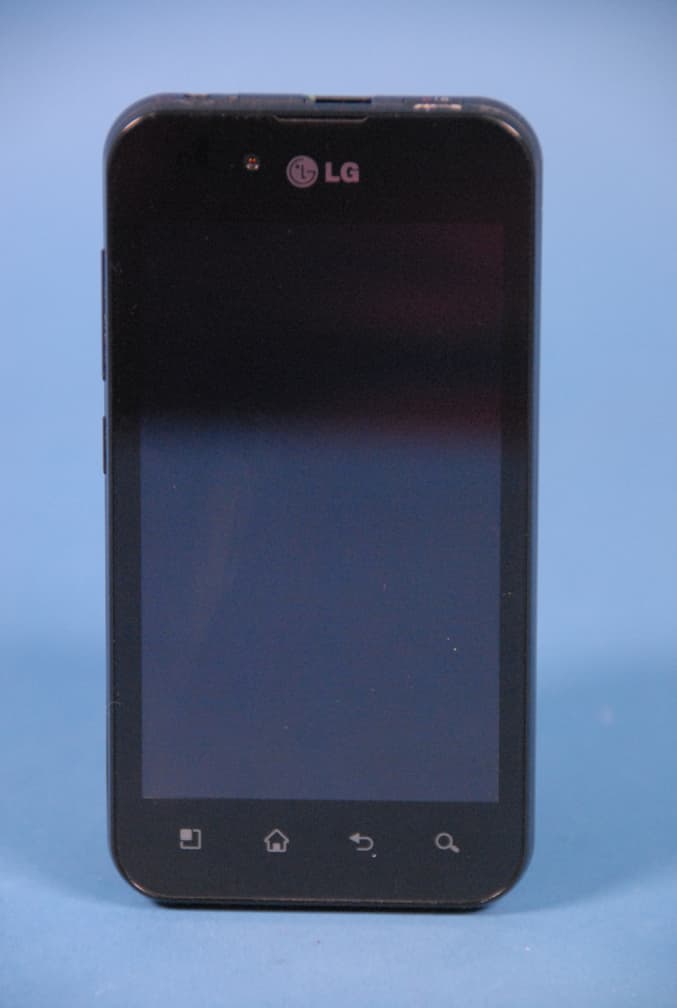

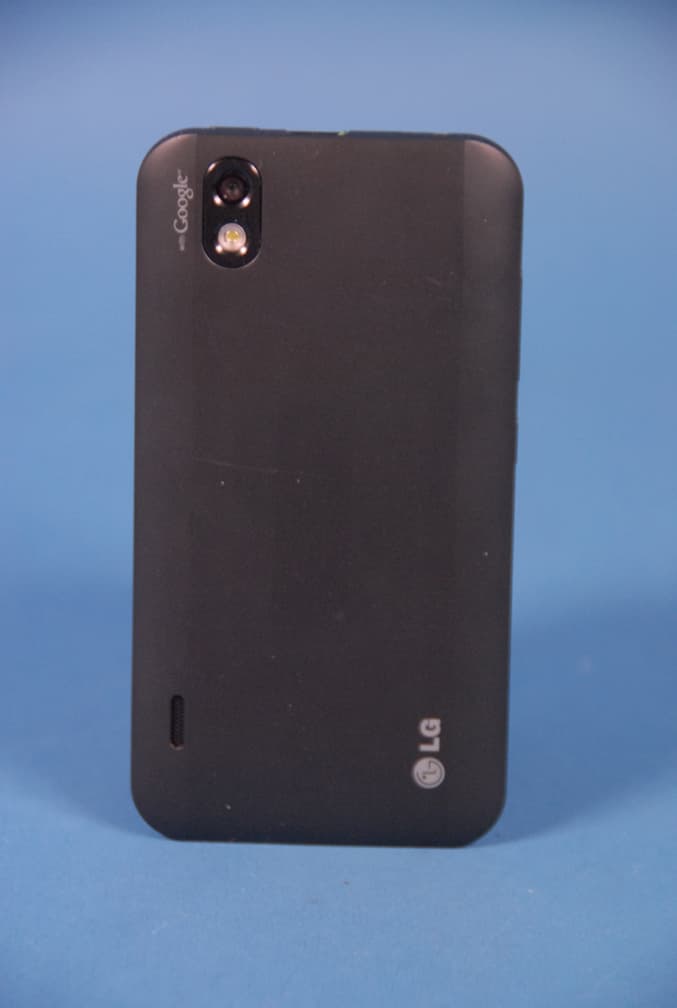

LG Electronics USA FCC ID: BEJLS855 Model: LS855 External Photos EUT Type: Cellular/PCS/BC10 CDMA/EvDO Phone with BT and WLAN Page 1 of 4 © 2011 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS LG Electronics USA FCC ID: BEJLS855 Model: LS855 External Photos EUT Type: Cellular/PCS/BC10 CDMA/EvDO Phone with BT and WLAN Page 2 of 4 © 2011 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJLS855 Model: LS855 External Photos EUT Type: Cellular/PCS/BC10 CDMA/EvDO Phone with BT and WLAN Page 3 of 4 © 2011 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJLS855 Model: LS855 External Photos EUT Type: Cellular/PCS/BC10 CDMA/EvDO Phone with BT and WLAN Page 4 of 4 © 2011 PCTEST Engineering Laboratory Inc.

Model No: LS855 FCC ID : BEJLS855 S/N : Made in Korea LG Electronics Inc. LGE

LG Electronics USA FCC ID: BEJLS855 Model: LS855 Internal Photos EUT Type: Cellular/PCS/BC10 CDMA/EvDO Phone with BT and WLAN Page 1 of 11 © 2011 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS LG Electronics USA FCC ID: BEJLS855 Model: LS855 Internal Photos EUT Type: Cellular/PCS/BC10 CDMA/EvDO Phone with BT and WLAN Page 2 of 11 © 2011 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJLS855 Model: LS855 Internal Photos EUT Type: Cellular/PCS/BC10 CDMA/EvDO Phone with BT and WLAN Page 3 of 11 © 2011 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJLS855 Model: LS855 Internal Photos EUT Type: Cellular/PCS/BC10 CDMA/EvDO Phone with BT and WLAN Page 4 of 11 © 2011 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJLS855 Model: LS855 Internal Photos EUT Type: Cellular/PCS/BC10 CDMA/EvDO Phone with BT and WLAN Page 5 of 11 © 2011 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJLS855 Model: LS855 Internal Photos EUT Type: Cellular/PCS/BC10 CDMA/EvDO Phone with BT and WLAN Page 6 of 11 © 2011 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJLS855 Model: LS855 Internal Photos EUT Type: Cellular/PCS/BC10 CDMA/EvDO Phone with BT and WLAN Page 7 of 11 © 2011 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJLS855 Model: LS855 Internal Photos EUT Type: Cellular/PCS/BC10 CDMA/EvDO Phone with BT and WLAN Page 8 of 11 © 2011 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJLS855 Model: LS855 Internal Photos EUT Type: Cellular/PCS/BC10 CDMA/EvDO Phone with BT and WLAN Page 9 of 11 © 2011 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJLS855 Model: LS855 Internal Photos EUT Type: Cellular/PCS/BC10 CDMA/EvDO Phone with BT and WLAN Page 10 of 11 © 2011 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJLS855 Model: LS855 Internal Photos EUT Type: Cellular/PCS/BC10 CDMA/EvDO Phone with BT and WLAN Page 11 of 11 © 2011 PCTEST Engineering Laboratory Inc.

FCC ID: BEJLS855 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 1 of 49 0Y1103160565-R1.BEJ 03/28/11 - 05/03/11 Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 8.9.1M 04/07/2011 Applicant Name: Date of Testing: LG Electronics USA 03/28/11 - 05/03/11 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1103160565-R1.BEJ F C C I D : BE J LS 8 5 5 AP P L I C AN T : LG E LE CT RO NI CS US A EUT Type: Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN Application Type: Certification FCC Rule Part(s): Model(s): CFR §2.1093; FCC/OET Bulletin 65 Supplement C [June 2001] LS855, LG-LS855, US855, AS855, LG855, VM855 Tx Frequency: 817.90 - 823.10 MHz (Cellular CDMA, FCC Rule Part 90S) 824.70 - 848.31 (Cellular CDMA, FCC Rule Part 22H) 1851.25 – 1908.75 MHz (PCS CDMA, FCC Rule Part 24E) 2412 - 2462 MHz (WLAN, FCC Rule Part 15C) Conducted Power: 24.83 dBm Cell. CDMA (FCC Rule Part 90S) 24.81 dBm Cell. CDMA (FCC Rule Part 22H) 24.83 dBm PCS CDMA (FCC Rule Part 24E) 15.61 dBm 2.4 GHz WLAN (FCC Rule Part 15C) Max. SAR Measurement: 0.43 W/kg Cell. CDMA Head SAR (FCC Rule Part 90S) 0.69 W/kg Cell. CDMA Body Worn SAR (FCC Rule Part 90S) 0.73 W/kg Cell. CDMA Hotspot SAR (FCC Rule Part 90S) 0.57 W/kg Cell. CDMA Head SAR (FCC Rule Part 22H) 0.77 W/kg Cell. CDMA Body Worn SAR (FCC Rule Part 22H) 0.77 W/kg Cell. CDMA Hotspot SAR (FCC Rule Part 22H) 0.69 W/kg PCS CDMA Head SAR (FCC Rule Part 24E) 0.24 W/kg PCS CDMA Body Worn SAR (FCC Rule Part 24E) 0.71 W/kg PCS CDMA Hotspot SAR (FCC Rule Part 24E) 0.12 W/kg 2.4 GHz WLAN Head SAR (FCC Rule Part 15C) 0.12 W/kg 2.4 GHz WLAN Body SAR (FCC Rule Part 15C) Test Device Serial No.: Pre-Production [S/N: Spare] All models are confirmed to be identical per the manufacturer. Note: This revised Test Report (S/N: 0Y1103160565-R1.BEJ) supersedes and replaces the previously issued test report on the same subject EUT for the same type of testing as indicated. Please discard or destroy the previously issued test report and dispose of it accordingly. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001), IEEE 1528-2003 and in applicable Industry Canada Radio Standards Specifications (RSS); for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. +1.410.290.6652 / Fax +1.410.290.6554 http://www.pctestlab.com SAR COMPLIANCE EVALUATION REPORT FCC ID: BEJLS855 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 2 of 49 0Y1103160565-R1.BEJ 03/28/11 - 05/03/11 Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 8.9.1M 04/07/2011 T A B L E O F C O N T E N T S 1 INTRODUCTION ..............................................................................................................................3 2 TEST SITE LOCATION ....................................................................................................................4 3 SAR MEASUREMENT SETUP ........................................................................................................5 4 DASY E-FIELD PROBE SYSTEM ...................................................................................................7 5 PROBE CALIBRATION PROCESS .................................................................................................8 6 PHANTOM AND EQUIVALENT TISSUES .......................................................................................9 7 DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................... 10 8 DEFINITION OF REFERENCE POINTS ...................................................................................... 11 9 TEST CONFIGURATION POSITIONS ......................................................................................... 12 10 FCC RF EXPOSURE LIMITS ........................................................................................................ 15 11 FCC 3G MEASUREMENT PROCEDURES .................................................................................. 16 12 SAR TESTING WITH IEEE 802.11 TRANSMITTERS .................................................................. 19 13 SINGLE TX SAR CONSIDERATIONS .......................................................................................... 22 14 SYSTEM VERIFICATION .............................................................................................................. 23 15 SAR DATA SUMMARY ................................................................................................................. 26 16 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 35 17 EQUIPMENT LIST ......................................................................................................................... 38 18 MEASUREMENT UNCERTAINTIES ............................................................................................ 39 19 CONCLUSION ...…
