APPLICANT : LG Electronics Inc. FCC ID : BEJLTGEN80LNB July 25, 2007 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re : PCS Licensed Transmitter FCC ID : BEJLTGEN80LNB To Whom It May Concern We hereby certify that this transmit and receive equipment(FCC ID:BEJLTGEN80LNB) for Tri-mode telematics device use is capable of compliance with the TIA/EIA-95B and CDMA-2000 Mobile station-Base Station Compatibility Standards for Dula-Band Spread Spectrum Systems. Furthermore, we certify compliance to ANSI/TIA/EIA-553-A-1999, Mobile Station-Land Station Compatibility Specsification. Should you have any questions or comments concerning the above, Please contact the undersigned. Sincerely, JUN SEON KIM Engineering Director ------------------------ LG Electronics Inc. Digital Media Research Lab. 16, Woomyeon-Dong, Seocho-Gu, Seoul 137-724, Korea APPLICANT : LG Electronics Inc. FCC ID : BEJLTGEN80LNB July 25, 2007 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Subject : LG Electronics USA FCC ID:BEJLTGEN80LNB 911 Call Processing Per Section 22.921 Gentlemen: LG Electronics Inc. on behalf of LG Electronics USA hereby certifies that the wireless telephone (FCC ID:BEJLTGEN80LNB processes 911 calls in a manner that it believes to be consistent with Section 22.921 of the Commission’s rules. The procedure recognizes when a 911 call is made and, at such time, will override any programming in the mobile unit that determines the handling of a non- 911 call. Once a 911 call is made, the user will be provided visual feedback that a 911 call is in progress. If the call is not connected to the currently acquired network within 17 seconds, the phone will try other networks, including both analog systems and all other compatible digital networks. Upon the interruption or the normal ending of a call, the phone will remain in the emergency call back mode to await a callback from the Public Safety Answering Point for up to five minutes. This attestation statement supercedes the earlier statement. Sincerely, JUN SEON KIM Engineering Director ------------------------ LG Electronics Inc. Digital Media Research Lab. 16, Woomyeon-Dong, Seocho-Gu, Seoul 137-724, Korea

APPLICANT : LG Electronics Inc. FCC ID : BEJLTGEN80LNB CONFIDETIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Application: LG Electronics Inc., 16, Woomyeon-Dong, Seocho-Gu, Seoul 137-724, Korea herein submits: Application for Equipment Authorization for certification of a Cellular Transceiver FCC ID:BEJLTGEN80LNB. LGE is also the manufacturer of this equipment. This equipment is a subscriber unit installed in a vehicle. Confidentiality In accordance with 0.459 of CFR 47, LG Electronics, Inc. hereby requests confidentiality of the Block Diagrams, Schematic Diagram, Circuit Description, Operational Description and Part List/Tune-Up Procedure for the above referenced type acceptance application. These materials contains LGE’s secrets and confidential information that LGE does not customarily release to the public and which is otherwise not generally available to the public. Since this design is a basis from which future technological products will evolve, LG Electronics Inc. considers this information to be benefit to its competitors an unfair advantage in the market. Contact Information: Please contact me by e-mail [email protected], or by telephone 822-526-4687, if there are questions or additional information needed concerning this filing. Regards, JUN SEON KIM Engineering Director ------------------------ LG Electronics Inc. Digital Media Research Lab. 16, Woomyeon-Dong, Seocho-Gu, Seoul 137-724, Korea APPLICANT : LG Electronics Inc. FCC ID : BEJLTGEN80LNB SHORT TERM CONFIDETIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Application: LG Electronics Inc., 16, Woomyeon-Dong, Seocho-Gu, Seoul 137-724, Korea herein submits: Application for Equipment Authorization for certification of a Cellular Transceiver FCC ID:BEJLTGEN80LNB. LGE is also the manufacturer of this equipment. This equipment is a subscriber unit installed in a vehicle. Short-Term Confidentiality In accordance with 0.459 of CFR 47, LG Electronics, Inc. hereby requests short-term confidentiality of the Internal Photos, External Photos, Test Setup Photos, User Manual for the above referenced type acceptance application. Short-Term Confidentiality is requested for the followings up to 180 days: ¾ Internal Photos ¾ External Photos ¾ Test Set Up Photos ¾ User Manual Contact Information: Please contact me by e-mail [email protected], or by telephone 822-526-4687, if there are questions or additional information needed concerning this filing. Regards, JUN SEON KIM Engineering Director ------------------------ LG Electronics Inc. Digital Media Research Lab. 16, Woomyeon-Dong, Seocho-Gu, Seoul 137-724, Korea

From: ??? [[email protected]] Sent: Wednesday, October 24, 2007 10:49 AM To: Stephen S. Liu (PCTEST) Cc: 'PCTEST - Gregory Czumak'; 'PCTEST - Randy Ortanez'; 'PCTEST - Mia Kang'; 'PCTEST - Channy Park'; [email protected]; 'PCTEST - Courtenay Geraghty'; 'PCTEST TCB' Subject: Re: Follow-up Questions Regarding FCC ID: BEJLTGEN80LNB 10/24/2007 Dear Gregory & Steve This is formal response for "BEJLTGEN80LNB". Please refer to below answer. 1. Thank you for your reply to our previous email. Regarding you response to question #2, you still have not submitted the installation manual that will be provided with the EUT to the OEM installers. Please note that this manual must include the RFx warning statement regarding installing the device (i.e., “in order to comply with FCC RF exposure requirements, this device must be installed such that its antenna provides a minimum separation distance of 20 cm from all persons”). Please submit this manual. : LGE does not provide installation manual, because telematics device is installed to all of vehicles at factory by car manufacturer. User want it or not. But RF warning statement is added to the user manual separately. RF warning statement will be added to final version. 2. Regarding you response to question #3, please verify that you will instruct OEM installers to list the FCC ID of the EUT in the literature provided to the end-user. : Currently, there is no OEM installer. User can see the label below dash board. Thank you. kind regards, Bernard t---- Original Message ----- From: Stephen S. Liu (PCTEST) To: '???' Cc: 'PCTEST - Gregory Czumak' ; 'PCTEST - Randy Ortanez' ; 'PCTEST - Mia Kang' ; 'PCTEST - Channy Park' ; [email protected] ; 'PCTEST - Courtenay Geraghty' ; 'PCTEST TCB' Sent: Wednesday, October 24, 2007 12:24 PM Subject: RE: Follow-up Questions Regarding FCC ID: BEJLTGEN80LNB Hi Bernard, Yes I mean BEJTGEN80LNB. We will need a formal response to the below questions as you have provided for the other model. We need to include the actual response from LGE regarding these questions in the actual FCC filing. Please reply to the below 2 questions for this specific model. Thank you, Steve From: ??? [mailto:[email protected]] Sent: Tuesday, October 23, 2007 5:54 PM To: Stephen S. Liu (PCTEST) Cc: 'PCTEST - Gregory Czumak'; 'PCTEST - Randy Ortanez'; 'PCTEST - Mia Kang'; 'PCTEST - Channy Park'; [email protected] ; 'PCTEST - Courtenay Geraghty'; 'PCTEST TCB' Subject: Re: Follow-up Questions Regarding FCC ID: BEJLTGEN80LNB Hello Steve, Did you mean "FCC ID:BEJLTGEN80LNB"? I already sent the package of "FCC ID:BEJLTGEN80LNB". Everything is same as "FCC ID:BEJLTGEN80LNB" except BT. If you have any questions about this product, please do not hesitate. Thanks. Bernard Hwang From: PCTEST TCB [mailto:[email protected]] Sent: Tuesday, October 02, 2007 6:23 PM To: LGE - Bernard Hwang Cc: PCTEST - Gregory Czumak; PCTEST - Randy Ortanez; PCTEST - Steve Liu; PCTEST - Mia Kang; PCTEST - Channy Park; [email protected] ; PCTEST - Courtenay Geraghty Subject: Follow-up Questions Regarding FCC ID: BEJLTGEN80LNB Follow-Up RT Questions: 1. Thank you for your reply to our previous email. Regarding you response to question #2, you still have not submitted the installation manual that will be provided with the EUT to the OEM installers. Please note that this manual must include the RFx warning statement regarding installing the device (i.e., “in order to comply with FCC RF exposure requirements, this device must be installed such that its antenna provides a minimum separation distance of 20 cm from all persons”). Please submit this manual. 2. Regarding you response to question #3, please verify that you will instruct OEM installers to list the FCC ID of the EUT in the literature provided to the end-user. Page 2 of 5 The items indicated above must be submitted before processing can continue on the above referenced application. Sincerely, Gregory Czumak Quality Manager Senior Certification Engineer From: ??? [mailto:[email protected]] Sent: Monday, October 01, 2007 8:20 AM To: PCTEST TCB Cc: PCTEST - Gregory Czumak; PCTEST - Randy Ortanez; PCTEST - Steve Liu; PCTEST - Mia Kang; 'Channy Park'; jsun Subject: Re: Questions Regarding FCC ID: BEJLTGEN80L NB Dear Gregory, FCC package has been updated under your comments. Please review both packages and advice to me again. Thank you. 2. Please submit the installation manual that will be provided with the EUT to the OEM installers. Please note that this manual must include all of the language required by the FCC, including the statements from Sections 15.19 and 15.21, as well as the RFx warning statement regarding installing the device (i.e., “in order to comply with FCC RF exposure requirements, this device must be installed such that its antenna provides a minimum separation distance of 20 cm from all persons”). : French, Spanish and English versionare added and comment RF exposure in the Manual. For more information, user can get some information at the website ( www.gmonstar.com ) 3. Please verify that the FCC ID label will be visible at the time of purchase. : User can not see FCC ID label. Because this device is installed into dash board. 4. Please provide a label location drawing. : Label location is indicated. 5. Please indicate if there are any documents that needs to be marked Short-Term Confidential. If so, please indicate how many days (up to 180 days max.) and provide us with a Short-Term Confidentiality Request Letter. :Short Term Confidential request is added. kind regards, Bernard Hwang ----- Original Message ----- From: PCTEST TCB To: 'LGE - Bernard Hwang' Cc: PCTEST - Gregory Czumak ; PCTEST - Randy Ortanez ; PCTEST - Steve Liu ; PCTEST - Mia Kang Sent: Tuesday, September 25, 2007 8:16 AM Subject: Questions Regarding FCC ID: BEJLTGEN80L To: Mr. Bernard Hwang / LG Electronics Inc. From: Mr. Gregory Czumak / PCTEST TCB RE: FCC ID: BEJLTGEN80LNB Applicant: LG Electronics Inc. Correspondence Reference Number: BEJ7822 Confirmation Num…

Text truncated - open the document above for the full version.

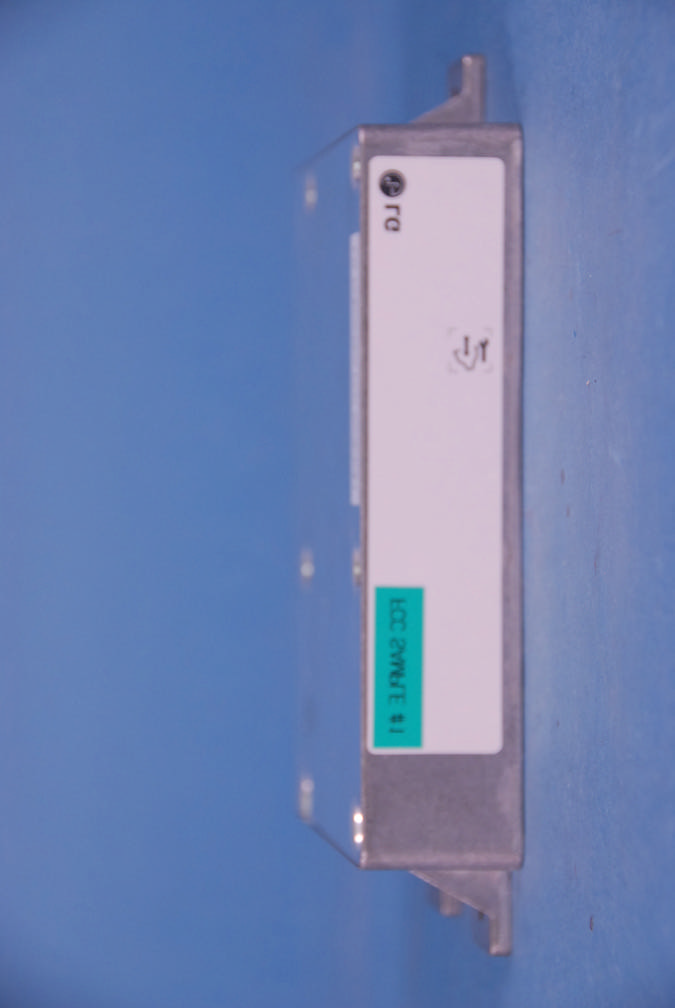

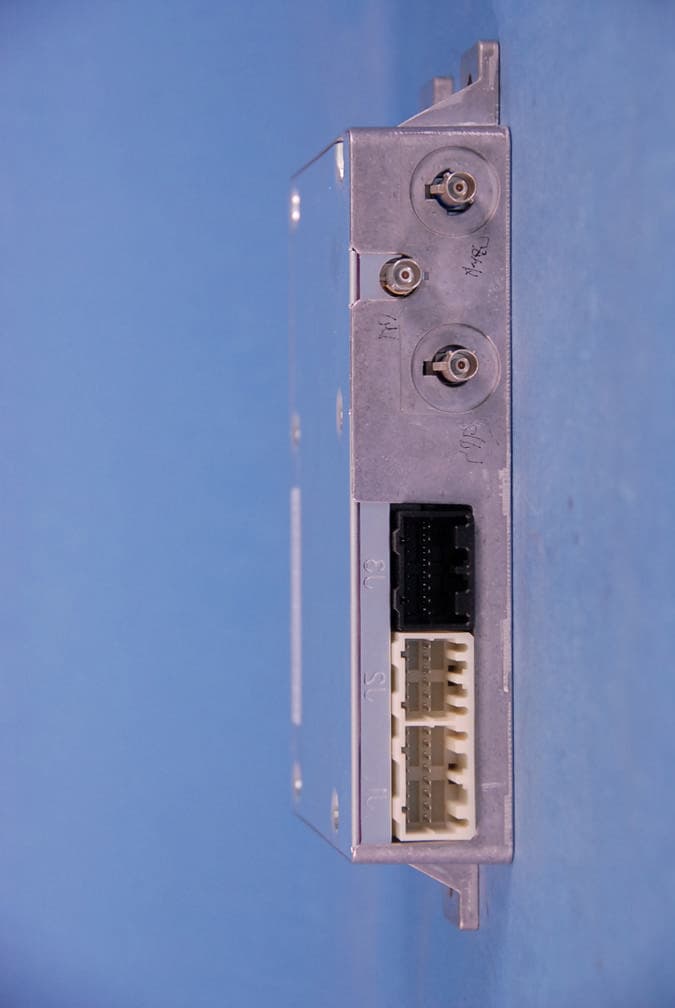

LG FCC ID: BEJLTGEN80LNB EUT Photographs © 2007 PCTEST Lab. Cellular/PCS AMPS/CDMA Transceiver Model: Gen8.0LNB LG FCC ID: BEJLTGEN80LNB EUT Photographs © 2007 PCTEST Lab. Cellular/PCS AMPS/CDMA Transceiver Model: Gen8.0LNB

FCC ID : BEJLTGEN80LNBVER : Rev.HMEID : A000000325EBC5Made in Korea LG Electronics Inc. LG

LG FCC ID: BEJLTGEN80LNB EUT Photographs © 2007 PCTEST Lab. Cellular/PCS AMPS/CDMA Transceiver Model: Gen8.0LNB LG FCC ID: BEJLTGEN80LNB EUT Photographs © 2007 PCTEST Lab. Cellular/PCS AMPS/CDMA Transceiver Model: Gen8.0LNB LG FCC ID: BEJLTGEN80LNB EUT Photographs © 2007 PCTEST Lab. Cellular/PCS AMPS/CDMA Transceiver Model: Gen8.0LNB LG FCC ID: BEJLTGEN80LNB EUT Photographs © 2007 PCTEST Lab. Cellular/PCS AMPS/CDMA Transceiver Model: Gen8.0LNB

Reviewed by: FCC ID: BEJLTGEN80LNB MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0708070861.BEJ August 3 - 6, 2007 Cellular/PCS AMPS/CDMA Transceiver Page 1 of 8 © 2007 PCTEST Engineering Laboratory, Inc. REV 3.0MPE 03/09/07 Applicant Name: Date of Testing: LG Electronics USA August 3 - 6, 2007 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0708070861.BEJ FCC ID: BEJLTGEN80LNB APPLICANT: LG Electronics USA EUT Type: Cellular/PCS AMPS/CDMA Transceiver FCC Rule Part(s): FCC Part 1 (§1.1310) and Part 2 (§2.1091) FCC Classification: PCS Licensed Transmitter (PCB) Test Procedure: OET Bulletin 65 The device bearing the FCC Identifier specified above has been shown to comply with the applicable technical standards as indicated in the measurement report and has been tested in accordance with the measurement procedures specified in FCC OET Bulletin 65 (See Test Report). These measurements were performed with no deviation from the standards. I authorize and attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com RF EXPOSURE EVALUATION (MAXIMUM PERMISSIBLE EXPOSURE) Reviewed by: FCC ID: BEJLTGEN80LNB MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0708070861.BEJ August 3 - 6, 2007 Cellular/PCS AMPS/CDMA Transceiver Page 2 of 8 © 2007 PCTEST Engineering Laboratory, Inc. REV 3.0MPE 03/09/07 TABLE OF CONTENTS 1.0 RF EXPOSURE EVALUATION – MAXIMUM PERMISSIBLE EXPOSURE (MPE) .........................3 1.1 INTRODUCTION ................................................................................................................................... 3 1.2 EUT DESCRIPTION .............................................................................................................................. 3 1.3 MPE REQUIREMENTS OVERVIEW..................................................................................................... 4 1.4 PROCEDURE........................................................................................................................................ 5 2.0 CONCLUSION..................................................................................................................................6 3.0 EQUIPMENT CALIBRATION CERTIFICATES ................................................................................7 Reviewed by: FCC ID: BEJLTGEN80LNB MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0708070861.BEJ August 3 - 6, 2007 Cellular/PCS AMPS/CDMA Transceiver Page 3 of 8 © 2007 PCTEST Engineering Laboratory, Inc. REV 3.0MPE 03/09/07 1.0 RF EXPOSURE EVALUATION – MAXIMUM PERMISSIBLE EXPOSURE (MPE) 1.1 Introduction This document is prepared on behalf of LG Electronics USA to show compliance with the RF Exposure requirements as required in §1.1310 of the FCC Rules and Regulations and RSS-102 of Industry Canada. The limit for Maximum Permissible Exposure (MPE), specified in FCC §1.1310, is listed in Table 1-1. According to FCC §1.1310 and RSS-102: the criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in §1.1307(b). Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits For Occupational / Control Exposures (f = frequency) 30-300 61.4 0.163 1.0 6 300-1500 ... ... f/300 6 1500-100,000 ... ... 5.0 6 (B) Limits For General Population / Uncontrolled Exposure (f = frequency) 30-300 27.5 0.073 0.2 30 300-1500 ... ... f/1500 30 1500-100,000 ... ... 1.0 30 Table 1-1. Limits for Maximum Permissible Exposure (MPE) 1.2 EUT Description The LGE Model: Gen8.0LNB is an AMPS/CDMA device with Bluetooth for vehicle use. The device contains a port for an external antenna. For the MPE evaluation the device is connected to the external accessory antenna. EUT: Model: Gen8.0LNB Grantee: LG Electronics USA FCC ID: BEJLTGEN80LNB External Antenna Manufacturer: AC Delco The EUT was evaluated at the low, mid, and high channel of operation in each band of operation with the maximum transmit power. Reviewed by: FCC ID: BEJLTGEN80LNB MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0708070861.BEJ August 3 - 6, 2007 Cellular/PCS AMPS/CDMA Transceiver Page 4 of 8 © 2007 PCTEST Engineering Laboratory, Inc. REV 3.0MPE 03/09/07 1.3 MPE Requirements Overview Three different categories of transmitters are defined by the FCC in OET Bulletin 65. These categories are fixed installation, mobile, and portable and are defined as follows: o Fixed Installations: fixed location means that the device, including its antenna, is physically secured at a permanent location and is not able to be easily moved to another location. Additionally, distance to humans from the antenna is maintained to at least 2 meters. o Mobile Devices: a mobile device is defined as a transmitting device designed to be used in other than fixed locations and to be generally used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter's radiating structures…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: BEJLTGEN80LNB FCC Pt. 22/24 AMPS / CDMA MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0708070860.BEJ August 1 - 3, 2007 Cellular/PCS AMPS/CDMA Transceiver Page 1 of 50 © 2007 PCTEST Engineering Laboratory, Inc. REV 5.0TM 03/20/07 Applicant Name: Date of Testing: LG Electronics USA August 1 - 3, 2007 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab., Columbia, MD, USA United States Test Report Serial No.: 0708070860.BEJ FCC ID: BEJLTGEN80LNB APPLICANT: LG ELECTRONICS USA Application Type: Certification FCC Classification: PCS Licensed Transmitter (PCB) FCC Rule Part(s): §2; §22(H), §24(E) EUT Type: Cellular/PCS AMPS/CDMA Transceiver Model(s): Gen8.0LNB Tx Frequency Range: 824.04 - 848.97MHz (AMPS) / 824.70 - 848.31MHz (Cell. CDMA) 1851.25 - 1908.75MHz (PCS CDMA) Max. RF Output Power: 0.536 W ERP AMPS (27.29 dBm) / 0.431 W ERP Cell. CDMA (26.34 dBm) 0.296 W EIRP PCS CDMA (24.72 dBm) Emission Designator(s): 40K0F8W, 40K0F1D (AMPS) / 1M27F9W (CDMA) / 1M26F9W (PCS) Test Device Serial No.: identical prototype [S/N: FCC #2, FCC #3] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 22 & 24 Certification Reviewed by: FCC ID: BEJLTGEN80LNB FCC Pt. 22/24 AMPS / CDMA MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0708070860.BEJ August 1 - 3, 2007 Cellular/PCS AMPS/CDMA Transceiver Page 2 of 50 © 2007 PCTEST Engineering Laboratory, Inc. REV 5.0TM 03/20/07 TABLE OF CONTENTS FCC PART 22 & 24 MEASUREMENT REPORT...........................................................................................3 1.0 INTRODUCTION ............................................................................................................................................. 4 1.1 MEASUREMENT PROCEDURE......................................................................................................... 4 1.2 SCOPE ................................................................................................................................................ 4 1.3 TESTING FACILITY............................................................................................................................. 4 2.0 PRODUCT INFORMATION ............................................................................................................................. 5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................... 5 2.3 LABELING REQUIREMENTS.............................................................................................................. 5 3.0 DESCRIPTION OF TESTS.............................................................................................................................. 6 3.1 TRANSMITTER AUDIO FREQUENCY RESPONSE ........................................................................... 6 3.2 AUDIO LOW PASS FILTER FREQUENCY RESPONSE .................................................................... 6 3.3 MODULATION LIMITING..................................................................................................................... 6 3.4 SIDEBAND POWER ATTENUATION LIMITS (AMPS) ........................................................................ 7 3.5 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL.............................................. 7 3.6 OCCUPIED BANDWIDTH EMISSION LIMITS .................................................................................... 7 3.7 CELLULAR - BASE FREQUENCY BLOCKS....................................................................................... 8 3.8 CELLULAR - MOBILE FREQUENCY BLOCKS ................................................................................... 8 3.9 PCS - BASE FREQUENCY BLOCKS .................................................................................................. 8 3.10 PCS - MOBILE FREQUENCY BLOCKS .............................................................................................. 8 3.11 RADIATED SPURIOUS AND HARMONIC EMISSIONS ..................................................................... 9 3.12 FREQUENCY STABILITY / TEMPERATURE VARIATION ................................................................. 9 4.0 TEST EQUIPMENT CALIBRATION DATA ...................................................................................................... 9 5.0 SAMPLE CALCULATIONS............................................................................................................................ 11 6.0 TEST RESULTS ............................................................................................................................................ 12 6.1 SUMMARY......................................................................................................................................... 12 6.2 CONDUCTED OUTPUT POWER ............................................…

Text truncated - open the document above for the full version.
