BEJLTGEN97GLGSM Transceiver with Bluetooth

The safety and security of OnStar ® is now yours. 16312 6.1 text R3.qxd 1/10/06 4:27 PM Page 1 Congratulations on your purchase of an OnStar-equipped vehicle. Using several innovative technologies, OnStar can provide you with the latest information and assistance when you’re on the road. Now you can enjoy the peace of mind that comes with knowing you’re doing all you can to help keep you, your family, and your vehicle safe. Take a moment to familiarize yourself with the three OnStar buttons. They are usually located on the inside rearview mirror, in the overhead console, or near the radio display. The white phone button is the Hands-Free Calling button, the blue button is the OnStar button, and the red button is the emergency button. The blue button can connect you to a specially trained OnStar Advisor 24 hours a day, 365 days a year, for assistance. A note to owners of preowned vehicles: Press the blue button now and an Advisor will explain your subscription plan options. Push the blue button now and an Advisor can help orient you with your new system. 1 Welcome. 16312 6.1 text R3.qxd 1/10/06 4:27 PM Page 2 In the event of an emergency, push the red emergency button, your vehicle is designed to send your current location to an OnStar Advisor who can find out what assistance you need, and notify nearby emergency service providers.* The system can also automatically call OnStar if your air bags deploy. But OnStar isn’t just there for you in an emergency; it’s there for you every day for the little things, too. If you accidentally lock your keys inside your car, an OnStar Advisor can send a signal to unlock your door.* And if your car is stolen, OnStar can help the police locate it.* One of the most popular features is OnStar Hands-Free Calling, that allows you to make and receive voice-activated phone calls. It’s a convenient, safer way to stay connectedwhen you’re behind the wheel. Read on and learn more about OnStar Hands-Free Calling - and start making calls today. Every new OnStar equipped-vehicle comes with 30 complimentary minutes good for 2 months - no strings attached. Be sure to use your minutes before the two month expiration. Owner Guides are available in Spanish and French languages. Visit onst ar.com. Your vehicle may be able to be programmed to respond in French or Spanish language, just press the OnStar button and ask an Advisor. Please keep this guide in your vehicle for reference.Yo u can also learn how OnStar works by listening to the enclosed audio CD. Thank you for choosing an OnStar-equipped vehicle. *OnStar services require vehicle electrical system (including battery), wireless service, and GPS satellite signals to be available and operating for features to function properly. OnStar acts as a link to existing emergency service providers. See “Additional Information” section on pages 31-38 for system limitations and details. OnStar Owner’s Guide 16312 6.1 text R3.qxd 1/10/06 4:27 PM Page 3 Blue Button Press this button now and you’ll be connected to a specially trained OnStar Advisor who can verify all of your account information and can answer any questions you may have.* •Most new OnStar-equipped vehicles come with a one-y ear subscription to the Safe & Sound Plan. There’s no cost to talk to a knowledgeable OnStar Advisor, it’s all a part of your OnStar service. •If your vehicle has the Directions & Connections Plan, or if you choose to upgrade your service plan, an Advisor can give you driving directions, find businesses or restaurants, assist in making reservations, and provide many other convenience services. 3 It all begins with the blue button. 16312 6.1 text R3.qxd 1/10/06 4:27 PM Page 4 Red Emergency Button In an emergency, push this button to get specialized help from OnStar Emergency Advisors. • If you are having an emergency in your vehicle. • If you are in an accident where the airbags do not deploy. • To be a good Samaritan. • To respond to an AMBER Alert situation. Phone Button We’ve made staying in touch on the road safer with Hands-Free, voice-activated calling that’s built right into your vehicle.* • Use this button to make an outgoing phone call. • To answer an incoming phone call. • To end a call. • To access Virtual Advisor for location based traffic, weather and stock reports. *OnStar services require vehicle electrical system, wireless service, and GPS satellite technologies to be available and operating. OnStar acts as a link to existing emergency service providers. See “Additional Information” section on pages 31–38 for system limitations and details. 4 16312 6.1 text R3.qxd 1/10/06 4:27 PM Page 5 5 System status On the right side of the OnStar buttons is a System Status light. Your vehicle runs an OnStar systems check every time you start up. This light is designed to indicate to you that your OnStar system is active and ready to make calls. On vehicles with an automatic dimming rearview mirror, the green light on the left side of the button indicates that the automatic dimming function is on. Solid Green- indicates the OnStar system is fully functional and ready to make or receive calls. Flashing Green- when you are in a phone call or when someone is calling you the green light will flash. Red- indicates that your OnStar system has detected a problem within the system. Press your OnStar button and ask your OnStar Advisor to run a diagnostic check. If you cannot connect to OnStar please visit a dealer as soon as possible for service. No Light- this indicates that your OnStar subscription has expired. All services have been deactivated and are not functional. Press the blue OnStar button and wait until your system connects to an Advisor who can renew your subscription. See page 31 for Subscription information. It all begins with the blue button. 16312 6.1 text R3.qxd 1/10/06 4:27 PM Page 6 6 16312 6.1 text R3.qxd 1/10/06 4:27 PM Page 7 7 To find out what OnStar can do for you, just press the blue button. To make it easier to choose the level …

Text truncated - open the document above for the full version.

Request for Confidentiality Date: March 29,2012 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Certification Application for FCC ID: BEJLTGEN97GL Equipment Class: PCB-PCS Licensed Transmitter To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rule (CFR 47), and section 552 (b) (4) of the Freedom of information Act, LG Electronics Inc hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secreths and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. We are also hereby request short-Term Confidentiality for 180 days after the grant as outlined in public Notice DA 04-1705. This provision will give LG Electronics Inc temporary confidentiality of commercially sensitive information prior to product release. The requested permanent and temporary confidential exhibits are listed as follows. : CONFIDENTIAL AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Parts Lists 3 Schematics CONFIDENTIAL 4 Part List/ Tune-Up 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM CONFIDENTIAL 8 User’s Manual The applicant understands that pursuant to rule 0.457 & 0.459, disclosure od this application and all accompanying documentation will not be made before the date of the GRANT for this application ́. Sincerely, Jacob Cho

FCC ID: BEJLTGEN97GL HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 2 / 2 1.2 Label Location Drawing The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Figure 1.2 LABEL LOCATION LABEL

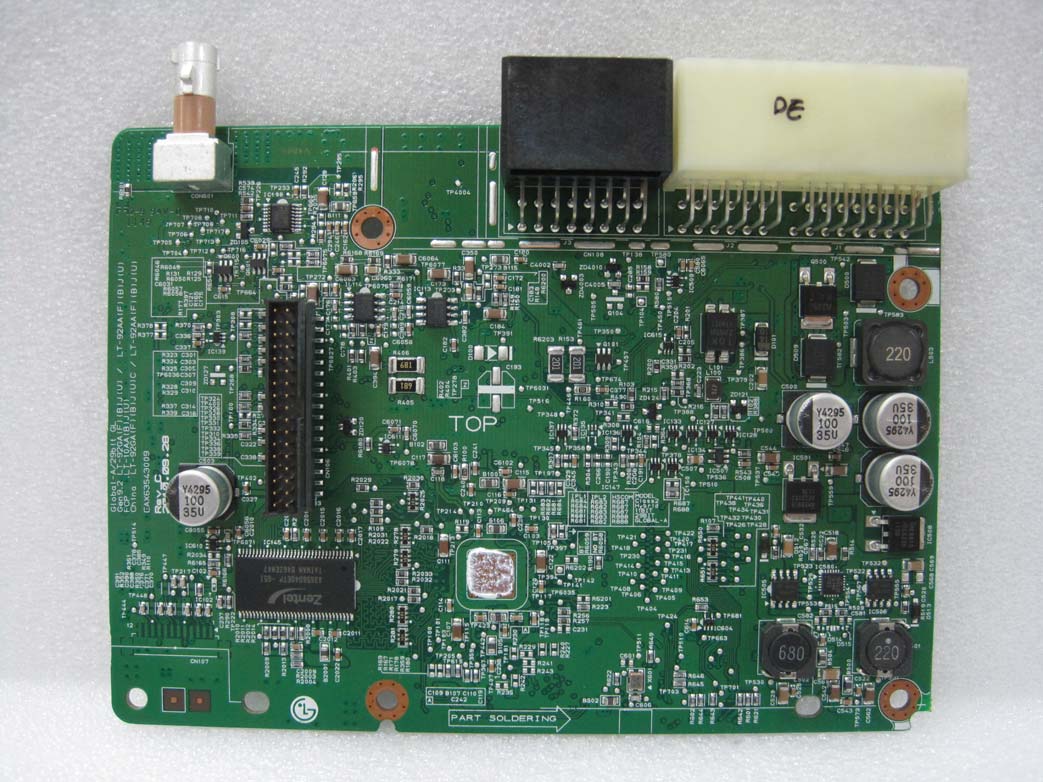

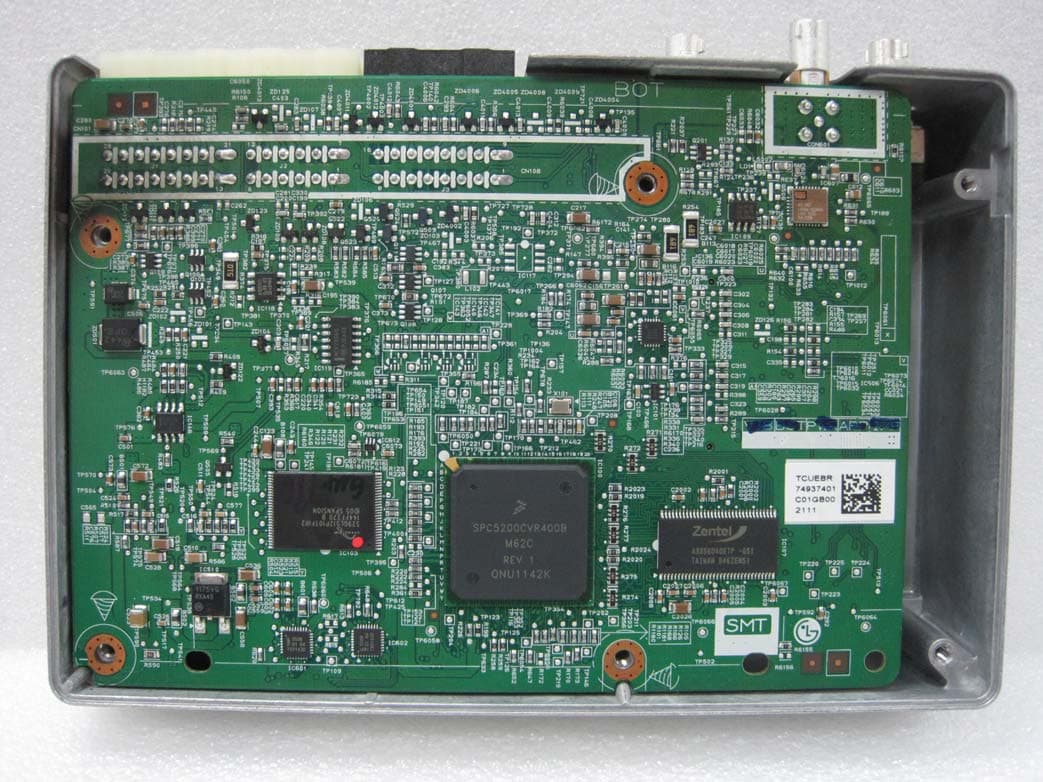

FCC ID: BEJLTGEN97GL HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １ of 8 INTERNAL PHOTOGRAPHS FCC ID: BEJLTGEN97GL HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２ of 8 ■ INTERNAL PHOTO FCC ID: BEJLTGEN97GL HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ３ of 8 ■ INTERNAL PHOTO FCC ID: BEJLTGEN97GL HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ４ of 8 ■ INTERNAL PHOTO FCC ID: BEJLTGEN97GL HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ５ of 8 ■ INTERNAL PHOTO FCC ID: BEJLTGEN97GL HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ６ of 8 ■ INTERNAL PHOTO FCC ID: BEJLTGEN97GL HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ７ of 8 ■ INTERNAL PHOTO FCC ID: BEJLTGEN97GL HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ８ of 8 ■ INTERNAL PHOTO

FCC ID:BEJLTGEN97GL HCT CO., LTD 1 of 3 RF Exposure Statement 1. LIMITS According to §1.1310 and §2.1091 RF exposure is calculated. (B) Limits for General Population/Uncontrolled Exposures Frequency range (MHz) Electric field Strength (V/m) Magnetic field Strength (A/m) Power density (mW/cm²) Averaging time (minutes) 0.3 - 1.34....................................... 1.34 - 30....................................... 30 - 300....................................... 300 - 1500.................................... 1500 - 100.000................................. 614 824/f 27.5 ............... ............... 1.63 2.19/f 0.073 ............... ............... *(100) *(180/ f²) 0.2 f/1500 1.0 30 30 30 30 30 F = frequency in MHz * = Plane-wave equivalent power density 2. MAXIMUM PERMISSIBLE EXPOSURE Prediction Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S = PG/4πR² S = Power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna FCC ID:BEJLTGEN97GL HCT CO., LTD 105-1, Jangam-ri, Majang-Myeon, Icheon-si, Kyunggi-Do, Korea TEL : + 82 31 645 6467 FAX : + 82 31 645 6401 www.hct.co.kr 2 of 3 2-1. GSM 850 Max Peak output Power at antenna input terminal (dBm) 33.740 Max Peak output Power at antenna input terminal (mW) 2365.920 Prediction distance (cm) 20.000 Prediction frequency (MHz) 836.600 Antenna Gain(typical) (dBi) -7.000 Antenna Gain(numeric) 0.200 Power density at prediction frequency (mW/cm²) 0.09391 MPE limit for uncontrolled exposure at prediction frequency (mW/cm²) 0.558 2-2. GSM 1900 Max Peak output Power at antenna input terminal (dBm) 30.76 Max Peak output Power at antenna input terminal (mW) 1191.2 Prediction distance (cm) 20.00000 Prediction frequency (MHz) 1880.00000 Antenna Gain(typical) (dBi) -7.00000 Antenna Gain(numeric) 0.19953 Power density at prediction frequency (mW/cm²) 0.047286 MPE limit for uncontrolled exposure at prediction frequency (mW/cm²) 1.00000 FCC ID:BEJLTGEN97GL HCT CO., LTD 105-1, Jangam-ri, Majang-Myeon, Icheon-si, Kyunggi-Do, Korea TEL : + 82 31 645 6467 FAX : + 82 31 645 6401 www.hct.co.kr 3 of 3 3. RESULTS The power density level at 20 cm is 0.09391 mW/cm², which is below the uncontrolled exposure limit of 0.558 mW/cm² at GSM 850 band. The power density level at 20 cm is 0.047286 mW/cm², which is below the uncontrolled exposure limit of 1.0 mW/cm² at GSM 1900

FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1202FR20-2 Date of Issue: March 21, 2012 EUT Type: GSM Transceiver with Bluetooth (Telematics module) FCC ID: BEJLTGEN97GL Page 2 of 42 Version TEST REPORT NO. DATE DESCRIPTION HCTR1202FR20 February 23, 2012 First Approval Report HCTR1202FR20-1 March 20, 2012 Changed Band Edge (Page 29 ~ 36) Modified page 9,14,16,18 HCTR1202FR20-2 March 21, 2012 Changed Band Edge Plot (Page 31~32) FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1202FR20-2 Date of Issue: March 21, 2012 EUT Type: GSM Transceiver with Bluetooth (Telematics module) FCC ID: BEJLTGEN97GL Page 3 of 42 Table of Contents 1. GENERAL INFORMATION ........................................................................................................................... 4 2. INTRODUCTION ........................................................................................................................................... 5 2.1. EUT DESCRIPTION............................................................................................................................ 5 2.2. MEASURING INSTRUMENT CALIBRATION .................................................................................... 5 2.3. TEST FACILITY .................................................................................................................................. 5 3. DESCRIPTION OF TESTS ........................................................................................................................... 6 3.1 EFFECTIVE RADIATED POWER/EQUIVALENT ISOTROPIC RADIATED POWER........................ 6 3.2 PEAK- TO- AVERAGE RATIO ............................................................................................................ 7 3.3 OCCUPIED BANDWIDTH................................................................................................................... 8 3.4 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL............................................ 9 3.5 RADIATED SPURIOUS AND HARMONIC EMISSIONS .................................................................. 10 3.6 FREQUENCY STABILITY / VARIATION OF AMBIENT TEMPERATURE .......................................11 4. LIST OF TEST EQUIPMENT ...................................................................................................................... 12 5. SUMMARY OF TEST RESULTS ................................................................................................................ 13 6. SAMPLE CALCULATION ........................................................................................................................... 14 7. TEST DATA ................................................................................................................................................. 15 7.1 CONDUCTED OUTPUT POWER ......................................................................................................15 7.2 PEAK-TO-AVERAGE RATIO ............................................................................................................ 16 7.3 OCCUPIED BANDWIDTH ................................................................................................................. 17 7.4 CONDUCTED SPURIOUS EMISSIONS ........................................................................................... 18 7.4.1 BAND EDGE............................................................................................................................ 18 7.5 RADIATED SPURIOUS EMISSIONS ................................................................................................19 7.5.1 RADIATED SPURIOUS EMISSIONS (GSM850) .................................................................... 19 7.5.2 RADIATED SPURIOUS EMISSIONS (GSM1900) .................................................................. 20 7.6 FREQUENCY STABILITY / VARIATION OF AMBIENT TEMPERATURE ...................................... 21 7.6.1 FREQUENCY STABILITY (GSM850) ..................................................................................... 21 7.6.2 FREQUENCY STABILITY (GSM1900) ................................................................................... 22 8. TEST PLOTS............................................................................................................................................... 23 FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1202FR20-2 Date of Issue: March 21, 2012 EUT Type: GSM Transceiver with Bluetooth (Telematics module) FCC ID: BEJLTGEN97GL Page 4 of 42 MEASUREMENT REPORT 1. GENERAL INFORMATION Applicant Name: LG Electronics Inc. Address: 60-39, Gasan-dong, Gumchon-gu, Seoul 153-023, Korea FCC ID: BEJLTGEN97GL Application Type: Certification FCC Classification: PCS Licensed Transmitter (PCB) FCC Rule Part(s): §22, §24, §2 EUT Type: GSM Transceiver with Bluetooth (Telematics module) FCC Model(s): TG97AATJU Tx Frequency: 824.20 - 848.80 MHz (GSM850) 1 850.20 - 1 909.80 MHz (GSM1900) Rx Frequency: 869.20 - 893.80 MHz (GSM850) 1 930.20 - 1 989.80 MHz (GSM1900) Max. Conducted Power: 2.366 W GSM850 (33.74 dBm) / 1.191 W GSM1900 (30.76 dBm) 0.746 W EDGE850 (28.73 dBm) / 0.426 W EDGE1900 (26.29 dBm) Emission Designator(s): 248 KGXW (GSM850) 246 KGXW (GSM1900) 248 KG7W (GSM850 EDGE) 246 KG7W (GSM1900 EDGE) Date(s) of Tests: February 03, 2012 ~ February 13, 2012 FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1202FR20-2 Date of Issue: March 21, 2012 EUT Type: GSM Transceiver with Bluetooth (Telematics module) FCC ID: BEJLTGEN97GL Page 5 of 42 2. INTRODUCTION 2.1. EUT DESCRIPTION The LG Electronics Inc. TG97AATJU GSM Transceiver with Bluetooth (Telematics module) of GSM850, GSM1900. 2.2. MEASURING INSTRUMENT CALIBRATION The measuring equipment, which was utilized in performing the tests documented herein, has been calibrated in accordance with the manufacturer's recommendations for utilizing calibration equipment, which is traceable to recognized national…

Text truncated - open the document above for the full version.

Report No.: HCTR1202FR20 FCC ID: BEJLTGEN97GL DATE: February 23,2012 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １ of 5 TEST SETUP PHOTOGRAPHS Report No.: HCTR1202FR20 FCC ID: BEJLTGEN97GL DATE: February 23,2012 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２ of 5 ■ Test Setup Photo Report No.: HCTR1202FR20 FCC ID: BEJLTGEN97GL DATE: February 23,2012 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ３ of 5 ■ Test Setup Photo Report No.: HCTR1202FR20 FCC ID: BEJLTGEN97GL DATE: February 23,2012 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ４ of 5 ■ Test Setup Photo Report No.: HCTR1202FR20 FCC ID: BEJLTGEN97GL DATE: February 23,2012 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ５ of 5 ■ Test Setup Photo
