          !"# Date: October 12, #2 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: BEJLTTC10N Equipment Class:PCB: Licensed Portable Transmitter To Whom It May Conce rn: Pursuant to Se ctions 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act hereby requests confidentiality and treatment of certain informatio n accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for , days after the grant as outlined in Public Notice DA 04-1705. This provision will give  temporary confidentiality of co mmercially sensitive in formation prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: '-.+%/0-+1+-.023%+33+ 45 6  %e )  1 Block Diagram 2 Operational Descriptions '-.+ 3 Schematics, tune up and parts list 4 External Photos 5 Internal Photos 6 Test-Setup Photos /0-+1+-. 7 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Jacob Cho Director On behalf of LG Electronics USA LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

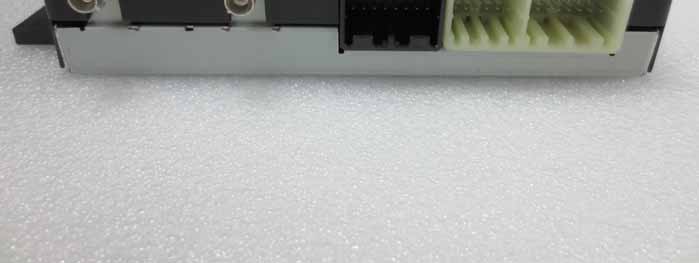

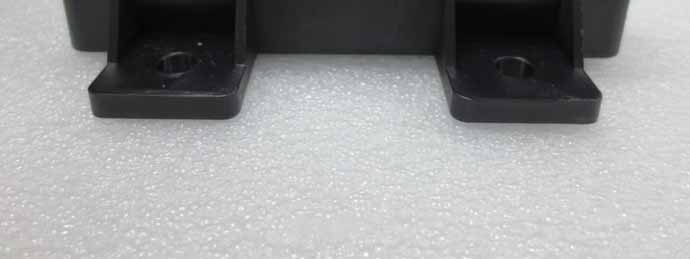

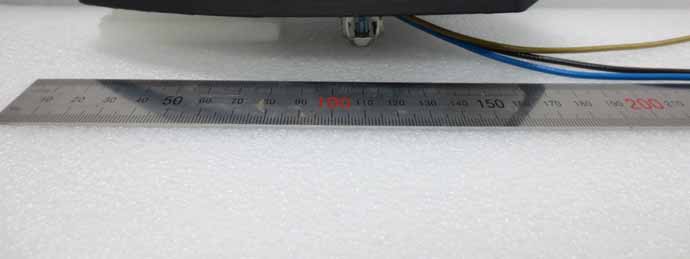

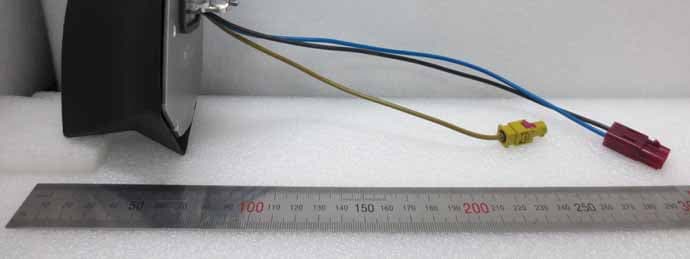

FCC ID: BEJLTTC10N HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 16 EXTERNAL PHOTOGRAPHS FCC ID: BEJLTTC10N HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 16 EXTERNAL PHOTO FCC ID: BEJLTTC10N HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 16 EXTERNAL PHOTO FCC ID: BEJLTTC10N HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 16 EXTERNAL PHOTO FCC ID: BEJLTTC10N HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 16 EXTERNAL PHOTO FCC ID: BEJLTTC10N HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 16 EXTERNAL PHOTO FCC ID: BEJLTTC10N HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 16 EXTERNAL PHOTO FCC ID: BEJLTTC10N HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 16 EXTERNAL PHOTO FCC ID: BEJLTTC10N HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 16 EXTERNAL PHOTO FCC ID: BEJLTTC10N HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 16 EXTERNAL PHOTO FCC ID: BEJLTTC10N HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 16 EXTERNAL PHOTO FCC ID: BEJLTTC10N HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 16 EXTERNAL PHOTO FCC ID: BEJLTTC10N HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 16 EXTERNAL PHOTO FCC ID: BEJLTTC10N HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 16 EXTERNAL PHOTO FCC ID: BEJLTTC10N HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 16 EXTERNAL PHOTO FCC ID: BEJLTTC10N HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 16 EXTERNAL PHOTO

FCC ID: BEJLTTC10N HCT CO., LTD. 105-1, Jangam-ri, Majang-Myeon, Icheon-si, Kyunggi-do, KOREA TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 1 / 2 1.1 ID Label Information Following is a copy of the label that will be placed on the rear side of the cabinet. Both the FCC ID and compliance statement are included in the product label Figure 1.1 PRODUCT LABEL FCC Model FCC EUT Type Serial No : TC10AF3NU : BEJLTTC10N : CDMA/GSM/WCDMA/LTE Telematics (Telematics module) : This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference , and (2) this device must accept any interference received, Including interference that may cause undesired operation. LG Electronics Inc 19-1, Cheongho-ri, Jinwi-myeon, Pyeongtaek-si, Gyeonggi-do 451-713 MADE IN KOREA FCC ID: BEJLTTC10N HCT CO., LTD. 105-1, Jangam-ri, Majang-Myeon, Icheon-si, Kyunggi-do, KOREA TEL:+82 31 645 6467 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 2 / 2 1.2 Label Location Drawing The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Figure 1.2 LABEL LOCATION LABEL

FCC ID: BEJLTTC10N HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 12 INTERNAL PHOTOGRAPHS FCC ID: BEJLTTC10N HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 12 INTERNAL PHOTO FCC ID: BEJLTTC10N HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 12 INTERNAL PHOTO FCC ID: BEJLTTC10N HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 12 INTERNAL PHOTO FCC ID: BEJLTTC10N HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 12 INTERNAL PHOTO FCC ID: BEJLTTC10N HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 12 INTERNAL PHOTO FCC ID: BEJLTTC10N HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 12 INTERNAL PHOTO FCC ID: BEJLTTC10N HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 12 INTERNAL PHOTO FCC ID: BEJLTTC10N HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 12 INTERNAL PHOTO FCC ID: BEJLTTC10N HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 12 INTERNAL PHOTO FCC ID: BEJLTTC10N HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 12 INTERNAL PHOTO FCC ID: BEJLTTC10N HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 12 INTERNAL PHOTO

FCC ID:BEJLTTC10N HCT CO., LTD 1 of 8 RF Exposure Statement 1. LIMITS According to §1.1310 and §2.1091 RF exposure is calculated. (B) Limits for General Population/Uncontrolled Exposures Frequency range (MHz) Electric field Strength (V/m) Magnetic field Strength (A/m) Power density (mW/cm²) Averaging time (minutes) 0.3 - 1.34....................................... 1.34 - 30....................................... 30 - 300....................................... 300 - 1500.................................... 1500 - 100.000................................. 614 824/f 27.5 ............... ............... 1.63 2.19/f 0.073 ............... ............... *(100) *(180/ f²) 0.2 f/1500 1.0 30 30 30 30 30 F = frequency in MHz * = Plane-wave equivalent power density 2. MAXIMUM PERMISSIBLE EXPOSURE Prediction Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S = PG/4πR² S = Power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna FCC ID: BEJLTTC10N HCT CO., LTD 2 of 8 2-1. CDMA BAND Max Peak output Power at antenna input terminal (dBm) 24.900 Max Peak output Power at antenna input terminal (mW) 309.030 Prediction distance (cm) 20.000 Prediction frequency (MHz) 824.700 Antenna Gain(typical) (dBi) 1.620 Antenna Gain(numeric) 1.452 Power density at prediction frequency (mW/cm²) 0.08928 MPE limit for uncontrolled exposure at prediction frequency (mW/cm²) 0.550 2-2. PCS CDMA BAND Max Peak output Power at antenna input terminal (dBm) 24.75000 Max Peak output Power at antenna input terminal (mW) 298.53826 Prediction distance (cm) 20.0000 Prediction frequency (MHz) 1851.25000 Antenna Gain(typical) (dBi) 4.550000 Antenna Gain(numeric) 2.85102 Power density at prediction frequency (mW/cm²) 0.16933 MPE limit for uncontrolled exposure at prediction frequency (mW/cm²) 1.00000 FCC ID: BEJLTTC10N HCT CO., LTD 3 of 8 2-3. LTE _BAND 2 Max Peak output Power at antenna input terminal (dBm) 23.36000 Max Peak output Power at antenna input terminal (mW) 216.77041 Prediction distance (cm) 20.0000 Prediction frequency (MHz) 1907.5000 Antenna Gain(typical) (dBi) 4.55 Antenna Gain(numeric) 2.85102 Power density at prediction frequency (mW/cm²) 0.12295 MPE limit for uncontrolled exposure at prediction frequency (mW/cm²) 1.00000 2-4. LTE _BAND 5 Max Peak output Power at antenna input terminal (dBm) 23.100 Max Peak output Power at antenna input terminal (mW) 204.174 Prediction distance (cm) 20.000 Prediction frequency (MHz) 836.500 Antenna Gain(typical) (dBi) 1.620 Antenna Gain(numeric) 1.452 Power density at prediction frequency (mW/cm²) 0.05898 MPE limit for uncontrolled exposure at prediction frequency (mW/cm²) 0.558 FCC ID: BEJLTTC10N HCT CO., LTD 4 of 8 2-5. LTE _ BAND 4 Max Peak output Power at antenna input terminal (dBm) 23.0000 Max Peak output Power at antenna input terminal (mW) 199.52623 Prediction distance (cm) 20.0000 Prediction frequency (MHz) 1715.0000 Antenna Gain(typical) (dBi) 0.61000 Antenna Gain(numeric) 1.15080 Power density at prediction frequency (mW/cm²) 0.04568 MPE limit for uncontrolled exposure at prediction frequency (mW/cm²) 1.00000 2-6. LTE _ BAND 17 Max Peak output Power at antenna input terminal (dBm) 23.350 Max Peak output Power at antenna input terminal (mW) 216.272 Prediction distance (cm) 20.000 Prediction frequency (MHz) 706.500 Antenna Gain(typical) (dBi) 3.950 Antenna Gain(numeric) 2.483 Power density at prediction frequency (mW/cm²) 0.10684 MPE limit for uncontrolled exposure at prediction frequency (mW/cm²) 0.471 FCC ID: BEJLTTC10N HCT CO., LTD 5 of 8 2-7. LTE _ BAND 13 Max Peak output Power at antenna input terminal (dBm) 22.960 Max Peak output Power at antenna input terminal (mW) 197.697 Prediction distance (cm) 20.000 Prediction frequency (MHz) 782.000 Antenna Gain(typical) (dBi) 2.110 Antenna Gain(numeric) 1.626 Power density at prediction frequency (mW/cm²) 0.06393 MPE limit for uncontrolled exposure at prediction frequency (mW/cm²) 0.521 2-8. GSM 850 BAND Max Peak output Power at antenna input terminal (dBm) 33.700 Max Peak output Power at antenna input terminal (mW) 2344.229 Prediction distance (cm) 30.000 Prediction frequency (MHz) 848.800 Antenna Gain(typical) (dBi) 1.520 Antenna Gain(numeric) 1.419 Power density at prediction frequency (mW/cm²) 0.29414 MPE limit for uncontrolled exposure at prediction frequency (mW/cm²) 0.566 FCC ID: BEJLTTC10N HCT CO., LTD 6 of 8 2-9. GSM 1900 BAND Max Peak output Power at antenna input terminal (dBm) 30.260 Max Peak output Power at antenna input terminal (mW) 1061.69556 Prediction distance (cm) 20.000 Prediction frequency (MHz) 1850.200 Antenna Gain(typical) (dBi) 4.550 Antenna Gain(numeric) 2.85102 Power density at prediction frequency (mW/cm²) 0.60219 MPE limit for uncontrolled exposure at prediction frequency (mW/cm²) 1.00000 2-10. WCDMA 850 BAND Max Peak output Power at antenna input terminal (dBm) 24.060 Max Peak output Power at antenna input terminal (mW) 254.683 Prediction distance (cm) 20.000 Prediction frequency (MHz) 836.600 Antenna Gain(typical) (dBi) 1.520 Antenna Gain(numeric) 1.419 Power density at prediction frequency (mW/cm²) 0.07190 MPE limit for uncontrolled exposure at prediction frequency (mW/cm²) 0.558 FCC ID: BEJLTTC10N HCT CO., LTD 7 of 8 2-11. WCDMA 1900 BAND Max Peak output Power at antenna input terminal (dBm) 23.86000 Max Peak output Power at antenna input terminal (mW) 243.22040 Prediction distance (cm) 20.0000 Prediction frequency (MHz) 1907.6000 Antenna Gain(typical) (dBi) 4.5500 Antenna Gain(numeric) 2.85102 Power density at prediction frequency (mW/cm²) 0.13795 MPE limit for uncontrolled exposure at prediction frequency (mW/cm²) 1.00000 2-12. WCDMA 1700 BAND Max Peak output Power at antenna input terminal (dBm) 23.610 Max Peak output Power at antenna input terminal (mW) 229.61486 Prediction distance (cm) 20.000 Prediction frequency (…

Text truncated - open the document above for the full version.

FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1210FR08-4 Date of Issue: November 16, 2012 EUT Type: CDMA/GSM/WCDMA/LTE Telematics FCC ID: BEJLTTC10N Page 2 of 73 Version TEST REPORT NO. DATE DESCRIPTION HCTR1210FR08 October 05, 2012 First Approval Report HCTR1210FR08-1 October 26, 2012 Corrected the ERP Sample calculation on page 14. Corrected the unit of PAR on page 17. Corrected the unit of the antenna gain in section 7.7 HCTR1210FR08-2 November 01, 2012 Corrected the EUT type. HCTR1210FR08-3 November 14, 2012 Corrected the Max. RF Output Power on page 1 and 4. Corrected the table for the spurious emissions on page 26 ~ 28 HCTR1210FR08-4 November 16, 2012 Corrected the Max. RF Output Power on page 1 and 4. FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1210FR08-4 Date of Issue: November 16, 2012 EUT Type: CDMA/GSM/WCDMA/LTE Telematics FCC ID: BEJLTTC10N Page 3 of 73 Table of Contents 1. GENERAL INFORMATION ........................................................................................................................... 4 2. INTRODUCTION ........................................................................................................................................... 5 2.1. EUT DESCRIPTION ............................................................................................................................ 5 2.2. MEASURING INSTRUMENT CALIBRATION .................................................................................... 5 2.3. TEST FACILITY .................................................................................................................................. 5 3. DESCRIPTION OF TESTS ........................................................................................................................... 6 3.1 EFFECTIVE RADIATED POWER/EQUIVALENT ISOTROPIC RADIATED POWER ........................ 6 3.2 OCCUPIED BANDWIDTH. .................................................................................................................. 7 3.3 BLOCK B FREQUENCY RANGE (704 – 710 and 734 – 740 MHz, 777 – 792 MHz) ........................ 8 3.4 AWS – MOBILE FREQUENCY BLOCKS (1710 – 1755 MHz) ........................................................... 8 3.5 PEAK-AVERAGE RATIO. ................................................................................................................... 9 3.6 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL. ........................................... 9 3.7 RADIATED SPURIOUS AND HARMONIC EMISSIONS .................................................................. 10 3.8 FREQUENCY STABILITY / VARIATION OF AMBIENT TEMPERATURE ....................................... 11 4. LIST OF TEST EQUIPMENT ...................................................................................................................... 12 5. SUMMARY OF TEST RESULTS ................................................................................................................ 13 6. SAMPLE CALCULATION ........................................................................................................................... 14 7. TEST DATA ................................................................................................................................................. 15 7.1 CONDUCTED OUTPUT POWER ...................................................................................................... 15 7.2 PEAK-TO-AVERAGE RATIO ............................................................................................................ 18 7.3 OCCUPIED BANDWIDTH ................................................................................................................. 19 7.4 CONDUCTED SPURIOUS EMISSIONS ........................................................................................... 20 7.4.1 BAND EDGE ............................................................................................................................ 20 7.5 EFFECTIVE RADIATED POWER OUTPUT ..................................................................................... 21 7.6 EQUIVALENT ISOTROPIC RADIATED POWER OUTPUT ............................................................. 23 7.7 RADIATED SPURIOUS EMISSIONS ................................................................................................ 24 7.7.1 RADIATED SPURIOUS EMISSIONS (Band 4) ...................................................................... 24  7.7.2 RADIATED SPURIOUS EMISSIONS (Band 17) .................................................................... 26 7.7.3 RADIATED SPURIOUS EMISSIONS (Band 13) .................................................................... 28 7.7.3.1 RADIATED SPURIOUS EMISSIONS (1559 ~ 1610 MHz Band) ..................................... 28 7.8 FREQUENCY STABILITY / VARIATION OF AMBIENT TEMPERATURE ...................................... 29 7.8.1 FREQUENCY STABILITY (LTE Band 4) ................................................................................ 29  7.8.2 FREQUENCY STABILITY (LTE Band 17) .............................................................................. 31 7.8.3 FREQUENCY STABILITY (LTE Band 13) .............................................................................. 33 8. TEST PLOTS ............................................................................................................................................... 34 FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1210FR08-4 Date of Issue: November 16, 2012 EUT Type: CDMA/GSM/WCDMA/LTE Telematics FCC ID: BEJLTTC10N Page 4 of 73 MEASUREMENT REPORT 1. GENERAL INFORMATION Applicant Name: LG Electronics Inc. Address: 19-1, Cheongho-ri, Jinwi-myeon, Pyeongtaek-si, Gyeonggi-do 451-713, Korea FCC ID: BEJLTTC10N Application Type: Certification FCC Classification: PCS Licensed Transmitter (PCB) FCC Rule Part(s): §2 , §27 EUT Type: CDMA/GSM/WCDMA/LTE Telematics FCC Model(s…

Text truncated - open the document above for the full version.

FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1210FR06-3 Date of Issue: November 14, 2012 EUT Type: CDMA/GSM/WCDMA/LTE Telematics FCC ID: BEJLTTC10N Page ୎ of 43 Version TEST REPORT NO. DATE DESCRIPTION HCTR1210FR06 October 05, 2012 - First Approval Report HCTR1210FR06-1 October 26, 2012 - Corrected the ERP Sample carculation on page 14. - Corrected the unit of the antenna gain in section 7.5 and 7.7 HCTR1210FR06-2 November 01, 2012 - Corrected the EUT type. HCTR1210FR06-3 November 14, 2012 - Corrected the Max. RF Output Power on page 1 and 4. -Corrected the data values for the spurious emissions of CDMA band on page 20. - Added information for the plot offsets on page 9. FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1210FR06-3 Date of Issue: November 14, 2012 EUT Type: CDMA/GSM/WCDMA/LTE Telematics FCC ID: BEJLTTC10N Page ୏ of 43 Table of Contents 1. GENERAL INFORMATION ..........................................................................................................................୐ 2. INTRODUCTION .......................................................................................................................................... ୑ 2.1. EUT DESCRIPTION ........................................................................................................................... ୑ 2.2. MEASURING INSTRUMENT CALIBRATION ................................................................................... ୑ 2.3. TEST FACILITY ................................................................................................................................. ୑ 3. DESCRIPTION OF TESTS .......................................................................................................................... ୒ 3.1 EFFECTIVE RADIATED POWER/EQUIVALENT ISOTROPIC RADIATED POWER ....................... ୒ 3.2 PEAK- TO- AVERAGE RATIO ........................................................................................................... ୓ 3.3 OCCUPIED BANDWIDTH. ................................................................................................................. ୔ 3.4 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL. .......................................... ୕ 3.5 RADIATED SPURIOUS AND HARMOMIC EMISSIONS ............................................................... ୍ୌ 3.6 FREQUENCY STABILITY / VARIATION OF AMBIENT TEMPERATURE ................................... ୍୍ 4. LIST OF TEST EQUIPMENT ................................................................................................................... ୍୎ 5. SUMMARY OF TEST RESULTS ............................................................................................................. ୍୏ 6. SAMPLE CALCULATION ........................................................................................................................ ୍୐ 7. TEST DATA .............................................................................................................................................. ୍୑ 7.1 CONDUCTED OUTPUT POWER ................................................................................................... ୍୑ 7.2 PEAK-TO-AVERAGE RATIO ......................................................................................................... ୍୒ 7.3 OCCUPIED BANDWIDTH .............................................................................................................. ୍୒ 7.4 CONDUCTED SPURIOUS EMISSIONS ........................................................................................ ୍୓ 7.4.1 Band Edge ........................................................................................................................... ୍୓ 7.5 …
