BEJLX1200Single-Mode PCS Phone

- 1 - LG-LX1200 User Guide Ver. 0.11 2002.8.26 - 2 - INDEX Unlocking Your Phone..........................................................................4 View of Phone......................................................................................4 Installing and Removing the Battery.....................................................5 Turning Your Phone On and Off...........................................................5 Main Menu...........................................................................................6 Power Save Mode.................................................................................6 Menu Navigation..................................................................................6 Entering Characters Using the Keypad(T9)..........................................7 Display Icons........................................................................................8 Antenna................................................................................................8 Signal Strength.....................................................................................8 Battery Capacity...................................................................................9 Using the AC Adapter...........................................................................9 Using Your Phone......................................................................................9 Placing a Call........................................................................................9 Roaming With Your Sprint PCS Phone TM ...........................................10 Calling Experience.............................................................................10 Correcting Dialing Mistakes...............................................................10 In Call Options...................................................................................12 Incoming Call Notification.................................................................12 Answering Calls.................................................................................13 Displaying Your Sprint PCS Phone Number(phone book – not functioning)........................................................................................13 Setting the Ring Volume to Vibrate.....................................................13 Getting the Most From Sprint PCS Service..............................................14 New Massage Alerts...........................................................................14 Retrieving Page/Text Messages..........................................................14 Page/Text Message Storage................................................................16 Roaming on to Other Service Providers..............................................16 (Call History- not functioning)............................................................16 Page/Text Messages............................................................................16 - 3 - Erasing Page/Text Messages...............................................................16 Sounds................................................................................................17 Adjusting the Volume.........................................................................17 Selecting Ring Types for Voice Calls..................................................17 Tone Length........................................................................................18 Display Menu...........................................................................................19 Security..............................................................................................19 Locking Your Phone...........................................................................20 Unlocking Your Phone........................................................................20 Changing the Lock Code....................................................................20 Answering Your Phone with the Hands-Free Car Kit..........................21 For more information about RF exposure, please visit the FCC website at www.fcc.gov FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device was tested for typical body-worn operations with the back of the phone kept 1.5 cm. from the body. To maintain compliance with FCC RF exposure requirements, use only belt-clips, holsters or similar accessories that maintain a 1.5 cm. separation distance between the user’s body and the back of the phone, including the antenna, whether extended or retracted. The use of belt-clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided. WARNING! Read this information before using your phone - 4 - Unlocking Your Phone If you received your Sprint PCS DB-525 in the mail, you may need to unlock it before making calls. 1. Press the END/PWR Switch for 2~3 secs. 2. Highlight Unlock and press . 3 3 3 . . . Enter your four-digit lock code. For security purposes, the code will not be …

Text truncated - open the document above for the full version.

September 11. 2002 Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 In re : LG Electronics Inc.. Single-band Single-mode PCS Phone (CDMA) Part 24 Certification Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, LG Electronics, Inc. hereby requests confidentiality of the Block Diagrams attachment, Schematic Diagrams & Circuit Description attachment, Operational Description attachment, and Parts List/Tune-Up Procedure attachment for the above-referenced Type Acceptance application. These documents contain detailed system and equipment description and related information about the product which LG Electronics Inc. Considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, LG Electronics Inc. considers this information to be of benefit to its competitors, such that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, E.S.Park Research Engineer CDMA Handset Lab LG Electronics Inc. Tel : 82-2-850-3850 Fax : 82-2-850-3861 [email protected] 459-9, Kasan-dong,Kemchun-ku Seoul 153-023, Korea LG Electronics Inc. LGE

@ LG Electronics Inc.& February 21, 2002 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory, Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to the application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Sincerely, General Manager of New York Office LG Electronics Inc. Tel : 82-2-850-3850 Fax : 82-2-850-3861 [email protected] 459-9, Kasan-dong,Kemchun-ku Seoul 153-023, Korea LG Electronics Inc. LGE September 11. 2002 Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Subject : LG Electronics Inc.. FCC ID: BEJLX1200 User’s Manual RF Exposure Warning Statement Gentlemen: LG Electronics, Inc. hereby conforms that the attached RF exposure warning page will be ready visible to the user, and will be placed at a prominent location in the front of user’s manual. If you have any questions or comments concerned the above, please do not hesitate to contact PCTEST Lab. or me at (410)290-6652 Sincerely, E.S.Park Research Engineer CDMA Handset Lab LG Electronics Inc.

. September 26, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: LG ELECTRONICS, INC. FCC ID: BEJLX1200 Part 24 Certification Gentlemen: Submitted herewith, on behalf of LG ELECTRONICS, Inc., is an application for Part 24 Certification of the Single-Mode PCS Phone (PCS CDMA). Attached is the applicant’s Letter of Authorization, Confidentiality Request, User’s Manual RF Warning page, User’s Manual Location of RF Warning page statement, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune- up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned.

© 2002 PCTEST Lab LGE FCC ID: BEJLX1200 Single-Mode PCS Phone (Model: LX1200) © 2002 PCTEST Lab LGE FCC ID: BEJLX1200 Single-Mode PCS Phone (Model: LX1200) © 2002 PCTEST Lab LGE FCC ID: BEJLX1200 Single-Mode PCS Phone (Model: LX1200) © 2002 PCTEST Lab LGE FCC ID: BEJLX1200 Single-Mode PCS Phone (Model: LX1200) © 2002 PCTEST Lab LGE FCC ID: BEJLX1200 Single-Mode PCS Phone (Model: LX1200) © 2002 PCTEST Lab LGE FCC ID: BEJLX1200 Single-Mode PCS Phone (Model: LX1200) © 2002 PCTEST Lab LGE FCC ID: BEJLX1200 Single-Mode PCS Phone (Model: LX1200)

© 2002 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) LG Electronics Inc. 02-9-11 8/8 Modulation in excess of 100%. This device, and instantaneous deviation control circuit, precedes the modulator of the transmitter. It is instantaneous in action for controlling the modulation wave introduced into the transmitter’s frequency modulator. The modulation limiter is incorporated in the CX74002. Means for Limiting Power : Power limiting is obtained via the Automatic Power Control (APC) Circuit. 2. 983 (d) (12) Not Applicable 2.983 (e) Standard Test Conditions: 2. 983 (f) Equipment Identification: 2. 983 (g) Photograph : “Refer to additional documents” 2. 985 RF Power Output: “Refer to additional documents” 2. 987 Modulation Characteristics: “Refer to additional documents” 2. 989 Occupied Bandwidth LG Electronics Inc. LGE Model No. : LX1200 FCC ID : BEJLX1200 S/N : Made in Korea

© 2002 PCTEST Lab LGE FCC ID: BEJLX1200 Single-Mode PCS Phone (Model: LX1200) © 2002 PCTEST Lab LGE FCC ID: BEJLX1200 Single-Mode PCS Phone (Model: LX1200) © 2002 PCTEST Lab LGE FCC ID: BEJLX1200 Single-Mode PCS Phone (Model: LX1200) © 2002 PCTEST Lab LGE FCC ID: BEJLX1200 Single-Mode PCS Phone (Model: LX1200) © 2002 PCTEST Lab LGE FCC ID: BEJLX1200 Single-Mode PCS Phone (Model: LX1200) © 2002 PCTEST Lab LGE FCC ID: BEJLX1200 Single-Mode PCS Phone (Model: LX1200) © 2002 PCTEST Lab LGE FCC ID: BEJLX1200 Single-Mode PCS Phone (Model: LX1200) © 2002 PCTEST Lab LGE FCC ID: BEJLX1200 Single-Mode PCS Phone (Model: LX1200)

PCTEST ENGINEERING LABORATORY, INC. 6660 — B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-220916486.BEJ Test Dates: Sept. 16-18, 2002 Phone Type: Single-Mode PCS FCC ID: BEJLX1200 Page 1 of 25 © 2002 PCTEST Engineering Laboratory, Inc APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: LG ELECTRONICS INC. Dates of Tests: September 16-18, 2002 Communication Terminal Research Lab Test Report S/N: SAR.220916486.BEJ 459-9, Kasan-dong, Keumchun-Ku Test Site: PCTEST Lab, Columbia MD Seoul 153-023, Korea Attn: Harris Ahn, Principal Engineer FCC ID: BEJLX1200 APPLICANT: LG ELECTRONICS, INC. EUT Type: Single-Mode PCS Phone Tx Frequency: 1851.25 — 1908.75 MHz (PCS CDMA) Rx Frequency: 1931.25 — 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.292 W EIRP PCS CDMA (24.651 dBm) / 24.0 dBm Conducted Max. SAR Measurement: 0.830W/kg PCS CDMA Head SAR; 0.304W/kg PCS CDMA Body SAR Trade Name/Model(s): LX1200 FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: identical prototype This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-200X (Draft 6.4, July 2001). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 220916486.BEJ PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-220916486.BEJ Test Dates: Sept. 16-18, 2002 Phone Type: Single-Mode PCS FCC ID: BEJLX1200 Page 2 of 25 © 2002 PCTEST Engineering Laboratory, Inc TABLE OF CONTENTS 1. INTRODUCTION .................................................................................................. 3 SAR DEFINITION ................................................................................................. 3 2. SAR MEASUREMENT SETUP .................................................................................. 4 Robotic System ....................................................................................................... 4 System Hardware ................................................................................................... 4 System Electronics .................................................................................................. 4 3. DASY3 E-FIELD PROBE SYSTEM ............................................................................ 5 Probe Measurement System.................................................................................... 5 Probe Specifications ............................................................................................... 5 4. Probe Calibration Process....................................................................................... 6 Dosimetric Assessment Procedure .......................................................................... 6 Free Space Assessment ........................................................................................... 6 Temperature Assessment ........................................................................................ 6 5. PHANTOM & EQUIVALENT TISSUES .................................................................... 7 SAM Phantom ........................................................................................................ 7 Brain & Muscle Simulating Mixture Characterization ............................................. 7 Device Holder for Transmitters............................................................................... 7 6. TEST SYSTEM SPECIFICATIONS ............................................................................. 8 Automated Test System Specifications .................................................................... 8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS ................................................. 9 Measurement Procedure......................................................................................... 9 Specific Anthropomorphic Mannequin (SAM) Specifications.................................. 9 8. DEFINITION OF REFERENCE POINTS ................................................................. 10 EAR Reference Point............................................................................................. 10 Handset Reference Points ..................................................................................... 10 9. TEST CONFIGURATION POSITIONS .................................................................. 11 Positioning for Cheek/Touch ................................................................................ 11 Positioning for Ear / 15° Tilt .................................................................................. 12 Body Holster /Belt Clip Configurations ................................................................. 13 10. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS ................................................... 14 Uncontrolled Environment ................................................................................... 14 Controlled Environment........................................................................................ 14…

Text truncated - open the document above for the full version.

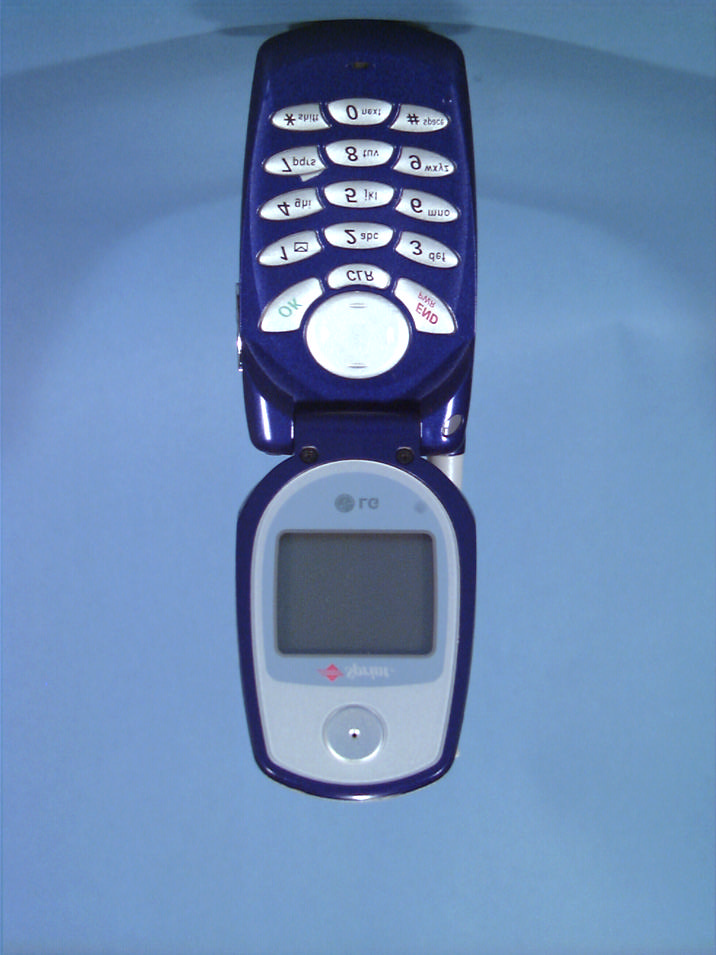

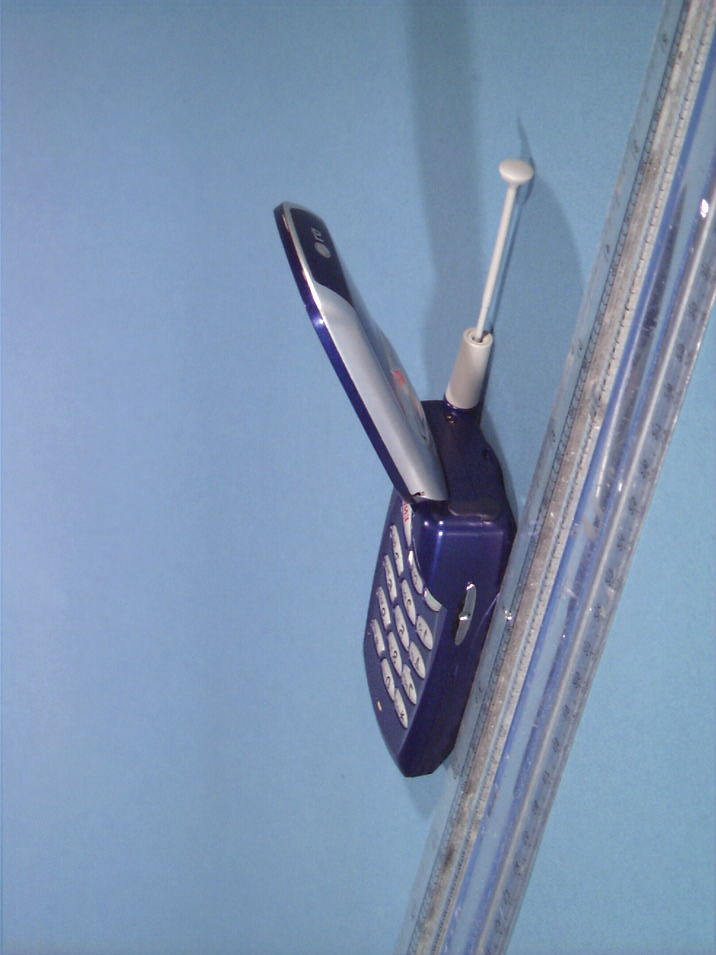

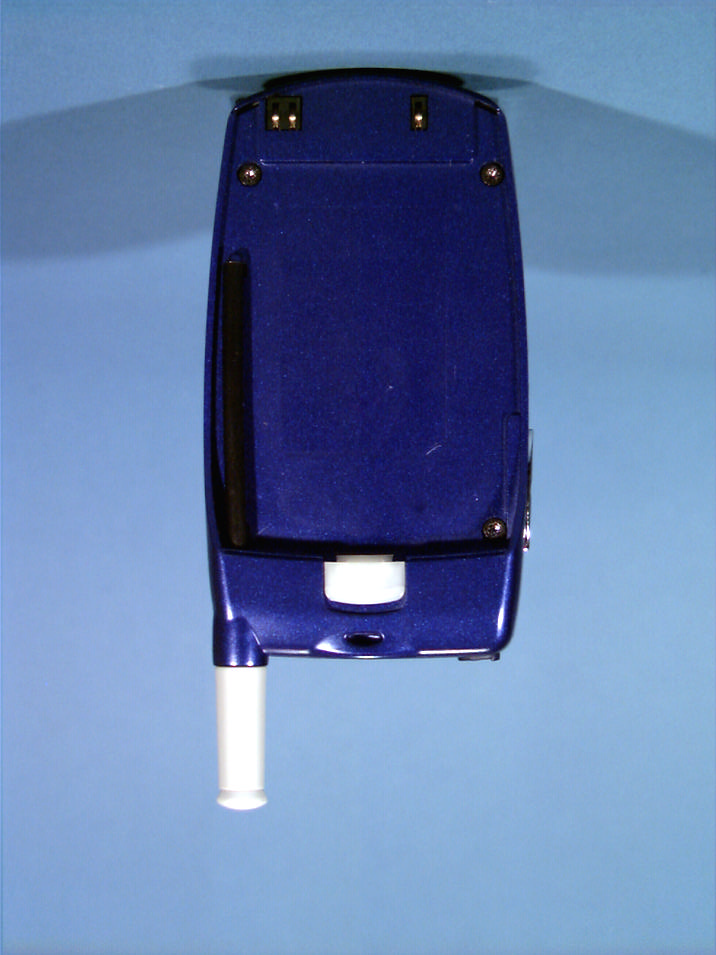

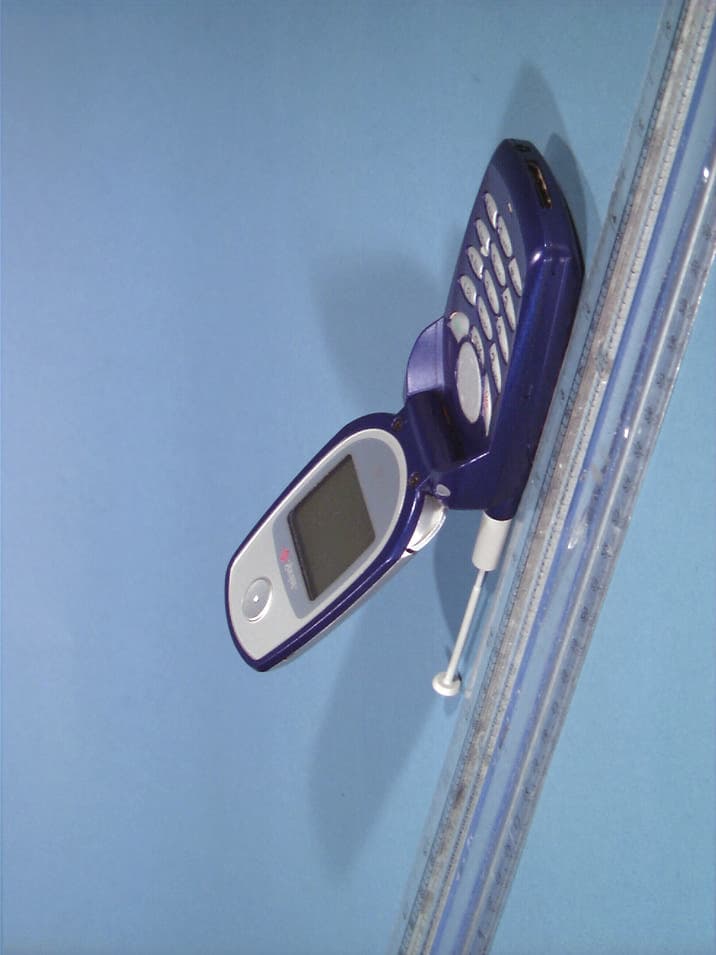

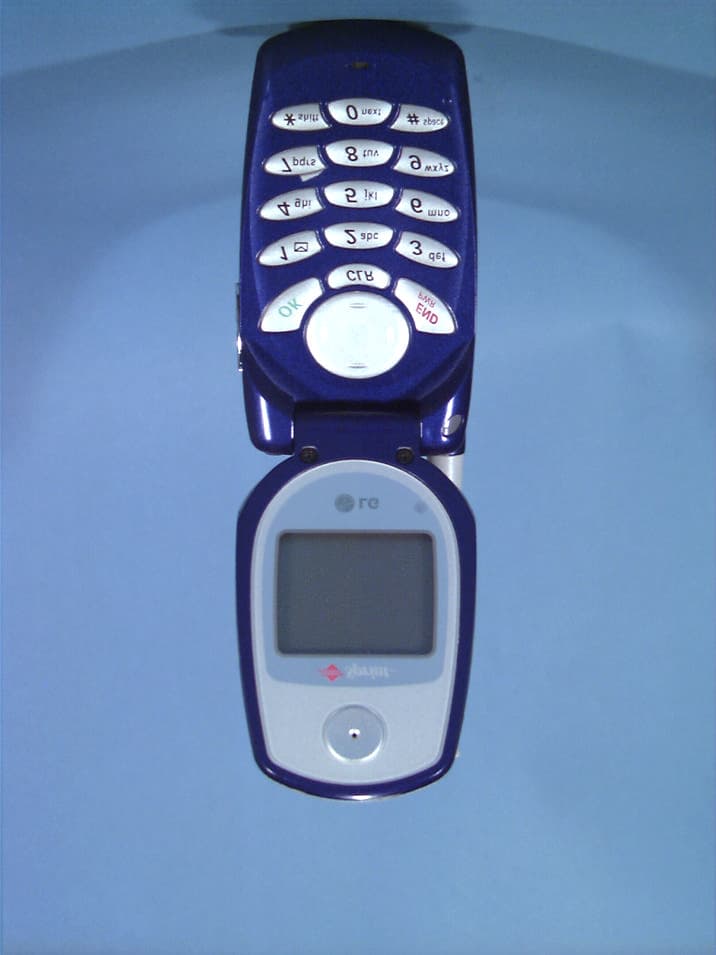

LG Electronics FCC ID: BEJLX1200 -- PCS CDMA Head SAR SAM Phantom; Right Hand Section; Probe:ET3DV6 - SN1677; ConvF(5.30,5.30,5.30) Med. Parameters 1900 MHz Brain: σ = 1.42 mho/m ε r = 40.76 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.830 mW/g, SAR (10g): 0.508 mW/g LGE PCS(Single Mode) w/ GPS phone Model: LX1200 PCS CDMA Mode, Ch.0600 [1880.00MHz]; Standard Battery; Ambient Temp. = 22.3°C / Meas. Tissue Temp. = 22.2°C Conducted Power = 24.0dBm; Right Head Phantom, Cheek/Touch position; Flip = open Test Date -- 09/16/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 8.53E-2 2.56E-1 4.26E-1 5.97E-1 7.68E-1 PCTEST Engineering Laboratory, Inc. LG Electronics FCC ID: BEJLX1200 -- PCS CDMA Head SAR SAM Phantom; Right Hand Section; Probe:ET3DV6 - SN1677; ConvF(5.30,5.30,5.30) Med. Parameters 1900 MHz Brain: σ = 1.42 mho/m ε r = 40.76 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.238 mW/g, SAR (10g): 0.144 mW/g LGE PCS(Single Mode) w/ GPS phone Model: LX1200 PCS CDMA Mode, Ch.0600 [1880.00MHz]; Standard Battery; Ambient Temp. = 22.3°C / Meas. Tissue Temp. = 22.2°C Conducted Power = 24.0dBm; Right Head Phantom, EAR/15 Degrees Tilt position; Flip = open Test Date -- 09/16/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 2.35E-2 7.05E-2 1.18E-1 1.65E-1 2.12E-1 PCTEST Engineering Laboratory, Inc. LG Electronics FCC ID: BEJLX1200 -- PCS CDMA Head SAR SAM Phantom; Left Hand Section; Probe:ET3DV6 - SN1677; ConvF(5.30,5.30,5.30) Med. Parameters 1900 MHz Brain: σ = 1.42 mho/m ε r = 40.76 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.773 mW/g, SAR (10g): 0.463 mW/g LGE PCS(Single Mode) w/ GPS phone Model: LX1200 PCS CDMA Mode, Ch.0600 [1880.00MHz]; Standard Battery; Ambient Temp. = 22.3°C / Meas. Tissue Temp. = 22.2°C Conducted Power = 24.0dBm; Left Head Phantom, Cheek/Touch position; Flip = open Test Date -- 09/16/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 8.66E-2 2.60E-1 4.33E-1 6.06E-1 7.79E-1 PCTEST Engineering Laboratory, Inc. LG Electronics FCC ID: BEJLX1200 -- PCS CDMA Head SAR SAM Phantom; Left Hand Section; Probe:ET3DV6 - SN1677; ConvF(5.30,5.30,5.30) Med. Parameters 1900 MHz Brain: σ = 1.42 mho/m ε r = 40.76 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.192 mW/g, SAR (10g): 0.114 mW/g LGE PCS(Single Mode) w/ GPS phone Model: LX1200 PCS CDMA Mode, Ch.0600 [1880.00MHz]; Standard Battery; Ambient Temp. = 22.3°C / Meas. Tissue Temp. = 22.2°C Conducted Power = 24.0dBm; Left Head Phantom, EAR/15 Degrees Tilt position; Flip = open Test Date -- 09/16/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 1.45E-2 4.35E-2 7.25E-2 1.01E-1 1.31E-1 PCTEST Engineering Laboratory, Inc. LG Electronics FCC ID: BEJLX1200 -- PCS CDMA Body SAR SAM Phantom; Flat Section; Probe:ET3DV6 - SN1677; ConvF(4.90,4.90,4.90) Med. Parameters 1900 MHz Muscle: σ = 1.53 mho/m ε r = 53.9 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.304 mW/g, SAR (10g): 0.176 mW/g LGE PCS (Single Mode) w/ GPS phone Model: LX1200 PCS CDMA Mode, Ch.0600 [1880.00MHz]; Standard Battery; Flip = closed; Ambient Temp. = 22.3°C / Meas. Tissue Temp. = 22.2°C Conducted Power = 24.0dBm; Spacing = 1.5cm from back (antenna side) of EUT to flat phantom, No BeltClip/No Holster Test Date -- 09/17/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 3.30E-2 9.90E-2 1.65E-1 2.31E-1 2.97E-1 PCTEST Engineering Laboratory, Inc.

© 2002 PCTEST Lab LGE FCC ID: BEJLX1200 Single-Mode PCS Phone (Model: LX1200) © 2002 PCTEST Lab LGE FCC ID: BEJLX1200 Single-Mode PCS Phone (Model: LX1200) © 2002 PCTEST Lab LGE FCC ID: BEJLX1200 Single-Mode PCS Phone (Model: LX1200) © 2002 PCTEST Lab LGE FCC ID: BEJLX1200 Single-Mode PCS Phone (Model: LX1200) © 2002 PCTEST Lab LGE FCC ID: BEJLX1200 Single-Mode PCS Phone (Model: LX1200) © 2002 PCTEST Lab LGE FCC ID: BEJLX1200 Single-Mode PCS Phone (Model: LX1200) © 2002 PCTEST Lab LGE FCC ID: BEJLX1200 Single-Mode PCS Phone (Model: LX1200) © 2002 PCTEST Lab LGE FCC ID: BEJLX1200 Single-Mode PCS Phone (Model: LX1200) © 2002 PCTEST Lab LGE FCC ID: BEJLX1200 Single-Mode PCS Phone (Model: LX1200) © 2002 PCTEST Lab LGE FCC ID: BEJLX1200 Single-Mode PCS Phone (Model: LX1200) © 2002 PCTEST Lab LGE FCC ID: BEJLX1200 Single-Mode PCS Phone (Model: LX1200) © 2002 PCTEST Lab LGE FCC ID: BEJLX1200 Single-Mode PCS Phone (Model: LX1200) © 2002 PCTEST Lab LGE FCC ID: BEJLX1200 Single-Mode PCS Phone (Model: LX1200) © 2002 PCTEST Lab LGE FCC ID: BEJLX1200 Single-Mode PCS Phone (Model: LX1200) © 2002 PCTEST Lab LGE FCC ID: BEJLX1200 Single-Mode PCS Phone (Model: LX1200)

1900MHz Brain Dipole Validation SAM Phantom; Flat Section; Probe:ET3DV6 - SN1677; ConvF(5.30,5.30,5.30) Med. Parameters 1900 MHz Brain: σ = 1.42 mho/m ε r = 40.76 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 9.86 mW/g, SAR (10g): 5.11 mW/g 1900MHz Brain Dipole Validation (D1900V2 S/N: 502) Frequency: 1900 MHz; Antenna Input Power: 250 [mW]; Ambient Temp. = 22.3°C / Meas. Tissue Temp. = 22.2°C PCTEST Brain Tissue Simulating Liquid [09/16/2002] SAR Tot [mW/g] 9.83E-1 2.89E+0 4.91E+0 6.83E+0 8.76E+0 PCTEST Engineering Laboratory, Inc.

PCTEST PT. 24 REPORT FCC CERTIFICATION Reviewed By: Quality Manager Test Report S/N: 24.220916485.BEJ Test Dates: Sept. 16-18, 2002 EUT Type: Single-Mode PCS Phone FCC ID: BEJLX1200 Page 1 of 17 © 2002 PCTEST ENGINEERING LABORATORY, INC. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 24 Certification LG ELECTRONICS INC. Dates of Tests: September 16-18, 2002 Communication Terminal Research Lab Test Report S/N: 24.220916485.BEJ 459-9, Kasan-dong, Keumchun-Ku Test Site: PCTEST Lab, Columbia MD Seoul 153-023, Korea Attn: Harris Ahn, Principal Engineer FCC ID BEJLX1200 APPLICANT LG ELECTRONICS, INC. Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §24(E), §2 EUT Type: Single-Mode PCS Phone Model: LX1200 Tx Frequency Range: 1851.25MHz — 1908.75MHz (PCS CDMA) Rx Frequency Range: 1931.25MHz — 1988.75MHz (PCS CDMA) Max. RF Output Power: 0.292W EIRP PCS CDMA (24.651 dBm) Max. SAR Measurement: 0.830W/kg PCS CDMA Head SAR; 0.304W/kg PCS CDMA Body SAR Emission Designator(s): 1M25F9W This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 220916485.BEJ PCTEST PT. 24 REPORT FCC CERTIFICATION Reviewed By: Quality Manager Test Report S/N: 24.220916485.BEJ Test Dates: Sept. 16-18, 2002 EUT Type: Single-Mode PCS Phone FCC ID: BEJLX1200 Page 2 of 17 © 2002 PCTEST ENGINEERING LABORATORY, INC. TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1 SCOPE 3 2.1 INTRODUCTION 4 3.1 INSERTS 5 4.1 DESCRIPTION OF TESTS 6-7 6.1 EQUIVALENT ISOTROPIC RADIATED POWER 8 7.1 RADIATED MEASUREMENTS 9-11 8.1 FREQUENCY STABILITY 12-13 9.1 PLOTS OF EMISSIONS 14 10.1 LIST OF TEST EQUIPMENT 15 11.1 SAMPLE CALCULATIONS 16 12.1 CONCLUSION 17 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL / LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: SCHEMATIC DIAGRAM(S) ATTACHMENT K: OPERATIONAL / CIRCUIT DESCRIPTION ATTACHMENT L: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT M: USER’S MANUAL ATTACHMENT N: SAR MEASUREMENT REPORT ATTACHMENT O: SAR TEST DATA ATTACHMENT P: SAR TEST SETUP PHOTOGRAPHS ATTACHMENT Q: DIPOLE VALIDATION ATTACHMENT R: PROBE CALIBRATION PCTEST PT. 24 REPORT FCC CERTIFICATION Reviewed By: Quality Manager Test Report S/N: 24.220916485.BEJ Test Dates: Sept. 16-18, 2002 EUT Type: Single-Mode PCS Phone FCC ID: BEJLX1200 Page 3 of 17 © 2002 PCTEST ENGINEERING LABORATORY, INC. MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2.1033 General Information Applicant Name: LG ELECTRONICS, INC. Address: Communication Terminal Research Lab 459-9, Kasan-dong, Keumchun-Ku Seoul 153-023, Korea Attention: Harris Ahn, Principal Engineer • FCC ID: BEJLX1200 • Quantity: Quantity production is planned • Emission Designators: 1M25F9W • Tx Freq. Range: 1851.25 — 1908.75 MHz (PCS CDMA) • Rx Freq. Range: 1931.25 — 1988.75 MHz (PCS CDMA) • Max. Power Rating: 0.292W EIRP PCS CDMA (24.651 dBm) • FCC Classification(s): Licensed Portable Tx Held to Ear (PCE) • Equipment (EUT) Type: Single-Mode PCS Phone • Modulation(s): PCS CDMA • Frequency Tolerance: ± 0.00025% (2.5 ppm) • FCC Rule Part(s): § 24(E) • Dates of Tests: Sept. 16-18, 2002 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N: 24.220916485.BEJ PCTEST PT. 24 REPORT FCC CERTIFICATION Reviewed By: Quality Manager Test Report S/N: 24.220916485.BEJ Test Dates: Sept. 16-18, 2002 EUT Type: Single-Mode PCS Phone FCC ID: BEJLX1200 Page 4 of 17 © 2002 PCTEST ENGINEERING LABORATORY, INC. 2.1 INTRODUCTION These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4 on October 19, 1992. Measurement Procedure The radiated and spurious measurements were made outdoors at a 3-meter test range (see Figure2). The equipment under test is placed on a wooden turntable 3-meters from the receive antenna. The receive antenna height and turntable rotations were adjusted for the highest reading on the receive spectrum analyzer. A half- wave dipole was substituted in place of the EUT. This dipole antenna was driven by a signal generator and the level of the signal generator was adjusted to obtain the same receive spectrum analyzer reading. This level is recorded. For readings above 1GHz, the above procedure is repeat…

Text truncated - open the document above for the full version.

© 2002 PCTEST Lab LGE FCC ID: BEJLX1200 Single-Mode PCS Phone (Model: LX1200) © 2002 PCTEST Lab LGE FCC ID: BEJLX1200 Single-Mode PCS Phone (Model: LX1200) © 2002 PCTEST Lab LGE FCC ID: BEJLX1200 Single-Mode PCS Phone (Model: LX1200) © 2002 PCTEST Lab LGE FCC ID: BEJLX1200 Single-Mode PCS Phone (Model: LX1200)
